Fiery

SERVER & CONTROLLER SOLUTIONS

EXP6000/EXP5000 Color Server

Conﬁguration and Setup

45049018 15 March 2005

ONTENTS

CONTENTS

NTRODUCTION

Terminology and conventions

About this manual

ONNECTING

Fiery EXP6000/EXP5000 on the network

Stages of installation on the network

THE

ETWORK

Summary of Fiery EXP6000/EXP5000 network installation 12

Network server setup requirements

Windows networks 13

NetWare networks 14

AppleTalk networks 15

UNIX networks 15

REPARING

Levels of access and control

FOR

IERY

EXP6000/EXP5000 S

Fiery EXP6000/EXP5000 print connections 16

Passwords 17

WebTools 18

Control level examples 19

System software 20

System software update 20

Anti-virus protection 20

E-mail viruses and E-mail printing 21

ETUP

IP address ﬁltering and port ﬁltering 21

Secure Printing 21

Group Printing (Member Printing) 21

CONTENTS

Connecting network cable to the Fiery EXP6000/EXP5000

Back view of the Fiery EXP6000/EXP5000 22

Ethernet connection 22

About Setup

Setup from a Windows computer 23

ETTING

Accessing Setup

General Setup options

THE

Local Setup from the Fiery EXP6000/EXP5000 24

Remote Setup 25

Job Log Setup 28

IERY

EXP6000/EXP5000

FROM

INDOWS

OMPUTER

Network Setup

Adapters/Ports 29

Protocols 30

Security 31

Services 32

Printer Setup options

Printer connections 46

Job Batching Delay 46

VDP Search Path 46

PS (PostScript) Setup 46

Color Setup 48

Exiting Setup

ONFIGURING

Conﬁguring the Fiery EXP6000/EXP5000 and clients for WebTools

Setting the WebLink destination

IERY

OOLS

CONTENTS

DMINISTERING

Administrator functions

Setting passwords

Passwords from a Windows computer 55

Changing the Windows XP system password 56

Clearing the Fiery EXP6000/EXP5000

Mapping the Fiery EXP6000/EXP5000 to a drive letter

Ensuring virus-free operation of the Fiery EXP6000/EXP5000

Managing address books

FTP Printing

Setting up printing groups

THE

IERY

EXP6000/EXP5000

Setting up a search path for VDP Resource Manager

Printing the Conﬁguration page

Maintaining optimal Fiery EXP6000/EXP5000 performance

Shutting down, rebooting, and restarting the Fiery EXP6000/EXP5000

Shutting down and rebooting the Fiery EXP6000/EXP5000 68

Burning a CD-RW

ROUBLESHOOTING

Troubleshooting the Fiery EXP6000/EXP5000

Safe Print 71

Runtime error messages 71

Cannot connect to the Fiery EXP6000/EXP5000 with Fiery utilities 73

Cannot connect to the Fiery EXP6000/EXP5000 with Command WorkStation 73

NDEX

NTRODUCTION

This manual is intended for anyone who is responsible for integrating the Fiery EXP6000/ EXP5000 Color Server into a business environment that includes networked personal computers. After setting up the Fiery EXP6000/EXP5000 Color Server and client workstations, individual users can print to the Fiery EXP6000/EXP5000 Color Server as a high-performance networked printer.

This manual describes how to set up network servers and user computers to use the Fiery EXP6000/EXP5000 Color Server and how to install user software and set up printing from Microsoft Windows and Apple Mac OS computers. For general information about using the digital press, your computer, your software, or your network, see the manuals that accompany those products.

The Fiery EXP6000/EXP5000 includes support for Fiery WebTools and software for EFI Command WorkStation, which allow an operator to manage all jobs sent to the Fiery EXP6000/EXP5000. Although it may not be the case at all sites, the documentation for this product assumes the presence of an operator who controls and manages jobs sent by users from remote computers.

Setting up the network environment correctly requires the presence and active cooperation of the network administrator. Detailed instructions for conﬁguring networks is beyond the scope of this manual. For more information, see the documentation that accompanies your network system.

Any additional connectivity or administrative features speciﬁc to the digital press are described in Customer Release Notes.

NTRODUCTION

Terminology and conventions

This manual uses the following terminology and conventions.

Term or convention Refers to

Aero Fiery EXP6000/EXP5000 (in illustrations and examples)

Digital press DocuColor 6060/5252/2060/2045

Fiery EXP6000/EXP5000 Fiery EXP6000/EXP5000 Color Server

Titles in italics

Windows Windows 98, Windows Me, Windows NT 4.0,

About this manual

This manual is organized as follows:

Connecting to the Network illustrates the network connectors on the Fiery EXP6000/

EXP5000 and provides information that is speciﬁc to the Fiery EXP6000/EXP5000 about setting up network servers. For information about network servers, see the documentation that accompanies your network system.

Preparing for Fiery EXP6000/EXP5000 Setup describes how to prepare for Fiery EXP6000/

EXP5000 Setup, including planning system security through access levels.

Setting Up the Fiery EXP6000/EXP5000 from a Windows Computer describes

Fiery EXP6000/EXP5000 Setup from a Windows computer.

Conﬁguring Fiery WebTools describes setting up the Fiery EXP6000/EXP5000 for

WebTools.

Administering the Fiery EXP6000/EXP5000 summarizes some administrative features of

Fiery EXP6000/EXP5000 software, and offers troubleshooting solutions.

Tr oubleshooting the Fiery EXP6000/EXP5000 describes issues that may occur in setting up

the Fiery EXP6000/EXP5000 and offers solutions.

Administrator functions described in other documentation are summarized on page 53.

ONNECTING

Fiery EXP6000/EXP5000 on the network

CONNECTING TO THE NETWORK

THE

This chapter summarizes the stages in setting up the Fiery EXP6000/EXP5000.

When the Fiery EXP6000/EXP5000 is connected to a network, it behaves as a networked PostScript printer. The Fiery EXP6000/EXP5000 supports the following network protocols (rules that enable computers on a network to communicate with each other):

•AppleTalk

•TCP/IP, which also includes the BOOTP, DHCP, ftp, http, IMAP, lpd, nbt, POP3,

ETWORK

Port 9100, SMTP, and SNMP protocols

• IPX/SPX (Novell)

These protocols are supported on Mac OS, Windows, and UNIX platforms and can run concurrently on the same cable. Computers that use other protocols can print through a server that uses one of the protocols mentioned. The Fiery EXP6000/EXP5000 is auto-sensing, and handles all connections simultaneously.

CONNECTING TO THE NETWORK

Stages of installation on the network

Installation can be performed by a network or printing administrator. The stages of a successful installation are:

1 Conﬁguring the network environment

Conﬁgure network servers to provide users with access to the Fiery EXP6000/EXP5000 as a networked printer. For information about conﬁguring network servers as they relate speciﬁcally to the Fiery EXP6000/EXP5000, see page 13. For information about using your network, see the documentation that accompanies your network system.

2Physically connecting the Fiery EXP6000/EXP5000 to a functioning network

Prepare a network node for the Fiery EXP6000/EXP5000. Obtain cable, route it to the location where the Fiery EXP6000/EXP5000 is to be installed (near the digital press), and attach the cable to the network connector of the Fiery EXP6000/EXP5000. For details, see page 22.

3 Setting Up the Fiery EXP6000/EXP5000

Conﬁgure the Fiery EXP6000/EXP5000 for your printing and network environment (see “Setting Up the Fiery EXP6000/EXP5000 from a Windows Computer” on page 24).

4Preparing user computers for printing

Install the ﬁles needed for printing, install user software, and connect the user computers to the network. The software installation is described in Printing from Windows and Printing

from Mac OS.

5Administering the Fiery EXP6000/EXP5000

Monitor and maintain system performance and troubleshoot problems that may arise (see “Administering the Fiery EXP6000/EXP5000” on page 53).

CONNECTING TO THE NETWORK

Summary of Fiery EXP6000/EXP5000 network installation

Network Server conﬁguration

Conﬁgure network servers to specify Fiery EXP6000/ EXP5000 print queues and users.

Fiery EXP6000/EXP5000

Connection

Prepare a network node. Connect the Fiery EXP6000/ EXP5000 to the network. If you use the Advanced Controller Interface

FACI (Fiery

), connect it to the network.

Fiery EXP6000/EXP5000

Fiery EXP6000/EXP5000 Setup

Client computer Setup

In Fiery EXP6000/EXP5000 Setup, conﬁgure the appropriate default settings.

At each user’s computer:

•Install the appropriate printer ﬁles and connect to one or more print connections.

•Install utilities and an Internet browser on computers where users will use them.

•Verify the Fiery EXP6000/EXP5000 in the list of printers and run a test print.

Fiery EXP6000/EXP5000 available on the network

CONNECTING TO THE NETWORK

Network server setup requirements

This section provides basic information about conﬁguring the Fiery EXP6000/EXP5000 and using it on the network. It does not explain network functions for printing in general. Only information speciﬁc to the Fiery EXP6000/EXP5000 is presented. Setting up the network environment correctly requires the presence and active cooperation of the network administrator. Detailed instructions for conﬁguring networks is beyond the scope of this manual. For information, see the documentation that accompanies your network system.

Conﬁgure the network servers for printing to the Fiery EXP6000/EXP5000 and ensure that there is a live network connection before you conﬁgure Fiery EXP6000/EXP5000 network settings in Setup. This allows the Fiery EXP6000/EXP5000 to query the network for zones, servers, and server-based queues.

Whenever you change the conﬁguration of the Fiery EXP6000/EXP5000, digital press, or network at your site, alter the settings to correspond to the changed environment. Changing network or port settings may require that you make changes to other Setup options, as well.

Windows networks

• The Fiery EXP6000/EXP5000 requires a valid IP address, subnet mask, and gateway address.

Type these addresses manually or use DHCP or BOOTP protocols to assign them dynamically. Make sure the Fiery EXP6000/EXP5000 name and address are listed in a domain name server (DNS) or hosts name database used by your system.

If more than one Fiery EXP6000/EXP5000 print connection is published (for example, if both the Print queue and the Hold queue are published), consider creating a printer for each print connection, so that users can print to each connection directly. When prompted to specify the printer name, type a name that indicates the Fiery EXP6000/EXP5000 print connection.

• Conﬁgure the Fiery EXP6000/EXP5000 with the correct Windows NT 4.0/2000/Server 2003 domain name.

This is especially important for Windows printing, also known as SMB printing. For Fiery EXP6000/EXP5000 systems that include the FACI, open the Start Menu> Settings > Control Panel>Network> Identiﬁcation tab, and type the correct domain name. Select “Create a Computer Account in the Domain,” and type the user name and password of a user who can add computers to the speciﬁed domain. For conﬁgurations that do not include the FACI, you must add the Fiery EXP6000/EXP5000 to the domain from a networked Windows NT 4.0/2000 server, using the Server Manager utility.

• The Fiery EXP6000/EXP5000 does not support the Windows 2000/Server 2003 Active Directory Service.

When you use the Fiery EXP6000/EXP5000 in a Windows 2000/Server 2003 server environment, assign the Fiery EXP6000/EXP5000 to a Domain or Workgroup.

CONNECTING TO THE NETWORK

NetWare networks

• NetWare 3.x and iPrint networks are not supported.

•You must have administrator privileges on the network to create new NDS or bindery objects.

For more information, see the documentation that accompanies your network server.

•You can conﬁgure a single directory tree and up to eight bindery servers simultaneously.

• The Fiery EXP6000/EXP5000 looks for print jobs on one NetWare print server per bindery server.

NetWare ﬁle servers support the creation of print queues, which are storage areas for print jobs. When a client on a remote computer decides to print, the job is directed to a Print queue on the NetWare ﬁle server and spooled to the NetWare server disk, freeing up the client workstation.

You must assign the NetWare queue names a speciﬁc extension corresponding to the Fiery EXP6000/EXP5000 print connection, as follows:

_print _hold _direct

OTE: These extension names must be in English and in all lowercase letters.

You do not need to perform Setup when you create or remove a NetWare queue. However, always restart the Fiery EXP6000/EXP5000 after you create or remove a queue.

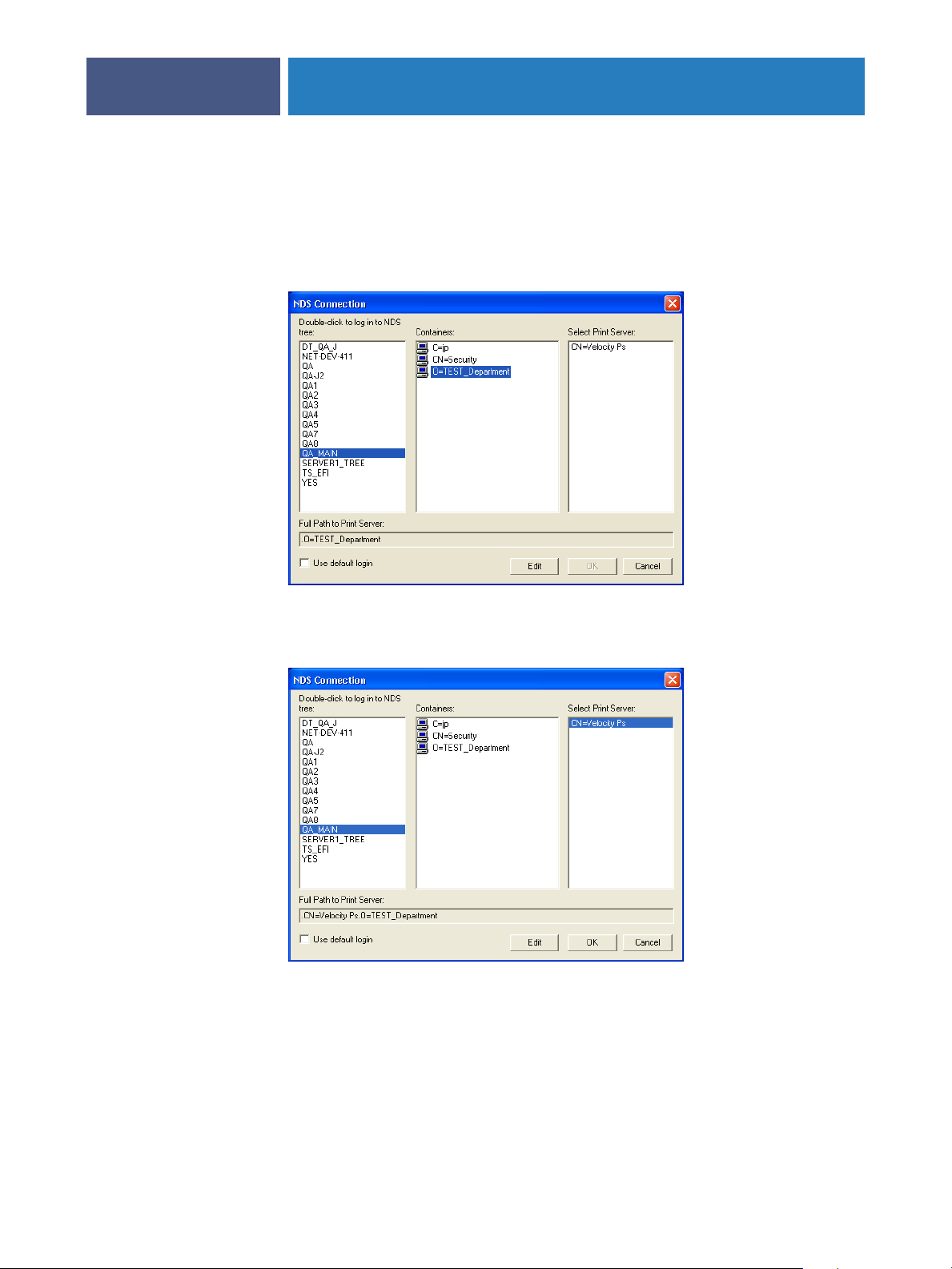

When the Fiery EXP6000/EXP5000 is conﬁgured to connect to a NetWare server, it polls the NetWare server for jobs in each of its queues. If jobs are found, they are automatically transferred over the network to the matching connection on the Fiery EXP6000/EXP5000. For example, jobs from the NetWare queue with the _print extension are sent to the Fiery EXP6000/EXP5000 Print queue.

• When you set the NetWare bindery context, you can connect only one directory tree to the Fiery EXP6000/EXP5000.

To connect additional NetWare servers, use bindery emulation. You can connect up to eight bindery servers to the Fiery EXP6000/EXP5000.

NOTE: The ﬁle server you select must not be in the same tree as the one you selected in

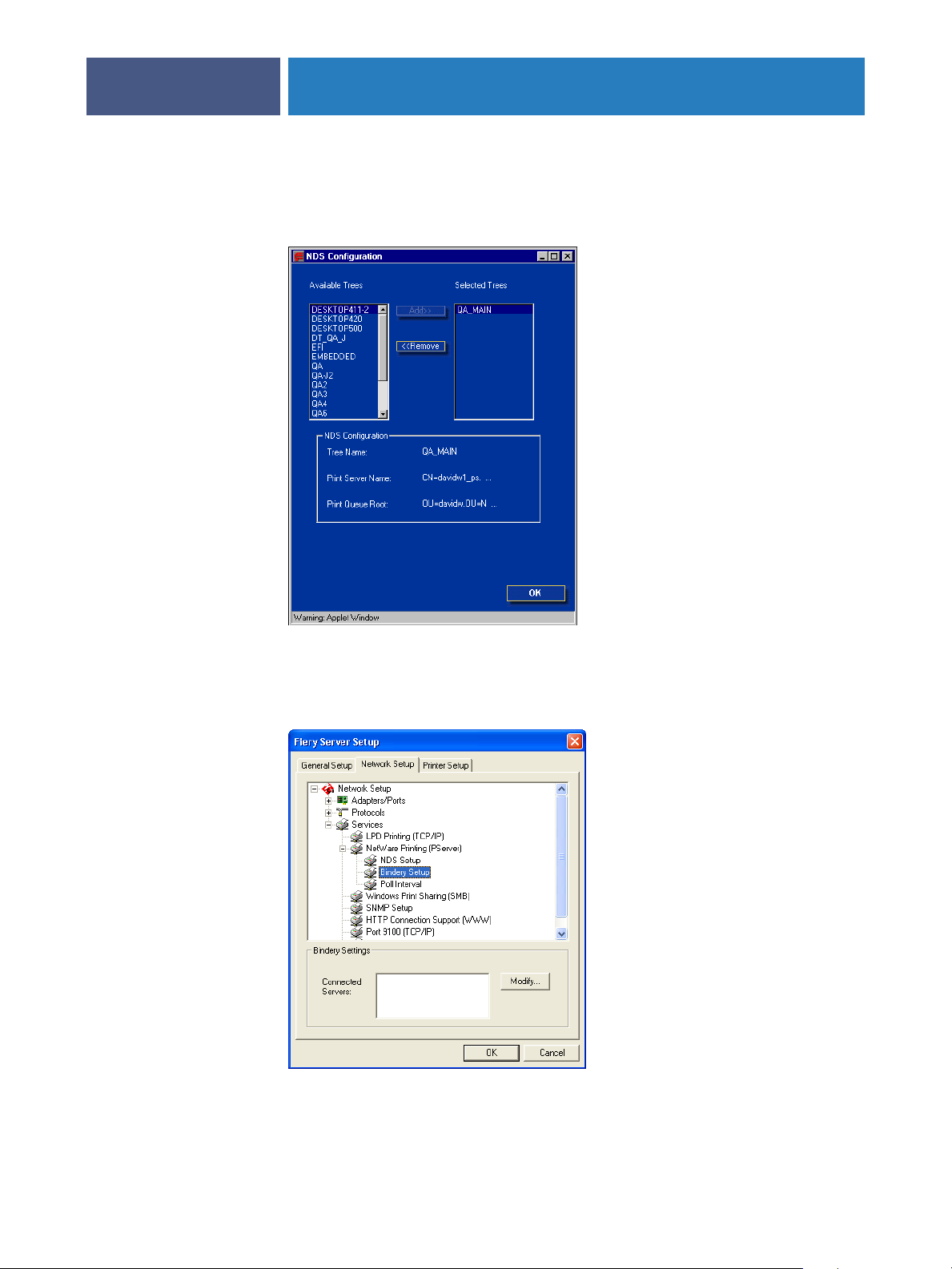

NDS Setup.

• The Fiery EXP6000/EXP5000 does not support the bidirectional communication features in NDPS.

CONNECTING TO THE NETWORK

AppleTalk networks

AppleShare servers require no special conﬁguration.

UNIX networks

• When you conﬁgure a UNIX workstation with the lpd protocol and connect to the Fiery EXP6000/EXP5000 over a TCP/IP network, you can print directly to the Fiery EXP6000/ EXP5000.

• Setting up UNIX workstations requires an administrator with root privileges. After the initial conﬁguration, UNIX users submit print jobs to a named printer.

• The Fiery EXP6000/EXP5000 is a printer controller that understands lpd protocols.

• The Fiery EXP6000/EXP5000 has a remote printer name you must use in order to communicate with it successfully.

Regardless of the UNIX system you use, the name you use for the remote printer (or rp in the

/etc/printcap ﬁle) in conﬁguring the network for the Fiery EXP6000/EXP5000 must be one

of the following:

print hold direct

Workstations on a TCP/IP network can print directly to the Fiery EXP6000/EXP5000 as a remote printer, or can print to a Windows NT 4.0/2000/Server 2003 server or UNIX workstation acting as a print server. Because the Fiery EXP6000/EXP5000 spools jobs and acts as a print server, there is no advantage in placing another print server between a workstation and the Fiery EXP6000/EXP5000.

PREPARING FOR FIERY EXP6000/EXP5000 SETUP

To prepare for printing at your site, you must do some initial Fiery EXP6000/EXP5000 conﬁguration (or “Setup”) to specify the network environment and the types of printing you do. Before you perform Setup, you must decide the levels of access to implement, such as passwords and other security features that the Fiery EXP6000/EXP5000 offers. Because many of these security features are interconnected, review the information in this chapter to plan for an effective security system, and then perform Setup accordingly.

Levels of access and control

When you conﬁgure the Fiery EXP6000/EXP5000 during Setup, you (as system administrator) implement a particular level of control by enabling these elements:

•Print connections

•Passwords

•Access to WebTools

Fiery EXP6000/EXP5000 print connections

The Fiery EXP6000/EXP5000 supports three print connections: Hold queue, Print queue, and Direct connection. You enable or “publish” these print connections to users on the network when you conﬁgure Printer Setup. All published connections are constantly checked for the presence of jobs. The Print queue and Direct connection give remote users more direct access to the Fiery EXP6000/EXP5000 than the Hold queue. Therefore, do not publish the Print queue and the Direct connection in environments where maximum control is required.

In addition, you can enable the Printed queue, which is a storage area for the most recent jobs from the Print queue. The Printed queue allows you to reprint those jobs. In Setup, enable the Printed queue and specify the maximum number of jobs to retain in the queue (see page 27). To reprint jobs in the Printed queue, use the job management tools.

NOTE: To use the Fiery utilities and WebTools, you must enable at least one print connection.

PREPARING FOR FIERY EXP6000/EXP5000 SETUP

Hold queue

Jobs sent to the Hold queue are spooled to the Fiery EXP6000/EXP5000 hard disk for printing at a later time or for reprinting. Because the Hold queue is a storage area, jobs sent to it cannot proceed through the printing process until the operator intervenes using the job management tools.

Print queue

The Print queue is the standard Fiery EXP6000/EXP5000 queue. Jobs sent to the Print queue are processed and printed in the order in which they are received. Jobs prioritized by an operator with the job management tools and jobs sent via the Direct connection take priority over jobs sent to the Print queue.

Direct connection

The Direct connection transmits jobs directly to the Fiery EXP6000/EXP5000, but only when the Fiery EXP6000/EXP5000 is Idle. If the Fiery EXP6000/EXP5000 is busy, the job remains at the user workstation until the Fiery EXP6000/EXP5000 is ready. The job is then processed as soon as the previous job is ﬁnished and before the next queued job is processed.

Jobs sent to the Direct connection are not stored on the Fiery EXP6000/EXP5000 hard disk, and cannot be selected for reprinting, moving, or deletion. Therefore, the Direct connection provides a measure of security for sensitive ﬁles. Jobs sent to the Direct connection do appear in the Job Log, for accounting purposes.

NOTE: To download fonts to the Fiery EXP6000/EXP5000, you must publish the

Direct connection.

Passwords

Implement passwords as a means of controlling access to Fiery EXP6000/EXP5000 functions. The Fiery EXP6000/EXP5000 allows you to set the following passwords in Setup:

Administrator: from Command WorkStation or WebSetup (or local Setup, if you have

installed the FACI)

Operator: from Command WorkStation or WebSetup

NOTE: These passwords are separate from the Windows default system password.

NOTE: By default, the Administrator password is set on the Fiery EXP6000/EXP5000, but the

Operator password is not. We strongly recommend that you change the Administrator password to protect the Fiery EXP6000/EXP5000 from random or accidental changes to Setup.

PREPARING FOR FIERY EXP6000/EXP5000 SETUP

Administrator privileges

Administrator control, which confers control of Setup, is the highest level of control because the person who has access to Setup can control the printing and job management environment. Administrator privileges include:

•Publishing print connections

•Setting passwords

•Deleting fonts

• Controlling print jobs from the job management tools

•Overriding job settings

• Clearing the Fiery EXP6000/EXP5000 of all job data

•Deﬁning default color proﬁles

•Setting default settings for print options

Operator privileges

Operator control includes control of print jobs from the job management tools, including the ability to override job settings.

Guest privileges (no password)

A user does not need a password to log in as a Guest from the job management tools. A Guest can view the status of active jobs but cannot make changes to jobs or to the Fiery EXP6000/ EXP5000 state.

WebTools

The Fiery EXP6000/EXP5000 supports Internet or intranet access with WebTools from Windows and Mac OS computers. To enable use of WebTools, see “Conﬁguring Fiery

WebTools” on page 51.

You can set the Administrator and Operator passwords to control access to all WebTools features. If you do not speciﬁcally set these passwords, all users have access to all WebTools functions (see page 17).

Status

The Status WebTool provides you with current information about the jobs processing and printing on the Fiery EXP6000/EXP5000. It is not affected by passwords. For more information, see Utilities.

PREPARING FOR FIERY EXP6000/EXP5000 SETUP

WebLink

WebLink provides all users with a link to an address on the Internet. To change the WebLink Internet address, see page 52. This function requires the Administrator password, if one has been set (see “Passwords” on page 17).

NOTE: If you do not set the Administrator password, any user can change the WebLink

address, which affects all users. For this reason, we strongly recommend that you set an Administrator password.

WebDownloader

WebDownloader allows you to print PostScript, EPS, PDF, and TIFF ﬁles directly to the Fiery EXP6000/EXP5000 without opening the ﬁle in an application. It is not affected by passwords.

WebSetup

WebSetup allows you to view and modify Fiery EXP6000/EXP5000 Setup options from a Windows computer. This function requires an Administrator password. For more information, see “Setting Up the Fiery EXP6000/EXP5000 from a Windows Computer” on page 24.

Installer

The Installer WebTool allows users to download installers for printer drivers directly from the Fiery EXP6000/EXP5000. It is not affected by passwords. For more information, see Printing

from Windows and Printing from Mac OS.

Software Updates

You can download updates to the Fiery EXP6000/EXP5000 system software. For more information, see “System software update” on page 20.

Control level examples

The following table shows how print connections, passwords, and WebTool access are used together to create varying levels of security.

Settings used in Setup Minimum

security

Enable Direct connection √ √ √

Enable Print queue √ √ √ √

Enable Web Services √ √ √

Set an Administrator Password (strongly recommended )

√ √ √ √

Maximum security

Set an Operator password √ √ √

PREPARING FOR FIERY EXP6000/EXP5000 SETUP

System software

The Fiery EXP6000/EXP5000 uses Windows XP system architecture to receive and process jobs and send job data to the digital press. Resident on the Fiery EXP6000/EXP5000 is the following software, which is unique to the Fiery EXP6000/EXP5000:

Server: is an independent software process that starts automatically. As the central element

of Fiery EXP6000/EXP5000 system software, the Server processes and controls the spooling, rasterizing, and printing of jobs, as well as job accounting (the Job Log), storage, and retrieval.

Command WorkStation: is the interface tool for the Server process. It provides a graphical

interface for viewing and controlling Server functions.

NOTE: You cannot access Setup functions from Command WorkStation, Macintosh Edition.

System software update

The Fiery EXP6000/EXP5000 allows you to check for system software updates over the Internet. By clicking the Software Updates link in the main WebTools home page, you are connected to a secure web site, from which you can download software updates.

TO DOWNLOAD SYSTEM SOFTWARE UPDATES

1 In an Internet browser, type the IP address or DNS name of the Fiery EXP6000/EXP5000.

2 In the main WebTools page, click Software Updates in the list of available WebTools.

If Software Updates does not appear in the list, click Conﬁgure and enable it.

3 Select the appropriate software update from the list and save it to the desktop.

4 Unzip the ﬁle if it is compressed.

Files included are update ﬁles (also called “patches”) and ReadMe ﬁles (text, PDF, or Microsoft Word documents).

5To install the update, follow the instructions in the ReadMe ﬁle.

Although the Fiery EXP6000/EXP5000 system software is based on the Windows XP platform, do not install third-party updates such as Microsoft Hot Fixes unless your authorized support center recommends that you do so.

Anti-virus protection

To protect against viruses, scan the Fiery EXP6000/EXP5000 periodically with anti-virus software. Make sure you start the anti-virus software only when the Fiery EXP6000/EXP5000 is idle and not receiving jobs. This prevents errors that may result if the anti-virus software acts while the Fiery EXP6000/EXP5000 attempts to process a job.

Use anti-virus software to scan for ﬁles sent to the Fiery EXP6000/EXP5000 outside the usual print scenarios, including ﬁles copied to the Fiery EXP6000/EXP5000 from removable media or a shared network directory.

PREPARING FOR FIERY EXP6000/EXP5000 SETUP

E-mail viruses and E-mail printing

Because you can allow users to print ﬁle attachments in e-mail messages sent to the Fiery EXP6000/EXP5000, the Fiery EXP6000/EXP5000 accepts only valid attachments (for example, PostScript or PDF ﬁles). Typically, viruses transmitted via e-mail require execution by the receiver. Attachments that are not valid ﬁles are discarded by the Fiery EXP6000/ EXP5000. Because ﬁle types such as .BAT, .VBS, and .EXE could launch harmful virus activity, the Fiery EXP6000/EXP5000 does not process these ﬁle types. The Fiery EXP6000/ EXP5000 also ignores e-mails in RTF (Rich Text Format) or HTML (Hypertext Markup Language) format, and any included JavaScript code.

You can deﬁne a list of authorized e-mail addresses on the Fiery EXP6000/EXP5000. Any e-mail that the Fiery EXP6000/EXP5000 receives from an e-mail address not in the authorized list is deleted.

IP address ﬁltering and port ﬁltering

To restrict unauthorized connections to the Fiery EXP6000/EXP5000, you can permit only users whose IP addresses are within a deﬁned range. Commands or jobs sent from unauthorized IP addresses are ignored by the Fiery EXP6000/EXP5000.

Secure Printing

This option allows the printing of highly sensitive or conﬁdential ﬁles. A user printing a ﬁle with the printer driver assigns a password to the job. The user must then type the password at the Fiery EXP6000/EXP5000 to print the job. For more information, see Print Options.

Group Printing (Member Printing)

This feature allows you to deﬁne group names and passwords that users must type in order to print a job. The user types the group name and password from the printer driver, or from an override in Command WorkStation. The group name is included in the Job Log when the job is printed.

You can use this feature for accounting purposes and for limiting printing to users who have a valid group name and password. For more information, see Print Options.

Connecting network cable to the Fiery EXP6000/EXP5000

110/100/1000Mbps

for Fiery EXP6000

2 10/100/1000Mbps

for Fiery EXP5000

PREPARING FOR FIERY EXP6000/EXP5000 SETUP

This section includes an illustration of the Fiery EXP6000/EXP5000 back panel, and provides information about connecting the Fiery EXP6000/EXP5000 to the network.

Back view of the Fiery EXP6000/EXP5000

1 2

Ethernet connection

For Ethernet connections, the Fiery EXP6000/EXP5000 supports UTP (Unshielded Twisted Pair) cabling, deﬁned as Category 5 for use with 100BaseT/1000BaseT, or as Category 3, Category 4, or Category 5 for use with 10BaseT. The cable uses an 8-pin RJ-45 connector that plugs into the RJ-45 socket on the Fiery EXP6000/EXP5000.

TO CONNECT TO THE ETHERNET BOARD

• Connect the network cable to the RJ-45 connector on the back of the Fiery EXP6000/ EXP5000.

You must use a Category 5 unshielded twisted pair cable network cable for 100BaseT/ 1000BaseT.

About Setup

PREPARING FOR FIERY EXP6000/EXP5000 SETUP

Setup conﬁgures the Fiery EXP6000/EXP5000 to communicate with other devices and to manage print jobs. Perform Setup the ﬁrst time you turn on the Fiery EXP6000/EXP5000 after new system software is loaded, or any time Server software is reinstalled. An initial Setup using default settings is adequate to allow users to print to the Fiery EXP6000/EXP5000 and use the WebTools. When your network or user printing environment changes, change Setup options accordingly.

Setup from a Windows computer

Local Setup

Local Setup refers to setting up the Fiery EXP6000/EXP5000 using Command WorkStation from the FACI.

Remote Setup

Remote Setup is the method you use from either Fiery WebSetup or Command WorkStation on a Windows computer on the network.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

SETTING UP THE FIERY EXP6000/EXP5000 FROM

A WINDOWS COMPUTER

After you perform initial Setup (Server, Network, and Printer Setup), conﬁgure the remaining Setup options from a Windows computer. When you ﬁnish making changes, see “Exiting

Setup” on page 50.

Accessing Setup

You can set up the Fiery EXP6000/EXP5000 in two ways:

Local Setup: for systems with the FACI. Local Setup uses a Windows XP Embedded control

panel, Fiery Server Setup.

Remote Setup: performed from a Windows computer using WebSetup or

Command WorkStation. Remote Setup is not supported for Command WorkStation, Macintosh Edition.

NOTE: In this chapter, shortcuts representing both Setup interfaces, where applicable, appear

side by side: local Setup on the left, remote Setup on the right. The highlighted tab indicates the location of the option. Descriptions for the Setup options are listed in the order in which they appear in the local Setup window. Some Setup options cannot be accessed from remote Setup.

To use any of the Setup applications, you must type the Fiery EXP6000/EXP5000 Administrator password, both at the FACI and in the Setup application that you use.

Local Setup from the Fiery EXP6000/EXP5000

Access local Fiery EXP6000/EXP5000 Setup in any of the following ways:

• Right-click FieryBar on the Windows XP Embedded desktop and choose Set Up Fiery.

• Right-click the Fiery icon in the Windows XP Embedded taskbar and choose Set Up Fiery.

•Start Command WorkStation and choose Setup from the Server menu.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

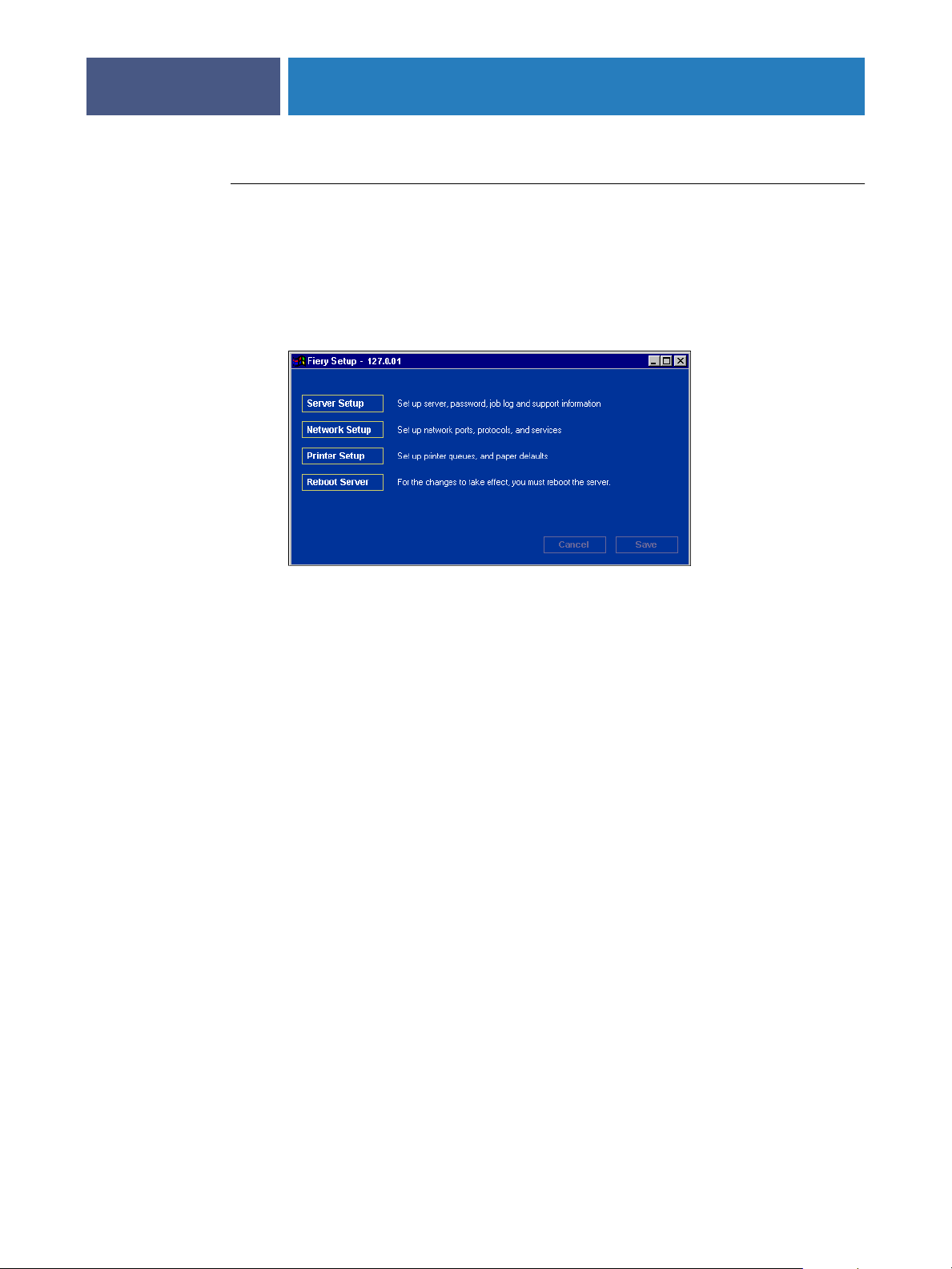

The Setup window appears.

You see the available settings only when you select the particular option. For example, to view or change the setting for the Character Set option, click Character Set. The available settings appear at the bottom of the window.

After making your selections in the window, click Apply, if it is present. When you ﬁnish, click OK to close the entire Setup window.

Remote Setup

Remote Setup is performed from a Windows computer using WebSetup or Command WorkStation.

TO ACCESS WEBSETUP

1 Start your Internet browser and type the IP address of the Fiery EXP6000/EXP5000.

2 Click the WebTools icon in the lower-left corner of the window.

3 Log on as Administrator with the appropriate password.

4 Click WebSetup on the Fiery EXP6000/EXP5000 home page.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

TO ACCESS SETUP FROM COMMAND WORKSTATION

1 Start Command WorkStation.

2 Log on as Administrator with the appropriate password.

3 Choose Setup from the Server menu.

Regardless of the remote Setup method you use, the following dialog box appears.

NOTE: The remote Setup interface is identical from Command WorkStation and WebSetup.

The Setup illustrations in this chapter are displayed from Command WorkStation.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

General Setup options

You can specify Fiery EXP6000/EXP5000 system settings that affect all users, such as the name of the Fiery EXP6000/EXP5000, system date and time, passwords, and Job Log printing.

Server Name: allows you to assign a name for the Fiery EXP6000/EXP5000. This name

appears in the Chooser on an AppleTalk network.

NOTE: Do not use the device name (DC6060 or DC5252) as the server name. If you have

more than one Fiery EXP6000/EXP5000, do not assign them the same name.

Date and Time: speciﬁes the system date and time recorded on the Job Log.

Passwords: see page 55.

Job Log Setup: see page 28.

Printed Queue: speciﬁes whether to enable the Printed queue, a storage location on the

Fiery EXP6000/EXP5000 hard disk for recently printed jobs. You can reprint jobs from the Printed queue without resending them to the Fiery EXP6000/EXP5000. If the Printed queue is not enabled, jobs are deleted from the Fiery EXP6000/EXP5000 hard disk immediately after they are printed.

Jobs Saved in Printed Queue: speciﬁes the number of jobs stored in the Printed queue.

Jobs in the Printed queue take up space on the Fiery EXP6000/EXP5000 hard disk.

Character Set: speciﬁes whether the job management tools use the Macintosh, DOS, or

Windows character set for displaying ﬁle names. This is important if a ﬁle name includes accented or composite characters (such as é or æ). For mixed-platform networks, select the setting that gives the best overall representation of the special characters you use.

Previews: speciﬁes whether a preview thumbnail is displayed in Command WorkStation

when a job is being processed. If you select Yes, the preview thumbnail is displayed in the Processing area of the Activity Monitor.

Start Page: speciﬁes whether the Fiery EXP6000/EXP5000 prints a start page when it is

turned on or restarted. The Start Page displays information about the Fiery EXP6000/ EXP5000, including server name, current date and time, amount of memory installed, network protocols enabled, and print connections published.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Printing Groups: speciﬁes whether to enable printer groups for Member Printing. If you

enable this option, you must also deﬁne user groups and passwords in Command WorkStation. Users must then type their group name in the Group Name option and their password in the Group Password option to print.

Secure Erase: speciﬁes whether the Fiery EXP6000/EXP5000 deletes ﬁles permanently, so

that they cannot be recovered.

Suspend on Mismatch: speciﬁes whether the Fiery EXP6000/EXP5000 holds a job if the job

cannot print because of missing resources or a color proﬁle mismatch. While the job is suspended, other jobs continue to process and print.

Support: allows you to type names, phone numbers, and e-mail addresses of contact people at

your organization who provide support for the Fiery EXP6000/EXP5000 and the digital press. In remote Setup, use the Support tab.

Job Log Setup

Auto Print Job Log Every 55 Jobs: specifies whether the Fiery EXP6000/EXP5000

prints the Job Log after every 55 jobs. The Job Log lists the last 55 jobs processed on the Fiery EXP6000/EXP5000, with accounting information about each one, including user name, document name, time and date printed, number of pages, and other job information.

Auto Clear Job Log Every 55 Jobs: specify whether the Fiery EXP6000/EXP5000 clears the

Job Log after every 55 jobs. If you do not select this option, the Fiery EXP6000/EXP5000 saves a ﬁle containing a record of all jobs ever printed. Since this ﬁle takes up space on the Fiery EXP6000/EXP5000 hard disk, clearing the Job Log frees up additional disk space.

NOTE: To print or delete the Job Log, you need the administrator password.

Job Log Page Size: allows you to select a paper size for the printed Job Log.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Network Setup

Network Setup conﬁgures the Fiery EXP6000/EXP5000 to receive print jobs over the networks used at your site. If the Fiery EXP6000/EXP5000 is conﬁgured to enable more than one protocol, it automatically switches to the correct protocol when it receives a print job. When two network ports are enabled, print jobs can be received over all ports at the same time.

You can view and conﬁgure the following network settings in Network Setup:

Ports: allows you to view currently conﬁgured network port settings.

Protocols: allows you to conﬁgure protocols, including AppleTalk, IPX/SPX, and TCP/IP.

Print Services: allows you to conﬁgure services, including LPD printing (TCP/IP), NetWare

printing (PServer), Windows print sharing (SMB), HTTP support (WWW), Internet Printing Protocol (IPP) printing, Port 9100 printing, E-mail Service, and FTP Service.

Adapters/Ports

In local Setup only, the installed network boards are displayed. You cannot change this information. From remote Setup, you can enable Ethernet. These options are described in the following section.

Ethernet (Port Setup)

Enable Ethernet: allows you to connect the Fiery EXP6000/EXP5000 to an Ethernet

network.

Transmission Speed: allows you to choose the speed of the network to which the

Fiery EXP6000/EXP5000 is attached. Choose Auto Detect if your network environment is mixed.

When you select Auto Detect, make sure that the auto-negotiation settings for speed and duplex are conﬁgured for the network port to which the Fiery EXP6000/EXP5000 is connected. Similarly, when you select a different setting, such as 100 Mbps Full-Duplex, make sure the same settings are conﬁgured for the network port.

NOTE: The 1 Gbps (gigabit per second) setting is full-duplex.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Protocols

You can change AppleTalk, IPX/SPX, and TCP/IP protocol settings for the Fiery EXP6000/ EXP5000. When you click the Modify or Advanced button next to the setting, the system opens a Windows XP control panel (Local Area Connection Properties), where you complete the settings.

By default, the AppleTalk, IPX/SPX, and TCP/IP protocols are installed and enabled.

TO CHANGE PROTOCOL SETTINGS FROM LOCAL SETUP

1 Click Modify or Advanced next to the setting.

The Local Area Connection Properties control panel opens.

2 Click the General tab.

3 Select the protocol that you want to modify.

4 Click Properties and make your selections.

NOTE: For more information, see the documentation that accompanies Windows.

5 Click OK to close the Properties dialog box.

6 Click OK to close the Local Area Connection Properties control panel.

AppleTalk

The current AppleTalk zone is displayed.

IPX/SPX

Use this option to specify IPX/SPX frame types.

The Fiery EXP6000/EXP5000 supports the following Ethernet frame types for IPX/SPX: Ethernet 802.2, Ethernet 802.3, Ethernet II, and Ethernet SNAP. You can also conﬁgure the Fiery EXP6000/EXP5000 to select the frame type automatically.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

TCP/IP

Specify TCP/IP settings. The current settings for IP address, subnet mask, and default gateway address are displayed. For information about setting up printing with TCP/IP, see

“Network server setup requirements” on page 13.

The Fiery EXP6000/EXP5000 requires a unique, valid IP address. You can set a static address or specify that the Fiery EXP6000/EXP5000 obtains the IP addresses automatically.

NOTE: If you specify the DHCP or BOOTP protocol, the Fiery EXP6000/EXP5000 restarts

when you save your changes and exit Setup. Before printing a Conﬁguration page or proceeding with any other operations, allow the Fiery EXP6000/EXP5000 to restart and return to Idle.

To set the subnet mask, type one of the following values:

255.0.0.0 if the IP address starts with a number less than 128

255.255.0.0 if the IP address starts with a number from 128 through 191

255.255.255.0 if the IP address starts with a number greater than 191

NOTE: Conﬁrm the subnet mask setting with your network administrator before proceeding.

In some cases, the required setting may be different from those listed.

If your TCP/IP network has a gateway and users outside the gateway plan to print to the Fiery EXP6000/EXP5000 using TCP/IP, type the gateway address.

NOTE: The Fiery EXP6000/EXP5000 stores assigned IP addresses, even if you later disable

TCP/IP. If you must assign the Fiery EXP6000/EXP5000 IP address to another device, ﬁrst set the Fiery EXP6000/EXP5000 address to a null address.

DNS

You can enable DNS Setup to allow the Fiery EXP6000/EXP5000 to resolve a name to an IP address. To specify DNS settings in remote Setup, click the Protocol2 tab, select Enable DNS Setup, and click DNS Setup.

Security

IP Filtering: allows you to restrict unauthorized connections to the Fiery EXP6000/

EXP5000. You can permit access to only users whose IP addresses are within a deﬁned range of IP addresses. Commands or jobs sent from unauthorized IP addresses are ignored by the Fiery EXP6000/EXP5000.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Port Blocking: To restrict unauthorized connections to the Fiery EXP6000/EXP5000, you

can permit network activity to only certain ports. Commands or jobs sent from unauthorized ports are ignored by the Fiery EXP6000/EXP5000.

Services

You can conﬁgure the following network services:

•NetWare Printing (PServer), including NDS and Bindery services

• LPD Printing (TCP/IP)

•Windows Print Sharing (SMB)

• SNMP services (Local Setup only)

•HTTP Connection Support (WWW) (support for WebTools)

•Port 9100

• E-mail Service

• FTP Service

NetWare Printing options

The following procedures for setting up NetWare printing show the windows from local Setup at the Fiery EXP6000/EXP5000.

• NDS Setup

•Bindery Setup

•Poll Interval

Setting up the Fiery EXP6000/EXP5000 for NDS printing

Only one NDS tree can be connected. To specify or change the NDS Tree, click Modify and specify settings in the NDS Print Server dialog box, as follows.

The currently selected NDS Tree and Print Server are displayed.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

TO SPECIFY THE NDS TREE SETTING FROM LOCAL SETUP

1 Select Enable NDS and click Modify.

2 In the NDS Connection dialog box, double-click an NDS tree in the list on the left.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

3 Navigate to the NDS container and click OK.

If necessary, type the password.

4 Select a container from the Containers list.

5 Double-click a print server from the Select Print Server list.

The full path to the print server appears.

Another way to change the path is to click Edit and type the path to the print server.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

6 Click OK.

The Server Setup dialog box appears, displaying the path to the selected print server on the Network Setup tab.

TO SPECIFY THE NDS TREE SETTING FROM REMOTE SETUP

1 In Network Setup, select the Service1 tab.

2 Select Enable NDS and click Change Trees.

3 In the NDS Conﬁguration dialog box that appears, double-click an NDS tree in the

Available Trees list.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

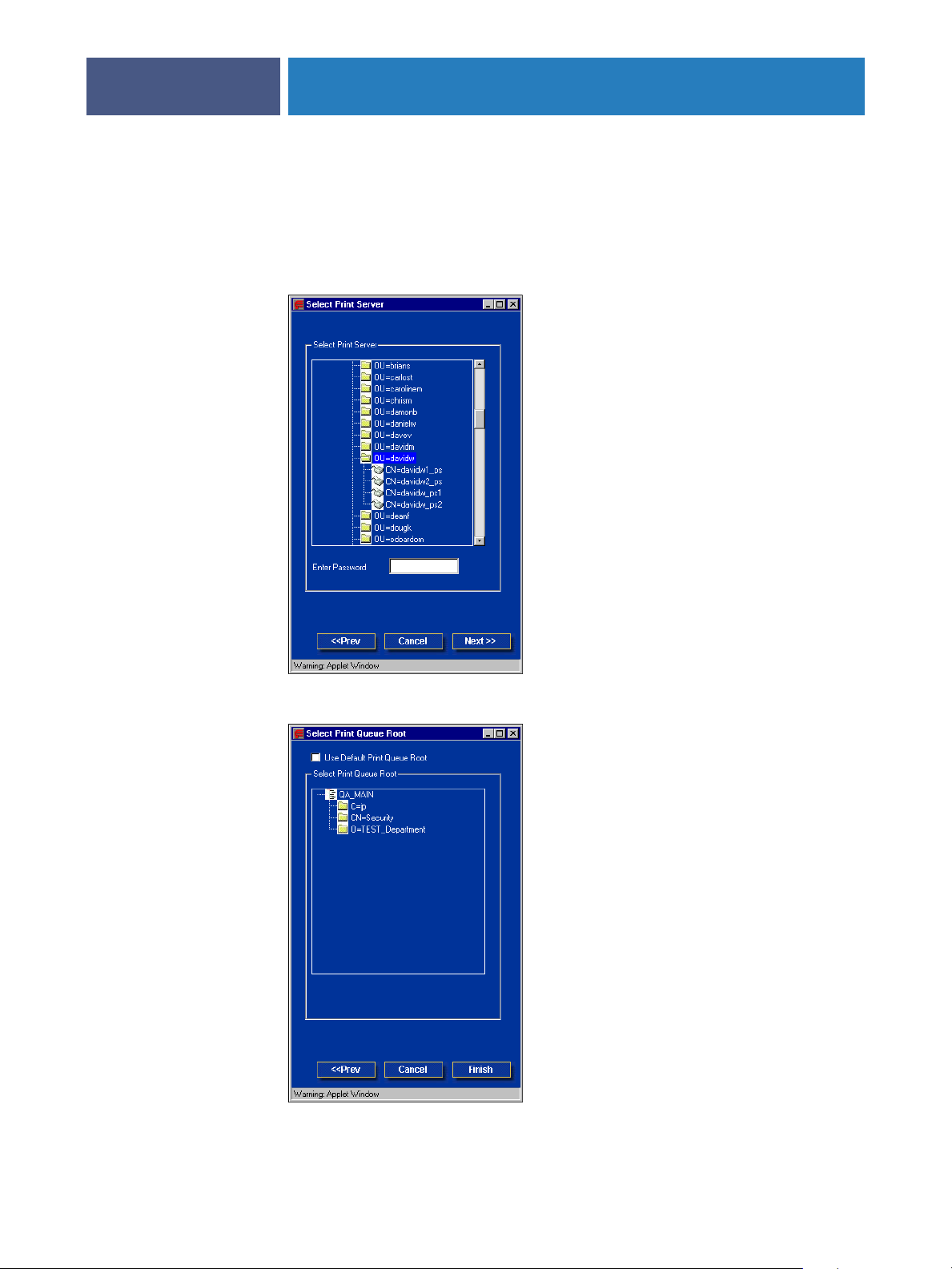

4 In the Select User Login window, select Use Default User Information or type your password,

and click Next.

5 Navigate to the NDS container, select it, and click Next.

If necessary, type the password.

6 Select Use Default Print Queue Root or navigate to the Print Queue Root and click Finish.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

7 Click OK.

The NDS Conﬁguration dialog box displays information about the print server.

Bindery Setup

From the Network Setup tab in local Setup, specify Bindery services. The currently connected servers are displayed. A maximum of eight bindery servers can be connected.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

To add, remove, or change bindery connections, click Modify and specify settings in the Bindery Connections dialog box, as described in the following procedures.

TO ADD BINDERY CONNECTIONS FROM LOCAL SETUP

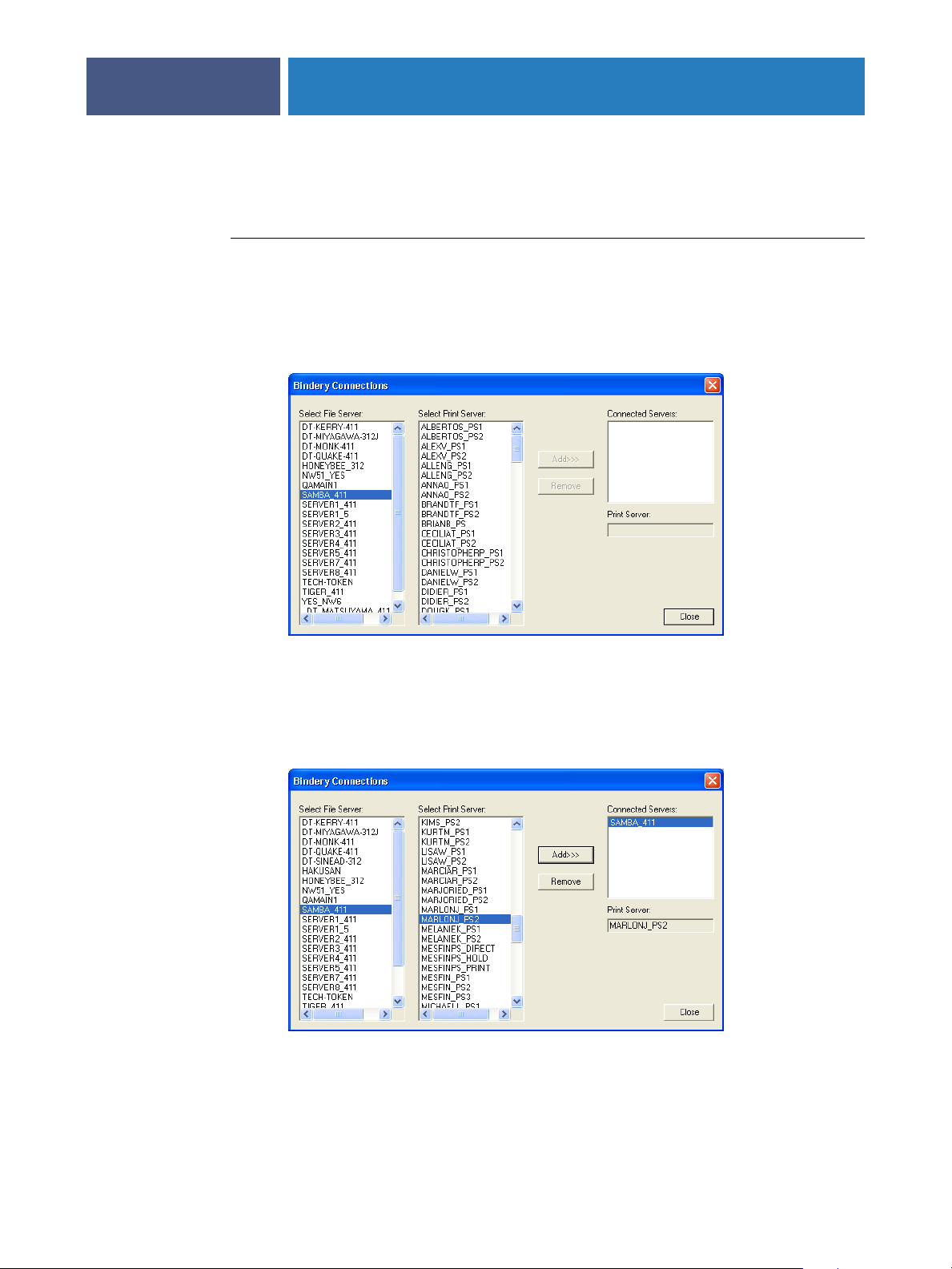

1 Click Modify in the Bindery Setup dialog box.

The Bindery Connections dialog box appears.

2 Select a ﬁle server from the Select File Server list.

If the File Server User Name and Password dialog box appears, type the appropriate user name and password to log on to the selected ﬁle server.

3 Select a print server from the Select Print Server list, and click Add.

The name of the newly added server appears in the Connected Servers list.

To add another server, repeat the preceding steps. You can connect a maximum of eight servers.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

4 When you ﬁnish adding servers, click Close.

When you return to the Network Setup tab, the connected servers appear in the Bindery Settings area.

TO REMOVE BINDERY CONNECTIONS FROM LOCAL SETUP

1 Click Modify in the Bindery Setup dialog box.

The Bindery Connections dialog box appears.

2 Select a server from the Connected Server list and click Remove.

3 Click Close.

TO ADD BINDERY CONNECTIONS FROM REMOTE SETUP

1 Select Enable PServer mode from the Service1 tab.

2 Click Bindery Setup.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

3 Select a ﬁle server from the Available Servers list.

If the File Server User Name and Password dialog box appears, type the appropriate user name and password to log on to the selected ﬁle server.

4 Select a print server from the list and click Finish.

If necessary, type the appropriate password in the Print Server Password dialog box to log on to the selected ﬁle server.

The name of the newly added server appears in the Selected Servers list.

5 When you ﬁnish adding servers, click Finish.

TO REMOVE BINDERY CONNECTIONS FROM REMOTE SETUP

1 Select Enable PServer mode on the Service1 tab.

2 Click Bindery Setup.

The Novell Setup dialog box appears.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

3 Select a server from the Selected Servers list.

4 Click Remove.

5 Click OK.

PServer Poll Interval

Specify the polling interval (in seconds) for NetWare printing.

LPD Printing

Specify whether to enable or disable LPD printing services.

Windows print sharing with Server Message Block (SMB)

When you set up the Windows printing service, text ﬁelds can include uppercase letters, numerals, spaces, and the following characters:

- _ . ~ ! @ # $ % ^ & ( ) { } \ ' , "

NOTE: Lowercase letters are not allowed, except in the Comment ﬁeld.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Enable Windows Printing Service: Select to enable SMB (Server Message Block), the ﬁle and

printer sharing protocol built into Windows. Enabling SMB lists the Fiery EXP6000/ EXP5000 on the network so that Windows clients can print to a particular print connection (Hold, Print, or Direct) on the Fiery EXP6000/EXP5000 without any other networking software. For information about setting up a Windows computer for Windows printing, see

Printing from Windows.

NOTE: Windows (SMB) printing runs over TCP/IP, so you must conﬁgure TCP/IP on the

Fiery EXP6000/EXP5000 and any computers that use Windows printing.

Server Name: Type the server name that will appear on the network. You can use the same

name as the server name assigned to the Fiery EXP6000/EXP5000 (see page 27), or choose another name.

Comment: Type information about the printer, up to 15 characters. These comments are

listed in the Properties of the Fiery EXP6000/EXP5000 in Network Neighborhood. Lowercase letters are allowed in this ﬁeld.

Domain or Workgroup: Type the workgroup or domain where the Fiery EXP6000/EXP5000

should appear.

Auto IP: If you have already enabled IP Auto in Protocol Setup, and selected either DHCP or

BOOTP as the protocol for obtaining an IP address, select this option to allow the Fiery EXP6000/EXP5000 to obtain the IP address automatically for the WINS Name Server. If you do not select this option, use the following two options to specify whether to use a WINS Name Server and its IP address.

Use WINS Server: Select to use a WINS name server. Broadcasts from SMB devices cannot be

routed beyond their original network segment without a WINS name server. Setting up the WINS name server is outside the scope of this manual. To ﬁnd out if a name server is available, contact your network administrator.

IP Address: Type the IP address of the WINS name server.

NOTE: After setting up the WINS name server settings, turn off and on the digital press for the

settings to take effect. Make sure the status message on the Fiery Advanced Controller Interface reads Idle when you turn off and on the digital press.

SNMP Setup

The following options can be accessed only in local Setup.

Enable SNMP: Select to enable the SNMP communication over a TCP/IP or IPX connection.

Selecting No disables any access to remote Setup.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Community Name: Change the SNMP Community Name (“public” by default) for read and

write access. Once it is changed, the new community name must be typed to read and write any information through remote Setup. Up to 32 ASCII characters including spaces can be used for the community name.

NOTE: A space at the beginning or end of the name is automatically deleted from the name

typed. When an invalid character is typed or no name is speciﬁed, the default “public” is used for the community name. A name consisting only of spaces is invalid.

HTTP Connection Support (WWW)

Enable Web Services: Select to make WebTools available to users (see page 51). TCP/IP must

already be enabled on the Fiery EXP6000/EXP5000 and on users’ computers. Each user must have a Java-enabled Web browser and a valid IP address. For information about supported browsers and workstation requirements, see Welcome.

Enable IPP (Internet Printing Protocol): Select Yes to enable printing with the IPP. You must

enable Web Services. For information about setting up users’ computers to use IPP printing, see Printing from Windows.

Port 9100 printing

Enable Port 9100: Enables applications to open a TCP/IP socket to the Fiery EXP6000/

EXP5000 at Port 9100 to download a print job.

Port 9100 Queue: Allows you to attach Port 9100 to any of the published Fiery EXP6000/

EXP5000 print connections.

FTP Services

Enable FTP Services: Allows users to send jobs to an FTP server where other users can retrieve

it. The FTP proxy that the Fiery EXP6000/EXP5000 supports uses the connection type “target_username@target_system_name / target_username@target_ip_address”. Other connection types may not work properly. For details, consult your network administrator.

E-mail/Internet Fax Service Setup

E-mail Service Setup: Enabling e-mail services is required for all e-mail/Internet Fax client

services.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Enable Print via E-mail: If you select this option, print jobs sent via e-mail/Internet Fax

are accepted. If you clear this option, print jobs sent via e-mail/Internet Fax are ignored.

Enable Remote Diagnostics: Selecting this option allows the service technician to run

diagnostics remotely through e-mail.

Incoming Mail Server: Specify the IP address or server name that communicates the

appropriate mail server and contact information to the Fiery EXP6000/EXP5000.

From Command WorkStation, you can type a maximum of 80 characters for the server name.

Server Type: Specify the e-mail protocol used to communicate with the incoming mail server.

Outgoing Mail Server: Specify the IP address or server name that communicates the

appropriate mail server and contact information to the Fiery EXP6000/EXP5000.

From Command WorkStation, you can type a maximum of 80 characters for the server name.

NOTE: You must deﬁne both an Incoming and Outgoing mail server. If an Outgoing mail

server is not deﬁned, the E-mail Service assumes that the incoming and outgoing server names are the same.

Timeout (seconds): Specify the maximum amount of time that will elapse as the

Fiery EXP6000/EXP5000 attempts to connect to the mail server.

Polling Interval (seconds): Specify how often the Fiery EXP6000/EXP5000 checks the mail

server for relevant e-mail.

Mailbox Account Name: Type the mailbox name speciﬁed on the mail server. This name tells

the client mail service which account contains e-mail messages for the Fiery EXP6000/ EXP5000.

This is the internal name your network recognizes, which is not necessarily the same as User Name.

Use the following characters for the account name:

0-9 A-Z, ! # $ % & ’ * + - / = ? ^ _ ' { | } ~

You can type a maximum of 72 characters.

NOTE: The account name typed in this ﬁeld must ﬁrst be speciﬁed on the mail server by

the administrator.

Fiery E-mail Address: Type the name of the e-mail account. For example, pat@test.com.

From Command WorkStation, you can type a maximum of 72 characters for the server name.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Password: Type a password for accessing the mailbox account on the mail server.

From Command WorkStation, you can type a maximum of 16 characters for the password.

Administrator E-mail Address: Type the user name speciﬁed in Fiery EXP6000/EXP5000

Setup.

From Command WorkStation, you can type a maximum of 72 characters for the administrator user name.

The administrator authorizes a unique e-mail address to remotely administer e-mail services. If an error occurs while you are sending a job via e-mail, E-mail Service sends an error message to the Administrator E-mail Address speciﬁed. The administrator can authorize additional administrator e-mail addresses from this e-mail address.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Printer Setup options

Printer Setup allows you to conﬁgure defaults for jobs, such as the paper size and CMYK simulation proﬁle to use.

Printer connections

Specify whether to publish the Print queue, Hold queue, or Direct connection.

Job Batching Delay

Use this option to specify the amount of time (in seconds) the server waits before batching jobs. The default is 10 seconds. This option is not available from remote Setup.

VDP Search Path

Use this option to specify the search path for objects used by variable data printing. You can set a global path for common objects, PPML (Personalized Print Markup Language), and VPS (Virtual Private Server). This option is not available from remote Setup.

PS (PostScript) Setup

Halftone Screen Deﬁnitions (local Setup only): User Screen 1, User Screen 2, and User

Screen 3 menu items are used to switch between deﬁnitions for three user-deﬁned halftone screens. For each of these screens, you may deﬁne frequency (lpi), screen angles, and dot shapes. Custom allows you to type PostScript functions for dot shapes.

When Custom is selected, the dialog box displays information about the last Dot Shape selected. For example, if Custom is clicked after Square has been previously selected, the dialog box displays the Dot Shape function associated with Square shapes.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Convert Paper Sizes: Specify whether to convert paper sizes automatically to the default paper

sizes specified. For example, if you select Letter/11x17->A4/A3, a letter size job is automatically printed on A4 paper.

Default Paper Sizes: Specify whether to print on US paper sizes (for example, Letter, Legal,

Tabloid), or Metric paper sizes (for example, A4 or A3) by default. When no paper size is deﬁned within a PostScript ﬁle, jobs are printed on Letter-size paper if you select US, or A4 paper if you select Metric.

Print Cover Page: Specify whether the Fiery EXP6000/EXP5000 prints a cover page (job

summary) at the end of each print job. If you choose Yes, each print job is followed by a page containing the name of the user who sent the job, the document name, the server name, the time the job was printed, the number of pages printed, and the status of the job. If a PostScript error occurs and the Print to PS Error option is set to Yes, the Cover Page lists the PostScript error message instead of the job status.

NOTE: If a job is sent with Print Cover Page set to On, it will automatically be cancelled under

the following conditions:

• The job is sent to a mailbox or for secured printing.

• The department ID and password are set from the digital press with Allow Printer Jobs

with Unknown IDs set to Off.

To print the job with a cover page, set Allow Printer Jobs with Unknown IDs to On and leave Department ID blank in the printer driver. See the digital press documentation for more details on digital press department ID, password, and Allow Printer Jobs with Unknown IDs features.

Print to PS Error: Specify whether the Fiery EXP6000/EXP5000 should print the available

portion of a print job when it encounters a PostScript error. In general, this option should be No.

• When you choose No, the printing of the entire job is canceled when a PostScript error

occurs, but the processed portion of the job and the PostScript error information are stored on the Fiery EXP6000/EXP5000. You can view the job and the error information from the job management tools.

• When you choose Yes, the portion of the job processed before the error occurred

is printed.

Allow Courier Substitution: Specify whether to substitute Courier for unavailable fonts.

When you choose Off, jobs requiring fonts unavailable on the Fiery EXP6000/EXP5000 hard disk generate a PostScript error and do not print. This setting does not apply to PDF ﬁles because font substitution occurs automatically for PDF ﬁles.

Page Order: Specify the page order for printed output. “From 1 to N” prints pages in the

order received, so that the last page is on the top of the stack and the ﬁrst page is on the bottom. “From N to 1” prints jobs in reverse order, so the ﬁrst page is on the top of the stack and the last page is on the bottom.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Collation: Specify how to output multiple-page/multiple-copy jobs.

Face-Down Printing: Specify whether to have printed output exit the digital press face-down.

Stapler Mode: Specify if you want your jobs stapled and specify the location of the staple.

Output Destination: Specify the tray in which to output the print job. Destination options

vary according to the accessories installed.

Offset Jobs: Specify if you want to output multiple copy jobs in alternating stacks.

Mixed Attribute Specify whether to allow print jobs that contain multiple page sizes.

(Fiery EXP5000 only)

Print Master: Specify whether to print a master document when it is created using FreeForm.

Image Quality: Specify the type of image quality to be used as the Fiery EXP6000/EXP5000

default. If you select Best, although image quality improves, processing time may become longer, and the size of the processed job may be larger. (Fiery EXP6000 only)

Digital Press Mode: Specify the screen to use for your print job. (Fiery EXP6000 only)

Scale to Fit: Specify whether to scale a print job to ﬁt to the selected paper size.

Tray Alignment: Specify whether to allow tray alignment to be performed.

Color Setup

Color options can be set only from local Setup. For information about settings for color options, see Color Printing and Print Options.

The color job defaults can be overridden on a job-by-job basis.

•A user can specify a different setting at print time from the printer driver.

• An administrator or operator can specify a different setting from the job management tools

after the job has been sent to the Fiery EXP6000/EXP5000.

The preferred method for setting color defaults is to use Color Setup, one of the ColorWise Pro Tools. The color options are described in this section for your reference. For more information about these defaults, see Print Options and Color Printing.

RGB Source Proﬁle: Specify the RGB source space to be applied to RGB data.

Rendering Style: Specify the Rendering Style to be applied to RGB data.

CMYK Simulation Proﬁle: Specify the simulation to be applied to CMYK data.

CMYK Simulation Method: Specify the simulation method to be used.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

Paper Simulation: Specify whether to render the white point of the source color space as

visible color in the Output color space. For example, you can simulate the beige-colored background of newsprint for a job by setting this option to On.

RGB Separation: This option deﬁnes how the Fiery EXP6000/EXP5000 processes RGB jobs.

Select Output for RGB jobs that you print to the ﬁnal output device. Select Simulation to simulate an output device that is not the device to which you are printing.

Use Media Deﬁned Proﬁles: Specify whether to use the Media Deﬁned Proﬁles feature.

Setting this option to On allows the Fiery EXP6000/EXP5000 to select an Output Proﬁle according to a media type speciﬁed for the job. It also allows multiple output proﬁles to be applied to a Mixed Media job according to speciﬁed media types. Setting this option to No disables the feature, and a proﬁle selected in the Output Proﬁle option or in the ColorWise Pro Tools becomes the Fiery EXP6000/EXP5000 default Output Proﬁle.

Output Proﬁle: Specify the output proﬁle to be used as a default proﬁle for printing. Create

and download dditional proﬁles to the Fiery EXP6000/EXP5000 with ColorWise Pro Tools. In local Setup, proﬁles are listed by their names. In Remote Setup, proﬁles are listed simply as Output-1, Output-2, and so forth.

Pure Black Text/Graphics: Specify whether to optimize black text/graphics and line art.

This option also minimizes toner use for documents containing both color and black-only pages.

When you select this option, black text/graphics and line art are printed with black toner only. When you clear this option, black text/graphics and line art are printed using all four toner colors.

Black Overprint: When you set this option to Text or Text/Graphics, black text and graphics

overprint on colored backgrounds. When you set this option to Off, black text and graphics knock out color backgrounds. In general, set this option to Text or Text/Graphics.

Spot Color Matching: When you select this option, the Fiery EXP6000/EXP5000 uses an

internal lookup table to print the best equivalents of PANTONE colors. When you clear this option, PANTONE colors are printed using the CMYK values deﬁned in the originating applications.

Exiting Setup

When you ﬁnish specifying Setup options, click OK and close the Setup dialog box. You are notiﬁed that the Fiery EXP6000/EXP5000 must be restarted for the new settings to take effect. You can restart now or later. If Command WorkStation is running, the connection to the Fiery EXP6000/EXP5000 is broken and you must log on again when the Fiery EXP6000/ EXP5000 restarts.

SETTING UP THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

CONFIGURING FIERY WEBTOOLS

WebTools allow you to manage your Fiery EXP6000/EXP5000 remotely from the Internet or from your company’s intranet. From the Fiery EXP6000/EXP5000 home page, you can select the WebTool that you want to use.

For information about using WebTools, see Utilities.

Conﬁguring the Fiery EXP6000/EXP5000 and clients for WebTools

WebTools provide access to many Fiery EXP6000/EXP5000 functions via the Internet (or intranet), providing additional ﬂexibility in remote management. After they are enabled, you can access the WebTools from a Windows or Mac OS computer.

TO SET UP WEBTOOLS ON THE FIERY EXP6000/EXP5000

1 In Fiery EXP6000/EXP5000 Network Setup, enable TCP/IP.

2 Set a valid, unique IP address for the Fiery EXP6000/EXP5000, and then set the subnet mask.

Set a gateway address, if required.

3 Enable Web Services.

4 Enable 515 (LPD/Fiery Tools) option in Port Setup.

5 In Fiery EXP6000/EXP5000 Printer Setup, conﬁrm that the Print queue is published.

CONFIGURING FIERY WEBTOOLS

TO SET UP WEBTOOLS ON A COMPUTER

1 Enable TCP/IP networking.

2Assign the workstation a valid, unique IP address, subnet mask, and gateway address,

if required.

3 Install an Internet browser that supports the Java language and frames.

Make sure Java is enabled. For more information about supported browsers and WebTools requirements, see Welcome.

TO ACCESS WEBTOOLS

1 Start your Internet browser.

2Type the IP address or DNS name of the Fiery EXP6000/EXP5000.

3Press Enter.

The Fiery EXP6000/EXP5000 home page appears.

4 Click the name of a particular WebTool.

5 Click Conﬁgure to enable speciﬁc WebTools for users.

Setting the WebLink destination

You can change the pre-set WebLink destination. This function requires the Administrator password.

TO CHANGE THE WEBLINK DESTINATION

1 Start your Internet browser.

2Type the IP address or the DNS name of the Fiery EXP6000/EXP5000.

The Fiery EXP6000/EXP5000 home page appears.

3Type the Administrator password, if required, and then click OK.

4Press the Control key (Mac OS) or Ctrl key (Windows) as you click WebLink.

The Update WebLink dialog box appears.

5Type the new WebLink address (URL) and click OK.

ADMINISTERING THE FIERY EXP6000/EXP5000

This chapter provides tips on managing Fiery EXP6000/EXP5000 printing.

Administrator functions

Administration features are included with the user software and are built into the Fiery EXP6000/EXP5000. The following table describes where to ﬁnd information about these features (page references refer to this manual).

For these tasks See

Setting passwords (Administrator and Operator passwords, plus the Windows XP system password)

Clearing the Fiery EXP6000/EXP5000 page 57

Mapping the Fiery EXP6000/EXP5000 to a drive letter page 58

Ensuring virus-free operation page 59

Managing address books for E-mail Printing page 60

Printing a Conﬁguration page page 66

Maintaining optimal Fiery EXP6000/EXP5000 performance page 67

Shutting down, rebooting, and restarting the Fiery EXP6000/EXP5000 page 68

Burning a CD-RW page 70

Setting up network servers to manage and share printing services Documentation for

Setting up network servers with information speciﬁc to the Fiery EXP6000/EXP5000

Connecting the Fiery EXP6000/EXP5000 to the network page 22

Performing Fiery EXP6000/EXP5000 Setup Setting Up the

page 55

your network servers

page 10

Fiery EXP6000/ EXP5000 from a Windows Computer

Setting up the Fiery EXP6000/EXP5000 to allow user access to WebTools

Conﬁguring the Fiery EXP6000/ EXP5000 and clients for WebTools

ADMINISTERING THE FIERY EXP6000/EXP5000

For these tasks See

Setting printer default settings Printer Setup, page 46

PS Setup, page 46

Color Printing

Printing from Windows

Printing from Mac OS

Publishing the Direct connection, Print queue, or Hold queue to end users on various platforms

Setting the Administrator password page 55

Setting up printing, installing PostScript printer drivers and PPD ﬁles, installing user software

Printing to the Fiery EXP6000/EXP5000 and setting job-speciﬁc options Printing from Windows

Printing with CMYK simulations Color Printing

Printing color samples and swatch pages Installing color proﬁles

Tr oubleshooting Fiery EXP6000/EXP5000 Setup Tr oubleshooting

Printer Setup, page 10, and page 46

Printing from Windows

Printing from Mac OS

Fiery Color Reference

ADMINISTERING THE FIERY EXP6000/EXP5000

Setting passwords

You can set or change the passwords for the Fiery EXP6000/EXP5000. Anyone with the Administrator password can modify the Setup options, and control the ﬂow and order of print jobs with the job management tools.

Administrator: allows you access to Setup. Administrator privileges also include Operator

privileges.

Operator: allows you access to the job management functions of Command WorkStation.

NOTE: For more information about Administrator and Operator passwords and the access

privileges they allow, see page 17.

Windows XP system password: allows you access to the FACI.

When the Fiery EXP6000/EXP5000 is installed, the Administrator password is deﬁned (Fiery.1), but the Operator password is not. The Administrator password allows a user to modify the Setup, use the administrator functions in the job management tools, and run Setup. We strongly recommend that you set at least an Administrator password to protect the Fiery EXP6000/EXP5000 from unauthorized changes to Setup.

NOTE: Keep track of the passwords that you set. To remove a password that you cannot

remember, you must reinstall the system software.

Passwords from a Windows computer

You can change the Administrator and Operator passwords from WebSetup or Command WorkStation, Windows Edition.

ADMINISTERING THE FIERY EXP6000/EXP5000

TO SET OR CHANGE A PASSWORD

1 Select the password that you want to change.

2Type the password in both the Enter New Password and Verify New Password ﬁelds.

Passwords are case-sensitive and can be any combination of letters and numbers up to 19 characters. You must type the password exactly the same way both times. The new password remains in effect until you change it.

TO REMOVE A PASSWORD

1 Select the password that you want to delete.

2 Delete the asterisks (*) in both the Enter New Password and Verify New Password ﬁelds.

Changing the Windows XP system password

The Fiery EXP6000/EXP5000 is set with a Windows XP system password. To ensure network security in your environment, the administrator must change the password.

TO CHANGE THE WINDOWS XP PASSWORD FOR THE FIERY EXP6000/EXP5000

1Press Ctrl+Alt+Delete on the Windows keyboard.

The Windows Security dialog box appears.

NOTE: If you are using the Welcome screen on Windows XP, the Windows Task Manager

dialog box appears. To access the Windows Security dialog box, you must disable the Welcome screen. From the Windows XP Control Panel, access User Accounts. choose “Change the way users log on or log off” option, and clear the Use the Welcome screen.

2 In the Windows Security dialog box, click Change Password, and then type the following.

For example, to change to “Fiery.2”:

User name: administrator

Domain (Windows NT 4.0) or Log on to (Windows 2000/XP): \\Aero

Old Password: Fiery.1

New Password: Fiery.2

Conﬁrm New Password: Fiery.2

3 Click OK.

The new password, Fiery.2, is now set.

ADMINISTERING THE FIERY EXP6000/EXP5000

Clearing the Fiery EXP6000/EXP5000

The Clear Server command allows you to clear all queued print jobs from the Fiery EXP6000/EXP5000 Print, Hold, and Printed queues. Jobs can also be deleted, either individually or as a group, using Command WorkStation. Clear Server also clears all jobs archived on the Fiery EXP6000/EXP5000 hard disk, the index of archived jobs, and ﬁnally, all FreeForm masters and the index of FreeForm masters.

TO CLEAR THE FIERY EXP6000/EXP5000

• In Command WorkStation, choose Clear Server from the Server menu.

Be sure to back up your original data on your own media at the same time you store and save data on the Fiery EXP6000/EXP5000 hard disk. Never damage the Fiery EXP6000/ EXP5000 hard disk, and do not turn off the system while accessing the hard disk. For instructions on how to turn on and turn off the Fiery EXP6000/EXP5000, see page 68.

If the Fiery EXP6000/EXP5000 hard disk or system software experiences technical difﬁculties, data stored and saved on the Fiery EXP6000/EXP5000 hard disk may be irretrievably lost. If problems with the hard disk occur, extended storage of the following data cannot be assured:

• Third-party fonts

•Print jobs

• Color proﬁles, including proﬁles downloaded or edited using Spot-On

•Job notes and instructions

• Scanned image data

•Jobs edited with Impose

•Variable data documents

• E-mail Service Address Book

•Fiery EXP6000/EXP5000 conﬁguration information (list of all the settings in effect for

the current Setup)

You can restore the system software on the Fiery EXP6000/EXP5000 hard disk, if necessary. However, system settings that were changed or speciﬁed prior to hard disk failure are not restored. E-mail Service Address Book settings are deleted when the system is restored or the Fiery EXP6000/EXP5000 hard disk drive is replaced.

ADMINISTERING THE FIERY EXP6000/EXP5000

Mapping the Fiery EXP6000/EXP5000 to a drive letter

You must map the Fiery EXP6000/EXP5000 to a drive letter before you can perform certain tasks, such as changing the Windows XP system password or scanning for viruses.

TO MAP THE FIERY EXP6000/EXP5000 TO A DRIVE LETTER

1 Click Start in the Windows XP taskbar, and then choose Programs >Accessories >

Windows Explorer.

The Windows Explorer window appears.

2 Choose Map Network Drive from the Tools menu.

The Map Network Drive dialog box appears.

The Fiery EXP6000/EXP5000 hard disk consists of three network drives, C:, D:, and E:.

These drives are hidden for network administrative functions and do not appear in the Windows Explorer window. To map the C: administrative hidden share, type the following information in the Map Network Drive dialog box. In the Drive ﬁeld, type a letter that is not currently mapped. In the Path ﬁeld, type the Fiery EXP6000/EXP5000 name (for example, \\Aero\c$). Conﬁrm the Fiery EXP6000/EXP5000 name on the Conﬁguration page.

3 Click OK.

4To map the D: and E: drives, repeat the previous steps.

5 Close Windows Explorer.

ADMINISTERING THE FIERY EXP6000/EXP5000

Ensuring virus-free operation of the Fiery EXP6000/EXP5000

To protect the Fiery EXP6000/EXP5000 from computer viruses, periodically run an anti-virus application on the Fiery EXP6000/EXP5000. Use the anti-virus application to scan the Fiery EXP6000/EXP5000 over the network.

TO SCAN THE FIERY EXP6000/EXP5000 FROM A WINDOWS COMPUTER

1 Make sure that the Fiery EXP6000/EXP5000 is not receiving or processing any jobs.

2 Disable all the print connections published in Server Setup and Printer Setup.

In Server Setup, disable the Printed queue. In Printer Setup, disable the Direct connection, Print queue, and Hold queue.

3 Map the Fiery EXP6000/EXP5000 to a drive letter as described on page 58.

4 Run the anti-virus program.

For details, see the documentation that accompanies your anti-virus program. Typically, scanning is complete within 10 minutes.

5 Re-enable the appropriate print connections.

ADMINISTERING THE FIERY EXP6000/EXP5000

Managing address books

The E-mail Service feature allows you to import a list of e-mail/Internet Fax addresses to the Fiery EXP6000/EXP5000. To import the list of addresses, you send e-mail messages in a particular format to the Fiery EXP6000/EXP5000.

The list will be added to the address books. Users use the address books to send scan ﬁles to a particular e-mail/Internet Fax address, and the administrator uses the address books to control access to E-mail Services.

NOTE: E-mail messages can be sent only from an administrator account.

The Fiery EXP6000/EXP5000 supports the following address books:

• Admin: includes users with administrative access. Administrative access allows you to

modify the address book, get the current address book from the Fiery EXP6000/ EXP5000, and cancel or status any print job.

•

Print: includes users who have print access. Only users whose e-mail addresses are in the

Print address book are authorized to submit jobs via e-mail to the Fiery EXP6000/ EXP5000. Unauthorized users receive an e-mail reply that their job was not accepted by the Fiery EXP6000/EXP5000 for printing.

• Fax: is used for Scan to Internet FAX. This address book is used for sending scan ﬁles

via Internet FAX to the Fiery EXP6000/EXP5000. You cannot send an e-mail to the Fiery EXP6000/EXP5000.

E-mail Service also allows the administrator to overwrite the address book, add new addresses, remove addresses, and retrieve current addresses on the Fiery EXP6000/EXP5000.

When a print job is submitted via e-mail, the Fiery EXP6000/EXP5000 ﬁrst checks the Print address book. If the user’s e-mail address does not match any entry in the Print address book, the job does not print. Instead, the user receives an e-mail stating that the print job was not accepted.

The default wildcard character “@” is stored in the Print address book. This allows any user to print to the Fiery EXP6000/EXP5000 until the administrator adds the ﬁrst entry in the Print address book.

ADMINISTERING THE FIERY EXP6000/EXP5000

The administrator can manage the address books by sending an e-mail to the Fiery EXP6000/ EXP5000 with command codes in the Subject and Message ﬁelds. The Fiery EXP6000/ EXP5000 responds by e-mail to these commands with information about each request. When managing address books, see the following table.

Task Administrator

subject ﬁeld

To retrieve a speciﬁc address book

To add an address to an address book

To clear an address book

#GetAddressBook name of address book

For example: #GetAddressBook Admin

#AddAddressTo

name of address book

For example: #AddAddressTo Print

#ClearAddressBook name of

address book

For example: #ClearAddressBook User

Administrator message ﬁeld

Address Book name of

name@domain or “display name” <name@domain>

Fiery e-mail response subject ﬁeld

address book

For example: Address Book Admin

Added to Address Book

name of address book

For example: Added to Address Book Print

Address Book name of address book cleared

Address Book name of address book not cleared

For example: Address Book User cleared

Fiery e-mail response message ﬁeld

List of addresses in the speciﬁed address book

List of addresses added to the address book

The Fiery EXP6000/ EXP5000 also lists any addresses that cannot be added and includes the reason.

If the address book is not cleared, the reason is given.

To delete an address from an address book

To r eceive help for Fiery EXP6000/ EXP5000 e-mail services

#DeleteAddressFrom name of

address book

For example: #DeleteAddressFrom User

#Help RE: Help Provides

name@domain or “display name” <name@domain>

Removed from Address Book name of address

book

For example: Removed from Address Book User

Deleted Address 1 Deleted Address 2

The Fiery EXP6000/ EXP5000 also lists any addresses that cannot be deleted and includes the reason.

troubleshooting e-mail syntax

ADMINISTERING THE FIERY EXP6000/EXP5000

TO RETRIEVE AN ADDRESS BOOK FROM THE FIERY EXP6000/EXP5000

1 Start your e-mail application.

2 Open a new message window.

3Type the e-mail address of your print server in the To line.

4Type the command of a speciﬁed address in the Subject line.

For the User, type “#GetAddressBook User.” For the Administrator, type “#GetAddressBook Admin” or “#GetAddressBook Print.”

5 Send the message.

The return message includes the addresses of the speciﬁed address book.

6 Copy the addresses as a text ﬁle or save the message for your record.

TO RESTORE AN ADDRESS BOOK TO THE FIERY EXP6000/EXP5000

1 Start your e-mail application.

2 Open a new message window.

3Type the e-mail address of your print server in the To line.

4Type the command of a speciﬁed address in the Subject line.

For the User, type “#GetAddressTo User.” For the Administrator, type “#GetAddressTo Admin” or “#GetAddressTo Print.”

5 Copy the addresses retrieved and save it in the body of the e-mail.

You can include nicknames. However, when a nickname or address exceeds one line, edit it to ﬁt on one line.

6 Send the message.

7Review the returned message of notiﬁcation, and conﬁrm that the addresses were restored

correctly.

FTP Printing

After you set up FTP printing, you can specify the user name and password from Command WorkStation for FTP printing.

TO DEFINE A USER NAME AND PASSWORD FOR FTP PRINTING FROM COMMAND WORKSTATION

1 Start Command WorkStation and connect to the Fiery EXP6000/EXP5000.

2From the Server menu, choose Printing Groups.

3 Click Create.

4Type the user name for Group Name, and the password for Password.

You can type a maximum of 24 ASCII characters (no spaces) for the Group name and password.

This setting is available when you add a new user for FTP printing.

NOTE: A maximum of 100 users can be registered for FTP printing.

ADMINISTERING THE FIERY EXP6000/EXP5000

5 Conﬁrm the password for Verify Password.

6 Click Add and click OK.

You are now able to print to an FTP server. You can modify or delete the user name and password registered.

ADMINISTERING THE FIERY EXP6000/EXP5000

Setting up printing groups

The Fiery EXP6000/EXP5000 administrator can arrange users into groups and allow members of a group to print only if they supply a password at print time. This method of printing is known as Printing Groups, or Member Printing.

This section describes how to set up groups and passwords. To change the Group Name or Group Password settings for a job that a user has already sent from the printer driver, use Command WorkStation. For more information about using the Printing Groups feature, see

Print Options.

NOTE: The Printing Groups feature is not supported with Windows 2000/XP.

TO SET UP PRINTING GROUPS AND PASSWORDS

1 In Command WorkStation, choose Printing Groups from the Server menu.

2 Click Create.

3 In the Group Name ﬁeld, type a group name for the printing group.

4 In the Password ﬁeld, type a password for the group, and retype the password in the

Verify Password ﬁeld.

5 Click Add to move the new group into the window.

TO CHANGE PRINTING GROUPS AND PASSWORDS

1 In Command WorkStation, choose Printing Groups from the Server menu.

2 Select the printing group name in the Printing Groups Setup dialog box and click Modify.

3 Make the necessary changes.

4 Click OK.

TO REMOVE PRINTING GROUPS AND PASSWORDS

1 In Command WorkStation, choose Printing Groups from the Server menu.

2 Select the printing group name in the Printing Groups Setup dialog box and click Remove.

3 Click OK.

ADMINISTERING THE FIERY EXP6000/EXP5000

Setting up a search path for VDP Resource Manager

For users who use the VDP Resource Manager, you need to set up a search path so that users’ jobs can locate the appropriate global resources.

TO ALLOW THE FIERY EXP6000/EXP5000 TO ACCESS REMOTE VDP RESOURCES

1 Choose Control Panel> Administrative Tools >Services.

2 Double-click the EFI Fiery service.

3 Click the Log On tab.

4 Click This Account.

5Type “Administrator” and the password in the appropriate ﬁelds and click OK.

6 Choose Control Panel> User Accounts.

7 Select the Administrator account.

8 Click “Manage my network passwords” (on the left, under “Related Tasks”).

9 Click Add.

10 Type the computer name, user name, and password for the computer that hosts the

VDP resources.

11 Click OK.

12 Repeat these instructions for each of the computers that users need to access.

13 Choose Start > Shut Down, and then select Restart Computer.

TO SET UP A FILE SEARCH PATH

1 Start Setup from FieryBar.

2 Select Printer Setup.

3 Select VDP Search Path.

The Fiery EXP6000/EXP5000 searches for resources in the following order:

• PPD Override

• Common Global Path

• PPML Global Path

• VPS Global Path

ADMINISTERING THE FIERY EXP6000/EXP5000

Printing the Conﬁguration page

The Conﬁguration page lists the settings in effect for the current Setup. After you have performed Setup, print a Conﬁguration page to conﬁrm your settings. Post the current Conﬁguration page near the Fiery EXP6000/EXP5000 for quick reference. Users need the information on this page, such as the current printer default settings.

TO PRINT THE CONFIGURATION PAGE FROM COMMAND WORKSTATION

1 In Command WorkStation, choose Print Pages from the Server menu.

2 Click Conﬁguration.

3 Click Print.

ADMINISTERING THE FIERY EXP6000/EXP5000

Maintaining optimal Fiery EXP6000/EXP5000 performance

The Fiery EXP6000/EXP5000 does not require maintenance. Beyond the obvious requirements of servicing and maintaining the digital press and replenishing consumables, you can improve the overall performance of your system by doing the following:

• Make the best use of your network connections.

Publish only connections that will be used. The Fiery EXP6000/EXP5000 constantly checks all published connections, even if they are inactive. Match the NetWare polling interval and the number of queues or connections to the demand for printing.

Review the published connections by printing a Conﬁguration page. Eliminate the connections that are not being used. It is easy to re-establish them when needed.

• Leave less urgent jobs to times when there is less network trafﬁc or printing.

You can print recurring print jobs or jobs that are not urgent to the Hold queue. At low-trafﬁc times, the administrator or a user of the job management tools with Operator privileges can move (or copy) all the Hold queue jobs to the Print queue for printing.

• Reduce unnecessary network communication.

Large numbers of users running Fiery utilities, especially with frequent updates, may have a signiﬁcant effect on Fiery EXP6000/EXP5000 performance.

• Make sure you have adequate disk space on the Fiery EXP6000/EXP5000.

Periodically review the list of jobs in the Hold queue, and the number of jobs being retained in the Printed queue.

An administrator can print or delete jobs that are in the Printed queue and Hold queue. Consider printing or offloading inactive jobs. If disk space on the Fiery EXP6000/EXP5000 is frequently low, you can disable the Printed queue (in Server Setup) and choose not to publish the Hold queue (in Printer Setup).

To move or remove queued jobs, use the job management tools. When you free up disk space by removing inactive jobs, new jobs are spooled and printed more quickly.

ADMINISTERING THE FIERY EXP6000/EXP5000

Shutting down, rebooting, and restarting the Fiery EXP6000/EXP5000

Generally, you can leave the Fiery EXP6000/EXP5000 and the digital press running all the time. This section describes how to reboot, shut down, and restart the Fiery EXP6000/ EXP5000 when necessary.

Shutting down and rebooting the Fiery EXP6000/EXP5000

You may need to shut down, reboot, or restart the Fiery EXP6000/EXP5000. When you must shut down the Fiery EXP6000/EXP5000 for service, fonts downloaded to the Fiery EXP6000/EXP5000 are not deleted. Print jobs in the Hold and Print queues and jobs that have been processed but not printed are not deleted and are available for printing when you reboot or restart the Fiery EXP6000/EXP5000.

NOTE: In general, keep the Fiery EXP6000/EXP5000 turned on.

TO SHUT DOWN THE FIERY EXP6000/EXP5000

1 Ensure that the Fiery EXP6000/EXP5000 is not receiving, processing, or printing any ﬁles.

If necessary, wait until Command WorkStation shows no processing or printing jobs in the Active Jobs window, or FieryBar shows Idle in both the RIPping and Printing areas. If the system has just ﬁnished processing, wait at least ﬁve seconds after the system reaches Idle before you begin the shutdown procedure.

2 Close all open applications except FieryBar.

3 Click Start in the Windows taskbar, and then choose Shut Down.

4 Choose Shut Down and click OK.

TO REBOOT THE FIERY EXP6000/EXP5000

1Verify that the Fiery EXP6000/EXP5000 is not receiving, processing, or printing any ﬁles.

If necessary, wait until Command WorkStation shows no processing or printing jobs in the Active Jobs window, or FieryBar shows Idle in both the RIPping and Printing areas.

2 Close all open applications except FieryBar.

3 Click Start in the Windows taskbar, and then choose Shut Down.

4 Choose Restart and click OK.

Wait for the system to reboot. The Log On to Windows dialog box appears.

5Type Administrator in the user name ﬁeld, type the password, and then press Enter.

The password is case-sensitive and must be typed exactly.

6Wait for FieryBar to appear on the monitor and reach Idle.

The Fiery EXP6000/EXP5000 takes approximately three minutes to power on and reach Idle.

ADMINISTERING THE FIERY EXP6000/EXP5000

TO RESTART THE FIERY EXP6000/EXP5000

1Verify that the Fiery EXP6000/EXP5000 is not receiving, processing, or printing any ﬁles.

If necessary, wait until Command WorkStation shows no processing or printing jobs in the Active Jobs window, or FieryBar shows Idle in both the RIPping and Printing areas.

2 Close all open applications except FieryBar.

3 Right-click FieryBar and choose Restart Fiery from the menu that appears.

4 Click OK when the conﬁrmation message appears.

Wait for the Fiery EXP6000/EXP5000 server software to close down and restart. You may need to wait one minute or more for the server software to restart. FieryBar displays the Exited status while the server software restarts.

ADMINISTERING THE FIERY EXP6000/EXP5000

Burning a CD-RW

The Fiery EXP6000/EXP5000 includes a DVD-ROM/CD-RW drive, which you can use to create (burn) a CD.

TO BURN A CD-RW

1Drag and drop ﬁles onto the icon for the DVD-ROM/CD-RW drive.

2 Right-click the DVD-ROM/CD-RW drive icon and select Eject.

If you ﬁll the CD-RW to capacity (approximately 650 MB), the burning process takes about 30 minutes.

TROUBLESHOOTING

Troubleshooting the Fiery EXP6000/EXP5000

TROUBLESHOOTING

This chapter provides troubleshooting tips.

Startup diagnostics are described in the Installation and Service Guide for service technicians. Contact your authorized service/support center if you see startup error messages on Command WorkStation or if the Fiery EXP6000/EXP5000 does not reach the Idle state.

Safe Print

The Safe Print diagnostic feature allows the Fiery EXP6000/EXP5000 to detect any internal errors that arise as a result of a difference between the raster output of the internal RIP and the raster sent from the Fiery EXP6000/EXP5000 to the digital press. When such errors are detected, the Fiery EXP6000/EXP5000 does not print the job, and the error reported is an under-run.

Runtime error messages

For error messages related to canceling jobs and printing, including the Disk Full message and alerts to load media, see Command WorkStation Help.

You can turn on PostScript error reporting as a print option from Mac OS applications.

Printer not found

Most failures to ﬁnd a printer on the network are due to conﬂicting or missing name or address settings for the Fiery EXP6000/EXP5000. You must type names in speciﬁc places. The required names are:

•TCP/IP host name (also known as the DNS name), which is deﬁned by your organization.

Type the host name as the Server Name in Fiery EXP6000/EXP5000 Setup.

•Remote printer (internal machine) name. Use one of the following:

print hold direct

NOTE: If you change the TCP/IP host name (DNS name) of the Fiery EXP6000/EXP5000,

you must reconﬁgure one of the Fiery utilities on each workstation.

TROUBLESHOOTING

See the following table for the appropriate name.

In this location For this item IPX/SPX networks TCP/IP networks See

Server Setup Server Name option Administrator deﬁnes

name

Windows NT hosts ﬁle host name DNS name

Windows NT setup for TCP/IP

UNIX /etc/printcap ﬁle (BSD) rp line print or hold page 15

Solaris lpadmin queuename print or hold

NetWare administration utility print queues

Add New Server dialog box, when conﬁguring a Fiery utility

lpd host name DNS name

Name of printer on lpd host machine

_direct (must be all lowercase and in English)

New Device Utilities are not supported

Server Name Utilities are not supported

_print

_hold

over IPX/SPX

Administrator deﬁnes name

(TCP/IP host name)

print or hold

DC6060 or DC5252 Utilities

DNS name

(TCP/IP host name)

page 27

page 10

page 14

TO CONFIRM THE DIGITAL PRESS CONNECTION TO THE FIERY EXP6000/EXP5000

1 Print a digital press Test Page to verify the digital press is functioning normally.

2Turn off the digital press and connect the interface cable from the digital press to

the

Fiery EXP6000/EXP5000.

3To conﬁrm this connection, turn on the digital press and the Fiery EXP6000/EXP5000, and

print a Test Page from the Fiery EXP6000/EXP5000.

4 With both the Fiery EXP6000/EXP5000 and the digital press turned off, connect the network

cable to the Fiery EXP6000/EXP5000, as described in "Connecting to the Network".

The network should already be installed and operational.

5Turn on the digital press and then turn on the Fiery EXP6000/EXP5000.

TROUBLESHOOTING

Cannot connect to the Fiery EXP6000/EXP5000 with Fiery utilities

If users cannot connect to the Fiery EXP6000/EXP5000, check the following:

Fiery EXP6000/EXP5000 Setup: the appropriate network protocol must be enabled, with the

correct parameters (for example, for TCP/IP, the IP address), and you must publish the Print queue or Hold queue.

Check these settings quickly by printing a Conﬁguration page.

On the client computer: the appropriate network protocols must be loaded.

Cannot connect to the Fiery EXP6000/EXP5000 with Command WorkStation

If you encounter a problem connecting to the Fiery EXP6000/EXP5000, an error message is displayed.

The problem can occur when:

• The Fiery EXP6000/EXP5000 is initially turned on

• The Fiery EXP6000/EXP5000 restarts

•You have changed settings affecting the server address and have not reconﬁgured the

connection to the server

If you experience this problem, try the following solutions, in this order:

•A remote workstation running Fiery utilities or WebTools may be interfering by obtaining

status information. If possible, close the remote application, and try to connect again.

•Restart the Command WorkStation software and try to connect again.

•Restart the Fiery EXP6000/EXP5000.

INDEX

Numerics

100BaseT connector 22 10BaseT 22 8-pin RJ-45 connector 22

access level scenarios 19 access to network and software 16 accessing Setup

from Windows computer 24 Add File Server, Bindery Setup 38, 40 administrator

functions 53 to 54

installing the server 11

managing print jobs 54

password 55 Administrator password

changing from Windows computer 56

for setting the WebLink destination 19, 52

privileges 18 Allow Courier Substitution option 47 AppleTalk

protocol setup 30

server name 27 AppleTalk Setup

from Windows computer 30 AppleTalk zone 30 Auto Clear Job Log Every 55 Jobs option 28 Auto Print Job Log Every 55 Jobs option 28

Bindery ﬁle servers

connecting 38, 39

emulation mode 32 Bindery Setup

adding Bindery connections 38, 39

on server 37

removing Bindery connections 39, 40 Black Overprint option 49

CD-RW, burning 70 changing

Administrator password 55, 56 host name or DNS name 71

characters

used on Control Panel 27

Chooser

AppleTalk 27 choosing a Bindery Server to connect 38, 39 Clear Server option 57 clearing the Job Log 28 client setup

Fiery WebTools 52

overview 11 CMYK Simulation Method option 48 CMYK Simulation Proﬁle option 48 Collation option 48 Command WorkStation

problems connecting to server 73

Setup from 24 Comment option, Windows printing 42 Community Name option 43 Conﬁguration page

printing 66

troubleshooting connection problems 73 Conﬁgure button, Fiery WebTools 52 connected Novell servers, Bindery 39 connecting

digital press interface cable 72

network cable 22 control levels

scenarios 19

setting 16 Convert Paper Sizes option 47 Courier font, substitution with 47

date, setting 27 Default Paper Sizes option 47 destination, Fiery WebLink 52 device name 27, 72 Digital Press Mode option 48

INDEX

Direct connection

described 16, 17 publishing 46

required for downloading fonts 17 disk space 67 DNS (Domain Name Server) 13, 71 Domain or Workgroup option, Windows

printing 42

downloading fonts, Direct connection

requirement 17

Enable Ethernet option 29 Enable FTP Services 43 Enable IPP option 43 Enable LPD option 41 Enable NDS option 33, 35 Enable Port 9100 Print Services option 43 Enable Preview option 27 Enable Print via E-mail option 44 Enable Printed Queue option 27 Enable Printing Groups option 28 Enable TCP/IP for Ethernet option 31 Enable Web Services option 43 Enable Windows Printing option 42 enabling

Fiery WebTools 43 error messages

runtime 71 Ethernet 22

frame types 30 Ethernet Setup from remote Setup

Port Setup 29 Ethernet Speed option 29 E-mail Service Setup option 43

Face-Down Printing option 48 Fiery WebDownloader, described 19 Fiery WebLink 19

setting the destination 52 Fiery WebSetup, described 19 Fiery WebTools ?? to 52

enabling 43

enabling only certain WebTools 52

Installer 19

Status 18 FieryBar

accessing Setup 24

File Server 38, 40, 41 File Server, Bindery 38, 40 font substitution 47 frame types supported

IPX/SPX, Ethernet 30

General Setup options 27 to 28

Hold queue 46

described 16, 17

host name 13, 71

database 13

Image Quality option 48 improving server performance 67 Incoming Server option, E-mail Setup 44 Installer WebTool, see Fiery WebTools installing color server on network 11 Internet

accessing server with Fiery WebTools 18 WebLink access 52

IP address

for WINS Name Server 42

IPX (Novell)

NDS (Novell Directory Services) 32 overview of printing 14

IPX/SPX

polling interval 41

Java to support Internet browser 52 Job Batching Delay 46 Job Log

clearing jobs from 57 setting the page size used 28

Job Log Setup

from Windows computer 28

job management tools

deleting jobs with 57

Jobs Saved in Printed Queue option 27

lpd (TCP/IP) 15

printing 41

INDEX

maintaining server performance 67 Media Deﬁned Proﬁles 49 Member Printing 28 Mixed Attribute option 48

naming the server 71 NDS (Novell Directory Services) 32 NDS Print Server 32 NDS tree

browsing 32 NetWare

Directory Services 32 network

boards 29

cable 72

installation summary 11, 12

IPX (Novell) 12

protocols supported 10

TCP/IP 12 network installation summary 12 Network Setup

from Windows computer 29 to 43

part of initial Setup 24

Offset Jobs option 48 Operator password

privileges 18 Outgoing Mail Server option, E-mail Setup 44 Output Destination option 48 Output Proﬁle option 49

Page Order option 47 Paper Simulation 49 Paper Sizes option 47 Password, E-mail Setup 45 passwords

Administrator privileges 18

Administrator, changing 55

Fiery WebTools 18

for WebLink destination 19

Operator privileges 18

setting 17 PDF ﬁles, font substitution in 47 Polling Interval

E-mail Setup 44

polling interval for NetWare print jobs 41 Port 9100 printing 43 Port 9100 Queue option 43 Ports information Setup 29 Preview While Processing 27 Print Master option 48 Print queue 17, 46

described 16, 17

Print Server

adding 39, 40

selecting 34, 38, 40 Print Start Page option 27 Print Start Page, printing 27 Print to PostScript Error option 47 Printed queue 16 printer

connection failure 71

not found 71

not in Chooser 71 Printer Setup

from Windows computer 46

part of initial Setup 24

Printed queue options 27 printing

connections 16

reprinting previously printed jobs 16

start page at startup 27 printing connections 16 Printing Groups 64 printing groups

deﬁning members of 64

deﬁning passwords for 64

editing printing groups and passwords 64

removing printing groups and passwords 64 problems, see troubleshooting protocols

network 10

setting up 30

Xerox Fiery EXP6000, Fiery EXP5000 Configuration

Specifications and Main Features

Frequently Asked Questions

User Manual

Terminology and conventions

About this manual

CONNECTING TO THE NETWORK

Stages of installation on the network

Network server setup requirements

Windows networks

NetWare networks

AppleTalk networks

UNIX networks

Levels of access and control

Passwords

WebTools

Control level examples

System software

System software update

Anti-virus protection

E-mail viruses and E-mail printing

Secure Printing

Group Printing (Member Printing)

Ethernet connection

About Setup

Setup from a Windows computer

Accessing Setup

Remote Setup

General Setup options

Job Log Setup

Network Setup

Adapters/Ports

Protocols

Security

Services

Printer Setup options

Printer connections

Job Batching Delay

VDP Search Path

PS (PostScript) Setup

Color Setup

Exiting Setup

CONFIGURING FIERY WEBTOOLS

Setting the WebLink destination

Administrator functions

Setting passwords

Passwords from a Windows computer

Managing address books

FTP Printing

Setting up printing groups

Setting up a search path for VDP Resource Manager

Burning a CD-RW

TROUBLESHOOTING

Safe Print

Runtime error messages

INDEX
