Xerox Fiery EXP6000, Fiery EXP5000 Color Printing

Download

Fiery

SERVER & CONTROLLER SOLUTIONS

EXP6000/EXP5000 Color Server

Color Printing

45049060 15 March 2005

ONTENTS

CONTENTS

NTRODUCTION

Terminology and conventions

About this manual

Key features of ColorWise

OLOR

ISE

About this chapter

OOLS

Setting up ColorWise Pro Tools on a Windows computer

Installing ColorWise Pro Tools 12

Installing the ICC proﬁles 12

Conﬁguring the connection 14

Editing the conﬁguration 16

Setting up ColorWise Pro Tools on a Mac OS computer

Installing ColorWise Pro Tools 17

Installing MRJ 17

Uninstalling MRJ 18

Installing and setting the ColorSync proﬁles 18

Conﬁguring the connection 21

Editing the conﬁguration 23

Using ColorWise Pro Tools

Using Calibrator 24

Using Color Editor 24

Using Proﬁle Manager 25

Using Spot-On 27

Using Color Setup 39

CONTENTS

ALIBRATION

About this chapter

Calibrating with ColorWise Pro Tools Calibrator

Starting Calibrator 42

Expert mode 43

Restoring default calibration measurements 45

Calibrating with the DTP32 45

Calibrating with the DTP41 47

Calibrating with the ES-1000 49

Calibrating for custom halftone screens

Understanding calibration

An overview of calibration 55

How calibration works 55

Scheduling calibration 57

Checking calibration status 57

OLOR

ISE

About this chapter

Managing color on the Fiery EXP6000/EXP5000

ColorWise print options

RINT

Black Detection 60

Black Overprint 60

Combine Separations 61

CMYK Simulation Proﬁle 61

CMYK Simulation Method 62

Output proﬁle 63

Pure Black Text/Graphics 64

Rendering Styles 65

RGB Separation 66

PTIONS

RGB Source Proﬁle 66

Spot Color Matching 67

CONTENTS

Printer drivers and print options

Setting print options for Windows 69

Setting color management print options for Mac OS 70

OLOR

EASUREMENT

Using the DTP32

Setting up the DTP32 76

Calibrating the DTP32 78

Using the DTP41

Setting up the DTP41 79

Calibrating the DTP41 81

Using the ES-1000

NSTRUMENTS

Setting up the ES-1000 84

Calibrating the ES-1000 84

MPORTING

Simple ASCII Import File Format

NDEX

ENSITY

Example of 1D Status T density for EFI 21 patch page 86

Example of 1D Status T density for EFI 34 patch page 86

Example of 1D Status T density for an arbitrary page 87

EASUREMENTS

NTRODUCTION

Terminology and conventions

INTRODUCTION

This manual explains how to manage color output on the Fiery EXP6000/EXP5000 Color Server and provides information about calibration and color proﬁles.

This manual is part of a set of documentation that includes manuals for users and system administrators. For a complete description of your Fiery EXP6000/EXP5000 Color Server, see the other manuals available at your site.

This manual uses the following terminology and conventions.

Term or convention Refers to

Aero Fiery EXP6000/EXP5000 (in illustrations and examples)

ColorWise Pro Tools EFI Fiery ColorWise Pro Tools

Command WorkStation EFI Command WorkStation, Windows Edition and

EFI Command WorkStation, Macintosh Edition

Digital press DocuColor 6060/5252/2060/2045

Fiery EXP6000/EXP5000 Fiery EXP6000/EXP5000 Color Server

Titles in italics

Windows Microsoft Windows 98, Windows Me, Windows NT 4.0,

About this manual

This manual is organized to supply you with key information about managing the color output of your Fiery EXP6000/EXP5000.

• ColorWise Pro Tools describes the installation and conﬁguration of ColorWise Pro Tools, and explains how to use Color Editor, Proﬁle Manager, and Color Setup tools.

• Calibration provides an overview of calibration and describes how to calibrate the Fiery EXP6000/EXP5000 using various methods with ColorWise Pro Tools Calibrator.

• ColorWise Print Options describes the ColorWise print options and how to set them from Windows or Mac OS computers.

• Color Measurement Instruments provides information about color measurement instruments, available as separately purchased options.

• Importing Density Measurements describes the Simple ASCII File Format (SAIFF), which can be used to import toner density measurements from measurement devices.

Color terms and concepts, such as “ color space ,” “ spot color ,” “ gamut ,” and “ source proﬁle ” appear in bold throughout this manual. If you are new to desktop color, or if any terms are unfamiliar, see Glossary , which is a separate document in this set.

OTE

This manual uses Fiery EXP6000 screen captures. The interface may vary slightly depending on whether you are using Fiery EXP5000 or Fiery EXP6000. Major differences are noted.

INTRODUCTION

Key features of ColorWise

ColorWise is the color management system ( CMS ) built into the Fiery EXP6000/EXP5000

and designed to provide both casual and expert users with the best color output for a variety of purposes. The ColorWise default settings provide high-quality, out-of-box color from many Windows and Mac OS applications. This allows casual users to achieve quality output without knowing about or changing any color settings on the Fiery EXP6000/EXP5000.

For consistent color, calibrate the Fiery EXP6000/EXP5000 on a regular basis. ColorWise Pro Tools includes an easy-to-use calibrator, which allows you to calibrate using an optional

spectrophotometer or densitometer (see “Calibration” on page 40).

ColorWise features allow you to modify printing results. Depending on your particular needs, you can:

•Set the behavior of CMYK printing to emulate DIC , Euroscale , and SWOP offset

press standards.

•Match PANTONE and other spot colors for the best match when printing using

four-color press conditions or presses with extra, custom plates.

•Select a color rendering dictionary (CRD), also called a rendering style, for RGB

printing. CRDs allow for rich, saturated printing of presentation graphics , smooth, accurate printing of photographs, and relative or absolute colorimetric rendering for specialized needs.

•Deﬁne the source of incoming RGB color data for better screen matching and provide for

better color conversion of RGB data with no source information.

•Determine whether RGB data is converted into the full gamut of the digital press or is ﬁrst

converted into the gamut of another device, such as a press standard. This feature is useful for making one device behave like another. It also allows you to evaluate the appearance of the RGB ﬁle under different printing conditions without having to reprocess the RGB data each time.

ColorWise color management ( ColorWise ) offers an open color architecture, allowing

users to customize the Fiery EXP6000/EXP5000 to meet new printing needs as they arise. ColorWise supports ICC proﬁles , which are industry standard color proﬁles that describe the color behavior of a device. Downloading ICC proﬁles to the Fiery EXP6000/EXP5000 enables the Fiery EXP6000/EXP5000 to simulate a custom press (or another digital press), as well as accurately print colors from a particular monitor or scanner. In addition, you can create customized ICC proﬁles for the digital press.

ColorWise also allows you to use any Status T densitometer by importing data in a standard ﬁle format (see “Importing Density Measurements” on page 85). In this case, it is important to note that the quality of the instrument used determines the quality of the calibration .

OLOR

ISE

COLORWISE PRO TOOLS

OOLS

The ColorWise default settings provide high-quality out-of-box color from many Windows and Mac OS applications. This allows casual users to achieve quality output without knowing about or changing color settings on the Fiery EXP6000/EXP5000. The ColorWise color management system (CMS) also allows expert users to obtain the best color output. ColorWise Pro Tools allows users to customize settings to achieve the best output for a variety of purposes.

Designed to give ﬂexible control of color printing, ColorWise Pro Tools includes the following color management tools:

• Calibrator (calibrate the Fiery EXP6000/EXP5000 in various ways)

• Color Editor (customize simulation and output proﬁles)

•Proﬁle Manager (manage proﬁles)

•Spot-On (deﬁne CMYK equivalents for spot colors)

• Color Setup (set defaults for ColorWise print options)

COLORWISE PRO TOOLS

About this chapter

This chapter describes the procedures for installing, conﬁguring, and using ColorWise Pro Tools on Windows and Mac OS computers.

Platform To do this See

Windows Install ColorWise Pro Tools page 12

Mac OS Install ColorWise Pro Tools page 17

Install the ICC proﬁles page 12

Conﬁgure the connection page 14

Modify the conﬁguration page 16

Install MRJ page 17

Install the ColorSync proﬁles page 18

Conﬁgure the connection page 21

Modify the conﬁguration page 23

Windows and Mac OS Use Calibrator page 24

Use Color Editor page 24

Use Proﬁle Manager page 25

Use Spot-On page 27

Use Color Setup page 39

COLORWISE PRO TOOLS

Setting up ColorWise Pro Tools on a Windows computer

The following sections describe how to install ColorWise Pro Tools and other ﬁles and how to conﬁgure the connection on a Windows computer.

Installing ColorWise Pro Tools

To install the software, you must have Service Pack 4 installed on a Windows 2000 computer, or Service Pack 1 on a Windows XP computer. If not, a warning message alerts you to install the Service Pack.

To use ColorWise Pro Tools on a Windows computer, you must install the “sj141_02.exe” ﬁle. If this ﬁle is not installed on your computer, the ColorWise Pro Tools installer automatically initiates the installation process. Follow the on-screen instructions.

TO INSTALL COLORWISE PRO TOOLS ON A WINDOWS COMPUTER

1 Open the ColorWise Pro Tools folder on the User Software CD.

2 Double-click the Setup.exe icon.

3Follow the on-screen instructions to complete installation.

Installing the ICC proﬁles

You can copy additional ICC proﬁles from the User Software CD to your computer. Use the ICC proﬁles with applications that support ICC standards, such as Adobe Photoshop. For most ICC-aware applications, you must install the ﬁles in a folder named Color in the System Folder. For use with ColorWise Pro Tools, copy the ﬁles to a folder of your choice.

TO INSTALL THE ICC PROFILES ON A WINDOWS COMPUTER

1 Insert the User Software CD into the CD-ROM drive.

2 Open the ICC folder.

3 Windows 98/Me: Copy the proﬁles to the Windows\System\Color folder.

Windows NT 4.0 or Windows 2000: Copy the proﬁles to the Winnt\System32\Color folder.

NOTE: If a folder named “Color” does not exist in the System32 folder, create one and copy

the proﬁles into it.

Windows XP or Windows Server 2003: Right-click the proﬁle that you want, and then click Install Proﬁle.

NOTE: The proﬁles are installed automatically to the Windows\System32\spool\drivers\color

folder on your computer.

COLORWISE PRO TOOLS

Other color ﬁles

You can copy additional color ﬁles from the User Software CD. Many of the ﬁles are PostScript ﬁles that you can download and print using Command WorkStation.

Windows Color Files folder (inside Windows_User_SW)

Calibration Files folder (inside Windows Color Files folder)

CMYK Color Reference.ps: An 11-page, Letter-size PostScript ﬁle

used for reference when deﬁning CMYK colors in applications.

PANTONE Book.ps: A 19-page, Letter-size PostScript ﬁle that

indicates the closest equivalent of PANTONE coated colors that the Fiery EXP6000/EXP5000 and your digital press model can produce. The method used to print the Pantone.ps ﬁle differs depending on the Spot Color Matching setting. For more information, see “ColorWise Print Options” on page 58.

Rgb page 01.doc: A ﬁle you can print from Microsoft Word 97

or later to view available RGB colors.

Rgb page 02.ppt: A ﬁle you can print from PowerPoint 6.0 or

later to view available RGB colors.

Custom21.ps, Custom34.ps, Stand21.ps, and Stand34.ps.:

PostScript ﬁles of color patches for obtaining measurements.

The numbers in the ﬁle names refer to the number of patches on the page. The Custom ﬁles allow you to download measurement patches that incorporate the current calibration set of the digital press. The Standard ﬁles allow you to download standard measurement patches that bypass the current calibration set of the digital press.

NOTE: These ﬁles are provided for expert users and should not be

used for day-to-day calibration.

COLORWISE PRO TOOLS

Conﬁguring the connection

The ﬁrst time you start ColorWise Pro Tools, you must conﬁgure the connection to the Fiery EXP6000/EXP5000.

BEFORE YOU BEGIN

• Print the Conﬁguration page from Command WorkStation and note the IP address of the Fiery EXP6000/EXP5000.

This page contains information you need when conﬁguring the connection, such as the IP address. For TCP/IP installations, you can use the Domain Name Server (DNS) name of the Fiery EXP6000/EXP5000 instead of the IP address. Make sure the Fiery EXP6000/EXP5000 is listed in a DNS used by your network. For more information, see the documentation that accompanies your Windows system.

TO CONFIGURE THE CONNECTION FOR COLORWISE PRO TOOLS

1 Start ColorWise Pro Tools.

2 If the No Servers Conﬁgured dialog box appears, click OK.

3 If the Choose Printer Device dialog box appears, click Add.

4 Enter the appropriate information for the Fiery EXP6000/EXP5000.

Nickname: Type a name for the Fiery EXP6000/EXP5000. This name does not have to match

the actual Server Name of the Fiery EXP6000/EXP5000.

NOTE: The nickname cannot contain the following characters:

[ ] _ " ' <space> <tab>

Protocol: Choose the type of network protocol you are using from the menu.

NOTE: Fiery utilities are not supported over IPX/SPX. Command WorkStation is supported

on Windows computers over TCP/IP.

Server Name: Type the IP address (or DNS name) of the Fiery EXP6000/EXP5000.

New Device: Type the name of the device the Fiery EXP6000/EXP5000 is connected to:

DC6060 or DC5252.

COLORWISE PRO TOOLS

NOTE: This term is case-sensitive, type DC6060 or DC5252 exactly as shown.

5 When you have typed all the information, click Add.

6 With the device name (DC6060 or DC5252) selected in the Devices list, click OK.

The Fiery EXP6000/EXP5000 appears in the list of Available Servers. The ﬁrst line of the entry displays the nickname you assigned the Fiery EXP6000/EXP5000, followed by the protocol you chose. The second line displays the device name.

7 With the device name selected in the list of Available Servers, click Select.

The ColorWise Pro Tools main window appears.

COLORWISE PRO TOOLS

Editing the conﬁguration

Edit the conﬁguration whenever a change to your Fiery EXP6000/EXP5000 or network occurs, such as a server name or IP address change. Change the speciﬁc Fiery EXP6000/ EXP5000 Setup information before you conﬁgure the connection.

TO EDIT THE CONFIGURATION

1To add a new Fiery EXP6000/EXP5000, click Add. Conﬁgure the Add New Server dialog box as

outlined in steps 4 through 6 in the previous procedure.

2To remove a Fiery EXP6000/EXP5000, select the Fiery EXP6000/EXP5000 by its nickname and

click

Remove.

3To modify information, select the Fiery EXP6000/EXP5000 by its nickname and click Modify.

Edit the information in the Modify Server Settings dialog box and click OK.

NOTE: The nickname cannot be modiﬁed.

The list of Available Servers reﬂects your modiﬁcations.

COLORWISE PRO TOOLS

Setting up ColorWise Pro Tools on a Mac OS computer

The following sections describe how to install ColorWise Pro Tools and other ﬁles and how to conﬁgure the connection on a Mac OS computer.

Installing ColorWise Pro Tools

Before you begin each installation, determine where you want to install each item on your hard disk. Otherwise, the software is placed in the “Fiery” folder by default.

Use the following procedure to install ColorWise Pro Tools on a Mac OS computer.

TO INSTALL COLORWISE PRO TOOLS ON A MAC OS COMPUTER

1 Insert the User Software CD into the CD-ROM drive.

2 Double-click the ColorWise Pro Tools installer icon.

3Follow the on-screen instructions.

4 If prompted, click Quit to close the installer.

Installing MRJ

If MRJ is not installed, the ColorWise Pro Tools installer automatically initiates the MRJ installation process.

NOTE: MRJ 2.2.5 is provided on the User Software CD. For Mac OS X, Classic mode only

is supported.

To install manually, use the following procedure.

TO INSTALL MAC OS RUNTIME FOR JAVA

1 Open the MRJ folder on the User Software CD.

2 Double-click Installer.

3 Read the Apple Computer Inc. License Agreement and click Agree.

4 Click Install.

The MRJ ﬁles are installed.

5 Click Quit.

We recommend that you use the version of MRJ provided on the User Software CD with ColorWise Pro Tools.

COLORWISE PRO TOOLS

Uninstalling MRJ

If a newer version of MRJ (such as v2.2.5) is installed on your computer and you experience difﬁculty using ColorWise Pro Tools, remove or relocate the MRJ ﬁles currently installed and reinstall the version of MRJ provided on the User Software CD (see the following procedure).

TO UNINSTALL MAC OS RUNTIME FOR JAVA

1 Open the System Folder on your hard disk.

2 Inside the Extensions folder, locate MRJ Libraries, and then remove or move it to

another

folder.

3 Inside the Apple Extras folder, locate Mac OS Runtime Java, and then remove or move it to

another folder.

4 Restart your computer.

Installing and setting the ColorSync proﬁles

You can copy additional ICC proﬁles from the User Software CD to your computer. Use the ICC proﬁles with applications that support ICC standards, such as Photoshop. For most ICC-aware applications, you must install the ﬁles in a folder named ColorSync Proﬁles in the System Folder. For use with ColorWise Pro Tools, you can copy the ﬁles to a folder of your choice.

TO INSTALL THE COLORSYNC PROFILES ON A MAC OS COMPUTER

1 Insert the User Software CD into the CD-ROM drive.

2 Open the ColorSync folder.

3 ColorSync 2.5: Install the proﬁles to the System Folder:ColorSync Proﬁles folder.

An earlier version of ColorSync: Install the proﬁles to the System Folder:Preferences: ColorSync Proﬁles folder.

COLORWISE PRO TOOLS

TO SET THE COLORSYNC PROFILES

1 Choose Control Panels:ColorSync from the Apple menu.

2 Choose EFIRGB ICC v1f from the System Proﬁle menu.

When you select it as the ColorSync system proﬁle, EFIRGB ICC v1f sets the optimal source color space for printing to the Fiery EXP6000/EXP5000. The color space set by the EFIRGB ICC v1f proﬁle is the same as that set by the EFIRGB setting of the RGB Source Proﬁle print option.

NOTE: The RGB Source Proﬁle print option setting overrides the ColorSync system

proﬁle setting.

3 Close the ColorSync dialog box.

COLORWISE PRO TOOLS

Other color ﬁles

You can copy additional color ﬁles from the User Software CD. Many of the ﬁles are PostScript ﬁles that you can download and print using Command WorkStation.

Mac Color Files folder (inside Mac_User_SW)

Calibration Files folder (inside the Mac Color Files folder)

CMYK Color Reference.ps: An 11-page, Letter-size PostScript ﬁle to

use for reference when deﬁning CMYK colors in applications.

PANTONE Book.ps: A 19-page, Letter-size PostScript ﬁle that

indicates the closest equivalent of PANTONE coated colors that the Fiery EXP6000/EXP5000 and your particular digital press model can produce. The method used to print the PANTONE Book.ps ﬁle differs depending on the Spot Color Matching setting. For more information, see “ColorWise Print Options” on page 58.

RGB page 01: A ﬁle you can print from Microsoft Word 97 or later

to view available RGB colors.

RGB page 02: A ﬁle you can print from PowerPoint 6.0 or later to

view available RGB colors.

Custom21.ps, Custom34.ps, Stand21.ps, and Stand34.ps.:

PostScript ﬁles of color patches for obtaining measurements.

The numbers in the ﬁle names refer to the number of patches on the page. The Custom ﬁles are provided to allow you to download measurement patches that incorporate the currently installed calibration set. The Standard ﬁles are provided to allow you to download standard measurement patches that bypass the currently installed calibration set.

These ﬁles are provided for expert users and should not be used for day-to-day calibration.

COLORWISE PRO TOOLS

Conﬁguring the connection

The ﬁrst time you start ColorWise Pro Tools, you must conﬁgure the connection to the Fiery EXP6000/EXP5000.

NOTE: ColorWise Pro Tools is supported only over TCP/IP networks.

BEFORE YOU BEGIN

• Print the Conﬁguration page from Command WorkStation and note the IP address of the Fiery EXP6000/EXP5000.

This page contains information you need when you conﬁgure the connection. For TCP/IP installations, you can use the Domain Name Server (DNS) name of the Fiery EXP6000/ EXP5000 instead of the IP address. Make sure the Fiery EXP6000/EXP5000 is listed in a DNS used by your network. For more information, see the documentation that accompanies your Macintosh.

TO CONFIGURE THE CONNECTION FOR COLORWISE PRO TOOLS

1 Double-click the ColorWise Pro Tools icon.

The Choose Printer Device dialog box appears.

2 If the No Servers Conﬁgured dialog box appears, click OK. If the Choose Printer Device

dialog box appears, click Add.

COLORWISE PRO TOOLS

3 Enter the appropriate information for the Fiery EXP6000/EXP5000.

Nickname

: Type a name for the Fiery EXP6000/EXP5000. It does not have to match the

actual server name of the Fiery EXP6000/EXP5000.

NOTE: The nickname cannot contain the following characters:

[ ] _ " ' <space> <tab>

Protocol: TCP/IP is the only supported network protocol, so no selection is required.

Server Name: Type the IP address (or DNS or host name) of the Fiery EXP6000/EXP5000.

New Device: Type the name of the device the Fiery EXP6000/EXP5000 is connected

to: DC6060 or DC5252. This device name appears in the Printer Setup section of the Conﬁguration page.

NOTE: This term is case-sensitive, type DC6060 or DC5252 exactly as shown.

4 When you have typed all the information, click Add.

5 With the device name selected in the Devices list, click OK.

6 With the device name selected in the list of Available Servers, click Select.

The ColorWise Pro Tools main window appears.

COLORWISE PRO TOOLS

Editing the conﬁguration

TO EDIT THE CONFIGURATION

1To add a new Fiery EXP6000/EXP5000, click Add. Conﬁgure the Add Server dialog box as

outlined in steps 3 through 5 in the previous procedure.

2To remove a Fiery EXP6000/EXP5000, select the Fiery EXP6000/EXP5000 by its nickname and

click

Remove.

3To modify information, select the Fiery EXP6000/EXP5000 by its nickname and click Modify.

Edit information in the Modify Server Settings dialog box and click OK.

NOTE: The nickname cannot be modiﬁed.

The list of Available Servers reﬂects your modiﬁcations.

COLORWISE PRO TOOLS

Using ColorWise Pro Tools

ColorWise Pro Tools gives you ﬂexible control of color printing by allowing you to calibrate the Fiery EXP6000/EXP5000, customize simulation and output proﬁles, manage proﬁles on the Fiery EXP6000/EXP5000, manage spot colors, and set default values for ColorWise print options.

Using Calibrator

ColorWise Pro Tools Calibrator allows you to calibrate the Fiery EXP6000/EXP5000 using one of a number of measurement methods. For information about calibrating the Fiery EXP6000/EXP5000, see page 40.

Using Color Editor

ColorWise Pro Tools Color Editor allows you to create custom proﬁles by editing existing simulation or output proﬁles, and then saving the changes as a new proﬁle. Use Color Editor to ﬁne-tune a proﬁle on the Fiery EXP6000/EXP5000 to meet your exact speciﬁcations. Access Color Editor directly, by clicking its icon in the ColorWise Pro Tools main window, or indirectly, through the Proﬁle Manager.

NOTE: You cannot edit source proﬁles. Only simulation and output proﬁles can

be customized.

TO USE COLOR EDITOR

1 Start ColorWise Pro Tools and connect to the Fiery EXP6000/EXP5000.

COLORWISE PRO TOOLS

2 Click Color Editor.

Simulation lists the simulation proﬁles resident on the Fiery EXP6000/EXP5000. Output lists the output proﬁles resident on the Fiery EXP6000/EXP5000.

3 Select a proﬁle and click Select.

For more information about Color Editor, see ColorWise Pro Tools Help.

Using Proﬁle Manager

ColorWise Pro Tools Proﬁle Manager allows you to manage and edit ICC proﬁles.

1 Output proﬁles

COLORWISE PRO TOOLS

TO USE PROFILE MANAGER

1 Start ColorWise Pro Tools and connect to the Fiery EXP6000/EXP5000.

2 Click Proﬁle Manager.

For more information about Proﬁle Manager, see ColorWise Pro Tools Help.

For information about the Use Media Deﬁned Proﬁle option, see the following section.

Setting the default proﬁles

Use Proﬁle Manager to set a default RGB source proﬁle, simulation proﬁle, or output proﬁle. The default RGB source and simulation proﬁles that you set are applied to all print jobs sent to the Fiery EXP6000/EXP5000, unless you override them using print options. The same is true of the default output proﬁle that you set, unless you select the Use Media Deﬁned Proﬁle option.

The Use Media Deﬁned Proﬁle option indicates whether or not the output proﬁles predeﬁned for the media types in your print jobs are applied automatically. For more information, see the following section.

COLORWISE PRO TOOLS

Using media-deﬁned output proﬁles

Instead of having Proﬁle Manager apply a default output proﬁle to all your print jobs, you can keep the Use Media Deﬁned Proﬁle option selected. This option automatically applies the output proﬁle predeﬁned for the media type in your print job. If your job contains mixed media, this option can apply different output proﬁles predeﬁned for the different media.

The Use Media Deﬁned Proﬁle option in Proﬁle Manager is selected by default. It is applied to all print jobs sent to the Fiery EXP6000/EXP5000, unless a user overrides it for an individual job by changing settings in the printer driver.

TO USE MEDIA-DEFINED OUTPUT PROFILES

1 Start ColorWise Pro Tools and click Proﬁle Manager.

2 Select Use Media Deﬁned Proﬁle in the Output bar of Proﬁle Manager.

Changing the setting for the Use Media Deﬁned Proﬁle option in Proﬁle Manager automatically changes the same setting in Color Setup. For more information, see

“Using Color Setup” on page 39.

Using Spot-On

Spot-On allows you to adjust and manage lists of spot colors and their CMYK equivalents. The matching lists of spot colors and CMYK values are known as Spot Color Dictionaries. Spot-On allows you to maintain multiple Spot Color Dictionaries for each output proﬁle on the Fiery EXP6000/EXP5000.

NOTE: To use the Spot-On features with named colors, you must enable the Spot Color

Matching print option. For more information about this option, see page 67.

NOTE: Spot colors identiﬁed by names are printed with their deﬁned CMYK values.

The edits to the output proﬁle made with Color Editor do not affect how spot colors print.

Starting Spot-On

To use Spot-On, you must specify the output proﬁle associated with the Spot Color Dictionary that you want to edit.

If you select Output proﬁle X and redeﬁne PANTONE 123 from 30%M to 50%M using Spot-On, you will get 50%M when you print a job with Output proﬁle X. If you print a job with Output proﬁle Y, you will get the original value. If you select Output proﬁle X and create a custom color named “My Purple” and deﬁne it as 80C 40M, ColorWise automatically calculates the Lab values using Output proﬁle X and creates new CMYK values for use with Output proﬁle Y.

NOTE: The Fiery EXP6000/EXP5000 allows only one user to connect to Spot-On at a time.

1 Current output proﬁle 2 Output proﬁles to link

COLORWISE PRO TOOLS

TO START SPOT-ON

1 Start ColorWise Pro Tools and connect to the Fiery EXP6000/EXP5000.

2 Click Spot-On.

The Select Output Proﬁle dialog box appears.

3 Choose an output proﬁle and click OK.

The Spot-On main dialog box appears. The CMYK values displayed in the dialog box are calculated with respect to the speciﬁed proﬁle.

NOTE: When you print a job, choose the same output proﬁle from the printer driver as the

one that is selected in the Select Output Proﬁle dialog box. Otherwise, color adjustments based on Spot-On have no effect.

COLORWISE PRO TOOLS

Spot-On main window

The Spot-On main window lists color groups that represent libraries of spot colors on the Fiery EXP6000/EXP5000. Tool icons for working with colors appear at the top of the window.

1 Output proﬁle 2 Save 3 Upload 4Download 5 Cut 6 Copy 7Paste 8 Collapse All 9 Print 10 Up 11 Down 12 Custom color group 13 Default color group

2 3 4 5 6 7 8 9 1101

By default, the Fiery EXP6000/EXP5000 includes several PANTONE libraries along with a System library. The DIC, HKS, and TOYO libraries are also available. These factory default libraries appear marked with the default group icon ( ).

You can add custom color groups and colors to the Spot-On window (see page 32). Added groups appear marked with the custom group icon ( ). Both default and custom groups can be opened to display included colors.

COLORWISE PRO TOOLS

TO OPEN AND CLOSE A COLOR GROUP

1To open a color group, click the icon to the left of the group name.

When you open a group, all the colors in the group are displayed, and the group icon changes appearance.

2To close a color group, click the icon to the left of the group name.

3To close all the color groups in the list, choose Close All from the Edit menu.

Working with existing colors

Spot-On allows you to view and manage existing groups of colors on the Fiery EXP6000/ EXP5000 and search for a particular color in the Spot-On list.

Color groups in the Spot-On window appear in order of their priority. Highest priority is assigned to color groups at the top of the list. For instance, if two colors from two different color groups have the same name, the Fiery EXP6000/EXP5000 uses the color from the higher group and disregards the other color. By managing the priority of colors in this way, you can maintain several CMYK variants for the same spot color.

COLORWISE PRO TOOLS

TO REARRANGE THE PRIORITY OF COLORS

1To rearrange an entire color group, select the desired color group.

To rearrange an individual color, select the desired color.

Individual spot colors are marked with circular color icons.

2To move the selection up or down in the list, click the Up or Down icon in the toolbar.

3To paste the selection in a different location in the list, click the Cut or Copy icon in

the toolbar.

NOTE: The Cut operation is available only for custom colors.

4 Click the location in the list where you want to paste the cut or copied selection, and then

click the Paste icon in the toolbar.

When you paste a default PANTONE color or group, a warning message appears asking you to rename the selection because of the multiple preﬁxes and sufﬁxes for the PANTONE colors and groups. Use the menus to choose the desired preﬁx and sufﬁx for the new name, and then click OK. The pasted selection becomes a custom color or group with the speciﬁed name.

TO FIND A SPECIFIC COLOR

1 Choose Find from the Edit menu.

The Find dialog box appears.

2Type the name of the color that you want to ﬁnd and click OK.

Spot-On searches for the speciﬁed color, starting from the top of the color list. Once located, the color appears selected in the color list.

3To ﬁnd additional colors based on the same search criteria, choose Find Again from the

Edit menu.

Creating custom colors

Spot-On provides a number of default color groups in the color list. You can add your own custom spot colors and groups to the list.

COLORWISE PRO TOOLS

TO ADD A NEW COLOR OR COLOR GROUP

1 Select the location in the group or color list where you want the addition to be placed.

2 Choose New Group from the Edit menu to insert a new group, or choose New Color to insert a

new color.

A new color group entry or color entry appears as Untitled.

TO RENAME A CUSTOM COLOR OR GROUP

1 Select the speciﬁc color or group you want to rename.

2 Double-click the name of the color or group.

3Type the new name exactly as it appears in the job, including uppercase and lowercase

characters and spaces, as needed.

This new name is supplied by the source application (such as Adobe Illustrator or QuarkXPress) to your PostScript job.

NOTE: Default groups or colors (such as PANTONE) cannot be renamed.

Downloading custom color groups

You can download custom color groups from your computer to the Fiery EXP6000/ EXP5000. Downloaded groups are added as custom groups to the Spot-On color list and are immediately enabled for use on the Fiery EXP6000/EXP5000.

TO DOWNLOAD CUSTOM COLOR GROUPS

1 Select the location in the color list where you want to add the downloaded group.

2 Choose Download from the File menu.

The Select ﬁle dialog box appears.

NOTE: The supported ﬁle format for download is ICC Named Color Proﬁle.

COLORWISE PRO TOOLS

3 Locate and select the desired color group, and then click Open.

The downloaded group is added to the speciﬁed location in the Spot-On list. If you did not specify a location, the group is added to the top of the list.

If the downloaded group has the same name as an existing group in the list, you are prompted to rename the downloaded group.

Uploading custom color groups

You can upload custom color groups from the Fiery EXP6000/EXP5000 to your computer as ICC ﬁles. The upload feature allows you to share a group by creating a local copy that can be downloaded to another Fiery EXP6000/EXP5000.

You must save a color group to the Fiery EXP6000/EXP5000 before you can upload it to your computer. To upload a factory default group, copy and paste the group as a new custom group, and then upload the group as required.

TO UPLOAD CUSTOM COLOR GROUPS

1 Select the name of the color group you want to upload.

2 Choose Upload from the File menu.

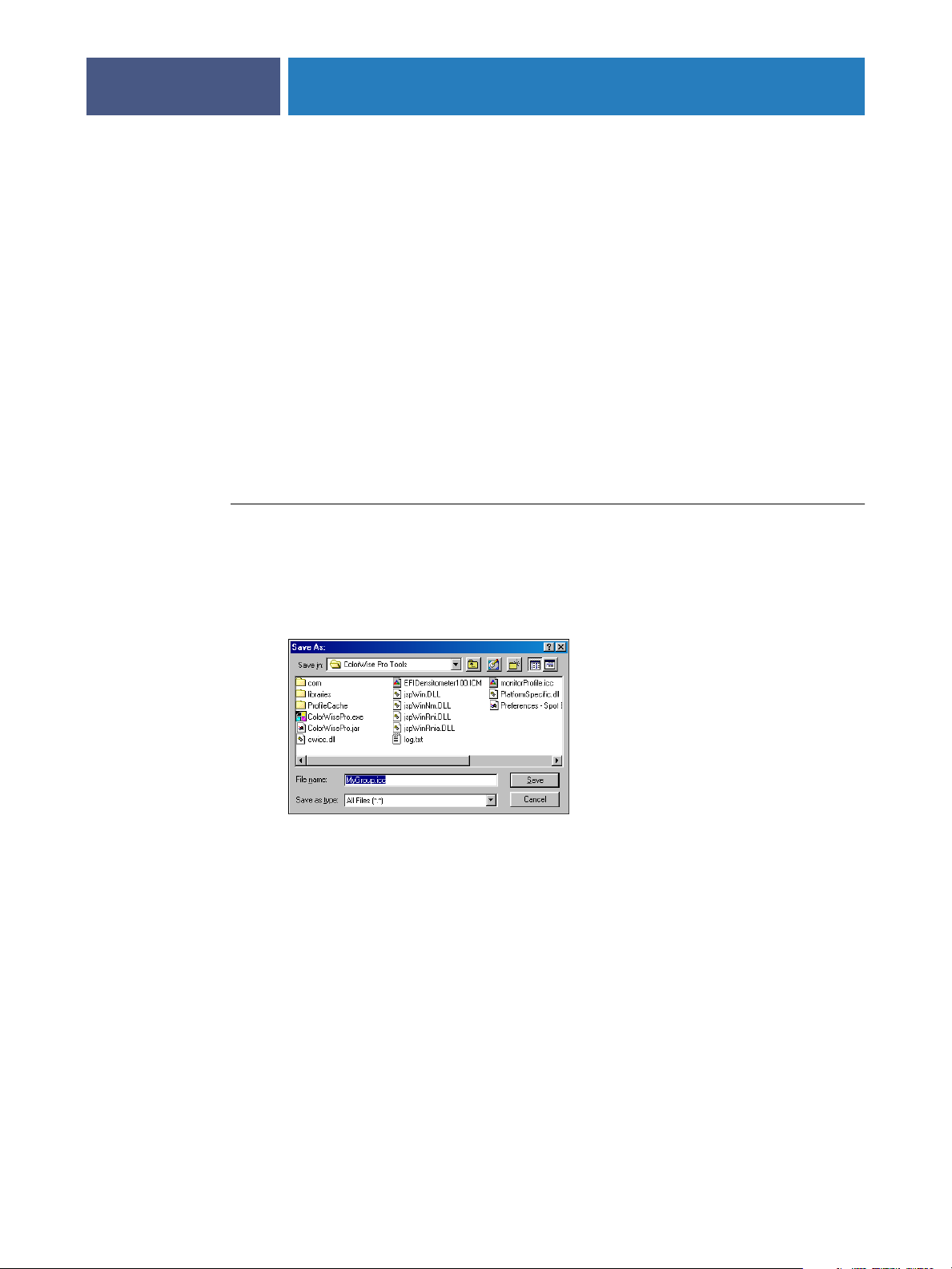

The Save As dialog box appears.

3Browse to the location where you want to save the ﬁle, name the ﬁle, and then click Save.

Editing color values

If an existing spot color is not printing as intended, edit the color values as needed to achieve your intended result. Edit color values by entering the exact CMYK values in the Spot-On main window or in the Set Center Patch Color dialog box, or using the Spot-On Color Search feature.

Use the following procedures to edit a named color by entering the exact CMYK values. To target a color using Spot-On Color Search, see page 35.

COLORWISE PRO TOOLS

TO EDIT A COLOR IN THE SPOT-ON MAIN WINDOW

1 Select the color you want to edit.

2 Double-click the value under C, M, Y, and K, and enter a new number for each color channel.

The edited color appears in the color list.

NOTE: The edited color is not saved until you choose Save from the File menu.

TO EDIT A COLOR IN THE SET CENTER PATCH COLOR DIALOG BOX

1 Select the color you want to edit.

2 Double-click the color icon.

The Spot-On Color Search dialog box appears with the selected color in the center.

3 Click the center patch.

The Set Center Patch Color dialog box appears.

4 Indicate whether you want to enter CMYK values as percentages or Device Codes.

The Percentages option allows you to enter color values between 0 and 100%, in increments of 0.5. Values out of this range are rounded to the nearest whole or half percentage.

The Device Codes option allows you to enter color values between 0 and 255. This option reﬂects the full range of color values that the Fiery EXP6000/EXP5000 can reproduce and provides ﬁner gradations of color than are possible with Percentages.

COLORWISE PRO TOOLS

5Type the C, M, Y, and K values of your speciﬁc color in the appropriate ﬁelds.

Use the Tab key to move from ﬁeld to ﬁeld. As you enter each new value, the preview patch updates to reﬂect the old and new colors.

6 Click OK.

The new color is displayed in the center of the Spot-On Color Search dialog box.

7 Click OK.

The edited color appears in the color list of the Spot-On main window.

Use the following procedure to target a color using the Spot-On Color Search dialog box. Beginning with an approximate color in the Spot-On Color Search dialog box, you can adjust the hue, saturation, and lightness of the color until you achieve an acceptable match.

TO TARGET A COLOR USING SPOT-ON COLOR SEARCH

1 Select the color that you want to edit.

2 Double-click the color icon.

The Spot-On Color Search dialog box appears with the current color in the center.

3To update the center patch to a neighboring color that more closely matches the target, click

the corresponding neighbor patch.

Neighboring patches represent variations from the center patch and can be selected if they offer a closer match to the desired color. Clicking one of these patches updates the center patch to the new color and provides a new selection of neighboring colors. These patches are either lightness or saturation neighbors, depending on the option you choose in the following step.

NOTE: When you select certain colors, an exclamation point icon may appear in the

upper-right corner of the dialog box. This icon indicates that one or more colorants have reached their maximum values.

COLORWISE PRO TOOLS

4Use the following techniques to control how neighboring color patches are generated:

Select Lightness or Saturation in the Color Directions Legend.

Lightness generates neighbor patches based on darker to lighter shades of the original color. This variation is displayed from left to right, with the original color remaining in the center of the middle group.

Saturation generates neighbor patches based on less saturated to more saturated variations of the original color. This variation is displayed from left to right, with the original color remaining in the center of the middle group.

Choose a setting from the Color Spacing menu to control the closeness of the neighbor patches.

A higher setting generates neighbor patches that differ more noticeably from the center color. As you get closer to your target color, reduce the color spacing to a smaller value.

Select Monitor Compensation to simulate how all the on-screen color patches will appear when printed on paper.

This simulation depends on the monitor proﬁle conﬁgured for your monitor. To specify the monitor proﬁle, choose Preferences from the Edit menu in the Spot-On main window.

Make sure that you set your monitor according to the manufacturer’s recommendations and select the correct monitor proﬁle for your monitor (including the FACI monitor).

5 Continue adjusting the color patch controls and clicking neighbor patches until the color you

want appears in the center patch.

6 Click Print Pattern.

NOTE: It is very difﬁcult to accurately match spot colors on a monitor. You should always test

print to get the proper color match.

7 Choose the appropriate settings from the Output Style, Paper Size, and Paper Tray menus.

For Output Style, choose Color Search Pattern or Color Neighbor Pattern. Color Search Pattern prints patches with the same pattern as displayed in the Color Search dialog box. Color Neighbor Pattern prints patches in a three column by eight row format.

For Paper Size, choose the size of the paper that you want to use for printing the patches.

For Paper Tray, specify the paper source for the paper that you want to use.

COLORWISE PRO TOOLS

8 Click OK to print the patches.

The Print Pattern test page provides the following information:

• Center patch color CMYK value

• Color spacing

• Lightness or Saturation neighbors selected

•Output proﬁle selected

The goal of Spot-On Color Search is to ﬁnd the color values that make a printed color patch match a target, not its screen simulation of it. Printing a Print Pattern of neighbor color patches allows you to compare the printed patches to the color target. After you compare the printed patches and ﬁnd the one that matches most closely, you can select the corresponding patch on-screen.

9 Select the desired target color in the Spot-On Color Search dialog box and click OK.

The edited color appears in the color list of the Spot-On main window.

Using a measurement instrument to target colors

If you have the EFI Spectrometer ES-1000, you can import measured color values directly into Spot-On. This feature allows you to target matches based on the actual colors of immediate objects, such as the red of a printed logo or the yellow of a packaging envelope.

TO IMPORT COLOR MEASUREMENTS INTO SPOT-ON

1 Install and set up the ES-1000 for use with your computer.

For installation and setup instructions, see the documentation that accompanies the instrument.

2 Choose Start from the Instrument menu.

The Choose Port dialog box appears.

3For Instrument, choose the instrument you will use to take measurements. For Port, choose

the serial port connection of the instrument. Click OK.

4 Place the ES-1000 over the target color, making sure to center the sample aperture over the

color. Press Measure to take the measurement.

The measured CMYK values are imported into Spot-On as follows:

•If an individual color is selected in the color list, it updates to the measured color.

•If a group is selected in the color list, a new color with the measured values is created

within the group.

COLORWISE PRO TOOLS

•If the Spot-On Color Search dialog box is open, the center patch updates with the

measured values, and the neighbor patches update accordingly.

•If the Set Center Patch Color dialog box is open, the measured values are imported into

the CMYK entry ﬁelds.

5 When you are ﬁnished taking color measurements, choose Stop from the Instrument menu.

Spot-On closes the connection to the instrument.

Reverting default colors to factory settings

You can revert default colors to their factory default settings. Revert all colors within a default color group, or revert one or more speciﬁc colors within a default color group, so that only those colors are reset to the factory default settings.

TO REVERT ALL COLORS WITHIN A DEFAULT COLOR GROUP TO FACTORY DEFAULTS

1 Click the icon to the left of the name of the group that you want to revert.

2 Choose Revert Group from the File menu.

A warning message appears.

3 Click OK.

TO REVERT SPECIFIC COLORS WITHIN A DEFAULT COLOR GROUP TO FACTORY DEFAULTS

1 Click the icon to the left of the name of the group that contains the colors you want to revert.

2 Select the colors that you want to revert to the factory defaults.

To select more than one color, Shift-click to select an adjacent color or Control-click to select a nonadjacent color.

3 Choose Revert Factory Color from the File menu.

A warning message appears.

4 Click OK.

Saving changes and exiting Spot-On

To enable your spot color matches for use with the Fiery EXP6000/EXP5000, save your edits before you exit Spot-On. This ensures that all your changes to Spot-On color deﬁnitions are stored on the Fiery EXP6000/EXP5000 and available for use when printing documents that contain spot colors.

The following edits do not require saving to take effect:

•Rearranging the priority level of a color group

• Downloading a color group

• Clearing or deleting a color group

COLORWISE PRO TOOLS

TO SAVE THE SPOT-ON COLOR LIST

1 Choose Save from the File menu.

2 Click Close in the upper-right corner of the Spot-On main window to exit the utility.

Using Color Setup

ColorWise Pro Tools Color Setup allows you to set the default values for the ColorWise print options and print settings for the Fiery EXP6000/EXP5000.

These settings are applied to all print jobs sent to the Fiery EXP6000/EXP5000, unless a user overrides them for an individual job by changing settings in the printer driver. These default settings can also be overridden using Command WorkStation.

TO USE COLOR SETUP

1 Start ColorWise Pro Tools and connect to the Fiery EXP6000/EXP5000.

2 Click Color Setup.

For information about the Control Bar, conﬁgurable Auto Trapping, and the Progressives features in Color Setup, see Fiery Graphic Arts Package.

CALIBRATION

Calibrating the Fiery EXP6000/EXP5000 ensures consistent and reliable color output. Calibrate the Fiery EXP6000/EXP5000 using ColorWise Pro Tools Calibrator with a densitometer or spectrophotometer.

NOTE: This manual uses the following terminology for color measurement instruments:

Term Refers to

DTP32 X-Rite DTP32 automatic densitometer

DTP41 X-Rite DTP41 automatic spectrophotometer

ES-1000 EFI Spectrometer ES-1000 hand-held spectrophotometer

CALIBRATION

About this chapter

This chapter describes the procedures for calibrating the Fiery EXP6000/EXP5000 using ColorWise Pro Tools Calibrator with various color measurement instruments. The following table provides the location of each procedure.

Calibration method See

DTP32 with Calibrator page 45

DTP41 with Calibrator page 47

ES-1000 with Calibrator page 49

If you have deﬁned a custom halftone screen, you must calibrate the Fiery EXP6000/ EXP5000 for that halftone screen before you print a job with it. For more information, see page 53.

This chapter also describes important concepts and suggestions for understanding calibration. The following table provides the location of each description.

For more information about See

An overview of calibration page 55

How calibration works page 55

Scheduling calibration page 57

Checking calibration status page 57

NOTE: The procedures described in this chapter are fundamentally the same for Windows and

Mac OS computers. Illustrations from a Windows computer are used in this chapter.

CALIBRATION

Calibrating with ColorWise Pro Tools Calibrator

ColorWise Pro Tools Calibrator allows you to calibrate the Fiery EXP6000/EXP5000 using the measurement method of your choice.

Changing calibration has the potential to affect all jobs for all users, so consider limiting the number of people authorized to perform calibration. Set an Administrator password to control access to calibration (see Conﬁguration and Setup).

NOTE: Multiple users can be connected to one Fiery EXP6000/EXP5000 with ColorWise Pro

Tools, but only one user at a time can use Calibrator. If you try to calibrate when another user is using ColorWise Pro Tools to calibrate, an error message appears.

Starting Calibrator

Start Calibrator from the ColorWise Pro Tools main window.

TO CALIBRATE THE FIERY EXP6000/EXP5000 USING CALIBRATOR

1 Start ColorWise Pro Tools and connect to the Fiery EXP6000/EXP5000.

For information about conﬁguring the connection to the Fiery EXP6000/EXP5000, see pages 14 and 21.

2 Click Calibrator.

1 Calibration methods

CALIBRATION

3 Choose a method from the Select Measurement Method menu.

1 Calibration methods

Procedures for each calibration method are described in subsequent sections of this chapter.

Expert mode

Calibrator provides two modes: Standard and Expert. You can perform all essential calibration tasks while in Standard mode. Expert mode offers two additional options: Print Pages and View Measurements.

1 Output proﬁle name

CALIBRATION

With the Print Pages option, print Comparison Pages showing the results of the new measurements with any proﬁle associated with the currently selected calibration set. You can create a custom Comparison Page and save it as a PostScript or Encapsulated PostScript (EPS) ﬁle called CALIB.PS. Next, print the ﬁle to the Hold queue of the Fiery EXP6000/EXP5000 from your application, or download it to the Hold queue. You can also create a CALIB.PS ﬁle by renaming any job in the Hold queue using Command WorkStation (see Utilities).

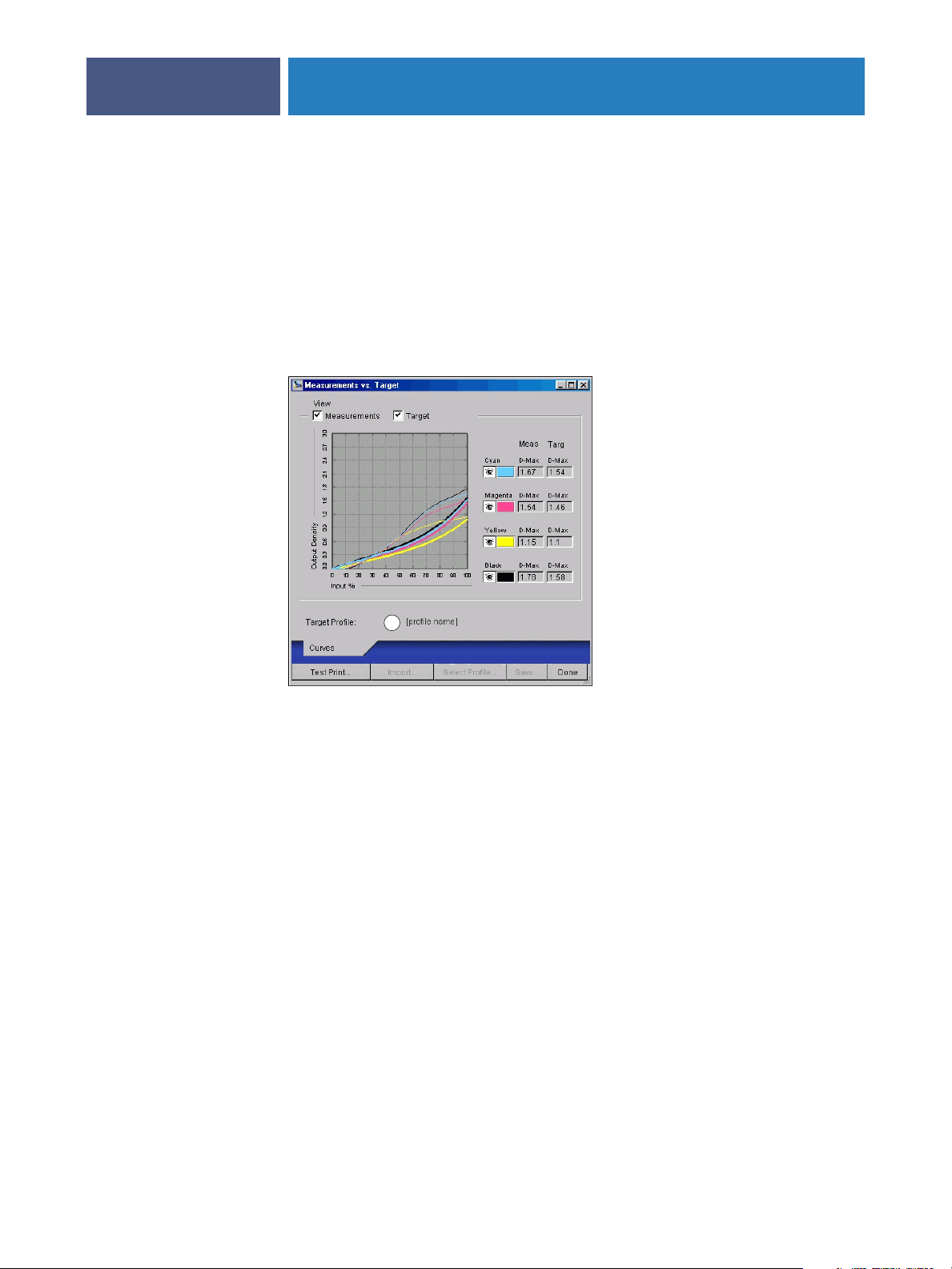

With the View Measurements option, you can view the current set of measurements as a table or graph that shows both the measurements and the target curves.

When more than one proﬁle uses the same target, an additional menu called Plot Against appears in the upper-right corner of the dialog box. It lists all output proﬁles that use that same calibration set. Selecting an output proﬁle from this menu displays the target curves associated with that proﬁle. If each output proﬁle contains a unique calibration target, the curves displayed also change when you switch proﬁles.

CALIBRATION

Restoring default calibration measurements

Use the following procedure to return to factory default calibration measurements.

TO RESTORE DEFAULT CALIBRATION MEASUREMENTS

1 In the Calibrator dialog box, click Restore Device.

2 Click OK to restore the preset default calibration set.

NOTE: Restore Device applies only to the currently selected calibration set.

Calibrating with the DTP32

Using the DTP32 densitometer, you can measure color patches generated by the digital press and automatically download the measurements to the Fiery EXP6000/EXP5000.

NOTE: Before you use ColorWise Pro Tools and the DTP32 to calibrate the Fiery EXP6000/

EXP5000, follow the instructions on page 78 to calibrate the DTP32.

TO CALIBRATE THE FIERY EXP6000/EXP5000 USING THE DTP32

1 Start Calibrator.

For instructions, see page 42.

2 In the Select Measurement Method pane, choose X-Rite DTP32.

3 In the Check Print Settings pane, choose a calibration set.

If more than one option appears, choose the appropriate calibration set for the type of screen and media you use most often.

NOTE: For this calibration to take effect, the calibration set must be associated with one or

more output proﬁles. The default calibration set is already associated with the default output proﬁle. You do not need to make any new associations.

4 Click Print in the Generate Measurement Page pane.

The Print Options dialog box appears.

CALIBRATION

5 Choose the appropriate options and click Print.

Page Type: Choose 21 or 34 Sorted Patches.

Paper Size: Automatically set to LTR/A4 for 21 Sorted Patches, or 11x17/A3 for

34 Sorted Patches.

Input Tray: Specify the paper source.

6 Retrieve the measurement page from the digital press.

7 Click Measure in the Get Measurements pane.

The Measurement Options dialog box displays the speciﬁed Page Type and Paper Size options.

8 Click Measure.

Follow the on-screen instructions to feed the measurement page through the DTP32.

The Status ﬁeld displays instructions for selecting the port and feeding the measurement page through the DTP32 four times, once for each color strip.

9 When the Status ﬁeld indicates that the measurements were read successfully, click Accept.

10 Click OK in the Measure dialog box.

11 Click Apply in the Calibrator dialog box to implement the new calibration set.

12 Click OK in the Information dialog box.

This completes the calibration process.

CALIBRATION

Calibrating with the DTP41

Using the DTP41 spectrophotometer, you can measure color patches generated by the digital press and automatically download the measurements to the Fiery EXP6000/EXP5000.

NOTE: Before you use ColorWise Pro Tools and the DTP41 to calibrate the Fiery EXP6000/

EXP5000, follow the instructions on page 81 to calibrate the DTP41.

TO CALIBRATE THE FIERY EXP6000/EXP5000 USING THE DTP41

1 Start Calibrator.

For instructions, see page 42.

2 Choose X-Rite DTP41 as the measurement method.

3 In the Check Print Settings pane, choose a calibration set.

If more than one option appears, choose the appropriate calibration set for the type of screen and media you use most often.

NOTE: For this calibration to take effect, the calibration set must be associated with one or

more output proﬁles. The default calibration set is already associated with the default output proﬁle. You do not need to make any new associations.

4 Click Print in the Generate Measurement Page pane.

The Print Options dialog box appears.

5 Choose the appropriate options and click Print.

Page Type: Choose 21 or 34 Sorted Patches.

Paper Size: Automatically set to LTR/A4 for 21 Sorted Patches or 11x17/A3 for

34 Sorted Patches.

Input Tray: Choose the paper source for printing the measurement page.

6 Retrieve the measurement page from the digital press.

7 In the Get Measurements pane, click Measure.

The Measurement Options dialog box displays the speciﬁed Page Type and Paper Size options.

CALIBRATION

8 Click Measure.

9 If necessary, choose the appropriate COM port for the DTP41 from the Available Ports menu,

and then click Start Measurements.

10 Feed the measurement page into the DTP41, starting with the cyan strip.

Align the page in the measurement page slot of the DTP41 so that the appropriate color column is centered below the alignment mark (see the diagram on page 79). Insert the page about three inches, past the front idler rollers, until it rests against the rear drive rollers and you feel resistance.

11 Click Read Strip.

The DTP41 pulls the measurement page through automatically.

After the measurement page is read, Calibrator instructs you to insert and realign the page for the next color.

CALIBRATION

12 Repeat the measurement process for the magenta, yellow, and black strips.

A check mark appears on the circle of the color just read, and the Status ﬁeld indicates the color was measured successfully.

Use the Previous and Next buttons to reverse or advance to another step in the measurement sequence.

13 When the Status ﬁeld indicates that all four color strips have been read successfully, click

Accept Measurements.

14 Click OK in the Measure dialog box.

15 Click Apply in the Calibrator dialog box to implement the new calibration set.

16 Click OK in the Information dialog box.

This completes the Fiery EXP6000/EXP5000 calibration process.

Calibrating with the ES-1000

Use ColorWise Pro Tools in conjunction with the ES-1000 spectrometer to calibrate the Fiery EXP6000/EXP5000.

NOTE: Before you use ColorWise Pro Tools and the ES-1000 to calibrate the

Fiery EXP6000/EXP5000, follow the instructions on page 84 to set up and calibrate the ES-1000.

TO CALIBRATE THE FIERY EXP6000/EXP5000 USING THE ES-1000

1 Start Calibrator.

For instructions, see page 42.

2 Choose EFI Spectrometer ES-1000 as the measurement method.

3 In the Check Print Settings pane, choose a calibration set.

If more than one option appears, choose the appropriate calibration set for the type of screen and media you use most often.

CALIBRATION

NOTE: For this calibration to take effect, the calibration set must be associated with one or

more output proﬁles. The default calibration set is already associated with the default output proﬁle. You do not need to make any new associations.

4 Click Print in the Generate Measurement Page pane.

The Print Options dialog box appears.

5 Choose the appropriate options and click Print.

Page Type: Choose 21 or 34 Sorted Patches or 21 or 34 Randomized Patches. Sorted patches

are printed on the page in the order of their hue and saturation levels. Randomized patches are printed on the page in random order, to help compensate for density inconsistencies on different areas of the page.

Page Size: Automatically set to LTR (if the Fiery EXP6000/EXP5000 is set up for US

standards) or A4 (if the Fiery EXP6000/EXP5000 is set up for metric standards) for 21 patches, or 11x17 (US) or A3 (metric) for 34 patches.

Input Tray: Automatically set to Auto Select.

6 Retrieve the printed measurement page from the digital press.

7 Click Measure in the Get Measurements pane.

The Measurement Options dialog box appears.

Page Type is automatically set to the type that you selected in step 5.

CALIBRATION

8 Check the settings and click Measure.

The Information dialog box appears.

9 Place the ES-1000 in the calibration cradle.

When you place the ES-1000 in the calibration cradle, white point calibration is used to calibrate the spectrometer and compensate for gradual drifts in the instrument. Make sure the sample aperture is in full contact with the white tile on the calibration cradle. If you do not place it correctly in the calibration cradle, the spectrometer does not return accurate measurements.

10 Click OK.

The EFI Spectrometer Measurements dialog box appears. Instructions for measuring the strips appear in the Status ﬁeld.

11 For a more accurate measurement, place several sheets of plain white paper beneath the

Measurement Page.

The extra sheets block underlying colors from being read by the instrument.

12 Orient the Measurement Page so that strips are horizontal and the scan direction (indicated

by the arrows at the beginning of each strip) is left to right.

13 Hold the ES-1000 with its length perpendicular to the scan direction, and place the sample

aperture in the white space at the start of the speciﬁed color.

14 Press and hold the Measure button and wait for a beep.

NOTE: To hear a beep with a Windows compatible computer, you must install a sound card

and speaker(s). You may have to turn up the volume on your computer to hear the beep.

CALIBRATION

15 After you hear a beep, slide the ES-1000 at a slow but consistent pace across the strip.

Take about ﬁve seconds to slide the length of the strip.

16 Release the button when all the patches in the strip have been measured and you reach the

white space at the end of the strip.

When a strip is measured successfully, the cross hair moves to the next color. If the strip is not measured successfully, a message directs you to try again.

17 Repeat steps 13 through 16 until all the strips are measured.

NOTE: You must measure in the order outlined in the Status ﬁeld.

18 When all the patches have been read successfully, click Accept.

19 Click Apply in the Calibrator dialog box.

The new calibration measurement is applied.

20 Click OK in the Information dialog box.

This completes the Fiery EXP6000/EXP5000 calibration process.

CALIBRATION

Calibrating for custom halftone screens

To correct problems with color quality when using a halftone screen, such as too much magenta in the printed image, make sure that the Fiery EXP6000/EXP5000 is calibrated for the particular halftone screen you use. This is important if you expect to compare a continuous tone page printed from a calibrated Fiery EXP6000/EXP5000 to a halftone printed page.

Changing halftone screens usually modiﬁes the color response of a printer. With most printers that offer standard multiple halftone screens, ColorWise Pro Tools Calibrator lets you select the halftone screen to calibrate. A measurement calibration set is maintained for each printer color response that is produced by different halftones coupled with other parameters, such as media and resolution. The best color is achieved when you specify a calibrated response and its corresponding output proﬁle by setting print options at print time.

However, when user-deﬁned halftones are speciﬁed, the Fiery EXP6000/EXP5000 does not have adequate information about the resulting color response. You must consider the halftone screen for separate calibration and proﬁling.

When your custom halftone changes the color response of your printer, you need a custom output proﬁle. Perform the following custom proﬁle creation procedure only once.

Use the following procedure to calibrate the Fiery EXP6000/EXP5000 for custom halftone screens.

TO CALIBRATE FOR CUSTOM HALFTONE SCREENS

1 Determine the measurement instrument you use for calibration.

2 Open the CustomHalftonesCalibration folder on the User Software CD.

This folder contains images of the calibration pages for various instruments and page sizes. If you print halftone screens only from Photoshop, open the Photoshop folder. Otherwise, open the Other Applications folder.

3 Locate the image ﬁle that corresponds to the patch page for your instrument and paper size.

These images were prepared at the ﬁnal sheet page size. In your application, place them using no margins. Ignore warnings that the image may be clipped. Do not “color manage” these ﬁles when you open or print them.

4 Open a blank document in the application you use for generating screened print jobs.

5 Place the image of the calibration pages into the document.

This document is now the custom calibration page.

6 Print this custom calibration page, using your application-speciﬁc halftone settings and

Fiery EXP6000/EXP5000 print option settings.

You must print with the CMYK Simulation Proﬁle option set to Off, which produces an uncalibrated patch page.

CALIBRATION

NOTE: When you print the CMYK patches to the digital press, other Fiery EXP6000/

EXP5000 print options are ignored. To increase the speed and reliability of the calibration, print your custom calibration page with the appropriate settings for the ColorWise print options to a PostScript ﬁle and download it to the Fiery EXP6000/EXP5000. Retaining this ﬁle in the Hold queue makes the calibration process even faster.

7 Open any output proﬁle with Calibrator.

8 Resave the proﬁle under a new name descriptive of your custom halftone.

9Use Proﬁle Manager to associate this proﬁle with the proper calibration set.

For information about Proﬁle Manager, see ColorWise Pro Tools Help.

10 Use Calibrator to perform the calibration.

NOTE: Do not use the Print button to generate the patch page. Use the custom calibration

page that you just printed.

For information about calibration procedures, see page 42.

CALIBRATION

Understanding calibration

The following sections describe important concepts and suggestions for understanding calibration.

An overview of calibration

Calibration generates curves that adjust for the difference between the actual toner densities (measurements) and the response expected by the output proﬁle.

•Measurements represent the actual color behavior of the digital press.

• Calibration sets are sets of measurements that combine screen and media options provided

for Calibrator.

• Each output proﬁle contains a calibration target that describes the expected behavior of the

digital press.

After you calibrate the Fiery EXP6000/EXP5000, a calibration set is stored. This calibration set is used when it is associated with an output proﬁle. Every output proﬁle has an associated calibration set. If you have not speciﬁed one, the calibration set associated with the default output proﬁle is used.

If you change the calibration after a saved job has been processed (RIPped), you do not have to reprocess (reRIP) the job. The new calibration affects the job without reprocessing.

NOTE: Changing calibration has the potential to affect all jobs for all users, so consider

limiting the number of people authorized to perform calibration. Set an Administrator password in Fiery EXP6000/EXP5000 Setup to control access to calibration (see

Conﬁguration and Setup).

How calibration works

Although the needs of most users are met by the default calibration set, the Fiery EXP6000/ EXP5000 allows you to choose a calibration set to customize calibration for specialized jobs.

Calibration allows you to:

•Maximize the color reproduction capabilities of the Fiery EXP6000/EXP5000.

•Ensure consistent color quality over time.

•Produce consistent output across Fiery EXP6000/EXP5000 servers.

•Achieve better color matches when reproducing spot colors, such as PANTONE colors or

other named color systems.

•Optimize the Fiery EXP6000/EXP5000 for using ColorWise rendering styles (CRDs),

CMYK simulations, and ICC proﬁles.

CALIBRATION

Success in obtaining satisfactory print quality from the Fiery EXP6000/EXP5000 depends on many factors. Among the most important are establishing and maintaining optimal toner densities. The density is the measure of the light absorbed by a surface. By carefully regulating toner densities, you obtain consistent printed color.

Even with a calibrated system, toner density is affected by the settings of digital press, humidity, and temperature. Density also tends to drift over time. Uneven toner density on paper affects calibration results. Regular measurement detects day-to-day variations in density, gradation, and color reproduction, and calibration corrects them.

Calibration works by creating calibration curves on the Fiery EXP6000/EXP5000 that compensate for the difference between actual (measured) and desired (target) density values. These calibration curves are the graphic equivalent of transfer functions, which are mathematical descriptions of changes that are made to the initial data. Transfer functions are often graphed as input or output curves.

The Fiery EXP6000/EXP5000 generates calibration curves after comparing measured values to the ﬁnal target values for each of the four toner colors. The target values are based on the output proﬁle speciﬁed.

Measurements

Measurement ﬁles contain numerical values that correspond to the toner density produced by the digital press when it prints solid cyan, magenta, yellow, and black, and graduated tints of those colors.

To create a measurement ﬁle, print a page of color patches. Measure the patches using a color measurement instrument connected to a computer on the network. The new measurements are automatically downloaded to the Fiery EXP6000/EXP5000.

Output proﬁles and calibration sets

Output proﬁles and calibration sets deﬁne desired calibration results. One or more output proﬁles and calibration sets are provided with the Fiery EXP6000/EXP5000. When you calibrate the Fiery EXP6000/EXP5000, select the calibration set that corresponds to the typical printing jobs at your site. This same calibration set can be associated with one or more output proﬁles. For more information about output proﬁles, see page 63.

CALIBRATION

Scheduling calibration

Calibrate the Fiery EXP6000/EXP5000 at least once a day, depending on the volume of print jobs. If it is very important to maintain consistent color, or your digital press is subject to wide ﬂuctuations in temperature or humidity, calibrate every few hours. For optimal performance, calibrate whenever there is a noticeable change in print quality or printing results are not as expected.

If you must split a print job into two or more batches to print at different times, it is important to calibrate before you print each batch. You should also calibrate the Fiery EXP6000/EXP5000 after digital press maintenance. However, because the digital press may be less stable immediately after maintenance, wait until you have printed approximately 50 pages before you calibrate.

NOTE: Because printed output from the digital press is very sensitive to changes in

temperature and humidity, do not install the digital press near a window, in direct sunlight, or near a heater or air conditioner. Paper is also sensitive to climate changes. Store it in a cool, dry, stable environment, and keep reams sealed until they are used.

To monitor print quality, print the following color pages:

• Color Charts from Command WorkStation (see Utilities)

• Color reference pages included in the User Software CD (see pages 13 and 20)

These pages include fully saturated color patches and pale tints of cyan, magenta, yellow, and black. Images with skin tones offer a good basis for comparison. Save and periodically compare the pages you print. If a noticeable change in appearance occurs, calibrate the Fiery EXP6000/EXP5000.

When you examine the Test Page, all color patches should be visible, even though they may be very faint in the ﬁve to two percent range. Each patch set should show uniform gradation from patch to patch as the color lightens from 100% to zero.

If the solid density patches (100% cyan, magenta, yellow, or black) look less saturated over time, show the pages to your digital press service technician to determine whether adjusting the digital press can improve output.

Checking calibration status

To verify whether the Fiery EXP6000/EXP5000 is calibrated, which calibration set and output proﬁle were used, and when the digital press was last calibrated, perform the following:

•Print a Conﬁguration page or Test Page from Command WorkStation.

•Select a calibration set in Calibrator. The last calibration and the user who performed it

are displayed.

COLORWISE PRINT OPTIONS

The ColorWise color management system provides print options that affect the output of objects in various color spaces. By specifying the appropriate settings for each print option, you can obtain the expected results for your jobs.

About this chapter

This chapter provides an overview of the ColorWise management system that controls color on the Fiery EXP6000/EXP5000 (see page 59) and detailed explanations of each print option. See the following table for the location of each print option.

ColorWise print option See

Black Detection page 60

Black Overprint page 60

Combine Separation page 61

CMYK Simulation Proﬁle page 61

CMYK Simulation Method page 62

Output Proﬁle page 63

Pure Black Text/Graphics page 64

Rendering Styles page 65

RGB Separation page 66

RGB Source Proﬁle page 66

Spot Color Matching page 67

This chapter also provides information about PostScript printer drivers and instructions for setting the ColorWise print options for Windows and Mac OS computers. For information about printer drivers, see page 69.

COLORWISE PRINT OPTIONS

Managing color on the Fiery EXP6000/EXP5000

To modify Fiery EXP6000/EXP5000 printing behavior, do any of the following:

•Specify ColorWise options for an individual print job using the menus that appear in the

printer driver.

•Specify most ColorWise options as server defaults from Color Setup in ColorWise Pro

Tools (see page 39). You can also set default values from Fiery EXP6000/EXP5000 Setup, as described in Conﬁguration and Setup. The defaults apply to all subsequent print jobs unless you override them.

•Specify ColorWise options, particularly default ICC proﬁle settings and calibration

options, from ColorWise Pro Tools. These options include default Simulation Proﬁle (see

page 61), Simulation Method (see page 62), default Source Proﬁle (see page 66), RGB

Separation (see page 66), and associated calibration set (see page 56).

Applications allow you to generate color data for the Fiery EXP6000/EXP5000 in many different color spaces. The most common type of color data produced from ofﬁce

applications is RGB, while prepress applications generally produce CMYK data. Desktop

applications also generate spot colors, such as PANTONE colors. To complicate matters, a single page may contain a mix of RGB, CMYK, and spot colors. The Fiery EXP6000/ EXP5000 allows you to control the printing of mixed-color documents with features that apply speciﬁcally to RGB, CMYK, or spot color data.

The following diagram illustrates the print options in the Fiery EXP6000/EXP5000 color management process that affect color data conversions. You can access these print options when you send a print job to the Fiery EXP6000/EXP5000. Most of these options and settings are described in subsequent sections of this chapter.

RGB data

CMYK data

Spot color data Spot Color Matching

RGB Source Proﬁle Gamma Phosphors White Point Rendering Style (CRD) Brightness Pure Black Text/Graphics RGB Separation Output proﬁle

CMYK Simulation Proﬁle CMYK Simulation Method Brightness Pure Black Text/Graphics Combine Separations Output proﬁle

RGB Source Proﬁle is the only color option that applies strictly to RGB color data. The other options that affect RGB color also affect the more rarely used Lab, XYZ, and other calibrated color spaces.

Fiery EXP6000/ EXP5000 color processor

Color data sent to digital press

COLORWISE PRINT OPTIONS

NOTE: With PostScript 3 color, RGB Source Proﬁle affects all CIEBasedABC color spaces

(if the source space is RGB). For example, if you send CMYK data to the Fiery EXP6000/ EXP5000 in CIEBasedDEFG format by choosing PostScript Color Management in Photoshop, the setting for the Rendering Style print option, which normally affects only RGB data, also affects this CMYK data.

ColorWise print options

The following sections provide detailed explanations of the ColorWise print options and how these options affect print jobs.

NOTE: For information about the following print options, see Fiery Graphic Arts Package.

•Halftone Screen

•Paper Simulation

•Substitute Colors

Black Detection

The Black Detection option allows you to specify whether or not to detect black-and-white pages before printing your job. To use this option, set Color Mode to CMYK, Standard Color, or Expert Color.

• Off: Select Off if your job consists of black-only text pages combined with a signiﬁcant

number of color pages.

• On: Select On if you are printing a predominantly black-and-white job.

Black Overprint

The Black Overprint option allows you to specify whether or not black text, deﬁned as RGB=0, 0, 0, or as CMYK=0%, 0%, 0%, 100%, overprints colored backgrounds.

• Text: Black text overprints colored backgrounds, eliminating white gaps and reducing the

halo effect or misregistration of colors. Choosing this setting automatically activates the Pure Black Text/Graphics option.

• Text & Graphics: Black text and graphics overprint colored backgrounds, eliminating

white gaps and reducing halo effects or misregistration of colors. Choosing this setting automatically activates the Pure Black Text/Graphics option.

• Off: Black text or text/graphics knocks out colored backgrounds.

NOTE: Before sending the print job to the digital press, PostScript applications may perform

their own black overprint conversions.

COLORWISE PRINT OPTIONS

One example of how you might use this setting is a page that contains black text on a light blue background. The background blue is CMYK=40%, 30%, 0%, 0%. The black text is CMYK=0%, 0%, 0%, 100%.

•With Black Overprint set to Text or Text & Graphics, the ﬁnal text or text/graphic

portions of the page are overprinted, or combined with the underlying color. Black colors generated by applications (for example, RGB=0, 0, 0 or CMYK=0%, 0%, 0%, 100%) are printed using the black toner. This means that black text and line art does not exhibit halftone artifacts (as long as the digital press is calibrated correctly). No transition in cyan and magenta toners occurs. The quality of the output is improved, since it does not show artifacts near the edges of the text deﬁned in the RGB color space (RGB=0, 0, 0).

•With Black Overprint Off, the border of the text or text/graphics is on an edge that has

cyan and magenta toners on one side (outside the text) and black toner on the other side (inside the text). This transition may cause visible artifacts due to the practical limitations of the digital press.

NOTE: Setting Black Overprint to Text/Graphics allows black text or graphics to overprint

color backgrounds (see “CMYK Simulation Method” on page 62).

NOTE: The reproduction of CMYK components is affected by the CMYK Simulation setting

and calibration curve when CMYK is not 0%, 0%, 0%, 0%.

Combine Separations

The Combine Separations setting speciﬁes how to print separated CMYK data. With Fiery Graphic Arts Package, you can combine an unlimited number of spot color separations along with the CMYK separations.

• Off prints each separation individually.

• On combines separations as a single, composite-color document, and automatically makes

the settings for the following print options: Color Mode (CMYK), Rendering Style (None), Pure Black Text/Graphics (Off), and Spot Color Matching.

For information about using the Combine Separations option with applications such as Photoshop, see Fiery Color Reference.

CMYK Simulation Proﬁle

The CMYK Simulation Proﬁle print option allows you to print press proofs or simulations. This setting speciﬁes the offset press standard or other color printing device that you want to simulate. This option affects CMYK data only.

With Windows printer drivers, you can also view an unlimited number of custom Full simulations created using ColorWise Pro Tools. On Mac OS computers, you can view up to 10 Full custom simulations. The number of custom simulations is limited by the available disk space on the Fiery EXP6000/EXP5000.

COLORWISE PRINT OPTIONS

If you are printing with the PostScript driver from a Windows computer and have Two-Way Communication enabled, the name of each downloaded or custom proﬁle appears in the CMYK Simulation Proﬁle menu. If you are printing with the AdobePS driver from a Mac OS computer, downloaded or custom proﬁles appear as Simulation-1 through Simulation-10. For more information about Two-Way Communication, see Printing from Windows.

The CMYK Simulation Proﬁle setting you specify depends on the press standard for which the CMYK data was separated.

•For images that were separated using a custom separation (such as a separation produced

with an ICC proﬁle), choose the corresponding proﬁle on the Fiery EXP6000/EXP5000 with the CMYK Simulation Proﬁle setting.

•For images that were separated for SWOP, choose SWOP as the CMYK Simulation Proﬁle

setting.

NOTE: To properly simulate a printed image that was separated using an ICC proﬁle, the same

proﬁle must be present on the Fiery EXP6000/EXP5000.

The None setting sends your original CMYK data to the digital press in its calibrated state, without conversions to simulate another printer.

The ColorWise Off setting sends your original CMYK data to the digital press in an uncalibrated state, without conversions to simulate another printer. This setting is not generally recommended, unless you want to bypass the ColorWise conversion and use another color management system.

CMYK Simulation Method

The CMYK Simulation Method allows you to deﬁne your preferred CMYK-to-CMYK conversion technique.

• Quick applies one-dimensional transfer curves to adjust output densities in the cyan,

magenta, yellow, and black channels. This technique leads to eye-pleasing color output from your digital press because pure primary colors are not “contaminated” by other

colorants. While it is the fastest simulation method and perfect for drafts, avoid using it

for ﬁnal documents that are used as press proofs. Other techniques offer the color simulation accuracy required by prooﬁng applications.

• Full (Source GCR) provides a complete and accurate simulation based on colorimetric

transformations. Hues are preserved, even for primary colors. The Gray Component

Replacement (GCR) level that was speciﬁed in the original (source) document is also

preserved for K-only text and graphics. Processed black expressed in CMY is reproduced using CMY toner. Full (Source GCR) is recommended for the highest quality press prooﬁng applications.

COLORWISE PRINT OPTIONS

• Full (Output GCR) is a complete and accurate simulation method based on colorimetric

transformations. Hues are preserved, even for primary colors. With this method, the Gray Component Replacement (GCR) level that was speciﬁed in the original document is not preserved. Instead, all CMYK data is reseparated using the GCR level speciﬁed by the output proﬁle. This simulation technique is similar to traditional ICC color matching methods and is more appropriate than Full (Source GCR) for full color printing designed for the press, but reproduced on your digital press.

NOTE: The black color of your print job is preserved when C=M=Y=0. K-only text and

graphics are reproduced using K toner only. Processed black expressed in CMY is reproduced using CMY toner, which expresses richer black than you can achieve with Full (Source GCR).

NOTE: When you specify On for Pure Black Text/Graphics and Full (Output GCR) for

CYMK Simulation Method, the black text and graphics in your document are printed with 100% black-only toner.

Output proﬁle

Because the output proﬁle is applied to all data in the print job, make sure the proﬁle you select is the right one for your job. The default output proﬁle consists of a proﬁle for your digital press that describes its color characteristics and a calibration target that describes the expected behavior of the digital press.

In certain cases, you may want to customize the default output proﬁle using the ColorWise Pro Tools Color Editor to achieve particular color effects. If you do so, the new customized output proﬁle is applied to all data in the print job. Changing the output proﬁle only does not affect its associated calibration target (since the target is based on a digital press model). You can edit calibration target D-Max values separately.

Use ColorWise Pro Tools Proﬁle Manager to download your own output proﬁle to the Fiery EXP6000/EXP5000. Downloaded output proﬁles are at ﬁrst associated with the calibration target that is tied to the default output proﬁle. You can edit calibration target D-Max values separately.

For more information about Use Media Deﬁned Proﬁles, see “Using media-deﬁned output

proﬁles” on page 27.

If you are printing with the PostScript driver from a Windows computer and have enabled Two-Way Communication, the name of each downloaded or custom proﬁle appears in the Output Proﬁle menu. If you are printing with the AdobePS driver from a Mac OS computer, downloaded or custom proﬁles appear as Output-1 through Output-10. For more information about Two-Way Communication, see Printing from Windows.

COLORWISE PRINT OPTIONS

Pure Black Text/Graphics

The Pure Black Text/Graphics option affects black text and vector graphics. Under most circumstances, set this option to On. When Pure Black Text/Graphics is set to On, black colors generated by applications (for example, RGB=0, 0, 0 or CMYK=0%, 0%, 0%, 100%) are printed using black toner only. The black text and line art do not exhibit halftone artifacts (as long as the digital press is calibrated correctly) and are not misregistered, since one toner is used. In addition, this setting eliminates blasting. This option is automatically set to On when the Black Overprint option is set to On.

For some jobs, it is preferable to clear this option, for example, if the page includes gradient ﬁlls that use black. The following table describes the behavior of the Pure Black Text/Graphics option with black data deﬁned in different color spaces.

NOTE: Use the Pure Black Text/Graphics option only when printing composites, not when

printing separations.

Color Pure Black Text/Graphics Off Pure Black Text/Graphics On

RGB=0,0,0

(all other RGB values are unaffected by the Pure Black Text/Graphics setting)

CMYK=0%,0%,0%,100%

(all other CMYK values are unaffected by the Pure Black Text/Graphics setting)

Spot Colors

RGB=0,0,0 is printed according to the deﬁnition for RGB=0,0,0 in the output proﬁle. This may be a rich black using all toners if the output proﬁle speciﬁes a rich black, or may be K-only if the output proﬁle speciﬁes K-only for RGB=0,0,0. The output is affected by the calibration curve.

CMYK=0%,0%,0%,100% may be printed as K-only or as a rich black using all toners, depending on the CMYK Simulation Proﬁle and CMYK Simulation Method settings.

For Quick and Full (Source GCR), CMYK=0%,0%,0%,100% prints as K-only and the amount of black toner is limited by the simulation proﬁle and the calibration curve.

For Full (Output GCR), CMYK=0%,0%, 0%,100% prints as K-only and the amount of black toner is limited by the simulation proﬁle and the calibration curve.

If CMYK Simulation is set to ColorWise Off, it disables the simulation proﬁle and the calibration curve. In this case, the black toner is not limited by the calibration curve.

Standard spot color processing Standard spot color processing

RGB=0,0,0 is printed as K-only, using the black toner. All other RGB values are unaffected by the Pure Black Text/Graphics setting.

CMYK=0%,0%,0%,100% is printed as K-only, using the black toner, regardless of the CMYK Simulation Proﬁle and CMYK Simulation Method settings. All other CMYK values are unaffected by the Pure Black Text/Graphics setting.

Setting CMYK Simulation to ColorWise Off disables the simulation proﬁle and the calibration curve. In this case, the black toner is not limited by the calibration curve.

(unaffected by the Pure Black Text/Graphics setting)

COLORWISE PRINT OPTIONS

NOTE: PostScript applications, such as QuarkXPress, may convert elements deﬁned as

RGB=0, 0, 0 to four-color CMYK black before sending the job to the Fiery EXP6000/ EXP5000. These elements are not affected by the Pure Black Text/Graphics option. For more information, see Fiery Color Reference. Also, black text and line art deﬁned as RGB=0, 0, 0 in ofﬁce applications, such as Microsoft Word, are converted to single-color black (CMYK=0%, 0%, 0%, 100%) by the Microsoft PostScript 3 printer driver for Windows 2000/XP/Server

2003. To print this single-color black at the maximum toner density of the digital press, set Pure Black Text/Graphics to On.

Rendering Styles

The Rendering Style option speciﬁes a CRD for color conversions. To control the appearance of images, such as prints from ofﬁce applications or RGB photographs from Photoshop, select the appropriate rendering style. The Fiery EXP6000/EXP5000 allows you to choose from the four rendering styles currently found in industry standard ICC proﬁles.

Fiery EXP6000/EXP5000 rendering style

Photographic

in less saturated output than presentation rendering when printing out-of-gamut colors. This style preserves tonal relationships in images.

Presentation

colors but does not match printed colors precisely to displayed colors. In-gamut colors, such as ﬂesh tones, are rendered well. This style is similar to the Photographic rendering style.

Relative Colorimetric

white-point transformation between the source and destination white points. For example, the bluish white color (gray) of a monitor is replaced by paper white. This style avoids visible borders between blank spaces and white objects.

Absolute Colorimetric

no white point transformation between the source and destination white points. For example, the bluish white color (gray) is not replaced by paper white.

: Typically results

: Creates saturated

: Provides

Best used for Equivalent ICC

rendering style

Photographs, including scans and images from stock photography CDs and digital camera images.

Artwork and graphs in presentations. In many cases, this style can be used for mixed pages that contain presentation graphics and photographs.

Advanced use when color matching is important, but you prefer white colors in the document to print as paper white. This style may also be used with PostScript color management to affect CMYK data for simulation purposes.

Situations when exact colors are needed and visible borders are not distracting. This style may also be used with PostScript color management to affect CMYK data for simulation purposes.

Image, Contrast, and Perceptual

Saturation, Graphics

Relative Colorimetric

Absolute Colorimetric

COLORWISE PRINT OPTIONS

RGB Separation

The RGB Separation option determines how RGB colors (as well as Lab and XYZ colors) are converted to CMYK. The name of this option is meant to be descriptive, since the option deﬁnes the color spaces that are used by the Fiery EXP6000/EXP5000 to “separate” the RGB data into CMYK values.

The two choices available for this option determine whether RGB data is converted into the full gamut of the digital press (output) or is ﬁrst converted into the gamut of another digital printer or press standard (simulation). This feature helps make one device behave like another for RGB data. For example, if a high-quality ICC proﬁle is available for another print device, the digital press can simulate the behavior of that device.

RGB Separation is also useful for prepress applications. For example, it allows you to experiment with the appearance of an RGB scan under different press printing conditions, without having to convert the RGB data to CMYK data for each condition. When the desired printing condition is found, convert the ﬁle to CMYK, using the same CMYK simulation proﬁle you used during the experimentation.

NOTE: Use the RGB Separation print option in conjunction with the Output Proﬁle or

CMYK Simulation Proﬁle print options.

• Output converts all RGB colors into the CMYK color space of your digital press (when

set to the printer’s default), or a customized CMYK color space for your digital press (when set to Output 1-10).

• Simulation converts all RGB colors into the CMYK color space for a speciﬁed simulation

(select the desired simulation with the CMYK Simulation Proﬁle print option).

RGB Source Proﬁle

The RGB source proﬁle setting allows you to deﬁne the characteristics of the RGB data in your document so that the appropriate color conversion occurs on the Fiery EXP6000/ EXP5000. Commonly used monitor color spaces are available from the printer driver and the Fiery EXP6000/EXP5000. For others, use ColorWise Pro Tools Proﬁle Manager to download custom monitor or scanner proﬁles.

When you specify a setting other than None for the RGB Source Proﬁle, the Fiery EXP6000/ EXP5000 overrides source color space deﬁnitions or proﬁles that other color management systems may have speciﬁed. For example, if you speciﬁed a ColorSync System Proﬁle on your Mac OS computer, the RGB Source Proﬁle setting overrides it. In cases where you do not want this setting to override another speciﬁed source color space, choose None.

COLORWISE PRINT OPTIONS

When you specify a setting other than None, since the color space deﬁnitions are overridden, the output from the Fiery EXP6000/EXP5000 is consistent across platforms. The Fiery EXP6000/EXP5000 RGB Source Proﬁle options are as follows:

• EFIRGB speciﬁes an EFI-deﬁned color space recommended for users who have no detailed

information about their RGB data.

• sRGB (PC) speciﬁes the deﬁnition of a Windows computer monitor proﬁle used as the

default.

• Apple Standard speciﬁes the deﬁnition of a Mac OS computer monitor proﬁle used as the

default.

• Other allows you to specify custom RGB source settings. If you choose Other as the RGB

Source setting, you must choose settings for the Gamma, Phosphors, and White Point options.

• Sources 1-10 specify the deﬁnitions you download as RGB source proﬁles.

If you are printing with the PostScript driver from a Windows computer and enabled Two-Way Communication, the name of each downloaded proﬁle appears in the RGB Source Proﬁle setting menu. If you are printing with the AdobePS driver from a Mac OS computer, downloaded proﬁles appear as Source-1 through Source-10. For more information about Two-Way Communication, see Printing from Windows.

• None instructs the Fiery EXP6000/EXP5000 to allow the RGB sources you deﬁned

elsewhere, such as in the application, to be used. When you set RGB Source to None, the appearance of colors is not independent of the ﬁle type. For example, RGB EPS ﬁles looks different from RGB TIFF ﬁles.

With RGB Source set to None, PostScript RGB data that contains a source color space deﬁnition is converted using the CRD speciﬁed by the Rendering Style option (see

“Rendering Styles” on page 65). Non-PostScript RGB data and PostScript RGB data that

does not contain a source color space deﬁnition are converted using a general undercolor

removal (UCR) conversion method.

Spot Color Matching

The Spot Color Matching option provides automatic matching of spot colors with their best CMYK equivalents.

• On: The Fiery EXP6000/EXP5000 uses a built-in table to generate the closest CMYK

matches of spot colors your digital press can produce. (New tables are generated when you add new output proﬁles.)

With the Fiery Graphic Arts Package, the Fiery EXP6000/EXP5000 uses the CMYK matches determined through Spot-On (see “Using Spot-On” on page 27).

• Off: The Fiery EXP6000/EXP5000 processes the spot color as CMYK data and uses

CMYK equivalents deﬁned by the spot color manufacturer, such as PANTONE. These are the same CMYK equivalents used by applications that include spot color libraries.

COLORWISE PRINT OPTIONS

NOTE: Spot colors that are not included in the built-in table are treated as CMYK.

For jobs that include spot colors, set Spot Color Matching to On unless you are printing press simulations. In that case, set Spot Color Matching to Off and choose the appropriate CMYK Simulation setting (see page 61).

For a PDF job that includes spot colors that are not included in the built-in table, setting Spot Color Matching to On retains the original spot colors. The Fiery EXP6000/EXP5000 references the built-in table to generate the closest CMYK matches of the original spot color.

NOTE: Use Spot Color Matching only when printing composites, not when printing

separations.

Spot Color Matching and the PANTONE Coated Color Reference

The PANTONE Coated Color Reference prints differently depending on the Spot Color Matching setting (see Fiery Color Reference).

• On: The Fiery EXP6000/EXP5000 uses a built-in table or the Spot-On color dictionaries

to generate the best matches for the PANTONE colors that your digital press can produce. The PANTONE number is displayed below each swatch.

For more information about Spot-On, see “Using Spot-On” on page 27.

• Off: The Fiery EXP6000/EXP5000 prints swatches using the CMYK values recommended

by Pantone, Inc. (and used by applications that provide PANTONE color libraries). The CMYK values used to generate the color, as well as the PANTONE number of the color, are printed below each swatch. These CMYK values are printed through the selected CMYK Simulation and Output Proﬁle settings.

COLORWISE PRINT OPTIONS

Printer drivers and print options

The printer driver writes a PostScript ﬁle containing the instructions generated by your application and the settings for the ColorWise print options you selected. The printer driver then sends the PostScript ﬁle to the Fiery EXP6000/EXP5000. The Fiery EXP6000/ EXP5000 performs PostScript processing and color conversions and sends raster color data to the digital press.

Setting print options for Windows

This section explains how to set color management print options with the Adobe and Microsoft PostScript printer drivers for Windows, PostScript 3 printer drivers that take full advantage of the color features of the Fiery EXP6000/EXP5000.

Before you proceed, do the following:

•Install the Adobe or Microsoft PostScript printer driver and the Fiery EXP6000/EXP5000

PPD (see Printing from Windows).

•Set up the Fiery EXP6000/EXP5000 for printing (see Printing from Windows).

NOTE: The following illustrations and instructions do not apply to all applications. Many

applications, such as Adobe PageMaker, Photoshop, Adobe Illustrator, QuarkXPress, and CorelDRAW, have other color management options in addition to those presented in the printer driver. For information about speciﬁc applications, see Fiery Color Reference.

Use the following procedure to set the color options for Windows computers.

TO SET PRINT OPTIONS FOR WINDOWS COMPUTERS

1 Choose Print in your application.

2 Select Fiery EXP6000/EXP5000 as your printer and click Properties.

In the Properties dialog box, the Fiery Printing tab is displayed.

3 Click the ColorWise print option bar.

COLORWISE PRINT OPTIONS

4 Specify the settings for the print options in the ColorWise pane.

For information about ColorWise print options, see page 60.

5 Click Expert Settings in the Print Mode pane.

The Expert Color Settings dialog box appears.

This dialog box displays most of the ColorWise print options for the Fiery EXP6000/ EXP5000.

6 Click Update to display the current Fiery EXP6000/EXP5000 settings.

If the Update button does not appear, make sure that Two-Way Communication is set up. For information about enabling Two-Way Communication, see Printing from Windows.

7 Specify the settings for the main ColorWise print options.

NOTE: To specify custom settings for the RGB Source Proﬁle print option, choose Other and

click Custom Setup.

For most users, the default settings provide adequate color control. For information about individual print options, see page 60.

Setting color management print options for Mac OS

This section explains how to set color management print options with the AdobePS printer drivers for Mac OS, the PostScript 3 drivers that take full advantage of the color features of the Fiery EXP6000/EXP5000.

Before you proceed, do the following:

•Install the AdobePS printer driver and the Fiery EXP6000/EXP5000 PPD (see Printing

from Mac OS).

•Set up the Fiery EXP6000/EXP5000 for printing (see Printing from Mac OS).

COLORWISE PRINT OPTIONS

Setting color management print options for Mac OS 9

Choose settings for color print options from the various panes of the AdobePS driver dialog box. To access the initial AdobePS dialog box, choose Print from the File menu of your application.

NOTE: The term “pane” is used to describe the different pages that appear in the driver

dialog box when you make selections from the menu in the upper-left corner of the dialog box. Each pane presents a particular set of print options.

The AdobePS driver includes the following Color Matching options.

• Color/Grayscale enables ColorWise to provide all color conversions on the

Fiery EXP6000/EXP5000. In general, use this option when printing to the Fiery EXP6000/EXP5000.

• PostScript Color Matching enables a color conversion to use a color rendering dictionary

(CRD) that is downloaded with a print job, and can be used with PostScript devices, such as the Fiery EXP6000/EXP5000. This option requires that the ﬁle is saved as an EPS with PostScript Color Management selected.

NOTE: If you use the PostScript Color Matching option, the driver may attach a CMYK

source deﬁnition to the CMYK data in your document, depending on the application you use. In this case, the CMYK data in the document is reseparated using a Fiery EXP6000/ EXP5000 CRD. The destination color space for the CRD is determined by the RGB Separation print option. When RGB Separation is set to Simulation, CMYK data is printed according to all speciﬁed CMYK Simulation Proﬁle and CMYK Simulation Method settings. When RGB Separation is set to Output, CMYK data is converted to the CMYK color space of the selected output proﬁle.

• ColorSync Color Matching: Provides for color conversion on the host computer. You can

use this option with PostScript devices, such as the Fiery EXP6000/EXP5000, but it is intended for use with PostScript Level 1 devices. If you use this option, you must specify the Fiery EXP6000/EXP5000 ICC proﬁle as the Printer Proﬁle.

NOTE: ColorSync Color Matching is not a recommended color matching method because

it does not work in conjunction with all applications and requires that you disable features of ColorWise on the Fiery EXP6000/EXP5000.

NOTE: The following illustrations and instructions do not apply to all applications. Many

applications, such as PageMaker, Photoshop, Illustrator, QuarkXPress, and CorelDRAW, have other color management options in addition to those presented in the printer driver. For information about speciﬁc applications, see Fiery Color Reference.

Use the following procedure to set the color options for Mac OS computers.

COLORWISE PRINT OPTIONS

TO SET PRINT OPTIONS FOR MAC OS COMPUTERS (MAC OS 9)

1 Choose Print in your application.

The print dialog box appears.

2 Choose Color Matching from the General menu.

3 Choose Color/Grayscale from the Print Color menu.

4 Select Colorwise from the Printer Speciﬁc Options menu to choose ColorWise print

option settings.

COLORWISE PRINT OPTIONS

For information about each ColorWise print option, see page 60.

To select other print options, see Printing from Mac OS.

5 Click Save Settings.

The settings are saved for subsequent jobs.

TO SET PRINT OPTIONS FOR MAC OS COMPUTERS (MAC OS X)

1 Choose Print in your application.

The print dialog box appears.

2 Mac OS X v10.3: Choose ColorSync from the Copies & Pages menu.

The ColorSync pane appears.

3 Choose In Printer from the Color Conversion menu.

4 Choose ColorWise from the ColorSync (default: Copies and Pages) menu.

COLORWISE PRINT OPTIONS

The ColorWise pane appears.

5 Select Two-Way Communication.

For information about enabling Two Way Communication, see Printing from Mac OS.

6 Specify the settings for the print options in the ColorWise pane.

For information about ColorWise print options, see page 60.

7 Click Expert Settings in the Print Mode pane.

The ColorWise Expert Settings dialog box appears.

8 Choose settings for the main ColorWise print options.

For information about ColorWise print options, see page 60.

9 Click OK.

The ColorWise pane reappears.

COLORWISE PRINT OPTIONS

10 Choose Printer Features from the ColorWise (default: Copies and Pages) menu.

The Printer Features pane appears.

11 Choose ColorWise 1 from the Feature Sets menu.

12 Specify the setting(s) for the print option(s) from the ColorWise 1 menu.

For information about ColorWise print options, see page 60.

COLOR MEASUREMENT INSTRUMENTS

This chapter explains how to set up and calibrate the following color measurement instruments, available as separately purchased options:

• DTP32 densitometer

• DTP41 spectrophotometer

• ES-1000 hand-held spectrophotometer

Using the DTP32

ColorWise Pro Tools is designed to work with the DTP32 densitometer, which feeds color measurements to the Fiery EXP6000/EXP5000 automatically.

1 Square connector

NOTE: You can input measurements from other densitometers using a simple ASCII ﬁle

format (see “Importing Density Measurements” on page 85).

Setting up the DTP32

Before you calibrate the Fiery EXP6000/EXP5000 using the DTP32, you must connect, conﬁgure, and calibrate the DTP32 to prepare for measuring the printed patches (see

“Calibrating the DTP32” on page 78). For additional information about setting up and using

the DTP32, see the documentation that accompanies the DTP32.

TO CONNECT THE DTP32 TO THE COMPUTER

1Turn off the computer.

2 Plug the square end of the interface cable (looks like a modular phone plug) into the I/O

port on the side of the DTP32.

1 Connect to computer 2 Unused connector 3 Connect to adapter 4 Square connector 5 Interface cable

COLOR MEASUREMENT INSTRUMENTS

3Attach the connector to the computer.

For a Windows computer, insert the 8-pin mini-DIN end of the interface cable into the 9-pin DB9 Connector cable adapter. Insert the 9-pin end into the COM1 or COM2 port on the computer and tighten the screws. If the available port on your computer is 25-pin, you must use the 8-pin-to-25-pin adapter.

1 Unused connector 2 Connect to serial port

For a Mac OS computer, connect the 8-pin mini-DIN plug directly into the serial port of the computer.

NOTE: For Mac OS computers with a USB port, you need an adapter to connect the DTP32

to your computer. For information about supported adapters, see the X-Rite, Inc. web site (www.x-rite.com).

1 Small connector 2AC adapter

COLOR MEASUREMENT INSTRUMENTS

4 Plug the small connector on the adapter cable into the side of the DTP32 and plug the

AC adapter into a wall outlet.

5Turn on the computer.

6 Calibrate the DTP32 (see the following section).

7 Calibrate the Fiery EXP6000/EXP5000 using ColorWise Pro Tools and the DTP32

(see page 45).

Calibrating the DTP32

You need the black-and-white X-Rite Auto-Cal Strip included with the DTP32. Calibrating the DTP32 does not require ColorWise Pro Tools.

TO CALIBRATE THE DTP32

1 Connect the DTP32 to the computer and supply power (see page 76).

2From the Main Menu on the DTP32 display, press the p1 key once to reach p2.

3Press the cal key.

Calibrating motor speed is displayed, followed by INSERT CAL STRIP.

4 Insert the arrow end of the X-Rite Auto-Cal Strip into the 35mm slot on the front of the

DTP32 until it stops or the roller starts pulling the strip.

Reading appears momentarily, followed by the density values and CALIBRATION OK. The

DTP32 automatically returns to the MAIN MENU.

UNRECOGNIZABLE STRIP appears, repeat the process or try cleaning the strip (see the

If DTP32 Operating Manual).

Recalibrate the DTP32 at least once per month. If it is important to maintain consistent color, calibrate the DTP32 every time you calibrate the Fiery EXP6000/EXP5000. The DTP32 may also warn periodically that it requires calibration.

COLOR MEASUREMENT INSTRUMENTS

Using the DTP41

ColorWise Pro Tools Calibrator supports the DTP41 spectrophotometer, a device that measures density and color data. The DTP41 communicates directly with ColorWise Pro Tools Calibrator, sending measurements to the Fiery EXP6000/EXP5000 automatically.

Setting up the DTP41

Before you calibrate the Fiery EXP6000/EXP5000, you must connect, conﬁgure, and calibrate the DTP41 to prepare for measuring the printed patches. For additional information about setting up and using the DTP41, see the documentation that accompanies the DTP41.

TO CONNECT THE DTP41 TO THE COMPUTER

1Turn off the computer.

2 Unpack the DTP41 and remove the spacer from the measurement page slot.

3 Plug the square end of the interface cable (looks like a modular phone plug) into the serial

interface connection on the side of the DTP41.

1 Measurement page slot 2 Alignment mark 3 Calibration strip entrance 4 Instrument button 5 LED indicator 6 Serial interface connection 7Power input

1 Connect to computer 2 Unused connector 3 Connect to adapter 4 Square connector 5 Interface cable

4Attach the connector to the computer.

1 Unused connector 2 Connect to serial port

COLOR MEASUREMENT INSTRUMENTS

For a Mac OS computer, connect the 8-pin mini-DIN plug directly into the serial port of the computer.

NOTE: For Mac OS computers with a USB port (for example, an iMac), you need an adapter

to connect the DTP41 to your computer. For information about supported adapters, see the X-Rite, Inc. web site (www.x-rite.com).

5Use the AC adapter to provide power.

1AC adapter 2Power cord 3 Small connector

Plug the small connector on the adapter cable into the power input of the DTP41 and plug the AC adapter into the power cord. Plug the power cord into a wall outlet.

6Turn on the computer.

7 Calibrate the DTP41 using ColorWise Pro Tools (see the following section).

8 Calibrate the Fiery EXP6000/EXP5000 using ColorWise Pro Tools and the DTP41

(see page 47).

COLOR MEASUREMENT INSTRUMENTS

Calibrating the DTP41

For the best color accuracy, calibrate the DTP41 every time you calibrate the Fiery EXP6000/ EXP5000. Initiate the calibration sequence in ColorWise Pro Tools Calibrator as part of the process of Fiery EXP6000/EXP5000 calibration. The computer may also prompt you to calibrate the DTP41.

You can also initiate calibration of the DTP41 using the Instrument button on the DTP41. For more information about this method, see the documentation that accompanies the DTP41.

Multiple users can connect to one Fiery EXP6000/EXP5000 server with ColorWise Pro Tools, but only one user at a time can use Calibrator. If you try to calibrate when another user is already using Calibrator, an error message appears.

You need the Color Reﬂection Reference strip that is included with the DTP41. Remove the strip from the protective envelope, handling it by the edges only. Keep the strip free of dust and smudges and always store it in the protective envelope.

TO CALIBRATE THE DTP41

1 Connect the DTP41 to the computer and supply power (see page 79).

2 Start Calibrator.

For instructions on starting Calibrator, see page 42.

3 Choose DTP41 as the measurement method.

4 Click Measure in the Get Measurements pane.

5 Click Measure in the Measurement Options dialog box.

COLOR MEASUREMENT INSTRUMENTS

6 Choose the appropriate COM port for the DTP41 from the Available Ports menu.

The Instructions ﬁeld displays instructions for selecting the port.

7 Click Utilities.

The Utilities dialog box appears.

To view version and serial number information, click Show DTP-41 Info, and then click Done.

8 Click Calibrate DTP-41.

The Instrument Calibration dialog box appears.

COLOR MEASUREMENT INSTRUMENTS

9 If you have not already done so, remove the shipping spacer from the measurement

page slot.

10 Insert the end of the Color Reﬂection Reference strip with the arrow into the calibration strip

entrance on the DTP41, centering it below the alignment mark (see the diagram on page 79).

Insert the strip about 3 inches, past the front idler rollers, until it rests against the rear drive rollers.

11 Click Read Reference.

The DTP41 pulls the calibration strip through automatically.

A message appears in the Status area when calibration is ﬁnished.

12 Click Done to close the Instrument Calibration dialog box.

13 Close the Utilities dialog box.

This completes DTP41 calibration.

Your computer prompts you when the DTP41 requires calibration. When the prompt message appears, click Calibrate Now and follow the instructions, starting with step 8 on

page 82.

After calibrating the DTP41, calibrate the Fiery EXP6000/EXP5000 (see page 47).

Using the ES-1000

1 Measure button 2 Sample aperture 3 White tile reference 4Cradle

COLOR MEASUREMENT INSTRUMENTS

The ES-1000 is a hand-held spectrophotometer that measures the spectral light reﬂected from printed output and other colored materials. Since the ES-1000 accurately measures both the density and color of printed output, it is an effective tool for calibrating the Fiery EXP6000/EXP5000.

NOTE: The ES-1000 is available as a separately purchased option.

Setting up the ES-1000

To use the ES-1000 for calibration purposes, you must set it up for use with your computer. For complete instructions on setting up and calibrating the ES-1000, see the documentation that accompanies the ES-1000.

The following illustration shows the different parts of the ES-1000.

Calibrating the ES-1000

When you place the ES-1000 in the calibration cradle, white point calibration is used to calibrate the spectrometer. Make sure the sample aperture is in full contact with the white tile on the calibration cradle.

IMPORTING DENSITY MEASUREMENTS

This chapter describes Simple ASCII File Format (SAIFF), which you can use to import density measurements from measurement devices. To use your own measurement data from an alternate measurement instrument, record your individual readings in a text ﬁle, and then structure the ﬁle as follows.

Simple ASCII Import File Format

This format describes Status T measurement data for import into the ColorWise Pro Tools Calibrator. The three possible ﬁle formats are:

• 1D Status T density for EFI 21 patch page

• 1D Status T density for EFI 34 patch page

• 1D Status T density for other pages (maximum of 256 patches per ink)

The ﬁle format is ASCII and has no tabs. A single space or multiple spaces are used as delimiters. Blank lines are not allowed. Each line in the ﬁle represents four patches (C, M, Y, K) of a speciﬁc ink value. Comments may be on any line in the ﬁle. Comment lines must start with a pound sign (#) followed by a space. (A line with a pound sign followed by any character other than a space has been reserved.) Comments must be on a line by themselves.

Each line of data contains ﬁve values. The ﬁrst number is the sequential patch number (for EFI 21 and EFI 34 pages) or the ink value percentage (for other pages). The four values that follow are the density values of C, M, Y, and K of the corresponding patch. Lines are ordered either by increasing sequential patch numbers, or by increasing the ink percentage.

For Windows computers, the ﬁle extension must be .cm1. For Mac OS computers, the ﬁle type must be ‘TEXT’.

Measurement data in EFI 21 and EFI 34 are paper-relative. For other pages, if the ﬁrst line corresponds to zero ink value, the Calibrator assumes that the measurement data is absolute and adjusts it to become paper-relative by subtracting the density values of the ﬁrst line from the remaining patches.

IMPORTING DENSITY MEASUREMENTS

Example of 1D Status T density for EFI 21 patch page

This ﬁle format is used to specify the Status T density measurements of the EFI 21 patch page. The value in the ﬁrst column is the patch number. The ﬁrst patch must be 1 and the last must be 21.

#!EFI 3 # EFI ColorWise 2.0 Data type: 1DST21 # Cyan Magent Yellow Black 1 0.0300 0.0400 0.0200 0.0400 2 0.0600 0.0700 0.0800 0.0700 3 0.1000 0.1000 0.1000 0.1000

(…more data…)

20 1.6700 1.3400 0.8900 1.6700 21 1.7200 1.4300 0.9300 1.7500

Example of 1D Status T density for EFI 34 patch page

This ﬁle format is used to specify the Status T density measurements of the EFI 34 patch page. The value in the ﬁrst column is the patch number. The ﬁrst patch must be 1 and the last must be 34.

#!EFI 3 # EFI ColorWise 2.0 Data type: 1DST34 # Cyan Magent Yellow Black 1 0.0300 0.0400 0.0200 0.0400 2 0.0600 0.0700 0.0800 0.0700 3 0.1000 0.1000 0.1000 0.1000

(…more data…)

33 1.6700 1.3400 0.8900 1.6700 34 1.7200 1.4300 0.9300 1.7500

IMPORTING DENSITY MEASUREMENTS

Example of 1D Status T density for an arbitrary page

This ﬁle format is used to specify the Status T density measurements of a user-deﬁned patch page. The value in the ﬁrst column is the ink/toner percentage of the patch. The ﬁrst percentage must be 0 and the last percentage must be 100. The percentages must increase in between.

#!EFI 3 # EFI ColorWise 2.0 Data type: 1DST # percnt Cyan Magent Yellow Black

0.0000 0.0300 0.0400 0.0200 0.0400

0.3922 0.0600 0.0700 0.0800 0.0700

1.1765 0.1000 0.1000 0.1000 0.1000

(…more data…)

98.0000 1.6700 1.3400 0.8900 1.6700

100.0000 1.7200 1.4300 0.9300 1.7500

INDEX

Absolute Colorimetric rendering style 65 Apple Standard setting, RGB Source Proﬁle

option 67

Black Detection 60 Black Overprint option 60

Calibrat folder 13 calibration

checking status 57 Comparison Page 44 curves 44, 56 DTP32 45 DTP41 47 ES-1000 49 importing density measurements 85 measurement page 56 measurements 55 overview 55 patches 56 restoring defaults 45 scheduling 57 targets 55, 56

viewing measurements 44 Calibration folder 20 Calibrator 54

ColorWise Pro Tools 54

Expert mode 43

printing Comparison Page 44

restoring defaults 45

using 24, 42

viewing measurements 44 CMYK Color Reference.ps 20 CMYK Simulation Method option 62 CMYK Simulation Proﬁle option 61, 62 Cmyk_ref.ps 13 Color Chart 57 Color Editor 24 color management system (CMS) 9 color proﬁles 10

color reference ﬁles

for Windows users 13 Color Reference pages 57 color rendering dictionary (CRD) 9, 65, 71 Color Setup 39 color space 59 ColorSync Color Matching option 71 ColorWise

key features 9

print options 39, 68

workﬂow diagram 59 ColorWise Pro Tools

Calibrator 24, 42, 54

checking calibration status 57

Proﬁle Manager 54 Combine Separations option 61 Comparison Page 44 composites, printing 61, 64, 68 Conﬁguration page 14, 21, 57 connection, conﬁguring 14, 16, 21, 23 Contrast ICC rendering style 65 CRD 9, 65 custom simulations 61 Custom21.ps 13, 20 Custom34.ps 13, 20

densitometer

DTP32 45, 76

ED-100 84 density 56, 57

importing 85 device name 15, 22 DNS name 14, 21 Domain Name Server 21 DTP32

calibrating with 45

instrument calibration 78

setup 76 DTP41

calibrating with 47

instrument calibration 81

setup 79

INDEX

EFIRGB, RGB Source Proﬁle

option 67

ES-1000 84

calibrating with 49 instrument calibration 84 overview 84

ES-1000, importing measurements

with 37

Fiery Graphic Arts Package

Spot-On 67 unlimited separations 61

Fiery utilities, conﬁguring the

connection for 16, 23

Full (Output GCR) setting, CMYK

Simulation Method option 63

Full (Source GCR) setting, CMYK

Simulation Method option 62

Graphics ICC rendering style 65

Halftone Screen

calibrating 53 CustomHalftonesCalibration folder 53

ICC proﬁles 10

deﬁned 9 downloading 27 editing 24 rendering styles 65

Image ICC rendering style 65

Other setting, RGB Source Proﬁle option 67 output proﬁle

Spot-On 27, 28, 37 Output Proﬁle option 63 output proﬁles 56

PANTONE Book.ps 20 PANTONE Coated Color Reference 68 PANTONE.ps 13 passwords, for calibration 42, 55 patches page 56 Perceptual ICC rendering style 65 Photographic rendering style 65 PostScript color issues 60, 65, 67 PostScript Color Management 71 PostScript Color Matching option 71 PowerPoint, RGB color reference ﬁle 20 PPD 69, 70 Presentation rendering style 65 print options

Mac OS 70

setting defaults 39

Windows 69 printer drivers

Mac OS 70

two-way communication 62, 63, 67

Windows 69 Proﬁle Manager

ColorWise Pro Tools 54

downloading proﬁles 27

using 25 proﬁles 10 Pure Black Text/Graphics option 64

Lightness, Spot-On 36

Mac OS color management options 70 Mac OS, uninstalling software 18 measurements page 56 monitor compensation

Spot-On 36

None setting, RGB Source Proﬁle option 67

Quick setting, CMYK Simulation Method

option 62

Relative Colorimetric rendering style 65 rendering styles 9, 60, 65 RGB images

deﬁning source proﬁles for 66

PostScript and non-PostScript

conversion 67

RGB page 01 20

INDEX

RGB page 02 20 RGB Separation option 66 RGB Source Proﬁle option 59, 66 Rgb_01.doc 13 Rgb_02.ppt 13

SAIFF format 85 Saturation

Spot-On 36 Saturation ICC rendering style 65 separations

printing 61, 64, 68

target color space 66 simulations, custom 61 Source 1-10 setting, RGB Source

Proﬁle option 67

spectrometer, see spectrophotometer spectrophotometer

DTP41 47, 79

ES-1000 84 Spot Color Dictionaries 27 Spot Color Matching option 67 spot colors, CMYK equivalents 67 spot colors, matching to CMYK

equivalents 27

Spot-On 27, 67

adding color 32

Color Spacing 36

downloading color group 32

editing 33

Set Center Patch Color 34 Spot-On Color Search 35

Spot-On main window 34 ES-1000 37 factory defaults 38 Lightness 36 main window 29 monitor compensation 36 named colors 27 output proﬁle 28 rearranging color group 31 renaming color 32 Saturation 36 Spot Color Matching 27 uploading color group 33 using measurement instruments 37

sRGB, RGB Source Proﬁle option 67 Stand21.ps 13, 20 Stand34.ps 13, 20 Status T 85 SWOP 62

targets, for calibration 56 terminology 7, 40 Test Page 57 transfer functions 56 Two-Way Communication 62, 63, 67

undercolor removal (UCR) 67 uninstalling, Mac OS software 18

Windows Color Files folder 13 Windows, print options 69 Word, RGB color reference ﬁle 20

Xerox Fiery EXP6000, Fiery EXP5000 Color Printing

Specifications and Main Features

Frequently Asked Questions

User Manual

Terminology and conventions

INTRODUCTION

About this manual

Key features of ColorWise

COLORWISE PRO TOOLS

About this chapter

Installing ColorWise Pro Tools

Setting up ColorWise Pro Tools on a Mac OS computer

Installing ColorWise Pro Tools

Installing MRJ

Uninstalling MRJ

Using ColorWise Pro Tools

Using Calibrator

Using Color Editor

Using Spot-On

Using Color Setup

CALIBRATION

About this chapter

Calibrating with ColorWise Pro Tools Calibrator

Starting Calibrator

Expert mode

Restoring default calibration measurements

Calibrating with the DTP32

Calibrating with the DTP41

Calibrating with the ES-1000

Calibrating for custom halftone screens

Understanding calibration

An overview of calibration

How calibration works

Scheduling calibration

Checking calibration status

COLORWISE PRINT OPTIONS

About this chapter

ColorWise print options

Black Detection

Black Overprint

Combine Separations

CMYK Simulation Method

Pure Black Text/Graphics

Rendering Styles

RGB Separation

Spot Color Matching

Printer drivers and print options

Setting print options for Windows

Setting color management print options for Mac OS

COLOR MEASUREMENT INSTRUMENTS

Using the DTP32

Setting up the DTP32

Calibrating the DTP32

Using the DTP41

Setting up the DTP41

Calibrating the DTP41

Using the ES-1000

Setting up the ES-1000

Calibrating the ES-1000

IMPORTING DENSITY MEASUREMENTS

Simple ASCII Import File Format

Example of 1D Status T density for EFI 21 patch page

Example of 1D Status T density for EFI 34 patch page

Example of 1D Status T density for an arbitrary page

INDEX
