NTRODUCTION
I
About this manual
INTRODUCTION
This manual is intended for users who want a description of all the Fiery EXP6000/EXP5000
print options. It explains each print option and provides information on any constraints or
requirements in effect.
This manual covers the following topics:
•Information on printer drivers, printer description files (PPDs), and setting
Fiery EXP6000/EXP5000 print options.
•Details about specific print options, including a table that briefly explains each print
option, default setting, and any constraints or requirements.
5
Terminology and conventions
This manual uses the following terminology and conventions.
Term or convention Refers to
Aero Fiery EXP6000/EXP5000 (in illustrations and examples)
Digital press DocuColor 6060/5252/2060/2045
Fiery EXP6000/EXP5000 Fiery EXP6000/EXP5000 Color Server
Titles in italics
Windows Microsoft Windows 98, Windows Me, Windows NT 4.0,
Other books in this documentation set
Windows 2000, Windows XP, Windows Server 2003
Topics for which additional information is available by
starting Help in the software
Tips and information
Important information
Important information about issues that can result in
physical harm to you or others
RINT
P
PRINT OPTIONS OVERVIEW
PTIONS
O
VERVIEW
O
This chapter describes printer drivers and PPD files, Fiery EXP6000/EXP5000 print options,
and locations for setting print options.
About printer drivers and printer description files
The Fiery EXP6000/EXP5000 receives files from computers on the network, processes (RIPs)
the files, and then sends them to the digital press. Windows and Apple Mac OS computers
communicate with the Fiery EXP6000/EXP5000 by means of a printer driver and PPD files.
A printer driver manages printing communication between your application and the printer.
It interprets the instructions generated by the application, merges those instructions with
printer-specific options you set, and then translates all information into Adobe PostScript, a
language the printer understands. In other words, the printer driver writes a PostScript file
based on your original file and the options you set from the Print dialog box.
6
A printer driver also allows you to select print options for your digital press. To do this,
the printer driver must be matched with a PPD (PostScript Printer Description) file for
your Fiery EXP6000/EXP5000. A PPD file contains information about the features and
capabilities of a particular device (for example, what paper sizes and media types are
supported). The printer driver reads the information in this PPD file and presents that
information to you in the form of options you select in the Print dialog box. The PPD file
for the Fiery EXP6000/EXP5000 includes information about the features of both the digital
press and the Fiery EXP6000/EXP5000. For information about the specific print options for
the Fiery EXP6000/EXP5000, see the table on page 10.
PRINT OPTIONS OVERVIEW
About print options
Print options give you access to the special features of your digital press and Fiery EXP6000/
EXP5000. Print options can be specified in several places—in Fiery EXP6000/EXP5000
Setup, or from the printing application, EFI Fiery ColorWise Pro Tools, EFI Hot Folders,
or EFI Command WorkStation.
Print option override hierarchy
The override hierarchy is as follows:
•A user’s printer driver settings override the Fiery EXP6000/EXP5000 Setup and
ColorWise Pro Tools settings.
•Settings made from Command WorkStation override the user’s printer driver settings.
7
PRINT OPTIONS OVERVIEW
Setting print options
•During Setup
Some settings are specified during Setup by the administrator. For information about the
current default server settings, contact the administrator or the operator.
•From applications
With the Adobe PostScript printer drivers, you can specify job settings when you print a
job. For information about specifying job settings from Windows applications, see
Printing from Windows . For information about specifying job settings from Mac OS
applications, see Printing from Mac OS .
•From Fiery Downloader
You can specify only a few settings, such as Copies, Page Range (for PDF files), and
Brightness (for PostScript and EPS files only) when printing jobs with Downloader.
To change options in Downloader, select a job in the Files to be Downloaded (Windows)
or Files to Download (Mac OS) list and click Options. For more information, see Utilities .
8
•From ColorWise Pro Tools
Set the default CMYK Simulation Profile, CMYK Simulation Method, RGB Source
Profile, RGB Separation, Output Profile, Rendering Style, Spot Color Matching, Pure
Black Text/Graphics, and Black Overprint settings. For more information about using
ColorWise Pro Tools, see Color Printing .
•From Hot Folders
Assign a group of print options to a Hot Folder. When you specify print options for a
Hot Folder, the print options are assigned to all jobs sent through that Hot Folder.
These print options override any default options.
For more information, see Hot Folders Help.
•Overrides from Command WorkStation
To change job settings from Command WorkStation, double-click a job to display the
Properties dialog box.
For more information about Command WorkStation, see Command WorkStation Help.
RINT
P
PRINT OPTIONS
PTIONS
O
This chapter explains each print option, default setting, and any constraints or requirements.
It also provides details about specific print options.
Fiery EXP6000/EXP5000 print options
In the following table, underlined settings in the Option and settings column indicate
default printer driver settings (PPD defaults). If you do not use the printer driver interface
to configure a particular option, the Fiery EXP6000/EXP5000 prints the job with the
underlined setting.
For options that you configure in Setup from FieryBar, Command WorkStation, WebSetup,
or ColorWise Pro Tools, choosing Printer’s default results in the Fiery EXP6000/EXP5000
printing the job with the setting you specified in Setup. For options that cannot be configured
in Setup, the Fiery EXP6000/EXP5000 prints the job with a preconfigured Printer’s default
setting. For more information, see the Requirements, constraints, and information column
in the table.
9
Option and settings
(default setting is underlined)
Align front and back images
Off
/On
Auto Trapping
Printer’
s default/Off/On
Black Detection
On
/Off
Black Overprint
Printer’
s default/TextGraphics/Text/Off
PRINT OPTIONS
To determine the current Setup defaults, print the Configuration page from Command
WorkStation.
Description Requirements, constraints,
and information
Specify to align the front cover image to the
back cover image when using the Image Shift
print option.
Specify whether the job should automatically
trap text, graphics, and images.
Select Off if your job consists of black only
text pages combined with a significant
number of color pages.
Select On if the job is predominantly
black and white.
Specify the type of black overprint style.
Select Printer’s default or Text to overprint
black text.
Select Text/Graphics to overprint black text
and graphics.
This option is available in the Windows
2000/XP/Server 2003 printer drivers or
Command WorkStation. For more
information, see page 23.
Printer’s default reflects the setting specified
in Color Setup.
You must set Color Mode to CMYK,
Standard Color, or Expert Color. For more
information, see
Color Printing
.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
For Windows, choose Expert Color as the
Color Mode to access this option.
If this option is set to Text or Text/Graphics,
you must set the Combine Separations
option to Off.
10
Booklet Maker
None
/Standard Booklet/Perfect/
Speed Print/Double Print
Brightness
Printer’
s default/85% Lightest/
90% Lighter/95% Light/
100% Normal/105% Dark/ 110% Darker/
115% Darkest
Centering Adjustment
XY Centering
Right Y
/Top X/Bottom X/Left Y/
Specify how you want pages of your job
arranged in special layouts for folding or
cutting after printing.
Select 85% for a substantially lighter image,
115% for a substantially darker image, or use
one of the settings in between.
Specify how you want images positioned
on the page for imposition printing.
You must enable Pure Black Text/Graphics to
select this option. For more information, see
Color Printing.
For more information, see page 19.
For more information, see page 21.
Option and settings
(default setting is underlined)
CMYK Simulation Method
Printer’
s default/ Full (Source GCR)/
Full (Output GCR)/Quick
PRINT OPTIONS
Description Requirements, constraints,
Select Quick to use one-dimensional transfer
curves to adjust density output of individual
color channels.
Select Full (Source GCR) for a more
complete and accurate simulation.
Full (Source GCR) applies colorimetric
transformations that adjust hue as well as
output density. This option produces output
that maintains the same amount of black
as the source document.
Select Full (Output GCR) to apply the same
simulation method as Full (Source GCR),
except that the output produced contains
a black amount determined by the Output
Profile.
11
and information
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
For Windows, choose Expert Color as the
Print Mode to access this option.
For more information, see
Color Printing
.
CMYK Simulation Profile
Printer’
s default/SWOP-Coated/
DIC/Euroscale/Simulation-1/
Simulation-2/Simulation-3/
Simulation-4/Simulation-5/
Simulation-6/Simulation-7/
Simulation-8/Simulation-9/
Simulation-10/None/ColorWise-OFF
Collation
Printer’
s default/Collated/Uncollated
Color Mode
CMYK
/Grayscale
OR
Print Mode
Standar
d Color/Expert Color/Grayscale
(from the Windows PS printer drivers)
Combine Separations
On/Off
Specify the simulation goal to be used for the
current print job.
Specify how to output multiple-page/
multiple-copy jobs.
Specify the color mode for the current
print job.
Select CMYK, Standard Color, or Expert
Color for a full-color document.
Select Grayscale for a grayscale or
black-and-white document.
When printing separations from supported
desktop publishing applications:
Select On to combine separations on a single
page. The result is one page of overprinted
colors that simulates printing on a press from
film separations.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
For Windows, choose Expert Color as the
Print Mode to access this option.
For more information, see
Color Printing
.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
For more information, see page 21.
The options differ depending on which
printer driver you use.
For Windows, you must choose Expert Color
to set other color print options, including
Pure Black Text/Graphics.
For more information, see Color Printing.
For more information, see
Color Printing
.
Select Off to view separations as four
individual black-and-white pages,
each representing one color plate.
Option and settings
(default setting is underlined)
Control Bar
Printer’
s default/On/Off
Copies
1
-9999
Create Master
None
/1-15
PRINT OPTIONS
Description Requirements, constraints,
Select whether a Control Bar is printed for
each print job.
Specify the number of copies of a job that
you want to print.
To create an EFI Fiery FreeForm master
from this job, specify a number to assign
to the FreeForm master file.
12
and information
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
This print option is available as part of the
EFI Fiery Graphic Arts Package, Premium
Edition. For more information, see Fiery
Graphic Arts Package
For more information, see Variable Data
Printing .
Command WorkStation allows you to select
up to 100 FreeForm Masters. For more
information, see Command WorkStation
Help.
.
Creep Adjustment
Off
/Thick/Normal
DFA Finishing
Printer’
s default/None/Function 1/
Function 2/Both
DFA Profile
Printer’
s default/Profile 1-5
Digital Press Mode
Printer’
s default/
150 Dot Rotated/
200 Dot Rotated/
300 Dot Rotated/
600 Dot Rotated 90 deg Fixed/
200 Line Rotated/Auto
Creep occurs when booklets have a large
number of pages or are printed on heavy
media.
Use this option to adjust images that may
shift from the center of the sheet in booklets.
Specify functional modes of your DFA
device.
Specify a profile to control your DFA device
behavior.
The digital press mode selects the different
screens that are available on the digital press
when printing a job.
For more information, see page 22.
This option is supported only for
Fiery EXP6000.
Printer’s default reflects the setting you
specified in Fiery EXP6000 Setup.
For more information, see the
documentation that accompanies the
DFA device.
The profiles must be programmed at the
digital press.
For more information, see the
documentation that accompanies the digital
press and DFA device.
This option is supported only for
Fiery EXP6000.
Printer’s default reflects the setting specified
in Fiery EXP6000 Setup.
For Mixed Media jobs, the Digital Press
Mode is automatically set to 200 Dot
Rotated.
Option and settings
(default setting is underlined)
Duplex
Off
/Head to Head/Head to Toe
Face Down Printing
Printer’
s default/Off/On
File Search Path
define file search path
PRINT OPTIONS
Description Requirements, constraints,
Specify whether a job is printed single-sided
or double-sided (duplex), by specifying the
orientation of printed images.
Select Off to print your document on the top
of the sheet of paper. Select On to print your
document on the bottom of the sheet of
paper (the document outputs from the
digital press with the text facing down).
Some PPML and Creo VPS jobs do not
contain all of the variable data job resources
in a single file. In these cases, on a job per job
basis, specify the location of the variable data
job external resources so that the
Fiery EXP6000/EXP5000 can access them.
13
and information
For more information about duplex printing,
see page 22.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
This option is available only in the printer
driver or EFI Command WorkStation,
Windows Edition Job Overrides.
For more information about printing PPML
and Creo VPS jobs, see
Printing
.
Variable Data
Group Name
Group Password
Halftone Screen
Printer’
s default/Application Defined/
Contone/Newsprint/User Defined
Screen 1/User Defined Screen 2/
User Defined Screen 3
Image Quality
Printer’
s default/Normal/Best
If Printing Groups is enabled, the
administrator has assigned users to print
groups and passwords to each group. Type
the appropriate Group Name for the print
job.
If Printing Groups is enabled, the
administrator has assigned users to print
groups and passwords to each group. Type
the appropriate Group Password for the print
job.
Specify the screening method for your print
job.
Select Contone if you do not use halftone
screening for your print job.
Select Newsprint if you want a look similar
to that of a newspaper.
Select Application Defined to use the
screening set by the application.
Select User Defined to use the screening set
by the Fiery EXP6000/EXP5000.
Select Normal to provide a good quality
image at high print speed.
This print option is available as part of the
Fiery Graphic Arts Package. For more
information, see Fiery Graphic Arts Package.
Printer’s default and the User Defined Screen
1-3 settings reflect the setting specified in
Fiery EXP6000/EXP5000 Setup.
Printing results may vary between
Application Defined and User Defined if
their respective settings are identical.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
Select Best for higher output quality.
However, selecting Best may affect the
printing speed.
PRINT OPTIONS
14
Option and settings
(default setting is underlined)
Image Smoothing
Printer’
s default/Automatic/Off/
On/Below 90 ppi/Below 150 ppi/
Below 200 ppi/Below 300 ppi
Instructions
Landscape
Yes/No
Media Type
Uncoated 64-74gsm/
U
ncoated 75-105gsm/
Uncoated 106-135 gsm/
Uncoated 136-150 gsm/
Uncoated 151-220 gsm/
Uncoated 221-300 gsm/
Coated 64-74 gsm/
Coated 75-105 gsm/
Coated 106-135 gsm/
Coated 136-150 gsm/
Coated 151-220 gsm/
Coated 221-300 gsm/
Transparency
Description Requirements, constraints,
and information
Select On to minimize grainy output when
printing low-resolution images. When you
select On, Image Smoothing is enforced on
all images.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
If you create an EPS file in Photoshop, the
settings specified from Photoshop take effect.
Select Automatic to use smoothing only
when it makes a visible difference. When the
image is below 150 ppi, image smoothing is
applied automatically.
Select Below 90 ppi, Below 150 ppi, Below
200 ppi, or Below 300 ppi to apply image
smoothing to those images whose effective
resolution is below the specified ppi value
that you choose.
Enter instructions for the operator about
the job.
Specify if you are printing on landscapeoriented paper.
Select the type of media for loading into the
selected tray.
This field has a 127-character (alphanumeric
and special characters) limit.
This option is available only for Mac OS. For
Windows, use the Orientation option.
For more information about media types and
paper specifications, see the documentation
that accompanies the digital press.
Mixed Attribute
Yes/No
Mixed Media
Off
/Define (define mixed media)
Notes
Offset Jobs
Printer’
s default/Yes/No
Orientation
P
ortrait/Landscape
Select Yes when you print Mixed Media jobs
For more information, see Utilities.
under certain conditions.
Click Define to specify the media types used
For more information, see Utilities.
for specific pages.
Enter information about the job. The Notes field has a 31-character limit.
Specify that different print jobs be offset in
the copier tray.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
Specify Portrait or Landscape page
orientation of the document.
PRINT OPTIONS
15
Option and settings
(default setting is underlined)
Output Destination
(Fiery EXP6000)
Printer’
s default/AutoSelect/Offset
Catch Tray/HCS Top Tray/HCS Stacker/
HCSS Top Tray/HCSS Stacker/HCS Bypass/
HCS2 Top Tray/HCS2 Stacker/AOS
(Fiery EXP5000)
Printer’
s default/AutoSelect/Offset
Catch Tray/HCS Top Tray/HCS Stacker/
HCSS Top Tray/HCSS Stacker/HCS Bypass
Output Profile
Use Media Defined Profile/
U
se Server’s Default/
Use Output Profile
Description Requirements, constraints,
and information
Specify the output location of the
printed job.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
When you select AutoSelect, print jobs are
output to the top tray that is closest to the
digital press.
Specify the output profile to use for the
current print job. You can associate a
downloaded ICC profile with one of the five
Output Profile settings to manage the color
For Windows, choose Expert Color as
the Color Mode to access this option.
For more information, see Color Printing.
conversion on the Fiery EXP6000/EXP5000.
Use Media Defined Profile reflects the setting
you specified in ColorWise Pro Tools.
Use Server’s Default reflects the setting you
specified in Fiery EXP6000/EXP5000 Setup.
If you select Use Output Profile, select one of
the 10 output profiles.
Page Order
Printer’
s default/1 to N/N to 1
Page Size
Letter
/8.5x11 Letter LEF/8.5x11 Letter
SEF/A4 LEF/A4 SEF/8.5 x 14 Legal SEF/
8.5x13 Legal SEF/11x17/A3 SEF/12x18/
12.6x19.2 SEF/SRA3/B4(ISO)SEF/9x11
LEF/9x11 SEF/9x12 SEF/8x10, Quatro LEF/
Tab-Europe/PostScript Custom Page Size/
9x11/A4/A3/Legal/Tabloid
Paper Simulation
On/Off
Select 1-N to print the pages of your job
from first to last.
Select N-1 to print the pages of your job
from last to first.
Specify the paper size on which to print
the document.
Indicate whether or not you want to adjust
color output to compensate for the white
point value of a target paper stock being
simulated.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
For Custom Page Sizes, see Printing from
Windows or Printing from Mac OS.
To set this option to On, you must set
CMYK Simulation Method to Full (Output
GCR).
This print option is available as part of Fiery
Graphic Arts Package, Premium Edition.
For more information, see Fiery Graphic Arts
Package.
PRINT OPTIONS
16
Option and settings
(default setting is underlined)
Paper Source
(Fiery EXP6000)
A
utoSelect/Tray 1/Tray 2/Tray 3/Tray 4
(Fiery EXP5000)
A
utoSelect/Tray 1/Tray 2/Tray 3/HCF
PostFlight
Off
/Detailed Report Only/Concise Report
Only/Test Page Only/Color-Coded Pages
Only/All Components
Preview Master
Click to preview
Print Master
No
/Yes
Description Requirements, constraints,
and information
Specify the paper tray to use for the job.
For more information, see page 23.
For more information about Installable
Options, see Printing from Windows or
Printing from Mac OS.
AutoSelect automatically selects the tray
containing the paper size specified for
the job.
Paper Trays 3 and 4 are enabled if the
SFM Feeder is added to the digital press.
Indicate whether or not you want to use the
PostFlight feature.
This print option is available as part of Fiery
Graphic Arts Package, Premium Edition.
For more information, see Fiery Graphic Arts
Package.
Click to generate a low-resolution image of
the selected FreeForm Master.
This option is selectable only if you enable
Use Master.
The FreeForm master must be processed and
held before you generate a preview.
For more information, see Variable Data
Printing.
When you create a Master page from an
application and set this option to Yes, the
Master file prints.
Select this option to verify or confirm your
Master page.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
This option is selectable only if Create
Master is enabled.
For more information, see Variable Data
Printing.
Print Queue Action
Print
/Process and Hold/Print and Hold
Progressives
Off
/On
Select Print to send the job to the Print
queue.
Select Process and Hold to save the raster file
after printing.
Indicate whether or not you want to enable
the Progressives feature. This feature uses the
Progressives values you specified in Color
Setup.
Applicable click charges occur when you
print the Master.
This print option is available as part of Fiery
Graphics Arts Package, Premium Edition.
For more information, see Fiery Graphic Arts
Package.
PRINT OPTIONS
17
Option and settings
(default setting is underlined)
Pure Black Text/Graphics
Printer’
s default/On/Off
Remove White PPT Background
Off
/On
Rendering Style
Printer’
s default/Photographic/
Presentation/Absolute Colorimetric/
Relative Colorimetric
RGB Separation
Printer’
s default/Simulation/Output
Description Requirements, constraints,
and information
Select Off to print black text and graphics as
a four-color black using C, M, Y, and K
toner, and to use normal PostScript
rendering.
Select On to print black text and graphics as
a one-color black, using 100% black toner
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
This option automatically enables the Black
Overprint option.
For more information, see Color Printing.
only.
Select On when using PowerPoint to create
variable data in conjunction with FreeForm.
Specify a default color rendering dictionary
(CRD) to use when you print RGB images,
objects, and text.
This option is also available from Command
WorkStation.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
For Windows, choose Expert Color as
the Color Mode to access this option.
For more information, see Color Printing.
Select Simulation for RGB jobs for which
you want to simulate an output device other
than the device to which you are printing.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
For Windows, choose Expert Color as
the Color Mode to access this option.
For more information, see Color Printing.
RGB Source Profile
Printer’
s default/EFIRGB/sRGB (PC)/
Apple Standard/Source-1/Source-2/
Source-3/Source-4/Source-5/Source-6/
Source-7/Source-8/Source-9/
Source-10/None
Rotate 180˚
Yes/No
Scale
25-400%
100%
Specify a source color space definition for
printing RGB images, objects, and text.
Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
For Windows, choose Expert Color as
the Color Mode to access this option.
For more information, see Color Printing.
Specify if you want to rotate the pages of
your job 180 degrees.
Specify a scaling override for the job. This option is available only as an override
from the job management tools.
NOTE: The supported range is 25 to 400.
NOTE: This option is not the same as
the Scale option available from the
printer driver.
PRINT OPTIONS
18
Option and settings
(default setting is underlined)
Schedule Printing
On/Off
Spot Color Matching
Printer’
s default/Off/On
Stapler Mode
Printer’
s default/Off/Front/Rear/Dual
Substitute Colors
Off
/On
Description Requirements, constraints,
and information
Specify if you want to perform advance
print scheduling based on date and time.
If enabled, select the date and time for
the job.
The job is printed based on the date and
time set on the Fiery EXP6000/EXP5000,
not the client workstation.
If multiple jobs are selected and defined with
the same date and time setting, job order is
based on alphabetic order of the file names.
Select Off to print specified PANTONE
colors in your job using the current
CMYK Simulation and CMYK Simulation
Method.
Select On to activate the PANTONE
Lookup Table. The Fiery EXP6000/
EXP5000 prints specified PANTONE colors
in your job by matching the CMYK print
blend to the same color from the
PANTONE library.
The Printer’s default setting reflects the
setting specified in Fiery EXP6000/
EXP5000 Setup.
This print option is available as part of
FGAP. For more information, see
Fiery Graphic Arts Package.
For Windows, choose Expert Color as the
Color Mode to access this option.
For more information, see Color Printing.
Indicate whether or not to staple a job and,
if so, where you want it stapled.
Enable to use the Substitute Color Values
defined in the EFI Spot-On module of
ColorWise Pro Tools.
This option is available as part of FGAP.
For more information, see Fiery Graphic Arts
Package.
Text/Graphics Enhancement
On
/Off
Tray Alignment
Printer’
s default/Enable/Disable
Units
inches/mm/points
Use Master
None
/1-15
Specify if you want to sharpen the edges of
text or vector graphics.
Specify if you want to enable tray alignment. Printer’s default reflects the setting specified
in Fiery EXP6000/EXP5000 Setup.
For more information, see Utilities.
Specify the measurement values when using
the Image Shift print option
For variable data print jobs, specify the
FreeForm master to use for the job.
For more information about Image Shift, see
page 23.
For more information, see Variable Data
Printing.
Command Workstation allows you to select
up to 100 FreeForm Masters.
For more information about creating
FreeForm masters in Command
Workstation, see Command WorkStation
Help.
PRINT OPTIONS
More about print options
The following sections provide additional information about print options. For more
information about the settings, requirements, and constraints in effect for these options, see
the table on page 10.
Booklet Maker
Use this option to arrange the pages of your print job in special layouts for folding or cutting
after printing.
NOTE: Custom Paper Sizes are not supported when creating a booklet.
None: The job is printed without any booklet imposition features.
Standard Booklet: Choose this setting to print entire documents that are folded and stacked
in booklet order.
You can also use Creep Adjustment to adjust the image shifting that may occur when you
print booklet jobs. For more information, see “Creep Adjustment” on page 22.
19
Front
Perfect: Choose this setting to print separate folded pages that are stacked in booklet order.
Front Back
Back
PRINT OPTIONS
Simpl
Dupl
Simpl
Dupl
Double Print: Choose this setting to print a job so that the data on the first page is duplicated
20
on the first sheet. The next sheet duplicates the data on the second page, and so forth.
ex
Front only Front Back
Speed Print: Choose this setting to speed print a job so that when the sheets are stacked and
ex
cut from the central position, the job is numbered in order and separated as two stacks.
ex
Front only Front Back
ex
PRINT OPTIONS
Centering Adjustment
Use this option to specify how you want the image positioned on the page.
NOTE: Centering Adjustment is available only when Orientation is Portrait and Layout
is 1-up or 2-up.
Refer to the following illustration when you use the Centering Adjustment option:
Centering setting Image position on page
XY Centering
Positions the image in the center of the page.
Top X
Positions the image flush with the top of the page.
21
Bottom X
Positions the image flush with the bottom of the page.
Left Y
Positions the image flush with the left side of the page.
Right Y
Positions the image flush with the right side of the page.
NOTE: When you use the Booklet Maker option, only XY Centering is supported.
Collation
Use this option to specify sorting options.
Collated: Copies of a complete job are sorted as 1-N, 1-N.
Uncollated: Copies of a complete job are sorted as 1,1, 2,2, 3,3.
PRINT OPTIONS
1
2
1
2
Creep Adjustment
Use this option to adjust images that may shift from the center of the sheet in booklet jobs.
Creep occurs in booklets that contain a large number of pages or when booklets are printed
on heavy media.
NOTE: To use this option you must set the Booklet Maker option to Booklet or Perfect and
the Duplex option to Top-Top.
Duplex
The Fiery EXP6000/EXP5000 digital press is equipped for automatic duplex printing. When
the Duplex print option is set to one of the duplex settings, the digital press automatically
turns the paper for printing on the opposite side.
TO PRINT DUPLEX PAGES AUTOMATICALLY
1 Choose Print in your application and locate the Duplex print option.
22
The location of Fiery EXP6000/EXP5000 print options varies, depending on the printer
driver that you use.
2 Choose a Duplex setting.
Head to Head: Prints the top of the image on Side 1 on the same edge of the page as the top
of the image on Side 2.
Head to Toe: Prints the top of the image on Side 1 on the opposite edge of the page from the
top of the image on Side 2.
The following table shows how Duplex settings correspond to printed output:
Head to Head Head to Toe
Portrait
1 2
Landscape
1 2
PRINT OPTIONS
Image Shift
Image Shift allows you to specify how much the image on each page should be shifted relative
to the X (horizontal) and Y (vertical) axis. Moving the job content in this manner enables you
to allow for various finishing options, such as stapling and binding. Image Shift prevents the
image from being clipped.
NOTE: This option is available in the Windows printer drivers or Command WorkStation.
NOTE: This option is effective only for jobs in which Layout is set to 1-up.
TO DEFINE IMAGE SHIFT FOR A PRINT JOB

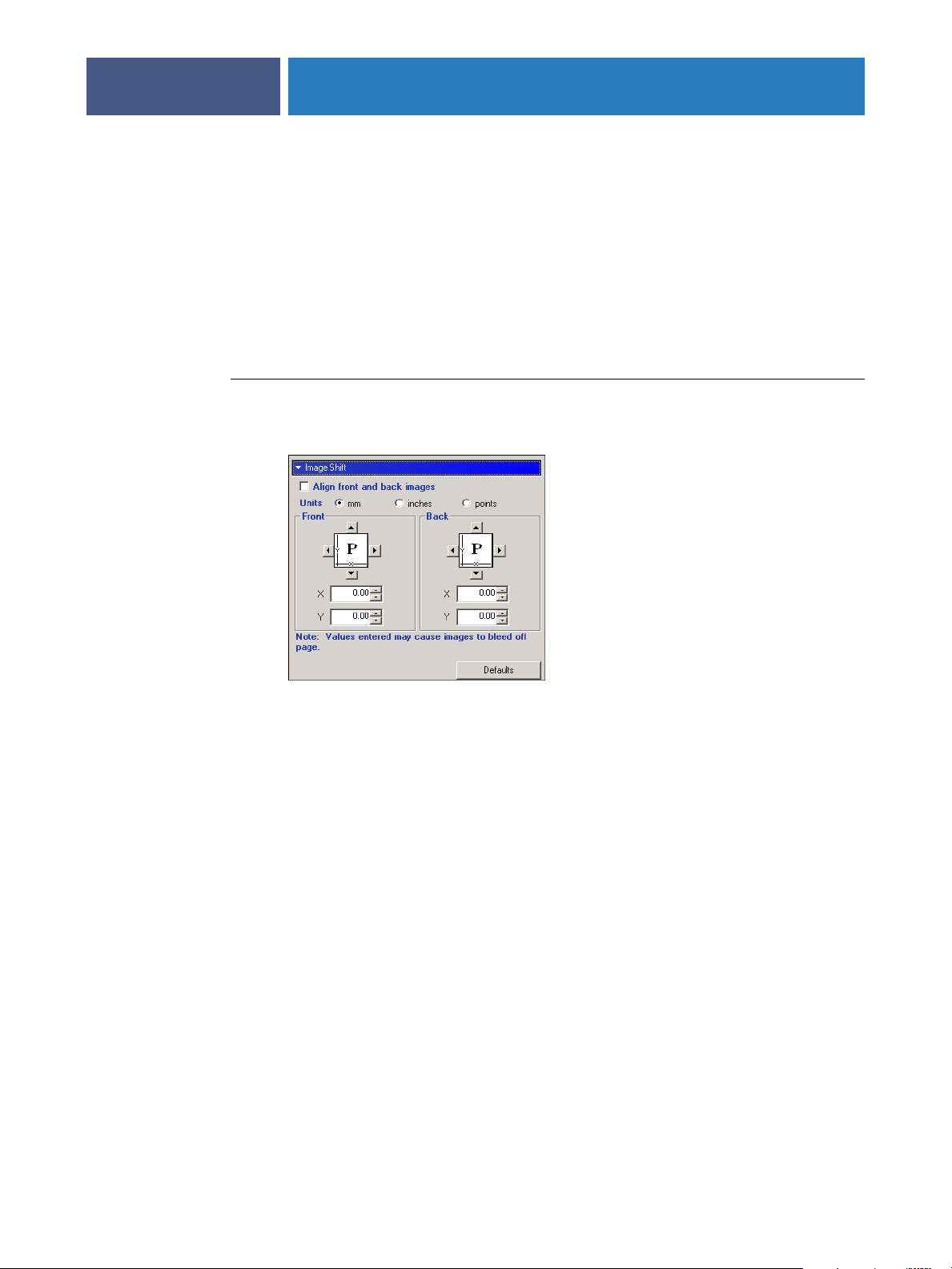

1 In the printer driver, click the Image Shift print option bar.
23
2 Select the unit of measurement.
3Type Front and Back image shift settings in the X and Y axis fields. You can also use the arrow
buttons to shift the image settings.
NOTE: The maximum value for both X and Y axes is 999.99 points/13.88 inches/352.77 mm.
4To align front and back images proportionately, select Align front and back images.
Scale
The operator can specify a scaling override, but the override is applied to any scaling value
already set in the active job. For example, if a user sends a job with a scaling value of 50% and
the operator specifies a Scale override of 200%, the job is printed at 100% of the original
document size, that is, 50% of 200%.
INDEX
INDEX
25
A
Auto Trapping option 10
B
Black Detection option 10
Black Overprint option 10
Booklet Maker option 10, 19
Brightness option 8, 10
C
Centering Adjustment 21
Centering Adjustment option 10
CMYK Simulation Method option 11
CMYK Simulation Profile option 11
Collation option 11, 21
Color Mode option 11
ColorWise Pro Tools
job overrides 8
Combine Separations option 11, 12
Copies option 12
Create Master option 12
Creep Adjustment option 12
D
defining
Image Shift 23
DFA Finishing option 12
DFA Profile option 12
Digital Press Mode option 12
Double Print booklet setting 20
Duplex option 13, 22
F
Face Down Printing option 13
Fiery Downloader
job overrides 8
File Search Path field 13
G
Group Name field 13
Group Password field 13
H
Halftone Screen option 13
Hot Folders
job overrides 8
I
Image Quality option 13
Image Shift
defining 23
Image Smoothing option 14
Instructions field 14
J
job overrides
Auto Trapping option 10
Black Detection option 10
Black Overprint option 10
Booklet Maker option 10
Brightness option 10
Centering Adjustment option 10
CMYK Simulation Method option 11
CMYK Simulation Profile option 11
Collation option 11
Color Mode option 11
Combine Separations option 11, 12
Copies option 12
Create Master option 12
Creep Adjustment option 12
DFA Finishing option 12
DFA Profile option 12
Digital Press Mode option 12
Duplex option 13, 22
Face Down Printing option 13
INDEX
26
Halftone Screen option 13
Image Quality option 13
Image Smoothing option 14
Media Type option 14
Mixed Media option 14
Offset Jobs option 14
Orientation option 14
Output Destination option 15
Output Profile option 15
Page Order option 15
Page Size option 15
Paper Simulation option 15
Paper Source option 16
PostFlight option 16
Preview Master option 16
Print Master option 16
Print Mode option 11
Print Queue Action option 16
print settings 8
Progressives option 16
Pure Black Text Graphics option 17
Rendering Style option 17
RGB Separation option 17
RGB Source option 17
Rotate 180˚ option 17
Scale option 17
Schedule Printing option 18
Spot Color Matching option 18
Stapler Mode option 18
Substitute Colors option 18
Text/Graphics Enhancement option 18
Tray Alignment option 18
Use Master option 18
N
Notes field 14
O
Offset Jobs option 14
Orientation option 14
Output Destination option 15
Output Profile option 15
overrides, of job settings 8
P
Page Order option 15
Page Range option 8
Page Size option 15
Paper Simulation option 15
Paper Source option 16
Perfect booklet setting 19
PostFlight option 16
PostScript printer description files, see PPDs
PostScript printer drivers
explained 6
PPDs (PostScript printer description files)
options 8
Preview Master option 16
Print Master option 16
Print Mode option 11
Print Queue Action option 16
printer default settings
where to set 8
printing
duplex pages 13, 22
Progressives option 16
Pure Black Text Graphics option 17
L
Landscape option 14
M
Media Type option 14
Mixed Media option 14
R
Rendering Style option 17
RGB Separation option 17
RGB Source option 17
RIPping 6
Rotate 180˚ option 17
INDEX
S
Scale option 17, 23
Schedule Printing option 18
Speed Print booklet setting 20
Spot Color Matching option 18
Standard Booklet setting 19
Stapler Mode option 18
Substitute Colors option 18
T
Text/Graphics Enhancement option 18
Tray Alignment option 18
U
Units option 18
Use Master option 18
27
Loading...
