Xerox Fiery EX2101 Configuration Guide

Fiery EX2101 for Xerox 2101

CONFIGURATION GUIDE

About the Documentation

This manual is part of a set of Fiery EX2101 for Xerox 2101™ documentation that includes the following manuals for users and system administrators:

• The

Quick Start Guide

Xerox 2101 and printing. It also describes how to access the Adobe Acrobat PDF ﬁles on the User Documentation CD.

• The

User Software Installation Guide

User Software CD to enable users to print to the Fiery EX2101 for Xerox 2101, and also describes setting up printing connections to the Fiery EX2101 for Xerox 2101.

• The

Conﬁguration Guide

the Fiery EX2101 for Xerox 2101 for the supported platforms and network environments. It also includes guidelines for setting up UNIX, Windows NT 4.0/2000/2003, and Novell NetWare servers to provide printing services to users.

• The

Printing Guide

2101 for users who send jobs from their computers.

• The

Job Management Guide

including Command WorkStation Pro™, and how you can use them to monitor and control jobs on the Fiery EX2101 for Xerox 2101. This manual is intended for an operator or administrator, or a user with the necessary access privileges, who monitors and manages job ﬂow and troubleshoots problems that may arise.

summarizes the steps for conﬁguring the Fiery EX2101 for

describes how to install software from the

explains basic conﬁguration and administration of

describes the printing features of the Fiery EX2101 for Xerox

explains the functions of the job management utilities,

™

, Command WorkStation LE™, and DocBuilder

•

Customer Release Notes

for some of the problems you may encounter.

provide last-minute product information and workarounds

This publication is protected by copyright, and all rights are reserved. No part of it may be reproduced or transmitted in any form or by any means for any purpose without express prior written consent from Electronics for Imaging, Inc. Information in this document is subject to change without notice and does not represent a commitment on the part of Electronics for Imaging, Inc.

This publication is provided in conjunction with an EFI product (the “Product”) which contains EFI software (the “Software”). The Software is furnished under license and may only be used or copied in accordance with the terms of the Software license set forth below.

The Product may be covered by one or more of the following U.S. Patents: 4,917,488, 4,941,038, 5,109,241, 5,150,454, 5,150,454, 5,170,182, 5,212,546, 5,278,599, 5,335,040, 5,343,311, 5,424,754, 5,467,446, 5,506,946, 5,517,334, 5,537,516, 5,543,940, 5,553,200, 5,565,960, 5,615,314, 5,619,624, 5,625,712, 5,640,228, 5,666,436, 5,760,913, 5,818,645, 5,835,788, 5,866,856, 5,867,179, 5,959,867, 5,970,174, 5,995,724, 6,002,795, 6,025,922, 6,041,200, 6,046,420, 6,065,041, 6,067,080, 6,112,665, 6,116,707, 6,118,205, 6,122,407, 6,134,018, 6,141,120, 6,151,014, 6,166,821, 6,184,873, 6,185,335, 6,201,614, 6,215,562, 6,219,659, 6,222,641, 6,224,048, 6,225,974, 6,226,419, 6,239,895, 6,256,108, 6,265,676, 6,266,051, 6,269,190, 6,289,122, 6,292,177, 6,292,270, 6,300,580, 6,310,697, 6,323,893, 6,326,565, 6,327,047, 6,327,050, 6,327,052, 6,330,071, 6,331,899, 6,335,723, 6,340,975, 6,341,017, 6,341,018, 6,341,307, 6,348,978, 6,356,359, 6,369,895, 6,373,003, 6,381,036, 6,400,443, 6,414,673, 6,424,340, 6,429,949, 6,449,393, 6,456,280, 6,476,927, 6,490,696, 6,501,461, 6,501,565, 6,519,053, D341,131, D406,117, D416,550, D417,864, D419,185, D426,206, D430,206, D439,851, D444,793, RE33,973, RE36,947

Trademarks

Bestcolor, ColorWise, eBeam, EDOX, EFI, Fiery, the Fiery logo, Fiery Driven, RIP-While-Print, and Spot-On are registered trademarks of Electronics for Imaging, Inc. in the U.S. Patent and Trademark Ofﬁce and/or certain other foreign jurisdictions.

The Best logo, the eBeam logo, the Electronics for Imaging logo, the Fiery Driven logo, the Intelligent Device Management logo, the PrintMe logo, the Splash logo, the Unimobile logo, the Velocity OneFlow logo, Everywhere You Go, Changing the Way the World Prints, AutoCal, AutoGray, Best, ColorCal, Command WorkStation, Device IQ, DocBuilder, DocBuilder Pro, DocStream, FreeForm, Fiery Link, Fiery Prints, Fiery Spark, NetWise, PrintMe, PrintMe Enterprise, PrintMe Networks, RIPChips, ScanBuilder, Splash, Unimobile, Velocity, Velocity Balance, Velocity Build, Velocity Estimate, Velocity Exchange, Velocity OneFlow, Velocity Scan, VisualCal, WebInstaller, WebScan, WebSpooler, WebStatus, and WebTools are trademarks of Electronics for Imaging, Inc.

All other terms and product names may be trademarks or registered trademarks of their respective owners, and are hereby acknowledged.

Legal Notices

APPLE COMPUTER, INC. (“APPLE”) MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE APPLE SOFTWARE. APPLE DOES NOT WARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE APPLE SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS, OR OTHERWISE. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE APPLE SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.

IN NO EVENT WILL APPLE, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE TO YOU FOR ANY CONSEQUENTIAL, INCIDENTAL OR INDIRECT DAMAGES (INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE APPLE SOFTWARE EVEN IF APPLE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

Apple’s liability to you for actual damages from any cause whatsoever, and regardless of the form of the action (whether in contract, tort [including negligence], product liability or otherwise), will be limited to $50.

PANTONE® Colors displayed in the software application or in the user documentation may not match PANTONE-identiﬁed standards. Consult current PANTONE Color Publications for accurate color. PANTONE® and other Pantone, Inc. trademarks are the property of Pantone, Inc. © Pantone, Inc., 2003.

Pantone, Inc. is the copyright owner of color data and/or software which are licensed to Electronics for Imaging, Inc., to distribute for use only in combination with the products, or software of Electronics for Imaging, Inc. PANTONE Color Data and/or Software shall not be copied onto another disk or into memory except as part of the delivery of the Electronics for Imaging, Inc., products or software.

This product includes software developed by the Apache Software Foundation (http://www.apache.org/).

Part Number: 45037017

FCC Information

WARNING: FCC Regulations state that any unauthorized changes or modiﬁcations to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

Class B Declaration of Conformity

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modiﬁcations made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment.

Industry Canada Class B Notice

This Class B digital apparatus complies with Canadian ICES-003.

Avis de Conformation Classe B de l’Industrie Canada

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.

RFI Compliance Notice

This equipment has been tested concerning compliance with the relevant RFI protection requirements both individually and on system level (to simulate normal operation conditions). However, it is possible that these RFI Requirements are not met under certain unfavorable conditions in other installations. It is the user who is responsible for compliance of his particular installation.

Dieses Gerät wurde sowohl einzeln als auch in einer Anlage, die einen normalen Anwendungsfall nachbildet, auf die Einhaltung der Funkentstörbestimmungen geprüft. Es ist jedoch möglich, dass die Funkentstörbestimmungen unter ungünstigen Umständen bei anderen Gerätekombinationen nicht eingehalten werden. Für die Einhaltung der Funkentstörbestimmungen einer gesamten Anlage, in der dieses Gerät betrieben wird, ist der Betreiber verantwortlich.

Compliance with applicable regulations depends on the use of shielded cables. It is the user who is responsible for procuring the appropriate cables.

Die Einhaltung zutreffender Bestimmungen hängt davon ab, dass geschirmte Ausführungen benützt werden. Für die Beschaffung richtiger Ausführungen ist der Betreiber verantwortlich.

Software License Agreement

YOU SHOULD CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS BEFORE USING THIS SOFTWARE. IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT USE THE SOFTWARE. INSTALLING OR USING THE SOFTWARE INDICATES THAT YOU AGREE TO AND ACCEPT THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO ACCEPT THE TERMS OF THIS AGREEMENT YOU MAY RETURN THE UNUSED SOFTWARE FOR A FULL REFUND TO THE PLACE OF PURCHASE.

License

EFI grants you a non-exclusive license to use the Software and accompanying documentation (“Documentation”) included with the Product. The Software is licensed, not sold. You may use the Software solely for your own customary business or personal purposes. You may not rent, lease, sublicense or lend the Software or use the Software in any time sharing, service bureau, or similar arrangement.

You may not make or have made, or permit to be made, any copies of the Software or portions thereof, except one (1) copy for backup or archive purposes in support of your use of the Software as permitted hereunder. You may not copy the Documentation. You may not attempt to localize, translate, disassemble, decompile, decrypt, reverse engineer, discover the source code of, modify, create derivative works of, or in any way change any part of the Software.

The terms, conditions, and restrictions in the License Agreement apply to all bug ﬁxes, patches, releases, release notes, updates, and upgrades related to the Software.

Proprietary Rights

You acknowledge and agree that all rights, title and interest, including all intellectual property rights, in and relating to the Software, Documentation and all modiﬁcations and derivative works thereof are solely owned by and shall remain with EFI and its suppliers. Except for the express limited license granted above to use the Software, no right or license of any kind is granted. You receive no rights or license under any patents, copyrights, trade secrets, or trademarks (whether registered or unregistered). You agree not to adopt, register, or attempt to register any EFI trademark or trade name (“EFI Mark”) or any confusingly similar mark, URL, internet domain name, or symbol as your own name or the name of your afﬁliates or products, and not to take any other action which impairs or reduces the trademark rights of EFI or its suppliers.

Conﬁdentiality

The Software is conﬁdential, proprietary information of EFI and you may not distribute or disclose the Software. You may, however, permanently transfer all of your rights under this Agreement to another person or legal entity provided that: (1) such a transfer is authorized under all applicable export laws and regulations, including the U.S. Export Administration Regulations, (2) you transfer to the person or entity all of the Software and Documentation (including all copies, updates, upgrades, prior versions, component parts, the media and printed materials, and this Agreement); (3) you retain no copies of the Software and Documentation, including copies stored on a computer; and (4) the recipient agrees to the terms and conditions of this Agreement.

Remedies and Termination

Unauthorized use, copying, or disclosure of the Software, or any breach of this Agreement will result in automatic termination of this license and will make available to EFI other legal remedies. In the event of termination, you must destroy all copies of the Software, Documentation, and all component parts thereof. All provisions of this Agreement relating to disclaimers of warranties, limitation of liability, remedies, damages, governing law, jurisdiction, venue, and EFI’s proprietary rights shall survive termination.

Limited Warranty and Disclaimer

EFI warrants to the original purchaser (“Customer”) for thirty (30) days from the date of original purchase from EFI or its authorized retailer that the Software will perform in substantial conformance to the Documentation when the Product is used as authorized by EFI’s speciﬁcations. EFI warrants the media containing the Software against failure during the above warranty period. EFI makes no warranty or representation that the Software will meet your speciﬁc requirements, that the operation of the Software will be uninterrupted, secure, fault-tolerant, or error free, or that all defects in the Software will be corrected. EFI makes no warranty, implied or otherwise, regarding the performance or reliability of any third party products (software or hardware. THE INSTALLATION OF ANY THIRD PARTY PRODUCTS OTHER THAN AS AUTHORIZED BY EFI WILL VOID THIS WARRANTY. IN ADDITION, USE, MODIFICATION, AND/OR REPAIR OF THE PRODUCT OTHER THAN AS AUTHORIZED BY EFI WILL VOID THIS WARRANTY.

EXCEPT FOR THE ABOVE EXPRESS LIMITED WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, EFI MAKES AND YOU RECEIVE NO WARRANTIES OR CONDITIONS ON THE SOFTWARE, EXPRESS, IMPLIED, STATUTORY, OR IN ANY OTHER PROVISION OF THIS AGREEMENT OR COMMUNICATION WITH YOU, AND EFI SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF THIRD PARTY RIGHTS.

Limitation of Liability

TO THE MAXIMUM EXTENT PERMITTED BY LAW, EFI AND ITS SUPPLIERS SHALL NOT BE LIABLE FOR ANY DAMAGES, INCLUDING LOSS OF DATA, LOST PROFITS, COST OF COVER OR OTHER SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES ARISING FROM THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE OR FAILURE OF THE SOFTWARE, HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY. THIS LIMITATION WILL APPLY EVEN IF EFI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. YOU ACKNOWLEDGE THAT THE PRICE OF THE PRODUCT REFLECTS THIS ALLOCATION OF RISK. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

You are hereby notiﬁed that Adobe Systems Incorporated, a Delaware corporation located at 345 Park Avenue, San Jose, CA 95110-2704 (“Adobe”) is a thirdparty beneﬁciary to this agreement to the extent that this agreement contains provisions which relate to your use of any software, font programs, typefaces, and/or trademarks licensed or supplied by Adobe. Such provisions are made expressly for the beneﬁt of Adobe and are enforceable by Adobe in addition to EFI. ADOBE WILL HAVE NO LIABILITY WHATSOEVER TO YOU FOR ANY ADOBE SOFTWARE OR TECHNOLOGY LICENSED HEREUNDER.

Export Controls

EFI’s Products are subject to U.S. export laws and regulations, including the U.S. Export Administration Regulations, as well as foreign export laws and regulations. You agree that you will not use, distribute, transfer, export, or re-export any portion of the Product or the Software in any form in violation of any applicable laws or regulations of the United States or the country in which you obtained them.

U.S. Government Restricted Rights:

Use, duplication, or disclosure of the Software by the United States Government is subject to restrictions as set forth in FAR 12.212 or DFARS 227.7202-3 -

227.7202-4 and, to the extent required under U.S. federal law, the minimum restricted rights as set out in FAR 52.227-14, Restricted Rights Notice (June 1987) Alternate III(g)(3)(June 1987) or FAR 52.227-19 (June 1987). To the extent any technical data is provided pursuant to the Agreement, such data is protected per FAR 12.211 and DFARS 227.7102-2 and to the extent explicitly required by the U.S. Government, is subject to limited rights as set out in DFARS 252.227.7015 (November 1995) and DFARS 252.227-7037 (September 1999). In the event that any of the above referenced agency regulations are modiﬁed or superceded, the subsequent or equivalent regulation shall apply. The name of the Contractor is Electronics for Imaging.

General

The rights and obligations of the parties related to this Agreement will be governed in all respects by the laws of the State of California exclusively, as such laws apply to contracts between California residents performed entirely within California. The United Nations Convention on Contracts for the International Sale of Goods and any other similar convention does not apply to this Agreement. For all disputes related to this Agreement, you consent to the personal and exclusive jurisdiction and venue of the state courts in San Mateo County, California and the federal court for the Northern District of California. This Agreement is the entire agreement held between us and supersedes any other communications or advertising with respect to the Software. If any provision of this Agreement is held invalid, such provision shall be deemed modiﬁed to the extent necessary to be enforceable and the other provisions in this Agreement shall continue in full force and effect.

If you have any questions, please see EFI’s web site at www.eﬁ.com.

Electronics for Imaging 303 Velocity Way Foster City, CA 94404

Contents

About the Documentation

Introduction

About this manual

Chapter 1: Connecting to the Network

Fiery EX2101 on the network

Stages of installation on the network

Quick path to installation

Connecting network cable to the Fiery EX2101

Back view of the Fiery EX2101 1-10

Ethernet connection 1-11

Chapter 2: Setting up Network Servers

Fiery EX2101 on a TCP/IP network with Windows NT 4.0/2000/XP/2003

Tips for experts—Windows with TCP/IP 2-2

Conﬁguring a Windows NT 4.0/2000/2003 server to communicate with the Fiery EX2101 2-3

Fiery EX2101 on a NetWare network

Tips for experts—IPX networks 2-9

Overview of IPX printing to the Fiery EX2101 2-9

Conﬁguring a NetWare server for printing 2-10

Fiery EX2101 on a NetWare network with NDPS

Tips for experts—NetWare networks 2-15

Conﬁguring a NetWare server for printing with NDPS 2-15

xii

1-1

1-2

1-4

1-10

2-1

2-8

2-14

Fiery EX2101 on a network with UNIX workstations

Tips for experts—UNIX workstations 2-16

Important note about the remote printer name 2-17

Setting up the Fiery EX2101 on TCP/IP networks 2-17

Managing print jobs 2-19

2-16

viii Contents

Chapter 3: Preparing for Fiery EX2101 Setup

Levels of access and control

Fiery EX2101 print connections 3-1

Passwords 3-3

Fiery WebTools 3-4

Control level scenarios 3-6

Fiery EX2101 system software

About Setup

Local Setup from the Fiery EX2101 3-8

Network server setup requirements 3-9

Ensuring the copier connection 3-9

Ensuring virus-free operation of the Fiery EX2101 on a network 3-10

About the Fiery EX2101 default password 3-11

Chapter 4: Performing Setup from the Control Panel

Fiery EX2101 Setup from the Control Panel

Fiery EX2101 Control Panel

Safety warnings 4-3

Activity light 4-3

Buttons 4-4

Display window 4-4

Functions menu 4-6

Accessing Setup options 4-8

Types of Setup screens 4-9

3-1

3-7

3-8

4-1

4-3

Server Setup options

Network Setup options

Port Setup options 4-15

Protocol Setup options 4-16

Service Setup options 4-21

Printer Setup options

4-11

4-13

4-39

ix Contents

PostScript Setup options

PCL Setup options

Administrative functions in the Setup menu

Job Log Setup 4-46

Font Archiving 4-47

Exit Setup 4-49

Chapter 5: Setting up the Fiery EX2101 from a Windows Computer

Accessing Setup

Local Fiery Setup 5-2

Remote Fiery Setup 5-3

Server Setup options

Job Log Setup 5-7

Network Setup

Adapters/Ports 5-8

Protocols 5-9

Services 5-14

Printer Setup options

Printer connections 5-38

PS (PostScript) Setup 5-39

PCL Setup 5-41

4-41

4-43

4-45

5-1

5-5

5-8

5-38

Setting up printing groups

Exiting Setup

Printing the Conﬁguration page

Chapter 6: Conﬁguring Fiery WebTools

Conﬁguring the Fiery EX2101 and clients for Fiery WebTools

Setting up Fiery WebTools

Setting the WebLink destination

5-42

5-43

5-44

6-1

6-2

6-3

x Contents

Chapter 7: Administeringthe Fiery EX2101

Administrator functions

Setting passwords

Passwords from the Control Panel 7-3

Passwords from local Setup or remote Setup 7-4

Clearing the Fiery EX2101

Using the Fiery EX2101 hard disk

Managing Fiery Address Books

Printing a Conﬁguration page from the Control Panel

Maintaining optimal Fiery EX2101 performance

Using FieryBar

Messages 7-12

Activity light 7-12

Commands 7-13

Installing a ZIP drive for Font Archiving

Starting and shutting down the Fiery EX2101

Starting the Fiery EX2101 7-14

Restart the Fiery EX2101 7-15

Rebooting the Fiery EX2101 7-16

Shutting down the Fiery EX2101 7-16

7-1

7-2

7-5

7-6

7-10

7-11

7-12

7-14

Appendix A: Troubleshooting

Troubleshooting the Fiery EX2101

Tr oubleshooting during Setup from the Control Panel A-1

Runtime error messages A-6

Index

A-1

xi About this manual

Introduction

This manual is intended for anyone who is responsible for integrating the Fiery EX2101 for Xerox 2101 into a business environment that includes networked personal computers. After setting up the Fiery EX2101 for Xerox 2101 and client workstations, individual users can print to the Fiery EX2101 for Xerox 2101 as a high-performance printer.

This manual describes how to set up network servers and clients to use the Fiery EX2101 for Xerox 2101 and how to install user software and set up printing from Microsoft Windows and Apple Mac OS computers. For general information on using the copier, your computer, your application software, or your network, see the manuals that accompany those products.

OTE

The term “Fiery EX2101” is used to refer to the Fiery EX2101 for

Xerox 2101The name “Aero” is used in illustrations to represent the Fiery EX2101. The term “Windows” is used to refer to Windows 98, Windows Me, Windows NT 4.0, Windows 2000, Windows XP, and Windows Server 2003, wherever appropriate. The term “Setup” is used to refer to conﬁguring the Fiery EX2101 for proper performance in your network environment, including settings that affect all jobs. The administrator can perform Setup from the Control Panel, FieryBar, Fiery WebSetup, and Command WorkStation. The term “job management tools” is used to refer to Command WorkStation, Command WorkStation LE, and Fiery Spooler/Fiery WebSpooler.

The Fiery EX2101 includes support for Fiery WebTools™ and software for Command WorkStation/Command WorkStation LE, which allow an operator to manage all jobs sent to the Fiery EX2101. Although it may not be the case at all sites, the documentation for this product assumes the presence of an operator who controls and manages jobs sent by users from remote workstations.

Any additional connectivity or administrative features speciﬁc to the copier are described in the

Printing Guide

Customer Release Notes.

xii Introduction

About this manual

This manual covers the following topics:

•Basic conﬁguration of the Fiery EX2101 to support printing over AppleTalk, TCP/IP, and IPX (Novell) networks

•Administering network printing

• Conﬁguring Novell and Microsoft Windows NT 4.0/2000/2003 servers and UNIX systems to provide Fiery EX2101 printing services

•Using the Fiery EX2101 in mixed network environments

OTE

The network guidelines in this book are not intended to replace the services of

an experienced network engineer.

This manual is organized as follows:

• Chapter 1 illustrates the supported network conﬁgurations and shows the network connectors on the Fiery EX2101.

• Chapter 2 provides guidelines for setting up Windows network servers and UNIX systems for printing to the Fiery EX2101 and for using Fiery WebTools.

• Chapter 3 describes how to prepare for Fiery EX2101 Setup, including planning system security through access levels.

• Chapter 4 describes Fiery EX2101 conﬁguration (Setup) from the Control Panel.

• Chapter 5 describes Fiery EX2101 Setup from a Windows computer.

• Chapter 6 describes setting up the Fiery EX2101 for Fiery WebTools

• Chapter 7 summarizes some administrative features of Fiery EX2101 software that are available for IPX/SPX, TCP/IP, and AppleTalk networks, and offers troubleshooting hints.

• Appendix A describes issues that may occur in setting up the Fiery EX2101 and offers solutions.

OTE

Administrator features described in other manuals are summarized on page 7-1.

1-1 Fiery EX2101 on the network

Chapter 1: Connecting to the Network

This chapter summarizes the stages in setting up the Fiery EX2101, and includes diagrams that refer you to other chapters or other manuals for completing your installation. Check those references to ﬁnd the information you need quickly.

Fiery EX2101 on the network

When the Fiery EX2101 is connected to a network, it behaves as a networked PostScript printer. The built-in Ethernet interface on the Fiery EX2101 supports the following network protocols:

•AppleTalk

•TCP/IP

TCP/IP stands for Transmission Control Protocol/Internet Protocol. The lpd protocol is the standard TCP/IP printing protocol. The nbt protocol supports Windows (SMB) printing. The SMTP (simple mail transfer protocol) is the protocol that sends e-mail between servers. The SNMP (simple network management protocol) manages complex networks. The port 9100 is the printer server port number to publish print connections between the print server and a remote computer. The IMAP (internet message access protocol) retrieves e-mail messages. The POP3 (post ofﬁce protocol) retrieves e-mail messages with or without SMTP. The http (hypertext transfer protocol) is commonly used for Web pages on the Internet and on intranets. The http also supports IPP printing.

In addition, the DHCP and BOOTP are used for assigning IP addresses automatically. These are not shown in the diagrams in this chapter. For more information, see “TCP/IP Setup options” on page 4-16.

• IPX/SPX (Novell)

IPX/SPX stands for Internetwork Packet Exchange/Sequenced Packet Exchange.

These protocols (rules that enable computers on a network to communicate with each other) are supported on Mac OS, Windows, and UNIX platforms and can run concurrently on the same cable. Workstations that use other protocols can print through a server that uses one of the protocols mentioned. The Fiery EX2101 is auto-sensing, and can handle all of these connections simultaneously.

1-2 Connecting to the Network

•Physically connecting the Fiery EX2101 to a functioning network

When you add the Fiery EX2101 to a network, it is assumed that a network administrator has already installed a network cabling system and connected workstations and servers.

Stages of installation on the network

Installation can be performed by a network or printing administrator. The stages of a successful installation are:

Prepare a network node for the Fiery EX2101—obtain cable, route it to the location where the Fiery EX2101 will be installed (near the copier), and attach the cable to the network interface of the Fiery EX2101. For details, see “Ensuring the copier

connection” on page 3-9.

OTE

If you plan to run Command WorkStation software, install the software and

connect the Command WorkStation computer to the network along with the Fiery EX2101. For more information, see the

User Software Installation Guide

• Conﬁguring the network server

When network servers are required, conﬁgure those servers to provide client access to the Fiery EX2101 as a PCL or PostScript printer. For information on conﬁguring network servers in Windows and UNIX network environments, see Chapter 2.

• Setting up the Fiery EX2101

Conﬁgure the Fiery EX2101 for your particular printing and network environment. For details, ﬁrst read Chapter 2, and then see subsequent chapters.

•Preparing client workstations for printing

Install the ﬁles needed for printing, install additional user software, and connect the client to the Fiery EX2101 over the network. These steps are described in the

Software Installation Guide

•Administering the Fiery EX2101

Monitor and maintain system performance and troubleshoot problems that arise. For details, see Chapter 7 of this manual and the

, and some information is also provided in Chapter 2.

Job Management Guide

User

1-3 Stages of installation on the network

Summary of Fiery EX2101 network installation

CONNECTION

SERVER CONFIGURATION

FIERY EX2101 SETUP

CLIENT SETUP

Fiery EX2101

Network server

Fiery EX2101

UNIX Mac OS Windows

Prepare a network node. Connect the Fiery EX2101 to the copier and the network. If you use a computer running Command WorkStation software, connect it to the network.

Conﬁgure UNIX, Windows NT 4.0/2000/2003, and IPX (Novell) servers to specify Fiery EX2101 print queues and Fiery EX2101 users.

On the Fiery EX2101 Control Panel, conﬁgure, at a minimum, the Server Setup, Network Setup, and Printer Setup. Conﬁgure the remaining Setups.

At each computer from which users print to the Fiery EX2101:

•Install the appropriate printer ﬁles and connect to one or more queues.

•Install Fiery® utilities and an Internet browser for those computers that will use them.

•Verify the Fiery EX2101 in the list of printers and run a test print.

Fiery EX2101 available on the network

1-4 Connecting to the Network

Quick path to installation

The diagrams on the following pages show typical systems you can use to print and run Fiery software from remote workstations. Find the page with your preferred platform and network type, and then look up the setup procedures referenced in the “Key to setup” in the upper-left corner of each diagram.

The diagrams describe devices that use the supported networking protocols. They are logical diagrams and are not intended to describe the physical arrangement (topology) of devices on the network. A variety of physical arrangements is possible with each logical arrangement. For example, twisted pair Ethernet networks commonly use a star conﬁguration around a hub, rather than a bus arrangement. The design of physical networks is beyond the scope of this manual.

If your network uses more than one protocol or more than one type of workstation, combine the setups listed for each component of your system. Multiple protocols (shown in the diagrams as parallel lines) can run on the same cable. A solid connection from the Fiery EX2101 with an arrow indicates that other supported network types can be operational at the same time.

The protocols used in these diagrams are indicated as follows:

IPX (Novell)

AppleTalk

Other

TCP/IP (lpd, nbt, or http)

1-5 Quick path to installation

Mac OS environment with AppleTalk

Key to setup:

1Mac OS computer User Software Installation Guide

2Fiery Setup Chapter 4

Another supported protocol

Fiery EX2101 connected to copier

TCP/IP (http) for Fiery WebTools

AppleTalk

Mac OS computer

AppleTalk protocol

TCP/IP

Mac OS computer

Mac OS computers can print directly.

Mac OS computer

Printing on this network

Mac OS computers can print directly using the AppleTalk and TCP/IP protocols. Mac OS X computers can print using both Apple Talk and

protocols.

TCP/IP

For using Fiery utilities

Fiery Downloader on a Mac OS computer can be used with the AppleTalk protocol. Other Fiery utilities and Fiery WebTools can be used with the TCP/IP protocol.

For using Fiery WebTools

A Mac OS computer with TCP/IP (http) loaded.

1-6 Connecting to the Network

Windows computers in a Novell environment

Key to setup:

1NetWare server page 2-14

2Fiery EX2101 Setup Chapter 4

3NetWare client User Software Installation Guide

Windows computer page 2-9

Fiery EX2101 connected to copier

NDPS Gateway

TCP/IP (lpd)

Another supported protocol

Windows computer: NetWare client

IPX protocol

TCP/IP or NDPS Gateway TCP/IP (lpd)

IPX

Windows computer: NetWare client

NetWare server

Windows computer: NetWare client

3, 4

IPX

TCP/IP (http) for Fiery WebTools TCP/IP for Fiery utilities

Printing on this network

All Windows computers can print through the NetWare server.

For using Fiery WebTools

A Windows computer with TCP/IP (http) loaded.

1-7 Quick path to installation

Windows NT 4.0/2000/2003 Server environment

Key to setup:

1 Windows NT 4.0/2000/2003 Server page 2-3

2Fiery EX2101 Setup Chapter 4

3 Windows client page 2-6

4 Windows 2000/XP/2003 client User Software Installation Guide

Another supported protocol

Windows NT 4.0/2000/XP/2003 Workstation or Windows NT 4.0/2000/2003 server acting as print server

LAN with NETBEUI, etc.

Windows computer

NETBEUI or other protocol available on the clients and the server

TCP/IP

Windows NT 4.0/2000/2003 server or Windows computer

with TCP/IP loaded

1, 3

Fiery EX2101 connected to copier

TCP/IP (lpd) for printing TCP/IP (http) for Fiery WebTools TCP/IP for Fiery utilities

Windows 2000/XP/2003

computer with TCP/IP

(Port 9100 and IPP)

loaded

Printing on this network

Windows clients can print using a protocol available on the Windows NT 4.0/2000/2003

server.

Windows computers can print using TCP/IP with the lpd protocol.

For running Fiery utilities and Fiery WebTools

A Windows computer with TCP/IP loaded.

1-8 Connecting to the Network

Windows computers using Windows printing

Key to setup:

1 Windows computer User Software Installation Guide

2Fiery EX2101 Setup Chapter 4

Another supported protocol

Fiery EX2101 connected to copier

TCP/IP (nbt)

Windows computer

TCP/IP (nbt) protocol

Windows computer

For Windows printing

Windows (SMB) printing enabled on the Fiery EX2101.

Windows NetBios and TCP/IP enabled on

computer.

the

1-9 Quick path to installation

UNIX workstations and Windows computers on a TCP/IP network

Key to setup:

1 UNIX server/host page 2-16

2Fiery EX2101 Setup Chapter 4

3 UNIX workstation page 2-16

4TCP/IP client User Software Installation Guide,

Chapter 4

5 Windows NT 4.0/2000/XP/2003

client page 2-6

UNIX server or

workstation

1, 3

Another supported protocol

Fiery EX2101 connected to copier

TCP/IP (lpd) protocol

TCP/IP client PC

TCP/IP (lpd, http, and ipp)

Windows computer

with TCP/IP loaded

Printing on this network

UNIX workstations with the TCP/IP (lpd) protocol can print directly and act as host for shared printing.

TCP/IP clients can print through UNIX server or directly; requires TCP/IP and the lpr print service loaded.

For running Fiery utilities and Fiery WebTools

Windows computers with TCP/IP loaded

USB connectors

1-10 Connecting to the Network

Connecting network cable to the Fiery EX2101

In this section, the front view and back panel of the Fiery EX2101 are illustrated, followed by information for connecting to the Ethernet board.

Shut down the Fiery EX2101 before connecting it to any network device. If the Fiery EX2101 has just ﬁnished processing, wait ﬁve seconds after the system reaches the Idle state before using the power switch on the back of the Fiery EX2101 to turn it off. For the proper shutdown procedure, see “Starting and shutting down the

Fiery EX2101” on page 7-14.

Back view of the Fiery EX2101

10/100 BaseT Ethernet (RJ-45)

Xerox 2101 copier interface connector

1-11 Connecting network cable to the Fiery EX2101

Ethernet connection

For Ethernet connections, the Fiery EX2101 supports Unshielded Twisted Pair (UTP) cabling, deﬁned as Category 5 for use with 100BaseT, or as Category 3, Category 4, or Category 5 for use with 10BaseT. The cable uses an 8-pin RJ-45 connector that plugs into the RJ-45 socket on the Fiery EX2101.

NOTE: The 100BaseT type supported by the Fiery EX2101 is100BaseTX, also known

as Fast Ethernet. If an Ethernet hub is used, it must be a 100BaseTX hub. The term “100BaseT” is used to refer to 100BaseTX.

TO CONNECT TO THE ETHERNET BOARD

• Connect the network cable to the RJ-45 connector on the back of the Fiery EX2101.

You must use a Category 5 unshielded twisted pair network cable for 100BaseT and 1000BaseT.

2-1 Fiery EX2101 on a TCP/IP network with Windows NT 4.0/2000/XP/2003

Chapter 2: Setting up Network Servers

This chapter describes environments that typically include one or more network servers—Novell NetWare servers and Windows NT 4.0/2000/2003 servers—that share printing to the Fiery EX2101. It describes setting up servers that use IPX/SPX or TCP/IP protocols for communicating with the Fiery EX2101. In addition, it includes guidelines for setting up direct communication from Windows NT 4.0 /2000/XP/2003 workstations or UNIX workstations, where a network server is optional. This chapter also outlines the requirements for users to print to the Fiery EX2101 and run Fiery utilities and Fiery WebTools.

The Fiery EX2101 can accept jobs concurrently from NetWare and Windows NT 4.0/ 2000/2003 servers, as well as jobs sent directly from Windows NT 4.0/2000/XP/2003 or UNIX workstations. Because AppleShare servers require no special conﬁguration, they are not discussed in this chapter, except for use in a Windows NT 4.0/2000/2003 environment (see the following section,

“Fiery EX2101 on a TCP/IP network with Windows NT 4.0/2000/XP/2003”).

NOTE: The Fiery EX2101 does not support the Windows 2000/2003 Active Directory

service.

If your network is based on Windows NT 4.0/2000/2003, proceed to the following section. For information on UNIX workstations, proceed to “Fiery EX2101 on a

network with UNIX workstations” on page 2-16.

Fiery EX2101 on a TCP/IP network with Windows NT 4.0/2000/XP/2003

When a Windows NT 4.0/2000/XP/2003 computer is conﬁgured to connect to the Fiery EX2101 using TCP/IP, it can print directly to the Fiery EX2101. If the computer shares the printer over the network, it is acting as a print server to Windows 9x/Me and Windows NT 4.0/2000/XP clients. Client computers print to the Fiery EX2101 by printing to the Windows NT 4.0/2000/2003 print server. You can then monitor and control printing at the Windows NT 4.0/2000/2003 server computer.

2-2 Setting up Network Servers

• Make sure you have a valid IP address for the Fiery EX2101 and any workstations that

Typical system combinations are:

•Print server running Windows NT 4.0/2000/2003 server; clients running Windows NT 4.0/2000/XP Workstation and Windows 9x/Me

•Print server running Windows NT 4.0/2000/XP/2003 Workstation and clients running Windows 9x/Me

With TCP/IP protocols loaded, you can run Fiery utilities and Fiery WebTools from a Windows computer.

Tips for experts—Windows with TCP/IP

Setting up printing from Windows using TCP/IP protocols is similar to setting up UNIX workstations with TCP/IP. When TCP/IP network connections are made from Windows NT 4.0/2000/XP/2003 workstations, note the following:

will print to it or run the Fiery utilities.

• In Fiery EX2101 Setup, enable TCP/IP and enter the IP address, subnet mask, and gateway address for the Fiery EX2101.

Enter these addresses manually or use DHCP or BOOTP protocols to assign them dynamically. Make sure the Fiery EX2101 name and address are listed in a domain name server (DNS) or hosts name database used by your system. Otherwise, make sure the system host table includes the correct internal name for the Fiery EX2101 as a remote printer. For more information, see “Important note about the remote printer

name” on page 2-17.

•For Windows, install the appropriate printer driver ﬁles (PCL or PostScript) on the Windows NT 4.0/2000/2003 server.

For more information, see the User Software Installation Guide.

• Repeat the installation for all users who print to the Fiery EX2101.

Each server and workstation running the Fiery utilities with TCP/IP also needs the TCP/IP protocol and the Fiery utility software.

2-3 Fiery EX2101 on a TCP/IP network with Windows NT 4.0/2000/XP/2003

• Load the TCP/IP network protocol on the server and conﬁgure it with an IP address,

• Enter the host name of the Fiery EX2101 in the host database used by your system

•Perform Fiery EX2101 Setup.

• On the Windows NT 4.0/2000/2003 server, create a printer for each Fiery EX2101

Conﬁguring a Windows NT 4.0/2000/2003 server to communicate with the Fiery EX2101

To conﬁgure a Windows NT 4.0/2000/2003 server to communicate with the Fiery EX2101, follow these general steps. More detail is provided in subsequent sections in this chapter and in your Microsoft documentation.

subnet mask, and gateway.

(see “To add the Fiery EX2101 to a TCP/IP network with a Windows NT 4.0/2000/2003

server” on page 2-4).

print connection, install the appropriate printer drivers, and (optionally) share the printer on the network (see “Installing the Fiery EX2101 as a shared printer” on page 2-5).

• Enter the host name and remote printer name of the Fiery EX2101 in the printer connection. For more information, see “Important note about the remote printer

name” on page 2-17.

• If the Windows NT 4.0/2000/2003 server is also a workstation, install Fiery utilities (see the User Software Installation Guide).

Adding the Fiery EX2101 to the TCP/IP network

If your TCP/IP network consists of Windows NT 4.0/2000/2003 servers, and Windows 98/Me and Windows NT 4.0/2000/XP/2003 clients, follow the procedures in this section. If the network also includes UNIX workstations, also see the procedures in “Setting up the Fiery EX2101 on TCP/IP networks” on page 2-17.

2-4 Setting up Network Servers

TO ADD THE FIERY EX2101 TO A TCP/IP NETWORK WITH A WINDOWS NT 4.0/2000/2003 SERVER

1. Register the IP address of the Fiery EX2101 in the host name database used by your system.

For installations that do not have a network administrator or central host name database, add the Fiery EX2101 to the hosts ﬁle on the Windows NT 4.0/2000/2003 server. Also add it to the hosts ﬁle on any workstations that have TCP/IP loaded and will use the Fiery utilities.

The Windows NT 4.0/2000/2003 hosts ﬁle provides compatibility with the UNIX

hosts ﬁle. The hosts ﬁle is used as a local Domain Name Services (DNS) equivalent. It

has the same format as the /etc/hosts ﬁle on UNIX servers. The format of the hosts entry is:

IP Address<TAB>host name<TAB>#comments

<TAB> indicates that you press the Tab key.

where

To determine the IP address and server name of your system, print a Conﬁguration page (see “Printing a Conﬁguration page from the Control Panel” on page 7-10).

NOTE: If the Fiery EX2101 has already been deﬁned in an /etc/hosts ﬁle or equivalent

host name database on a UNIX workstation on your network, we recommend that you use the same host name here as you used for the name of the remote printer in the

/etc/printcap ﬁle.

2. Perform Fiery EX2101 Setup to support TCP/IP printing.

Enter the options in Protocol Setup (IP address of the Fiery EX2101, subnet mask, and gateway address).

2-5 Fiery EX2101 on a TCP/IP network with Windows NT 4.0/2000/XP/2003

Installing the Fiery EX2101 as a shared printer

The ﬁrst step in creating a printer is installing the printer driver ﬁles, which give your applications access to printer features. Use the installation instructions in the User

Software Installation Guide for every workstation that will print directly and

independently to the Fiery EX2101. However, if you are an administrator running a Windows NT 4.0/2000/2003 server or Windows NT 4.0/2000/XP workstation, you can also create a printer and share it with clients on the network. This allows clients who do not have permission to establish an independent network connection to the Fiery EX2101 to print through the server.

You can specify sharing of the printer during installation of the Fiery EX2101 printer ﬁles. If you have not yet installed the Fiery EX2101 printer ﬁles on the Windows NT 4.0/2000/2003 print server computer, do so now, following the instructions in the User Software Installation Guide. During installation, enter the information necessary to share the Fiery EX2101.

If you have already installed the Fiery EX2101 printer ﬁles on the computer you are using as a Windows NT 4.0/2000/2003 print server, see your Windows documentation for information about sharing the Fiery EX2101.

If more than one Fiery EX2101 print connection is published (for example, if both the Print queue and the Hold queue are published), consider creating a printer for each print connection, so you and other users can print to each connection directly. When prompted to specify the printer name, enter a name that indicates the Fiery EX2101 print connection.

2-6 Setting up Network Servers

Conﬁguring clients of a Windows NT 4.0/2000/2003 server

Each client of a Windows NT 4.0/2000/2003 server is already using a network protocol to communicate with the server. Each client can print to the Fiery EX2101 if it has been shared by a Windows NT 4.0/2000/2003 server or Windows NT 4.0 /2000/XP/2003 clients. In that case, the client does not have to use the same network protocol to connect to the Windows NT 4.0/2000/2003 server as the server uses to communicate with the Fiery EX2101.

TO CONNECT AND PRINT TO THE FIERY EX2101 SHARED BY A WINDOWS NT 4.0/2000/2003 SERVER

• Windows 98/Me: Before printing, double-click the Windows NT 4.0/2000/2003 server icon in the Network Neighborhood window, and then double-click the printer

You are prompted to set up the printer. When you choose to set it up, the Add Printer Wizard dialog box appears. Follow the procedures in the User Software

Installation Guide.

name.

• Windows NT 4.0: Before printing, connect to the print server computer and select the Fiery EX2101. Right-click and choose the Open command.

When prompted, click Yes to have Windows set up the printer.

• Windows 2000/XP/2003: Before printing, install the printer driver with the User Software CD and conﬁgure the port.

After clients have selected the printer, they can choose it from the Print Setup, Page Setup, or Print dialog box of their application. Clients can change printing options for their own job, but printer properties appear dimmed, and unavailable for changing. When a client chooses Print, the job is transmitted to the Windows NT 4.0 /2000/2003 print server, and from there to the selected print connection on the Fiery EX2101. The job is listed in the Print Manager on the client workstation, and the administrator can track it in the Fiery EX2101 window of the Print Manager on the Windows NT 4.0/2000/2003 print server.

2-7 Fiery EX2101 on a TCP/IP network with Windows NT 4.0/2000/XP/2003

• Print a Conﬁguration page (see “Printing a Conﬁguration page from the Control Panel”

Conﬁguring Windows computers without a Windows NT 4.0/2000/2003 server

If your network does not have a Windows NT 4.0/2000/2003 server, Windows 9x/Me and Windows NT 4.0/2000/XP workstations can still print to the Fiery EX2101. This method of printing is called Windows, or SMB printing. In this type of network environment, computers running Windows 9x/Me and Windows NT 4.0/2000/XP workstations operate in a peer-to-peer environment and communicate directly with the Fiery EX2101 when users send print jobs.

Many of the same prerequisites for setting up printing through a Windows NT 4.0/ 2000/2003 server also apply to setting up Windows printing where a server is not present. The prerequisites are summarized in the following list, and you can ﬁnd more detail in your Microsoft documentation.

on page 7-10).

Use the information on this page to determine the current Fiery EX2101 settings.

• Load the TCP/IP network protocol on the computer (for Windows 98/Me, load File and printer sharing for Microsoft Network. For Windows 2000/XP/2003 load Client for Microsoft

•Verify the Workgroup name of the computer on the Identiﬁcation tab in the Network control panel (Windows 98/Me/NT 4.0), the Network Identiﬁcation tab in the System Properties dialog box (Windows 2000), or the Computer Name tab in the System Properties dialog box (Windows XP/2003).

Make sure the Workgroup name is the same as the one listed in Fiery EX2101 Setup.

•For Windows 98/Me, in the File and printer sharing for Microsoft Network Properties dialog box, specify Automatic or Enabled for Browse Master, and select Yes for LM

Announce.

• Ping the Fiery EX2101 to verify TCP/IP communication is successful (see page 2-18).

Networks).

2-8 Setting up Network Servers

Fiery EX2101 on a NetWare network

The NetWise™ features built into the Fiery EX2101 support the following network operating environments:

•NetWare—NDS (Novell Directory Services)

•Servers running NetWare in bindery emulation mode

The term “Netware” is used to refer to Netware 4.x, 5.x, and 6.x.

For Ethernet-based networks, the IPX/SPX protocol is supported.

NOTE: Setting up a NetWare environment correctly requires the presence and active

cooperation of the Novell network administrator. You must have administrator privileges on the network to create new NDS or bindery objects.

The term “bindery server” is used to refer to a Novell ﬁle server running NetWare in bindery emulation mode. The term “NDS” is used to describe components of a NetWare operating system running NetWare in native mode.

NetWare clients print to the Fiery EX2101 through the Novell network server. Server setup and client network setup are outlined in this chapter, client printing setup is described in the User Software Installation Guide, and printing is described in the

Printing Guide.

The Fiery EX2101 can receive print jobs from NetWare servers over Ethernet network topologies. During Fiery EX2101 Setup, you select the frame type or types that will be used for communication between the Fiery EX2101 and network servers. Frame type refers to the format of a communications packet.

2-9 Fiery EX2101 on a NetWare network

•A minimum connection to the Fiery EX2101 consists of a NetWare ﬁle server, a

Tips for experts—IPX networks

Setting up the Fiery EX2101 is similar to setting up any other PostScript printer on the network.

The Fiery EX2101 with IPX connections has the following characteristics:

NetWare print server, and a NetWare queue.

•A single directory tree and up to eight bindery servers can be conﬁgured simultaneously.

• The Fiery EX2101 looks for print jobs on one NetWare print server per bindery server.

• Queues in each print server can store jobs for any print connection on the Fiery EX2101.

Overview of IPX printing to the Fiery EX2101

NetWare ﬁle servers support the creation of print queues, which are storage areas for print jobs. When a client on a remote computer decides to print, the job is directed to a Print queue on the NetWare ﬁle server and spooled to the NetWare server disk, freeing up the client workstation.

You must give the NetWare queue names a speciﬁc extension corresponding to the Fiery EX2101 print connection, as follows:

_print _hold _direct

NOTE: These extension names must be in English and in all lowercase letters.

2-10 Setting up Network Servers

You do not need to rerun Setup when you add or remove a NetWare queue; however, you should restart the Fiery EX2101 after you create or remove a queue.

When the Fiery EX2101 is conﬁgured to connect to a NetWare server, it polls the NetWare server for jobs in each of its queues. If jobs are found, they are automatically transferred over the network to the matching connection on the Fiery EX2101. For example, jobs from the NetWare queue with the _print extension are sent to the Fiery EX2101 Print queue. While a job is processed and printed, a record of the job is being created. You can access the Job Log containing these records at any time.

Conﬁguring a NetWare server for printing

The following sections explain how to set up a NetWare ﬁle server so networked users can print to the Fiery EX2101 from their workstations, and the Fiery EX2101 can obtain print jobs from the NetWare server.

For each NetWare ﬁle server that you conﬁgure, follow these general steps. More detail is provided in subsequent sections and in your NetWare documentation.

•Make sure the server is connected to a functioning IPX network.

• Log in as the Supervisor on a PC connected to the NetWare ﬁle server.

•For NetWare installations, set up an NDS connection (see “Setting up an NDS

connection” on page 2-12).

•For NetWare in emulation mode, set the bindery context (see “Setting the NetWare

bindery context” on page 2-12).

•For NetWare in bindery emulation, set up a ﬁle server, print server, and Print queue

for the Fiery EX2101 (see “Setting up a NetWare Print queue for bindery” on page 2-13).

2-11 Fiery EX2101 on a NetWare network

With bindery services, you can route all Fiery EX2101 print jobs through the same NetWare ﬁle server, or you can conﬁgure more than one ﬁle server to handle Fiery EX2101 jobs.

The functions you perform on the Novell server, the Fiery EX2101, and the client workstation are summarized in the following tables. The ﬁrst table applies to NDS connections, and the second to bindery connections. Complete the operations in the left column, then the center column, then the right column.

Conﬁguring an NDS connection

Abbreviations:

FS = ﬁle server PS = print server PQ = Print queue (on the NetWare server)

On NDS FS

In NETADMIN:

Create NDS PQs

Create NDS printer and assign PQs

Create PS and assign the printer

Conﬁgure users of the PQs

In Setup from

Command WorkStation

Port Setup

Ethernet Setup

Protocol Setup

IPX/SPX Setup—select frame types

Service Setup

PServer Setup and NDS Setup Select Root Browse to select PS Specify PQ search root (optional) Set Polling Interval

On client workstation

Install user software.

For printing: Connect client to PQs that you set up on the NetWare FS (associated with the PS selected in NDS Setup).

For running Fiery utilities: Conﬁgure the connection to the Fiery EX2101.

2-12 Setting up Network Servers

Conﬁguring a bindery connection

On Bindery FS

In PCONSOLE:

Select NetWare FS (up to 8)

For each FS: Conﬁgure PS

Conﬁgure PQ

Conﬁgure users of the PQ

Setting up an NDS connection

In NDS, all NetWare entities (objects) are organized in a hierarchical tree structure. Objects have a name, properties, and a context that deﬁnes the location of the object in the directory tree. For the Fiery EX2101, you are mainly concerned with deﬁning a printer, a print server object, and one or more Print queue objects. Objects are created in NetWare administrator programs.

The top-level tree object is known as the [Root] object. Below the [Root] are other objects: either containers (which consist of other objects) or leaf objects (which do not contain other objects). Access to objects is controlled by rights that are deﬁned as properties of each object. Rights are established by network administrators.

Port Setup

Protocol Setup

Service Setup

In Setup from

Command WorkStation

Ethernet Setup

IPX/SPX Setup—select frame types

PServer Setup and Bindery Setup Add FS (up to 8) Set Polling Interval

On client workstation

Install user software.

For printing: Connect client to PQs that you set up on the NetWare FS (associated with the PS selected in Bindery Setup).

For running Fiery utilities: Conﬁgure the connection to the Fiery EX2101.

Setting the NetWare bindery context

You can connect only one directory tree to the Fiery EX2101. If you need to connect additional NetWare servers, you can do so by using bindery emulation. You can connect up to eight bindery servers to the Fiery EX2101.

NOTE: The ﬁle server you select must not be in the same tree as the one you selected in

NDS Setup.

2-13 Fiery EX2101 on a NetWare network

In order to set up the NetWare server in bindery emulation mode for printing to the Fiery EX2101, the network administrator must do the following:

•Determine the Directory Services path to the container in which the print server and

the Fiery EX2101 Print queue will be created.

The container deﬁnes the “bindery context” for your network structure.

•Edit the bindery context.

•Activate the new bindery context.

Setting up a NetWare Print queue for bindery

For NetWare in bindery emulation mode, the NetWare print server and the Fiery EX2101 Print queue must be created and conﬁgured.

As with NDS, you can create several NetWare entities on a Novell server, and you can then select them in Network Setup (see “PServer Setup options” on page 4-22).

Setting up NetWare Windows clients for printing

Before setting up client workstations for printing, perform Network Setup (see

“Network Setup options” on page 4-13), and verify that the settings reﬂect the entities

you created in the NetWare administrator utilities (see “Conﬁguring a NetWare server

for printing” on page 2-10).

NOTE: For printing to the Fiery EX2101, connect all Windows clients to a NetWare

server and permit them to connect to the Print queues for the Fiery EX2101.

After the Novell server and the Fiery EX2101 have been set up, client Setup consists of:

•Installing the networking protocol, binding it to the network adapter card, and

permitting the client to log in to the NetWare ﬁle server.

On Windows 98/Me workstations, load both the IPX/SPX-compatible protocol and the Client for NetWare Networks from the Network Control Panel.

On Windows NT 4.0/2000/XP workstations, install Client Services for NetWare. Use the CSNW option in the Control Panel to set printing options and specify a preferred NetWare server.

2-14 Setting up Network Servers

•Setting up the Fiery EX2101 as a PostScript printer by installing a PostScript printer

driver and the Fiery EX2101 PPD (PostScript printer description).

•Adding a network port and connecting the workstation to one or more NetWare

queues that have been deﬁned for the Fiery EX2101.

•Installing Fiery EX2101 software.

For details, see the User Software Installation Guide.

Fiery EX2101 on a NetWare network with NDPS

The Fiery EX2101 supports printing over a NetWare 5.x or later network running either the TCP/IP protocols or the IPX protocol. For pure IP printing, the Fiery EX2101 takes advantage of features in NDPS (Novell Distributed Print Services). For IPX printing, the Fiery EX2101 supports the PServer service in Bindery emulation or through NDS (Novell Directory Services). For more information on IPX-based printing, see “Fiery EX2101 on a NetWare network” on page 2-8.

NOTE: Setting up a NetWare environment correctly requires the presence and active

cooperation of the Novell network administrator. You must have administrator privileges on the network to create new NDS or bindery objects.

NDPS is not like earlier queue-based versions of NetWare printing. Instead, you use an NDPS Manager and a Printer Agent, which control the tasks previously handled by a Print queue, print server, and spooler. You can also make the printer driver available for clients to download from Windows 9x/Me and Windows NT 4.0/2000/XP computers.

During Fiery EX2101 Setup, you select the frame type or types that will be used for communication between the Fiery EX2101 and network servers. Frame type refers to the format of a communications packet.

2-15 Fiery EX2101 on a NetWare network with NDPS

• Make sure you have a valid IP address for the Fiery EX2101 and for any workstations

• In Fiery EX2101 Setup, enable TCP/IP and enter the IP address, subnet mask, and

• Bidirectional communication features in NDPS are not supported on the Fiery EX2101.

Tips for experts—NetWare networks

Setting up the Fiery EX2101 in an NDPS environment is similar to setting up any other PostScript printer on the network. When setting up the Fiery EX2101 in such an environment, refer to the following information:

that will print to it or run Fiery utilities.

gateway address for the Fiery EX2101. You can enter these manually or use DHCP or BOOT protocols to assign the addresses dynamically.

Conﬁguring a NetWare server for printing with NDPS

To conﬁgure a NetWare server for printing with NDPS, NDPS must be installed during NetWare 5.x or later installation, and a Broker is running on the server. Unless you have manually unloaded the Broker, it loads and runs when you install NDPS. Make sure you are using the latest NetWare service pack and Novell gateway. Finally, create an NDPS Manager. For more information, see your NetWare documentation.

In Fiery EX2101 Setup, make sure you have enabled TCP/IP (see “TCP/IP Setup

options” on page 4-16) and LPD printing (see “LPD Setup options” on page 4-22) on

the Fiery EX2101. Ping the Fiery EX2101 (see “ping <IP address>” on page 2-18) to verify that TCP/IP communication is successful.

2-16 Setting up Network Servers

Fiery EX2101 on a network with UNIX workstations

When a UNIX workstation is conﬁgured with the lpd protocol and connected to the Fiery EX2101 over a TCP/IP network, it can print directly to the Fiery EX2101.

Setting up UNIX workstations requires an administrator with root privileges. After the initial conﬁguration, UNIX users simply submit print jobs to a named printer.

The job management tools, along with the other Fiery utilities and WebTools, are unavailable on the UNIX platform. A Windows or Mac OS computer on the same network as the UNIX computer that is set up to use TCP/IP for printing to the Fiery EX2101 can use the job management tools to manage print jobs that originate from all workstations on the network.

Tips for experts—UNIX workstations

Setting up the Fiery EX2101 in a UNIX environment has the same requirements as setting up any printer or new device:

•A distinct IP address is required for the Fiery EX2101 as well as for each workstation on the network.

•A name must be selected for the Fiery EX2101 that goes with the IP address.

• The IP address of the Fiery EX2101 must be registered for the network in a host database, and also on the Fiery EX2101 itself.

•At least one print connection (Print or Hold) must be published.

The following information applies especially to the Fiery EX2101:

• The Fiery EX2101 is a printer controller that understands lpd protocols.

• The Fiery EX2101 has a remote printer name you must use in order to communicate with it successfully.

For details, see the following section.

2-17 Fiery EX2101 on a network with UNIX workstations

Important note about the remote printer name

Whichever UNIX system you use, the name used for the remote printer (or rp in the

/etc/printcap ﬁle) in conﬁguring the Fiery EX2101 must be one of the following:

print hold

The remote printer name is also used when setting up your Windows NT 4.0 /2000/2003 server or Windows NT 4.0/2000/XP/2003 workstation to connect to the Fiery EX2101 over TCP/IP. Enter the remote printer name when you set up your Windows NT 4.0/2000/2003 printer, as the “Name of printer or Print queue on that (lpd host) server” in the Add LPR Compatible Printer dialog box.

For the Windows 2000/XP/2003 printer driver, enter the remote printer name for Queue Name under LPR Settings in the Conﬁgure Standard TCP/IP Port Monitor dialog box.

Setting up the Fiery EX2101 on TCP/IP networks

Every machine (host) on a TCP/IP network, including the Fiery EX2101, must have a unique 32-bit internet address (IP address). Contact your network administrator to obtain an address for the Fiery EX2101. Workstations on a TCP/IP network can print directly to the Fiery EX2101 as a remote printer, or can print to a Windows NT 4.0/2000/2003 server or UNIX workstation acting as a print server. Since the Fiery EX2101 spools jobs and acts as a print server, there is no advantage in placing another print server between a workstation and the Fiery EX2101. If you choose to do so, however, there is no difference in setup except that a client machine does not have its own spooling area.

2-18 Setting up Network Servers

TO SET UP FIERY EX2101 PRINTING ON UNIX SYSTEMS

1. Specify the appropriate settings in Fiery EX2101 Server Setup.

To access Fiery EX2101 Setup, see “Accessing Setup options” on page 4-8.

2. Specify the appropriate settings in Fiery EX2101 Network Setup.

Enter a valid IP address, subnet mask, and gateway address for the Fiery EX2101.

3. Specify the appropriate settings in Fiery EX2101 Printer Setup.

Publish the Print queue or Hold queue.

TO SET UP TCP/IP FOR COMMUNICATION WITH THE FIERY EX2101

1. A superuser (with root login) must add the Fiery EX2101 to the network’s IP host table or other system database of network printers.

2. In the ﬁle or utility used by your network, specify the remote printer name, the print server protocol, the queue, and the spool ﬁle for the Fiery EX2101 name you assigned.

3. Make the Fiery EX2101 available as a printer to other network users.

4. To verify the TCP/IP connection, ping the IP address or the host name. From any computer on the network, at the command prompt, type:

ping <IP address>

Type the Fiery EX2101 IP address assigned in Fiery EX2101 Network Setup.

After the Fiery EX2101 is set up as a network printer, you can also ping the name you gave to the Fiery EX2101:

ping <hostname>

The server should respond with a message such as

Reply from <IP address> ...

Some systems will respond with a continuous display of output from the IP address. To stop the output, type Control-C. You can use the ping command at any time.

2-19 Fiery EX2101 on a network with UNIX workstations

TO PRINT TO THE FIERY EX2101

• On a UNIX system running Solaris 8, use the lp command to send a job to the Fiery EX2101.

• Windows NT 4.0/2000/XP users with the TCP/IP protocol loaded can send print jobs to the Fiery EX2101 from their applications or from a command prompt.

When Windows NT 4.0/2000/XP users print from applications, they can set print options with the driver but not from the UNIX command line.

Managing print jobs

UNIX network administrators can use UNIX utilities for viewing the list of jobs, and for printing and removing jobs that are spooled to UNIX servers. If the network includes a Windows NT 4.0/2000/XP workstation that has TCP/IP protocols loaded, you can use Command WorkStation or Fiery Downloader™ to download fonts and files.

The job management tools also allow you to manage jobs from remote workstations. For more information, see the Job Management Guide.

Even without the Fiery utilities, you can:

•Set up the Fiery EX2101 to print a log of printed jobs automatically after every 55

jobs (see “Job Log Setup” on page 4-46).

•Print a Job Log manually at any time from the Command WorkStation Functions

menu (see the Job Management Guide).

3-1 Levels of access and control

Chapter 3: Preparing for Fiery EX2101 Setup

To prepare for printing at your site, you must do some initial Fiery EX2101 conﬁguration, or Setup, to specify the network environment and the kind of printing you do. Before you perform Setup, you must decide the levels of access you will implement for your site. Administrators and operators must also understand how Fiery EX2101 system software is structured in order to conﬁgure and use the Fiery EX2101 system correctly.

Levels of access and control

When you conﬁgure the Fiery EX2101 during Setup, you (as system administrator) implement a particular level of control by enabling or not enabling print connections, passwords, and access to Fiery WebTools. The level of control you implement can range from minimum to moderate to maximum—or none at all.

•Minimum control might be appropriate for a small site where anyone on the local

network can control all printing and Fiery EX2101 functions. Although there may be an administrator or operator charged with certain duties, all users have equal access to the system and job management tools.

•Maximum control might be appropriate for a high-volume printing environment

where an administrator or operator controls the job ﬂow and all printing; jobs sent by users are spooled (stored) to the Fiery EX2101 disk until the operator decides it is time to print them. In addition, only the administrator and operator have access to job management tools. We recommend this level of control.

Fiery EX2101 print connections

The Fiery EX2101 supports three print connections: Hold queue, Print queue, and Direct connection. These print connections can be enabled, or “published,” to users on the network when you conﬁgure Printer Setup. All published connections are constantly checked for the presence of jobs. The Print queue and Direct connection give remote users more direct access to the Fiery EX2101 than the Hold queue. Therefore, do not publish the Print queue and the Direct connection in environments where maximum control is desired.

3-2 Preparing for Fiery EX2101 Setup

In addition, you can enable the Printed queue, which is a storage area for the most recent jobs from the Print queue. The Printed queue makes it convenient to reprint those jobs. In Setup, you can enable the Printed queue and specify the maximum number of jobs retained in the queue (see page 4-13). Reprinting jobs in the Printed queue requires the job management tools.

To use the Fiery utilities and Fiery WebTools, you must enable at least one print connections.

Hold queue

Jobs sent to the Hold queue are spooled to the Fiery EX2101 hard disk for printing at a later time or for reprinting. Because the Hold queue is a storage area, jobs sent to it cannot proceed through the printing process until the operator intervenes using the job management tools (see the Job Management Guide).

Print queue

This is the standard Fiery EX2101 queue. Jobs sent to the Print queue are processed and printed in the order they are received. Jobs prioritized by an operator with the job management tools and jobs sent via the Direct connection take priority over jobs sent to the Print queue.

Direct connection

The Direct connection transmits jobs directly to the Fiery EX2101, but only when the Fiery EX2101 is Idle. If the Fiery EX2101 is busy, the job remains at the user workstation until the Fiery EX2101 is ready. The job is then processed as soon as the previous job is ﬁnished and before the next queued job is processed.

Jobs sent to the Direct connection are not stored on the Fiery EX2101 hard disk, and cannot be selected for reprinting, moving, or deletion. Jobs sent to the Direct connection do appear in the Job Log, for accounting purposes.

NOTE: To download fonts to the Fiery EX2101, you must publish the Direct

connection.

NOTE: The Direct connection is not supported for LPR printing.

3-3 Levels of access and control

Passwords

You can implement passwords as a means of controlling access to Fiery EX2101 functions. The Fiery EX2101 allows you to set the following passwords in Setup:

•Administrator—from the Control Panel, WebSetup, or Command WorkStation (or

local Setup, if you have the Fiery Advanced Controller Interface [FACI] installed)

•Operator—from WebSetup or Command WorkStation

These passwords, speciﬁc to the server process, have different uses than the Windows XP Administrator password. Keep careful track of the passwords you set for each.

NOTE: By default, no passwords are set on the Fiery EX2101. If you do not speciﬁcally

set passwords, all users will have administrator privileges, which include access to important functions such as Setup (including setting passwords) and job control. We strongly recommend that you set at least an Administrator password to protect the Fiery EX2101 from random or accidental changes to Setup. For information on setting or changing the passwords, see “Setting passwords” on page 7-2.

NOTE: The FACI is available as an option.

Administrator privileges

Administrator control, which confers control of Setup, is the highest level of control, since the person who has access to Setup can control the printing and job management environment. Administrator privileges include publishing print connections, setting passwords, deleting fonts, controlling print jobs from the job management tools, overriding job settings, clearing the Fiery EX2101 of all job data, and setting default values for print options.

When performing a function from the Fiery EX2101 Control Panel that prompts you for the Administrator password, you must enter it promptly. Otherwise, the Fiery EX2101 Control Panel returns to Idle, and you must start over again.

Operator privileges

Operator control includes control of print jobs from the job management tools, including the ability to override job settings.

3-4 Preparing for Fiery EX2101 Setup

Guest privileges (no password)

No password is needed for a user to log in as a Guest from the job management tools. A Guest can view the status of active jobs but cannot make changes to jobs or to the Fiery EX2101 state.

Fiery WebTools

The Fiery EX2101 can support Internet or intranet access from Windows and Mac OS computers with Fiery WebTools. To enable use of Fiery WebTools, you must do the following in Setup:

•Enable TCP/IP.

•Set an IP address, subnet mask, and gateway address for the Fiery EX2101.

•Enable Web Services.

For more information, see Chapter 6.

NOTE: Fiery WebTools are not supported on Mac OS X.

You can set passwords to control access to Fiery WebTools features. If you do not speciﬁcally set these passwords, all users have access to all Fiery WebTools functions (see “Passwords” on page 3-3). Fiery WebTools include Status™, WebLink™, WebDownloader™, WebSetup, WebSpooler™, and Installer™.

Status

The Status WebTool provides you with current information on the jobs processing and printing on the Fiery EX2101. It is not affected by passwords. For more information, see the Printing Guide.

WebLink

WebLink provides all users with a link to an address on the Internet. To change the WebLink Internet address, see “Setting the WebLink destination” on page 6-3. This function requires the Administrator password, if one has been set (see “Passwords” on page 3-3).

NOTE: If you do not set the Administrator password, any user can change the WebLink

address, which affects all users. For this reason, we strongly recommend that you set an Administrator password.

3-5 Levels of access and control

WebDownloader

WebDownloader allows you to print PostScript, EPS, PDF, and TIFF ﬁles directly to the Fiery EX2101 without ﬁrst opening the ﬁle in an application.

For information on supported ﬁle versions, see the User Software Installation Guide.

WebSetup

WebSetup allows you to view and modify Fiery EX2101 Setup options from a remote workstation. For more information, see Chapter 5.

NOTE: WebSetup is supported on Windows computers only.

WebSpooler

WebSpooler interface is very similar to that of Command WorkStation. It allows remote users to preview, manipulate, reorder, reprint, and delete jobs currently spooling, processing, or printing on the Fiery EX2101. It also allows the administrator and operator to edit and merge jobs (Thumbnails A and B) and view, print, or delete the Job Log.

You control WebSpooler access by setting an Operator password in Setup. If you set a password, only users with that password can manipulate jobs from WebSpooler. A user who does not have the password can still log in to WebSpooler as a Guest with viewonly access (see “Passwords” on page 3-3). For more information, see the Job

Management Guide.

Installer

The Installer WebTool allows users to download installers for printer drivers directly from the Fiery EX2101. It is not affected by passwords. For more information, see the

User Software Installation Guide.

3-6 Preparing for Fiery EX2101 Setup

1. No designated administrator or operator (Minimum control—not recommended)

2. An administrator but no operator

Control level scenarios

Typical scenarios of access and control, ranging from minimum control to maximum control, are described in this section. Choose the scenario that best matches your site requirements, and then refer to the corresponding number in the table for guidance on how to conﬁgure your system for those requirements.

NOTE: We strongly recommend that you set at least an Administrator password to

prevent unauthorized changes to system settings.

All users have equal access to all system functions including Setup, clearing the Fiery EX2101, deleting printer fonts, setting the WebLink address, printing to all Fiery EX2101 print connections, and managing all jobs from the job management tools.

Only an administrator can perform Setup and other administrator functions, but all other system functions are accessible to all users, including printing to all Fiery EX2101 print connections, and managing all jobs from the job management tools.

3. An administrator and operator

Only an administrator can perform Setup and other administrator functions, and only an operator or administrator can control jobs from the job management tools. Users can print to all Fiery EX2101 print connections.

4. An administrator and operator; no Fiery WebTools access

Only an administrator can perform Setup and other administrator functions, and only an operator or administrator can control jobs from the job management tools; users can print to the Hold queue and Print queue, but not to the Direct connection; the operator controls all job ﬂow, but jobs sent to the Print queue may not require operator intervention; no access to Fiery WebTools.

5. An administrator and operator; operator controls all jobs; no Fiery WebTools access (Maximum control)

Only an administrator can perform Setup and other administrator functions, and only an operator or administrator can control jobs from the job management tools.

3-7 Fiery EX2101 system software

Users can print only to the Hold queue; the administrator and the operator have complete control of job ﬂow; no access to Fiery WebTools.

Use these settings

in Setup

Enable Direct connection √ √ √

Enable Print queue √ √ √ √

Enable Web Services √ √ √

Set an Administrator Password (strongly recommended )

Set an Operator password √ √ √

(Minimum)

234 5

(Maximum)

√ √ √ √

Fiery EX2101 system software

The Fiery EX2101 uses Windows XP Embedded system architecture to receive and process jobs and send job data to the copier. To log on to the Fiery EX2101, enter

Administrator as the user name, and enter the password (“Fiery.1”).

NOTE: Conﬁguring and monitoring the Windows XP functions from the

Fiery EX2101 require the FACI option. For more information, contact your authorized service/support technician.

Resident on the Windows XP software is the following software unique to the Fiery EX2101:

•Server—The Server is an independent software process started automatically

whenever Windows XP is started. As the central element of Fiery EX2101 system software, the Server process controls the spooling, rasterizing, and printing of jobs, as well as job accounting (the Job Log), storage, and retrieval.

When the Server is not running, jobs cannot be received by the Fiery EX2101, job processing cannot occur, job data cannot be transferred to the copier for printing, and the job management tools cannot connect to the Fiery EX2101. In the event that you must restart the Server process, right-click FieryBar™ and choose Restart Fiery.

• Command WorkStation—Command WorkStation is the interface tool for the

Server. It provides a graphical interface for viewing and controlling Server functions.

3-8 Preparing for Fiery EX2101 Setup

About Setup

Setup conﬁgures the Fiery EX2101 to communicate with other devices and manage print jobs. You must perform Setup the ﬁrst time you turn on the Fiery EX2101 after new system software is loaded. An initial Setup using default settings is adequate for allowing users to print to the Fiery EX2101 and use the Fiery WebTools. When your network or user printing environment changes, you can change Setup options accordingly.

The ﬁrst time you perform Setup, you must use the Fiery EX2101 Control Panel. Conﬁgure, at a minimum, Server Setup, Network Setup, and Printer Setup, in that sequence. After the initial Setup, you can change Setup options from the Control Panel (see “Fiery EX2101 Control Panel” on page 4-3) or Command WorkStation (see

“Accessing Setup” on page 5-1). You can set most Setup options using these methods.

NOTE: Conﬁguring and monitoring the Windows XP functions on the Fiery EX2101

require the FACI. For more information, contact your authorized service/support technician.

NOTE: The FACI is available as an option.

If you do not conﬁgure the remaining Setups, the Fiery EX2101 uses default settings. You need to make settings appropriate for the printing environment at your site.

Local Setup from the Fiery EX2101

You can also perform Setup locally at the Fiery EX2101, using Setup from FieryBar. Some of the settings you specify in Setup conﬁgure the Server process (such as print job defaults), while some conﬁgure the Windows XP Workstation environment (such as system date and time). Depending on the settings you change in Setup, you must restart FieryBar or Windows XP before your changes take effect.

Setup options for local Setup are divided into three groups:

General Setup System settings, passwords, and Job Log options

Network Setup All the active network system settings that transmits print jobs

to the Fiery EX2101 and available services

Printer Setup Fiery EX2101 print connections to be made available to users,

and PostScript and PCL defaults for jobs

3-9 About Setup

NOTE: Local Setup requires the FACI option.

Network server setup requirements

For Novell and Windows NT 4.0/2000/2003 (using TCP/IP) networks, you must conﬁgure the network servers for printing to the Fiery EX2101 before you conﬁgure Fiery EX2101 network settings in Setup. For chapter references to information about network server Setup, see the diagrams in Chapter 1.

To conﬁgure network settings in Setup, you must have a live network connection, so that the Fiery EX2101 can query the network for zones, servers, and server-based queues.

Whenever the conﬁguration of the Fiery EX2101, the copier, or the network itself changes at your site, you can alter individual settings to correspond to the changed environment. Changing network or port settings may require that you make changes to other Setup options, as well.

NOTE: You must conﬁgure the Fiery EX2101 with the correct Windows NT 4.0

/2000/2003 domain name. This is especially important for Windows printing, also known as SMB printing. If you have the FACI installed, right-click the My Computer icon on the desktop and choose Properties. In the System Properties dialog box, click the Computer Name tab, then click Change to enter the correct domain name in the Computer Name Changes dialog box. This requires the user name and password of a user who can add workstations to the speciﬁed domain. For conﬁgurations that do not include the FACI, you must add the Fiery EX2101 to the domain from a networked Windows NT 4.0/2000/2003 server, using the Server Manager utility.

NOTE: The Fiery EX2101 does not support the Windows 2000/2003 Active Directory

Service. When you use the Fiery EX2101 in a Windows 2000/2003 server environment, assign the Fiery EX2101 to a Domain or Workgroup.

Ensuring the copier connection

Complete the following steps before you conﬁgure the Fiery EX2101 and the workstations that will print to the Fiery EX2101. A service technician will have performed some initial installation.

3-10 Preparing for Fiery EX2101 Setup

TO PREPARE FOR FIERY EX2101 CONFIGURATION

1. Copy a test page to verify the copier is functioning normally.

2. Turn off the copier and connect the interface cable from the copier to the Fiery EX2101.

3. To conﬁrm this connection, turn on the copier and allow it to warm up. Then turn on the Fiery EX2101, and print a Test Page from the Fiery EX2101 Control Panel.

To print a Test Page, press the Menu button on the Control Panel to display the Functions menu. Choose Print Pages, and then choose Test Page.

4. Shut down the Fiery EX2101 ﬁrst and then the copier.

OTE: The Fiery EX2101 must be shut down correctly. For information, see “Shutting

down the Fiery EX2101” on page 7-16. For information on how to turn off the copier,

see the copier documentation.

5. Connect the network cable to the Fiery EX2101, as described in Chapter 1.

The network should already be installed and operational.

6. Turn on the copier and then the Fiery EX2101.

For information on how to start the Fiery EX2101, see “Starting the Fiery EX2101” on page 7-14.

Proceed to Fiery EX2101 Setup (see “Fiery EX2101 Setup from the Control Panel” on page 4-1).

Ensuring virus-free operation of the Fiery EX2101 on a network

The Fiery EX2101 is prone to computer viruses since it uses Windows XP system architecture. We highly recommend that a network administrator periodically run an anti-virus program on the Fiery EX2101 to ensure network security in your environment.

If you have the FACI installed, install and run anti-virus software on the Fiery EX2101 according to the software documentation. Make sure that the Fiery EX2101 is in Idle while the anti-virus software is running. Besides the ﬁles on the hard disk drive, scan for ﬁles that are received outside of the normal print stream, which includes any removable media, such as a ZIP disk, and ﬁles copied to the Fiery EX2101 from a shared network directory.

3-11 About Setup

If you do not have the FACI installed, you can launch anti-virus software from a remote workstation and scan the Fiery EX2101 hard disk. However, this operation is not supported. For support of this operation, we recommend that the network administrator to consult directly with the anti-virus software manufacturer.

About the Fiery EX2101 default password

The Fiery EX2101 is set with the Windows XP default password “Fiery.1” for security reasons. This is in compliance with security policies stipulated by Microsoft Corporation. To ensure network security in your environment, the administrator must set a password.

Changing the Fiery EX2101 system password

Change the default password from a Windows 98/Me client computer by using the following procedure.

If you have the FACI installed, you can change the Fiery EX2101 administrator password in the same way you set the password for a Windows XP workstation (see page 3-12).

NOTE: If you leave the password blank or specify too short of a password, you are

prompted to set a new one.

TO CHANGE THE FIERY EX2101 DEFAULT PASSWORD FROM WINDOWS 98/ME COMPUTERS

1. Click Start in the Window 98/Me taskbar, choose Programs, and then choose MS-DOS Prompt.

The MS-DOS Prompt window appears.

2. At the command prompt, type the following.

For example, if you want to change to “Fiery.2”:

> net password\\Fiery EX2101Name Administrator Fiery.1 Fiery.2

NOTE: “Fiery EX2101Name” depends on your Fiery EX2101 system settings.

3. Press Enter.

The new password “Fiery. 2” is now set.

4. At the command prompt, type Exit.

3-12 Preparing for Fiery EX2101 Setup

TO CHANGE THE FIERY EX2101 DEFAULT PASSWORD FROM WINDOWS NT 4.0/2000/XP/2003 COMPUTERS

1. Press Ctrl+Alt+Delete on the Windows keyboard.

The Windows Security dialog box appears.

NOTE: If you are using the Welcome screen on Windows XP, the Windows Task

Manager dialog box appears. To access the Windows Security dialog box, disable the Welcome screen. See the following procedure and then proceed to step 2.

2. In the Windows Security dialog box, click Change Password and enter the following:

For example, if you want to change to “Fiery.2”:

For User name, administrator

For Domain (Windows NT 4.0) or Log on to (Windows 2000/XP/2003),\\Fiery EX2101 name

For Old Password, Fiery.1

For New Password, Fiery.2

For Conﬁrm New Password, Fiery.2

3. Click OK.

The new password “Fiery.2” is now set.

NOTE: “Fiery EX2101 name” depends on your Fiery EX2101 system settings.

TO DISABLE THE WELCOME SCREEN ON WINDOWS XP

1. From the Windows XP Control Panel, access User Accounts.

2. Click Change the way users log on or log off, and clear Use the Welcome screen.

4-1 Fiery EX2101 Setup from the Control Panel

Chapter 4: Performing Setup from the Control Panel

Setup is required the ﬁrst time the Fiery EX2101 is turned on after new system software is loaded. If you do not conﬁgure a particular Setup option, the Fiery EX2101 uses default settings. Make sure the settings are appropriate for the printing environment at your site.

Fiery EX2101 Setup from the Control Panel

Setup performed from the Control Panel conﬁgures the Fiery EX2101 to communicate with other devices and manage print jobs sent to it.

Setup provides these groups of options:

•Server Setup to specify system options

•Network Setup to specify all the active network systems that transmit print jobs to

the Fiery EX2101

•Printer Setup to specify how print jobs and queues are managed

• PS Setup to specify PostScript settings

• PCL Setup to specify PCL settings

•Job Log Setup to specify how the Fiery EX2101 handles its log of printed jobs

•Font Archiving to back up and restore fonts

NOTE: The Font Archiving feature is available only if an external USB ZIP drive is

installed on the Fiery EX2101.

The Change Password option in the Setup menu allows you to create and change the Administrator password on the Fiery EX2101.

4-2 Performing Setup from the Control Panel

The Control Panel on the front of the Fiery EX2101 allows you to set options and view information about jobs printed to the Fiery EX2101. It comprises the following parts:

• Activity light—indicates normal or problem activity

• Line selection buttons—select a setting and proceed to the next option

• Display window—shows status information and options for setting up

the Fiery EX2101

• Up and down arrow buttons—scroll menus, options, and settings

• Menu button—cancels without saving changes; also toggles to the Functions menu

• Power and reset buttons—powers on and off or resets the Fiery EX2101 (buttons are

located under the cover door of the front panel)

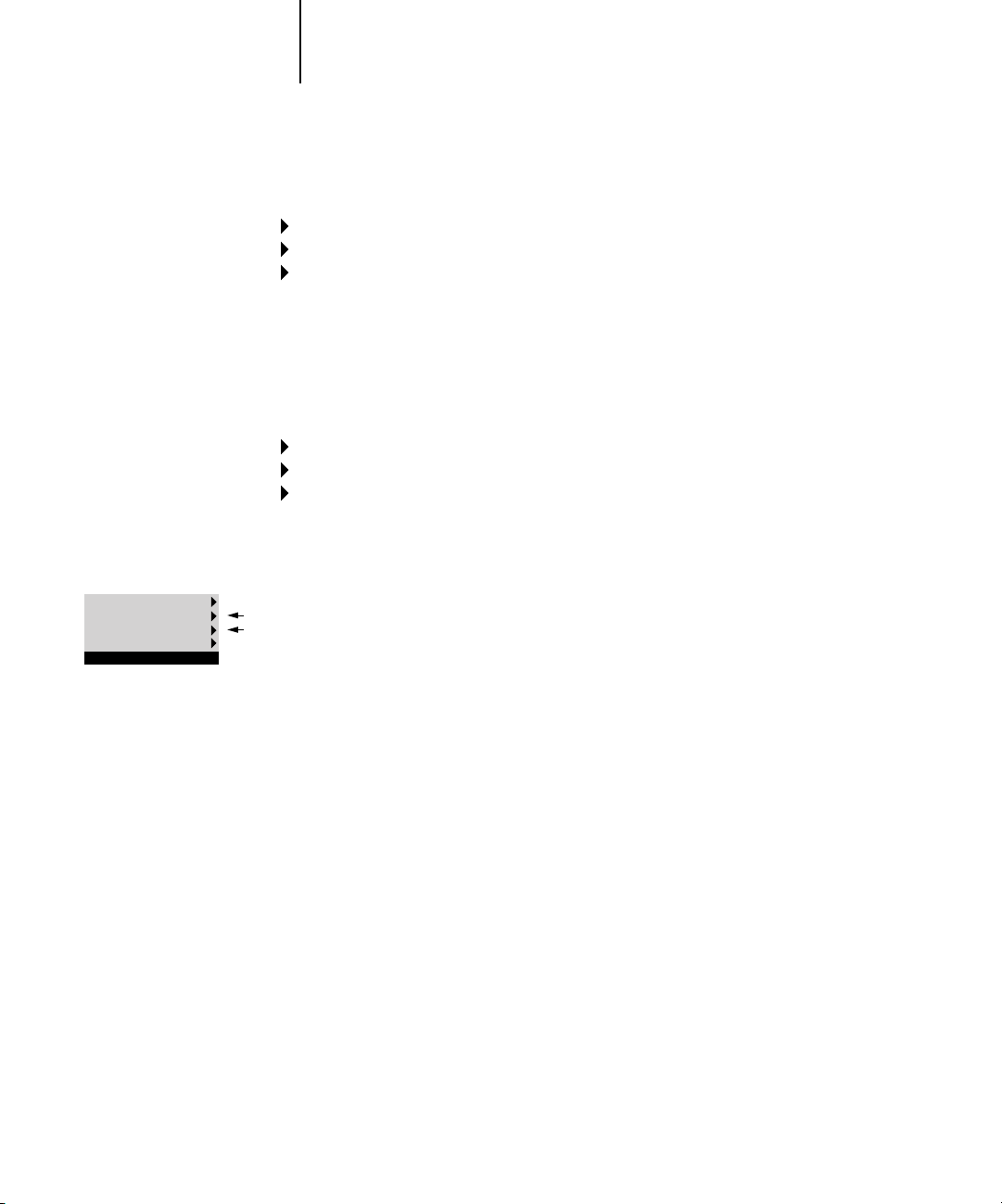

Fiery EX2101 Control Panel

Activity light

Display window

Up arrow button

Down arrow button

Line selection buttons

Menu button

4-3 Fiery EX2101 Control Panel

Fiery EX2101 Control Panel

Use the Fiery EX2101 Control Panel to view status information, print special pages, and set up printing. While most elements in the Control Panel display have counterparts in Command WorkStation, you can view current functions on the Control Panel even when Command WorkStation is not connected to the server or is not running.

The Control Panel is located on the front of the Fiery EX2101.

Safety warnings

The Fiery EX2101 display window is a liquid crystal display (LCD) made of glass, and it can break. Do not subject it to strong shocks.

If the display window breaks and the liquid crystal material leaks out, do not inhale, ingest, or touch it. If the material gets on your skin or clothing, wash it off with soap and water immediately.

Do not put excessive pressure on the display window. This will change the color of the window.

Activity light

The activity light indicates the current Fiery EX2101 activity. If the light is:

Solid red An error has occurred, causing the Fiery EX2101 to be

disabled.

Flashing red An error has occurred, causing printing to be disabled, but

the Fiery EX2101 is capable of processing.

Solid green The Fiery EX2101 is idle.

Flashing green The Fiery EX2101 is processing or printing a job, or

communicating with a remote computer.

No light The Fiery EX2101 is off or starting up.

4-4 Performing Setup from the Control Panel

Buttons

Line selection buttons

Up and down arrow buttons

Menu button Press this button to view other screens. Under normal

Use these buttons to select the command displayed on the corresponding line of the display window. When a button is active, a special character (>) appears in the display window next to the button.

Use these buttons to scroll to different screens in multi-screen lists, select Setup options from a list of available options, and scroll through alphanumeric characters.

operation, the Control Panel displays the Info, RIP, or Print Status screen with information about the status of the Fiery EX2101. If you press the Menu button, the Functions menu is displayed and you can perform additional operations (see “Functions menu” on page 4-6). If a job is processing or printing, press the Menu button to cycle among the active screens.

Display window

The display window provides information about the status of the Fiery EX2101, displays menu information, and allows you to view and edit information in the Setup menus.

The status area at the bottom of the display window displays the screen name and highlights one of the icons to indicate what the Fiery EX2101 is doing. Only the icons for the screens currently available appear. The Menu button cycles through the active screens.

4-5 Fiery EX2101 Control Panel

The screens are as follows:

Alert Status If there is a problem with processing a job or printing functions, an error message

appears on the Control Panel. For information on error messages, see Appendix A.

Print Status When the Fiery EX2101 is printing a job, the Print Status screen appears. This

screen displays the following:

Cancel Job—Press the top line selection button to cancel the job currently

printing.

User name—The name of the user who sent the job currently processing.

Pages/Total—The number of copies of the current job printed and the total

number of copies of the job requested.

RIP Status When the Fiery EX2101 is processing a job, the RIP Status screen appears.

This screen displays the following:

Cancel Job—Press the top line selection button to cancel the job currently

processing. The Fiery EX2101 cancels the job before printing begins.

Job name—The name of the document currently processing.

User name—The name of the user who sent the job currently processing.

Kilobytes—The size (in kilobytes) of the job processed so far.

NOTE: This number is always displayed in kilobytes; for example, 10MB is

displayed as 10000KB.

Info Status When the Fiery EX2101 is not processing or printing a job, it displays

information about the current server and software:

Server Name—The Fiery EX2101 name, as it is conﬁgured in Setup.

Status—The current status of the Fiery EX2101. The Fiery EX2101 status can be:

Idle, Initializing, Busy, Processing, or Printing.

Megabytes—The space (in megabytes) available on the Fiery EX2101 hard disk,

for example, 38062MB.

Version—The system software version running on the Fiery EX2101.

4-6 Performing Setup from the Control Panel

Functions Press the Menu button to display the Functions menu. Use the up and down

arrow buttons to scroll through the list. Press the line selection button to the right of a command to select that command. For more information, see “Functions

menu” on page 4-6.

Network The Network icon appears in the lower-left corner of any of the other screens

when a job is being sent to the Fiery EX2101 over the network. The Network icon also appears, together with a ﬂashing green activity light, when a remote utility is running.

Functions menu

The Functions menu provides many of the options available from Command WorkStation. Choose the following commands from this menu:

Print Pages

Suspend Printing

Resume Printing

Print special pages from the Fiery EX2101. You can print the following pages from the submenu that appears:

PS Test Page/PCL Test Page—A Test Page allows you to conﬁrm that the

Fiery EX2101 is properly connected to the copier, and provides grayscale samples to troubleshoot problems with the copier or the Fiery EX2101. Settings on the Test Page may include: Server Name, Printer Model, and date and time the Test Page was printed.

Configuration—Prints the Conﬁguration page, which gives the current server and

device conﬁguration. This page lists general information about the hardware and software conﬁguration of the Fiery EX2101, the current options for all Setup settings, and the Ethernet address of the Fiery EX2101.

Job Log—Prints a log of the last 55 jobs. For information on the ﬁelds in the Job

Log and on printing it in other forms, see the Job Management Guide.

PS Font List/PCL Font List—Prints a list of all fonts currently on the Fiery EX2101

hard disk.

E-mail Log—Prints a log listing recent e-mail activity. This E-mail log is useful to

the network administrator. To print the log, Enable E-mail Services must be set to Yes in Network Setup>Service Setup> E-mail Setup.

Suspend communication between the Fiery EX2101 and the copier.

Resume communication between the copier and the Fiery EX2101.

4-7 Fiery EX2101 Control Panel

Secure Print

Shut Down

Allows users to control Secure Print jobs. To access Secure Print jobs, a password is required. The password is deﬁned and entered in the Secure Print option from the Windows or Mac OS printer driver by the users. After selecting a Secure Print job from a list, the users have the following choices from the submenu that appears:

Print and Delete—Prints and deletes the Secure Print job immediately.

Print and Hold—Prints the Secure Print job immediately and holds a copy of the

job as a Secure Print job. To print or delete this copy, its password is required through this Secure Print command.

No. of Copies—Allows users to override the Copies print option setting in the

printer driver. The default value is 1. If you do not access this option, the Copies print option in the printer driver is effective.

Delete—Deletes the Secure Print job without printing.

NOTE: Secure Print jobs are not accessible from the job management tools.

NOTE: The Secure Print feature is not effective through the direct connection.

Shut down all Fiery EX2101 activity in the correct manner and then restart. Use this option instead of the power switch on the back of the Fiery EX2101. The following options are available from the submenu that appears:

Restart Server—Resets the server software but does not reboot the entire system.

Network access to the Fiery EX2101 is temporarily interrupted and all currently processing jobs are aborted and might be lost.

Clear Server

Run Setup

Run Diagnostics

Shut Down System—Shuts down all Fiery EX2101 activity properly.

Reboot System—Shuts down and then reboots the Fiery EX2101.

Clear all jobs in all server queues, as well as all jobs archived on the Fiery EX2101 hard disk, the index of archived jobs (in the Archive window), all FreeForm™ masters, and the index of FreeForm masters (in the FreeForm window). Before choosing Clear Server, consult with your administrator or operator. If an Administrator password has been set, you must enter it to access Clear Server.

Enter the Setup menu and change Setup option settings.

This function is provided for service representatives only. For information about running diagnostics, contact your authorized service/support technician.

4-8 Performing Setup from the Control Panel

Accessing Setup options

TO ACCESS SETUP WHEN THE FIERY EX2101 IS IDLE

1. Make sure the information screen on the Control Panel reads Idle.

If Printing or RIPping appears, the Fiery EX2101 is processing, and you must wait until the system ﬁnishes and reaches the Idle state.

2. Press the Menu button on the Control Panel to access the Functions menu.

3. Scroll down with the down arrow button and press the line selection button next to Run Setup.

If an Administrator password has been set on the Fiery EX2101, you are prompted to enter it before you can perform Setup (see page 7-2).

4. When prompted, conﬁrm your choice to proceed to Setup.

5. Press the line selection button to choose a Setup menu or command.

Use the down arrow button to view the remaining screens of the main Setup menu.

6. Perform Server Setup, Network Setup, and Printer Setup, in that order.

This is the minimum required for initial Setup. You can complete the remaining Setups later either from the Control Panel or a Windows computer.

7. Set an Administrator password to protect your Setup from unauthorized changes.

Review the settings described in this chapter.

4-9 Fiery EX2101 Control Panel

Types of Setup screens

Two types of Setup options are available:

Multiple choice questions

Information entry options

You are given choices (for example, Yes or No, or a list of options from which to choose). Only one choice is displayed at a time, in highlighted text. The currently selected (or default) value appears ﬁrst.

Use the up and down arrow buttons to scroll through the choices, and choose OK when the correct information is displayed.

You must specify the information for your site (the printer name or IP address). Use the up and down arrow buttons to scroll through the alphanumeric symbols to make your selection.

The cursor position is highlighted, and two of the line selection buttons become left and right arrow buttons. Arrows appear on the display window next to the corresponding buttons. Use these buttons to move between positions for entering information.

NOTE: When you enter text, enter it from left to right,

as the left arrow button acts as a Delete key as well as a cursor-moving key. This is indicated in the display window by the Delete symbol ( ).

The following section provides three specific examples of these types of Setup options.

4-10 Performing Setup from the Control Panel

Example: Multiple choice

Publish Print Queue

Yes

Printer Setup

Press the up or down arrow buttons to display the other option or options.

Example: Information entry with ﬁelds

Subnet Mask

255.0.0.0 >

< OK

TCP/IP (Ethernet)

From the starting position, press the right arrow button to move the cursor to the right

Example: Information entry with individual characters

Enter Your File Server Password >

Bindery Setup

Publish Print Queue

Printer Setup

When the setting you want appears, press the button beside OK to continue.

Subnet Mask

255.0.0.0 > < OK

TCP/IP (Ethernet)

The next ﬁeld is selected. Press the up or down arrow buttons to change the number.

Enter Your File Server Password >

Bindery Setup

Subnet Mask

255.255.0.0 > < OK

TCP/IP (Ethernet)

When the correct number is displayed, press the right arrow button to move to the third ﬁeld. Press the left arrow button to go back and edit, or press OK to select the choice and continue.

Enter Your File Server Password > 9 OK

Bindery Setup

From the starting position, press the up or down arrow buttons to enter the ﬁrst character.

When the correct character appears, press the right arrow button to move the cursor to the next position.

Press the up or down arrow buttons to enter a character in the second position. The Delete button erases the current character and moves the cursor to the left. Pressing OK enters what is currently displayed.

4-11 Server Setup options

NOTE: If you make a mistake during Setup, use the Menu button to cancel without

saving changes. Pressing the Menu button cancels what you are doing in the current screen to bring you to the next higher-level menu. You may have to press Menu more than once to return to the top level for the particular Setup in which you are working. Once at the top level, you can enter a Setup menu again, or exit without making changes.

When you have entered the settings, you must save the changes. You are usually prompted to do so. If you choose Yes, your settings overwrite previous settings. If you choose No, your previous settings are retained. If necessary, the Fiery EX2101 restarts after you exit from the Setup menu.

Server Setup options

The Server Setup menu allows you to specify system information that pertains to the Fiery EX2101 and all users. To access the menu, follow the instructions on page 4-8.

Exit Setup Server Setup Network Setup Printer Setup

Setup

Press button for Server Setup

When you choose Server Setup, the options appear in sequence, as follows. Default values, where applicable, appear in square brackets. Words shown in italics indicate that a product- or site-specific value is displayed.

Server Name

Default server name

Enter a name for the Fiery EX2101 (up to 15 characters long). This name appears in the Chooser on an AppleTalk network.

NOTE: Do not use the device name (EX2101) as the server name. Also, if you have more

than one Fiery EX2101, do not give them the same name.

System Date

Enter the correct system date in the standard form for your use. The date appears on the Job Log.

4-12 Performing Setup from the Control Panel

System Time

Enter the correct system time. Enter the time based on the 24-hour clock in the form

HH:MM (Hours:Minutes). The time appears on the Job Log.

Print Start Page Yes/No [No]

Specify whether the Fiery EX2101 should print a start page every time it restarts. The start page displays information about the Fiery EX2101, including the server name, current date and time, amount of memory installed in the Fiery EX2101, network protocols enabled, and connections published.

Use Character Set Macintosh/DOS/Windows [Macintosh]

Specify whether the Control Panel and Command WorkStation should use the Macintosh, DOS, or Windows character set for displaying ﬁle names. This is important if ﬁle names include accented or composite characters (such as é or æ).

For mixed-platform networks, choose the option that gives the best overall representation of the special characters you use.

Enable Printing Groups Yes/No [No]

Specify whether to enable printer groups for Member Printing. If you are downloading fonts, set this option to No. If you enable this option, you must use Command WorkStation to deﬁne user groups and passwords. Users must then enter their group name and password when they print.

Enable Printed Queue Yes/No [Yes]

Specify whether to enable the Printed queue, which creates a storage location on the Fiery EX2101 hard disk for recent jobs that were printed from the Print queue. Users with Administrator or Operator access to the job management tools can reprint jobs from the Printed queue without resending them to the Fiery EX2101. If you select No, jobs are deleted from the Fiery EX2101 disk immediately after they are printed.

4-13 Network Setup options

Exit Network Setup Port Setup Protocol Setup Service Setup

Network Setup

Jobs Saved in Printed Queue 1-99 [10]

This option appears only if Enable Printed Queue is set to Yes. Specify the number of jobs to be stored in the Printed queue. Jobs in the Printed queue take up space on the Fiery EX2101 hard disk. If disk space is low, use a smaller value for saved jobs.

Preview While Processing Yes/No [No]

Specify whether a preview thumbnail should be displayed in the Command WorkStation when a job is being processed. If you select Yes, the preview thumbnail is always displayed in the Processing section of the Activity Monitor.

Save Changes Yes/No [Yes]

Select Yes to activate any changes made in the Server Setup; select No to return to the main Setup menu without making any changes.

Exit Setup Server Setup Network Setup Printer Setup

Setup

Network Setup options

When you perform network Setup, you conﬁgure the Fiery EX2101 to receive print jobs over the network systems that are used at your site.

In the Setup menu, choose Network Setup, where you specify network addresses and names to be used by workstations, servers, and the Fiery EX2101 when they communicate with each other.

The Network Setup menu includes three submenus that allow you to choose port types, protocols, and network services. You must perform Port Setup and enable at least one port.

For each item you enable, you are prompted to enter settings for that item. Default values, where applicable, appear in this manual with square brackets.

Display and select options only for the network systems that are currently used at your site. If your network requirements change, you can change Network Setup at any time.

If the Fiery EX2101 is configured to enable more than one protocol, it automatically switches to the correct protocol when it receives a print job.

4-14 Performing Setup from the Control Panel

The available network types, and the Setup areas that pertain to them, are summarized in the following table.

For this Network or

Connection Type

AppleTalk over Ethernet Ethernet Setup AppleTalk Setup AppleTalk printing (PAP) is

TCP/IP over Ethernet Ethernet Setup TCP/IP Setup: Ethernet Setup LPD Setup

IPX/SPX over Ethernet Ethernet Setup IPX/SPX Setup PServer Setup (NDS, Bindery,

TO ACCESS NETWORK SETUP OPTIONS

1. Conﬁrm that the network cable is connected to the Fiery EX2101.

2. Choose Network Setup from the main Setup menu.

Use this

Port Setup

During Network Setup, the Fiery EX2101 queries the network for zones, servers, and server-based queues. If you perform Network Setup without a connected and functioning network, default settings are used that may not meet your needs.

Use this

Protocol Setup

Use this

Service Setup

enabled automatically.

Web Services Setup Windows Setup Port 9100 Setup (Windows 2000/XP/2003) IPP Setup (Windows 98/Me/2000/XP/

2003)

or both)

3. Choose Port Setup from the Network Setup menu.

4. Choose Ethernet Setup from the Port Setup menu, and enter the appropriate settings.

5. When you have ﬁnished entering port settings, choose Exit Port Setup, and then choose Protocol Setup.

6. Enter the appropriate settings for the protocol(s) you will use.

7. When you have ﬁnished entering protocol settings, choose Exit Protocol Setup, and then choose Service Setup.

8. Enter the appropriate settings for the services you will use.

4-15 Network Setup options

The options are described in detail in the following pages.

TO EXIT NETWORK SETUP

1. When you have ﬁnished entering service settings, choose Exit Network Setup.

2. Choose Yes when prompted to save changes.

3. From the main Setup menu, choose another Setup or choose Exit Setup.

Port Setup options

Network Setup

Port Setup

To conﬁgure the Fiery EX2101, choose the port type you use and enter the settings for that port. Since network setups are nested, the names of higher-level menus are shown in this chapter to the left of each menu heading.

Ethernet Setup

Enable Ethernet Yes/No [Yes]

Select Yes if you have Ethernet cabling connected to the Fiery EX2101.

Ethernet Speed Auto Detect/100 Mbps Full-Duplex/100 Mbps Half-Duplex/ 10 Mbps Full-Duplex/10 Mbps Half-Duplex [Auto Detect]

Select an appropriate setting according to the settings of the network to which the Fiery EX2101 is connected.

NOTE: When you select Auto Detect, make sure that the auto-negotiation settings

for speed and duplex are conﬁgured for the network port to which the Fiery EX2101 is connected. Similarly, when you select a different setting, such as 100 Mbps Full-Duplex, make sure the same settings are conﬁgured for the network port.

4-16 Performing Setup from the Control Panel

Protocol Setup options

Exit Protocol Setup AppleTalk Setup TCP/IP Setup IPX/SPX Setup

Protocol Setup

Network Setup

Protocol Setup

To conﬁgure the Fiery EX2101, choose each protocol and enter the settings for that protocol. You can enable AppleTalk, TCP/IP, and IPX/SPX communication simultaneously.

AppleTalk Setup

Enable AppleTalk Yes/No [Yes]

Select Yes if you have an AppleTalk network connected to the Fiery EX2101. This setting enables the Fiery EX2101 to communicate over AppleTalk networks.

AppleTalk Zone

List of zones

The Fiery EX2101 searches the network for AppleTalk zones in your network segment. Scroll through the list to select the AppleTalk zone in which you want the Fiery EX2101 to appear. If your segment has only one zone, the Fiery EX2101 is assigned to that zone automatically.

The message “No AppleTalk zone found” may mean your network has no zones, or the network cable is not connected (see Appendix A). Choose OK to dismiss the message.

TCP/IP Setup options

Exit Protocol Setup AppleTalk Setup TCP/IP Setup IPX/SPX Setup

Protocol Setup

To conﬁgure the Fiery EX2101 for TCP/IP, choose TCP/IP Setup.

Choose Ethernet Setup and enter the appropriate settings. Choose each network type you use (Ethernet) and enter the appropriate settings.

When you set an IP address, subnet mask, or gateway address for the Fiery EX2101 during Setup, you can allow the Fiery EX2101 to get these addresses automatically from a DHCP or BOOTP server. Turn on or restart the Fiery EX2101 and allow it to reach Idle. Make sure the DHCP or BOOTP server is running, and then perform Fiery EX2101 Setup.

Network Setup

Protocol Setup

TCP/IP Setup

4-17 Network Setup options

TCP/IP Setup with Ethernet

Ethernet Setup

Enable TCP/IP for Ethernet Yes/No [Yes]

Select Yes if you have a TCP/IP network connected to the Fiery EX2101 over Ethernet cabling.

NOTE: If you are using TCP/IP for printing from Windows computers, enabling

TCP/IP here also enables you to use Fiery utilities from Windows computers using TCP/IP protocols.

Enable Auto IP Configuration Yes/No [Yes]

Select Yes to allow the Fiery EX2101 to obtain its Ethernet IP address by searching the network. Depending on your network and the protocol you select in the following option (DHCP or BOOTP), the IP address can change. Select No to assign the Fiery EX2101 a static IP address. If you select No, you proceed to the IP Address option, where you manually set the IP address.

Select protocol DHCP/BOOTP [DHCP]

This option appears only if you answered Yes to Enable Auto IP Conﬁguration. Select the protocol over which the Fiery EX2101 should search for its IP address. Both DHCP and BOOTP allow the Fiery EX2101 to obtain the Ethernet IP address and Subnet Mask automatically.

Depending on your network, the Fiery EX2101 may be assigned a different address after you restart the Fiery EX2101. With the DHCP setting, the Fiery EX2101 can be assigned a different address even if it is not restarted. Make sure the network is already conﬁgured properly for the protocol you select.

4-18 Performing Setup from the Control Panel

Get Gateway Address Automatically Yes/No [Yes]

Use this option to assign the gateway address automatically for printing with TCP/IP. This option appears only if you selected DHCP or BOOTP as the protocol in the previous option.

IP Address [127.0.0.1]

This option appears only if you answered No to Enable Auto IP Conﬁguration.

Enter the Fiery EX2101 IP address for Ethernet. This IP address, unlike an IP address set automatically, remains the same if you restart the Fiery EX2101. You must change the default to a valid address for your network. For information about setting up printing with TCP/IP, see Chapter 2.

Subnet Mask

This option allows you to modify the subnet mask for printing with TCP/IP over Ethernet. To set the subnet mask, enter one of the following values:

• 255.0.0.0 if the IP address starts with a number less than 128

• 255.255.0.0 if the IP address starts with a number from 128 through 191

• 255.255.255.0 if the IP address starts with a number greater than 191

NOTE: Conﬁrm the subnet mask setting with your network administrator before

proceeding. In some cases, the required setting may be different from that listed.

Gateway Address [127.0.0.1]

This option appears only if you answered Get Gateway Address Automatically.

Use this option to set the gateway address for printing with TCP/IP. If your network uses a gateway, you must change the default to a correct gateway address for your network.

Network Setup

Protocol Setup

TCP/IP Setup

DNS Setup

4-19 Network Setup options

DNS Setup options

DNS Setup

You can conﬁgure the Fiery EX2101 so that it can access an appropriate DNS server. With the DNS server, when connecting the Fiery utilities or Fiery WebTools from remote workstations to the Fiery EX2101, users need to remember only its Server Name, which is much easier to remember than an IP address.

Get DNS address automatically No/Yes [No]

Select Yes to allow the Fiery EX2101 to obtain the IP address of the DNS server automatically. If you select Yes, you proceed to the Host name option. Select No to assign the Fiery EX2101 a static IP address, which will not change. If you select No, you proceed to the Primary DNS server IP address option, where you manually set the IP address.

NOTE: Conﬁrm the IP address of the DNS server assigned to the copier on your

network in advance.

Primary DNS server IP address [0.0.0.0]

This option only appears if you have selected No to Get DNS Automatically. Enter the IP address of the DNS server assigned to the copier on the network.

Secondary DNS Server IP Address [0.0.0.0]

Specify the IP address of the secondary DNS server.

4-20 Performing Setup from the Control Panel

Domain Name

Enter the domain name of your DNS server.

Host name

Default server name

Enter the host name of the Fiery EX2101. By default, the host name is Server Name you enter in Server Setup.

Choose Exit Setup from the main Setup menu when you have ﬁnished making Setup changes. The Fiery EX2101 will restart. All changes will be saved on restart.

IPX/SPX Setup options

Exit Protocol Setup AppleTalk Setup TCP/IP Setup IPX/SPX Setup

Protocol Setup

To specify the frame types the Fiery EX2101 uses for IPX/SPX protocols, choose IPX/SPX Setup from the Protocol Setup menu. You must choose at least one frame type to enable IPX/SPX protocols. The Fiery EX2101 supports the following frame types for IPX/SPX:

•For Ethernet—Ethernet 802.2, Ethernet 802.3, Ethernet II, and Ethernet SNAP

For protocols other than IPX/SPX, the frame type is automatically enabled and does not require setup, as follows:

With this protocol And these printing services

AppleTalk PAP (Printer Access Protocol) Ethernet SNAP

TCP/IP with Ethernet LPD (Line Printer Daemon) Ethernet II

This frame type is

automatically enabled

4-21 Network Setup options

Exit IPX/SPX Setup Select Frame Types Clear Frame Types

IPX/SPX Setup

Exit IPX/SPX Setup Ethernet 802.2 * Ethernet 802.3 Ethernet II

IPX/SPX Setup

Select Frame Types

Enable IPX Auto Frame Type Yes/No [No]

Specify whether the Fiery EX2101 should try to bind to all available frame types automatically. The Fiery EX2101 does so whether or not all frame types are appropriate. To determine the frame types that were successfully bound, save your changes, exit Setup, restart the Fiery EX2101, and print a Conﬁguration page. The Conﬁguration page lists only one of the frame types that were successfully bound.

If you answer No to this option, you can select frame types manually. You must choose at least one frame type to enable IPX/SPX protocols.

The frame selection screen allows you to make multiple selections. Depending on your Port Setup selection, only Ethernet frame types, or all frame types are displayed.

Press the line selection button beside each frame type used on your IPX/SPX network. An asterisk (*) appears beside each selected frame type. Press the line selection button again to cancel a selected frame type. Use the up and down arrow buttons to scroll to additional frame types. The Fiery EX2101 binds to each frame type as you select it.

When you have selected all the frame types used, choose Exit IPX/SPX Setup.

Clear Frame Types

To clear all frame types at once choose Exit IPX/SPX Setup> IPX/SPX Setup>Clear Frame Types.

Service Setup options

PServer is a program in the Fiery EX2101 software that can service the Novell Print queues assigned to the Novell print servers you have set up for printing to the Fiery EX2101. When you choose PServer Setup and enable PServer, you can set up NDS (Novell Directory Services), Bindery Services, or both. NDS is used with NetWare; Bindery Services are used with NetWare in bindery emulation mode.

Network Setup

Service Setup

LPD Setup

Network Setup

Service Setup

PServer Setup

4-22 Performing Setup from the Control Panel

LPD Setup options

Enable LPD Yes/No [Yes]

Select Yes to allow lpd printing. For more information, see “Setting up the

Fiery EX2101 on TCP/IP networks” on page 2-17.

PServer Setup options

Enable PServer Yes/No [No]

Select Yes if you have a Novell network connected to the Fiery EX2101.

Exit PServer Setup NDS Setup Bindery Setup Polling Interval

PServer Setup

Choose NDS Setup if your network uses NetWare in native mode. Choose Bindery Setup if your network uses NetWare in bindery emulation mode.

If your network uses both NDS and Bindery, set up NDS ﬁrst. If you set up NDS after Bindery, you will overwrite Bindery Setup.

If your network uses both NDS and Bindery, and uses NetWare servers in bindery emulation, note that the Fiery EX2101 cannot service NDS and bindery emulation servers on the same NDS tree.

Network Setup

Service Setup

PServer Setup

4-23 Network Setup options

NDS Setup

Before entering NDS settings, make sure the Fiery EX2101 is connected to the network and that you have conﬁgured an NDS directory tree with a printer, print server, and one or more Print queue objects for Fiery EX2101 jobs (see “Setting up

a NetWare Print queue for bindery” on page 2-13). To perform NDS Setup, you

may need permission to browse the NDS tree. If access to the print server is restricted, you need a login password.

The main objective of NDS Setup is to specify the print server object. In addition, you can indicate the location of the Fiery EX2101 Print queues.

NOTE: The terms NetWare server, Novell server, and IPX server are in common use

and are used here interchangeably to mean the server on an IPX network running Novell NetWare networking software.

Enable NDS Yes/No [No]

Select Yes if the NetWare servers you will use to print to the Fiery EX2101 are running NetWare in native mode.

Select NDS Tree

List of trees

Use the up and down arrow buttons to browse the list of NDS trees available to the Fiery EX2101. Choose OK when you have displayed the tree that contains the printer, print server, and Print queue objects you previously deﬁned for the Fiery EX2101.

Your new NDS tree selection automatically overwrites any previous tree selection. If you change the NDS tree selection and there are also current Bindery settings, you are alerted that they will be deleted. If you continue with NDS Setup, you can replace Bindery settings later. If you do not want to continue, press the Menu button to exit NDS Setup.

4-24 Performing Setup from the Control Panel

Is user login needed to browse NDS tree? Yes/No [No]

Select No if no password is required to browse the tree. You can proceed to navigate to the Print Server object.

Select Yes if network permissions require that you log in to browse the NDS tree and see the Print Server object you want to select. If you select Yes, you are prompted to navigate to the User Login object.

Navigate the NDS tree to the User Login object.

This message is displayed if you selected Yes for the previous option. Choose OK and browse the NDS tree, as described in the following paragraphs.

NDS Tree name Object list, “..”

Browsing to ﬁnd the User Login object begins with the NDS tree that you selected previously (with Select NDS Tree). Use the up and down arrow buttons to scroll through a list of objects in the tree beneath the [Root] in the hierarchy, or use the navigation symbol “..” to go up one level at a time.

In each subsequent browse screen, the top line represents your current location. The second line contains:

•A list of objects in the current container directly below your current location

• The symbol “..” to go up one level

With an object selected, choose OK to travel down the tree, or choose “..” to go up the tree. When you select an object and choose OK, that object is displayed on the top line, and the second line lists objects directly below it.

Continue to browse the NDS tree until the User Login object is displayed in the second line. Choose OK.

4-25 Network Setup options

Enter Password

Enter the login password for the NDS tree, using the up and down arrow buttons to select characters, and the left and right arrow buttons to move the cursor. Choose OK.

Navigate the NDS tree to the Print Server.

Choose OK to browse the NDS tree to the Print Server object.

Browsing to ﬁnd the Print Server object begins with the NDS tree that you selected previously (with Select NDS Tree). In each subsequent browse screen, the top line represents your current location. The second line contains:

•A list of objects in the current container directly below your current location

• The symbol “..” to go up one level

With a container object selected, choose OK to travel down the tree, or choose “..” to go up the tree. When you select an object and choose OK, that object is displayed on the top line, and the second line lists objects directly below it.

When the Print Server is displayed in the second line, choose OK.

Enter Print Server Password

Enter the Print Server password, using the up and down arrow buttons to enter characters, and the left and right arrow buttons to move the cursor. Choose OK. (If no password is required, choose OK.)

4-26 Performing Setup from the Control Panel

Server should look for print queues in: Entire NDS Tree/Specified Subtree [Entire NDS Tree]

By default, the Fiery EX2101 searches the entire NDS tree for Fiery EX2101 print connections. This option allows you to restrict the search for Fiery EX2101 print jobs to a subtree (the Print Queue root) in which the Fiery EX2101 print connections have been deﬁned. This makes the search more efﬁcient. Select Entire NDS Tree if the tree is small. Select Speciﬁed Subtree to restrict the search and specify the subtree.

If you select Entire NDS Tree, choosing OK returns to PServer Setup. Proceed with Bindery Setup (see “Bindery Setup options” on page 4-27), set the Polling Interval (see

“Polling Interval options” on page 4-32), or choose Exit PServer Setup to return to the

Service Setup menu.

Browse to the root of the Print Queue Subtree.

This message is displayed if you selected Speciﬁed Subtree in the previous option. Choose OK to browse the NDS tree to the Print Queue subtree.

Browsing to ﬁnd the container object begins with the NDS tree that you selected previously (with Select NDS Tree). In each subsequent browse screen, the top line represents your current container. The second line contains:

•A list of objects directly below your current location

• The symbol “..” to go up one level

• The symbol “.” to select the current container object (displayed in the top line)

without traveling down the tree

With an object selected, choose OK to travel down the tree, or choose “..” to go up the tree. When you select an object and choose OK, that object is then displayed on the top line, and the second line lists objects contained within.

When the container that contains Print queues is displayed in the second line, choose OK. In the next screen, choose “.” and choose OK to select the object in the top line.

When the Fiery EX2101 displays the container name, choose OK to return to PServer Setup.

Proceed with Bindery Setup (see “Bindery Setup options” on page 4-27), set the Polling Interval (see “Polling Interval options” on page 4-32), or choose Exit PServer Setup to return to the Service Setup menu when prompted.

Network Setup

Service Setup

PServer Setup

4-27 Network Setup options

Bindery Setup options

Bindery Setup

Use Bindery Setup if you have already conﬁgured one or more bindery servers (ﬁle servers running NetWare in bindery emulation) with a Print Server and a Print Queue for Fiery EX2101 jobs. Before entering bindery settings, be sure the Fiery EX2101 is connected to the network and the NetWare ﬁle server is running. If Guest Login is not supported, you need a valid user name and password.

NOTE: The terms NetWare server, Novell server, and IPX ﬁle server are in common use

and are used here interchangeably to mean the server on an IPX network running Novell NetWare networking software.

Bindery Setup menu

Exit Bindery Setup Add File Server View Server List Edit Connection

Bindery Setup

Remove File Server

Bindery Setup

Because you can set up more than one Novell server to handle Fiery EX2101 print jobs, an additional menu is displayed for this purpose. The options are:

•Add File Server—creates a new ﬁle server connection to the Fiery EX2101. You can

set up a maximum of eight ﬁle server connections. After you have ﬁnished adding a new server, you return to the Bindery Setup menu, where you can set up another server.

•View Server List—displays the list of ﬁle servers that have already been selected to

communicate with the Fiery EX2101.

•Edit Connection—allows you to change the NetWare Print Server that will print to

the Fiery EX2101.

•Remove File Server—allows you to disconnect the Fiery EX2101 from a ﬁle server

to which it is currently connected. Remove a ﬁle server when you want to reduce the number of connections to the Fiery EX2101 or reassign the connection to a different NetWare ﬁle server.

•Exit Bindery Setup—allows you to exit this menu after you have added all servers,

viewed a list of ﬁle servers, or removed a ﬁle server from the list.

NOTE: If you change your mind about any of the menus you have selected, use the

Menu button to escape and return to the main Bindery Setup menu. To cancel all changes, exit Network Setup and select No to Save Changes.

Network Setup

Service Setup

PServer Setup

Bindery Setup

4-28 Performing Setup from the Control Panel

Add File Server

This option gives you two ways to add a Novell NetWare ﬁle server.

Select File Server From List/Search by Name [From List]

You may select the ﬁle server from a scrollable list, or by a name search. Choose From List if your network does not have a large number of ﬁle servers. Choose Search by Name if the number of ﬁle servers is so large that scrolling through the list would take a long time.

If you selected From List: If you selected Search by Name:

Add Server

List of all servers

The Fiery EX2101 obtains a list of NetWare ﬁle servers by querying the IPX network. Use the up and down arrow buttons to select a NetWare ﬁle server from the list. Choose the server on which you have conﬁgured a print server and Print queue to handle Fiery EX2101 print jobs.

Once you have chosen a file server, the Fiery EX2101 immediately tries to log in as a guest without a password. If it succeeds, it skips to the NetWare Print Server option.

If you try to add a ﬁle server but all Fiery EX2101 connections are already in use, you are prompted to remove a ﬁle server (see “Remove File Server” on page 4-31).

Enter First Letters of Server Name

Use the up and down arrow buttons to enter the ﬁrst letters of the name of the ﬁle server you want to use, and then choose OK.

Add Server

List of servers matching the search

This option is displayed if you entered letters to search. Scroll through the list to select the server you want.

4-29 Network Setup options

File Server Login administrator/supervisor/Enter Login Name [supervisor]

This option appears only if a password is required for login, if there is no guest account, or the guest account is restricted. Choose Enter Login Name to enter your own login name and password or log in as a guest. Choose administrator or supervisor if you have those privileges.

Enter Your Login Name [guest]

This option and the next appear only if you selected Enter Login Name for the File Server Login. Enter your login name or select guest.

Enter Your File Server Password

Enter the password for logging in to your NetWare ﬁle server.

NetWare Print Server

Print Server Name

Select the name of the print server that you conﬁgured in the NetWare utility PCONSOLE. This print server will route print jobs to the Fiery EX2101 from computers on IPX networks.

Enter Your Print Server Password

This option appears only if your NetWare print server is set up to require you to log in with a password. Enter your print server password.

Choose Add Server again until you have connected each NetWare file server you have configured for printing to the Fiery EX2101. When you have added all the IPX file servers for your site, choose Exit Bindery Setup.

Network Setup

Service Setup

PServer Setup

Bindery Setup

Network Setup

Service Setup

PServer Setup

Bindery Setup

4-30 Performing Setup from the Control Panel

View Server List

Supported servers

This option allows you to view the list of ﬁle servers currently connected to the Fiery EX2101—that is, servers you have added in Bindery Setup. You are notiﬁed if there are none. When you choose OK, you return to the Bindery Setup menu.

Edit Connection

On each connected NetWare ﬁle server, you have deﬁned a print server to handle Fiery EX2101 print jobs. Choose this option to change the print server assigned to the Fiery EX2101.

Choose File Server

File server name

From the list of connected NetWare ﬁle servers, choose the ﬁle server whose print server you want to change.

NetWare Print Server

List of print servers on selected file server

Choose the name of the print server you want to use. This is the print server that will route print jobs to the Fiery EX2101 from computers on IPX networks.

If you change your mind, press the Menu button to return to the Bindery Setup menu without making a change.

Network Setup

Service Setup

PServer Setup

Bindery Setup

4-31 Network Setup options

Enter Your Print Server Password

This option appears only if your NetWare print server is password-protected. Enter your print server password.

The Bindery Setup menu is displayed again. You can edit other connections, choose another Bindery Setup option, or choose Exit Bindery Setup.

Remove File Server

Remove support for

File server name

This option allows you to select a NetWare ﬁle server from a list of connected ﬁle servers and remove the connection to it. You are notiﬁed that you have removed the connection, and the Bindery Setup menu appears. If you change your mind and do not want to remove any of the ﬁle servers, press the Menu button.

Network Setup

Service Setup

PServer Setup

Bindery Setup

You can choose another Bindery Setup option (such as adding another file server) or choose Exit Bindery Setup and proceed to set the polling interval.

Exit Bindery Setup

Choose Exit Bindery Setup after you view a list of IPX ﬁle servers, remove a ﬁle server from the list, or have connected all the conﬁgured NetWare ﬁle servers. After you choose Exit Bindery Setup, you return to the PServer Setup menu.

Network Setup

Service Setup

PServer Setup

4-32 Performing Setup from the Control Panel

Polling Interval options

Polling Interval

Whether you use NDS or Bindery services, choose Polling Interval from the main PServer Setup menu. If you do not reset the interval, the default value of 15 seconds is used.

NetWare Server Poll Interval in Seconds 1–3600 [15]

Specify the interval, in seconds, at which the Fiery EX2101 communicates with the Novell print server to see if there are print jobs waiting.

NOTE: If you select a short interval, the amount of network trafﬁc increases. This may

slow down other network jobs.

Windows Setup options

Network Setup

Service Setup

Windows Setup

Enable Windows Printing Yes/No [Yes]

Enabling Windows Printing enables Server Message Block (SMB), the ﬁle and printer sharing protocol built into Windows. Enabling SMB allows the Fiery EX2101 to be listed on the network so that Windows clients can print to a particular print connection (Hold, Print, or Direct) on the Fiery EX2101 without any other networking software. For information on setting up a Windows computer for Windows printing, see the User Software Installation Guide. Windows printing runs via TCP/IP, so you must conﬁgure TCP/IP on the Fiery EX2101 and on all computers that use Windows printing.

4-33 Network Setup options

Use Automatic Configuration Yes/No [Yes]

This option appears if you chose DHCP or BOOTP as the protocol for automatically obtaining the IP address of the Fiery EX2101.

Choose Yes and the Fiery EX2101 uses a WINS name server and automatically obtains its IP address. Make your choice and proceed to the Point and Print Drivers option.

Choose No to proceed to the Use WINS Name Server option, where you specify whether to use a WINS name server, and then to the WINS IP Address option, where you specify its IP address.

Use WINS Name Server Yes/No [No]

Specify whether to use a WINS name server. Broadcasts from SMB devices cannot pass across a router without a WINS name server. Setting up the WINS name server is outside the scope of this manual. To ﬁnd out if a name server is available, contact your network administrator.

WINS IP Address [127.0.0.1]

This option appears only if you choose Yes for Use WINS Name Server. Change the default address to the correct IP address for the WINS Name Server. Obtain the correct address from your network administrator.

Point and Print Drivers PS/PCL [PS]

Select the type of print driver to be downloaded when a printer is installed on remote workstations via Windows printing.

Server Name

Default Name

The server name is the name that will appear on the network for accessing the Fiery EX2101 via SMB. The default name is the same as the server name assigned in Server Setup (see “Server Setup options” on page 4-11).

4-34 Performing Setup from the Control Panel

Server Comments

Server comments (optional) can contain information about the printer. These comments are listed in the Fiery EX2101 Properties in Network Neighborhood and can be up to 15 characters.

Set Domain Name Select from list/Enter manually [Select from list]

This option provides two ways to specify the workgroup or domain in which you want the Fiery EX2101 to appear.

If you selected Select from list:If you selected Enter manually:

NOTE: You may be warned to reboot the

Fiery EX2101 to display the current list. If you choose to reboot, the Fiery EX2101 reboots to Idle.

Choose Domain

List of domains

Select the workgroup or domain from the list.

Workgroup or Domain

Enter the name of the workgroup or domain. For more information about entering text and characters, see “Types of

Setup screens” on page 4-9.

Network Setup

Service Setup

Web Services Setup

Enable Web Services Yes/No [Yes]

Select Yes to make the WebTools available to users (see “Conﬁguring the

Fiery EX2101 and clients for Fiery WebTools” on page 6-1). TCP/IP must

be enabled on the Fiery EX2101 and on user workstations. .

A Java-enabled Web browser and a valid IP address or DNS host name are required for each user. For details on browser and computer requirements, see the Quick

Start Guide.

Network Setup

Service Setup

IPP Setup

Network Setup

Service Setup

Port 9100 Setup

4-35 Network Setup options

IPP Setup

Enable IPP Yes/No [Yes]

Select Yes to enable printing with the Internet Printing Protocol (IPP). You must enable Web Services. For information on setting up user computers to use IPP printing, see the User Software Installation Guide.

Port 9100 Setup

Enable Port 9100 Yes/No [Yes]

This option enables applications to open a TCP/IP socket to the Fiery EX2101 at Port 9100 to download a print job.

Network Setup

Service Setup

E-mail Setup

Port 9100 Queue Direct/Print Queue/Hold Queue [Print Queue]

Specify the Fiery EX2101 print connection for downloading jobs to Port 9100. Only the print connections you have enabled in Printer Setup are available.

E-mail Setup

Enable E-mail Services Yes/No [No]

This option enables the Fiery EX2101 to use e-mail as a means of communication for a variety of purposes. The Fiery EX2101 serves as a messenger between the copier and the e-mail recipient. Choosing Yes also enables printing an E-mail log.

Enable Print via E-mail Yes/No [No]

Select Yes to enable printing through e-mail.

4-36 Performing Setup from the Control Panel

Outgoing Server [127.0.0.1] [mailservername]

Enter the IP address name of the server (SMTP) on your network that handles outgoing e-mail.

Incoming Server [127.0.0.1] [mailservername]

Enter the IP address name of the server (POP3/IMAP) on your network that handles incoming e-mail.

Server Type POP3/IMAP [POP3]

Choose the type of mail server.

Fiery E-mail User Name

Enter the user name of the e-mail account. This is typically the part of the e-mail address that precedes the @ symbol. For example, in the address pat@test.com, the user name is pat.

Fiery E-mail Domain Name

Enter the name of the domain in which the user has an account. This is typically the part of the e-mail address that follows the @ symbol. For example, in the address

pat@test.com, the domain name is test.com.

Account Name

Enter the account name. This is the internal name your network recognizes, which is not necessarily the same as User Name.

4-37 Network Setup options

Password

Enter the password for the e-mail account.

Administrator E-mail User Name

Enter the administrator name of the administrator e-mail account. This is typically the part of the e-mail address that precedes the @ symbol. For example, in the address

pat@test.com, the administrator e-mail user name is pat.

Administrator E-mail Domain Name

Enter the name of the domain in which the administrator has an account. This is typically the part of the e-mail address that follows the @ symbol. For example, in the address pat@test.com, the domain name is test.com.

The administrator authorizes a unique e-mail address to remotely administer the E-mail Services via e-mail. This includes the Fiery Address Books, designed for use in controlling user access to E-mail Services. If an error occurs while you are executing a job via e-mail, the e-mail service sends an error message to that administrator e-mail address. The administrator can authorize additional e-mail addresses as administrators from this e-mail address.

Timeout (sec) 30–300 [60]

Enter the length of time, in seconds, that the Fiery EX2101 should try to connect to each e-mail server before determining that the connection is unsuccessful.

Polling Interval (sec) 1–3600 [15]

If you have enabled auto-checking for new messages in the previous option, enter the interval in seconds at which the Fiery EX2101 should automatically check for new e-mail.

Network Setup

Service Setup

SNMP Setup

4-38 Performing Setup from the Control Panel

SNMP Setup

Enable SNMP Yes/No [Yes]

This option enables the SNMP communication over a TCP/IP or IPX connection. Selecting No disables any access to remote Setup through Fiery WebSetup and Command WorkStation.

SNMP Read Community Name [public]

This option appears if you select Yes for Enable SNMP.

This option allows you to change the SNMP Community Name (“public” by default) for read access. Once it is changed, the new community name must be entered to read any information through remote Setup. Up to 32 ASCII characters including spaces can be used for the community name.

SNMP Write Community Name [public]

This option appears if you select Yes for Enable SNMP.

This option allows you to change the SNMP Community Name (“public” by default) for write access. Once it is changed, the new community name must be entered to write any information through remote Setup. Up to 32 ASCII characters including spaces can be used for the community name.

NOTE: For the two options above, a space at the beginning or end of the name is

automatically deleted from the name entered. When an invalid character is entered or no name is speciﬁed, the default “public” is used for the community name. A name consisting only of spaces is invalid.

Network Setup

Service Setup

4-39 Printer Setup options

Exit Service Setup

This returns you to the main Network Setup menu. Choose Exit Network Setup.

Save Changes Yes/No [Yes]

Select Yes to activate any changes made in Network Setup; select No to return to the main Setup menu without making any changes.

Printer Setup options

Printer Setup conﬁgures the connections and printing behavior associated with a particular printing device. For more information on Fiery EX2101 print connections, see “Fiery EX2101 print connections” on page 3-1.

Exit Setup Server Setup Network Setup Printer Setup

Setup

TO ACCESS PRINTER SETUP OPTIONS

1. In the main Setup menu, choose Printer Setup.

2. Enter the options appropriate to the printing requirements at the site.

3. When you have ﬁnished, save changes.

In the following list of options, default values, where applicable, appear in brackets.

NOTE: For users to use the Fiery utilities and WebTools or print to the Fiery EX2101

over a TCP/IP network, you must publish, at a minimum, the Hold queue or the Print queue.

4-40 Performing Setup from the Control Panel

Publish Direct Connection Yes/No [Yes]

This option allows users to print (or download) jobs to the Fiery EX2101 without spooling. Jobs printed to the Direct connection are not saved in the Printed queue.

If you plan to download fonts to the Fiery EX2101, you must publish the Direct connection.

Publish Print Queue Yes/No [Yes]

This option allows users to print (or download) jobs to the Print queue. Jobs that are printed to the Print queue are spooled to the Fiery EX2101 disk and printed on a ﬁrst-in, ﬁrst-out basis. Only queues published in the Printer Setup are available to users.

Publish Hold Queue Yes/No [Yes]

Use this option to allow users to print (or download) jobs to the Hold queue. Jobs in the Hold queue can only be printed by copying or moving the jobs to the Print queue with the job management tools.

Save Changes Yes/No [Yes]

Select Yes to activate any changes made in the Printer Setup; select No to return to the main Setup menu without making any changes.

4-41 PostScript Setup options

PostScript Setup options

PS (PostScript) Setup allows you to set defaults for the Fiery EX2101. Users can override most of these defaults on a job-by-job basis. However, users printing from UNIX or DOS command lines cannot override defaults from their applications. Therefore, you must set defaults in PostScript Setup. For information about these defaults, see the Printing Guide.

TO ACCESS POSTSCRIPT SETUP OPTIONS

1. In the main Setup menu, choose PS Setup.

2. Enter the options appropriate to the printing requirements at the site.

3. When you have ﬁnished, save changes.

In the list of options that follows, default values, where applicable, appear in square brackets.

Print Master Yes/No [Yes]

Specify whether to print a master document when it is created using FreeForm. If you select Yes, when a user creates a master document, it is Ripped, held in the Fiery EX2101 Hold queue, and printed for your reference. If you select No, the master document is only Ripped and held in the Hold queue.

Default Paper Sizes US/Metric [US in North America, Metric elsewhere]

Specify whether to print on US paper sizes (for example, Letter, Legal, 11x17), or Metric paper sizes (for example, A4 or A3) by default. When no page size is deﬁned within a PostScript ﬁle, jobs are printed on Letter paper if you selected US; A4 paper if you selected Metric.

4-42 Performing Setup from the Control Panel

Convert Paper Sizes No Letter/11x17->A4/A3 A4/A3->Letter/11x17 [No]

Specify whether to convert paper sizes in documents automatically to the default paper sizes speciﬁed. For example, if you select Letter/11x17->A4/A3, a letter size document is automatically printed on A4 paper.

NOTE: This option works in conjunction with the Default Paper Sizes option. For

example, if Convert Paper Sizes is set to Letter/11 is set to US, then jobs are printed A4/A3 size. This also includes Fiery EX2101 system pages such as the Start Page, Test Page, and Job Log.

Page Order Forward/Reverse [Forward]

Select Forward to print the pages of your job from ﬁrst to last. Select Reverse to print the pages of your job from last to ﬁrst.

Print to PS Error Yes/No [No]

x17->A4/A3, and Default Paper Sizes

Specify whether the Fiery EX2101 should print the available portion of a print job when it encounters a PostScript error. Select Yes to print the portion of the job that was processed before the error occurred; select No to cancel the print job entirely when a PostScript error is encountered. Leave this option at No unless you encounter printing problems.

Allow Courier Substitution Yes/No [Yes]

Specify whether to substitute Courier for fonts that are unavailable when you download ﬁles to the Fiery EX2101, or when you print a document for which you do not have the corresponding printer font. If this option is set to No, jobs with fonts that are unavailable on the Fiery EX2101 hard disk generate a PostScript error and do not print. This setting does not apply to PDF ﬁles; font substitution occurs automatically in PDF files.

4-43 PCL Setup options

Print Cover Page Yes/No [No]

Specify whether the Fiery EX2101 prints a cover page (job summary) at the end of each print job. If you select Yes, each print job is followed by a page containing the name of the user who sent the job, the document name, the server name, the time the job was printed, the number of pages printed, and the status of the job. If a PostScript error occurs and the Print to PS Error option is set to Yes, the cover page lists the PostScript error message instead of the job status.

Save Changes Yes/No [Yes]

Select Yes to activate any changes made in PS Setup; select No to return to the main Setup menu without making any changes.

PCL Setup options

PCL Setup allows you to set defaults to control printer output. These defaults can be overridden by the user from within an application, but they determine how a job will be printed in the absence of other information.

NOTE: PCL printing is supported for Windows computers only. Mac OS computers

must use the PostScript driver.

TO ACCESS PCL SETUP OPTIONS

1. In the main Setup menu, choose PCL Setup.

2. Enter the options appropriate to the printing requirements at the site.

3. When you have ﬁnished, save changes.

In the list of options that follows, default values, where applicable, appear in square brackets.

Enable PCL Yes/No [Yes]

Select Yes to enable PCL printing. If you select Yes, users can send print jobs to the Fiery EX2101 using the PCL printer driver.

4-44 Performing Setup from the Control Panel

Paper Size

8.5x11P/A6/A5/A4/A3/11x17/12x18/DocuPac/Legal_13/Postcard, SR-A3 [8.5x11P (in the United States, A4 elsewhere)]

Select a paper size which is used as a default for PCL printing. This option sets the size of the print area on the paper, not the size of the paper itself.

Default Orientation Portrait/Landscape [Portrait]

Select whether a document to be printed is oriented along the short edge of the paper (portrait) or along the long edge of the paper (landscape).

Form Length (lines) 5-128 [60]

Specify the number of lines to be printed per page.

Font Size (pt) [12.00]

When the number selected in Font Number represents a proportionally spaced scalable font, the Font Size option appears. Specify the point size (height) of the default font.

Font Pitch (char/in) [10.00]

When the number selected in Font Number represents a ﬁxed pitch scalable font, the Font Pitch option appears. Specify the width of scalable type. Pitch is measured by characters per inch, so 10-pitch type ﬁts ten characters per inch.

Symbol Set ASCII/ROMAN-8/ECMA-94 L1/PC-8... [ROMAN-8]

Select the symbol set that best matches the needs of users printing to the Fiery EX2101.

Font Source INTERNAL/SOFTFONT [INTERNAL]

Specify the font source to be enabled.

Xerox Fiery EX2101 Configuration Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1: Connecting to the Network

Stages of installation on the network

Quick path to installation

Ethernet connection

Chapter 2: Setting up Network Servers

Tips for experts—Windows with TCP/IP

Tips for experts—IPX networks

Tips for experts—NetWare networks

Tips for experts—UNIX workstations

Important note about the remote printer name

Managing print jobs

Levels of access and control

Passwords

Fiery WebTools

Control level scenarios

About Setup

Network server setup requirements

Ensuring the copier connection

Safety warnings

Activity light

Buttons

Display window

Functions menu

Accessing Setup options

Types of Setup screens

Server Setup options

Network Setup options

Port Setup options

Protocol Setup options

Service Setup options

Printer Setup options

PostScript Setup options

PCL Setup options
