Xerox 4760 User Manual [de]

One Touch 4.6 March 2012 05-0838-100D

Xerox® DocuMate® 4760

User’s Guide

Copyright protection claimed includes all forms of matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as styles, templates, icons, screen displays, looks, etc.

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

The PaperPort® and OmniPage® brand name and logo are registered trademarks of Nuance Communications, Inc.

Kofax® and Virtual ReScan® are registered trademarks, and VRS™ is a trademark of Kofax Image Products, Inc.

ISIS® is a registered trademark of EMC

® Corporation in the United States and/or other countries.

Adobe®, Adobe® Acrobat®, Adobe® Reader®, and the Adobe® PDF logo are registered trademarks of Adobe Systems Incorporated in the United States and/or other countries. The Adobe PDF logo will appear in this product’s software, and full access to Adobe software features is only available if an Adobe product is installed on your computer.

Microsoft is a U.S. registered trademark of Microsoft Corporation. Windows™ is a trademark and SharePoint® is a registered trademark of Microsoft Corporation.

Document Version: 05-0838-100

D (March 2012).

Information is subject to change without notice and does not represent a commitment on the part of Visioneer. The software described is furnished under a licensing agreement. The software may be used or copied only in accordance with the terms of such an agreement. It is against the law to copy the software on any medium except as specifically allowed in the licensing agreement. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, or translated to another language, for any purpose other than the licensee's personal use and as specifically allowed in the licensing agreement, without the express written permission of Visioneer.

Restricted Rights Legend

Use, duplication, or disclosure is subject to restrictions as set forth in contract subdivision (c)(1)(ii) of the Rights in Te c h n i c a l D a t a a n d C o m p u t e r S o f t w a r e Clause 52.227-FAR14. Material scanned by this product may be protected by governmental laws and other regulations, such as copyright laws. The customer is solely responsible for complying with all such laws and regulations.

Changes are periodically made to this document. Changes, technical inaccuracies, and typographic errors will be corrected in subsequent editions.

Ta b l e o f C o n t e n t s

1Safety

Safety Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Operational Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Electrical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Warning - Electrical Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Electrical Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Disconnect Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Emergency Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Maintenance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Product Safety Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Environmental Health and Safety Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

2Welcome

What’s in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

The Xerox DocuMate 4760 Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

3Scanner Setup

Unpack and Assemble the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Connect the Scanner Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

4Installation

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Install the Software and Connect the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Installing the Scanner Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Connect the USB Cable and Turn on the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Installing Visioneer One Touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Register Your Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Installing Additional Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

View the User Guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

5Loading Documents to Scan

Scanning from the Automatic Document Feeder (ADF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Scanning Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

6Scanning and Configuring OneTouch

Default One Touch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Scan from the One Touch Button Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Features of the One Touch Button Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Changing the Button Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Selecting Options for One Touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Scan Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Scan Settings tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

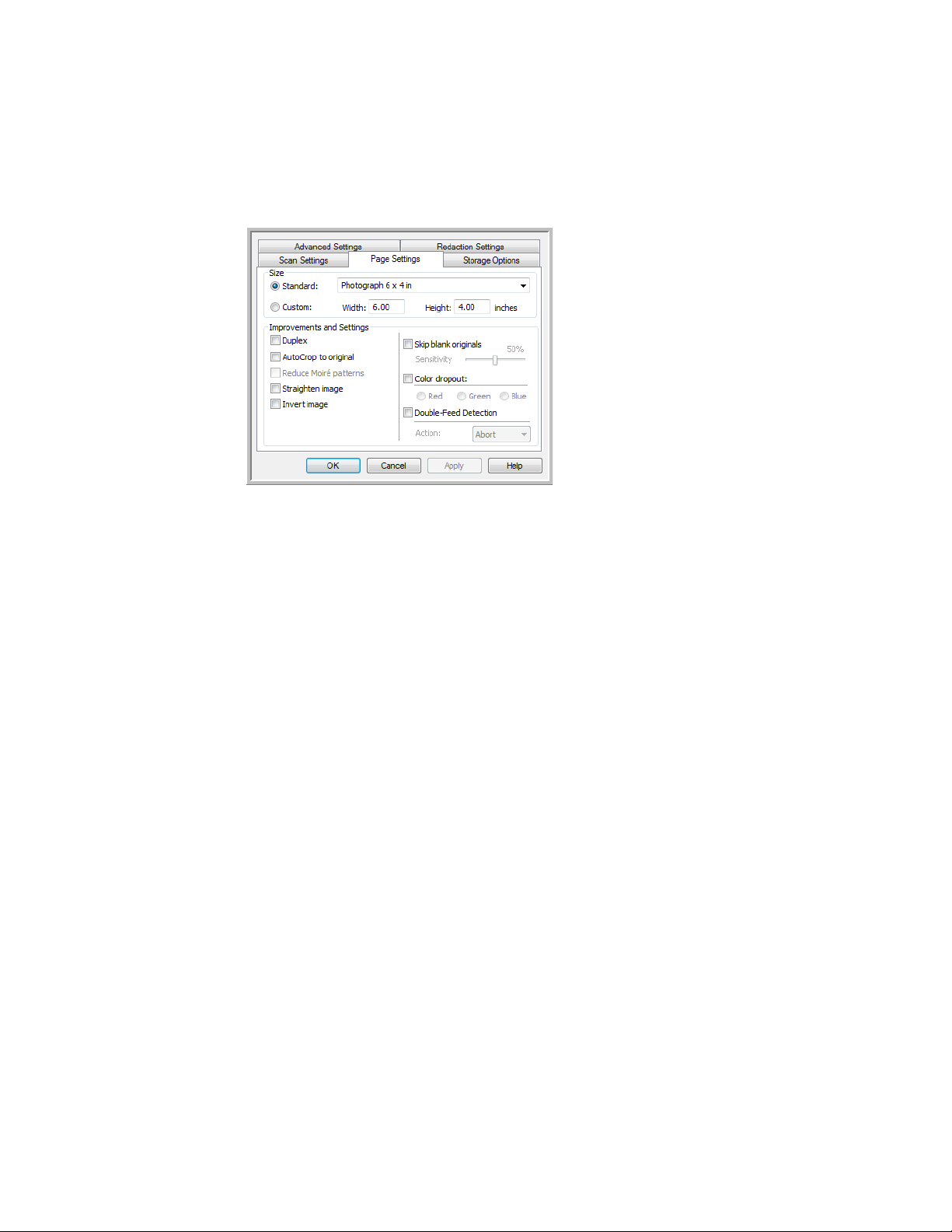

Page Settings tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Advanced Settings tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Xerox DocuMate 4760

User’s Guide

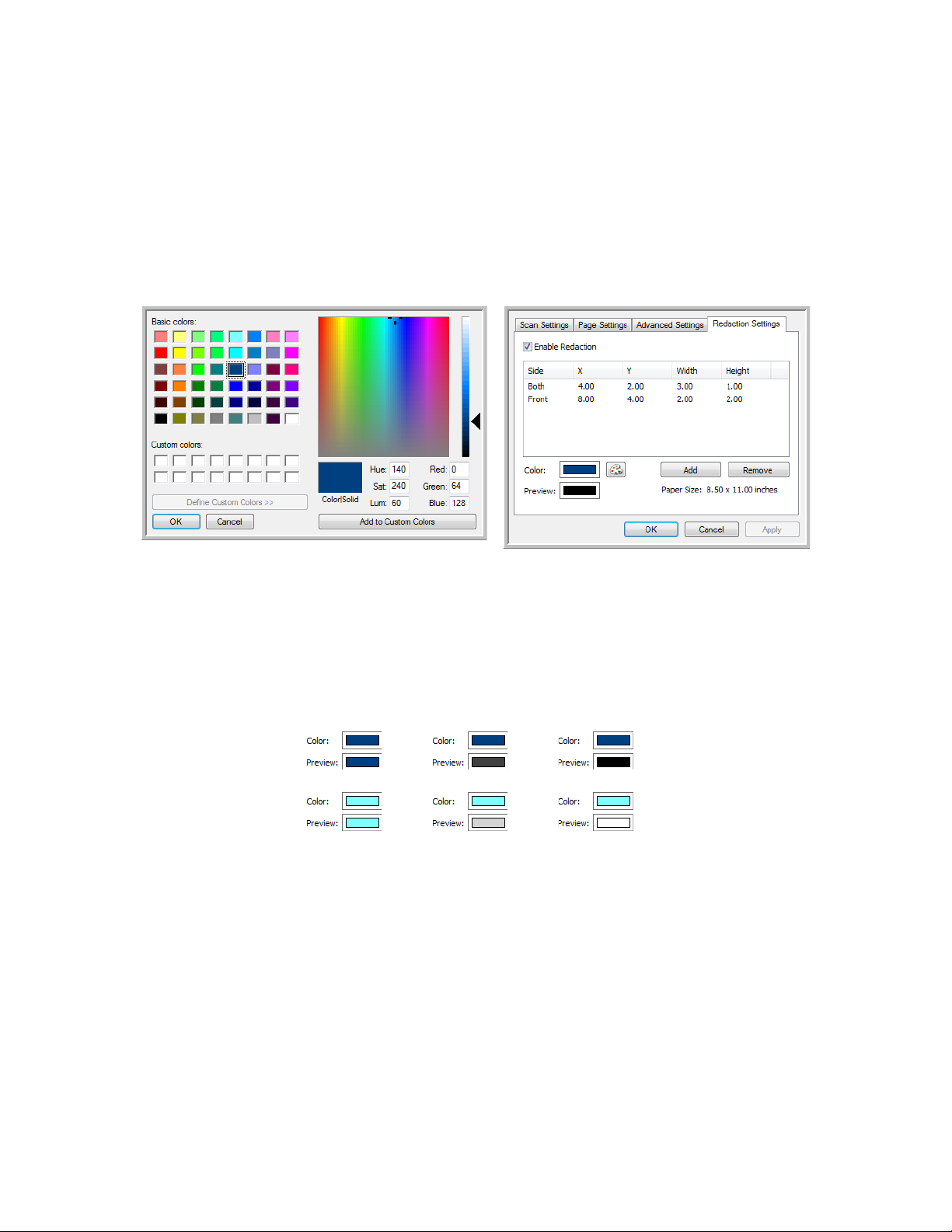

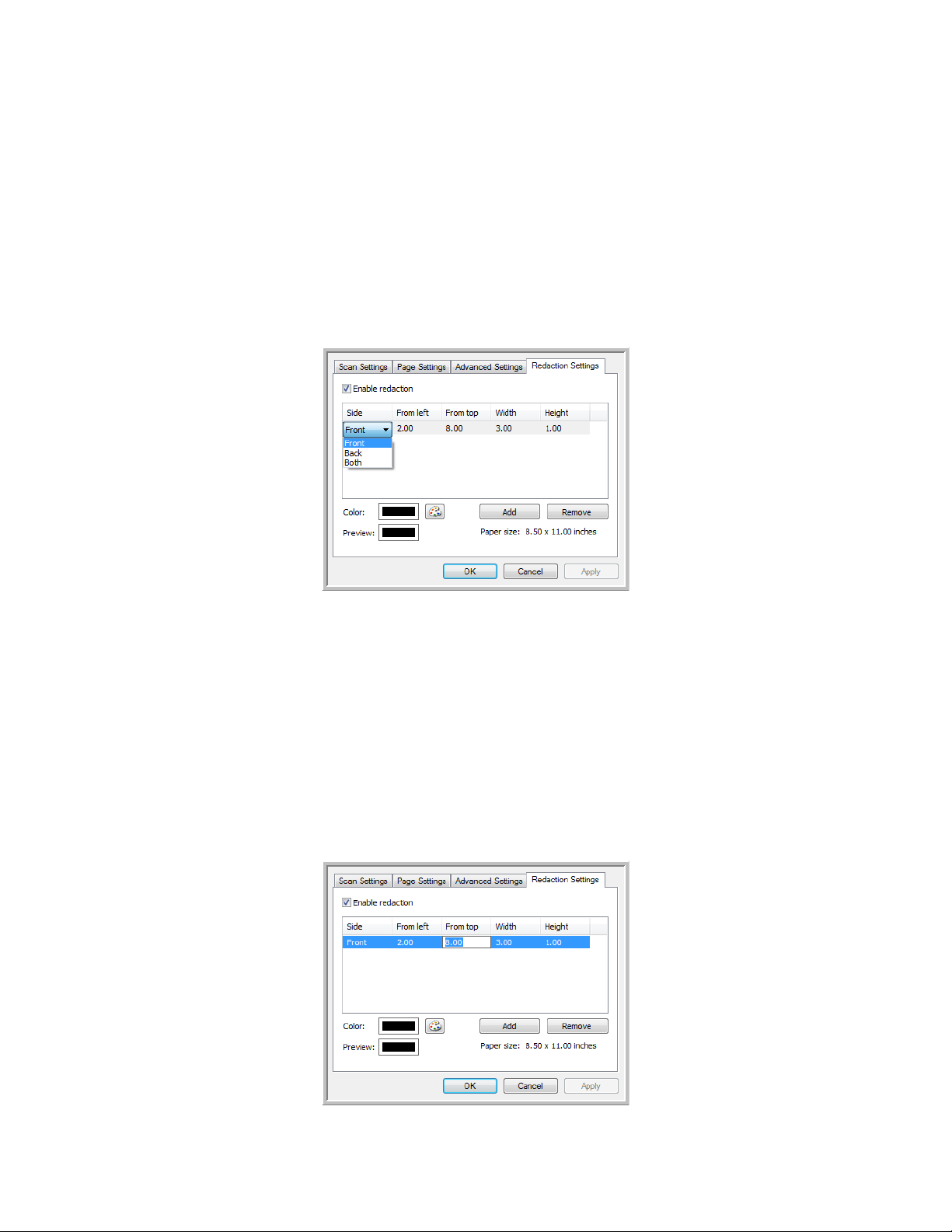

Redaction Settings tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

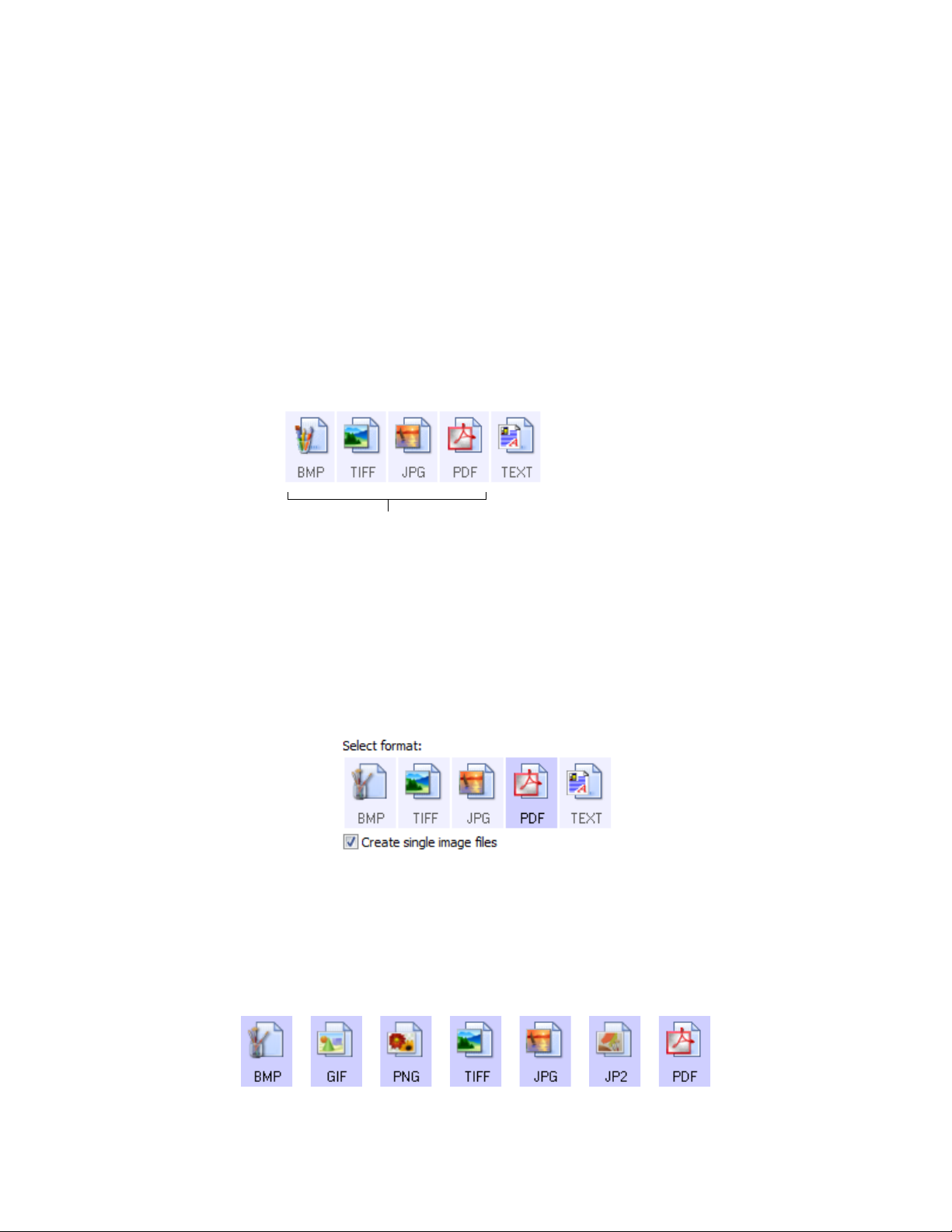

File Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Create Single Image Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Image Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Text Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Configure Before Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

To Scan Using Configure Before Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Open Scanned Document(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

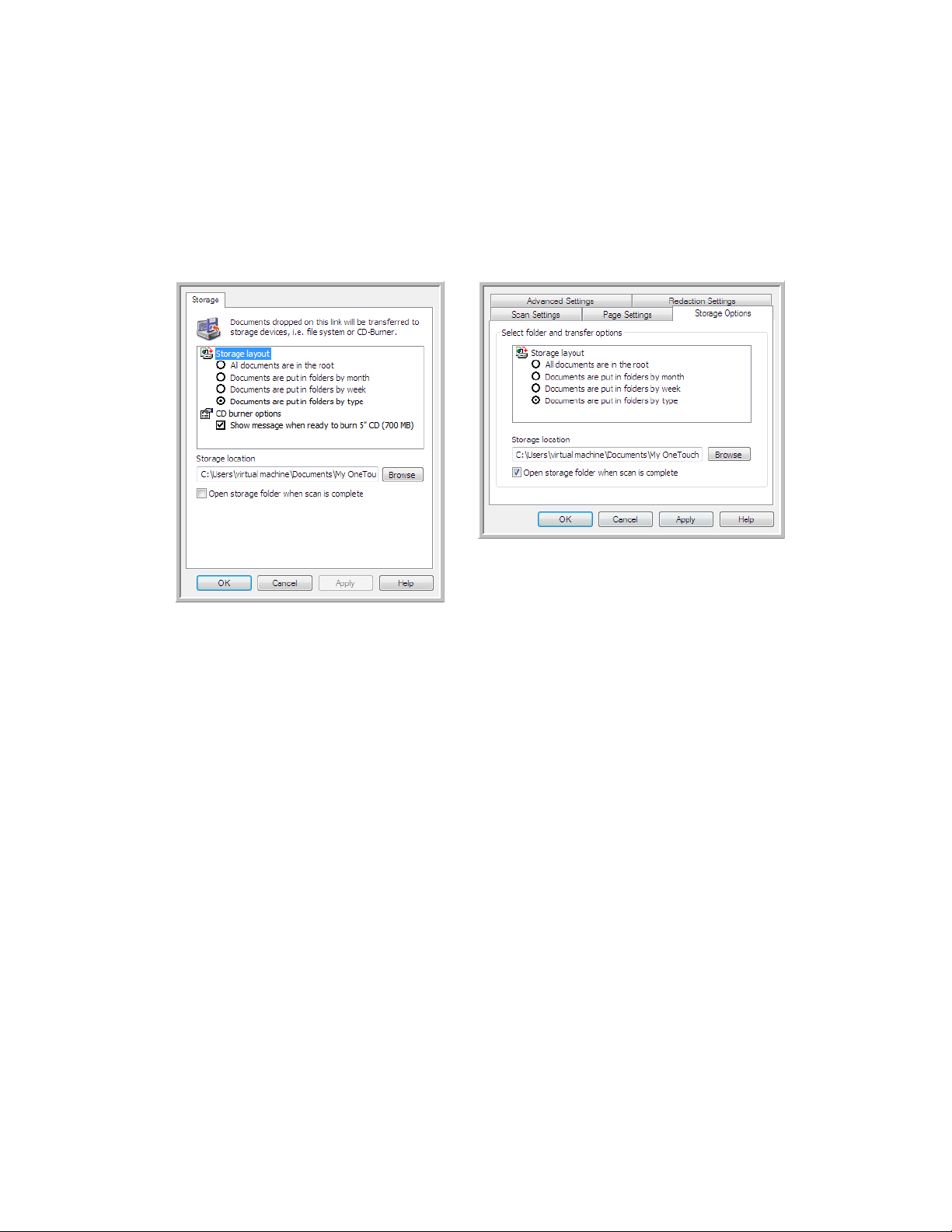

Transfer to Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Setting the Folder and Options from One Touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Setting the Folder from Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Scanning to Multiple Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

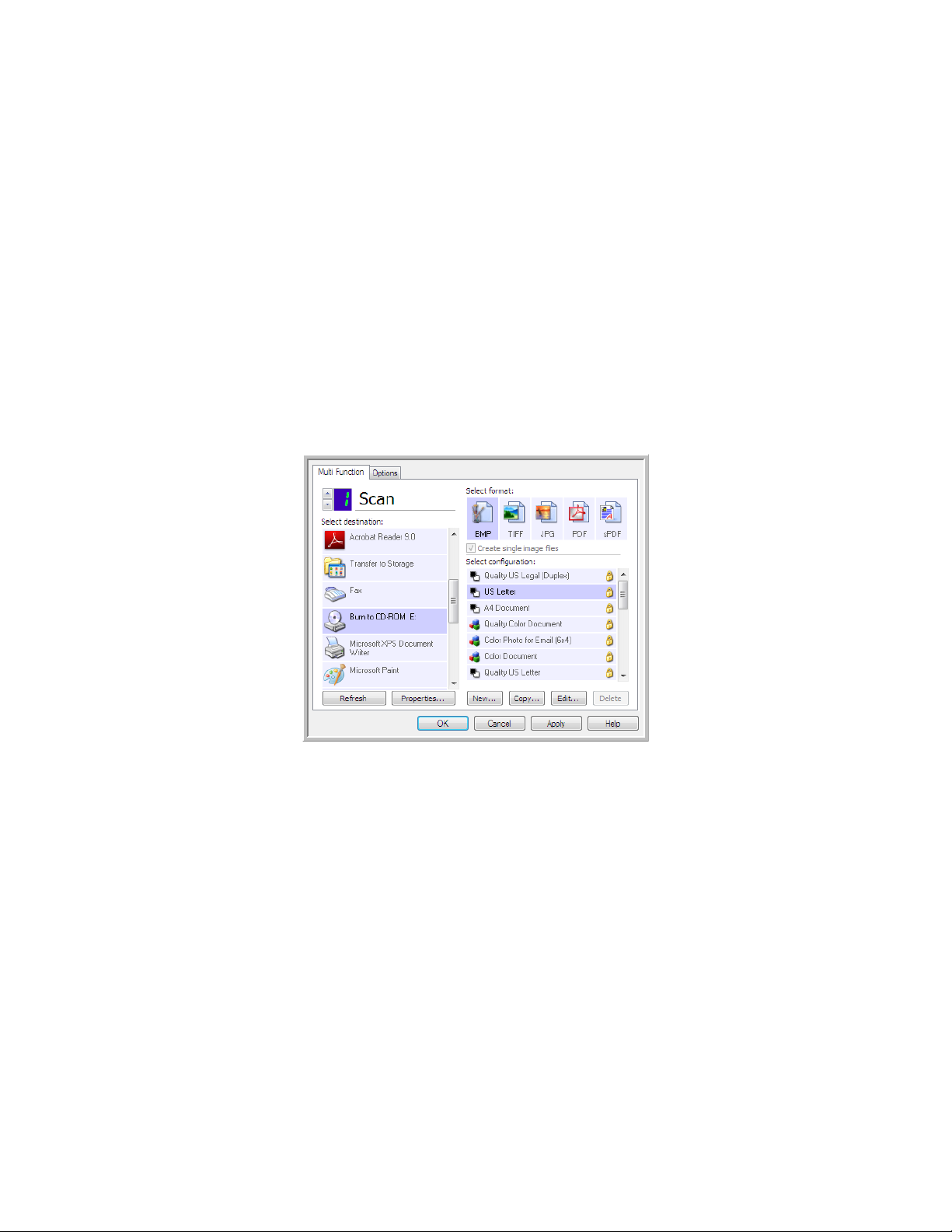

Burn to CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Printer or Fax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

PaperPort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

SharePoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

SharePoint Link Log Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

FTP Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

FTP Link Log Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

SMTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

SMTP Link Log Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Email Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

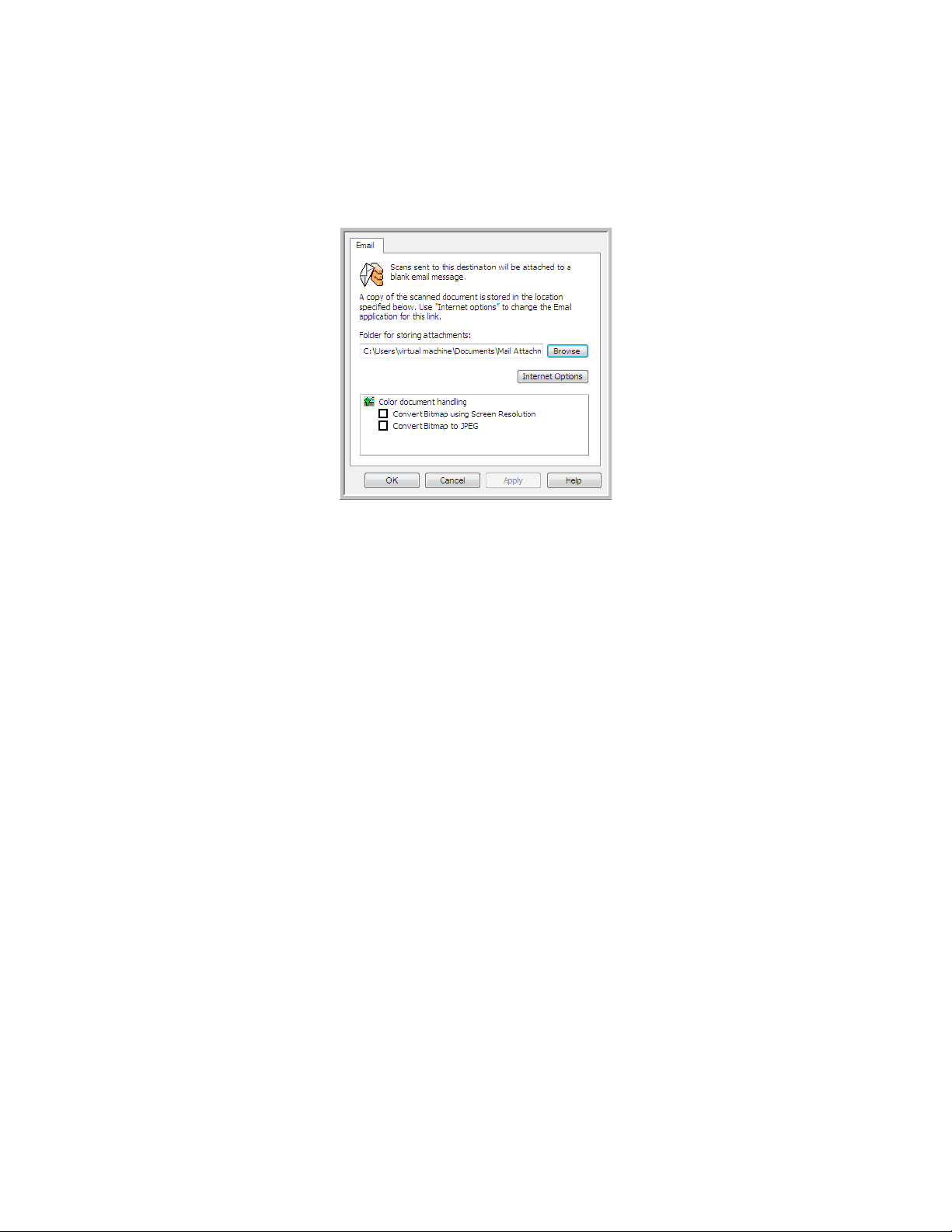

Email Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

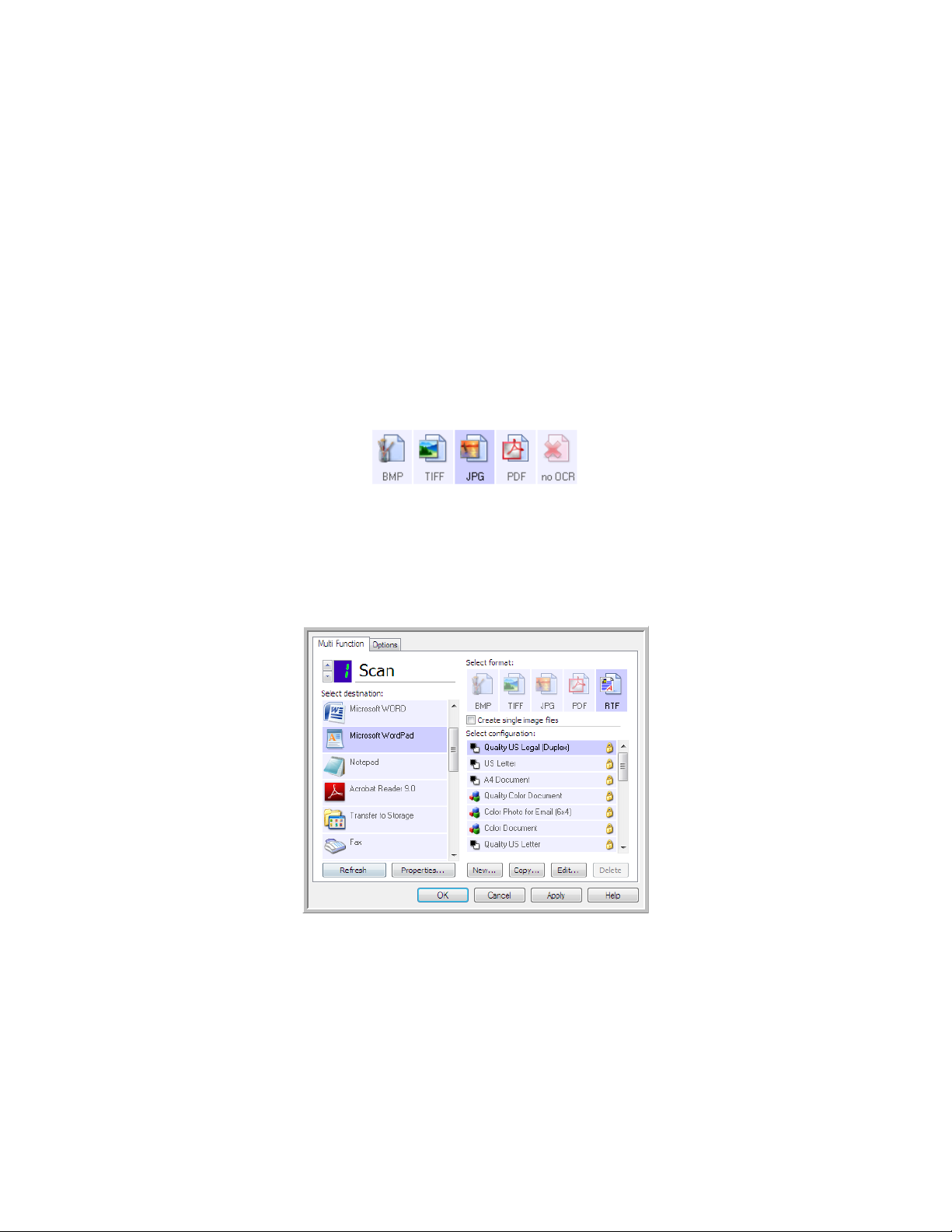

Text Editors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Text Documents Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Adding Text Editor Applications to One Touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Creating an HTML Web Page from Your Scanned Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Still Image Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Image Editors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Image Documents Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

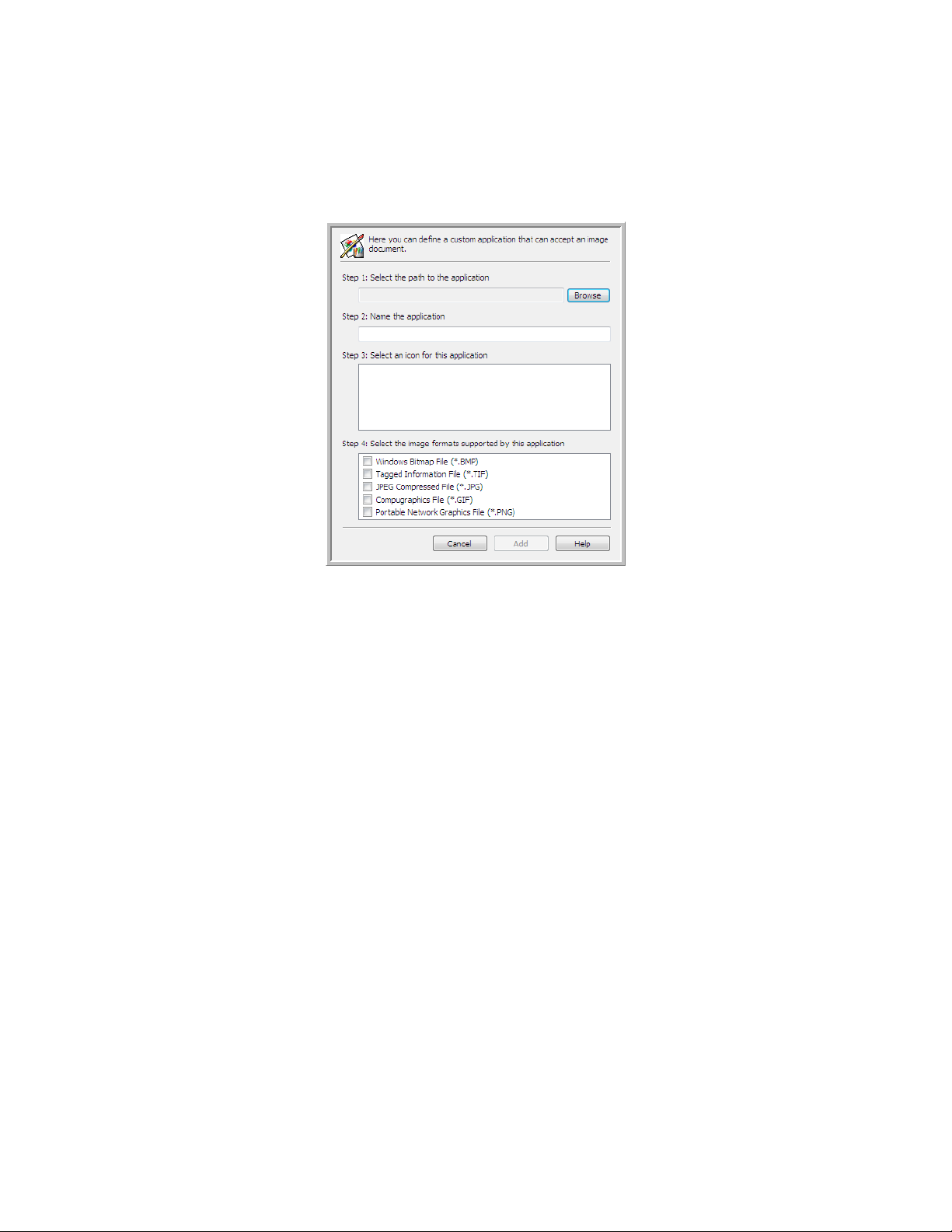

Adding Image Editor Applications to One Touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

PDF Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Send to Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Scanning to Multiple Destinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Scanning with Job Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Scanning with Optical Character Recognition (OCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Text Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Selecting One Touch OmniPage OCR Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

The OCR Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Creating Your Own Dictionaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Editing User Dictionaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

The Format Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

One Touch with Kofax VRS Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

The Kofax VRS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

The Professional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Changing the Hardware Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

7Scanning from TWAIN

Accessing the TWAIN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Scanning with the TWAIN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Xerox DocuMate 4760 User’s Guide

Table of Contents

The Options in the TWAIN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

8Scanning from WIA

Scan using WIA from Microsoft Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Fine Tuning Your Scans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

9Scanning from ISIS

Accessing the ISIS Interface in QuickScan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

10 Maintenance

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Cleaning the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Replacing the Rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Separation roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Paper feed roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Error Light Troubleshooting Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Uninstalling Your Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Xerox DocuMate 4760 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Xerox DocuMate 4760 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

ARegulatory Information

Basic Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

United States (FCC Regulations) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

European Union . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Other Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Copy Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

United States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Other Countries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

BCompliance Information

Product Recycling & Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

USA & Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

European Union . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Energy Star for the USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Index

Xerox DocuMate 4760

User’s Guide

Xerox DocuMate 4760 User’s Guide

Safety

This chapter includes:

• Safety Introduction on page 8

• Operational Safety Information on page 9

• Electrical Information on page 10

• Emergency Power Off on page 11

• Maintenance Information on page 12

• Product Safety Certification on page 13

• Environmental Health and Safety Contacts on page 14

Xerox DocuMate 4760

User’s Guide

Safety Introduction

Notices and Safety

Please read the following instructions carefully before operating the machine and refer to them as needed to ensure the continued safe operation of your machine.

Yo ur Xe r o x p r od u ct a nd s up p li e s h a ve be e n d e si g n ed a nd te sted to meet strict safety requirements. These include safety agency evaluation and certification, and compliance with electromagnetic regulations and established environmental standards.

The safety and environment testing and performance of this product have been verified using Xerox materials only.

War ning : Un auth oriz ed a lte rat ions , wh ich may incl ude the addition of new functions or connection of external devices, may impact the product certification. Please contact your Xerox representative for more information.

Xerox DocuMate 4760 User’s Guide

Operational Safety Information

Yo ur Xe r o x e q ui p m en t an d su p pl i e s h av e been designed and tested to meet strict safety requirements. These include safety agency examination, approval, and compliance with established environmental standards.

To e n s u r e t h e c o n ti n u e d s a f e o p e ra t i o n o f y o u r X e r o x eq uipment, follow these safety guidelines at all times:

Do These

•Always follow all warnings and instructions that are marked on or supplied with the equipment.

•Before cleaning this product, unplug the product from the USB port. Always use materials specifically designated for this product, the use of other materials may result in poor performance and create a hazardous situation. Do not use aerosol cleaners, they may be explosive and flammable under certain conditions.

•Always exercise care when moving or relocating equipment.

•Always locate the machine on a solid support surface that has adequate strength to support the weight of the machine.

•Always locate the machine in an area that has adequate ventilation and room for servicing.

•Always unplug this equipment from the electrical outlet before cleaning.

Note: Yo ur Xe r o x m ac h i ne i s e q ui p pe d wi t h a n en e r gy sa v i ng d ev i ce t o c o ns e r ve po w er w he n th e ma c hi n e i s no t in use. The machine may be left on continuously.

Do Not Do These

•Never use a ground adapter plug to connect the equipment to a power outlet that lacks a ground connection terminal.

•Never attempt any maintenance function that is not specifically described in this documentation.

•Never remove covers or guards that are fastened with screws. There are no operator serviceable areas within these covers.

•Never locate the machine near a radiator or any other heat source.

•Never override or “cheat” any of the electrical or mechanical interlock devices.

•Never place this equipment where people might step on or trip on the power cord.

Warning: This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflections at visual display workplaces this device must not be placed in the direct field of view.

Xerox DocuMate 4760

User’s Guide

Electrical Information

Warning - Electrical Safety Information

1. The power receptacle for the machine must meet the requirements stated on the data plate on the rear of the machine. If you are not sure that your electrical supply meets the requirements, please consult your local power company or an electrician for advice.

2. The socket outlet shall be installed near the equipment and shall be easily accessible.

3. Use the power cable that is supplied with your machine. Do not use an extension cord or remove or modify the power cord plug.

4. Plug the power cable directly into a correctly grounded electrical outlet. If you are not sure whether or not an outlet is correctly grounded, consult an electrician.

5. Do not use an adapter to connect any Xerox equipment to an electrical outlet that lacks a ground connection terminal.

6. Do not place this equipment where people might step or trip on the power cable.

7. Do not place objects on the power cable.

8. Do not override or disable electrical or mechanical interlock devices.

9. Do not push objects into slots or openings on the machine. Electrical shock or fire may result.

Electrical Supply

•This product shall be operated from the type of electrical supply indicted on the product’s data plate label. If you are not sure that your electrical supply meets the requirements, please consult your local power company for advice.

•Always connect equipment to a correctly grounded power outlet. If in doubt, have the outlet checked by a qualified electrician.

Warning: This equipment must be connected to a protective earth circuit. This equipment is supplied with a plug that has a protective earth pin. This plug will only fit into an earthed electrical outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace the outlet.

Disconnect Device

The power cable is the disconnect device for t his e qui pme nt. I t i s attac hed to the back of the machine as a plug-in device. To remove all electrical power from the equipment, disconnect the power cable from the electrical outlet.

Xerox DocuMate 4760 User’s Guide

Emergency Power Off

If any of the following conditions occur, turn off the machine immediately and disconnect the power cable(s) from the electrical outlet(s).

Contact an authorized Xerox Service Representative to correct the problem:

•The equipment emits unusual odors or makes unusual noises.

•The power cable is damaged or frayed.

•A wall panel circuit breaker, fuse, or other safety device has been tripped.

•Liquid is spilled into the machine.

•The machine is exposed to water.

•Any part of the machine is damaged.

Xerox DocuMate 4760

User’s Guide

Maintenance Information

1. Any operator product maintenance procedures will be described in the user documentation supplied with the product.

2. Do not carry out any maintenance on this product which is not described in the customer documentation.

3. Do not use aerosol cleaners. The use of cleaners that are not approved may cause poor performance of the equipment, and could cause a dangerous condition.

4. Use supplies and cleaning materials only as directed in this manual.

5. Do not remove covers or guards that are fastened with screws. There are no parts behind these covers that you can maintain or service.

6. Do not perform any maintenance procedures unless you have been trained to do them by an authorized local dealer or unless a procedure is specifically described in the user manuals.

Xerox DocuMate 4760 User’s Guide

Product Safety Certification

This product is certified by the following Agency using the Safety standards listed:

Standard

UL60950-1 (USA) CSA 22.2 No. 60950-1 (Canada)

IEC 60950-1

Xerox DocuMate 4760

User’s Guide

Environmental Health and Safety Contacts

Contact Information

For mo re i nfo rm atio n on E nv iron me nt , Health, and Safety in relation to this Xerox product and supplies, please contact the following customer help lines:

USA & Canada: 1-800-828-6571 Europe: +44 1707 353 434

Xerox DocuMate 4760 User’s Guide

Welcome

This chapter includes:

• What’s in the Box on page 16

• System Requirements on page 17

• Documentation on page 18

• The Xerox DocuMate 4760 Scanner on page 19

Yo ur n ew Xe r o x s c an n er c an q ui c k ly sc a n s t ac k s o f si n gl e -sided or double-sided pages and place their electronic images on your computer.

Xerox DocuMate 4760

User’s Guide

What’s in the Box

Before proceeding, check the contents of the box. If items are missing or damaged, contact the dealer where you purchased the scanner.

Xerox DocuMate 4760 Scanner Input Tray Output Tray USB Cable

Power Supply Power Cord Technical Support Card

Quick Install Guide

Windows™ Installation Disc

Xerox DocuMate 4760 User’s Guide

System Requirements

Pentium 4 PC or AMD equivalent with:

•A DVD-ROM drive

•An available Universal Serial Bus (USB) port

•Microsoft The scanner is compatible with Service Pack 3 for Windows XP and Service Pack 1 for Windows Vista.

• Windows XP: Minimum of 512 megabytes (MB) of internal memory (RAM) Windows Vista and 7: Minimum of 1 gigabyte (GB) of internal memory (RAM)

•350 MB minimum of free hard disk space

A VGA or SVGA Monitor

The recommended settings for your monitor are:

•Color quality of 16-bit or 32-bit

•Resolution set to at least 800 x 600 pixels

Refer to your Windows documentation for instructions on setting the color quality and resolution for the monitor.

Windows® operating system: Windows XP (Service Pack 1 and 2), Windows Vista, or Windows 7

Xerox DocuMate 4760

User’s Guide

Documentation

The following documentation is provided with your scanner:

• Quick Install Guide—abbreviated installation instructions.

• Scanner User’s Guide—on the Installation Disc; contains detailed installation, scanning, configuration, and maintenance information.

• Nuance OmniPage User’s Guide—on the Installation Disc; contains detailed feature and configuration information for the OmniPage software.

• Kofax Virtual ReScan User’s Guide—on the Installation Disc; contains detailed feature and configuration information for the VRS software.

Xerox DocuMate 4760 User’s Guide

The Xerox DocuMate 4760 Scanner

Paper Guides Automatic

Document Feeder

Input Tray Control Panel

Output Tray

Power JackUSB Port

6 7

Input Tray—holds the documents in the Automatic Document Feeder for scanning.

Paper Guides—guides adjust to support various document widths.

Automatic Document Feeder—feeds documents through the scanner during scanning. Pull to open the Automatic

Document Feeder.

Control panel—One Touch scanning controls.

• LED Number—shows the current scan setting for the Simplex and Duplex buttons.

• Function buttons—selects the scan setting for the One Touch buttons. Press the up or down arrow to cycle

• Duplex button—press to scan double-sided documents.

• Simplex button—press to scan single-sided documents.

• Status light / Power Button—turns the scanner’s power off and shows the scanner’s status.

through the settings.

Xerox DocuMate 4760

User’s Guide

Output Tray—holds documents after being scanned. Unfolds to support various document lengths.

Universal Serial Bus (USB) port—connects the scanner to the computer.

Power jack—connects the power cord to the scanner.

Xerox DocuMate 4760 User’s Guide

Scanner Setup

This chapter includes:

• Unpack and Assemble the Scanner on page 22

• Connect the Scanner Power Cord on page 24

Xerox DocuMate 4760

User’s Guide

Unpack and Assemble the Scanner

1. Remove the scanner from its protective foam and plastic bag.

2. Remove any shipping tape from the scanner, input tray and output tray.

3. Pull the scanner cover release to open the scanner. Remove the foam strip from the inside of the scanner. Leave the cover open so you can attach the input tray.

Xerox DocuMate 4760 User’s Guide

4. Insert the short pins on each side of the input tray into the holes on the scanner. Close the cover when you are done.

5. Insert the short pins on each side of the output tray into the holes on the scanner.

Xerox DocuMate 4760

User’s Guide

Connect the Scanner Power Cord

Note: Only use the power supply (HEG42-240200-7L made by HiTron or DA-48M24 made by APD) included with your scanner. Connecting any other type of power supply may damage your scanner, and will void its warranty.

1. Plug the power supply into the power port on the scanner.

2. Plug the power cord into the power supply and into a wall outlet.

Xerox DocuMate 4760 User’s Guide

Installation

This chapter includes:

• Before You Begin on page 26

• Install the Software and Connect the Scanner on page 27

• Register Your Scanner on page 34

• Installing Additional Applications on page 35

• View the User Guides on page 36

Xerox DocuMate 4760

User’s Guide

Before You Begin

Please make sure of the following before you begin installation:

•If you are prompted to reboot during installation, please select "No". Finish installing the rest of the software, then close all open windows and reboot your computer.

•The information in this guide may cover software not provided with the scanner you purchased. Please disregard any information about the software not applicable to your scanner. Visit our web site at

www.xeroxscanners.com for the latest software updates for your Xerox scanner.

•If your computer has AntiVirus or AntiSpyware software running, you may encounter alerts or messages during installation asking you to allow the installation to proceed. Although the messages will differ based on the software your computer is running, in each case you should allow the installation to proceed if that option is available. Alternatively, you can turn off the AntiVirus or AntiSpyware software before installing your scanner, but if you do, make sure to turn it back on again when installation is finished.

•If you already have a scanner connected to your computer, it is recommended that you remove that scanner’s driver program prior to installing your Xerox scanner. You can remove these programs from the Windows Control Panel. Please refer to the user manual provided with your other scanner hardware for instructions about removing the driver and software for that unit.

•If your computer is running Windows Vista or Windows 7, you may see the Windows User Account Control screen asking you to confirm system changes. Click the Yes button to allow the installation to proceed.

•The Windows Vista User Account Control (UAC) must be turned off prior to installing the Kofax VRS or Kofax Scan Demo software. The Kofax VRS installer will display a message stating "User Account Control is enabled on this machine. The VRS installer will not install correctly with this setting enabled. Please disable this setting from the User Accounts dialog in the Control Panel." The Kofax Scan Demo installer will display a message stating "Cannot find IC runtime. Install IC." Turn off the Vista UAC to complete the installation of these two software applications. You can turn UAC back on after the installation has completed.

Xerox DocuMate 4760 User’s Guide

Install the Software and Connect the Scanner

The installation disc contains the necessary driver, and scanning software, to use your Xerox scanner.

To i n s ta l l t h e s o f t w a r e :

1. Start Microsoft Windows and make sure that no other applications are running.

2. Insert the installation disc into your computer’s DVD-ROM drive. The disc automatically starts.

3. The Select Language window opens. Click the drop-down menu arrow and select the language to use. Click OK.

4. The disc’s Main nenu window opens.

Note: If the disc does not start, check the following:

•Make sure the disc drive’s door is completely shut.

•Make sure the disc was inserted in the drive in the proper direction (label side up).

To l a u n c h t h e d i s c m a n u a l l y :

•Open the Windows options for your computer’s disc drives.

•Double-click the icon for your DVD-ROM drive.

•The Installation menu for the disc should now open.

If the menu does not open:

• From the list of files on the disc, double-click the file named setup.exe.

Xerox DocuMate 4760

User’s Guide

5. On the Main menu, select Install products.

6. Make sure the boxes for Scanner Driver and Visioneer One Touch are selected, as well as any other applications you want to install.

Note: The software provided with your scanner may differ slightly from the list shown in the window.

7. Click Install now.

Xerox DocuMate 4760 User’s Guide

Installing the Scanner Driver

The scanner driver installation will start first.

1. The Welcome to the Xerox Setup Wizard opens.

2. Click Next.

3. On the Xerox License Agreement window, read the license agreement. If you accept the terms, select I Agree then click Next.

If you choose not to accept the license agreement, click Cancel. Click Close on the Installation Interrupted window.

4. The next window lists the choices of the drivers that you can install for your scanner.

5. Select the option that you want then click on Next.

• Full Install (TWAIN, ISIS and Windows Driver)—This is the recommended installation. It installs all of

the scanner drivers so that you can scan from any TWAIN and ISIS scanning application, or from One Touch when the application is installed.

• TWAIN only—The TWAIN driver is installed and you can scan from TWAIN scanning applications, or

from One Touch when the application is installed.

Xerox DocuMate 4760

User’s Guide

• ISIS Only—The ISIS driver is installed and you can scan from ISIS scanning applications, or from

One Touch when the application is installed.

• Windows Driver Only—The Windows Driver is installed and you can scan from One Touch only when the

application is installed.

Note: If you are using Windows version XP or later, the Microsoft Windows Image Acquisition (WIA) driver is always installed regardless of your selection in this window, and you can scan using the WIA interface from scanning applications that access this driver.

6. A window opens with image quality samples asking you to select an image for your Color Space setting. Select the option that looks best to you and click Next.

7. Stop when you see the “Complete the installation by connecting your hardware” window. Do not click OK yet. Leave the window open and proceed to the next section.

Note: If you do not see this on-screen diagram for connecting the scanner, stop and follow the instructions below.

Xerox DocuMate 4760 User’s Guide

Connect the USB Cable and Turn on the Power

1. Remove any tape from the USB cable.

2. Plug the USB cable into the USB port on the scanner then into a USB port on the computer.

If the plug does not attach easily, make sure that you are plugging it in correctly. Do not force the plug into either connection.

3. Press the power button on the control panel.

The status light comes on and flashes indicating that the scanner is receiving power. Yo ur c om p u te r r e c og n i ze s th a t a sc a n ne r ha s b e e n p l ug g e d i nt o th e US B p o r t a n d a u to m a ti c al l y l o a ds t he

appropriate software to run the scanner. If your computer is running Windows version XP or later, you will see a message similar to the one below.

Xerox DocuMate 4760

User’s Guide

4. When you’re certain that the software has completely loaded, return to the “Complete the installation by connecting your hardware” window.

5. Click OK to complete the installation process.

6. Click Close on the Installation Complete window to close and exit the driver installer.

Xerox DocuMate 4760 User’s Guide

Installing Visioneer One Touch

The Visioneer One Touch software installation will start automatically after you click Close on the driver Installation Complete window. One Touch is the software needed for the buttons on the scanner to work.

1. Click Next on the Welcome to the One Touch Setup Wizard.

2. On the Visioneer License Agreement window, read the license agreement. If you accept the terms, select I Agree then click Next.

If you choose not to accept the license agreement, the installation will terminate and One Touch will not be installed.

3. Click Close on the Installation Complete window to close and exit the software installer.

If you selected other software to install from the DVD the installation for that software will automatically start after you click Close on the Installation Complete window. Follow the instructions on-screen to install each application you selected.

Xerox DocuMate 4760

User’s Guide

Registering your scanner is important as it provides you with access to our free telephone support service. Registration also gives you free access to software updates for your scanner.

To r e g i s t er y o u r s c a n n e r :

Yo u w i ll n ee d a n ac t i ve in t er n e t c o nn e c ti o n t o r e g is t er your scanner. If you do not have internet access you can contact our customer service department to register the scanner. Please refer to the Technical Support Card, that you received with the scanner, for our customer service contact information.

1. Open an Internet Explorer window, or any other internet browser you have installed on your computer.

2. In the web address field type www.xeroxscanners.com.

3. Press Enter on your computer’s keyboard or click the option on screen to go to the web address.

4. When the Xerox scanners web page loads click on Register Your Product.

5. Fill in the registration form, all required fields have an asterisk (*).

Note: A valid email address is required for registration.

6. You will be asked to enter the serial number for the scanner, it is located on the back or underside of the scanner.

7. After filling in the form, click on Submit Your Registration to complete the registration.

Xerox DocuMate 4760 User’s Guide

Installing Additional Applications

Yo ur s ca n n er in c l ud e s f re e , a d d it i o na l a p pl i c at i o ns as d es c r ib e d i n t h e t a bl e be l o w.

1. Return to the disc’s Main menu and click Install products.

2. Select the additional applications you want to install, then click Install now.

3. Follow the instructions on the screen to install each of the additional applications.

Software About the Software

Adobe® Reader® Adobe Reader is a stand-alone application that you use to open, view, search, and

print PDF files. This application is located on the disc in the User Guides section.

Nuance OmniPage® OmniPage Pro provides precision OCR analysis, advanced layout detection, and

Logical Form Recognition™ (LFR) technology. Advanced security features quickly turn office documents and forms into over 30 different PC applications for editing, searching and sharing. Custom workflows handle large volumes of documents, and you can use its tools to print to PDF.

Kofax® Virtual ReScan® (VRS™)

Kofax VRS automatically enhances scanned documents from less than perfect originals. It is an additional scanning interface that uses patented VRS (Virtual ReScan) technology, and ensures your scanning is as efficient and easy as possible, while also improving the quality of the scanned images. Kofax VRS uses an ISIS-certified driver for scanning. This software provides an additional method to scan from your scanner. The Demo version lets you try the application first.

At the end of the Kofax VRS software installation you may see the message "SVS001: The VRS installation does not install an ISIS driver for the scanner you selected. Please install the ISIS driver packaged with your scanner."

This is not an error, please disregard this message and click OK. The Kofax VRS Certified ISIS® driver is installed correctly when you install it with your Xerox DocuMate scanner.

Xerox DocuMate 4760

User’s Guide

View the User Guides

Scanner documentation window Software documentation window

1. Return to the disc’s Main menu and click on User guides.

The User Guides are in Adobe® PDF format. If you need to, click Install Adobe Reader to install it now. Follow the instructions on the installation windows.

If your computer already has Adobe Reader installed, please do not select it unless the version provided on the installation DVD is a newer version than the one currently installed on your computer.

2. Click on View scanner documentation to access the scanner user guide. Click on View software documentation to access the user guides for the software applications provided with

the scanner. From either of these user guide windows, click on the User guide menu button to return to the main user

guide window, then select the other documentation section to view the user guides.

3. Click the name of a user guide you want to view and it will open in Adobe Reader. Use the Adobe Save command to save that user guide on your computer.

Xerox DocuMate 4760 User’s Guide

4. When you’re finished, click Main menu to return to the Main menu window and click Exit.

5. Remove the installation disc and store it in a safe place.

That’s it! Installation is finished and your Xerox DocuMate 4760 is ready to scan.

Xerox DocuMate 4760

User’s Guide

Xerox DocuMate 4760 User’s Guide

Loading Documents to

Scan

This chapter includes:

• Scanning from the Automatic Document Feeder (ADF) on page 40

• Scanning Interfaces on page 42

This chapter illustrates scanning with the buttons on the scanner. After loading documents in the scanner, as described below, you can also scan using the One Touch Button Panel on screen, or using a scanning application.

Note: Always remove any staples or paper clips from documents before inserting them into the scanner. Staples and paper clips can jam the feed mechanism and scratch the internal components. Also remove any labels, stickers, or Post-It™ notes that may come off during the scanning process and get stuck in the scanner. Misuse as described here will void your scanner’s warranty.

Xerox DocuMate 4760

User’s Guide

Scanning from the Automatic Document Feeder (ADF)

1. Prepare the pages before loading them into the scanner, this helps to prevent multiple-page feeding and paper jams.

•If the edges of the paper are curled or fo lde d, flatten th em as mu ch as po ssibl e.

•Fan the edges of the paper to make sure none of the pages are stuck together.

2. Extend the input and output trays for the length of the pages being scanned.

Xerox DocuMate 4760 User’s Guide

3. Adjust the paper guides for the width of the pages being scanned.

4. Load the documents face down with the top of the pages inserted into the Automatic Document Feeder.

5. You can now scan the documents using the scanner buttons, One Touch, or one of the other scanning interfaces.

Xerox DocuMate 4760

User’s Guide

Scanning Interfaces

If you selected the recommended installation, then you have several different options to scan with your Xerox DocuMate 4760 scanner. Each method scans equally well, so use the one with appropriate options for the item you are scanning.

• Visioneer One Touch—when you press the Simplex or Duplex button on the scanner, the scanner starts scanning using the settings for the current LED number. The scanned image is then sent to a destination on your computer or network drive.

• Visioneer One Touch Button Panel—use this scan option when you want to scan from the computer screen. Scanning from the on-screen One Touch Button Panel is the same as selecting a scanning option on the scanner, except you click an icon that represents the function.

• TWAIN Interface—this option uses your scanner’s TWAIN interface to scan. Select scanning options before scanning, put the document in the scanner, then click the Scan button in the TWAIN interface window.

Xerox DocuMate 4760 User’s Guide

• Windows Image Acquisition (WIA)—this option uses the Microsoft Windows set of choices for scanning. Select the WIA scan settings, put the document in the scanner, then click the Scan button in the WIA window.

• ISIS Interface—this option uses the ISIS interface for scanning. Select the ISIS scan settings, put the document in the scanner, then click the Preview Scan button in the ISIS window.

Xerox DocuMate 4760

User’s Guide

Xerox DocuMate 4760 User’s Guide

Scanning and Configuring One Touch

This chapter includes:

• Default One Touch Settings on page 47

• Scan from the One Touch Button Panel on page 48

• Changing the Button Settings on page 50

• Selecting Options for One Touch on page 52

• Scan Configurations on page 55

• File Formats on page 63

• Configure Before Scan on page 67

• Open Scanned Document(s) on page 69

• Trans fer to St orage on page 70

• Burn to CD-ROM on page 76

• Printer or Fax on page 78

• PaperPort on page 80

• SharePoint on page 82

• FTP Transfer on page 85

• SMTP on page 87

• Email Applications on page 90

• Te x t E d i t o r s on page 92

• Still Image Client on page 96

• Image Editors on page 98

• PDF Applications on page 101

• Send to Application on page 104

• Scanning to Multiple Destinations on page 107

• Scanning with Job Separation on page 110

• Scanning with Optical Character Recognition (OCR) on page 113

• Selecting One Touch OmniPage OCR Options on page 117

• One Touch with Kofax VRS Technology on page 126

• Changing the Hardware Settings on page 130

Based on the recommended full installation of the scanner driver and the Visioneer One Touch software, One Touch is your main scanning interface for using the scanner.

The One Touch buttons, on the scanner, mirror the One Touch button panel on-screen.

Xerox DocuMate 4760

User’s Guide

The One Touch Button Panel, that you see on the computer screen, shows the pre-set function for each button (such

The One Touch button panel shows which application the button is configured to send images to.

as Email) and the icon of the destination (called the Destination Application) where the images will be sent when scanning is finished.

Xerox DocuMate 4760 User’s Guide

Default One Touch Settings

When you installed the scanner, the software configured each One Touch button with appropriate settings consisting of: a Destination Application, a Scan Configuration, and a File Format. The button names, such as Email or Copy, indicate the original factory settings for a button. You can change any of these settings. Please see

Changing the Button Settings on page 50 for instructions.

For ex am ple, t he Ema il b utto n is set u p to s ca n do cu ments then immediately attach them to a new email message in your default email program. The email application will default to the email program specified in the internet options of Internet Explorer.

A folder icon for a button means that the button is set up to archive the scanned item. The scanner sends the scanned image directly to a folder without opening the image first in a software application.

A question mark for a button means your computer does not have the appropriate software or hardware for the ini tial factor y s ettin gs.

If OmniPage or the One Touch OmniPage Module is not installed, then the options for sending to word processing applications such as Microsoft Word will not be available.

Note: The default page size in each configuration is based on your computer’s Windows Measurement system selection of U.S. (United States) or Metric units.

•If U.S. is the selected measurement, the default page size in each profile will be based on the Imperial standard paper sizes such as 8.5” x 11”.

•If Metric is the selected measurement, the default page size in each profile is based on the ISO 216 standard and the majority of the profiles will default to A4.

Xerox DocuMate 4760

User’s Guide

Scan from the One Touch Button Panel

One Touch Icon

The Detail View The Hardware View

The Button View

Scanning from the button panel on your computer’s screen works like pressing a button on the scanner. The scanner scans the item, then sends the image to the Destination Application indicated by the button’s icon.

To s c a n fr o m t h e O n e To u c h B u tt o n p a n e l :

1. Load the documents into the scanner.

2. Click on the One Touch icon in the Windows notification area (at the lower right corner of the screen.)

3. The One Touch Button Panel opens.

4. Click the button you want to use to scan.

5. The scanner starts scanning and the image is sent to the selected destination for the One Touch button you are using to scan.

Features of the One Touch Button Panel

The One Touch panel is your on-screen set of controls for the scanner. From the panel you can access the hardware settings for your scanner and configure the Scan button.

Click on the One Touch icon to open the panel.

The Title Bar

•Green arrows—click to cycle through the panel’s 3 views.

Xerox DocuMate 4760 User’s Guide

•Scanner icon—click to open the scanner’s hardware properties.

•Red “X”—click to close the OneTouch panel.

The Button View

• Left-click on a Destination Application icon to start scanning.

• Right-click on a Destination Application icon to open the One Touch Properties.

• Left-click on the arrow buttons, on the right side of the panel, to view the rest of the One Touch buttons.

The Detail View

• Left-click on a Destination Application icon to start scanning.

• Right-click on a Destination Application icon to open the One Touch Properties.

• Single-click on the detailed information to open the One Touch Properties.

The Hardware View

• Left-click on the scanner icon to return to the Button view.

• Right-click on the scanner icon to open the scanner’s hardware properties.

Xerox DocuMate 4760

User’s Guide

Changing the Button Settings

Right-click on a button (for example the Scan button) and the Properties window opens for that button.

Select the Destination Application that will open when you are finished scanning. You use the destination application to view and work with your scanned images.

Select a configuration for scanning the item.

Select a file format for your scanned images.

Scanner button configuration tab

1. Click on the One Touch icon.

2. Right-click a button on the One Touch Button Panel.

3. The One Touch Properties window opens. The One Touch Properties window will also open when you press, hold down for 3 seconds, and release a

scanner button.

Some of the options on the One Touch Properties Window are “grayed out” and are not available, these options are not appropriate for your scanner model.

4. Select the destination you want One Touch to send the scanned image to in the Select destination list. If you select a word processing program such as Microsoft WordPad or Microsoft Word that can be used for

OCR (such as TXT or RTF), the text in scanned images is automatically converted to word processing text.

5. Select a file format in the Select format panel. The formats are based on the type of Destination Application you select. The icon names indicate their file

types. See File Formats on page 63 for more information about the available formats.

6. Select a scanning configuration in the Select configuration list. The configuration’s basic settings include: scanning mode, resolution (dpi), page size, brightness (Br), and

contrast (Cr). To see a selected scan configuration’s settings, click its icon. Click the icon again to close the detailed information. Refer to Scan Configurations on page 55 and Configure Before Scan on page 67 for instructions on creating and modifying scan configurations.

7. Click on OK to save the changes.

8. Place an item in the scanner and click the One Touch button to start scanning.

Xerox DocuMate 4760 User’s Guide

The scanner scans and sends the image to the selected destination, with the file format and scan configuration you specified.

Properties button—displays a window for selecting properties for a desti nat ion . Thi s b utton is disa ble d if the selected destination application does not have global configuration properties.

Refresh button—updates the links between all your computer’s Destination Applications and One Touch. If you install new software that can be used as a Destination Application, click the Refresh button to link the new software to One Touch.

New/Copy/Edit/Delete buttons—click New or Copy to add new scan configurations to the list. Click Edit or Delete to change or remove them.

OK/Cancel/Apply buttons—OK accepts any changes and closes the window. Apply accepts any changes but leaves the window open so you can continue making additional changes. Cancel closes the window without accepting any changes.

Xerox DocuMate 4760

User’s Guide

Selecting Options for One Touch

Use the Options tab to configure how One Touch works with the selected button, such as which destinations are available, or what the file name should be.

Select Button—click the down arrow and select the button for which you want to modify the settings from the list. The options you choose in this window only apply to the button you select in this list.

Show all destinations—this option selects all of the Destination Application categories. The list of Destination Applications available for the selected button will include all the applications on your computer that fall into these categories.

Select destinations—select this option to individually choose the types of applications to include in the list of Destination Applications. Check the boxes for the type of application to include.

Destination Categories:

• Document management includes Nuance PaperPort and other applications for processing and keeping track of your scanned documents. This category includes the Send to Application and Open Scanned Document(s) destinations.

• Image editors include Microsoft Paint and other drawing and graphics applications.

• Te xt ed it o rs include Microsoft Word and WordPad, Microsoft Excel, and other word processing and spreadsheet applications. Select this option if you want OCR processing to convert your scanned documents to text that you can edit.

• PDF applications are for viewing and/or editing Adobe PDF files.

• Email includes Microsoft Outlook and other email applications, as well as the SMTP destination which allows you to scan directly to the SMTP server without opening an email client application.

• Storage and CD-R/W is for scanning directly to a folder on the computer, server, FTP server, SharePoint site, or to the Windows CD temp directory for burning the files to a CD.

• Fax and Print is for sending your scanned documents directly to your printer or fax software.

• STI event forwarding is for using another application’s interface for scanning. The One Touch Event Forw ar di ng d ialo g bo x op ens so y ou can s el ec t wh ich ap plica ti on to us e to con ti nu e sc anni ng .

Xerox DocuMate 4760 User’s Guide

Enable scanning to multiple destinations—select this option to allow for multiple destinations to be selected, in the destination list, on the One Touch configuration tab. This feature allows you to scan one time while distributing the file to multiple destinations. Please refer to Scanning to Multiple Destinations on page 107.

Instant delivery—enables image transfer to the destination while scanning is in progress, provided that Create

Single Image Files is also selected. If Create single image files is not selected, image transfer occurs after all pages

have been scanned.

Show progress window—select this option to display the progress window of the document(s) during scanning.

Use job separator when scanning multiple pages—select this option to have the scanner separate multiple page

scan jobs into separate files when scanning is complete.

• When a blank page is detected—select this option to have a new file created each time a blank page is detected in the stack of pages being scanned. Note that when scanning duplex, both sides of the page must be blank.

• When the number of images reaches—select this option, and input a number in the box, to have a new file created each time the number of images scanned reaches the number you input in this field. Note that when scanning duplex, the number of images detected is twice the number of pages scanned. For example, if you input “5” in the field, and scan 10 pages, 20 images are captured, and you will get 4 separate files with 5 images in each file.

Please refer to Scanning with Job Separation on page 110 for detailed information about scanning with job separation, and how it works with other options in One Touch.

Use custom file naming—select this option to enable the input field so that you can specify the file name for your scanned document(s). You can specify a different file name for each One Touch button. When this option is not select, the file name is automatically generated by One Touch for all scans.

•The preview area, to the right of the Use custom file naming text, shows an example of the filename as you type into the input field and/or select token options from the list.

•Type the file name you want into the input field. Note that you cannot input these characters in a file name: \ / : * ? “ < > |

When inputting a file name, the file name must be unique, otherwise every scan created would overwrite the previous scan. The menu to the right of the input field contains a list of tokens you can select to create unique file names. These tokens include counting numbers, date and time values, number of pages scanned, and so on. If the button name is not unique, you will see an on-screen notification that a {BatchID} and/or {#b} will be inserted into the name.

Xerox DocuMate 4760

User’s Guide

•Click the down arrow and selected a token value from the list, then click the arrow button to add that value to the file name field. The token values are:

{FN}—inserts the scanner name. {#b}—inserts the image number without adding zero (1). {#03b}—inserts a 3-digit image number in the scan batch (001). {D}—inserts the numeric day of the month without a zero added to single-digit days (4). {DD}—inserts the numeric day of the month with a zero added to single-digit days (04). {DDD}—inserts the abbreviated 3-letter day (Mon). {DDDD}—inserts the full name of the day (Monday). {M}—inserts the numeric month without a zero added to single-digit months (8). {MM}—inserts the numeric month with a zero added to single-digit months (08). {MMM}—inserts the abbreviated 3-letter month (Aug). {MMMM}—inserts the full name of the month (August). {YY}—inserts the two-digit year (97). {YYYY}—inserts the four-digit year (1997). {h}—inserts the 12-hour clock hour without a zero added to single-digit time values (2). {hh}—inserts the 12-hour clock hour with a zero added to single-digit time values (02). {H}—inserts the 24-hour clock hour without a zero added to single-digit time values (2). {HH}—inserts the 24-hour clock hour with a zero added to single-digit time values (02). {m}—inserts the minute without a zero added to single-digit time values (7). {mm}—inserts the minute with a zero added to single-digit time values (07). {s}—inserts the second without zero added to single-digit time values (9). {ss}—inserts the second with zero added to single-digit time values (09). {User}—inserts the user name. {Mach}—inserts the computer name. {Dest}—inserts the destination application name. {Bttn}—inserts the button name. {Mode}—inserts the scan color mode. {Size}—inserts the page size. {BatchID}—inserts a unique batch identification number.

Te ch n ica l N ot e

Some destination application links, such as the NewSoft Presto! BizCard software, require a specific filename format for the ima ges t hat have been sent to the lin k t o ope n correctly in the application. For example, when scanning duplex, if the image token {#03b} is not included in the filename, then each image sent will be regarded as a separate scan, and instead of one file with 2 pages you will have 2 files. As each destination application link is different, there is no standard filename type you can create to use for all destinations. If you scan and the images are not grouped in the file(s) as needed, try deselecting “Use custom file naming” and then scan again.

Xerox DocuMate 4760 User’s Guide

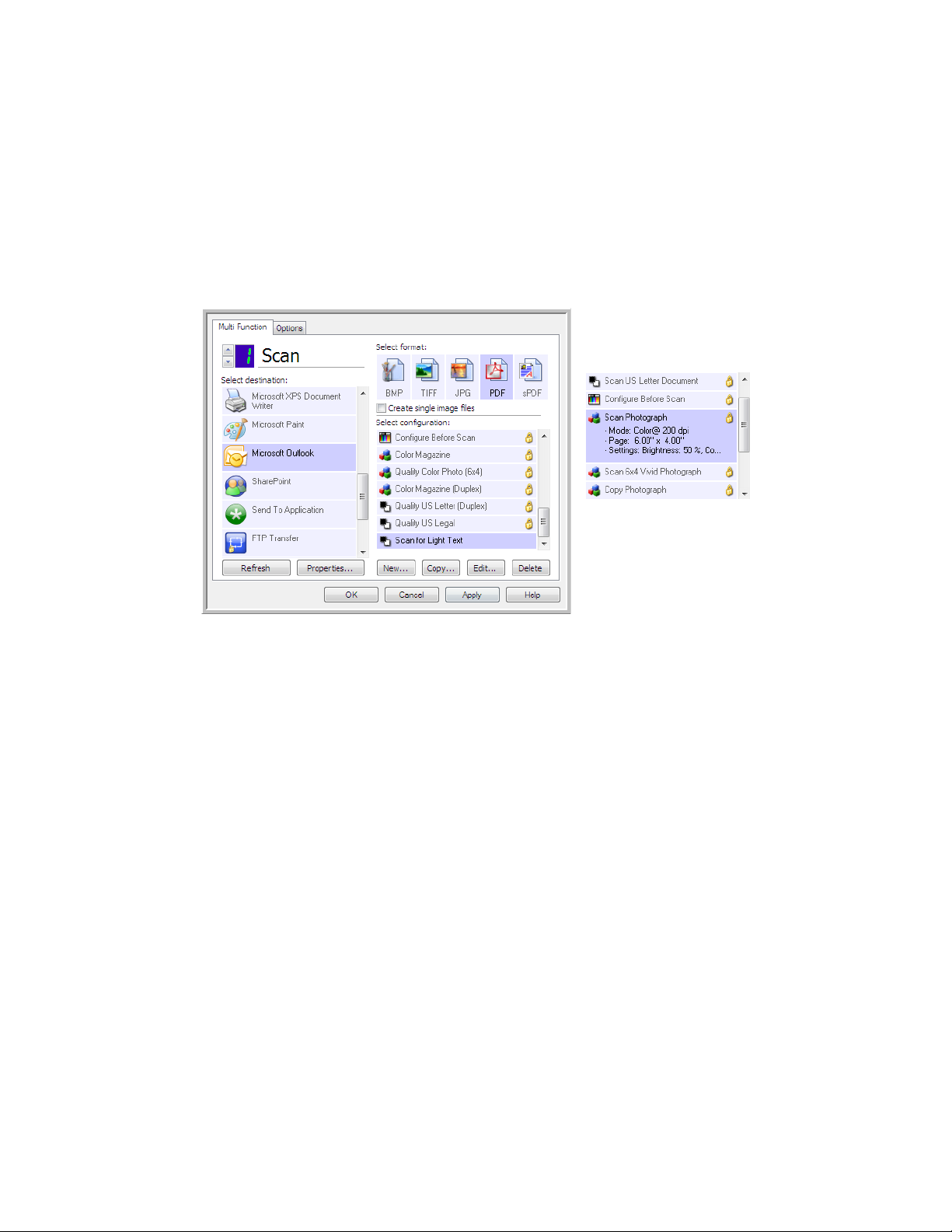

Scan Configurations

Click the icon of a selected configuration to view its settings.

Select the scan configuration to edit or delete. It must be unlocked, as indicated by not having a lock displayed here.

The scan configurations are where you select the scanning resolution, brightness, mode (color, black & white, or grayscale), and a number of other settings. To see a selected scan configuration’s settings, click its icon. Click the icon again to close the detailed information.

Note: Use Configure Before Scan if you want to set the options manually before scanning. See Configure Before

Scan on page 67.

Create a new configuration:

•Click the New button to create a new configuration starting with the One Touch default configuration settings.

•Select a configuration in the list, then click on the Copy button to create a new configuration starting with the settings of the currently selected configuration.

Edit or delete a configuration:

Select the scan configuration you want to edit or delete.

•To delete the configuration, click the Delete button.

•To edit the configuration, click the Edit button. Edit the settings and click OK.

Note: Yo ur sc a n ne r co m es w it h a n u mb e r o f c o n fi g ur a ti o ns p re - set at the factory. To ensure that your scanner will always have a set of correct scan configurations, do not delete the pre-set configurations. We also recommend that you keep those configurations locked so they are not inadvertently deleted. That way, you will always have the fact or y- se tt in gs av ai la ble. I f yo u do d elete o r ed it the m, and want to get the factory pre-sets back again, you will need to uninstall then re-install your scanner.

In the Scan Configuration Properties window, the Scan Settings, Page Settings, Advanced Settings, and Redaction Settings tabs are always available. When the Visioneer Acuity module is installed, the Acuity Settings tab will also be available for all destinations.

Xerox DocuMate 4760

User’s Guide

Based on the selected destination, additional settings tabs may also be available. If you see one of these additional

If the configuration is locked, click the lock to unlock it. The icon becomes a key.

Type a new name for the configuration.

Select the scan mode and drag the slider to set the resolution.

Drag the sliders to set the Brightness and Contrast.

settings tabs please refer to the appropriate section, as listed below, for instructions on configuring these destination specific options.

•Use the Storage Options tab to choose the storage folder for scans sent to the Transfer to Storage destination, as described on page 70.

•Use the Device Settings tab to configure Fax and Print destinations, as described on page 78.

•Use the PaperPort tab to choose the destination folder, in the Nuance PaperPort application, as described on page 80.

•Use the SharePoint tab to specify a SharePoint site, user credentials, and destination folder, as described on page 82.

•Use the FTP Transfer tab to specify an FTP site, user credentials, and destination folder, as described on page 85.

•Use the SMTP Configuration tab to specify an SMTP server, user credentials, and destination email address, as described on page 87.

Scan Settings tab

On the Scan Configuration Properties dialog box, type a name.

Mode—select a scanning mode:

• Black&White to scan in black and white. For example, letters and memos are usually scanned in black and

• Grayscale to scan items such as documents containing drawings or black and white photographs.

• Color to scan color photographs and other color items. Color scans have the largest file size.

Resolution—drag the slider to the right or left to adjust the dots per inch (dpi) of the resolution. The higher the dpi setting, the sharper and clearer the scanned image. However, higher dpi settings take longer to scan and produce larger files for the scanned images.

Brightness—sometimes an image is scanned with the brightness and contrast set too light or too dark. For example, a note written with a light pencil may need to be scanned darker to improve legibility. Increasing or decreasing the brightness makes the scanned image lighter or darker.

Contrast—the difference between the lighter and darker portions of the image. Increasing the contrast emphasizes the difference between the lighter and darker portions, decreasing the contrast de-emphasizes that difference.

Key and Lock icon—if you want to lock the configuration, click the key icon to change it from a Key to a Lock.

white.

Xerox DocuMate 4760 User’s Guide

Page Settings tab

Click the name to toggle between inches and millimeters.

The options on the Page Settings tab will be available based on either the selected color mode (Black & White, Grayscale, or Color), or based on whether or not the scanner hardware supports the feature.

Standard—click the menu arrow and choose a page size from the list.

Custom—enter the horizontal and vertical page dimensions in the boxes. Click the name of the units, inches or

millimeters, to toggle between them.

Improvements and Settings—it is indicated in the feature description if there is a software or hardware dependency for the option to be available.

• Duplex—scan both sides of the page. This option is only available if the scanner supports this feature. The Simplex and Duplex buttons on the scanner take precedence over the One Touch settings. In other words,

if the LED number on the scanner is configured to scan as Duplex, but you press the Simplex button, the scanner scans in Simplex, and vice versa.

• AutoCrop to original—select this option to let the scanner automatically determine the size of the item being scanned. This option is only available if the scanner supports this feature.

Always use the paper guides on the scanner so the page is not skewed. Skewed pages may not crop properly.

• Reduce Moiré patterns—moiré patterns are wavy, rippled lines that sometimes appear on the scanned images of photographs or illustrations, particularly newspaper and magazine illustrations. Selecting Reduce moiré patterns will limit or eliminate moiré patterns in the scanned image. This option is only available when scanning in Color or Grayscale at lower resolutions, and when the scanner supports this feature.

• Straighten image—select this option to let the scanner automatically determine if a page is skewed, then straighten its image. This option is only available if the scanner supports this feature.

If you are scanning using an Automatic Document Feeder, and the page is fed through at too great of an angle, the image may not straighten correctly. In that case, re-scan the page using the paper guides to feed the paper in straight.

• Edge cleanup—select this option to have the software remove any thin lines that may be around the edges in the scanned image. These lines may appear in the edges when the item being scanned is not the exact size of the dimensions indicated in Size fields. This option is only available if the scanner supports this feature.

Xerox DocuMate 4760

User’s Guide

• Invert image—only available for Black&White Mode, this option reverses the black and whites of an image.

Original Image Inverted Image

The original with a red watermark over black text.

The scanned item with the red filtered out.

• Skip blank originals—select this option to have the scanner detect if a blank page has been fed through the scanner, and remove it from the final file. Typically you might use this option when scanning a stack of twosided pages which have a number of blank sides.

Sensitivity—you can adjust the sensitivity level of the blank image detection. For instance, if you are scanning double-sided light-weight paper, the scanner may not detect a blank side as text or images, from the opposite side of the page, may appear in the scanned image. In that case, lower the sensitivity level for more accurate results.

Note that when the Options tab feature Use job separator in multi-page batch is enabled, and the option selected is When a blank page is detected, the sensitivity level for Skip Blank Originals is the sensitivity level that will be used when both features are enabled.

Note that when the feature Use job separator in multi-page batch is enabled, and the option selected is When the number of images reaches, the blank originals are discarded befor e the im age s are co unted . For example, if you scan 3 pages in duplex mode, each side of the page is counted as an image and the total number of images is 6. When Skip Blank Originals is enabled, and 2 of the 3 pages in the stack are blank on one side, the total number of images counted is 4 not 6.

• Color dropout—color dropout is the ability of your scanner to automatically remove a color from a scanned image. For example, if you are scanning a letter with a red watermark, you can choose to filter out the red so the scanned letter just shows the text and not the red watermark. Color dropout applies to Black & White or Grayscale scanning modes.

• Double Feed Detection—selecting this option turns on the scanner hardware feature that detects when multiple pages feed through the scanner at one time. This option is only available if the scanner supports this feat ure.

Abort—scanning stops and all pages scanned in this batch, up to this point, will be deleted. Prompt—you will be prompted to remove the pages in the ADF, restack the remaining pages and continue

scanning. All pages scanned before and after the double page feed are saved.

Xerox DocuMate 4760 User’s Guide

Advanced Settings tab

Use the Advanced Settings tab to set color correction options for Color or Grayscale scanning. Drag the sliders to the left and right to change the color settings. As you do, the image changes to show the effects of the new settings.

• Color saturation—the strength or purity of a color. This option is only available when the selected scan mode is Color.

• Color hue—the color your eyes see as reflected from the image. This option is only available when the selected scan mode is Color.

• Gamma—is the tone curve and the starting point for image enhancement. As you raise or lower the Gamma value, the values at which saturation, hue, brightness and contrast affec t t he i mage ar e ch ang ed. It i s recommended that you keep the default Gamma value or adjust this setting before adjusting the other options. This option is available for both Color and Grayscale scanning.

Redaction Settings tab

Use the options on the Redaction Settings tab to remove a specified area in the scanned image.

Please refer to the technical note, at the end of this section, for information about how this setting works with other options in the One Touch Scan Configuration you are modifying.

Xerox DocuMate 4760

User’s Guide

Enable redaction—select this option to enable redaction when scanning. You might use this option if you want to remove a logo or image that appears on each page that you are scanning. You can choose what color to fill in the redacted area in the scanned image, and set multiple areas. If you are scanning in Duplex mode, you can specify the area separately for the front and back side of the pages.

Click Add to add a line item to the area list in this window. You can redact multiple areas from the scanned image, click the Add button again to continue adding line items to the list. Select an item in the list then click the Remove button to remove the specified redaction area from the list.

Side—click once on the word Front to show the Side option list. If you are using a simplex (one-sided) scanner, only the Front option will be available. If your scanner supports duplex (two-sided) scanning, the options Front, Back, and Both will be available in the list.

• Front—this is the Simplex side of the page. The area(s) specified for the Front will only apply to the Simplex side of the page when scanning in Duplex. Therefore, if you scan 4 double-sided pages, the resulting image file(s) will have redacted areas on pages 1, 3, 5, and 7.

• Back—this is the Duplex side of the page. The area(s) specified for the Back will only apply to the Duplex side of the page when scanning in Duplex. Therefore, if you scan 4 double-sided pages, the resulting image file(s) will have redacted areas on pages 2, 4, 6, and 8.

• Both—select this option if you want to specify an area that appears in the same place on both sides of the page, such as a company logo, so you don’t have to specify the same area separately for both the front and back.

Click one time on the default value, 0.00 in each field, to enable the control box for you to input the start position and redaction area size. The units of measurement is displayed on the lower-right corner next to the Paper size field.

Xerox DocuMate 4760 User’s Guide

• From left—input the upper-left corner start position measured from the left-side of the page.

Color scanning

Grayscale scanning

Black&White scanning

• From top—input the upper-left corner start position measured from the top of the page.

• Width—input the width of the area to be removed.

• Height—input the height of the area to be removed.

Color—this color field shows the selected fill color for the redacted area(s). When the software removes the area you specify, it fills the area with the color you have selected here. To change the color, click the artist palette button to open the Windows color palette. Select the color you want then click on OK. The color you selected will now display in the Color field on the Redaction Settings tab.

Preview—this color field shows the actual color that will fill the redaction area in the final scanned image. When scanning in color, the Preview field will match the Color field. When scanning in Grayscale, the preview field will show the gray version of the color you selected, and that color will be in the final scanned image. When scanning in Black&White, the preview field will display black or white depending on the darkness of the color you selected, and the final image will have the redacted area(s) be black or white.

Te ch n ica l N ot e

The options on the Page Settings tab will affect the red acti on opt ions as des crib ed belo w:

•On the Page Settings tab, click the name inches or mm to toggle between the two units of measurement. When you click back on the Redaction Settings tab, the lower-right corner displays the Paper size in the units of measurement you selected.

•Make sure the page size selected on the Page Settings tab is correct for the documents you are scanning, otherwise the redaction may not occur in the correct area.

Xerox DocuMate 4760

User’s Guide

•If Color dropout is selected, redaction occurs after the color specified is removed from the image.

Click the name to toggle between inches and millimeters.

For ex am ple, if y ou s el ec te d Re d as t he c olor d ro po ut, but then specify red for the redaction region, the final image will have the redacted region filled with gray when scanning Grayscale, or black or white when scanning in Black&White.

Xerox DocuMate 4760 User’s Guide

File Formats

Image Formats. The BMP, JPG, and PDF image formats

Text Formats; TEXT is only one of several text formats available.

The available file formats, in the Select format panel, are based on the selected destination for scanning. For example, if scanning to the destination Trans fer to Storag e, all file formats are available as the files are saved directly to a folder without opening any application. If the destination is an application, such as Microsoft’s Paint, only the file types the application supports will be available in the Select format panel.

Most of the format icons have a right-click menu to select file format specific options, or choose additional formats that are not represented in the panel by default.

The format names in the Select format panel indicates the file type extension for the scanned file.

Create Single Image Files

The TIFF and PDF formats, as well as the text file formats, support multiple page documents in a single file. If you are scanning as a TIFF or PDF format, or as one of the text formats, and want one file created for each image scanned, select Create single image files. Note that this option is automatically selected and disabled if you have selected a format that only supports single pages, such as BMP, PNG, GIF, JPG, or JP2.

Image Formats

Select an image file format for photos, artwork or other documents that you want to save as images. BMP and TIFF are standard image file formats generally used if you want to do additional image processing, such as photo touchup or color correction.

Xerox DocuMate 4760

User’s Guide

Right-click on the BMP icon to access the GIF and PNG image formats. When you select either of these formats, the for mat p ane l w ill chan ge th e B MP ic on to the sele cted ima ge for mat ic on.

BMP—the *.bmp (bitmap) format is generally used when you want to do additional image processing, such as photo touch-up or color correction, as very little image compression is used when creating the file. When scanning in color or grayscale, BMP scans result in the largest file size of the image formats.

GIF—the *.gif (graphics interchange format) format is generally used when putting images on a website or server, as image compression can reduce the file size by approximately 95% when compared to a BMP file of the same image. Company logos and small pictures on a webpage are often GIF images. The GIF compression, and limited color range, can result in the medium and large images looking grainy or pixilated.

PNG—the *.png (portable network graphics) format is another common image format for website graphics. Like GIF, the PNG compression greatly reduces the file size when compared to a BMP file of the same image. However, the PNG compression is different from GIF compression in that PNG images look better when scaled. Therefore, PNG is often used in place of GIF for company logos with a lot of detail, clickable buttons, medium sized pictures, and so on. TIFF—the *.tif (tagged image file format) format is another image type that is often used for photo editing. When scanning in color, it produces a file of similar quality and size to a BMP file. However, when scanning in Black & White, the TIF compression produces the smallest file size of all the image types without losing image quality. TIFF also supports multi-page image files.

Right-click on the JPG icon to access the JP2 image format. When you select JP2, the format panel will change the JPG icon to the JP2 format icon.

JPG—the *.jpg (joint photographic experts group) format is a common image format for transferring pictures electronically, such as posting to a website or sending via email, as JPG image files are smaller than BMP and TIFF files. You can change the level of compression for the picture file to have better quality or a smaller file size. JP2—the *.jpg2 (joint photographic experts group 2000) format is the new JPEG standard. This new JPG file type has improved compression for better image quality at smaller file sizes. Please refer to the official JPEG website at www.jpeg.org for more information about this file format, and a list of applications that can view and/or open this file type.

Xerox DocuMate 4760 User’s Guide

To se le ct a JPE G f ile si ze:

1. Select JPG as the page format.

2. Right-click on the JPG icon. A menu opens.

3. Choose the file size/image quality option for your scanned images.

Minimize Size—smallest file size, lowest image quality. Normal—medium file size, some loss of image quality. Maximize Quality—largest file size, minimal loss of image quality.

Yo ur s el e c ti o n p e r ta i ns o nl y to t he bu t t on c ur r e nt l y selected on the One Touch Properties window. Other buttons that have JPG selected as the file format are not affected, so you can set the JPG file size/image quality independently for each button.

4. Click OK or Apply on the One Touch Properties window.

Right-click on the PDF format icon to change the image quality or select the option to make the scanned PDF file PDF-A compliant.

PDF—the *.pdf (portable document format) image format is often used to create images of text pages. The image compression of PDF files creates relatively small file sizes when scanning multiple page files in color. While the TIFF image format also supports multiple page files, when scanning in color the TIFF files are often too large to be transferred electronically. The PDF file format is often used for posting multiple page files to websites, sending via email, and permanent storage. As with the JPG file format, you can change the PDF quality to reduce the file size or improve the image quality. Adobe® Reader®, or other PDF viewer software, must be installed on your computer for you to to view PDF files. Using PDF-A when scanning as PDF, means the files are compliant with the ISO-19005-1 standard for permanent archival of electronic documents. More information about this standard can be found at

www.pdfa.org.

To sel ect a PDF fi le siz e:

1. Select PDF as the page format.

Xerox DocuMate 4760

User’s Guide

2. Right-click on the PDF icon. A menu opens.

3. Choose the file size/image quality option for your scanned images.

Minimize Size—smallest file size, lowest image quality. Normal—medium file size, some loss of image quality. Maximize Quality—largest file size, minimal loss of image quality.

Yo ur s el e c ti o n p e r ta i ns o nl y to t he bu t t on c ur r e nt l y selected on the One Touch Properties window. Other buttons that have PDF selected as the file format are not affected, so you can set the PDF file size/image quality independently for each button.

4. Click OK or Apply on the One Touch Properties window.

Text Formats

Selecting the text format option also selects OCR processing as an automatic step for scanning. Therefore, when you scan a document with the text format selected, the text portions of the document are automatically converted to editable text.

Select a text format for documents with text or numbers, such as a business letter, report, or spreadsheet. The text for mat i con ha s several fil e fo rmats avai lable , d epending on the Destination Application you select.

Detailed information about these text file formats, and instructions for setting up the OCR options, are in the section

Scanning with Optical Character Recognition (OCR) on page 113.

To s el ect a fi le ty pe fo r t he te xt f orm at:

1. Select the Destination Application.

2. Right-click on the text format icon. The menu options depend on the type of Destination Application you select.

3. Choose the file type that you want for the text format.

4. Click OK or Apply on the One Touch Properties window.

Xerox DocuMate 4760 User’s Guide

Configure Before Scan

Yo u c a n s e t u p t h e s c an n er s o t h at , wh e n y o u p r es s a b ut t o n or click it on the Button Panel, a different scanning interface opens before the scanning starts. You can then use the interface to change the Resolution, Scan Mode, and other settings. When you scan, the scanned image will still be sent as the file type and to the same Destination Application already selected in the One Touch Properties window for that button.

1. Open the One Touch Properties window.

2. Select the scan configuration Configure Before Scan.

3. Click OK or Apply on the One Touch Properties window.

To Scan Using Configure Before Scan

1. Click the button you set up to use Configure Before Scan.

2. The TWAIN Interface opens.

3. Choose your scan settings, such as the Picture Type of Color, Grayscale or Black & White, Resolution in DPI, and Page Size.

4. Click the Scan button on the TWAIN Interface.

5. The item is scanned. When finished, click the Done button and the image will be sent to the Destination Application specified in the One Touch Properties window.

Xerox DocuMate 4760

User’s Guide

Canceling a Configure Before Scan

1. Click Cancel in the scanning progress window.

2. The following window will open asking if you want to cancel the entire job.

• Yes—scanning stops and all pages scanned in this batch, up to this point, will be deleted. The TWAIN

interface will close and you can restart your scan from the beginning. Choose Yes if the TWAIN scan settings are incorrect for your current scanning batch. For in stan ce , th e Pi ct ur e Typ e is B lack & W hi te b ut y ou want to scan your documents in color. Choose Yes

to delete any scanned pages, then start over but select the correct picture type before scanning.

• No—scanning stops, but all pages scanned in this batch, up to this point, are not deleted and the TWAIN

interface remains open. You can place a new page in the scanner, adjust the TWAIN settings for it, then click the Scan button in the TWAIN interface to continue scanning. At the end of the scanning batch, all pages from the first portion of the scan and second will be sent to the Destination Application.

Choose this option if, for instance, you have been scanning a Black & White document but you want to insert a color page into it. Instead of having to re-scan the entire batch, you can stop the current scan, change the picture type from Black & White to Color, then restart the scanning without losing the pages already scanned.

Xerox DocuMate 4760 User’s Guide

Open Scanned Document(s)

Select the destination Open Scanned Document(s) to have the scanned document open automatically when scanning is complete.

Supported file types—all file formats are available when scanning to the Open Scanned Document(s) destination. Note that text file formats are only available if an OCR module or application is installed. Please refer to Te x t

Form at s on page 66 to see a list of text file formats that are available when OCR is installed.

Destination type—the Open Scanned Document(s) destination is classified as a “Document Management Link”. To m a k e i t a v a i l a b l e i n t h e de s t i n a t i o n l i s t , y o u m u s t se l e c t Document management on the Options tab in the One Touch Properties window.

Te ch n ica l N ot e

•If there is no application installed for the file format you selected, the One Touch Link Log Viewer will open when scanning is finished showing the fai lure . You ca n do ub le-c li ck on t he lo g fail ur e to ope n th e deta il vi ew o f the failed transfer.

For ex am ple, if y ou s el ec t PDF as t he fi le type a P DF v ie we r ap pl icat io n mu st b e in stal le d to o pe n th e fi le. Either install an application for that file type, or associate an application in the Windows Explorer folders

option, please refer to your Windows documentation for instructions on associating file types.

•When scanning to multiple destinations, the scanned file is still sent to the other selected destination application(s) in One Touch.

Xerox DocuMate 4760

User’s Guide

Transfer to Storage

With Trans fer to Storage, you can scan documents and save them in a folder in one step.

Supported file types—since the files are saved directly to a folder on the computer or server, all file formats in One Touch are available. Note that text file formats are only available if an OCR module or application is installed. Please refer to Te x t Fo r m a t s on page 66 to see a list of text file formats that are available when OCR is installed.

Destination type—the Transfer to Storage destination is classified as a “Storage Link”. To make it available in the destination list, you must select Storage and CD-R/W on the Options tab in the One Touch Properties window.

Setting the Folder and Options from One Touch

In the One Touch Properties window, select Transfer to Storage as the Destination Application for scanning.

•Click the Properties button to open the One Touch Link Properties for Transfer to Storage. From this window, you can change the global default storage location and options.

On initial installation of One Touch, all scan configurations use these settings. When you create new configurations, the default settings will also match what you have selected here. If you modify the storage options in an individual configuration, changing the options in this Link Properties window will no longer update to the configurations you modified.

Xerox DocuMate 4760 User’s Guide

•Click the New, Copy, or Edit button to open the Scan Configuration Properties window. Click on the Storage

Transfer to Storage One Touch Link Properties window

Scan Configuration Properties window - Storage Options tab

Options tab and use this window to set a configuration to scan to a different folder than the one selected in the Link Properties window.

Changing the options in this window only affects the configuration you are creating or modifying. All other configurations will retain their settings for this destination.

Storage layout

• All documents are in the root—the scanned documents are saved in the root of the folder specified in the Storage location.

• Documents are put into folders by month, week, or type—folders are created based on your selection (month, week, or file type) and the scanned documents are saved in those folders. New folders are created for each month and week so you can keep track of when you scanned the documents.

Storage location

•This is the location on the computer or network where the file will be saved. Click on the Browse button to change the location by browsing through your Windows folder list, or type a location directly into the input field. You can select a local folder, or a folder on a server or mapped drive.

Open storage folder when scan is complete

•Select this option to have the folder, specified in the Storage location, open when scanning is complete and the image has been transferred to that location. If you have selected a month, week, or type grouping option, the folder that opens will be the grouping option you selected.

Setting the Folder from Windows

When One Touch was installed, a storage option was added to the right-click menu of your Windows folders. This menu option allows you to set the Transfer to Storage folder location without opening One Touch first.

1. Right-click on the folder you want set as the scan destination.

Xerox DocuMate 4760

User’s Guide

2. Hover the mouse cursor over the Set as scan destination option and the sub-menu will open to the right. Click on the setting you want the Storage location to be updated with.

• For all configurations—select this option to have the storage location, in all scan configurations Storage

Options tabs, updated to use this location. Note that the storage Link Properties location will also update to use this location.

• For new and default confi gurations—select this option to have the One Touch Link Properties storage

location updated. Any scan configurations that you have not previously updated, with custom storage locations, will also use this location.

• For configuration used by a button—when you select this option, another sub-menu will open to the

right. The sub-menu will contain a list scanner buttons that are currently set to scan to the Transfer to Storage destination. Select the button you want updated to use this location. This option modifies only the scan configuration that is assigned to the button you select. If you have multiple One Touch 4.6 scanners installed, the first sub-menu will show a list of the currently connected scanners for you to select which scanner to update.

Note that this option is disabled if there is no scanner plugged in and turned on.

Scanning to Multiple Folders

When archiving documents with Transfer to Storage option, you can scan the documents to different folders. For example, one folder might be for “Business Receipts,” a second folder might be for “Personal Receipts,” and a third fol der m igh t be for “An nual Receipt s.”

To scan to multiple folders, you create multiple configurations, each with a different storage location for the scanned documents. Scan one set of documents using the scan configuration with the appropriate storage location for that se t. Th en swi tch to ano the r sca n c onfigurat ion a nd scan the ne xt se t o f d ocume nts to stor e t hem i n t hei r fol der.

Setting up multiple folders for transfer to storage

1. Using Microsoft Windows, create the folders that you want to use for storing scanned items.

2. Open the One Touch Properties window.

3. Select Tran sfer to Storage as the Destination Application.

Xerox DocuMate 4760 User’s Guide

4. Click the New button.

The Scan Configuration Properties dialog box opens.

5. To help you remember which folder it is, give the new configuration a name that indicates the folder name, such as “Business Receipts.”

6. Click the Scan Settings, Page Settings, and Advanced Settings tabs, and select the settings you want.

7. Click the Storage Options tab.

8. Click the Browse button.

Xerox DocuMate 4760

User’s Guide

9. Select the folder you created for storing the scanned documents.

10. Click OK. The selected folder will now be set as the Storage location, such as “Business Receipts.”

11. Click OK. The new configuration is now listed as a Transfer to Storage configuration.

12. Repeat the process to create additional new configurations, such as one named “Personal Receipts.”

Note: Make sure to designate separate folders as the Storage Locations for each new configuration.

Xerox DocuMate 4760 User’s Guide

13. You will now have multiple configurations set up for the Transfer to Storage destination, and each

The new configurations apply to the Transfer to Storage Destination Application.

configuration scans documents to separate folders.

14. Now select a scanner button for each new configuration. Click Apply to set that button for that configuration.

Scan to multiple storage folders:

1. Insert the document you want to scan to storage.

2. Start scanning with the first button that you set to scan documents and transfer to storage.

3. When scanning is complete, insert the next set of documents in the scanner, then press the second button you set to scan documents and transfer them to storage.

4. When scanning is finished, the documents are stored in the two separate folders.

Xerox DocuMate 4760

User’s Guide

Burn to CD-ROM

If you have a CD burner attached to your computer, you can scan directly from your scanner onto a CD. This feature is available only on computers running Windows version XP or later.

Supported file types—since the files are going to be burned to a CD, all file formats in One Touch are available. Note that text file formats are only available if an OCR module or application is installed. Please refer to Te x t

Form at s on page 66 to see a list of text file formats that are available when OCR is installed.

Destination type—the Burn to CD-ROM destination is classified as a “Storage Link”. To make it available in the destination list, you must select Storage and CD-R/W on the Options tab in the One Touch Properties window.

1. Open the One Touch Properties window.

2. Select Burn to CD as the Destination Application.

3. Choose a File Format and a Scan Configuration.

4. Click OK.

5. Now start scanning using the scanning button you set to scan and burn to a CD. The scanner will start scanning. When finished the file will be saved to the Windows temporary location for CD

files. An information bubble will appear in the Windows notification area telling you that there are files waiting to be burned to CD.

Xerox DocuMate 4760 User’s Guide

6. When you are ready to burn the files to a CD, open the One Touch Properties window, select Burn to CD and then click the Properties button.

7. Make sure a blank CD is in the CD burner.

8. Click the Burn to CD button. The CD burner begins and your scanned documents are written to the CD. If other files are also waiting in this location, they will get written with the One Touch files on the CD.

Xerox DocuMate 4760

User’s Guide

Printer or Fax

The availability of printers and/or faxes in the One Touch destination list depends on whether or not you have printers or faxes configured in Windows. Please refer to the Windows documentation, or your printer or fax documentation, for setting up printers and faxes.

Supported file types—only the BMP file format is available, when scanning to a printer or fax, as only uncompressed data can be send to these devices.

Destination type—printers and Faxes are classified as “Device Links”. To make them available in the destination list, you must select Fax and Print on the Options tab in the One Touch Properties window.

The Properties button will be disabled in One Touch as there are no global properties for this type of destination.

Select a printer or fax device, in the Select destination list, then open a Scan Configuration to modify the settings for the device you selected.

Click on the Device Settings tab and use the options on this tab to select settings for the device.

Xerox DocuMate 4760 User’s Guide

• Fit to page, reduce image if necessary—if the scanned image is too big to be printed or faxed on a single page, the image will automatically be reduced to fit the page.

• Actual size, crop image if necessary—if the scanned image is too big to be printed or faxed on a single page, the image will automatically be cropped around its edges to fit on the page.

• Center image on page—the image will be printed in the center of the page instead of at the top left corner.

• Maintain aspect ratio—the aspect ratio is the length-to-width relationship of the image’s dimensions. Select this option so the image’s relative proportions remain constant.

• AutoRotate image for best fit—if the image is a Landscape format and the device is printing in the Portrait mode, or vice versa, rotate the image to fit on the page.

• Collate copies—if you are printing more than one page, collate the copies. Enter the number of copies in the Copies box.

• Advanced—click to see additional settings for the device. The dialog box that opens is specific to the device. For ex am pl e, i f th e devi ce i s your p ri nt er, th e dialog box is your printer’s setup settings.

Note: When scanning to multiple printers and/or faxes, select the specific device, you want to configure the Advanced features for, from the list before clicking on the Advanced... button.

Xerox DocuMate 4760

User’s Guide

PaperPort

In the One Touch Properties window, select PaperPort as the Destination Application for scanning.

Supported file types—all image file formats are available when scanning to PaperPort. The sPDF and nPDF text file for mats ar e only avai lab le when the Om niPage software or One Touch OmniPage module is installed. Please refer to

Te x t F o r m a t s on page 66.

Destination type—the PaperPort destination is classified as a “Document Management Link”. To make it available in the destination list, you must select Document management on the Options tab in the One Touch Properties window.

•Click the Properties button to open the One Touch Link Properties for PaperPort. From this window, you can change the default folder location and options.

On initial installation of One Touch, all scan configurations send the scanned document to the folder selected in this window. When you create new configurations, the default settings will also match what you have selected here. If you modify the options in an individual configuration, changing the options in this Link Properties window will no longer update to the configurations you modified.

•Click the New, Copy, or Edit button to open the Scan Configuration Properties window. Click on the PaperPort tab and use this window to set a configuration to scan to a different folder than the one selected in the Link Properties window.

Changing the options in this window only affects the configuration you are creating or modifying. All other configurations will retain their settings for this destination.

Xerox DocuMate 4760 User’s Guide

Select the destination folder for Scanned Documents

PaperPort One Touch Link Properties window

Scan Configuration Properties window PaperPort tab

These are the folders that are available in the One Touch PaperPort configuration windows. Press F1 on your keyboard to open the PaperPort help file for instructions on managing this folder list.

Click the folder icon to open or close the folder list in PaperPort.

The selected folder in this list is where the scanned file will be saved when PaperPort is open and the One Touch option Scan to the current PaperPort folder is selected.

•Select a folder to send the scanned document(s) to when scanning to the PaperPort destination. The list of folders in this window are from the PaperPort Folder Manager. Use the PaperPort Folder Manager to

add or delete folders, add other drives and network locations to this list. You cannot add new folders from the One Touch PaperPort configuration windows.

Scan to the current PaperPort folder

•Select this option to have the scanned document(s) sent to the currently selected folder in the PaperPort application.

The PaperPort software must be open, before scanning, for the scans to be sent to the selected folder in the PaperPort folder pane. If PaperPort is not open, this option is ignored and the scanned file is sent to the folder selected in either the One Touch Link Properties or Scan Configuration window for PaperPort.

Xerox DocuMate 4760

User’s Guide

SharePoint

The SharePoint destination link allows scans to be sent directly to a SharePoint site from One Touch. Please contact your SharePoint site administrator for the server information you need to configure this link. Alternatively, have your site administrator or IT professional configure this link for yo u. Se tup an d con figu ratio n of the Shar ePoint sites an d user accounts are outside the scope of this document.

Supported file types—all image and text file formats, except HTML, are available when scanning to the SharePoint site. Note that text file formats are only available if an OCR module or application is installed. Please refer to Te x t

Form at s on page 66 to see a list of text file formats that are available when OCR is installed.

Destination type—the SharePoint destination is classified as a “Storage Link”. To make it available in the destination list, you must select Storage and CD-R/W on the Options tab in the One Touch Properties window.

All configuration of the SharePoint server is done using the SharePoint settings tab in the Scan Configuration Properties window.

1. Select SharePoint as the destination application.

2. Open the Scan Configuration you want to modify for scanning to a SharePoint site, or create a new Scan Configuration.

Select an existing configuration in which you have already specified your SharePoint site information, and then click on the Copy button to create a new configuration using the settings of the current configuration.

3. Click on the SharePoint tab and fill in the fields with the information for your SharePoint site.

• Protocol—select which protocol you want to use to transfer the scan to the server.

• SharePoint URL—input the full URL path of the SharePoint site without the http(s):// designation and actual page. This path should include everything except the destination folder.

For example, if the web browser URL displays http://sharepoint.site.com/IT/common/shared documents/ default.aspx, then you would configure the SharePoint server path as follows:

•Select HTTP as the protocol

•The SharePoint URL would be sharepoint.site.com/IT/common

•The Destination folder would be shared documents

Xerox DocuMate 4760 User’s Guide

• User account—input the user account name that has privileges to save files to the specified SharePoint site and Destination folder.

• Password—input the password for the user account name you specified.

• Use Windows Integrated Authentication—select this option to use the Windows current user’s login name and password to access the SharePoint site.

• Destination folder—this is the folder where the final scanned document(s) are transferred to when scanning is complete.

• Filename format—select a file naming format, for the scanned document, from the list. Select “Use custom file naming” to use the file you set on the Options tab in the One Touch Properties window.

Count—this field will enable when the selected Filename format c ontains {s eq} . Input the number you want the sequential count to start from.

Filename prefix—this field will enable when the selected Filename format contains {prefix}. Input the name or value you want as the prefix in the final file name.

Because the destination configuration is done through the scan configuration, you can set each configuration to scan to different SharePoint site, folder, filename format, using different user credentials, and so on. This is the same process used as when scanning to different folders using the Transfer to Storage destination, as described in detail starting on page 72.

Click on the Help button, in this configuration tab, to launch the SharePoint help file. The help file contains detailed information about the settings in this window and technical implementation notes.

SharePoint Link Log Viewer

The One Touch Link Log Viewer opens automatically when scanning is complete. Click on the menu arrow next to View logs for and select SharePoint Link from the list to display the transfer history for the SharePoint link only.

Double-click on any of the line items to open the selected log file in the Log File Detail View. If you open a failed transfer, the log file may contain the information you need to determine why the transfer failed. After you address the failure indicated in this log file, you can click the Retry button to resend the document to the server.

Xerox DocuMate 4760

User’s Guide

Click on the Properties button to open the Log Viewer from the SharePoint One Touch Link Properties window. There are no global configuration properties for the Shar ePoi nt de sti natio n app licat ion, all configuration is done using the Scan Configuration Properties window as described in the previous section.

Xerox DocuMate 4760 User’s Guide

FTP Transfer

The FTP Transfer destination link allows scans to be sent directly to an FTP server from One Touch. Please contact your server administrator for the server information you need to configure this link. Alternatively, have your site administrator or IT professional configure this link for you. Setup and configuration of the FTP server and user accounts are outside the scope of this document.

Supported file types—all image and text file formats, except HTML, are available when scanning to an FTP server. Note that text file formats are only available if an OCR module or application is installed. Please refer to Te x t

Form at s on page 66 to see a list of text file formats that are available when OCR is installed.

Destination type—the FTP Transfer destination is classified as a “Storage Link”. To make it available in the destination list, you must select Storage and CD-R/W on the Options tab in the One Touch Properties window.

All configuration of the FTP server is done using the FTP Transfer tab in the Scan Configuration Properties window.

1. Select FTP Transfer as the destination application.

2. Open the Scan Configuration you want to modify for scanning to an FTP server, or create a new Scan Configuration.

Select an existing configuration in which you have already specified your FTP server information, and then click on the Copy button to create a new configuration using the settings of the current configuration.

3. Click on the FTP Transfer tab and fill in the fields with the information for you FTP server.

• Protocol—select which protocol you want to use to transfer the scan to the server.

• Host—input the internet or intranet path of the server where you want to send the scanned documents. you do not need ftp:// at the beginning. For example, ftp.company.com

• Port—input which port to use with the selected protocol. Changing the selected protocol will reset this value to the appropriate default for the protocol.

• User account—input the user account name that has privileges to save files to the specified host destination fol der.

• Password—input the password for the user account name you specified.

Xerox DocuMate 4760

User’s Guide

• Destination folder—input the folder path, on the remote FTP server, where you want the scanned documents sent. This path would appear in your web browser after the host name. For example, marketing/shared documents/data sheets.

Because the destination configuration is done through the scan configuration, you can set each configuration to scan to a different FTP server, destination folder, and so on. This is the same process used as when scanning to different folders using the Transfer to Storage destination, as described in detail starting on page 72.

FTP Link Log Viewer

The One Touch Link Log Viewer opens automatically when scanning is complete. Click on the menu arrow next to View logs for and select FTP Link Agent from the list to display the transfer history for the FTP link only.

Click on the Properties button to open the Log Viewer from the FTP One Touch Link Properties window. There are no global configuration properties for the FTP destination application, all configuration is done using the Scan Configuration Properties window as described in the previous section.

Xerox DocuMate 4760 User’s Guide

SMTP

The SMTP destination link allows scans to be sent directly to an email address, through an SMTP server, from One Touch. Please contact your server administrator for the server information you need to configure this link. Alternatively, have your site administrator or IT professional configure this link for you. Configuration of the SMTP server settings and user accounts is outside the scope of this document.

Supported file types—all image and text file formats, except HTML, are available when scanning to an SMTP server. Note that text file formats are only available if an OCR module or application is installed. Please refer to Tex t

Form at s on page 66 to see a list of text file formats that are available when OCR is installed.

Destination type—the SMTP destination is classified as a “Email Link”. To make it available in the destination list, you must select Email on the Options tab in the One Touch Properties window.

All configuration of the SMTP server is done using the SMTP Settings tab in the Scan Configuration Properties window.

1. Open the Scan Configuration you want to modify for scanning to an SMTP server, or create a new Scan Configuration.

Select an existing configuration in which you have already specified your SMTP server information, and then click on the Copy button to create a new configuration using the settings of the current configuration.

2. Click on the SMTP Settings tab and fill in the fields with the information for you SMTP server.

• Protocol—select which protocol you want to use to transfer the scan to the server.

• Host—input the internet or intranet path of the server where you want to send the scanned documents. For example, smtp.company.com

• Port—input which port to use with the selected protocol. Changing the selected protocol will reset this value to the appropriate default for the protocol.

• User account—input the user account name that has privileges to send email messages through the SMTP server.

• Password—input the password for the user account name you specified.

• Use Windows Integrated Authentication—Select this option to use the Windows current user’s login name and password to send the message through the SMTP server.

Xerox DocuMate 4760

User’s Guide

• Email to—input a valid recipient email address to receive the scanned document. If it is not a valid address the transfer will fail.

• Email from—input the email address you want to appear in the email message “from” field.

• Limit (MB)—input the maximum message size limit set on the SMTP server. This number should be lower than or match the SMTP server maximum. Yo u c a n n ot s e nd m e s sa g e s th a t ex ceed the maximum message size of the SMTP server.

Because the destination configuration is done through the scan configuration, you can set each configuration to scan to a different SMTP server, send messages to different email addresses, using different user credentials, and so on. This is the same process used as when scanning to different folders using the Transfer to Storage destination, as described in detail starting on page 72.

Click on the Help button, in this configuration tab, to launch the SMTP help file. The help file contains detailed information about the settings in this window and technical implementation notes.

SMTP Link Log Viewer

The One Touch Link Log Viewer opens automatically when scanning is complete. Click on the menu arrow next to View logs for and select SMTP Link Agent from the list to display the transfer history for the SMTP link only.

Xerox DocuMate 4760 User’s Guide

Click on the Properties button to open the Log Viewer from the SMTP One Touch Link Properties window. There are no global configuration properties for the SMTP destination application, all configuration is done using the Scan Configuration Properties window as described in the previous section.

Xerox DocuMate 4760

User’s Guide

Email Applications

Scanning to an email application, such as Outlook or Windows Mail, attaches the scanned image to a blank email message. You then fill in the recipient email address(es) and send the message. You need to have configured an email application before you can scan to it using One Touch. If you do not have your email application set up prior to scanning, the default Windows email application will open and ask you to configure your user information. Please contact your IT department, server administrator, or other group that provided you the email information for setup instructions. Configuring an email application and user account is outside the scope of this document.

Supported file types—all image and text file formats, except HTML, are available when scanning to an email application. Note that text file formats are only available if an OCR module or application is installed. Please refer to

Te x t F o r m a t s on page 66 to see a list of text file formats that are available when OCR is installed.

Destination types—the email destination is classified as an “Email Link”. To make it available in the destination list, you must select Email on the Options tab in the One Touch Properties window.

The email application in the One Touch destination list is the default email program selected in the Internet Options of Internet Explorer. Click on the email application that is in the list, then click on the Properties button to launch the Email One Touch Link Properties window to change the email application.

Xerox DocuMate 4760 User’s Guide

Email Properties

Use the Email Link Properties window to select a folder for st ori ng a per man ent copy of th e sca nne d image, se tting the color document options, and changing the email application that is in the One Touch destination list.

• Folder for storing attach ments—click the Browse button to change the location using the Windows file browser, or type a location directly in the field.

• Internet options—if you need to change your email client, or any other internet options, click the Internet Options button.

The Windows Internet Options Control Panel opens. Click the Programs tab and choose a new email client from the program list. These are the standard Windows Internet Explorer options. Please see your Windows documentation for more information about the Internet Explorer options.

Color document handling—click in the Color document handling settings boxes for the options you want.

• Convert Bitmaps using Screen Resolution—use this option to ensure that an image will fit on the computer’s screen.

• Convert Bitmaps to JPEG—JPEG files can be compressed to produce smaller files sizes and, therefore, shorter transmission times when you email the file or upload it to the internet.

If you changed the email application Internet Explorer, and it does not immediately appear in the Select destination list, click the Refresh button to update the destination list in One Touch.

Xerox DocuMate 4760

User’s Guide

Text Editors

Scanning to a text editing application, such as Microsoft’s Notepad or WordPad, automatically converts the text in the scanned image into editable text using Optical Character Recognition (OCR).

Supported file types—the text file formats and destination applications are only available if an OCR module or application is installed. Please refer to Te x t Fo r m a t s on page 66 to see a list of text file formats that are available when OCR is installed. Additionally, the available file form ats ar e appli cat ion spec ific, fo r e xampl e M icr osoft ’s WordPad can open *.txt and *.rtf files, so only those two file types will be available when scanning to WordPad.

Note that when there is no OCR module or application installed, the format panel will not contain a text icon and there will be no text editor applications in the Select destination list.

Destination type—this destination type is classified as a “Text Based Link”. To make it available in the destination list, you must select Text editing applications on the Options tab in the One Touch Properties window. If the text editing application you are using does not appear in the Select destination list, you can add the application using the Text Documents One Touch Link Properties window.

1. In the One Touch Properties window select one of the default text editors such as WordPad.

2. Click on the Properties button to open the Text Document One Touch Link Properties window. From this window you can select what One Touch should do when text is not detected or recognition fails, and add other applications to One Touch.

Note that if you recently installed an application, click the Refresh button to see if One Touch will automatically configure the link before you try adding it manually.

Xerox DocuMate 4760 User’s Guide

Text Documents Properties

These properties apply to Microsoft Word, Microsoft Excel®, and any other text editing applications indicated by their icons in the list.

• Add application—click this button to open the Add Text Based Link dialogue so you can add other text editing applications to One Touch.

• Delete application—select an application in the list then click this button to remove the application from the One Touch destination list. You can only delete an application that you have added, the destinations that are linked when One Touch is installed cannot be deleted.

General OCR settings—click in the OCR settings boxes for the options you want. The options will apply to all the applications in the group.

• Always send a file, even when no text was found—the scanned file is sent to the application even if the image does not appear to contain text. This could occur if you scanned a photograph with a scanner button set for text applications.

• Show message if text recognition failed—a message will open on the screen if the OCR reader does not detect text in the image.

Xerox DocuMate 4760

User’s Guide

Adding Text Editor Applications to One Touch

1. To add another application to the list, click the Add application button. The Add Text Based Link dialog box opens.

2. Click Browse to find the application you want to add to the list. When you select the application using the Browse button, Steps 1 and 2 on the dialog box are automatically

filled in, and the application icon appears in Step 3.

3. Select the icon in Step 3 of the dialog box. That is the icon that will appear in the One Touch Destination List.

4. In Step 4 of the dialog box, select the file formats that the application will accept. HTML Formatted file—select this option when you want to scan to your web browser for posting HTML pages

to a website. Even though word processing applications, such as Notepad and Word can open *.htm files, you cannot scan as *.htm to word processing text editors. Scanning as HTML creates a directory with the *.htm file and linked images for website use. Word processing applications cannot accept a directory structure for image and text transfer.

Rich Text Format—select this option if your application can open *.rtf files, which are plain text documents that contain formatting. Microsoft’s WordPad application is a compatible application for the *.rtf file for matio n.

Standard ASCII text file—select this option if you want to have plain text, without formatting, sent to your text editing application. Most text editing applications will accept plain text (*.txt) files.

Adobe PDF format—select this option if you are adding a PDF viewing or editing application to the list. This PDF format is an image format only, it will not recognize the document using OCR, and you will not be able to search or edit the text in the final file. The application you are adding must be able to open *.pdf files.

Adobe searchable PDF—this is the PDF image format with a hidden searchable text layer. You will not be able to edit the text the file. The application you are adding must be able to open *.pdf files.

The options you select at Step 4 determine the page format icons in the One Touch Properties window for that group of applications. Refer to the documentation you received with the application to see which text formats the application accepts.

5. When you are done making changes in this window, click the Add button to accept the changes and close the window.

6. Click OK on the Link Properties window.

7. Click Refresh on the One Touch Properties window and the new application should now be available.

Xerox DocuMate 4760 User’s Guide

Creating an HTML Web Page from Your Scanned Documents

Choose HTML

1. Open the One Touch Properties window.

2. Select your web browser as the Destination Application and choose HTML as the Format.

3. Choose a Scan Configuration that has the settings for how you want any images, on the pages you are scanning, to be displayed. For example, choose a color or grayscale scan configuration if your documents contain images that you want posted to your website with the HTML text.

4. Click OK.

5. Start scanning using the button you selected for scanning with the HTML format. When scanning is finished, the document is first converted to editable text using the OCR process, then

converted into an HTML format. Any images detected by the OCR engine are isolated and linked as *.gif files.

6. Microsoft Internet Explorer, or other web browser you scanned to, then opens showing your converted page. The application’s URL field shows the location where OneTouch saved the HTML files for you to locate and post to your website.

Xerox DocuMate 4760

User’s Guide

Still Image Client

If you want to specify an application to use for scanning at the start of the process, you can use event forwarding.

Supported file formats—you cannot select a file format when scanning to the Still Image Client as the destination application is not selected until after you start scanning.

Destination type—the Still Image Client destination is classified as an “Event Forward Link”. To make it available in the destination list, you must select STI event forwarding on the Options tab in the One Touch Properties Window.

Please note that if you are have turned on the option to scan to multiple destinations, the Still Image Client destination cannot be selected. Please click on the Options tab and deselect Enable scanning to multiple destinations to proceed with scanning to this destination.

1. Open the One Touch Properties window, and select Still Image Client as the Destination Application.

2. Choose a Scan Configuration and click OK.

3. Start scanning using the button you selected for event forwarding.

Xerox DocuMate 4760 User’s Guide

4. A dialog box opens for you to select the application to use for scanning. Select the application you want in the box and click OK.

Now the application you selected opens and you can continue scanning using that application’s interface.

Te ch n ica l N ot e

If the scanner scans and sends an image to an application without prompting you to choose an application to run, the control panel options for your scanner’s events are automatically set to run a specific program when an event is initiated. Follow these steps to change the events setting for your scanner.

1. Open the Windows Control Panel.

2. Open the Scanners and Cameras group. When the Control Panel is in Classic View, the Scanners and Cameras group will be in the list. When the Control Panel is in Category View (Windows XP), or Home View (Windows Vista and 7), the Scanners

and Cameras group will be located under either of the following main groups:

• Windows XP—Printers and Other Hardware

• Windows Vista and 7—Hardware and Sound

3. Open the scanner properties window.

• Windows XP—click on the scanner icon and then click on the View device properties link on the left side

of the window.

• Windows Vista and 7—click on the scanner icon and then click on the Properties button.

4. Click on the Events tab.

5. Select the option Prompt for which program to run to be prompted when scanning to Still Image Client. Alternatively, select Start this program then choose an application from the list to have that application start each time you scan to Still Image Client.

6. Click on OK when you are done making changes to this window.

7. Now when you scan with Event Forwarding you will either be prompted to choose an application, or the default application you selected will open.

Xerox DocuMate 4760

User’s Guide

Image Editors

Image editors include Microsoft Paint and other drawing and graphics applications.

Supported file formats—the available file formats are based on the selected destination application. For example, you can scan to Microsoft’s Paint application as a BMP, GIF, PNG, or JPG, but not as TIFF or JP2 as Paint cannot open those two file types. Please refer to Image Formats on page 63 for more information on which image formats One Touch supports.

Destination type—this destination type is classified as a “Simple Image Link”. To make it available in the destination list, you must select Image editors (i.e. Paint) on the Options tab in the OneTouch Properties window. If the image editing application you are using does not appear in the Select destination list, you can add the application using the Image Documents One Touch Link Properties window.

1. In the One Touch Properties window select one of the default image editors such as Microsoft Paint.

2. Click on the Properties button to open the Image Documents One Touch Link Properties window. From this window you can add an application and set additional document handling options. Note that if you recently installed an application, click the Refresh button to see if One Touch will

automatically configure the link before you try adding it manually.

Xerox DocuMate 4760 User’s Guide

Image Documents Properties

These properties apply to Microsoft Paint and other image processing applications.

• Add application—click this button to open the Add Simple Image Link dialogue so you can add other image editing applications to One Touch.

Color document handling—click in the Color document handling settings boxes for the options you want. These options will apply to all the applications in the group.

• Convert Bitmaps using Screen Resolution—use this option to ensure that an image will fit on the computer’s screen. When a computer screen is set to a lower resolution, bitmap images with a higher resolution may be too big to fit on the screen. Converting the bitmap image to match the screen resolution ensures that the image fits on the screen.

• Convert Bitmaps to JPEG—JPEG files can be compressed to produce smaller file sizes and, therefore, shorter transmission times. Use this option to provide that compression capability to image files.

Xerox DocuMate 4760

User’s Guide

Adding Image Editor Applications to One Touch

1. To add another application to the list, click the Add application button. The Add Simple Image Link dialog box opens.

2. Click Browse to find the application you want to add to the list. When you select the application using the Browse button, Steps 1 and 2 on the dialog box are automatically

filled in, and the application icon appears in Step 3.

3. Select the icon in Step 3 of the dialog box. That is the icon that will appear in the One Touch Destination List.

4. In Step 4 of the dialog box, select the file formats that the application will accept. Windows Bitmap File—select this option if you want to scan to your image application as a BMP file. This

for mat crea tes t he lar gest file si ze as th e fi nal scan ned im age has not been compres sed. Ta gg e d I n fo r ma t io n Fi le —select this option if your application supports TIF image files. The TIF file format

supports multiple pages in a single file. JPEG Compressed File—this is a compressed image format that is often used when sharing photographs and

scanned images electronically as the file size is smaller than a BMP. Compugraphics File—select this option if your application supports GIF images. This file format is often used

for icon s and sm all imag es on a web pag e. The options you select at Step 4 determine the page format icons in the One Touch Properties window for that

group of applications. Refer to the documentation you received with the application to see which text formats the application accepts.

5. When you are done making changes in this window, click the Add button to accept the changes and close the window.

6. Click OK on the Link Properties window.

7. Click Refresh on the One Touch Properties window and the new application should now be available.

100

Xerox DocuMate 4760 User’s Guide
