Phaser® 4500/4510

Laser Printers

Service Manual

701P45760

Service Manual

701P45760

Phaser 4500/4510

Laser Printers

arning

The following servicing instructions are for use by qualified service personnel only. To avoid personal injury, do not perform any servicing other than that contained in the operating instructions, unless you are qualified to do so.

Prepared By: Xerox Corporation XOG Worldwide Product Training and Information 26600 SW Parkway Wilsonville, OR 97070

Copyright © 2007 Xerox Corporation. All Rights Reserved. Unpublished rights reserved under the copyright laws of the United States. Contents of this publication may not be reproduced in any form without permission of Xerox Corporation.

Copyright protection claimed includes all forms of matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as styles, templates, icons, screen displays, looks, etc.

Xerox technical training materials and service manuals are intended for use by authorized Xerox service technicians and service partners only and are not for resale. These materials may not be distributed, copied or otherwise reproduced without prior written consent from Xerox Corporation.

XEROX PhaserSMART

Acrobat Adobe Garamond

, The Document Company®, the digital X®, CentreWare®, infoSMART®, Made For Each Other®, PagePack™, Phaser®,

, and Walk-Up™ are trademarks of Xerox Corporation in the United States and/or other countries.

, Adobe® Reader®, Adobe Type Manager®, ATM™, Illustrator®, PageMaker®, Photoshop®, PostScript®, Adobe Brilliant® Screens,

, Adobe Jenson™, Birch®, Carta®, IntelliSelect®, Mythos®, Quake®, and Tekton® are trademarks of Adobe Systems

Incorporated in the United States and/or other countries.

, AppleTalk®, Bonjour®, EtherTalk®, LaserWriter®, LocalTalk®, Macintosh®, Mac OS®, TrueType®, Apple Chancery®, Chicago®,

Apple

Geneva

HP-GL

IBM

Windows

Novell

, Monaco®, New York®, and QuickDraw® are trademarks of Apple Computer, Inc. in the United States and/or other countries.

, HP-UX®, and PCL®are trademarks of Hewlett-Packard Corporation in the United States and/or other countries.

and AIX® are trademarks of International Business Machines Corporation in the United States and/or other countries.

, Vista™, Windows Server™, and Wingdings® are trademarks of Microsoft Corporation in the United States and/or other countries.

, NetWare®, NDPS®, NDS®, Novell Directory Services®, IPX™, and Novell Distributed Print Services™are trademarks of Novell,

Incorporated in the United States and/or other countries.

, Sun Microsystems™, and Solaris™ are trademarks of Sun Microsystems, Incorporated in the United States and/or other countries.

Sun

SWOP

UNIX

As an E guidelines for energy efficiency. The E

is a trademark of SWOP, Inc.

is a trademark in the United States and other countries, licensed exclusively through X/Open Company Limited.

NERGY STAR

partner, Xerox Corporation has determined that this product, when equipped with a duplex unit, meets the ENERGY STAR

NERGY STAR name and logo are registered U.S. marks.

PA N TO N E PA N TO N E

Colors generated may not match PANTONE-identified standards. Consult current PANTONE Publications for accurate color.

and other Pantone, Inc. trademarks are the property of Pantone, Inc. © Pantone, Inc., 2000. This product uses code for SHA-1 written by John Halleck, which is being used with his permission. This product includes an implementation of LZW licensed under U.S. Patent 4,558,302. Other marks are trademarks or registered trademarks of the companies with which they are associated.

ii Phaser 4500/4510 Service Manual

Contents

Service Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Product Terms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xii

Power Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

Electrostatic Discharge (ESD) Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv

Service Safety Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Regulatory Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

1 General Information

Printer Introduction and Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Technical Support Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Printer Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Parts of the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

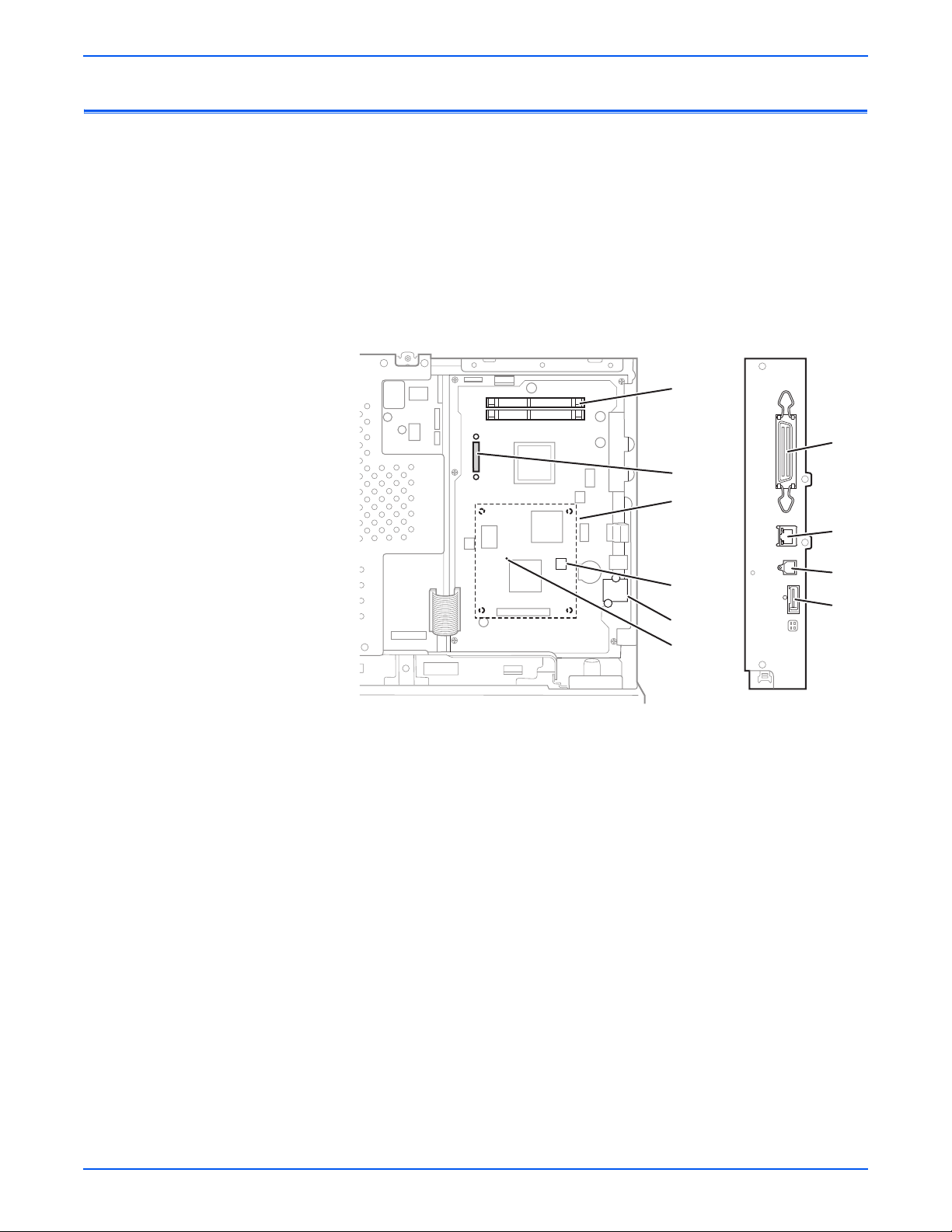

Image Processor Board (Phaser 4500) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Image Processor Board (Phaser 4510) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Consumables and Routine Maintenance Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Supply Life Counters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Printer Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Physical Dimensions and Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Functional Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13

Media and Tray Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14

Memory Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15

Contents

2 Theory of Operation

Overview of the Phaser 4500/4510 Laser Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

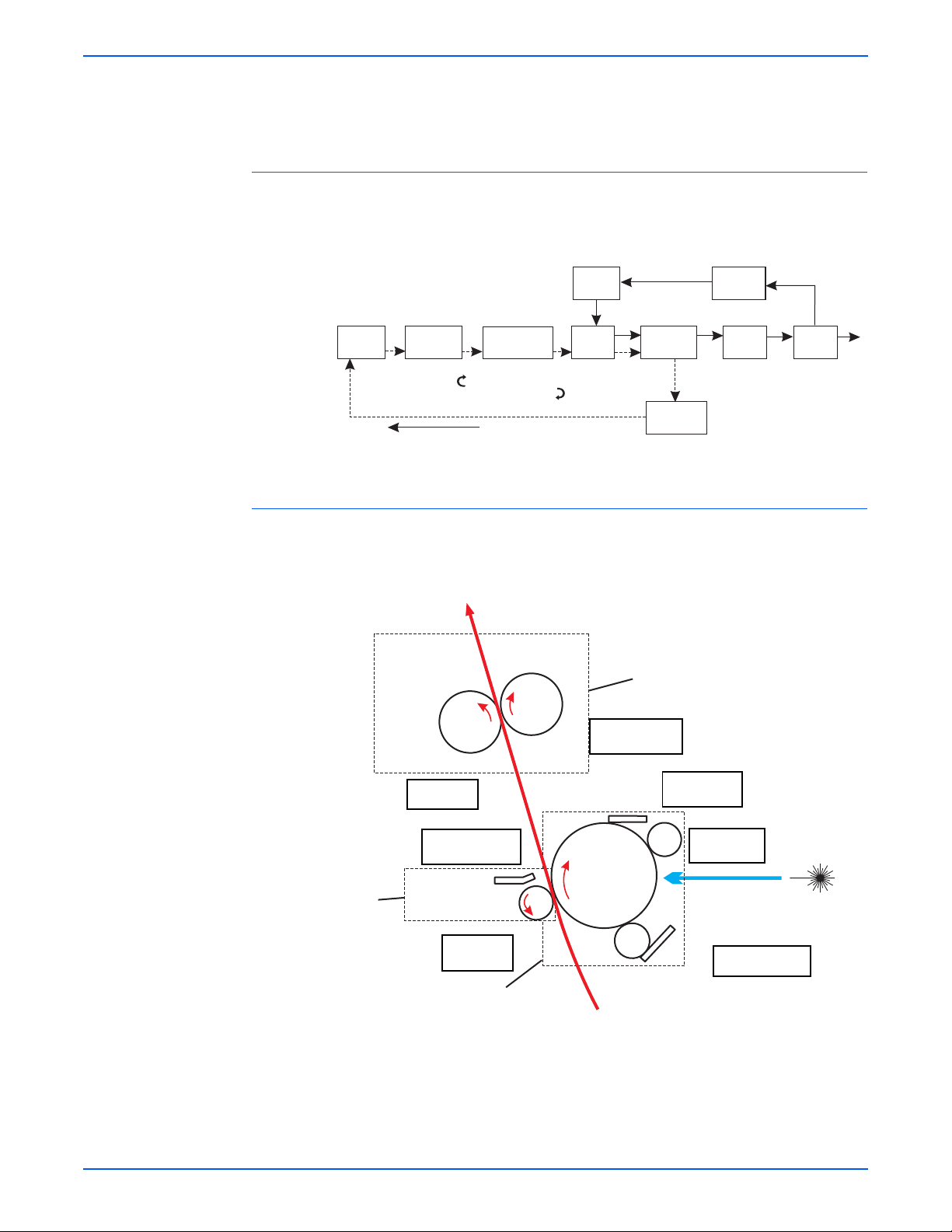

Summary of the Printing Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

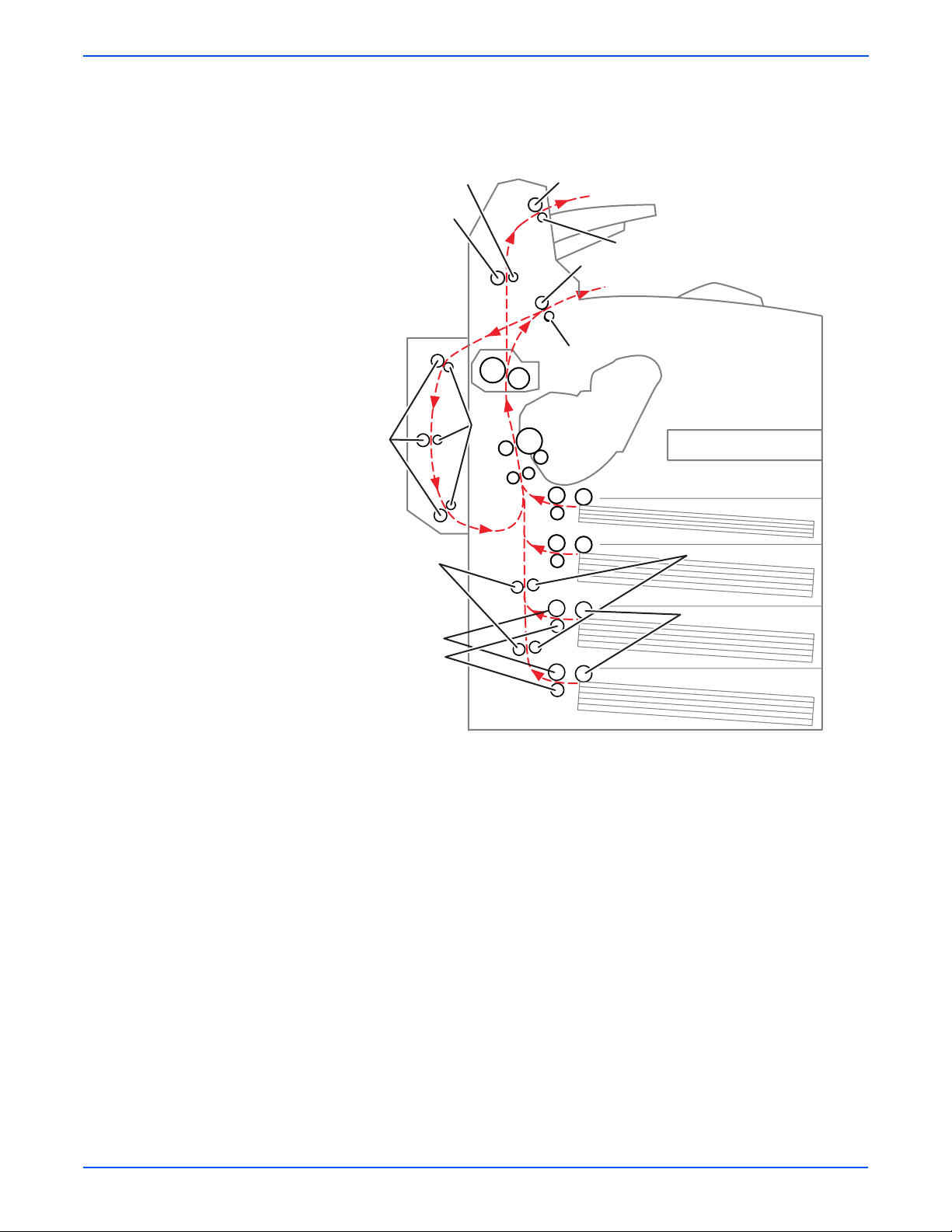

Paper Path of the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Layout of Paper Transport Path. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Major Assemblies and Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Paper Tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Paper Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Control of Paper Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Xerographics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Fuser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

Fuser Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

Paper Exit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27

Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-29

Printer Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33

Duplex Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33

Stacker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-36

Optional 550-Sheet Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-39

Phaser 4500/4510 Laser Printer Service Manual iii

Contents

3 Error Messages and Codes

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Servicing Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Using the Troubleshooting Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

General Notes on Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Accessing Fault Histories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Entry Level Fault Isolation Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Service Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Service Diagnostics Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Service Diagnostic Control Panel Button Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Using Service Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

System Start-Up and POST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

Power On Self Test (POST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

POST Faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

LED Blink Patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

POST Diagnostic Test Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Operating System and Application Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Macintosh Printing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Windows Printing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Network Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20

Troubleshooting Procedures for Error Messages and Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

Main Motor Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28

Laser Unit Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29

Fuser Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30

Fan Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31

Engine Logic Board NVRAM Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33

Jam At Tray N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34

Jam at Tray N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37

Jam At Top; Open Top Cover To Clear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-40

Jam At Exit; Open Rear/Top Cover To Clear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43

Jam At Rear; Open Rear Cover To Clear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45

Jam At Stacker; Open Rear Stacker Cover To Clear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47

Jam At Rear; Open Duplex And Rear Cover To Clear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49

Jam At Duplex; Open Duplex To Clear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-51

Duplex Unit Error. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-52

Stacker Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-53

Tray 3 Failure/Tray 3 or 4 Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-54

Paper Size Jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-56

Close Top Cover/Close Rear Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-58

Close Duplex Unit Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-59

Close Stacker Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-60

Install or Reseat Print Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-61

Replace Print Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-62

No Paper in Tray 1/No Paper in Tray 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-63

Tray 2 Paper Is Low. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64

No Paper in Tray 3/No Paper in Tray 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-65

Tray 3 Paper Is Low/Tray 4 Paper Is Low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-66

Insert Tray 1/Insert Tray 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-67

Insert Tray 3/Insert Tray 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-68

Stacker Is Full, Unload Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-69

Standard Output Tray Is Full, Unload Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replace Maintenance Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-71

Inoperable Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-72

No Recognition of Duplex Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-73

No Recognition of Stacker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-75

. . . . . . 3-70

iv Phaser 4500/4510 Service Manual

4 General Troubleshooting

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Control Panel Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

LCD/LED Display Error/Inoperable Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

DC Power Supply Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

LVPS (Low Voltage Power Supply) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

DC-DC Converter (P4500 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

AC Power Supply Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

No AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Print Engine Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Main Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Laser Unit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Fuser Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Registration Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

No Paper Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

Low Paper Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

Toner Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

Output Tray Full Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

24 V Interlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

5 V Interlock, Interlock Switch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Rear Cover Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

Interlock Switch Assembly (P4500 only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

Exit Motor PWBA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

Exit Motor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

Registration Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

Feed Clutches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30

Left Tray Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31

HVPS/Engine Logic Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32

Image Processor Isolation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33

Image Processor Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34

RAM DIMM Fault Isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35

Electrical Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37

Optional 550-Sheet Feeder PWBA (Tray 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39

Optional 550-Sheet Feeder PWBA (Tray 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40

Optional 550-Sheet Feeder No Paper Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41

Optional 550-Sheet Feeder Low Paper Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43

Optional Feeder Paper Size Switch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45

Optional 550-Sheet Feeder Feed Clutch Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46

Optional 550-Sheet Feeder Turn Roller Clutch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-48

Duplex Unit PWBA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49

Duplex Unit Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-50

Duplex Unit Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51

Duplex Unit Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53

Stacker PWBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-54

Stacker Motor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55

Offset Motor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-56

Gate Solenoid Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-57

Stacker Rear Cover Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58

Stacker Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-59

Stacker Full Sensor (On Stacker PWBA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60

Offset Sensor (On Stacker PWBA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61

Contents

Phaser 4500/4510 Laser Printer Service Manual v

Contents

5 Print-Quality Troubleshooting

Print-Quality Problems Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Analyzing Test Prints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Deletions (Line, Band, Spots) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Fusing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Resolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Registration (Side-to-Side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Registration (Lead Edge-to-Trail Edge) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

Skips/Smears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Spots. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

Skew . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

Other Print Defects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

Print-Quality Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15

Light (Undertoned) Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15

Blank Print (No print) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17

Black Prints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19

Vertical Deletions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20

Horizontal Deletions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-22

Vertical Streaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25

Horizontal Streaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-27

Spots. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-29

Unfused Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-31

Damaged Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-34

Resolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-35

Spot Deletions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-36

Repeating Defects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-38

Residual Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-39

Background. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-41

Uneven Density . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-42

Skewed Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-43

Registration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-46

Skips and Smears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-48

6 Adjustments and Calibrations

Service Test Prints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Test Prints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Engine Test Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Adjusting Laser Power (Image Density) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Checking Registration (Margins). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Adjusting Simplex Registration (Margins). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Adjusting Duplex Registration (Margins). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Adjusting Fuser Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Resetting Fuser Life. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Resetting Printer Values to the Factory Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

Resetting Connection Setup Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

Resetting Paper Handling Setup Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

Resetting PostScript Setup Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

Resetting PCL Setup Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

Resetting General Setup Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

Resetting Control Panel Setup Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Resetting Printer Controls Setup Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Resetting File Security Setup Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Resetting All Printer Default Settings (PostScript NVRAM). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

vi Phaser 4500/4510 Service Manual

7 Cleaning and Maintenance

Service Preventive Maintenance Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Recommended Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

8 FRU Disassembly

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Standard Orientation of the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

General Notes on Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

Notations in the Disassembly Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

Print Engine: Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

Paper Exit Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

Paper Exit Rear Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

Rear Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

Right Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

Left Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8

Top Cover Assembly, Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

Front Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11

Interlock Switch Assembly (P4500 only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12

Print Engine: 150- or 550-Sheet Paper Cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13

Retard Roller and Holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13

Print Engine: 150-Sheet Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

150-Sheet Feeder Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

Nudger Roller, Feed Roller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16

Nudger One-way Clutch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17

Nudger Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18

Feed Clutch, Registration Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-19

Registration Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-20

No Paper Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21

Toner Sensor Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-23

Print Engine: 550-Sheet Paper Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24

550-Sheet Feeder Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24

Nudger Roller, Feed Roller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-25

Nudger One-way Clutch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-26

Nudger Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-27

Feed Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-29

No Paper Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-30

Right Tray Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-31

Left Tray Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-33

Low Paper Sensor/Actuator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-34

Print Engine: Xerographics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35

Vacuum Duct (P4510). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35

Front Duct, Sub Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-36

Laser Unit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-38

Laser Unit Shield Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-39

Print Cartridge Left Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-40

Fuser Harness Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42

Link Lever, Gear 3 Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-43

Fuser Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-44

Transfer Roller Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-45

Transfer Chute. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-46

Print Cartridge Right Guide Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-47

Duplex Unit Opening Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-48

Contents

Phaser 4500/4510 Laser Printer Service Manual vii

Contents

Print Engine: Paper Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-49

Paper Exit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-49

Upper Exit Chute, Lower Exit Chute. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-50

Exit Motor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-51

Output Tray Full Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-52

Stack Full Actuator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-53

Print Engine: Frame and Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-54

Motor Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-54

Main Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-55

Gear Assembly Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-56

Gear Assembly Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-58

Print Engine: Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-60

LVPS Shield Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-60

Exit Motor PWBA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-61

Low Voltage Power Supply (LVPS) (P4500) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-62

DC-DC Converter (P4500). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-63

Low Voltage Power Supply (LVPS) (P4510) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-64

Power Switch, AC Power Harness Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-65

Rear Cover Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-67

Main Fan (P4500) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-68

Main Fan (P4510) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-69

Image Processor Shield Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-70

I/P Shield Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-71

HVPS Shield Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-72

HVPS/Engine Logic Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-73

Image Processor (I/P) Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-75

Options: 550-Sheet Paper Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-78

550-Sheet Paper Feeder Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-78

Right Cover Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-79

Left Cover Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-81

Option Paper Size Switch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-82

Optional Feeder Drive Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-83

550-Sheet Feeder PWBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-85

550-Sheet Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-86

Nudger Roller, Feed Roller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-87

Nudger One-way Clutch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-88

Nudger Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-89

Feed Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-91

Turn Roller Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-92

Retard Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-93

Options: Duplex Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-95

Duplex Unit Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-95

Left Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-96

Right Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-97

Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-98

Upper Assembly Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-99

Duplex Unit Lower Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-100

Duplex Unit PWBA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-102

Duplex Unit Fan (P4500). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-104

Duplex Unit Fan (P4510). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-105

Duplex Unit Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Duplex Unit Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-107

Duplex Unit Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-109

Duplex Unit Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-110

. . . . . . . . . . . . 8-106

viii Phaser 4500/4510 Service Manual

Options: Stacker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-111

Stacker Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-111

Stacker Rear Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-112

Stacker Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-113

Stacker Front Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-115

Stacker Tray Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-116

Stack Full Actuator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-117

Stacker PWBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-119

Offset Motor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-120

Gate Solenoid Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-121

Stacker Sensor and Actuator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-122

Stacker Rear Cover Interlock Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-123

Lower Stacker Roller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-124

Upper Stacker Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-126

Stacker Motor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-128

9 Parts Lists

Serial Number Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2

Using the Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

Print Engine Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

Parts List 1.1 Covers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

Parts List 2.1 150-Sheet Paper Cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6

Parts List 4.1 550-Sheet Paper Cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9

Parts List 5.1 150-Sheet Paper Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12

Parts List 7.1 550-Sheet Paper Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-15

Parts List 8.1 Xerographics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-18

Parts List 10.1 Paper Exit (1/2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-21

Parts List 10.2 Paper Exit (2/2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-23

Parts List 11.1 Frame and Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-25

Parts List 12.1 Electrical (P4500) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-27

Parts List 12.1 Electrical (P4510) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-28

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-31

Parts List 20.1 550-Sheet Paper Feeder (1/2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-31

Parts List 20.2 550-Sheet Paper Feeder (2/2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-34

Parts List 20.3 Optional 550-Sheet Paper Cassette. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-36

Parts List 21.1 Duplex Unit (P4500) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-39

Parts List 21.1 Duplex Unit (P4510) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-40

Parts List 23.1 Stacker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-43

Xerox Supplies and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-46

Contents

10 Wiring Diagrams

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2

Print Engine Plug/Jack Locator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

550-Sheet Feeder Plug/Jack Locator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12

Duplex Unit Plug/Jack Locator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-14

Stacker Plug/Jack Locator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-16

Notations Used in Wiring Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-17

Phaser 4500/4510 Laser Printer Service Manual ix

Contents

Print Engine Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-19

P4500: General Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-19

P4510: General Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-20

P4500: 24 V Interlock, Rear Cover Switch, Main Motor, Sub Fan, Exit Motor Assembly. . . . . . . . . . . . . . 10-21

P4510: 24 V Interlock, Rear Cover Switch, Main Motor, Sub Fan, Exit Motor Assembly. . . . . . . . . . . . . . 10-23

Fuser Assembly, Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-25

Print Cartridge, Transfer Roller Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-26

150-Sheet Feeder, 550-Sheet Feeder, Main Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-27

Laser Unit, 5 V Interlock, Interlock Switch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-29

Paper Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-30

Image Processor Board, DC-DC Converter (P4500), Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-31

Optional 550-Sheet Feeder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-32

550-Sheet Feeder General Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-32

550-Sheet Feeder Signal Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-33

Duplex Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-34

Duplex Unit General Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-34

Duplex Unit Signal Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-35

Stacker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-36

Stacker General Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-36

Stacker Signal Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-37

A Appendix

Phaser 4500 Menu Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-2

Phaser 4510 Menu Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-4

Service Code Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-6

Index

x Phaser 4500/4510 Service Manual

Service Terms

Not

Manual Terms

Various terms are used throughout this manual to either provide additional information on a specific topic or to warn of possible danger present during a procedure or action. Be aware of all symbols and terms when they are used, and always read NOTE, CAUTION, and WARNING statements.

Consumable: Ink, toner, or print cartridge that is consumed. Customer is

expected to replace once consumed.

Routine Maintenance Item: Supply item or kit that has a limited life. Customer is

expected to replace at end-of-life.

Accessory: A single component or assembly that may be added to a printer;

however, it is NOT an option to the product. Throughout this manual any pieces of information that pertain to just the

Phaser 4500 are indicated with P4500, and those that pertain to just the Phaser 4510 are indicated with P4510. Those that apply to both models do not have either label.

Common Acronyms:

FRU: Field Replaceable Unit PL: Corresponds to the FRU Parts List. CRU: Customer Replaceable Unit ESD: Electrostatic Discharge

A note indicates an operating or maintenance procedure, practice or condition that is necessary to efficiently accomplish a task. A note can provide additional information related to a specific subject or add a comment on the results achieved through a previous action.

Caution

A caution statement indicates an operating or maintenance procedure, practice or condition that, if not strictly observed, results in damage to, or destruction of, equipment.

arning

A warning statement indicates an operating or maintenance procedure, practice or condition that, if not strictly observed, results in injury or loss of life.

Phaser 4500/4510 Laser Printer Service Manual xi

Product Terms

Symbols Marked on the Product

Caution: A personal injury hazard exists that may not be apparent. For

example, a panel may cover the hazardous area.

Danger: A personal injury hazard exists in the area where you see the sign.

Hot surface on or in the printer. Use caution to avoid personal injury.

30 min.

The surface is hot while the printer is running. After turning off the power, wait 30 minutes.

Use caution (or draws attention to a particular component). Refer to the manual(s) for information.

Do not touch the item.

xii Phaser 4500/4510 Service Manual

Power Safety Precautions

Power Source

Disconnecting Power

For 110 VAC printers, do not apply more than 135 volts RMS between the supply conductors or between either supply conductor and ground. Use only the specified power cord and connector. For 220 VAC printers, do not apply more than 254 volts RMS between the supply conductors or between either supply conductor and ground. Use only the specified power cord. This manual assumes that the reader is a Xerox-certified service technician.

Plug the three-wire power cord (with grounding prong) into a grounded AC outlet only. If necessary, contact a licensed electrician to install a properly grounded outlet. If the product loses its ground connection, contact with conductive parts may cause an electrical shock.

Turning the power off using the On/Off switch does not completely deenergize the printer. You must also disconnect the printer power cord from the AC outlet. Position the power cord so that it is easily accessible during servicing so that you may power down the printer during an emergency.

■ Disconnect the power plug by pulling the plug, not the cord.

■ Disconnect the power cord in the following cases:

■ if the power cord or plug is frayed or otherwise damaged

■ if any liquid or foreign material is spilled into the case

■ if the printer is exposed to any excess moisture

■ if the printer is dropped or damaged

■ if you suspect that the product needs servicing or repair

■ whenever you clean the product

Phaser 4500/4510 Laser Printer Service Manual xiii

Electrostatic Discharge (ESD) Precautions

Some semiconductor components, and the respective sub-assemblies that contain them, are vulnerable to damage by Electrostatic discharge (ESD). These components include Integrated Circuits (ICs), Large-Scale Integrated circuits (LSIs), field-effect transistors and other semiconductor chip components. The following techniques will reduce the occurrence of component damage caused by static electricity.

Be sure the power is off to the chassis or circuit board, and observe all other safety precautions.

■ Immediately before handling any semiconductor components assemblies,

drain the electrostatic charge from your body. This can be accomplished by touching an earth ground source or by wearing a wrist strap device connected to an earth ground source. Wearing a wrist strap will also prevent accumulation of additional bodily static charges. Be sure to remove the wrist strap before applying power to the unit under test to avoid potential shock.

■ After removing a static sensitive assembly from its anti-static bag, place it

on a grounded conductive surface. If the anti-static bag is conductive, you may ground the bag and use it as a conductive surface.

■ Do not use freon-propelled chemicals. These can generate electrical

charges sufficient to damage some devices.

■ Do not remove a replacement component or electrical sub-assembly from

its protective package until you are ready to install it.

■ Immediately before removing the protective material from the leads of a

replacement device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

■ Minimize body motions when handling unpackaged replacement devices.

Motion such as your clothes brushing together, or lifting a foot from a carpeted floor can generate enough static electricity to damage an electro-statically sensitive device

■ Handle ICs and EPROMs carefully to avoid bending pins.

■ Pay attention to the direction of parts when mounting or inserting them on

Printed Circuit Boards (PCB’s).

xiv Phaser 4500/4510 Service Manual

Service Safety Summary

General Guidelines

For Xerox-certified service personnel only: Refer also to the preceding Power

Safety Precautions.

Avoid servicing alone: Do not perform internal service or adjustment of this

product unless another person capable of rendering first aid or resuscitation is present.

Use care when servicing with power: Dangerous voltages may exist at several

points in this product. To avoid personal injury, do not touch exposed connections and components while power is on. Disconnect power before removing the power supply shield or replacing components.

Do not wear jewelry: Remove jewelry prior to servicing. Rings, necklaces and

other metallic objects could come into contact with dangerous voltages and currents.

Power source: This product is intended to operate from a power source that

will not apply more then 264 volts rms for a 220 volt AC outlet or 140 volts rms for a 110 volt AC outlet between the supply conductors or between either supply conductor and ground. A protective ground connection by way of the grounding conductor in the power cord is essential for safe operation.

Warning Labels

Read and obey all posted warning labels. Throughout the printer, warning labels are displayed on potentially dangerous components. As you service the printer, check to make certain that all warning labels remain in place.

Safety Interlocks

Make sure all covers and the printer’s control panel are in place and all interlock switches are functioning correctly after you have completed a printer service call. If you bypass an interlock switch during a service call, use extreme caution when working on or around the printer.

CLASS 1 LASER PRODUCT

The Phaser 4500/4510 Laser Printer is certified to comply with Laser Product Performance Standards set by the U.S. Department of Health and Human Services as a Class 1 Laser Product. This means that this is a class of laser product that does not emit hazardous laser radiation; this is possible only because the laser beam is totally enclosed during all modes of customer operation. When servicing the printer or laser unit, follow the procedures specified in this manual and there will be no hazards from the laser.

Phaser 4500/4510 Laser Printer Service Manual xv

Servicing Electrical Components

Before starting any service procedure, switch off the printer power and unplug the power cord from the wall outlet. If you must service the printer with power applied, be aware of the potential for electrical shock.

arning

Turning the power off by using the On/Off switch does not completely deenergize the printer. You must also disconnect the printer power cord from the AC outlet. Position the power cord so that it is easily accessible during servicing.

arning

Do not touch any electrical component unless you are instructed to do so by a service procedure.

S7300-02

Servicing Mechanical Components

When servicing mechanical components within the printer, manually rotate drive assemblies, rollers, and gears.

arning

Do not try to manually rotate or manually stop the drive assemblies while any printer motor is running.

Servicing Fuser Components

arning

This printer uses heat to fuse the toner image to media. The fuser assembly is VERY HOT. Turn the printer power off and wait at least 5 minutes for the Fuser to cool before you attempt to service the fuser assembly or adjacent components.

S7300-03

xvi Phaser 4500/4510 Service Manual

Regulatory Specifications

United States (Federal Communications Commision

The equipment described in this manual generates and uses radio frequency energy. If it is not installed properly in strict accordance with Xerox instructions, it may cause interference with radio and television reception or may not function properly due to interference from another device. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiver (device being interfered with).

■ Increase the separation between the printer and the receiver.

■ Connect the printer into an outlet on a circuit different from that which the

receiver is connected.

■ Route the interface cables on the printer away from the receiver

■ Consult the dealer, Xerox service, or an experienced radio/television

technician for help.

Canada

Changes or modifications not expressly approved by Xerox can affect the emission and immunity compliance and could void the user's authority to operate this product. To ensure compliance, use shielded interface cables. A shielded parallel cable can be purchased directly from Xerox at

www.xerox.com/office/4500supplies

Xerox has tested this product to internationally accepted electromagnetic emission and immunity standards. These standards are designed to mitigate interference caused or received by this product in a normal office environment. This product is also suitable for use in a residential environment based on the levels tested.

In the United States this product complies with the requirements of an unintentional radiator in part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est comforme à la norme NMB-003 du

Canada.

Phaser 4500/4510 Laser Printer Service Manual xvii

European Union

January 1, 1995: Low Voltage Directive 73/23/EEC as amended by 98/68/

January 1, 1996: Electromagnetic Compatibility Directive 89/336/EEC March 9, 1999: Radio & Telecommunications Terminal Equipment Directive

This product, if used properly in accordance with the user's instructions, is neither dangerous for the consumer nor for the environment.

To ensure compliance with European Union regulations, use shielded interface cables.

A signed copy of the Declaration of Conformity for this product can be obtained from Xerox.

The CE mark applied to this product symbolizes Xerox’s declaration of conformity with the following applicable Directives of the European Union as of the dates indicated:

EEC

1999/5/EC

xviii Phaser 4500/4510 Service Manual

General Information

In this chapter...

■ Printer Introduction and Overview

■ Printer Configurations

■ Parts of the Printer

■ Control Panel

■ Image Processor Board (Phaser 4500)

■ Image Processor Board (Phaser 4510)

■ Consumables and Routine Maintenance Items

■ Printer Specifications

Chapter

General Information

Printer Introduction and Overview

The Xerox Phaser 4500/4510 Laser Printer Service Manual is the primary document used for repairing, maintaining, and troubleshooting the printer.

To ensure complete understanding of this product, participation in Xerox Phaser 4500/4510 Service Training is strongly recommended. To service this product, Xerox certification for this product is required.

Technical Support Information

For updates to the Service Manual, Service Bulletins, knowledge base, etc., go to www.office.xerox.com/partners

For further technical support, contact your assigned Xerox Technical Support for this product.

s4500-001

1-2 Phaser 4500/4510 Service Manual

Printer Configurations

General Information

A replaceable configuration card holds configuration information that enables or disables the network features shown in the following table.

Printer Configurations

Printer Configuration

Features

B N DT DX

Maximum print speed (letter-size paper)

P4500: P4510:

Memory

P4500: P4510:

PostScript fonts 39 39 39 39 + 97

36 ppm 45 ppm

48 MB 128 MB

36 ppm 45 ppm

64 MB 128 MB

36 ppm 45 ppm

64 MB 128 MB

36 ppm 45 ppm

64 MB 128 MB

on hard

drive PCL5e/PCL6 Yes Yes Yes Yes Job pipelining Standard Standard Standard Standard PDF direct print Yes Yes Yes Yes Resolutions 600 dpi,

True 1200

dpi USB, Parallel Yes Yes Yes Yes 10/100BaseTX Ethernet capabilities Optional Standard Standard Standard 550-sheet feeder (tray 3) Optional Optional Standard Standard 550-sheet feeder (tray 4) Optional Optional Optional Optional Automatic 2-sided printing

(requires duplex unit) Hard drive Optional Optional Optional Standard Job collation

(Requires a hard drive) Proof Print, Secure Print, Saved

Jobs (Requires a hard drive) 500-sheet stacker Optional Optional Optional Standard

Optional Optional Standard Standard

Optional Optional Optional Standard

600 dpi, True 1200 dpi

600 dpi, Tru e 1200 dpi

Phaser 4500/4510 Service Manual 1-3

General Information

4510-067

P4510

Parts of the Printer

Front View

1.Paper stop

2.Control panel

3.Tray 1

4.On/Off switch

5.Tray 2

6.Optional tray 3

Rear View

P4500

4510-072

7.Optional tray 4

8.Paper gauge

9.Print cartridge

10.Standard output tray

11.Optional 500-Sheet stacker

4510-073

Items 1 - 4 are mounted on the image processor board.

1.Ethernet 10/100 Base-T connector

2. Configuration card

3.USB connector

5.Power receptacle

6.Optional duplex unit

7.Rear cover

8.Stacker rear cover

9.Stacker extension

4.Parallel cable connector

1-4 Phaser 4500/4510 Service Manual

Control Panel

General Information

The control panel consists of one tricolor LED, a display window, and six functional buttons.

Phaser 4500

36 78

s4500-003

4 5

Phaser 4510

s4510-003

1.Status indicator LED 5.Up Arrow button - scrolls up the menu system

2.Graphic control panel display

6.Down Arrow button - scrolls down the menu

system

3. Back button 7.OK (select) button

4. Cancel button 8. Information (i) (P4500) or Help (?) (P4510)

button - for additional explanation or help

LED States

LED State Printer State

Green Ready to Print or in Power Saver mode Flashing Yellow Warning (but can still print) Flashing Green In Standby mode or busy (receiving data, processing data,

printing)

Flashing Red Error; cannot print

Phaser 4500/4510 Service Manual 1-5

General Information

Control Panel Shortcuts

Mode Buttons Pressed at Power On

Skip execution of POST diagnostics

Print Service Diagnostics Map Information Reset PostScript NVRAM Back + OK Password Bypass Up Arrow + Down Arrow Enter Service Diagnostics Back + Information

1-6 Phaser 4500/4510 Service Manual

Image Processor Board (Phaser 4500)

When installing a new image processor board in the printer, you must transfer the following parts from the old board:

■ Memory DIMMs

■ Hard drive (if installed)

■ NVRAM

■ Configuration card

General Information

2 3

5 9

1.Memory (RAM) DIMM 1 and DIMM 2 6.Parallel connector

2.Flash memory (optional) 7.Ethernet connector

3.Hard drive (optional) 8.USB connector

4.NVRAM 9.Health LED

5. Configuration card

s4500-251

Phaser 4500/4510 Service Manual 1-7

General Information

Image Processor Board (Phaser 4510)

When installing a new image processor board in the Phaser 4510 printer, you must transfer the following parts from the old board:

■ Memory DIMMs

■ Configuration card

■ NVRAM

■ Hard drive (if installed)

■ Flash memory (if installed)

4 3

1.Memory (RAM) DIMM 1 and DIMM 2 6. Parallel connector

2.Flash memory (optional) 7.Ethernet connector

3.Hard drive (optional) 8.USB connector

4.NVRAM 9.Health LED

s4510-251

5. Configuration Card

1-8 Phaser 4500/4510 Service Manual

Consumables and Routine Maintenance Items

Print Cartridge

Transfer Roller

Feed Rollers 3 per Paper Tray

General Information

Fuser

s4510-267

s4510-268

Phaser 4500/4510 Service Manual 1-9

General Information

Supply Life Counters

Internal counters track the usage of the Consumables and Routine Maintenance Items and store the values in NVRAM. The image processor board monitors these counters in order to display the near end-of-life and endof-life messages.

Print life ratings are based on 5% coverage and an average job length of 4 pages.

Supply Print Life (Number of Images)

Consumables

Print cartridge, standardcapacity

Print cartridge, high-capacity 19,000

Routine Maintenance Items

Maintenance kit (consists of fuser, transfer roller, and 12 feed rollers)

10,000

200,000

1-10 Phaser 4500/4510 Service Manual

Printer Specifications

Physical Dimensions and Clearances

General Information

Print Engine Dimensions Value

Height 404 mm (15.9 in.) Width 422 mm (16.6 in.) Depth

Depth with paper cassette extended Weight (with 10-K print cartridge) 20.5 kg (45.2 lbs.) (P4500)

Clearances Value

Top 400 mm (16 in.) Left 210 mm (8 in.) Right 300 mm (12 in.) Front 480 mm (19 in.) Rear (with duplex unit installed) 230 mm (9 in.) Total Height requirement 820 mm (32 in.)

Mounting surface level tolerance ± 5°

550-Sheet Feeder Dimensions Value

Height (to top of feeder assembly) 143 mm (5.6 in.) Width 422 mm (16.6 in.) Depth

Depth with paper cassette extended

465 mm (18.3 in.) 524 mm (20.7 in.)

23.2 kg (51.0 lbs.) (P4510)

Add 9.6 cm (3.75 in.) for each 550-sheet feeder

452 mm (17.8 in.) 510 mm (20.1 in.)

Weight 6.3 kg (13.9 lbs.)

Duplex Unit Dimensions Value

Height 219 mm (8.6 in.) (P4500)

238 mm (9.4 in.) (P4510) Width 352 mm (13.8 in.) Depth 96 mm (3.8 in.) (P4500)

146 mm (5.8 in.) (P4510) Weight 1.9 kg (4.2 lbs.)

Stacker Dimensions Value

Height 226 mm (8.9 in.) Width 418 mm (16.4 in.) Depth

Depth with stacker tray extended Weight 2.6 kg (5.7 lbs.)

Phaser 4500/4510 Service Manual 1-11

312 mm (12.3 in.)

382 mm (15.1 in.)

General Information

Functional Specifications

Characteristic Specification

Printing process: Recording System: Electrophotography (roller charging,

magnetic monocomponent toner development) Exposure System: Semiconductor laser beam scanning Transfer System: Roller transfer system Fusing System: Thermal fixing using a heat roller

Resolution / Addressability

Print-Quality Modes Two choices: 600 x 600 dpi

Phaser 4500 Continuous operating printing speed

Phaser 4510 Continuous operating printing speed

Phaser 4500 First Print-Out from READY state (in seconds); Short Edge Feed

Phaser 4510 First Print-Out from READY state (in seconds); Short Edge Feed

600/1200 dpi

True 1200 x 1200 dpi

36 pages per minute for plain Letter paper, one-sided printing 34 pages per minute for A4 paper, one-sided printing

21 images per minute for Letter paper, 2-sided printing 21 images per minute for A4 paper, 2-sided printing)

45 pages per minute for plain Letter paper, one-sided printing 43 pages per minute for A4 paper, one-sided printing

27 images per minute for Letter paper, 2-sided printing 26 images per minute for A4 paper, 2-sided printing)

Paper Size

Letter

Paper Size

Letter

Mode

Simplex Duplex Simplex Duplex

Mode

Simplex Duplex Simplex Duplex

Tray 1

8.7

12.5

8.7

12.7

Tray 1

7.9

11.1

7.9

11.2

Tray 2

8.7

12.5

8.7

12.7

Tray 2

7.9

11.1

7.9

11.2

Tray 3

8.7

12.5

8.7

12.7

Tray 3

7.9

11.1

7.9

11.2

Tray 4

8.9

12.8

9.0

13.0

Tray 4

8.2

11.3

8.2

11.4

Phaser 4500 First Print-Out from sleep mode (in seconds); Short Edge Feed

Phaser 4510 First Print-Out from sleep mode (in seconds); Short Edge Feed

Warm-Up Time 17 seconds

1-12 Phaser 4500/4510 Service Manual

Paper Size

Letter

Paper Size

Letter

Mode

Simplex Duplex Simplex Duplex

Mode

Simplex Duplex Simplex Duplex

Tray 1

24.0

27.8

24.0

28.0

Tray 1

24.9

28.1

24.9

28.2

Tray 2

24.0

27.8

24.0

28.0

Tray 2

24.9

28.1

24.9

28.2

Tray 3

24.0

27.8

24.0

28.0

Tray 3

24.9

28.1

24.9

28.2

Tray 4

24.2

28.1

24.3

28.3

Tray 4

25.2

28.3

25.2

28.4

Electrical Specifications

Characteristic Specification

Primary Line Voltages 120 VAC nominal, min. 98 V, max. 140 V

General Information

220/240 VAC nominal, min. 198 V, max. 264 V

Primary Line Voltage Frequency Range

Maximum Power Consumption

Environmental Specifications

Characteristic Specification

Temperature:

Operating Optimal Performance Range Transportation

Humidity (%RH)

Operating Transportation

50/60 Hz ± 3 Hz

P4500: 985 W @ 120 V

985 W @ 220/240 V

P4510: 1210 W @ 120 V

1270 W @ 220/240 V

5 to 35° C (41 to 95° F) 10 to 32° C (50 to 89.6° F)

-20 to 40° C (-4 to 104° F)

15 to 85 5 to 85

Altitude

Operating Transportation*

Acoustic Noise L

Idle

Printing

* Air transportation in pressurized cargo space

WA(B)

0 to 3,500 meters (11,500 feet) 0 to 15,000 meters (49,200 feet)

Engine only

P4500: 4.00 B P4510: 5.00 B P4500: 6.62 B P4510: 6.95 B

With all options

— —

7.30 B

7.50 B

ENERGY STAR qualified printer

Phaser 4500/4510 Service Manual 1-13

General Information

Media and Tray Specifications

Trays Specifications

Printable Area

Supported Media Sizes

Supported Media Types and Weights

Supported Envelopes

All Within 4 mm of paper edge guaranteed.

Edge-to-edge printing supported.

Tray 1 Trays 2-4 Tray 1 Trays 2-4 Stacker

Width: 76.2 mm (3.0 in.) ~ 215.9 mm (8.5 in.) Width: 98.4 mm (3.9 in.) ~ 215.9 mm (8.5 in.) Length: 127.0 mm (5.0 in.) ~ 355.6 mm (14 in.) Length: 148.0 mm (5.8 in.) ~ 355.6 mm (14 in.) Width: 88.9 mm (3.5 in.) ~ 215.9 mm (8.5 in.) Length: 139.7 mm (5.5 in.) ~ 355.6 mm (14 in.)

All

All All All Tray 1 All All

Bond (P4500) 60-216 g/m

(P4510) 64-216 g/m Labels Transparency

Greeting Cards 190 g/m Index Card Stock 60-216 g/m Tag Stock 60-216 g/m Cover Stock 60-216 g/m

(70 lb. Cover)

(33-120 lb.)

(37-133 lb.)

(22-80 lb.)

All #10 Commercial (4.12 x 9.5 in.)

Monarch (3.87 x 7.5 in.) DL (110 x 220 mm) C5 (162 x 229 mm) B5 (176 x 250 mm) (P4500 only)

(16-58 lb.)

(17.1-58 lb.)

Input Tray Capacity

Tray 1 Trays 2-4

150 sheets 550 sheets

Based on 75 g/m Capacity is reduced for heavier/thicker stock.

Output Tray Capacity

Standard Stacker

500 sheets 500 sheets

Duplex Unit Media Specifications

Input Tray Specifications

Width Tray 1

Trays 2-4

Height Tray 1

Trays 2-4

Supported

All

90 - 216 mm (3.5 - 8.5 in.) 98 - 216 mm (3.9 - 8.5 in.)

140 - 356 mm (5.5 - 14.0 in.) 148 - 356 mm (5.8 - 14.0 in.)

Bond P4500: 60-216 g/m

Media Types and Weights

Greeting Cards 190 g/m Index Card Stock 60-216 g/m Tag Card Stock 60-216 g/m Cover Stock 60-216 g/m

(20 lb. bond) paper stock.

P4510: 64-216 g/m

(70 lb. Cover)

(33-120 lb.)

(37-133 lb.)

(22-80 lb.)

(16-58 lb.)

(17.1-58 lb.)

1-14 Phaser 4500/4510 Service Manual

Memory Requirements

Phaser 4500

Characteristic Specification

General Information

Minimum required

Maximum supported

Supported type PC133 SDRAM in 144-pin SO-DIMM form

Phaser 4510

Characteristic Specification

Minimum required

Maximum supported

Supported type PC2700 DDR in 200-pin SO-DIMM form

64 MB – The Phaser 4500 B configuration reports 48 MB

256 MB – accepts modules of 64 or 128 MB in combinations to a total of 256 MB

128 MB

512 MB – accepts modules of 128 or 256 MB only in combinations to a total of 512 MB

Phaser 4500/4510 Service Manual 1-15

General Information

1-16 Phaser 4500/4510 Service Manual

Theory of Operation

In this chapter...

■ Overview of the Phaser 4500/4510 Laser Printer

■ Paper Path of the Printer

■ Sensors

■ Major Assemblies and Functions

■ Printer Options

Chapter

Theory of Operation

Overview of the Phaser 4500/4510 Laser Printer

Summary of the Printing Process

The Phaser 4500/4510 print process consists of the following steps:

1. Charge – The print cartridge contains a bias charge roller that uniformly

distributes a negative electrical charge over the photoconductive drum surface.

2. Exposure – The laser assembly scans the surface of the photoconductive

drum, which is located inside the print cartridge. The laser diode assembly produces a laser beam which is turned on and off according to a data signal. A 12-sided polygonal mirror in the scanner assembly is rotated at a specified speed. The laser beam is reflected off of the mirror and onto the drum surface through a series of lenses and mirrors. The laser beam scans the drum surface from one end to the other, neutralizing the negative charge to create one line of a latent image on the surface. The drum is rotated and the scan process is repeated to form an image on the drum surface.

3. Development – A magnetic roller in the print cartridge carries a thin layer

of toner supplied by an agitator in the cartridge's toner compartment. The charging and metering (CM) blade inside the cartridge applies a negative charge to the toner and spreads the toner onto the magnetic roller. The negatively charged toner is transferred to the areas of the drum surface that have been discharged.

4. Paper transport – Paper size sensors determine the length of the media.

Four tabs (one fixed, three movable) located in the paper tray indicate the location of the length guide and thereby identify the media size. Switches located in the left tray guides detect the position of four tabs located on the paper tray. The printer uses a three-roller system to pick paper. Two springs raise the tray's lift plate, along with the paper stack, against the nudger roller of the paper feeder assembly. To pick paper, the nudger roller advances the top sheet to the feed roller and retard roller. The retard roller prevents multi-picks. The feed roller advances the paper to the turn pinch rollers, which feed it to the registration rollers. The registration sensor is the first sensor to detect paper.

5. Transfer – The transfer roller is driven by a gear on the print cartridge. The

pressure of the transfer roller against the drum assists in driving the paper through the transfer area. The transfer roller applies a positive charge to the rear surface of the paper. The negatively charged toner image on the drum is attracted to the positive charge on the rear surface of the paper, causing the image to be transferred from the surface of the drum onto the paper.

6. Discharge – The detack saw, located on the transfer roller assembly,

helps to separate the paper by partially neutralizing the charge holding the paper to the drum.

7. Fusing – The paper is driven into the fuser, which uses heat and pressure

rolls to melt and bond the toner onto the surface of the paper. Heat roller fingers inside the fuser peel off the leading edge of the paper from the Heat roller to prevent the paper from becoming wound around it. An exit sensor detects paper exiting from the fuser.

8. Cleaning – A cleaning blade in the print cartridge scrapes off toner

remaining on the drum surface after transfer has occurred. Then, the latent charge pattern remaining on the photoconductive drum is neutralized to prepare the drum for the next exposure cycle.

9. Paper exit – The paper is then advanced upward into the exit rollers and

into the selected output tray.

2-2 Phaser 4500/4510 Service Manual

10. Two-sided printing reverses the direction of the exit rollers to route the

paper through the duplex unit rollers and back to the registration roller. A sensor in the duplex unit detects the presence of paper.

Block Diagram of the Print Cycle

The block diagram of the print cycle shows the sequence of events for the xerographic process (dashed lines) and the paper flow (solid lines) into and out of the printer.

Charge

Exposure

Xerographic Cycle

Cycle Repeats for the Next Print

Development

Transport

Paper Enters

Transfer

Paper

Discharge

Cleaning

Theory of Operation

Two -sided

Printing

Fusing

Paper Exit

s4500-007

Components Associated with the Xerographic Process

This cut-away side view of the printer shows the location of individual components within the printer, and the major components that are directly related to the print cycle and to the paper path.

Paper

ransport

Pressure Roller

7. Fusing

6. Discharge

Detack Saw

Transfer Roller

5. Transfer

Print Cartridge

Heat Roller

Fuser Assembly

8. Cleaning

Cleaning Blade

Drum

Magnetic Roller

1. Charging

BCR

2. Exposure

Charge Metering Blade

3. Development

Laser Beam

Paper

s4500-008

Phaser 4500/4510 Service Manual 2-3

Theory of Operation

Paper Path of the Printer

Paper is supplied from Trays 1 and 2 or the optional Trays 3 and 4, and is transported into the printer along the paper path shown below.

Optional 550-Sheet Feeder (Tray 4)

550-Sheet Tray

Nudger Roller

Feed Roller

Retard Roller

Turn Roller

Turn Pinch Roller

Optional 550-Sheet Feeder (Tray 3)

550-Sheet Tray

Nudger Roller

Feed Roller

Retard Roller

Turn Roller

Turn Pinch Roller

Rubber Registration Roller

Metal Registration Roller

Transfer Roller Assembly

Drum

Tray 2 Tray 1

Nudger Roller

Feed Roller

Retard Roller

Lower Stacker Roller

Pinch Roller

Upper Stacker Roller

Stacker Pinch Roller

Optional Stacker

Print Exit

Heat Roller

Pressure Roller

Fuser Assembly

Exit Roller

Exit Pinch Roller

500-sheet Exit Assembly

Duplex Roller

Pinch Roller

Optional Duplex Unit

s4500-017

2-4 Phaser 4500/4510 Service Manual

Layout of Paper Transport Path

This cross section of the printer shows the main components directly associated with the paper path and transport in the engine only.

Theory of Operation

1.Exit roller 8.Rubber registration roller

2.Exit pinch roller 9. Metal registration roller

3.Fuser assembly 10.Feed roller assemblies

4.Pressure roller 11.Retard roller assemblies

5.Heat roller 12.Nudger roller assemblies

6.Drum 13.Print cartridge

7.Transfer roller assembly 14.Laser assembly

s4500-018

Phaser 4500/4510 Service Manual 2-5

Theory of Operation

This cross section shows the additional components associated with paper transport when the 550-sheet feeders, the duplex unit, and the stacker are installed.

11 12

4500-019

1.Stacker pinch roller 8.Duplex pinch rollers

2.Lower stacker roller 9.Turn pinch rollers

3.Upper stacker roller 10.Turn roller assemblies

4.Upper stacker pinch roller 11.Feed roller assemblies

5.Exit roller 12.Retard roller assemblies

6.Exit pinch roller 13.Nudger roller assemblies

7. Duplex rollers

2-6 Phaser 4500/4510 Service Manual

Sensors

Theory of Operation

The printer contains a number of sensors of various types that perform a variety of functions. One group of sensors track the progress of the paper along the paper path, and detect if a paper jam occurs. Other sensors detect the presence of the print cartridge, stop printer activity if a door is open, and monitor the fusing temperature. The basic printer has 18 sensors, while a fully-optioned printer has 30 sensors.

The types of sensors in use vary with their function. In general, there are four basic type in use:

■ Photo

■ Microswitch

■ Soft Touch Sensors (STS)

■ Magnetic

Most of the photo sensors consist of a LED in one arm of a U-shaped holder, and a photo-transistor in the other arm. When nothing is between the arms of the sensor, light from the LED falls on the photo-receptor, turning it on. If the light is interrupted, the photo-transistor turns off. The on- or off-state of the transistor is used as a signal.

The microswitches are used primarily as interlocks in the printer. They are in a normally open state, and close when actuated. A bank of switches in a holder is used for detecting the size of paper in use in a tray. Cams in the tray close the switches in various combinations (see “Control of Paper Size” on page 2-17) to send a size signal to the controller.

The Soft Touch Sensor has a known value of resistance whose sensitivity varies with temperature.

The magnetic sensor detects the magnetic properties of the toner in the print cartridge.

A fifth sensor in use in the printer is the antenna used to communicate with the CRUM in the print cartridge.

The list of Sensors and interlocks that follows gives each sensor by its name, lists which of the types it is, and briefly describes its function in the printer. The reference column lists manual pages where illustrations show the location of the sensor.

List of Sensors and interlocks

Name Type Function Reference

Paper low Mechanically

actuated photo sensor

Detects low paper condition in 550-Sheet trays 2, 3, and 4 (there is no low-paper

page 2-10 page 2-16

sensing in tray 1).

No paper Mechanically

actuated photo

Detects no paper condition in all trays.

Page 2-16

sensor

Paper size switches

Microswitch bank Detects the presence of a

tray and the paper size

Page 2-16 Page 2-41

setting of the tray.

Phaser 4500/4510 Service Manual 2-7

Theory of Operation

List of Sensors and interlocks

Name Type Function Reference

Registration sensor

Toner sensor Magnetic sensor Detects the presence of

Exit sensor Mechanically

Output tray full sensor

Temperature sensor

Rear cover switch

24 V interlock Microswitch Interrupts +24 V to the main

Mechanically actuated photo sensor

actuated photo sensor

Mechanically actuated photo sensor

Soft Touch Sensor Two of these monitor the

Microswitch Interrupts +24 V to the main

Detects the paper as it reaches the registration rollers.

toner in the print cartridge. Detects paper as it leaves

the fuser.

Detects when the standard output tray is full.

temperature of the Heat roller.

motor when the rear exit cover is open; in series with 24 V interlock.

motor when the top cover is open; in series with rear cover switch.

Page 2-10 Page 2-16

Page 2-16

Page 2-22

Page 2-27

Page 2-22

Page 2-30

Top cover switch (P4500 only)

Laser interlock (P4500 only)

5 V interlock Microswitch Interrupts +5 V to laser

Start of scan sensor

Fuser thermostat(s)

Stacker rear cover switch

Stacker sensor Mechanically

Microswitch Interrupts INTERLOCK BEF

to indicate the top cover is open.

Microswitch Interrupts +5 V to laser

diode; in series with 5 V interlock switch.

diode. In series with laser interlock.

Photo Detects the laser beam at the

start of a scan.

Thermostatic switche(s)

Microswitch Signals the HVPS/engine

actuated photo sensor

Interrupt AC power to the fuser heater in overtemp condition; P4500: two switches in series; P4510: single switch.

logic board that the stacker rear cover is open.

Senses the presence of paper in the stacker.

Page 2-30

Page 2-20

Page 2-22

Page 2-38

2-8 Phaser 4500/4510 Service Manual

Theory of Operation

List of Sensors and interlocks

Name Type Function Reference

Stacker offset sensor

Duplex unit switch

Duplex unit sensor

Stacker full sensor

Optional feeder paper size switch assembly

CRUM antenna Inductive magnetic

Mechanically actuated photo sensor

Microswitch Signals the HVPS/engine

Mechanically actuated photo sensor

Microswitch bank Detects the presence of a

code reader

Senses the position of the stacker offset chute.

logic board that the duplex unit rear cover is open.

Detects the presence of paper in the duplex unit.

Detects when the stacker output tray is full.

tray and the paper size setting of the tray.

Communicates with the print cartridge CRUM.

Page 2-38

Page 2-35

Page 2-38

Page 2-41

Phaser 4500/4510 Service Manual 2-9

Theory of Operation

Sensors in the Paper Path

9 10 11

12 13

1.Registration sensor 8.Tray 2 no paper sensor

2.Fuser exit sensor 9.Tray 2 low paper sensor

3.Output tray full 10.Tray 3 no paper sensor

4.Stacker sensor 11.Tray 3 low paper sensor

5.Stacker full 12.Tray 4 no paper sensor

s4500-270

6.Duplex unit sensor 13.Tray 4 low paper sensor

7.Tray 1 no paper sensor

2-10 Phaser 4500/4510 Service Manual

Major Assemblies and Functions

The functions of the main components of the Phaser 4500/4510 printer are described in the following sections:

■ Paper tray

■ Paper feeder

■ Print cartridge

■ Transfer roller assembly

■ Laser assembly

■ Fuser

■ 500-sheet paper exit

■ Drive

■ Electrical

Theory of Operation

Paper Tray

Paper trays include the 150-sheet and 550-sheet trays. Since they are functionally equivalent, only the 150-sheet tray is described here.

The trays adjust to accept various paper sizes. The end and side guides adjust to match paper sizes shorter than A4, or narrower than Letter. To accept paper longer than A4, the tray extension must be unlocked and pulled out, and the end and side guides adjusted to match the size.

Phaser 4500/4510 Service Manual 2-11

Theory of Operation

Paper Tray Functional Assemblies

s4500-021

1.Left-side paper guide assembly 5. Right-side paper guide assembly

2.Bottom plate assembly 6.Extension lock

3.Bottom lock lever 7.End guide

4.Gear stopper

Left- and right-side paper guide assemblies The left and right paper guides

adjust to fit different paper widths. The guides hold the paper in position in the tray.

Bottom plate assembly The bottom plate assembly is pushed up by the bottom

lift spring. The bottom plate is released by unlocking the bottom lock lever and stopper gear. When the bottom plate assembly is pushed up, the supplied paper contacts the nudger roller.

Bottom lock lever and gear stopper These are at the rear of the tray (i.e., the

front end in the direction of travel of paper). How these components work is explained in “Paper Lift Mechanism” on page 2-14.

2-12 Phaser 4500/4510 Service Manual

Front

Theory of Operation

s4500-020

Extension lock The 150-sheet tray extends to accommodate different paper

lengths. The extension lock holds the extension in position.

End guide The end guide can be adjusted to different paper sizes by making a

forward or backward adjustment. It makes contact with the rear end of the paper, and holds the paper in position front-to-back in the paper tray.

Through the cam action of the sector gear and size rack, the position of the end guide is converted to up and down combinations of the three size switch links on the side of the tray. The links, when in contact with the paper size switches in the left tray guide, turn the switches on or off in combinations that correspond to the paper size.

Phaser 4500/4510 Service Manual 2-13

Theory of Operation

The paper sizes that can be automatically detected are as follows:

Type Size (mm × mm)

LETTER SEF 215.9 mm × 279.4 mm (8.5" x 14") LEGAL 14" SEF 215.9 mm × 355.6 mm (8.5" x 13") LEGAL 13" SEF 215.9 mm × 330.2 mm (8.5" x 11")

EXECUTIVE SEF 184.2 mm × 266.7 mm (7.25" x 10.5")

A4 SEF 210.0 mm × 297.0 mm (8.27" x 11.69")

B5 (JIS) SEF 182.0 mm × 257.0 mm (7.17" x 9.44")

A5 SEF 149.0 mm × 210.0 mm (5.83" x 8.27")

Paper Lift Mechanism

The Phaser 4500/4510 printer paper trays utilize a unique mechanical paper lift mechanism that eliminates the need for paper lift motors. The mechanism consists of a spring-loaded bottom plate assembly that lifts the paper stack upward to the paper feeder assembly.

When the tray is removed from the printer, a channel in the right tray guide pushes the bottom lock gear downward, lowering the bottom plate assembly until it is locked into place by a spring-loaded gear stopper, one-way lock gear, and the bottom rack lock. The gear stopper engages the bottom lock gear, and the bottom rack lock engages the one-way lock gear, which prevents the bottom plate assembly from rising upward.

The gear stopper is released from the bottom lock gear when the tray is inserted into the printer. Once the gear stopper releases the bottom lock gear, the bottom rack lock holds the bottom plate assembly in place. Then, a metal tab located on the paper feeder assembly presses down on the bottom lock lever. This releases the bottom rack lock and allows the bottom plate assembly to raise the paper stack upward until it contacts the nudger roller and lifts the feeder assembly.

Once the feeder assembly is lifted by the paper stack, the metal tab no longer contacts the lock lever. As paper is fed from the stack, the feeder assembly gradually lowers. When the tab contacts the bottom lock lever, the paper stack raises. This process repeats until the tray is empty.

2-14 Phaser 4500/4510 Service Manual

Paper Feeder

Theory of Operation

Tray 1 and tray 2 are functionally equivalent in terms of the paper size switch assembly, no paper actuator, and no paper sensor. The component descriptions given here apply to both trays.

Since the low paper actuator and low paper sensor are not part of tray 1, the description of these components applies to tray 2 only.

150-sheet/550-sheet feeder assembly This mechanism moves paper from the

paper tray into the printer. The driving force from the main motor is transmitted via the feed clutch assembly to the feed roller and nudger roller, transporting paper from the tray into the printer.

No paper actuator This actuator is kept in a raised position by the paper in the

tray. If the tray runs out of paper, the no paper actuator drops and the flag of the no paper actuator moves from between the sensor arms, allowing the sensor to turn on.

No paper sensor This is a photo sensor that remains in the OFF state when

paper is present in the tray. The sensor turns on when there is no paper in the tray and the flag on the no paper actuator moves out of the sensor.

Registration sensor The registration sensor is a photo sensor that detects

paper as it arrives at the registration rollers. The paper transported from the paper tray pushes up the actuator of the registration sensor, moving the flag out of the sensor.

Registration clutch This electromagnetic clutch turns on and off to drive the

rubber and metal registration rollers, which place the paper in position at the appropriate time for transfer of the developed image from the drum.

Low paper actuator When paper is low in the paper tray installed in tray 2, the

arm of the low paper actuator is pushed up by the bottom plate assembly, moving the actuator flag out of the sensor. Low paper sensing occurs only in the 550-sheet feeders, which includes tray 2 and if installed, trays 3 and 4.

Low paper sensor This photo sensor remains in an OFF state until the paper

level in the tray drops sufficiently to move the low paper actuator flag out of the sensor.

Phaser 4500/4510 Service Manual 2-15

Theory of Operation

1.Paper size switch assembly 7.Metal registration roller

2.Feed clutch assembly 8. No paper sensor

3.Registration clutch 9.No paper actuator

4.Rubber registration roller 10.Low paper sensor

5.Feed roller 11.Low paper actuator

6.Registration sensor 12.Nudger roller

s4500-022

2-16 Phaser 4500/4510 Service Manual

Control of Paper Size

Not

Paper size switch assembly The switches in this assembly send signals that

indicates the paper size setting of the tray. Cams in the bottom of the tray are positioned by the tray’s end guide. At pre-defined paper lengths, actuators on the side of the tray close or open the switches in a pattern that is defined in the printer to correspond to one of the pre-set media sizes.

The following table provides the ON (1) or OFF (0) states of the switches in the paper size switch assembly, corresponding to the paper sizes of the paper tray.

Theory of Operation

The switches in the paper size switch assembly are denoted by “SW1”, “SW2”, “SW3”, and “SW4”, respectively, from the front side.

Paper Size Switch Assembly

Paper size

SW1SW2SW3SW4

No cassette 0 0 0 0

Executive SEF 0 0 0 1

B5(JIS) SEF 0 0 1 1

A5 SEF 0101

Legal14”SEF 0 1 1 1

Letter SEF 1001

A4 SEF 1101

Legal13”SEF 1 1 1 1

Phaser 4500/4510 Service Manual 2-17

Theory of Operation

Xerographics

Print Cartridge

The print cartridge is a customer-replaceable item that consists of the following components:

Drum The drum is an aluminum cylinder coated with a layer of

photoconductive material that retains electrical charges on its surface until exposed to light, when electrical conduction occurs.

Bias charge roller (BCR) The BCR uniformly distributes electrical charges over

the drum surface, and erases a charge pattern remaining from the previous cycle.

Magnet roller A thin layer of toner, supplied by the agitator in the toner

compartment, adheres to the surface of this roller, which transports the toner into the gap between the drum and magnet roller.

Charging and metering (CM) blade The CM blade spreads toner into a thin layer

over the magnet roller, and applies negative charges to the toner triboelectrically.

Cleaning blade The cleaning blade scrapes off toner remaining on the drum

surface after the transfer step.

1.Print cartridge 2.Transfer roller

2-18 Phaser 4500/4510 Service Manual

s4500-010

Laser Assembly

The laser assembly scans the surface of the drum with a laser beam. The laser assembly consists of three components: the laser diode (LD) assembly, the scanner assembly, and the start of scan (SOS) board.

Laser diode (LD) assembly The LD assembly produces a laser beam that is

turned on and off according to the print data signal. A single LD is used for 600 dpi, and a dual LD is used for 1200 dpi, generating one beam for 600 dpi and two beams for 1200 dpi.

Scanner assembly This assembly consists of a 12-sided polygonal mirror

mounted on the shaft of the scanner motor. As this mirror rotates, it reflects the beam onto the drum surface through lenses and mirrors to scan the beam across the drum.

Start of scan (SOS) board When the laser beam strikes the sensor on the SOS

board, the signal generated indicates the initial position of the scan. The initial position where a scan is started on each line is detected. Depending on the print resolution selected, either one beam creates one line, or two beams create two lines at a time.

When the laser beam scans from one end of the drum surface to the other while being turned off and on, one line of a latent image is created. The resolution in the scanning direction (from right to left) is determined by the rotational speed of the scanner motor and by the speed at which the laser is modulated. The resolution in the process direction (from top to bottom) is determined by the number of the scan beams and the rotational speed of the print drum.

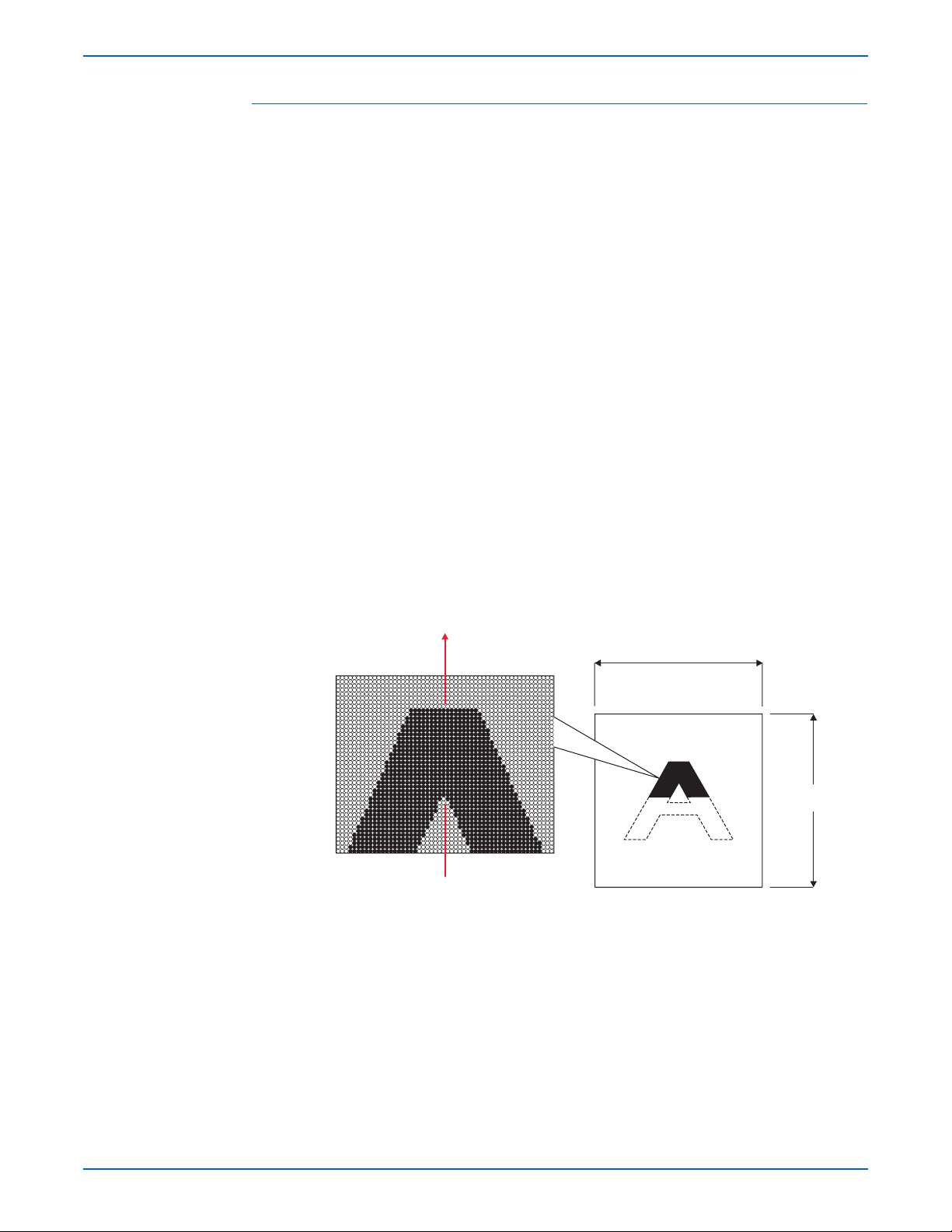

Conceptual Diagram of Image Creation by Scanning

Theory of Operation

Paper Path

600 Dots/Inch

600 Scans/Inch

s4500-011

Phaser 4500/4510 Service Manual 2-19

Theory of Operation

Laser Assembly Functional Parts

Laser Control

The scanner motor turns on when it receives a signal from the controller, and turns off after printing ends. The motor remains off in the standby and powersaving states.

There are two faults associated with the scanner motor speed: U2-1 Laser fails at warm-up, and U2-2, Laser fails motor speed.

Two other laser unit faults, U2-3 and U2-4, are associated with LD power. U23 occurs when LD power is too high, and U2-4 occurs when LD power is too low.

1.Start of scan PWB 3.Laser diode assembly

2.Scanner assembly

s4500-012

Transfer Roller Assembly

The transfer roller is held in contact with the drum of the print cartridge, and is driven by the drum gear. When the paper moves between the transfer roller and drum, the transfer roller applies a positive charge to the rear surface of the paper. The negatively charged toner image is attracted by the positive charge on the rear surface of the paper. Thus, the image is transferred from the surface of the drum to the surface of the paper.

The detack saw, located on the transfer roller assembly, helps to separate the paper from the drum surface.

2-20 Phaser 4500/4510 Service Manual

Fuser

Not

Theory of Operation

Heat roller The heat roller is a metal tube with a coated surface and a heater

assembly inside. As paper passes between the heat roller and pressure roller, the heat that is applied to the paper melts the toner and fuses it to the paper.

Pressure roller The pressure roller is a metal shaft coated with sponge rubber.

It maintains pressure on the paper passing between it and the heat roller. This pressure presses the melted toner against the paper.

Heater assembly

The heater assembly consists of two halogen lamps located in the heat roller. One lamp heats the entire length of heat roller, while the other, shorter rod heats the center. The lamps are controlled by switching the neutral side of the power to each lamp; the lamps use a common hot line.

Temperature sensors These are Soft Touch Sensors (STS) having a known

value of resistance that varies with temperature. There are two temperature sensors in the fuser. One is located at the center of heat roller, the other is located where the edge of a letter size sheet of paper comes through. The sensors monitor the temperature of each location to control lighting of the heater rods. The sensors are mounted in contact with the surface of the heat roller. Power to the heater rod is turned on and off using the signals from these sensors, so that the surface temperature of the heat roller can be maintained within a specified range. These signals are also used to provide a first stage of overheat protection.

Thermostats The thermostats are connected in series with the heat roller

assembly, and provide a second level of overheat protection. If the first stage of overheat protection does not prevent the fuser from overheating, the thermostats cut off the power-supply circuit for the heater rod. If the paper type is set incorrectly, the pressure roller may melt and adhere. As a countermeasure against this, if the STS detect the higher temperature, but can not prevent the overheat, the thermostats cut power to prevent the pressure roller from melting and adhering.

The fuser in the Phaser 4510 uses a single thermostat switch instead of two to perform the same function.

Heat roller fingers These fingers peel off the leading edge of the paper from

the Heat roller to prevent the paper from getting wound around the heat roller.

Heat roller diode The negative charge accumulated on the heat roller may

deteriorate the toner image on the paper during fixing. The heat roller diode discharges the charge to the frame ground.

Exit sensor This sensor detects the arrival of the paper at a detection point in

the exit area positioned behind the fuser. This sensor also detects the discharge of the paper from this point. When the sensor receives light (i.e., paper is present), the signal /EXIT is low.

Phaser 4500/4510 Service Manual 2-21

Theory of Operation

s4500-023

1.Exit motor assembly 5.Pressure roller

2.Exit sensor 6.Heat roller

3.Actuator 7.Thermostats (P4510 uses only one)

4.Temperature sensors

2-22 Phaser 4500/4510 Service Manual

Fuser Control

Temperature Control

Theory of Operation

The fuser heater control maintains the fuser at a pre-determined control temperature by turning the halogen lamp in the heat roller ON and OFF. The control temperature varies depending on whether or not the printer is at the Ready state, and whether the main motor is operating.

The fuser temperature is considered abnormal when the detected temperature exceeds 250° C, or falls below 130° C.

At the start of warm-up and when the main motor is at rest, the standby temperature is used as the fuser control temperature. When the main motor is operating except at warm-up, the running temperature is used as the fuser control temperature.

The running temperature and print speed depend on the media type selected for printing. The Phaser 4500 uses four temperature settings while the Phaser 4510 uses six. Print speed slows down for heavy media such as card stock or envelopes, and specialty media such as transparencies. The following tables show the default assignments of temperature setting to media type. The temperature setting assignment for a media type can be changed as explained in “Adjusting Fuser Temperature” on page 6-8.

Phaser 4500 Fuser Temperature Default Settings

Media Type Name

Extra High

215°

High

210° C

Plain Paper X Letterhead Transparency Labels Colored Paper Card Stock Envelope Special

Phaser 4510 Fuser Temperature Default Settings

Media Type Name

Extra High

187° C

Very High

215° C

High

212° C

Medium

205° C

Plain Paper X Transparency Card Stock Envelope Labels

X Letterhead Preprinted Prepunched Colored Paper

Medium

205° C

Low

185° C

X X X

Low

190° C

Very Low

170° C

X X X X

Phaser 4500/4510 Service Manual 2-23

Theory of Operation

Fuser Warm-Up

The halogen lamp is turned on when the fuser warm-up begins. When the surface temperature of the heat roller (detected by the thermistor) reaches the fuser control temperature (standby temperature), the fuser warm-up is ended.

Fuser Temperature Cycling

The fuser temperature does not remain at a single, constant value, but varies within a temperature range. There are several ranges, which are summarized in the table. Except for Standby, the setting is determined by the media type selection.

Phaser 4500 Fuser Cycling Temperatures

Setting

Standby Lamp ON 180° C

Medium 1-100 pages:

High Lamp ON 210° C

Extra High Lamp ON 215° C

Low Lamp ON 185° C

Phaser 4510 Fuser Cycling Temperatures

Setting

Standby Lamp ON 180° C

Low 1-50 pages:

Medium 1-50 pages:

High Lamp ON 212° C

Very High Lamp ON 214° C

Extra High Lamp ON 187° C

Very Low Lamp ON 185° C

Temperature

Lamp OFF 185° C

Lamp ON 205° C Lamp OFF 206° C

Lamp OFF 211° C

Lamp OFF 216° C

Lamp OFF 186° C

Temperature

Lamp OFF 185° C

Lamp ON 190° C Lamp OFF 191° C

Lamp ON 210° C Lamp OFF 211° C

Lamp OFF 213° C

Lamp OFF 215° C

Lamp OFF 188° C

Lamp OFF 186° C

101-120 pages: Lamp ON 205° C Temp. decreases by.25° C per page

51-62 pages: Lamp ON 190° C Temp. decreases by .25° C per page

51-70 pages: Lamp ON 210° C Temp. decreases by .25° C per page

120 + pages: Lamp ON 200° C Lamp OFF 201° C

63 + pages: Lamp ON 187° C Lamp OFF 188° C

71 + pages: Lamp ON 205° C Lamp OFF 206° C

2-24 Phaser 4500/4510 Service Manual

Temperature Stabilization

The fuser automatically enters a stabilization process under two circumstances:

■ When the printer is processing thick paper.

After 50 impressions of continuous printing on thick paper (Thick Paper 1 mode), the fuser lamp turns off, the main motor stops, and the fans rotate at full speed until the temperature of both temperature sensors drops to 190° C or below. Then the printer continues printing the job. The process for Thick Paper 2 is the same, except that it occurs after 30 impressions of continuous printing on thick paper.

■ When the side fuser temperature sensor (STS) detects an abnormally

high temperature (over 245° C), the printer stops the print job and enters the cool-down process consisting of:

■ Clearing the paper path of all paper

■ Continuing to run the main motor (Time-out 200 sec.)

■ Running the fans at full speed

■ Controlling fuser temperature with short lamp

Theory of Operation

This process continues until the target control temperature of 180° C 185° C (Standby) is reached.

Fuser Problems (U4 Error Code)

Major causes of a U4 error include the following:

■ Warm-up failure – Fuser warm-up not complete within 110 seconds after

starting.

■ Cool-down error – Cool-down process not complete within 200 seconds.

■ Low trouble temperature – The fuser temperature drops to the low trouble

temperature (approximately current control temperature, minus approximately 25° C).

■ High trouble temperature – The fuser temperature rises to the high trouble

temperature (approximately current control temperature, plus approximately 35° C).

■ STS circuit open

■ STS failure – The heat rod remains on for at least 10 seconds after warm-

up has completed.

Phaser 4500/4510 Service Manual 2-25

Theory of Operation

Power Shutoff to the Fuser

The printer shuts off power to the Fuser for the following reasons:

■ Fuser abnormality (U4)

■ Paper jam

■ Cover open — top, rear, duplex unit, stacker

■ Laser assembly (ROS) abnormality (U2)

■ CPU or NVRAM abnormality (U6)

■ Main motor assembly abnormality (U1)

■ Fan abnormality (U5)

■ Fuser Pause command issued

■ Xerographics failure

■ Duplex unit failure

■ Stacker failure

■ Option tray unit failure

2-26 Phaser 4500/4510 Service Manual

Paper Exit Assembly

The paper exit assembly discharges the printed paper out of the printer, sending it either to the standard output tray or to the optional stacker.

Exit motor assembly This motor drives the exit roller that conveys paper to

each output tray. If the optional duplex unit is installed, this motor also reverses and inserts paper into the duplex unit.

Exit roller This roller transports the printed paper sent out from the Fuser, to

the standard output tray.

Output tray full sensor This sensor detects that the standard output tray is full,

using the stack full actuator.

Stacker exit gate This gate switches the paper transport path interlocking with

the stacker gate link. When the gate solenoid assembly installed in the optional stacker operates, the stacker gate link is pushed down by the spindle of the solenoid assembly. The gate blocks the normal paper output path and switches the output direction to the stacker output tray.

Theory of Operation

1.Output tray full sensor 3.Stacker exit gate

2.Exit roller 4. Exit motor assembly

s4500-024

Phaser 4500/4510 Service Manual 2-27

Theory of Operation

Drive

Gear assembly housing The gears in this housing transmit power from the main

motor to various parts of the printer.

Gear assembly plate This transmits power from the main motor to the print

cartridge.

Link lever This connects and disconnects the drive force from the main motor

to the fuser assembly. When the top cover is opened, the link lever pushes up gear 8 in the gear assembly housing disconnecting gear 9 and thus, the fuser assembly. As the link lever moves up and down, gear 4 in the gear assembly plate moves right and left via gear link 3, and drive to the print cartridge drum is connected or disconnected.

1.Main motor 3.Gear assembly housing

2.Gear assembly plate 4.Link lever

s4500-025s4500-025

2-28 Phaser 4500/4510 Service Manual

Electrical

Theory of Operation

24 V interlock This safety switch interrupts 24 VDC from the LVPS to the

HVPS/engine logic board and main motor when the top cover is open. This switch operates in series with the rear cover switch. See “Schematic Diagram of Phaser 4500 Power Distribution and Interlocks” on page 2-31, or “Schematic Diagram of Phaser 4510 Power Distribution and Interlocks” on page 2-32.

5 V interlock This safety interrupts 5 VDC power from the LVPS to the LD

assembly of the laser assembly when the top cover is open. This interlock works in series with the laser interlock. See “Schematic Diagram of Phaser 4500 Power Distribution and Interlocks” on page 2-31, or “Schematic Diagram of Phaser 4510 Power Distribution and Interlocks” on page 2-32.

Rear cover switch This safety switch interrupts 24 VDC from the LVPS to the

HVPS/engine logic board and main motor when the rear cover is open. This switch operates in series with the 24 V interlock. See “Schematic Diagram of Phaser 4500 Power Distribution and Interlocks” on page 2-31, or “Schematic Diagram of Phaser 4510 Power Distribution and Interlocks” on page 2-32.

Main fan This vents air inside the printer to prevent an excessive rise in the

inside temperature.

Sub fan This fan takes outside air into the printer to prevent an excessive rise

in the inside temperature. This is mounted near the laser assembly in the center on the front side.

LVPS The low voltage power supply provides 5 V and 3.3 V for logic circuits,

5 V for the laser diode, and 24 V for motors and clutches. P4510: The LVPS board includes the DC-DC converter (described below) as an integral part.

HVPS/engine logic board The functions of the HVPS and engine controller are

brought together on a single circuit board. The HVPS provides high AC and DC voltages to the BCR (charging), magnet roller (development), transfer roller (transfer), and detack saw (peeling). The engine logic controls the printing operation according to the information obtained through communications with the image processor and from sensors and switches.

Image processor board This receives data from the host computer, performs

printing, and controls the whole printer.

Exit motor PWBA This controls the exit motor assembly according to a signal

from the HVPS/engine logic board.

Interlock switch assembly This assembly consists of the following two safety

switches. See “Schematic Diagram of Phaser 4500 Power Distribution and Interlocks” on page 2-31.

Top cover switch P4500: This safety interlock interrupts the INTERLOCK BEF

signal between the LVPS and the HVPS/engine logic board to indicate that the top cover is open.

Laser interlock P4500: This safety switch interrupts 5 VDC from the LVPS to

the LD assembly of the laser assembly when the top cover is open. This switch operates in series with the 5 V interlock.

DC-DC converter The DC-DC converter uses 24 V and 3.3 V from the LVPS to

supply 5 V and 3.3 V to the image processor board. By using the 24 V, the DC-DC converter supplies additional power for the optional hard drive and several other subcircuits.

P4500: The DC-DC converter is on a separate circuit board from the LVPS. P4510: The DC-DC converter is an integral part of the LVPS.

Phaser 4500/4510 Service Manual 2-29

Theory of Operation

P4500P4510

1.LVPS (includes DC-DC converter in

7.5 V interlock

P4510)

2. Exit motor PWBA 8. 24 V interlock

s4510-026

3.Rear cover switch 9.Image processor board

4.Laser interlock (P4500 only) 10.HVPS/engine logic board

5.Top cover switch (P4500 only) 11.Sub fan

6.Main fan 12.DC-DC converter (separate board in P4500; integrated into LVPS in P4510)

2-30 Phaser 4500/4510 Service Manual

Theory of Operation

Opt. 550-Sheet

Feeder

Front Panel

Scanner

Laser

Motor

Unit

LDD

5V Interlock

Interlock Switch Assembly

Laser Interlock

Top Cover Switch

Fuser Assembly

Temperature Sensor Assembly

Thermostat

Heater Rod(850W)

Heater Rod(650W)

TEMP.

INTERLOCK BEF


Processor

Data and Control

Converter

Scanner Motor Control

Fuser

Control

/HEAT ON (650W)

5VDC

3.3VDC

DC-DC

Interlock

/HEAT ON (800W)

24VDC

5VDC

Power Save

Control

24V

Opt. 550-Sheet

Feeder PWBA

Feeder 550

24VDC

3.3VDC

Opt. 550-Sheet

Feeder

PWBA

Feeder 550

24VDC

3.3VDC

Fuse

Rear Cover

Switch (24V)

24VDC AFT

5VDC

24VDC

Duplex Cover Open Switch

Optional

Duplex Unit

Duplex PWBA

24VDC

3.3VDC

Rear Cover

Open Switch

3.3VDC

HVPS Circuit

Main Motor Control

Main Motor

Motor

RTNRTN

24VDC AFT

Optional

Stacker

PWBA

24VDC

3.3VDC

MAIN MOTOR ON

MAIN MOTOR ALM

Fan Control

3.3VDC

Exit Motor PWBA

24VDC AFT

Main Fan

RTN

24VDC

FAN MAIN ALARM

Exit Motor Control

HVPS/ Engine Logic

CRU A, CRU B, INA, INB, /INA,

A, B, /A, /B, 24VDC AFT

Exit

Motor

RTN

Sub Fa

RTN

24VDC

/INB

FAN SUB ALARM

LVPS

Heater

Control

AC N

AC L

Fuse

Power

Switch

Fuse

Low Voltage

Generation

24VDC Supply

5VDC Supply

24VDC

Inlet

FG SG

3.3VDC Supply

Fuse

s4500-027

Schematic Diagram of Phaser 4500 Power Distribution and Interlocks

Phaser 4500/4510 Service Manual 2-31

Theory of Operation

Front Panel

Laser

Unit

Fuser Assembly

Tem pe rature

Sensor Assembly

Heater Rod(850W)

Heater Rod(650W)

Scanner

Motor

LDD

Interlock

Thermostat

TEMP.


Processor

Data and Control

Scanner Motor

Control

Fuser

Control

INTERLOCK BEF

/HEAT ON (650W)

5VDC

3.3VDC

5VDC

Interlock

/HEAT ON (800W)

24VDC

Power Save

Control

24V

Opt. 550-Sheet

Feeder

PWBA

Feeder 550

24VDC

3.3VDC

Opt. 550-Sheet

Feeder PWBA

Feeder 550

24VDC

3.3VDC

Fuse

Rear Cover

Switch (24V)

24VDC AFT

Duplex Cover Open Switch

Duplex Unit

5VDC

24VDC

3.3VDC

Optional

Duplex

PWBA

3.3VDC

24VDC

3.3VDC

Main Motor

Motor

24VDC AFT

Rear Cover

Open Switch

Optional

Stacker

PWBA

3.3VDC

HVPS Circuit

Main Motor

Control

MAIN MOTOR ON

RTNRTN

Main Fan

24VDC

RTN

24VDC

Fan

Control

Exit Motor

Control

3.3VDC

CRU A,CRU B, INA,INB

Exit Motor

PWBA

RTN

MAIN MOTOR ALM

24VDC AFT

Sub Fan

FAN SUB ALARM

RTN

FAN MAIN ALARM

24VDC

HVPS/

Engine

Logic

/INA,/INB A,B,/A,/B,

24VDC AFT

Exit

Motor

LVPS

Heater

Control

AC N

AC L

Fuse

Power

Switch

Fuse

Low Voltage

Generation

24VDC Supply

24VDC

3.3VDC 24VDC

5VDC

Supply

Inlet

FG SG

3.3VDC Supply

Fuse

Schematic Diagram of Phaser 4510 Power Distribution and Interlocks

DC-DC

Converter

s4510-027

2-32 Phaser 4500/4510 Service Manual

Printer Options

Duplex Unit

Theory of Operation

Three options are available for the Phaser 4500/4510 printer:

■ Duplex unit

■ Stacker

■ 550-sheet feeder

Paper transport information for the options is discussed earlier in this chapter.

The duplex unit used on the Phaser 4510 differs from the one used on the Phaser 4500. While the two units function exactly the same, they use different motors due to the difference in speed, and they are shaped differently due to the change in the location of the cooling fan.

Drive Transmission Path

The rotating force of the duplex unit motor is transmitted by various gears to components requiring mechanical drive as shown in this flow chart and the gear layout that follows.

$UPLEX5NIT-OTOR

)DLE'EAR

2OLLER'EAR

)DLE'EAR

)DLE'EAR

)DLE'EAR

2OLLER'EAR

)DLE'EAR

2OLLER'EAR

S

Phaser 4500/4510 Service Manual 2-33

Theory of Operation

Gear Layout

1.Roller gears 4.Idle gear 77

2.Idle gear 29 5.Duplex unit motor

3.Idle gear 47 6.Idle gear 57/37

Functional Components

Two-sided printing is enabled by mounting the duplex unit on the rear side of the base engine.

Duplex unit switch This switch detects that the duplex unit lower housing and

duplex unit housing cover are closed.

Duplex unit sensor This sensor detects the presence or absence of paper in the

duplex unit.

Duplex unit fan This fan vents air within the duplex unit and takes in outside air,

to prevent abnormal temperature rise in the duplex unit.

Duplex roller This roller feeds the paper having the printed first surface back

into the printer through the duplex unit, to print on the second surface.

Duplex unit PWBA The CPU on the duplex unit PWBA receives instructions

from the HVPS/engine logic board and information from sensors and switches, and controls paper transport through the duplex unit.

Duplex unit motor This motor drives the three duplex rollers, which transport

the paper through the duplex unit.

s4500-029

2-34 Phaser 4500/4510 Service Manual

Phaser 4500 and 4510 Duplex Units

Theory of Operation

P4500

P4510

s4500-030

1.Duplex unit rollers 4.Duplex unit PWBA

2.Duplex unit sensor 5. Duplex unit switch

3.Duplex unit fan 6.Duplex unit motor

s4510-030

Phaser 4500/4510 Service Manual 2-35

Theory of Operation

Stacker

Drive Transmission Path

The rotating force of the stacker motor assembly is transmitted by various gears to components requiring mechanical driving force as shown in this flow chart and the gear layout that follows.

Gear Layout

Gear 45

Gear 19

Lower OCT Roller

OCT Motor Assy

Gear 19/37

Offset Motor Assy

Cam Gear

Gear 45

Gear 19

Upper OCT Roller

s4500-031

s4500-032

1.Gear 45 4.Stacker motor assembly

2.Gear 19 5.Gear 19

3. Gear 19/37

2-36 Phaser 4500/4510 Service Manual

Paper Transport Path

When the stacker is installed on the printer, the paper is transported as shown in the illustration on page 2-6. The main components that transport paper through the stacker are shown in the diagram on page 2-4

Functional Components

Offset output is enabled by mounting the stacker on top of the 500-sheet paper exit.

Stacker motor assembly This motor drives the lower stacker roller and upper

stacker roller, which transport printed paper to the stacker tray.

Offset motor assembly This motor drives the offset chute assembly via the gear

cam.

Gate solenoid assembly This solenoid switches the output paper path between

the standard and stacker paper output trays. When the gate solenoid assembly activates, the solenoid armature pushes the stacker Gate Link to operate the stacker exit gate, which reroutes the paper to the stacker paper output tray.

Stacker PWBA The CPU on the stacker PWBA receives instructions from the

HVPS/engine logic board and information from sensors and switches, and controls paper transport through the stacker.

Stacker rear cover switch This switch detects when the stacker rear cover is

open.

Stacker sensor This sensor detects the presence or absence of paper in the

stacker.

Stacker full sensor This sensor is located on the stacker PWBA, and detects

when the stacker output tray is full, using the stack full actuator.

Offset Sensor This sensor is located on the stacker PWBA, and detects an

offset operation, using the actuator in the Offset Chute.

Lower stacker roller This roller transports the printed paper coming out of the

Fuser to the Upper stacker roller.

Upper stacker roller This roller discharges the printed paper sent from the

Lower stacker roller into the stacker paper output tray.

Offset chute assembly This assembly is driven by the offset motor assembly

and Cam gear to move right and left during paper output to offset the output of the printer.

Theory of Operation

Phaser 4500/4510 Service Manual 2-37

Theory of Operation

1.Stacker motor assembly 7.Offset motor assembly

s4500-033

2.Upper stacker roller 8. Gate solenoid assembly

3.Rear cover switch 9.Offset chute assembly

4.Full Stack Sensor 10.Stacker sensor

5.Offset Sensor 11.Lower stacker roller

6.Stacker PWBA

2-38 Phaser 4500/4510 Service Manual

Optional 550-Sheet Feeder

Drive Transmission Path

The rotating force of the feeder motor is transmitted by various gears to components requiring mechanical driving force as shown in this flow chart and the gear layout that follows.

Theory of Operation

Feeder Motor

Optional Feeder Gear 2

Optional Feeder Gear 3

Optional Feeder Gear 4

Optional Feeder Gear 5 Feed Clutch Assembly

Optional Feeder Gear 6

Turn Roll Clutch

Gear Layout

s4500-034

s4500-035

1.Optional feeder gear 6 5.Feeder motor

2.Turn roller clutch 6. Optional feeder gear 2

3.Feed clutch 7.Optional feeder gear 3

4.Optional feeder gear 4 8.Optional feeder gear 5

Phaser 4500/4510 Service Manual 2-39

Theory of Operation

Functional Components

The paper tray used in the optional feeder is identical to the 550-Sheet paper tray used by the base engine, so the description of the paper tray is omitted here.

Option paper size switch assembly A bank of switches for setting the size of

paper supplied from each paper tray is mounted in the left tray guide. A signal indicating the paper size is transmitted as a voltage to the HVPS/engine logic board.

No paper actuator This actuator is kept in a raised position by the paper in the

tray. If the paper tray runs out of paper, the no paper actuator drops and the flag of the no paper actuator moves from between the sensor arms, allowing the sensor to turn on.

No paper sensor This is a photo sensor that remains in the OFF state when

paper is present in the tray. The sensor turns on when there is no paper in the tray and the flag on the no paper actuator moves out of the sensor.

Low paper actuator When paper is low in the paper tray, the arm of the low

paper actuator is pushed up by the bottom plate assembly, moving the actuator flag out of the sensor.

Low paper sensor This photo sensor remains in an OFF state until the paper

level in the tray drops sufficiently to move the low paper actuator flag out of the sensor.

Optional 550-sheet feeder This is a mechanism for supplying paper from the

paper tray into the printer. The driving force from the feeder motor is transmitted via the feed clutch assembly to the feed roller and nudger roller, transporting paper from the tray into the printer.

As the nudger roller picks up paper and the paper level lowers, the position of the nudger roller drops accordingly. The lowered nudger roller pushes down the lock lever of the bottom plate assembly, releasing it. The spring below the bottom plate assembly pushes it up and lifts the paper, which lifts the nudger support assembly off of the lock lever of the bottom plate assembly stopping its upward motion.

Turn roller This roller, working with the turn pinch roller, advances the paper

picked by the nudger and feed rollers into the printer. The feeder motor drives the turn roller through the turn roller clutch.

550-sheet feeder PWBA A CPU installed in the 550-sheet feeder PWBA

receives instructions from the HVPS/engine logic board and from sensors and switches; the CPU controls feeding operation in the 550-sheet feeder.

2-40 Phaser 4500/4510 Service Manual

Theory of Operation

1.Optional 550-sheet feeder 5. Low paper sensor

2.Turn roller 6.Low paper actuator

s4500-036

3.No paper actuator 7.550-sheet feeder PWBA

4.No paper sensor 8.Option paper size switch assembly

Phaser 4500/4510 Service Manual 2-41

Theory of Operation

2-42 Phaser 4500/4510 Service Manual

Error Messages and Codes

In this chapter...

■ Introduction

■ Servicing Instructions

■ Entry Level Fault Isolation Procedure

■ Service Diagnostics

■ System Start-Up and POST

■ Operating System and Application Problems

■ Troubleshooting Procedures for Error Messages and Codes

■ Inoperable Printer
