Document conventions

Introduction

The Xerox 4050/4090/4450/4650 LPS Forms Creation Guide

describes the use of Forms Description Language (FDL)

commands you use to create forms for merging with variable

data to print on a laser printing system (LPS). Descriptions

include the following:

• FDL commands necessary to create any desired form with the
correct page orientation, fonts, line widths, and positioning
of captions and logos

• Fundamental printing terms, techniques, and troubleshooting

• Support tools used to simplify the creation of forms

• Command and default summaries, examples, limitations, and
capacities.

This guide uses the following conventions:

UPPERCASE BOLD BLUE Uppercase bold blue text indicates required characters or

command keywords.

UPPERCASE BLUE ITALICS Uppercase blue italics indicate optional parameter keywords,

characters, or values.

Lowercase black italics Lowercase black italics indicate variable parameter options,

(word, character, phrase, or value).

... Ellipses indicate that you can repeat a parameter option, or list a

series of parameter options.

<> Angle brackets indicate keys on the system controller keyboard.

The carat character represents a required space.

TERMINAL FONT Terminal or monospace fonts are used to represent LPS screen

responses.

UPPERCASE Uppercase letters indicate command names and parameter

keywords.

CAUTION: Cautions appear immediately before any action or omission that

may result in damage to your equipment, software, or data.

WARNING: Warnings are associated with the safety of people.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE vii

INTRODUCTION

Related publications

You can find additional information related to the
4050/4090/4450/4650 LPS in the following publications.

Publication Number

Xerox 4050/4090/4450/4650 LPS Master Index 720P94030
Xerox 4050/4090/4450/4650 LPS Bypass

Transport Instructions, V3.5/3.8
Xerox 4050/4090/4450/4650 LPS Bypass

Transport Operator Training Guide Flipcharts
Supplement

Xerox 4050/4090/4450/4650 LPS Bypass
Transport Operator Training Guide
Supplement

Xerox 4050/4090/4450/4650 LPS Command
Reference

Xerox 4050/4090/4450/4650 LPS Forms
Creation Quick Reference Card

Xerox 4050/4090/4450/4650 LPS Installation
Planning

Xerox 4050/4090/4450/4650 LPS Message
Guide

Xerox 4050/4090/4450/4650 LPS Operator
Guide

Xerox 4050/4090/4450/4650 LPS Operator
Instructor Training Flipcharts

Xerox 4050/4090/4450/4650 LPS Operator
Instructor Training Guide

720P22320

720P22340

720P22330

720P94020

720P93100

720P92990

720P93980

720P94000

720P22080

720P22070

Xerox 4050/4090/4450/4650 LPS Operator
Quick Reference

Xerox 4050/4090/4450/4650 LPS Print
Description Language (PDL) Quick Ref. Card

Xerox 4050/4090/4450/4650 LPS Print
Description Language (PDL) Reference

Xerox 4050/4090/4450/4650 LPS Product
Reference

Xerox 4050/4090/4450/4650 LPS System
Administration Guide

Xerox 4050/4090/4450/4650 LPS System
Administration Quick Reference Card

Xerox Standard Font Library Font User Guide 600P86174
Xerox Tape Formats Manual 600P86175
Helpful Facts About Paper 610P50497
Xerox Dynamic Document Interface

Command Summary
Xerox Dynamic Document Interface

Operator Guide

720P93050

720P93090

720P94090

720P94060

720P94010

720P93090

720P13680

720P13670

viii XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

1. Basic concepts

The laser printing system (LPS) provides the capability to create
electronic forms tailored to meet your individual requirements.
You create electronic forms using the Forms Description
Language (FDL). This simple-to-learn, easy-to-use language
enables you to design and alter forms in minutes.

FDL-defined forms are input to the printer as data, using the LPS
keyboard and display, or a host computer terminal. To define a
form, FDL uses lines, logos, images, signatures, shading, and
different font styles and sizes to make full use of laser printing
system features and capabilities.

Advantages of FDL • Lines can be drawn at specified intervals without being

redefined each time.

• You state the origin and the dimensions of a box to have it
drawn at any specified location on the page.

• An entire section of a form, once defined, can be repeated
anywhere on the same form.

• In defining a location on a page, you are not restricted to
lines and character positions. You can specify coordinates in
inches, centimeters, or dots with a resolution of 1/300 inch in
either direction.

Note: An xdot is a 1/600 inch unit of measure that is
provided with version 3 software. A form specifying xdots
may be created, edited, and compiled on any V3-based LPS.
However, results are unpredictable if you attempt to print a
600 spots per inch (spi) form on a 300-spi LPS.

• Once you create a form, it can be stored on the system and
printed as many times and as often as you need.

• You can use three types of lines (solid, broken, and dotted)
in four thicknesses: invisible [0], hairline, medium [1], or
bold [2]. You can also mix fonts and arrange text in many
ways.

Certain basic concepts are required to understand the forms
creation process on laser printing systems. These include the
size, shape, and location of the overall image on the page of a
document, the orientation of the text or graphics on the page,
the size and style of the characters to be used, and the type of
data to be entered.

This chapter discusses fonts and font memory, registration and
skew, and output information for the jobs you create on your
LPS.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 1-1

BASIC CONCEPTS

Page orientation

There are two types of page, or text, orientation:

• Portrait

• Landscape.

In portrait orientation, the vertical side of the page is longer than
the horizontal side. In landscape orientation, the horizontal side
of the page is longer than the vertical side. Portrait and
landscape orientations are illustrated in figure 1-1.

Figure 1-1. Page orientation

PORTRAITLANDSCAPE

Landscape is the usual orientation for computer reports. Portrait
is the usual orientation for letters, manuals, and other text
printing. On a laser printing system, you can change page
orientation from page to page without interrupting the printing
operation. This capability, coupled with variable character size,
permits maximum flexibility for the effective presentation of
information.

Fonts

A font is a character set which has a unique type style, type size,
and orientation.

Fixed and proportional fonts Both fixed and proportionally spaced fonts are available for use

on the 4050/4090/4450/4650 LPS. Each font character occupies
an area called a character cell. All character cells in a fixed font
are the same width. Character cells in a proportional font vary in
width.

Figure 1-2. Character spacing

1-2 XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE

BASIC CONCEPTS

Because the length of a line printed with a proportional font is
unpredictable, the system uses fixed fonts for variable data on a
report to avoid overprinting of forms by variable data. The
system uses proportional fonts for forms data such as titles,
headings, and so forth. A business letter is an example of the
use of proportional fonts for variable data. Figure 1-3 shows an
example of the difference in line length.

Figure 1-3. Character spacing/line length examples

Font typefaces Fonts are available in various typefaces (such as OCR and Titan),

sizes, styles (such as serif and sans serif), and weights (such as
medium and bold). The Xerox LPS Standard Font Library Font
User Guide lists the standard fixed and proportional fonts.

Font orientation In addition to typeface, style, and size, a font can be defined by

its orientation:

• Landscape

• Portrait

• Inverse landscape

• Inverse portrait.

Font orientation is relative to the physical page.
Figure 1-4. Font orientation

Refer to the Xerox Laser Printing Systems Standard Font Library

Font User Guide for specific font information and the Xerox
4050/4090/4450/4650 LPS System Administration Guide for

information on using Font Editor keyword commands to create
source font files from existing licensed and nonlicensed font
files.

XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE 1-3

BASIC CONCEPTS

Font memory

Paper

Increasing font memory improves processing time for
applications that require large fonts or a large number of
different fonts on a single page. In the pass through mode, the
LPS prints up to 128 fonts on a single page. In normal mode,
the amount of fonts per page that the LPS prints depends on the
font definitions for the emulated line printer. When processing
the page data, the controller stores font information in a special
memory cache called font memory. The amount of memory
required to store font data depends on the size of the fonts and
the number of different fonts on a single page.

If your applications call for either large fonts, or a variety of fonts
on a single page, the increased font memory option can greatly
improve the processing time required to print these documents.

Custom fonts, logos, and signature font data also consume font
memory during processing.

Paper sizes Laser printing systems print on the following paper sizes:

Paper types A large variety of paper types can also be used on the LPS:

Image size considerations

System page

• 8.5 by 11 inch (216 by 279 mm)

• A4 (8.27 by 11.69 inch, 210 by 297 mm)

• 8.5 by 14 inch (216 by 356 mm).

• Label stock

• Transparencies

• Predrilled

• Perforated

• Colored.

Paper weights and printing speed vary with each printer.

Your LPS can print on a variety of paper sizes. You can
manipulate the size of the image with some limitations.
Understanding the terms system page, physical page and virtual
page helps to define these limitations.

This refers to the maximum image area, which is 8.6 by 14.00
inches. Elements which do not print may originate off the
leading edge of the system page.

Refer to the “Non-imaged elements” subsection later in this
chapter for more information.

1-4 XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE

Physical page

BASIC CONCEPTS

This refers to the size of the paper itself. You can use any page
dimension as long as the paper physically fits in the feeder trays
and you can preselect the following paper sizes at system
generation (sysgen), as shown in table 1-1.

Table 1-1. Physical page sizes

Inches Millimeters

8.0 x 10.0 203 x 254

8.0 x 10.5 203 x 267

8.0 x 13.0 203 x 330

8.27 x 10.63 210 x 270

8.27 x 11.69/A4 210 x 297

8.27 x 13.0 210 x 330

8.37 x 10.78 213 x 274

8.46 x 10.83 215 x 275

8.46 x 12.4 215 x 315

8.46 x 14.02 215 x 356

8.5 x 10.75 216 x 273

8.5 x 11.0/USLETTER 216 x 279

8.5 x 13.0 216 x 330

8.5 x 14.0/USLEGAL 216 x 356

Virtual page

Use the PAPERSIZE command in the Print Description Language
(PDL) and the PAPER command in the Forms Description
Language (FDL) to allow form compilation and job printing on a
size of paper other than the paper size you select at sysgen. This
allows you to specify nonstandard paper size for specific jobs.

Refer to the “Forms Description Language” chapter and the

Xerox 4050/4090/4450/4650 LPS Print Description Language (PDL)
Reference for more information about commands.

The virtual page refers to the dimensions of the page as specified
in the software. The dimensions of the virtual page may be less
than or equal to the dimensions of the physical page size, but
not larger. The printer truncates larger values.

If you explicitly define virtual page size (using the
LANDSCAPE/PORTRAIT command PAGE SIZE parameter), the
defined area is centered relative to the physical page dimensions.

You can specify an orientation for the virtual page either with the
LANDSCAPE/PORTRAIT command or by using the FMTn option of
the GRID command. If an orientation is not specified, the virtual
page is assigned a landscape orientation by default.

XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE 1-5

BASIC CONCEPTS

The upper left corner of the virtual page is called the “virtual
page origin,” as shown in figure 1-5. The virtual page origin is
also used to establish a form origin.

Figure 1-5. Virtual page origin

LANDSCAPE virtual page origin

Virtual page (default size=paper size)

LANDSCAPE virtual page origin

Virtual page (user-defined size)

Physical page

PORTRAIT virtual page origin

Virtual page (default size=paper size)

Edgemarking

PORTRAIT virtual page origin

Virtual page (user-defined size)

Physical page

The same coordinate system is used for printing on all Xerox
printers. This limits the printing area in some cases and can
cause you to lose data which begins near, or off, the edge of the
physical page.

Edgemarking is the placement of marks along the edge of the
page. These marks consist of graphic elements that bleed off the
paper, tabs for section reference, or marks that denote changes
made in redline drafts.

To accommodate edgemarking, the system page must be larger
than the physical page. Edgemarking capability is limited on the
LPS because the system page boundaries (such as the 8.6 by 14
inch maximum image size printing area) correspond to the
physical page on at least two edges for all paper sizes.

CAUTION: Be careful when edgemarking. Printing a solid band
on the leading edge of the paper may cause fuser jams.

1-6 XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE

Non-imaged elements

BASIC CONCEPTS

Elements, such as text and graphics, may begin at the edge of
the physical page on two sides, and off the physical page on the
top and on the left side (except with 8.5 by 14 inch paper).

However, if any part of a printed element begins off the system
page, no part of the element images.

• If a line of variable data begins off the system page, no part
of the line prints.

• If a ruled line begins off the system page, no part of the
ruled line prints.

• A ruled line near the edge of the system page must hold a
position of at least one-half the line thickness inside the
system page to print. For example, a bold line is eight dots
thick and, therefore, it must hold a position of at least four
dots inside the system page leading edge.

One common cause of print elements accidentally beginning off
the system page is the improper use of the OUTPUT SHIFT
command. This command shifts the entire page contents relative
to the boundaries of the system page. When you enter a
negative shift value (as is often the case for the back side of
duplex pages), and that value exceeds the left margin, no text
element prints. When using a negative value for the SHIFT
command, be sure that it is less than the value of the left margin.

Imaging error messages

Registration shift and skew

If any part of a print line originates off the system page, the
following message displays:

OS6905 DATA ORIGIN OFF PAGE -- CHECK OUTPUT

This message line appears only once during a print job. It
indicates that a print line origin problem exists within the form
description, or that an excessive SHIFT value has been specified.

The registration of a printed image can appear shifted or skewed
on a page if the sheet of paper is misaligned as it enters the
printer. Because of the design of the LPS feeder, the image
registration on each page can vary slightly both horizontally and
vertically by up to .05 inches (1.0 mm). The image can also slant
or skew slightly by up to .05 inches (1.0 mm) in opposite
directions, for a maximum skew of 0.1 inches (2.0 mm).

Note that the following figures are the same specifications which
have been rotated to show portrait and landscape orientations.
The shift and skew variances described here are within allowable
specifications. However, as this can affect the registration of
variable data in preprinted forms and the placement of images
close to the edge of the page, it is important to make allowances
for this condition.

XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE 1-7

BASIC CONCEPTS

aaaaaaaaaaaaa
a

a

a

a

aaaaaaaaaaaaaaaaaaaaaaa
a

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaa

a
a
a
a
a

aaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaa
a

a

aaaaaaaaaaaaaaa
a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa

aaaaaaaaaaaaa

a
a

aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaaaa
a

a

a

a

a

a

aaaaaaaaaaaaaaaaaaaaaaaaaaa

a

a

a

a

a

aaaaaaaaaaaaaaaaa
a

a

aaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

a

a

a

a

Figure 1-6. Landscape orientation shift and skew

(11 x 8.5 inches)

aaaaaaaaaaa

Lead edge

aaaaaaaaaaa

aaaaaaaaaaaaaaaaaaaaa

Registration variance

aaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaa

.05“/1.0 mm

+

aaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaa

aaaaaaaaaaaaa

Skew

aaaaaaaaaaaaa
aaaaaaaaaaaaa

.05“/1.0 mm

+

aaaaaaaaaaaaa

aaaaaaaaaaa

Direction of

aaaaaaaaaaa
aaaaaaaaaaa

paper feed

aaaaaaaaaaa

a
a
a
a

aaaaaaaaaaaaaaa

Skew

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

+

.05“/1.0 mm

aaaaaaaaaaaaaaa

a
a
a
a
a

aaaaaaaaaaa

Trail edge

Registration
variance
+ .05“/1.0 mm

Figure 1-7. Portrait orientation shift and skew

(8.5 x 11 inches)

aaaaaaaaaaaaaaaaaaaaaaaaa

Direction of paper feed

aaaaaaaaaaaaaaaaaaaaaaaaa

aaaaaaaaaaa

Inboardside

aaaaaaaaaaa

a
a

a
a

aaaaaaaaaaaaaaa

Skew

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

+

.05“/1.0 mm

aaaaaaaaaaaaaaa

Registration

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

variance

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

+ .05“/1.0 mm

a
a
a
a
a
a

1-8 XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE

aaaaaaaaaaaaaaa

Registration

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

variance

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

+ .05“/1.0 mm

a
a
a
a
a
a

Skew

.05“/1.0 mm

+

aaaaaaaaaaaaaaa

Outboardside

aaaaaaaaaaaaaaa

For best results when designing preprinted forms, allow
approximately .1 inches or 2.0 mm of space on all sides of any
boxes, or above and below any lines onto which variable data is
to be printed, as shown in figure 1-8.

BASIC CONCEPTS

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

a

a

aaa
aaa
aaa

aaa
aaa
aaa

aaa
aaa
aaa

Figure 1-8. Maintaining margins in preprinted boxes to

allow for registration and skew variations

Note: Figure 1-8 is enlarged for the purpose of illustration, and

is not to scale.

Output performance considerations

The LPS has a rated speed of up to 50 (4050, 4450, and 4650) or
up to 92 (4090) impressions per minute (an impression refers to
one printed side of a sheet of paper). The actual output
performance you experience depends greatly on the processing
features invoked in the job and the print density of each page.

Preprinted lines

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

PATIENT NAME

Preprinted form data

a
a
a
a
a

•

•

Maintain at least .1“ or 2 mm on all sides around variable data

•

Variable data

Actual output also varies according to the configuration of the
LPS, such as the type of connection (offline, online, remote
communication, and front end processor).

This section provides information on expected output
performance when printing various types of jobs, applications,
and hardware configurations. For more detailed information,
consult your service representative.

Note: The term throughput refers to the print speed once pages
start printing. The processing that occurs prior to the actual
printing of the pages depends greatly on the complexity of the
job.

Interpress Interpress masters sent to the LPS must be processed by the

Interpress decomposer function of the Operating System
Software (OSS). The time required to print an Interpress job
depends on the complexity of the image from page to page.

PostScript PostScript masters sent to the LPS must first be converted to

.IMG files in the front end processor. The time required to print
a PostScript job depends on the complexity of the image from
page to page.

Dynamic Job Descriptor Entries (DJDE) The use of DJDEs adds processing time and slows the output.

To maximize performance, restrict the use of DJDEs to the
following commands: GRAPHIC, FORMAT, MODIFY, and FORM.

XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE 1-9

BASIC CONCEPTS

Form origin

Print density Full throughput estimates are based on pages with an average

print density of approximately seven percent of the page. Pages
which are very dense require more time to image and to print.

Highlight color The LPS running V3.8 Color Compatibility Release or XDDI

software is compatible with the 4850/4890 printer running V3.7,
V4.0, or V5.0 highlight color software. Highlight color
applications can be printed when using V3.8 or XDDI software on
the LPS. Highlight color datastreams are fully supported and
translate to black and shades of gray.

Color text printed over a solid black background or vice versa,
disappear when printed on the LPS. There is no error message
when this occurs. Light tints with isolated single pixels may not
print on the LPS.

All forms data described by FDL commands is positioned relative
to a point called the “form origin,” as shown in figure 1-9. This
point offsets from the virtual page corner by horizontal and
vertical displacement values, which you specify using the GRID
command. If none are specified, standard default values are
used to establish the form origin.

If variable data is merged with the form, set the form origin to
coincide with the beginning position of the variable data so that
the form and variable data coordinate accurately. Standard
computer printing formats are stored on the system. Refer to
the “Predefined formats” section, later in this chapter.

Figure 1-9. Form origin

Form origin (offset from virtual page origin)

Virtual page origin

Virtual page (default size=paper size)

Form origin (offset from virtual page origin)

Virtual page origin

Virtual page (user-defined size)

Physical page

1-10 XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE

Positioning form elements

Form element Element origin

Vertical ruled line Top of the line at the midpoint of the line thickness

BASIC CONCEPTS

The following elements may be placed on a form with FDL
commands:

• Lines

• Boxes

• Fixed text

• Logos and signatures

• Images

• Sections.

All of these elements are located in relation to the form origin at
the upper left corner of the form. Each form element has an
origin, a point used to position it relative to the form origin, as
shown in table 1-2.

Table 1-2. Form elements and corresponding origins

Horizontal ruled

Left end of the line at the midpoint of the line thickness

line
Box (outlined) Upper left corner of the box at the midpoint of the outline

thickness
Box (shaded) Upper left corner of the box
Fixed text (single

line)
Fixed text (multiple

lines)

Upper left corner of the first character cell

when the line appears upright to the viewer

Upper edge of the topmost character cell and the leftmost

edge of the leftmost character cell when viewed in an upright

position (illustrated in figure 1-10)
Graphics Upper left corner of the image
Logos and

signatures

Upper left corner of the first (or only) character cell (with a few

exceptions)
Sections (of a form) Upper left corner of the section

Figure 1-10 shows two text blocks, one using a portrait font and
one using a landscape font. The text block origin is used to
position the text block relative to the form origin.

Figure 1-10. Text block origin

Origin

XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE 1-11

BASIC CONCEPTS

Grids

x and y coordinates

The location of a form element on a page is specified in terms of
its horizontal and vertical displacement from the form origin. The
units of measurement used to define this displacement can be
any of the following:

• Linear units—inches or centimeters

• Dots—300 per inch

• Xdots—600 per inch

• cpi and lpi—characters per inch horizontally and lines per
inch vertically.

The y coordinate describes the vertical position on a grid. The x
coordinate describes the horizontal position. When both
coordinates are given together, the y coordinate is always
specified first.

If you draw a horizontal and a vertical line through the form
origin to create x and y coordinates, you would express the
location of the form origin as y=0, x=0.

If you draw more lines to mark horizontal and vertical
measurements away from the form origin so that the lines were
one unit of measurement apart, you create a grid like the one
shown in figure 1-11. You can then position form elements
(lines, boxes, and so on) by specifying a grid location.

Figure 1-11. Form grid

Form origin
(y=0,x=0)

1

Character cell origin at
(y=2,x=1)

2

1 3

A

3

Y

42

X

1-12 XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE

Negative coordinates Negative x and y values also may be used to place form elements

Predefined formats

BASIC CONCEPTS

Example You placed the letter “A” at location (2,1). If you are measuring

grid units in inches, the origin of the “A” character cell is located
two inches down and one inch to the right of the form origin. If
you are measuring the grid in cpi and lpi units, the origin of the
“A” character cell is located two lines down and one character
width to the right of the form origin. At 10 cpi and 6 lpi, the “A”
is .33 inches down from the form origin and .10 inches to the
right.

above and/or to the left of the form origin, as long as the values
are within system page boundaries.

UNIT value The unit value of the GRID command specifies the unit of

measurement that the FDL commands use to position form
elements on the page. Optionally, you can select a predefined
format that automatically provides grid unit values. Individual
FDL commands may override GRID unit values.

A set of predefined print description entries or formats, having
standard format specifications, is provided on the Operating
System Software (OSS) tapes. You may use the standard formats
or define your own to suit your specific needs.

Reference Refer to the “Standard print formats” appendix for a list of the

standard LPS print formats.
These standard formats provide commonly used impact printer

conversion formats for use with specific page sizes and
orientations. Use the Xerox design ruler to assist you in
measuring character and line spacing. The ruler has eight scales
that conform to the standard format grid.

Reference Refer to the “Support tools and measurements” appendix for

more information on the forms design ruler.
FMT1 (landscape) or FMT6 (portrait) is used by FDL to provide

default values for page orientation, form origin, and grid unit
dimensions, provided there are no explicit overriding parameters.

Unless overridden by an explicit orientation PAGE SIZE
parameter, the virtual page size in a predefined format is always
the sysgen-specified paper size. The virtual page origin is located
at the upper left corner of the physical page.

XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE 1-13

BASIC CONCEPTS

Data types

Two types of data are used in creating and printing LPS forms, as
shown in table 1-3.

Table 1-3. Data types

Data type Description

Variable Generally refers to computer-produced information that the LPS

merges with a form. Typically this data varies from page to
page.

Forms Refers to information that is used to print the form, such as

lines between columns and rows, boxes, and shading. Forms
data also refers to information that is part of the form, such as
titles, headings, captions, logos, and signatures. Forms data
typically does not vary from page to page.

1-14 XEROX 4050/5090/4450/4650 LPS FORMS CREATION GUIDE

Reference Refer to the “FDL command syntax summary” appendix for a

FDL command overview

2. Forms Description Language

This chapter describes the function and use of each Forms
Description Language (FDL) command in generating a form
electronically.

The FDL commands discussed throughout this guide apply to all
version 3 laser printing systems.

summary of all FDL commands and their syntax. The conventions
used to present command syntax are listed in the “Introduction”
and in the “FDL command syntax summary” appendix.

FDL is a set of keyword commands that you use to generate an
electronic form.

Command format

You first create a source file of FDL commands that describes the
characteristics of your form. You then compile the file and store
it as an electronic form file on the LPS.

The form can contain a variety of fonts, logos, and graphics, and
it can be merged with variable data during printing. You can
select any stored form for printing.

The following is true for each FDL command:

• Commands consist of a command identifier and various
parameters and keywords associated with the function.

• Spaces and/or commas separate keywords and parameters.

• Commands are terminated by a semicolon.

• Command information is placed within the first 72 columns
of each record.

• Multiple commands may appear in one record if separated by
a semicolon.

• Commands can be continued on multiple lines before ending
with a semicolon, with the exception of the LINE and BOX
commands. For both of these commands, the following
string must reside on one line:

AT . . . IN unit
Lines containing all blanks are ignored and may be used for

separation.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 2-1

FORMS DESCRIPTION LANGUAGE

Command summary

The five types of commands and the associated FDL commands
are described in table 2-1.

Table 2-1. FDL command summary

Command types and
commands Command function

FORM/RESOLUTION Identifies the name of a form in the forms library and the resolution at which

the form should be compiled for printing.
PAPER Identifies the paper size for which the form is designed.
LANDSCAPE/PORTRAIT Specifies the page orientation and virtual page size.
GRID Specifies the grid units used in describing the form and the origin of the form

relative to the virtual page origin. In most cases, a standard format

specification can be entered, which provides standard character and line

spacing, page orientation, and form origin.
FONT Specifies which fonts to use when creating a form.
LINE Specifies the length, position, direction, and thickness (hairline, 0, 1, or 2) of

lines.
BOX Specifies the location of the upper left corner and the dimensions of square

or rectangular boxes. All boxes in FDL are fixed-size. Backgrounds for text

must use the BOX command.
TEXT AT Specifies the positioning of text (written matter) such as form titles, headings,

and labels in specific locations.
TEXT IN BOX Specifies the positioning of text in a box.
LOGO Specifies the positioning of logos and signatures.
GRAPHIC Specifies a graphic image to be merged with the form and its placement and

relative scale.
SECTION Defines a portion of a form as a relocatable section.
END SECTION Terminates a section.
DO SECTION Invokes and places a previously defined section of a form.
COMMENT Inserts comments.
END Terminates a form description.

2-2 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

Form creation process

Initiating an editing session Use the editor utility to create and modify your Forms Source

FORMS DESCRIPTION LANGUAGE

The following three basic steps are required to produce an
electronic form:

1. Initiate an editing session.

2. Enter the FDL commands.

3. Compile and print the form.

Library (.FSL) source files.
If you use your host editor utility, follow the instructions

provided in your host documentation.

References If you use the LPS editor, refer to your Xerox

4050/4090/4450/4650 LPS Command Reference for more

information on editor commands.
Refer to the “FDL command syntax summary” appendix for an

alphabetical list of each command and syntax.
All of the FDL commands are described in detail later in this

chapter and are presented in the following order:

Compiling and printing forms After you have entered all the FDL commands needed to

Setup commands

• Command

• Syntax

• Parameter options

• Default

• Considerations

• Example.

describe your form, exit the editing session and invoke the forms
compiler.

Refer to the “Compiling and printing forms” chapter for
information on how to compile and print your form.

Before entering commands to describe a form, enter the setup
commands in the following order:

FORM
PAPER
LANDSCAPE/PORTRAIT
GRID
FONT.

The FORM setup command is always required. If the other setup
commands are not defined, the defaults are used.

The FONT command is required if text is to be included on the
form.

Note: The commands IRESULT, ICATALOG, PALETTE, and INK
are not included in this section, as they are meaningless on a
black and white system. However, XDDI will accept .FSLs that
are written on a color printer.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 2-3

FORMS DESCRIPTION LANGUAGE

FORM/RESOLUTION

Defines the name and resolution of the form.

Naming the form

Defines the name of the form. Once the form is compiled and
stored on the system disk, this is the name used by the LPS
software to reference the form.

Syntax FORM

name;

Parameter options name

A one- to six-character identifier that references the form.

Default None. A form name is mandatory.

Example FORM BLUBOX;

Considerations The FORM command must be the first command in the form

definition and must be completely contained in the first record
of the form definition.

Reserved words (such as FORM, GRID, FONT, TEXT, BOX, LOGO,
and so on) cannot be used for the name. However, reserved
words can be modified and used (for example, FORM1, FORM2,
and so on).

Specifying resolution

The RESOLUTION parameter is an optional part of the FORM
command that allows you to specify whether the form is created
at 300 or 600 spots per inch (spi).

Syntax FORM

name RESOLUTION IS value SPI;

Parameter options name

A one- to six-character identifier that references the form.

value

Specifies whether the form is created at 300 or 600 spi.

Default None.

Example FORM BLUBOX RESOLUTION IS 300 SPI;

2-4 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

FORMS DESCRIPTION LANGUAGE

PAPER

Identifies the paper size for which the form is designed. It is an
optional command that enables you to select a paper size that is
different than the sysgen-defined paper size.

Syntax PAPER

SIZE IS value;

Parameter options value

USLETTER

8.5 by 11 inches/216 by 279 mm.

A4

8.27 by 11.69 inches/210 by 297 mm.

USLEGAL

8.5 by 14 inches/216 by 356 mm.

unit BY y unit

x

Specifies nonstandard sizes. The x represents the virtual
page width and the y represents the virtual page height.
Units are optional and can be expressed in INCH or
INCHES, CM or CENTIMETERS, DOTS, or XDOTS. The
default is INCHES.

The x and y values must be positive numbers and may
contain two decimal places for all units except DOTS.

Default If a PAPER command is not present, and a predefined format is

not specified, the sysgen-defined paper size in effect at run time
is used as the paper size value.

Example nonstandard sizes PAPER SIZE IS 16.54 INCHES BY 11.69 INCHES;

Example standard sizes PAPER SIZE IS USLETTER;

Considerations USLETTER and USLEGAL cannot be abbreviated.

You can specify paper size in a Job Source Library (JSL). When
the JSL specifies PAPERSIZE using the keyword method, for
example, USLETTER, A4, or USLEGAL, the .FSL must also use the
same method. If the JSL specifies PAPERSIZE=8.5 by 14 and
your .FSL specifies PAPER SIZE IS USLEGAL, one of the following
error messages is displayed:

OS6670 Form paper size too small. Form will not be printed.
OS6680 Form paper size too large. Form will not be printed.

These errors appear only when you print the form. The
messages do not appear when you compile the form without
printing it.

Reference The PDL PAPERSIZE command is explained in more detail in your

Xerox 4050/4090/4450/4650 LPS Print Description Language (PDL)
Reference.

Due to edgemarking considerations, the form created by
specifying a paper size of USLEGAL is different from one
specifying 8.5 by 14 inches.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 2-5

FORMS DESCRIPTION LANGUAGE

LANDSCAPE/PORTRAIT

The forms compiler is capable of compiling a number of paper
sizes. Although a form file may be compiled without an error, it
may not be printable on a particular system if the paper size
exceeds the maximum feeder capacity of that system. Examples
of these are A3, B4, and 11 by 17 inch paper sizes. If you
attempt to print a form with an incompatible paper size, the
following message is displayed on the system controller:

Paper size in cluster AUTO is too small

When coding .FSL applications, the PAPER command must
precede the LANDSCAPE/PORTRAIT statement.

If a predefined format is specified in the GRID command, paper
size is determined automatically, and the PAPER command is
unnecessary. The PAPER command is required, however, any
time the paper size is different from the sysgen default.

Note: The correct size paper must be loaded in the feeder. A
paper size mismatch at run time causes an error message to be
displayed. The form does not print, and the job may be aborted.

Specifies the origin of the form and the virtual page size.

Syntax orientation

PAGE SIZE IS n WIDE BY m HIGH;

Parameter options orientation

LANDSCAPE

The form is oriented horizontally (like most paintings or
photographs of landscape scenes).

PORTRAIT

The form is oriented vertically (like most portraits of
people).

n

Specifies the virtual page width in DOTS, XDOTS, INCHES
(IN), or centimeters (CM).

m

Specifies the virtual page height in DOTS, XDOTS, INCHES
(IN), or centimeters (CM).

Default LANDSCAPE is the default orientation, and the default units is

INCHES.

Example PORTRAIT;

Considerations When coding .FSL applications, the PAPER command must

precede the LANDSCAPE/PORTRAIT command.
If a PAGE SIZE parameter is specified, a virtual page of that size is

centered relative to the paper. The virtual page origin is at the
upper left corner of the centered virtual page.

If no PAGE SIZE parameter is specified, the virtual page size
defaults to the paper size specified in the PAPER command;
otherwise it defaults to the sysgen-defined paper size.

Only one LANDSCAPE or PORTRAIT command is allowed in a
form description. If specified, the command must precede the
GRID, BOX, LINE, LOGO, and TEXT commands, described later in
this chapter.

Page width and height values must be positive numbers and may
contain two decimal places for all units except DOTS.

2-6 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

FORMS DESCRIPTION LANGUAGE

GRID

Specifies how far apart to space the horizontal and vertical grid
lines. This command also specifies the location of the form
origin with respect to the virtual page origin. All FDL commands
create and place form elements (lines, boxes, and so on) relative
to the form origin.

Syntax GRID

UNIT IS format id ORIGIN y unit x unit;

or

UNIT IS value ORIGIN y unit x unit;

GRID

Parameter options format id

Name of a predefined format. The format may be one of the
standard formats listed in the “Standard print formats”
appendix or a user-defined format.

When a format is specified, it automatically provides page
orientation, form origin, and grid unit dimensions. All
predefined formats specify the grid units in lines and
characters per inch. The BEGIN values of the predefined
format are used to place the form origin, unless overridden
by an ORIGIN parameter.

value

If a predefined format is not specified, value is used to
indicate the number of inches (INCH or INCHES),
centimeters (CM or CENTIMETERS), dots (DOTS or XDOTS),
or characters per inch or lines per inch (CPI or LPI) that
specify the size of a grid unit. Size in inches or centimeters
represents the length of one side of a square grid unit.

If the value is omitted when DOTS are specified, 1 is
assumed. If only one DOTS parameter is specified, the grid
unit is the same number of dots in both the horizontal and
vertical dimensions.

y

Specifies the offset value used to offset downward from the
top of the virtual page. If y is not specified, the top edge of
the form is located at the top edge of the virtual page.

unit

Specifies the measurement, in INCH or INCHES, CM or
CENTIMETERS, DOTS or XDOTS, that the form origin is offset
downward from the top of the virtual page. If inches,
centimeters, or dots are not specified in this parameter,
inches are assumed.

x

Specifies the offset value used to offset the form to the right
of the left edge of the virtual page. The coordinate x=0
represents the left edge of the virtual page. If x is not
specified, the left edge of the form is located at the left edge
of the virtual page.

Default If no grid units or predefined format is specified, FMT1

(landscape) or FMT6 (portrait) values are used. If no units value
is specified, INCHES is the default.

Example GRID UNIT IS 1 INCH;

Considerations Inches and centimeters may have two decimal places. Dots must

be expressed in integers only. The values value, y, and x must
be positive numbers.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 2-7

FORMS DESCRIPTION LANGUAGE

FONT

The GRID command, when specified in number of dots, allows a
greater flexibility than more conventional methods of specifying
the grid. For example, instead of being limited to two decimal
places of accuracy when specifying inches or centimeters, the
grid can be specified to the dot. This feature also eliminates any
errors caused by rounding.

If the GRID command specifies explicit unit parameters and no
ORIGIN is specified, the form origin coincides with the virtual
page origin.

Grid unit dimensions may be overridden by the BOX, LINE,
LOGO, and TEXT commands. Multiple GRID commands may be
used within a set of FDL commands. A GRID command remains
in effect until another is encountered.

Reference For illustrations of how virtual page and form origin are

determined, see the “Command examples” appendix.

Identifies the character sets used when creating and printing
forms data and variable data.

Syntax FONTS

id1 id2 id3...id

32j

;

Parameter options id

Identifier of the standard or custom font you want to use.
Multiple ids are separated by either a blank or a comma.

Example FONTS UN106A,UN104C,UN114A;

Considerations Fonts must be selected using the FONT command before text

can be specified. FONT can be used only once.
When specifying multiple fonts, make sure that you enter the

correct font in the font list. When an invalid font is encountered,
compilation is suspended, and an FRM file is not produced.
There are three possible cases for a “font not found” error:

• The font does not exist on the system disk, and the message

***USER SPECIFIED FONT NAME IS MISSING is generated. No

.FRM file is created.

• There is no such font index. For example, the FONTS
command contains two font IDs and the user specifies TEXT
USI FON 3... This generates an

***INVALID FONT INDEX

message, and an .FRM file is created with the text printed
using FONT 1.

• No font index is specified in the TEXT command. For
example, TEXT AT 1 1

TEXT MESSAGE will print with the last

used font. If this is the first time the text has been used, FDL
will default to FONT 1.

The number of fonts that can be specified depends on their size,
the number of fonts used in the variable data, and the size of
font memory in your system. However, the maximum number of
fonts and logos allowed per form by the forms compiler is 32.

2-8 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

Description commands

Location coordinates Specify the locations in terms of the y and x axis coordinates,

FORMS DESCRIPTION LANGUAGE

Description commands specify the location, size, and
characteristics of the following form elements: lines, boxes,
logos, graphics, form sections, and text.

The following commands are used for entering descriptive form
data:

• LINE

• BOX

• TEXT AT

• TEXT IN BOX

• LOGO

• GRAPHIC.

You can enter these commands in any sequence. For a
discussion of the problems you may encounter when entering
these commands, refer to the “Troubleshooting” chapter.

measured from the form origin specified in the GRID command.
The form origin is generally set to coincide with the variable data
origin, and the grid units correspond to the character and line
spacing of the variable data. The form origin coordinates are
specified as y=0, x=0.

You can specify both x and y coordinates, or just one coordinate
along the y or x axis. If only one coordinate is given, the axis is
implied in the command.

Symbols for coordinates The following five symbols are used in the description commands

to symbolize different coordinates:

• c

• c

• c

• c

• c

Origin coordinate

o

Start coordinate

s

End coordinate

e

Absolute coordinate

a

Incremental coordinate.

i

The coordinate parameter may be followed by the unit of
measurement: inches (IN), centimeters (CM), or DOTS. If units
of measurement are not given in the command, the coordinates
are in grid units.

Negative coordinates Negative coordinates may also be used. A negative y coordinate

is measured upward from the form origin. A negative x
coordinate is measured to the left of the form origin. For
example, a vertical line starting at x=-1 would appear to the left
of the form grid, as shown in figure 2-1. When you use negative
numbers, be sure to stay within the boundaries of the system
page.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 2-9

FORMS DESCRIPTION LANGUAGE

LINE

Figure 2-1. Use of a negative coordinate

Form origin

x= -1

Specifies that one or more lines are to be drawn in the same
direction. A LINE command defines the following:

• Point at which the line begins

• Direction of the line

Syntax AT

Parameter options c

• Length of the line

• Type of line

• Thickness of the line

• Number of times the same line is to be drawn, either from
different origins or at specified intervals from the initial
origin.

co unit DRAW n direction LINES IN unit FROM cs unit

TO ce unit USING type thickness AND REPEAT repeat

direction

o

ca unit ca unit ... EVERY ci unit;

AT

The number representing the displacement from the form
origin of the first or only point of origin, expressed in grid
units or linear units. The remainder of the line command
specifies the length and characteristics of a line to be drawn
at this location.

If a horizontal line is to be drawn, the c

displacement is

o

measured on the y axis. If a vertical line is to be drawn, the

displacement is measured on the x axis. For example, if

c

o

is 6, a horizontal line is drawn under the sixth character

c

o

row.

n

Number of lines to be drawn.

unit

Unit of linear measurement, expressed as inches (IN),
centimeters (CM), or DOTS. If a linear unit is specified
following IN, the c
units, unless specified after c

parameter is assumed to be in the same

o

. If units are not specified, the

o

measurement is in grid units.

direction

HORIZONTAL or VERTICAL.

2-10 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

FORMS DESCRIPTION LANGUAGE

cs

The coordinate of the start of the line, measured on the x or
y axis, depending on the direction of the line.

c

e

The coordinate of the end of the line, measured on the x or
y axis, depending on the direction of the line.

type

SOLID An unbroken, straight line.
BROKEN The line is divided into many equal sections,

separated by small amounts of space.

DOTTED The line consists of dots of equal size and spaced

equally apart.

thickness

0 (invisible)
HAIRLINE
1
2

repeat direction

HORIZONTALLY or VERTICALLY.

c

a

Absolute x or y coordinate at which to start repetitive lines in
a horizontal or vertical direction. Multiple c
be specified. Whether c

is measured on the y or x axis

a

parameters can

a

depends on the horizontal or vertical direction of the line.

c

i

An incremental number representing the grid units or linear
units between repeated lines.

Default The system defaults for direction and type of line are horizontal

and solid. The default option of REPEAT is used to repeat a
horizontal line vertically and a vertical line horizontally to produce
parallel lines. The default number of lines to be drawn is 1.

Example AT 3 DRAW LINE FROM 4 TO 10;

Reference Refer to the “Command examples” appendix for examples and

illustrations about drawing lines.

Describes the size and shape of a square or rectangular box. The
BOX command is similar to the LINE command. Like lines, boxes
may be repeated either at fixed intervals or at specified locations.
The origin of a box is its upper left corner at the midpoint of the
outline thickness. The BOX command provides an option that
allows you to draw the outline of a box (frame) and to fill in a
box with shading.

Syntax AT

unit x unit DRAW n BOXES IN unit p unit WIDE BY q

y

unit HIGH USING type thickness SHADING density AND
REPEAT direction AT ca unit ca unit ... EVERY ci unit;

BOX

Parameter options y

Coordinate on the y axis of the upper left corner of the box.

x

Coordinate on the x axis of the upper left corner of the box.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 2-11

FORMS DESCRIPTION LANGUAGE

unit

Unit of linear measurement, expressed as inches (IN),
centimeters (CM), or DOTS. If units are not specified, the
measurement is in grid units.

n

Number of boxes to be drawn. the default is 1.

p

Width of the box.

q

Height of the box.

type

Line style making up the border of the box.
SOLID An unbroken, straight line.
BROKEN The line is divided into many equal sections,

separated by small amounts of space.

DOTTED The line consists of dots of equal size and spaced

equally apart.

thickness

Thickness of the border of the box.
0 (invisible)

HAIRLINE
1
2

density

Relative intensity of the shading.
LIGHT

MEDIUM
HEAVY.

direction

HORIZONTALLY
VERTICALLY.

c

a

Absolute x or y coordinate at which to start repetitive lines.
Multiple c

c

i

parameters can be specified.

a

An incremental number representing the grid units or linear
units between repeated lines.

Default The default for LINES is SOLID 1; the default for REPEAT is

HORIZONTALLY.

Considerations Specifying a line thickness of 0 is useful for positioning text in an

invisible box. When using this technique, however, remember
that 0 lines, although they are not printed, appear as lines
internally.

A single BOX command can specify either an outlined box or a
shaded box, but not both; that combination requires a second
BOX command.

Example AT 4, 6 BOX 14 WIDE BY 4 HIGH;

Reference Refer to the “Command examples” appendix for examples and

illustrations about drawing boxes.

2-12 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

FORMS DESCRIPTION LANGUAGE

Two methods are available for specifying the text that is to be
placed on forms. The TEXT AT command places the text at a
specified location anywhere on the form; the TEXT IN BOX
command places text inside a box.

TEXT AT

Allows you to print text in specific locations.

TEXT

Syntax direction

USING FONT n AT y units x units ‘text’ ‘text’ ...;

Parameter options direction

HORIZONTAL
VERTICAL

d

Amount of vertical space occupied by a line of text. All
specifications except lpi are actual line height measurements.
An lpi value specifies line height in terms of lines per inch.
The number must be positive and may have two decimal
places for all units except DOTS. The default unit is DOTS.

units

Units of linear measurement, expressed as inches (IN),
centimeters (CM), DOTS, XDOTS, POINTS (PTS), or lines per
inch (LPI). If units are not specified, the measurement is in
grid units.

alignment

LEFT
RIGHT
CENTER
TOP
BOTTOM

n

Index number of the font to be used. If omitted, the system
uses the last font index specified in a TEXT command. If the
font was omitted in all previous TEXT commands, the system
uses the first font specified in the FONT command.

TEXT SPACED d units PER LINE ALIGNED alignment

y

Coordinate on the y axis where the text origin is to be
located.

x

Coordinate on the x axis where the text origin is to be
located.

text

Text characters that are printed at the specified location.
Multiple text strings can be specified by enclosing each text
string in single quotation marks. Separate each text string
with one or more spaces. (A string is a series of characters.)
Each string is printed as one physical line of text. Text strings
enclosed by single quotes (such as 'abcde') can be broken
and continued onto the next input record; the FDL compiler
skips all embedded spaces until it finds the first character of
the next record.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 2-13

FORMS DESCRIPTION LANGUAGE

Considerations FDL gives you control over vertical line spacings and horizontal

Text line origins The origin of a single line of text is the upper left corner of the

Default If direction and alignment are not specified, the defaults are

HORIZONTAL and CENTER.

character placement. The SPACED parameter in the TEXT
command is used to control the amount of vertical space
between two lines of text. Character spacing cannot be
overridden. However, each proportionally spaced font contains
six space characters of various widths to facilitate adjusting the
line length for text applications.

At least one font must be specified before any text can be
specified. The FONT command is used, and only one such
command can be given for any one form. After the fonts are
specified, they are referenced in the form description by an index
number, beginning with 1 for the first font specified, 2 for the
second, and so forth.

The number of fonts that may be specified depends on their size,
the number of fonts used in the variable data, and the size of
font memory. Once a font number is specified in a TEXT
command, it remains in effect until a new font index is specified.
If no font number is specified in any TEXT command, the system
uses FONT 1 as the default.

first character cell when the line appears upright to the viewer.
The origin of multiple lines of text is the upper edge of the
topmost character cell and leftmost edge of the leftmost
character cell when viewed in an upright position.

Text buffer capacity limits vary depending on the application.
The buffer is 968 bytes in size. However, 968 bytes of text
cannot be included in a line of text. There are a number of
factors involved:

• Approximately 30 bytes are consumed for the processing of
the command.

• Approximately 12 bytes are used for each individual text
string that is specified in a command.

• One byte is consumed for each byte of the text string.
Therefore, it takes fewer bytes to process ’1234567890’ than
to process ’12’ ’3456’ ’678’ ’90’ in a TEXT command.

Using toggles Text originally entered at a 9700/8700 keyboard may contain

number signs (#). The number sign acted as a toggle to enable
the user to alternate between lower and uppercase characters.
Previously, this was the only way to specify a change from
uppercase to lowercase and vice versa. The following is an
example of the lowercase in a text string.

Entering:

'R#ETAIL #D#ISTRIBUTION'

produces:

Retail Distribution

Although the current keyboards provide lowercase capability, it is
important to note that a form previously created on a 9700/8700
using toggles will compile successfully on a 4050, 4450, 4650, or
4090 LPS.

Examples of aligned text Text in forms may be left-aligned, right-aligned, or centered.

Reference Refer to the “Command examples” appendix for command

syntax and illustrations for aligned text.

2-14 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

FORMS DESCRIPTION LANGUAGE

Other character-block orientations are shown in the “Command
examples” appendix.

TEXT IN BOX

Allows you to place text within a box.

Syntax direction

USING FONT n IN position BOX y unit x unit ‘text’ ‘text’ ...

IN NEXT direction BOX ‘text’ ‘text’ ...;

Parameter options direction

HORIZONTAL
VERTICAL

d

Amount of vertical space occupied by a line of text. All
specifications except lpi are actual line height measurements.
An lpi value specifies line height in terms of lines per inch.
The number must be positive and may have two decimal
places for all units except DOTS. The default unit is DOTS.

units

Units of linear measurement, expressed as inches (IN),
centimeters (CM), DOTS, XDOTS, points (PTS), or lines per
inch (LPI). If units are not specified, the measurement is in
grid units.

alignment

LEFT
RIGHT
CENTER
TOP
BOTTOM

n

Index number of the font to be used. If omitted, the system
uses the last font index specified in a TEXT command. If the
font was omitted in all previous TEXT commands, the system
uses the first font specified in the FONT command.

TEXT SPACED d units PER LINE ALIGNED alignment

position

TOP LEFT or LEFT TOP
TOP CENTER or CENTER TOP
TOP RIGHT or RIGHT TOP
LEFT CENTER or CENTER LEFT
CENTER CENTER or CENTER
RIGHT CENTER or CENTER RIGHT
BOTTOM LEFT or LEFT BOTTOM
BOTTOM CENTER or CENTER BOTTOM
BOTTOM RIGHT or RIGHT BOTTOM

y

Coordinate on the y axis where the box origin is to be
located.

x

Coordinate on the x axis where the box origin is to be
located.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 2-15

FORMS DESCRIPTION LANGUAGE

Considerations A box with matching coordinate values must be defined before

text

Text characters that are printed at the specified location.
Multiple text strings can be specified by enclosing each text
string in single quotation marks. Separate each text string
with one or more spaces. (A string is a series of characters.)
Each string is printed as one physical line of text. Text strings
enclosed by single quotes (for example, 'abcde') can be
broken and continued onto the next input record; the FDL
compiler skips all embedded spaces until it finds the first
character of the next record.

Default If direction and alignment are not specified, the defaults are

HORIZONTAL and CENTER. The default for units is DOTS.

the TEXT IN BOX command can reference it. Thus, the statement
allows nine options for the position in a box where the text is to
be placed.

Reference Refer to the position parameters and to the “Command

examples” appendix for illustrations regarding text positioning.
Figure 2-2. Text positioning

1

2 3

4

5 6

7

8 9

Note that except for CENTER, two keywords are required. If a
location is not specified, the default is to place text in the center
of the box. If the selected font causes the text to overflow the
box or overflow the page, the system prints the form as specified
and generates a message indicating the maximum size font, in
points, that will fit in the allotted space.

Adjacent boxes The BOX position is specified by the coordinates of the upper

left corner of the box in which the text string is to be placed. If
text is to be placed in an adjacent box (either vertically or
horizontally adjacent), this can be specified by an IN NEXT BOX
parameter, in the following format:

NEXT HORIZONTAL BOX ‘text’ ‘text’ ...;

IN
Adjacent boxes must have a common side. The keywords IN

NEXT HORIZONTAL BOX specify the next horizontal box to the
right of the current box. The keywords IN NEXT VERTICAL BOX
specify the box beneath the current box. These adjacent boxes
are shown in figure 2-3. The default is HORIZONTAL.

Figure 2-3. Adjacent boxes

2-16 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

FORMS DESCRIPTION LANGUAGE

Assuming that the upper left corner of the first box above is
located two grid units down from the form origin and one grid
unit to the right of the form origin, you would use the following
statements:

TEXT IN BOX 2,1 ‘A:
IN NEXT BOX ‘B‘

or

IN NEXT BOX ’C’
IN NEXT VERTICAL BOX ’D’;

The results of either statement are shown in figure 2-4.
Figure 2-4. Placing text in adjacent boxes

TEXT IN BOX 2,1 ‘A‘
BOX ‘B‘
BOX ’C’
VERTICAL BOX ’D’;

CBA

D

LOGO

Use this command to place .LGO files. A complex figure called a
logo up to two square inches in size can be digitized to order by
the Xerox Font Center or Rank Xerox. This logo is a special font
of one or more characters, which carries with it the relative
position of the characters that make up the logo. Thus, while a
logo may be made up of many characters, it is positioned as a
single unit. For additional flexibility, a signature may be digitized
and stored on the system as a logo.

Syntax LOGO

Parameter options id

y

unit

x

Example LOGO EAGLE AT 10,12;

id AT y

The logo identifier (one to six characters).

Coordinate on the y axis where the logo origin is to be
located.

Unit of linear measurement, expressed as inches (IN),
centimeters (CM), or DOTS. If units are not specified, the
measurement is in grid units.

Coordinate on the x axis where the logo origin is to be
located.

Logo origin

unit x unit;

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 2-17

FORMS DESCRIPTION LANGUAGE

Considerations Be sure that font memory capacity is not exceeded. Logos larger

LOGO

Keyword LOGO

EAGLE

The name of the logo, a one- to six-character alphanumeric
label, is given to the logo when it is digitized by the Xerox
Font Center or Rank Xerox.

AT 10,12

The keyword AT and the coordinates (y,x) indicating where
the logo is to be placed.

than two square inches may be used if they are the result of
using smaller components of the logo to gain the desired effect.

Sample .FSL The LOGO command is typically inserted near the end of the

.FSL, as illustrated in figure 2-5.
Figure 2-5. Placing a logo

HORIZONTAL TEXT USING FONT 2 IN CENTER CENTER
BOX 6,1 ’DATE’;
COMMENT *** PLACE LOGO ***;
LOGO EAGLE AT 1,26;
END;

GRAPHIC

You can use the GRAPHIC command to place your images at any
location on the page. A form may consist solely of graphics
(images). Each graphic to be associated with a form must be
specified in the .FSL file.

Syntax GRAPHIC

Parameter options name

vpos

unit

hpos

name AT vpos unit hpos unit SCALE IS n/d;

Name of a graphic (.IMG) file, found on the system disk.

Specifies the vertical position of the top edge of the graphic
relative to the virtual page origin. This parameter is a decimal
number with up to two decimal places (except for DOTS,
which must be an integer). If no unit is specified, grid unit
dimensions are used as the default.

Unit of linear measurement, expressed as inches (IN),
centimeters (CM), or DOTS. If units are not specified, grid
unit dimensions are used.

Specifies the horizontal position of the left edge of the
graphic, relative to the virtual page origin. The format of the
specification is the same as for vpos.

2-18 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

FORMS DESCRIPTION LANGUAGE

n/d

Specifies the reference scale factor. Each parameter, n and
d, must be an integer in the range of 1 to 8 to allow a

reference scale factor in the range of 1/8 to 8. The reference
scale factor is multiplied by that specified at the time the
graphic was digitized, and the product is rounded to the
nearest integer in the range of 1 to 8. That integer becomes
the effective scale factor with which the graphic is imaged.

Default If no unit is specified, grid unit dimensions are used as the

default.

Example GRAPHIC AFJ AT 10, 12;

Sample .FSL A GRAPHIC command is illustrated in figure 2-6.

Figure 2-6. Placing a graphic

AT 31.6,31.6 DRAW BOX 46.8 WIDE BY 21.8 HIGH
USING SOLID 2;
AT 31.9, 31.9 DRAW BOX 46.2 WIDE BY 21.2 HIGH
USING SOLID 2;
AT 32.2,32.2 DRAW BOX 45.6 WIDE BY 20.6 HIGH
USING SOLID 2;
GRAPHIC UNICRN AT 31.5,42;
TEXT USING FONT 1 AT 83.5,2.5'FORM SM105';

Considerations Up to 16 images per page are permitted. The Raster Image

Processor (RIP), Interpress, and graphics capability (GVG2),
enable the printing of more than 16 images per page as well as
vector graphics.

When a form consists of several identical sections, you can save
time by defining only one section and treating it as a module,
that is, having it repeated at desired locations.

Syntax BEGIN

SECTION id;

or

SECTION id AT y unit x unit;

DO

SECTION;

END

Parameter options id

An identifier (one to six characters) that is invoked when a
section is to be defined.

y

Coordinate of the origin on the y axis of the section in
relation to the origin of the form.

unit

Unit of linear measurement, expressed as inches (IN),
centimeters (CM), or DOTS. If units are not specified, the
measurement is in grid units.

SECTION

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 2-19

FORMS DESCRIPTION LANGUAGE

Considerations SECTION can also be used to define an entire form as a section.

x

Coordinate of the origin on the x axis of the section in
relation to the origin of the form.

Default None.

Within the section, any other command, statement, or
specification may be used except another SECTION command,
DO SECTION command, FORM command, or END command.
More than one section may be defined and invoked, but each
section must be terminated with the END SECTION command
before another section can be defined.

To invoke a section that has been defined, invoke the section
with the DO SECTION command. A section must be defined
before it can be invoked.

Example Figure 2-7 illustrates how the SECTION commands are invoked.

Figure 2-7. Specifying a section

FORM SEC 4;
PORTRAIT;
GRID FMT8;
FONT UN207B;
COMMENT *** CREATE PHONE MESSAGE PAD SECTION ***;
BEGIN SECTION PHONE;
AT 7 DRAW 7 HORIZONTAL LINES FROM 4 TO 33 USING SOLID 1 AND
REPEAT VERTICALLY AT 11,17,20,23,26,29;
HORIZONTAL TEXT USING FONT 1 AT 2,4 'PHONE MESSAGES';
HORIZONTAL TEXT USING FONT 1 AT 4,4 'CALLER:';
HORIZONTAL TEXT USING FONT 1 AT 8,4 'TIME:';
HORIZONTAL TEXT USING FONT 1 AT 12,4 'MESSAGE:';

END SECTION;

COMMENT *** PRINT MESSAGE PAD SECTION 4 TIMES ***;

DO SECTION PHONE AT 0,0;
DO SECTION PHONE AT 30,0;
DO SECTION PHONE AT 0,37;
DO SECTION PHONE AT 30,37;

END;

BEGIN SECTION PHONE;
BEGIN SECTION

Keywords

PHONE;

Name of the section. Rules for naming sections are identical
to those for naming forms: one to six alphanumeric
characters.

END SECTION;

Finishing command. Notice that the END SECTION
command does not use the section name. Including a
section name results in an error.

2-20 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

FORMS DESCRIPTION LANGUAGE

DO SECTION PHONE AT 0,0;
DO SECTION PHONE AT 30,37;

DO SECTION

Keywords.

PHONE

Section name. The section must previously have been
defined by the BEGIN SECTION and END SECTION
commands.

AT 0,0;
AT 30,37;

Coordinates of the origin of the section in relation to the
origin of the form.

COMMENT

It is often helpful to use comments to include in the source
statements a description of certain FDL commands and their
functions. These comments are useful when debugging your
program and can act as reminders if you or someone else
modifies the .FSL later. When you use comments, they appear
on the source statement only. They are not printed on your
form, and do not affect the execution of your program.

Syntax COMMENT

text;

Parameter options text

Text to be treated as a comment.

Default None.

Example This sample illustrates a COMMENT that identifies the procedure

that is to follow it:
COMMENT *** PLACE SECTIONS ***;

DO SECTION RSPNSE AT 0,0;
DO SECTION RSPNSE AT 7,0;
DO SECTION RSPNSE AT 14,0;

Comment nesting /* begins a comment and */ ends a comment.

/* THIS IS THE START OF A NESTED COMMENT
/* WHEN TWO ENDING COMBINATIONS ARE FOUND */

THE COMMENT IS TERMINATED */

A syntax error results if /* does not begin a comment and */
does not end a comment. Each comment beginning (/*) and
ending (*/) should be followed by at least one space character.

Considerations A semicolon must be inserted at the end of the comment text;

otherwise all of the following FDL commands are considered part
of the comment text and are not executed. The FDL compiler
ignores all comments up to the first encountered semicolon.

Asterisks or line spacing cause the COMMENT to stand out from
the text.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 2-21

FORMS DESCRIPTION LANGUAGE

END

Use the END command to terminate the description of a form.

Syntax END;

Parameters None.

Default None.

Example An .FSL file can contain more than one file. Therefore, if

additional .FSL files follow an END command, the end of all .FSLs
to be processed is indicated by two consecutive END
commands. The command syntax is:

END;END;

2-22 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

Form printing process

3. Compiling and printing forms

Once the Form Source Library (.FSL) file has been created, the
file can be stored on the laser printing system (LPS) system disk.
The next step is to compile the file and print a copy of the form.

Follow these steps to print an electronic form on a Xerox laser
printing system:

1. Enter the editor utility and create a file of FDL commands to
describe the form. This file is called a Forms Source Library
(.FSL) file. Refer to the “Forms Description Language”
chapter for more information.

The .FSL file contains FDL commands such as coordinates for
placing lines, boxes, text, and so forth. You can create the
.FSL file directly at the LPS keyboard and display, at a host
computer input device, or through remote communications.

.FSL data transfer

2. Save the .FSL file to the LPS system disk.

3. Compile the .FSL to create a printable electronic form file
(.FRM).

4. Debug, modify, and recompile the file if necessary.

5. Print the form.

Once you have created the .FSL file, you can send it to the
system disk either offline or online.

Offline

In the offline mode, .FSL files can be transmitted to the system
disk from magnetic tape or by using the LPS Editor.

Using magnetic tape 1. Create the source file at the host computer and store it on a

magnetic tape.

2. Mount the tape on the LPS tape drive and copy the files
electronically to the system disk.

Using the LPS Editor The source code can also be entered directly to the LPS at the

system user interface and transmitted electronically to the system
disk.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 3-1

COMPILING AND PRINTING FORMS

Remote communications The LPS can also receive forms data from a remote device on the

Compiling a form

Online

If your LPS is channel-attached to a host computer, enter the
source code at the host terminal through the host editor facility.
The file must be preceded by the necessary control record
identifiers. Refer to your host reference documentation for
details. The LPS HOSTCOPY utility enables you to download files
from the host and store them on the LPS system disk.

Ethernet network.

Once the file has been created, the next step is to enter the
command that compiles the .FSL to an .FRM.

Multiple .FSLs contained in one file are paginated so that each
new .FSL starts on the front side of a new page.

FDL compilation time

The time it takes to compile a form file depends on the position
of the font file in its directory and the size and number of disks
on the system. If your LPS has a large number of font files
located on several disks, you may notice an increase in
compilation time for forms that perform text handling. To ensure
that your form files compile as quickly as possible, remove any
unnecessary font files and use the COMPRESS utility to
reorganize your files on the disk. This will shorten the font
lookup time and use the disk space efficiently.

Invoking the forms compiler

To invoke the forms compiler, enter the following command at
the LPS keyboard. The entire command must fit on one line.

filename NOPRINT TRAY DEBUG XPAN NOSOURCE PROOF SIMPLEX RES=spi

FDL

The FDL compilation command includes any combination of the
following options.

Parameter options filename

Specifies the name of the .FSL to be compiled. The file
extension, .FSL, may be included. No other extension is
allowed. The file name cannot be a keyword option such as
TRAY, DEBUG, XPAN, and so on. These are reserved names
that could cause problems when you use a task outside of
the forms compiler.

NOPRINT

Specifies that the .FSL source statements listing, form
summary, and sample form will not be printed. However, if
an error occurs during form processing, the listing and the
summary are printed.

3-2 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

COMPILING AND PRINTING FORMS

TRAY

Specifies that the sample form, source statement, and
summary sheet will go to the sample tray instead of the
currently active output stacker.

DEBUG

Specifies that no attempt to print the sample form will be
made. This ensures that the source statement and summary
sheet are printed even if the sample form cannot be printed.

XPAN

Specifies printing of the source statement of section
expansions.

NOSOURCE

Specifies that disk source file creation will be suppressed
when compiling from magnetic tape or disk when the form
name is the same as the file name given.

PROOF

Specifies that the .FSL will be compiled and the source
statement and/or summary sheet will be printed. No .FRM
file is generated.

SIMPLEX

Specifies that the source statement or summary sheet
generated with each compile is printed in simplex rather than
duplex.

RES=spi

Specifies a 300 or 600 spots per inch (spi) resolution.

If the source file contains multiple form descriptions, the system
does not start printing until all forms have been compiled.

Compiling 600 spi forms A 600 spots per inch (spi) form can be compiled only on a 4650.

It is important, however, that all 600 spi system fonts, logos, and
image files are loaded on that system prior to compilation.

Compiling 4850 color forms and logos V3.5 operating system software does not support any color

references. Color forms created on a 4850 LPS using the
IRESULT, ICATALOG, and PALETTE commands are accepted and
can be printed successfully on the 4050, 4090, or 4650 LPS;
however, problems occur when calling out color format LGOs
and IMGs. A form or logo that was created and compiled on a
4850 can be printed (in monochrome black) only on a 4050,
4090, or 4650 LPS using V3.8 (or higher) operating system
software releases.

When an .FSL is compiled and the name of the source input file
differs from the name in the FORM command, an .FSL is created
using the name from the FORM command. This newly created
.FSL contains only those commands necessary for that form.
However, if the input file has the same name as the one in the
FORM command, the original .FSL file is not affected.

If there are multiple forms in the input source and the source
input file name is used for any of the forms other than the first,
an error occurs during compilation. Therefore, if you wish to use
the source input file name as one of the form names, you must
use it as the first form to be compiled. Typically, forms
contained in a multiple-file .FSL do not have the same name as
the source input file. An example of this is DC20.FSL.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 3-3

COMPILING AND PRINTING FORMS

If an .FSL with multiple forms has one form name which has the
same name as another .FSL, this second .FSL will be overwritten
when the first is compiled. For example, assume that file A.FSL
contains forms X, Y, and Z. When it is compiled, files X.FRM,
Y.FRM, and Z.FRM are produced, as are files X.FSL, Y.FSL, and
Z.FSL. If there already is a file name X.FSL on the system, it is
overwritten by X.FSL from the A.FSL file.

Summary sheet

If the compilation is successful, a summary sheet of statistics is
printed with the following:

• Size of the source output file

• Size of the printable form file

• Size of the form image buffer

• Total amount of font memory used.

The summary sheet is printed duplex by default. If you want it
printed simplex, include the SIMPLEX option in the task
invocation line as follows:

TRYIT SIMPLEX

FDL

Multiple .FSLs contained in one file are paginated so that each
new .FSL starts on the front side of a new page.

Using the compilation options

Error checks

If the compilation fails, a list of error messages is printed. If a
command extends over several lines, an error message may not
appear on the next consecutive line following the error. This
may result in two consecutive error messages at the end of a
command. An example of this is the

CANNOT FIND THE BOX

message that may occur for a TEXT IN BOX command.
As the .FSL file is processed, it is automatically checked for the

following errors.

• Unknown, illegal, or missing commands, keywords, or
parameters

• Requests for items to be placed or drawn outside of box or
page boundaries

• Invalid font or logo requests

• Illegal grid units or syntax.

Errors are flagged in the source statement with messages
specifying the type of error. Refer to the Xerox LPS Message
Guide for a description of error messages that may appear while
forms are being compiled.

After communicating the .FSL to the LPS disk, you compile,
debug, and modify (if necessary) the .FSL using the following
options.

3-4 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

COMPILING AND PRINTING FORMS

File storage

A large number of forms may be stored in the forms source
directory (uncompiled) and form directory (compiled) on the
system disks. Two files with the same name cannot be stored in
the same directory. The number of forms that can be stored
depends on the amount of data required to describe each form
and the total amount of disk space allocated to the libraries.

The forms are filed in the system under their identifying names.
The information stored in the file includes the identifier, the
encoded form, and the list of specified fonts and logos. The
original source statements that created the forms description are
stored separately under the same identifier.

A list of all of the forms stored in the directory, a sample of each,
and the source statement lists can all be obtained using operator
commands.

PROOF

The forms compiler makes it possible to compile a form and
delete the .FRM file after it has been printed. If you use this
option, less disk space is consumed by resident form files. The
PROOF option has the following format:

filename PROOF

FDL

If the form is compiled without errors, the .FRM file and the
source statement and/or summary sheet is printed. Since the
PROOF option deletes it, there is no form file on the disk.

When you use the PROOF option, the form file that is created is
given a pseudonym that differs from the one specified in the
.FSL. Therefore, when TRYIT.FSL is compiled, for example, the
form that is created is not automatically named TRYIT.FRM. The
newly created .FRM file is given a different name, and it is this
renamed form that is eventually deleted. Due to this safeguard,
if a file named TRYIT.FRM already exists on the system disk, that
form still exists after the new .FRM file is compiled and deleted.

Secured files

• If you attempt to overwrite a secured file while compiling a
form, a security violation message displays, and the
compilation process is aborted.

• If you attempt to overwrite a secured file having the same
name on both the task invocation line and in the .FSL, a
security violation message is displayed and the form is
aborted.

For example, TRYIT1.FSL is a secured file.
You enter: FDL

TRYIT1 TRAY

The .FSL contains: FORM TRYIT1;

GRID IS 1 INCH;
END;END;

In this case, a security violation message displays and
compilation aborts.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 3-5

COMPILING AND PRINTING FORMS

• If the form names on the invocation line and in the .FSL are
different, the compilation is aborted and a single sheet is
printed. The sheet contains the heading for the page and
the portion of the .FSL that was processed before the
security violation was detected.

For example, TRYIT1.FSL is a secured file.
You enter: FDL

TRYIT TRAY

The .FSL contains: FORM TRYIT1;

GRID IS 1 INCH;
END;END;

In this case, a security violation message still displays and the
compilation aborts, but a single page is printed containing
the page heading and the .FSL line “FORM TRYIT1;”.

Example 1 FDL

TRYIT TRAY

This command compiles the .FSL named “TRYIT” (provided it
does not contain errors), generates the source statement, prints
a copy of the statement and the form, and delivers both to the
SAMPLE tray.

If you do not include the word TRAY in your command, the
printout is delivered to the currently active bin.

Example 2 If you want to compile the form, but you do not want a printout

of the form just yet, enter the following:

TRYIT NOPRINT

FDL

The .FSL compiles, but the form and the source statement do not
print.

Printing a compiled form

Once a form has been compiled, the object code is stored on
the system as an .FRM file. To print copies of the form, enter the
SAMPLE command at the LPS keyboard. The format of the
SAMPLE command is:

SAMPLE

filename.FRM

For example, to produce five copies of the form, enter the
following:

SAMPLE

TRYIT.FRM 5

When an FRM is compiled using FDL software version 2 (or later),
the paper size is defined by the PAPER SIZE IS XX BY YY
statement in the .FSL. If the paper size is not defined, the paper
size defaults to the sysgened paper size. FRMs compiled prior to
version 2 (before the paper size statement of FDL was
implemented) use the sysgened paper size. If there are graphics
in the form, FDL does not guarantee that the image fits on the
page. If necessary, the following message appears:

OS6191 GRAPHIC xxxxxx OFF PAGE AND WILL NOT BE PRINTED

3-6 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

Suggested coding techniques

Converting preprinted forms

4. Troubleshooting

Physical printer constraints and forms compiler methods are
factors that can affect form design. This chapter provides coding
technique suggestions and hints and tips to help you avoid
coding problems. This chapter also covers factors that may
impact the following:

• Image complexity

• Boxes

• Shading

• Sections

• Rounding measurements.

Designing new forms

Follow these steps to convert preprinted forms:

1. Print data, using an appropriate format, on the laser printing
system.

2. Draw horizontal and vertical lines on the system output.

3. Use the forms design ruler to measure line and character
spacings. Refer to the “Support tools and measurements”
appendix.

4. Code the form.

Follow these steps to design new forms:

1. Determine the appropriate format.

2. Use the forms design ruler to measure line and character
spacings. Refer to the “Support tools and measurements”
appendix.

3. Draw horizontal and vertical lines on a layout sheet. Use
standard layout sheet forms FLSF1 through FLSF11 that are
provided in the FDL software. Layout sheet forms and
corresponding paper sizes are shown in table 4-1.

4. Define the x and y coordinates.

5. Code the form.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 4-1

TROUBLESHOOTING

Table 4-1. Layout sheet forms and paper sizes

Layout sheet
forms Paper size

Recommended coding sequence

FLSF1 through
FLSF11

FLSF1A and

8.5 x 11 inch/
216 x 279 mm

A4

FLSF11A
FLSF12 and

FLSF13

8.5 x 14 inch/
216 x 356 mm

The FDL compiler imposes a number of constraints on the
sequence in which commands are coded. The form name must
come first. Only one form orientation is permitted, and fonts
and boxes must be implicitly or explicitly defined before they are
referenced by TEXT commands. After that point, the sequence is
not significant to the compiler. However, it is worthwhile to
develop a sequence while debugging or making changes to a
form. Use a method of sequencing commands similar to the
following:

• Horizontal and vertical lines

• Boxes (if needed)

• Text

• Logo placement

• Shading.

Syntax ambiguities

Because FDL keywords can be abbreviated to the first three
characters, and because certain two-character keywords can be
interpreted in more than one way, the following known
ambiguities exist:

• IN (preposition) is interpreted as IN (inch). For example:

TEXT 1 IN BOX...;

Also,

TEXT SPACED 1 IN BOX...;

The keyword IN is interpreted as INCH, while the required
keyword IN (preposition) is detected as missing and an error
message results. The solution to this situation is to write the
following:

TEXT 1 IN IN BOX...; or
TEXT 1 INCH IN BOX...; or

TEXT 1 DOTS IN BOX...;

• FMTn cannot be abbreviated.

4-2 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

Hints and tips

Keywords Hints and tips

TROUBLESHOOTING

• [DOT\TED is interpreted as [DOT\S. For example:

AT 18 DRAW 5 HORIZONTAL LINES FROM 27.5 TO 37.5 DOT...;

The keyword DOT is interpreted as DOTS, which is valid in
this position. The keyword DOTTED is also valid in this
position, but must be spelled out in full.

• [CEN\TER is interpreted as [CEN\TIMETERS. For example:

TEXT 10 CEN IN BOX.....;

The keyword CEN is interpreted as CENTIMETERS, which is
valid in this position. The keyword CENTER is also valid in
this position but must be spelled out in full.

You can avoid coding problems by using the coding technique
suggestions, hints, and tips shown in table 4-2.

Table 4-2. Hints and tips

Form id • Develop a logical, systematic approach to naming conventions.

• Take care not to choose a previously used form id.
GRID command Choose a format that is compatible with the data.
Coding lines • Use a COMMENT command.

• Code all horizontal lines, then all vertical lines. Precede each set with a comment

statement.

• Code longer lines first. Then follow with the shorter segments that may overlay the

basic long lines.

• Code lighter lines first. Then code shorter segments that are heavier in density.

• Code a SOLID 0 line first whenever you have a set of colinear segments, whether

they are touching or not.

• Use lines rather than characters of the form element font, whenever possible.

• Avoid overlapping (superimposing) lines.

• Avoid using too many dotted or broken lines because they create too much

overhead in the printing process.

• Avoid drawing unneeded lines across the longest side of the physical page.
Coding boxes • Use a COMMENT command.

• Use a BOX command only when the lines generated by that command are not

duplicated by another command.

• Do not use a REPEAT command when drawing lines that create boxes if you need to

find the coordinates of those boxes later.

• Use boxes rather than characters of the form element font, whenever possible.

• Avoid overlapping (superimposing) boxes.
Use of shading • Use a COMMENT command.

• Avoid overlapping the boundary line of a box with shading. Set shading back from

borders by three to five dots (or about 0.1 units for most coordinates). This
conserves memory and results in a cleaner appearance.

• Try to avoid shading on portrait forms.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 4-3

TROUBLESHOOTING

Table 4-2. Hints and tips (continued)

Keywords Hints and tips

Coding text • Use a COMMENT command. Remember that different fonts of a given point size are

not necessarily the same physical size.

• Be aware that vertical error messages, generated when the system calculates that too

much text has been specified for placement in a box, are an approximation.

• Use the TEXT SPACED AT command to force exact text placement.

• Avoid placing too many small characters in one area of the page.

• Avoid overlapping characters to achieve bolding or other effects. Use the correct

font whenever possible.

• Avoid too many font switches on the same text line. This creates overhead in the

printing process.

Coding sections • Use a COMMENT command.

• Use coordinates based at 0,0 when defining a section. Then place the section at the

locations you want.

Source copy If the source filename (.FSL) and the form name (the name that follows the FORM

keyword) do not agree, an .FSL file is created that has the same name as the form name.
Therefore, when you copy X.FSL to Y.FSL and compile Y.FSL without changing the form
name in Y.FSL, the original X.FSL is deleted and a new X.FSL is created from the Y.FSL
source. Furthermore, the form file (.FRM) that is created is X.FRM and not Y.FRM. If you
wish to create a distinct source using another .FSL as a base, you need to change the
form name to the same name as the source name, or to some other name that does not
already exist. Two files with the same name and type cannot reside on the system.

Image complexity factors

Line tables

Line table limits The FDL line tables can store 1,999 vertical and 1,999 horizontal

Form design is limited by physical restrictions on the amount of
image data (characters and lines) that can be printed on a scan
line and on a page.

Forms Description Language (FDL) line tables are internal FDL
data structures that provide a record in memory of the lines to
be drawn on a page. These tables allow the system to find the
corners and edges of boxes when they are referenced later.

Since excessive amounts of memory would be required to store
every line, the FDL compiler retains only the memory of the
longest lines that pass through any given coordinate in a
particular direction. FDL replaces dotted or broken lines with an
invisible line of the same length.

lines in memory. When you exceed either of these line table
limits, the following message is displayed:

TOO MANY HORIZONTAL OR TOO MANY VERTICAL LINES

This message warns you that the new user-specified line cannot
be retained in the table. The message is of no real consequence
to you unless the new line is intended as the side of a box. In
that case, the box is not found and your form may not compile.

4-4 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

TROUBLESHOOTING

Generally, the line table limits are reached because the form
contains a large number of short line segments. The most
probable reason for this is a series of vertical lines (for example,
tick marks) or horizontal lines (for example, a series of long
dashes). With either of these conditions, it is possible to reduce
the number of entries in the line table as the form is being
constructed.

Importance of orderly construction

One consideration in determining the orderliness of form
construction is that the algorithm used in loading the line table is
designed to check only the following two criteria before entering
a new line in the line table:

• Is the new line contained within the boundaries of an
existing line?

• Is the new line an extension of one of the existing lines?

If the new line is contained within the boundaries of an existing
line, no change is made to the line table entries. If the new line
is an extension of one of the existing lines, the boundaries of the
first (and only the first) existing line are extended to include the
new line. If neither of the criteria is met, a new entry is made in
the line table.

Examples The procedure of line extension results in an irregularity if lines

are not specified in an orderly manner. For example, draw five
line segments that are each five units in length. If the lines are
drawn in an unreasonable or irregular manner, as shown below,
the result is more entries in the line table than are necessary.
Drawing line segments in the order 0 to 5, 10 to 15, 20 to 25, 5
to 10, and 15 to 20 creates a single visual line that FDL considers
to be three lines. This is because the criterion of the line table
allows the extension of only the first line segment with common
coordinates to the new line. In this case, the three line entries in
the line table would be 0 to 10, 10 to 20, and 20 to 25. Figure
4-1 shows examples of extraneous drawn lines.

Figure 4-1. Example of extraneous drawn lines

It is also possible to have the line table show more than one line
passing in the same direction through a given coordinate. For
example, draw three lines, each of which is five units in length (0
to 5, 10 to 15, and 20 to 25). Then draw two lines, each of
which is nine units in length (3 to 12 and 13 to 22). The result is
a single visual line for which FDL has three entries in the line
table (0 to 12, 10 to 22, and 20 to 25). Figure 4-2 shows lines
entered in unintended locations.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 4-5

TROUBLESHOOTING

Figure 4-2. Lines entered in unintended locations

These two examples of lines entered in the line table result in
lines that are visually contiguous but are not logically contiguous.
As indicated in the following sections that describe problems
with boxes, such conditions can result in a situation where FDL
cannot find a box, or creates a box that has one or both of its
dimensions equal to zero.

Suggested techniques for entering lines To enter lines, draw the longest possible logical line first, then

draw any shorter elements. If the logical line consists of different
types of lines (for example, solid and dotted), draw a SOLID 0
line first, extending over the full range of the logical line. For
example, the above example of five line segments of five units
each might have consisted of alternating solid and dotted lines.
In that case, the following is the most reasonable method of
specifying the total line:

Scan line density

AT 0 LINE 0 TO 25 USING SOLID 0;
AT 0 LINE 0 TO 5 USING SOLID 2 AND AT 10, 20;
AT 0 LINE 5 TO 10 USING DOTTED 1 AND AT 15;

Figure 4-3 shows the resulting line.
Figure 4-3. Line made up of different types of lines

Scan line density depends on printer and imaging speed.
Therefore, it can vary with each product and even with different
configurations of the same product. The basic limitation is linked
to dispatchable items, which become visible in character count
and number of lines.

Line density errors Both characters and lines contribute to the dispatchable item

count. When one dispatchable item is superimposed over
another dispatchable item, the result is considered to be two
dispatchable items by the system. When too many dispatchable
items are present on a scan line on the long axis of the paper,
the LPS operating system displays the following line density error
message:

OS6950 LINE DENSITY EXCEEDED

4-6 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

TROUBLESHOOTING

The hardware limitation of 320 dispatchable items per 300 spi
scan line (640 for 600 spi) includes the required overhead of two
dispatchable items. For example, a dispatchable item could be a
maximum of 32 dots wide for 300 spi (64 dots for 600 spi), and
thereby might be a full character (less than point size 8 or 9), a
fraction of a character (greater than point size 8 or 9), or a line
segment that is equal to or smaller than 32 dots in the scan
direction.

Determining line density limitations The following is a guide for determining 300 spi line density

limitations. If printing at 600 spi, the same size character or same
length line has twice as many dots, as follows:

• Every 32 dots (or fraction thereof) of a line drawn on the
long axis of the paper are one dispatchable item.

• Each line drawn on the short axis of the paper is one
dispatchable item.

• Each active character is at least one dispatchable item. (An
active character includes all the space from the top of the
character cell to the bottom of the character cell, even if
there is only white space present on a given scan line.) If the
dimension along the scan line is greater than 32 dots, the
character consists of some multiple dispatchable items.

It is not possible to construct a form with two adjacent lines if
both use the full count of 318 dispatchable items (320 minus the
two required for overhead) resulting from text and lines. The
imaging system requires a rest period of about four scan lines
before it can image the second fully loaded line.

Landscape pages Line density restrictions differ as a function of the mode

(landscape or portrait) of the form. An 8-point or smaller
landscape font is smaller than 32 dots for 300 spi and 64 for 600
spi. A vertical line is a single dispatchable item. A horizontal line
is treated as a series of 32 dots in length, joined end-to-end.

For 300 spi, this means that a form using an 8-point or smaller
font on a landscape page may have up to 318 characters (plus a
two-item overhead, for a total of 320 dispatchable items) on a
scan line. For example, when using a 6-point font, it is possible
to have 132 characters, a line across the page under the text, and
up to 90 vertical lines, without exceeding the line density
limitations.

If a form requires a 9-point or larger font, the number of
characters that may be imaged on a landscape page is reduced to
160 because the characters are generally more than 32 dots
wide. While the dispatchable-item count remains 320 per line,
fonts 9 points and larger use two dispatchable items per
character. Since a character in a large font constitutes two
dispatchable items, only half as many characters in a large font
may be imaged on a scan line as is possible with a smaller font.

Portrait pages Restrictions for a portrait page are significantly different from

those for a landscape page because the system always images in
the landscape direction. Therefore, if a page is formatted in
portrait orientation, the hardware must reorganize the data into
landscape prior to imaging.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 4-7

TROUBLESHOOTING

Superimposed lines

Page generation errors

On a 300 spi portrait page, a 12-point font drops the
dispatchable-item count below the 320-character level. A form
with a 12-point font cannot have more than 160 characters on a
scan line.

When using an 8-point 300 spi font on a portrait page, the
maximum dispatchable item count is approximately 200 per scan
line. This limit falls off to 170 characters for a 6-point font, 150
characters for a 5-point font, and 120 characters for a 4-point
font. (If printing at 600 spi, the same size character or length
line has twice as many dots.)

Since lines superimposed over each other count as double the
dispatchable items of a single line, they detract from the system
capabilities. If printing at 600 spi, you see the following
message:

EXCEEDED LINE DENSITY.

Generally, a form is imaged along with variable data. It is
possible to create a form that prints correctly when sampled but
cannot successfully be overlaid on certain variable data pages.

Local density and page setup errors

The LPS may not have enough time to merge a complex form
with a large amount of variable data within the limits of the
throughput environment. In this case, either reduce the amount
of variable data, or simplify the form.

Review the broken page to determine the approximate location
of the failure, and try to reduce the number of characters and
lines in that area. Most imaging problems are local density of
information problems rather than page-wide problems.

One problem that may occur while a page is being imaged is a
page setup error, displaying the following message:

OS9300 PAGE SET-UP ERROR

This message means that there was not enough time to image a
page. This may be caused by an excessively large amount of
data and forms to be imaged, disk errors, image generation
problems, or a problem known as local density.

Even a form designed to avoid exceeding line density limitations
may cause page setup errors because of local density. However,
such problems are rarely encountered in readable forms. To
have a problem area of local density, a form would have to have
long lines of very closely spaced small text.

A local density problem occurs when the imaging hardware
accepts and dispatches characters at two different rates. If a
form structure imposes a dispatching load that is too heavy, the
hardware may run out of input before the data processing is
finished.

4-8 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

Using boxes

TROUBLESHOOTING

Considerations If a form you described causes page setup errors, examine the

form and variable data to see if there are many lines or a large
amount of text in a small area. If there are, you can reduce the
density of this area by spreading out the material or by deleting
parts of the form.

To determine possible causes of page setup errors due to local
density, look for the following items:

• Large amounts of closely spaced text in a small font; that is,
long lines of solid text with minimum spacing, especially if a
form is portrait.

• Large amounts of text in an orientation different from the
defined form orientation; for example, portrait text in a
landscape form.

• A large number of lines drawn on the short axis of the paper;
that is, vertical lines on a landscape form.

You can draw boxes with a single BOX command or construct
them with commands on a line-by-line basis.

A line density problem can occur if a single BOX command is
used to specify a box that is adjoined to another box by a single
side. When two BOX commands are issued in this manner, one
line of a box is superimposed over another along the adjoined
side. Since two lines are drawn between the same pair of
coordinates, a line density problem may occur.

When to use the BOX command To avoid this situation, use the BOX command only for the

following conditions when designing a form:

• The box is fully isolated from any other lines.

• The line type of a box is different from any other lines that
share its boundaries, for example a SOLID 2 box sharing a
small portion of a SOLID 1 edge, as shown in figure 4-4.

Figure 4-4. SOLID 2 box sharing part of a SOLID 1 box edge

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 4-9

TROUBLESHOOTING

Text in boxes

Locating the closest box

When text is entered for placement within a box, the system
attempts to determine whether the given text exceeds the largest
font size that can fit within the boundaries of the box. If FDL
computations indicate that the entered text may not fit within the
box, the following error message is displayed:

TEXT WILL NOT FIT IN THE BOX

The system checks the horizontal and vertical directions of the
box. If an error is detected in one or both directions, an attempt
is made to indicate an approximate value for the largest font.

When you specify text to be placed in a box, the system locates
the closest box within a ten-dot square of the specified point.

Example If text is to be placed in a box located two grid units by two grid

units from the origin of the form, the system selects the box
closest to this point and within ten dots square. The upper left
corner of this box becomes the relative origin for subsequent
text placement.

• If text is to be placed in the next box horizontally, FDL
begins searching at the upper right corner of the box in
which previous text was placed.

• If text is to be placed in the next box vertically, the search
begins at the lower left corner.

Error calculations

Horizontal errors The calculations made for horizontal errors (for example, too

many characters in a line) are usually accurate. FDL uses the
following formula for reporting horizontal errors:

S = P * (B/T)
S target point size
P original font point size
B width of the box in dots
T width of the text in dots.

Vertical errors The calculation made by FDL for vertical errors (for example too

many lines in the box) is a rough approximation of the actual size
of text, and the computation may, in fact, be larger than the font
for which an error message was displayed. This is because the
FDL calculation does not take into account the leading used
within the font or provided by line spacing specifications.

The following formula is used by the error-handling routine to
compute text size when the box is too small in a vertical
direction:

S = (72/300) * (D/N)
S target point size
72 number of points in an inch
300 number of dots in an inch
D distance between top and bottom of the box (in dots)
N number of lines that are involved.

4-10 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

TROUBLESHOOTING

Figure 4-5. Measurements used in computing vertical box

TEXT IN LINE 1

D N

TEXT IN LINE 2
TEXT IN LINE 3

The result of this equation is rounded up and displayed in the
error message. Thus, what the error message actually signifies is
the largest font that could be accommodated within the box if
no leading were involved.

Correcting text-in-box errors If an error is detected, you have the following choices:

• Make the box larger

• Reduce the number of lines

• Use a smaller font

• If text fits visually, use a TEXT AT command rather than a TEXT
IN BOX command.

Centering text in boxes FDL uses line spacing as the vertical unit of size in centering text

within a box. In a small box, text that may not appear to be
properly centered may actually be centered accurately if line
spacing is considered. FDL cannot evaluate the aesthetics of the
final printed product. Therefore, it is up to you to create an
appropriate appearance for centered text.

Specifying line spacing within boxes Most often, it is easiest to allow FDL to position text within

boxes. In cases where the result is not satisfactory, you can do
the following:

• Specify an overriding line spacing value.

• Exercise more control over text placement and assure
satisfying aesthetic requirements with the SPACED AT option,
possibly used with blank lines, or the TEXT AT command (that
is, specifically positioning text).

• If overriding the line spacing does not achieve a satisfactory
appearance in a form, specify a line spacing that is smaller
than the natural spacing of the font. A line spacing smaller
than the height of the characters can be used with blank
lines.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 4-11

TROUBLESHOOTING

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

a
a
a
a
a

Example Text might be spaced at four dots, while the line spacing is really

59 dots. It seems paradoxical to designate that text be spaced at
four dots and create a form that actually has 59 dots of spacing.
However, you can do this by using blank lines. A small line
spacing along with blank lines allows you to get positioning
control and forces visual centering of text within a box.

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

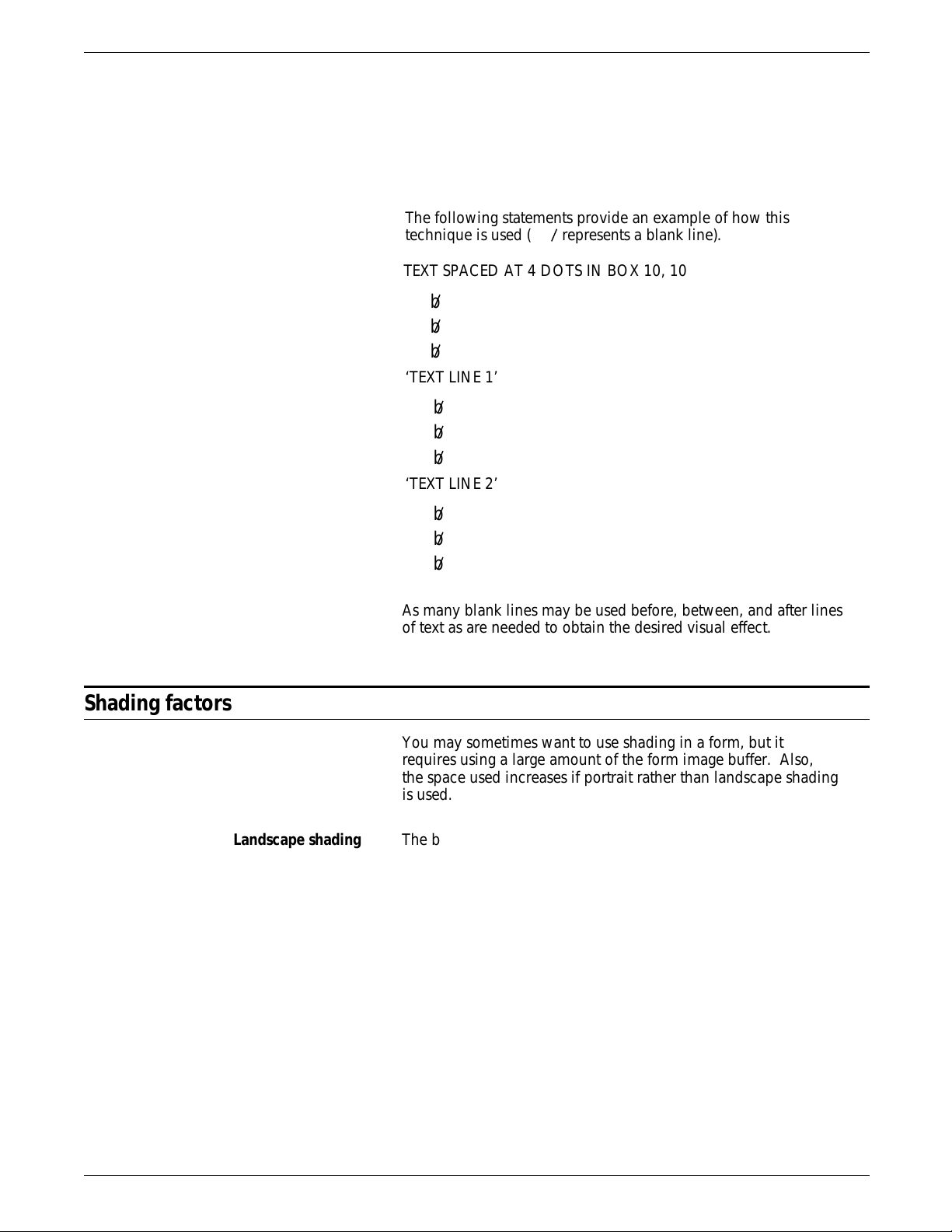

The following statements provide an example of how this

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

technique is used (

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

represents a blank line).

b

TEXT SPACED AT 4 DOTS IN BOX 10, 10

b
b
b

‘TEXT LINE 1’

b
b
b

‘TEXT LINE 2’

Shading factors

b
b
b

As many blank lines may be used before, between, and after lines
of text as are needed to obtain the desired visual effect.

You may sometimes want to use shading in a form, but it
requires using a large amount of the form image buffer. Also,
the space used increases if portrait rather than landscape shading
is used.

Landscape shading The basic element used in shading is a 32-by-32-dot character for

dots. This character can be repeated in a landscape direction up
to 32 times for dots. This means that in a landscape direction,
the system can shade any area from 0.1 to 3.4 inches wide with
no difference in the space used by the shading.

This facility is not available when shading is done in a portrait
direction. Portrait shading is performed on a character-by­character basis.

Portrait shading To reduce shading and improve the visual effect of the form, end

shading before the boundary line. Separate the shading from the
surrounding lines by 0.1 to 0.2 line or character units. This makes
the shading 0.2 to 0.4 units smaller than the surrounding box and
is centered in that box. (Units referred to are lpi and cpi units.)
This sets shading back from the borders by 3 to 5 dots.

4-12 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

TROUBLESHOOTING

Avoiding boundary line Terminating the shading before reaching the boundary line helps

density problems to avoid line density problems, conserves space in the form file

and in the form image buffer, and enhances the appearance of
the form.

Figure 4-6. Terminating shading to avoid line density

problems

Section factors

Normal shading using the
same coordinates and
sizes as the box.

Early shading termination
using a smaller box for
shading.

You can create sections to duplicate identical information on a
page. However, you should take into account the form image
buffer limitations and potential line density problems whenever
you use this feature.

A form that is made up of many sections often takes up more
space in the form image buffer than a form created without
sections. This occurs because a single long line requires less
buffer space than many short lines. When you create a form by
invoking defined sections, there is a tendency to begin and end
lines at section boundaries, even when they are continuous
through a series of sections. This is a much less efficient way to
create forms than by taking the long lines out of the sections and
drawing them as continuous lines.

A less obvious inefficiency of using the form image buffer may
occur when you have a line that switches from solid to dotted
and vice versa. The common method of creating this type of line
is to draw short segments of solid and dotted lines. This is an
inefficient use of the form image buffer even if a SOLID 0 line is
drawn first. A SOLID 0 line is useful in saving space in the line
tables, but cannot help save buffer space.

To save form image buffer space efficiently, draw a continuous
dotted line and overlay a series of short, solid line segments.
This technique makes best use of the form image buffer space,
but does not reduce the load on the imaging section of the
system. Refer to the “Scan line density” section in this chapter
for more information. In a form where there is a problem with
exceeding both form image buffer and line density restrictions,
you may have to use logos or a specialty form font.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 4-13

TROUBLESHOOTING

Rounding measurement factors

Converting other unit values to dots

Example The following example illustrates the problems encountered

Laser printing systems use only dot units when actually compiling
forms. Therefore, as long as all positioning commands within
FDL are defined in terms of dots or an integral number of dots,
there are no rounding problems.

You can define positions in decimal-value inches, in centimeters,
in lines per inch, and in characters per inch. The LPS converts all
of these commands to dots while the form is being compiled.

Many of the possible defined values (lines per inch, centimeters,
and so forth) cannot be reduced to an integral number of dots.
For example, if a coordinate system uses 13.6 characters per inch
(cpi), that number may be translated to approximately 22.058823
dots per character unit. The compiler rounds the converted
number to the nearest whole dot before starting to compile the
form.

using the 13.6 cpi coordinate system:

AT 4 DRAW 1 HOR LINE FROM -1 TO 132 USING SOLID 1;
AT 5 DRAW 1 HOR LINE FROM -1 TO 132 USING SOLID

HAIRLINE;
AT 8 DRAW 15 VER LINES FROM 4 TO 5 USING HAIRLINE

AND REPEAT HOR EVERY 8;

In theory, this form description technique creates 14 boxes that
can be found simply by addressing the appropriate coordinates.
In fact, the coordinates of the boxes are not exactly those
expected. The boxes can be found by using the IN NEXT BOX
parameter of the TEXT IN BOX command.

The IN NEXT BOX parameter works properly because it specifies
the next adjacent box, but does not specify the coordinates of
that box. The problem in addressing coordinates is that the FDL
statement requires vertical lines every 176.47058 dots, which is
rounded down by the system to 176.00000 dots.

This difference makes it impossible for the LPS to find box 14 at
the coordinates 4, 112. There are two ways to draw the form to
overcome this problem. One way is to draw 13 lines with the
REPEAT parameter and then specify lines at 112 and 120.
Another way is to change the final statement in the following
manner:

AT 8 DRAW VER LINE FROM 4 TO 5 USING HAIRLINE AND
AT 16, 24, 32, 42, 48, 56, 72, 80, 88, 96, 104, 112, 120;

Unless a form is described with a coordinate system of only dots
or an integral number of dots, the REPEAT parameter cannot be
used to draw boxes that must be referenced by their
coordinates.

4-14 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

Rounding variable data

Alignment problems Under certain circumstances, a form and variable data do not

TROUBLESHOOTING

align properly, even though it appears that both use the same
line spacing. This may be the result of the effects of rounding
on the line spacing.

As an example, construct a form with a grid unit of 13.6 cpi and
9 lpi. Horizontal lines are specified at 0, 4, 7, 10, 13, 16, 19, 22,
25, 28, 31, 34, 37, 40, 43, 46, 49, 52, 55, 58, 61, 64, and 67. The
data is printed with an override line spacing of “9.”

The natural assumption is that the form and the variable data line
up. However, when the variable data is merged with the form, it
tends to drift up the page. The reason for this is rounding.
Specifying 9 lines per inch for the variable data means that the
LPS is requested to place data at approximately 33.333333 dots.
The system rounds this number down to 33 dots per line.

Meanwhile, in FDL, rounding does not take place until it is time
to resolve specifications for the form to a dot address.

Note that variable data has a line spacing value that is computed
as dots per line, and rounding is done on that value. In FDL, the
rounding takes place only when it is needed to resolve to a dot
address and, therefore, might involve more than one line at a
time.

For example, the line drawn at 43 is assigned to scan line 1433
using the following formula:

(43 * 300) / 9 = 12900 / 9 = 1433.3333 or 1433

The equivalent line positioning for the variable data is computed
with the following method:

43 * (300 / 9) = 43 * 33 = 1419

This yields an error that increases as calculation proceeds down
the page.

Furthermore, in the example form, if we had drawn lines with a
REPEAT EVERY 3 LINES command, the uneven dot value
(33.333333 dots per line) would not have been rounded off
because rounding would not have been performed until it was
time to resolve the specification to a dot address. The dot
address for three lines is an even 100 dots. So, the lines for the
form would be drawn at exactly 100 dots, and the variable data,
on the other hand, would be using a 99-dot spacing.

Avoiding imperfect alignment The best way to ensure that a form and variable data share the

same coordinate system is to define both in terms of an integral
number of dots. It is also important to know when rounding will
affect the alignment of the variable data and the form. In the
example, the only way to make the form match the lines of data
is to set the line spacing for both at 33 dots.

If variable data does not line up properly with a form, and it
appears that both are using the same line spacing, find out what
the dot value is. It is most likely in such cases that the difficulty
is a variation in defining the coordinate system resulting from
rounding, and is not a software problem.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE 4-15

TROUBLESHOOTING

FDL statistics

Grid unit scaling

Grid unit specification System response

If a form is compiled successfully, the following FDL statistics are
displayed on the summary sheet.

• Size of the source output file (FSL)

• Size of the printable form file (FRM)

• Size of the form image buffer

• Amount of font memory used by the form.

Table 4-3 shows grid unit scaling specifications when the grid
parameters are omitted or specified.

Table 4-3 Grid unit scaling specifications

Omitted: default scaling When the system receives the FORM id command, it sets grid

scaling to that of FMT1; if it subsequently receives the

PORTRAIT command, it sets the scale to that of FMT6.
Specified in GRID command Replaces default scaling.
Specified in BOX or LINE

command (IN unit)

Replaces GRID command scaling for that command only

(becomes the default scaling).
Specified for a parameter Overrides any scaling specified via GRID, BOX, or LINE

commands for the parameter only. Examples:

GRID 1 INCH;

AT 2 CM LINE FROM 3 TO 1500 DOTS;

COMMENT EQUIVALENT TO: AT 2 CM LINE

FROM 3 INCHES TO 1500 DOTS;

AT 2 LINE IN CM FROM 3 INCHES TO 1500 DOTS;

COMMENT EQUIVALENT TO: AT 2 CM LINE FROM 3 INCHES TO

1500DOTS;

4-16 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

A. FDL command syntax summary

This appendix contains an alphabetized summary of the Forms
Description Language (FDL) commands syntax described in this
guide.

The conventions and definitions used to describe the commands
are shown in table A-1.

Table A-1. FDL command syntax conventions

Syntax Meaning
UPPERCASE BOLD BLUE Required words (keywords*) in the command syntax appear in

uppercase bold blue.

...

Ellipses indicate that you can repeat a parameter option, or list a

series of parameter options.

Lowercase black italics Word, character, or phrase, (variable information) in lowercase

black italic to be replaced by a value.

UPPERCASE BLUE ITALIC Optional required words (keywords) in the command syntax

appear in uppercase blue italic.

The carat character represents a required space.

* Keywords may be abbreviated to the first three characters

(except for FMTn). Refer to the “Syntax ambiguities” section
in the “Troubleshooting” chapter.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE A-1

FDL COMMAND SYNTAX SUMMARY

Command Syntax

Table A-2. FDL command syntax

BOX AT

unit x unit DRAW n BOXES IN unit p unit WIDE BY q

y

unit HIGH USING type thickness SHADING density AND
REPEAT direction AT ca unit ca unit ... EVERY ci unit;

COMMENT COMMENT
END END;
FONT FONTS
FORM/

RESOLUTION

FORM
FORM

id;

name;
name RESOLUTION IS value SPI;

GRAPHIC GRAPHIC
GRID GRID
LANDSCAPE/

UNIT IS format id ORIGIN y unit x unit;

orientation

PORTRAIT
LINE AT

co unit DRAW n direction LINES IN unit FROM cs unit

TO ce unit USING type thickness AND REPEAT repeat

direction

LOGO LOGO
PAPER PAPER
SECTION BEGIN

AT

id AT y

SIZE IS value;

SECTION id;

or

SECTION id AT y unit x unit;

DO

or

SECTION id;

END

TEXT AT direction

TEXT SPACED d units PER LINE ALIGNED alignment

USING FONT n AT y unit x unit ‘text’ ‘text’ ...;

text;

name AT vpos unit hpos unit SCALE IS n/d;

PAGE SIZE IS n WIDE BY m HIGH;

ca unit ... EVERY ci unit;

unit x unit;

TEXT IN BOX direction

USING FONT n IN position BOX y unit x unit ‘text’ ‘text’ ...

IN NEXT direction BOX ‘text’ ‘text’ ...;

Reference Refer to the “Forms Description Language” chapter for a detailed

Compiling commands syntax

filename NOPRINT TRAY DEBUG XPAN NOSOURCE PROOF SIMPLEX RES=value

FDL

Reference Refer to the “Compiling and printing forms” chapter for more

TEXT SPACED d units PER LINE ALIGNED alignment

explanation of each command syntax.

To invoke the forms compiler, enter the following command at
the LPS keyboard. The entire command must fit on one line.

To print a stored form, enter the following:

SAMPLE

filename.FRM

information on compiling commands.

A-2 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

B. System default summary

This appendix lists the default parameters that the system
automatically substitutes when specifications are omitted in FDL
commands. Grid unit dimensions are rounded to the nearest
tenth.

The grid and origin substitutions made when printing on 8.5 by
11 inch/216 by 279 mm paper are shown in table B-1.

Table B-1. Grid and origin substitutions for 8.5 by 11

inch/216 by 279 mm paper

Specification Substitution

FMT1 LANDSCAPE; GRID UNIT IS 13.6 CPI, 8.1 LPI,

ORIGIN 0.18 INCH, 0.66 INCH;

FMT2 LANDSCAPE; GRID UNIT IS 15 CPI, 8.1 LPI,

ORIGIN 0.18 INCH, 0.50 INCH;

FMT3 LANDSCAPE; GRID UNIT IS 13.6 CPI, 10.7 LPI,

ORIGIN 0.14 INCH, 0.66 INCH;

FMT4 LANDSCAPE; GRID UNIT IS 15 CPI, 10.7 LPI,

ORIGIN 0.14 INCH, 0.50 INCH;

FMT5 LANDSCAPE; GRID UNIT IS 10 CPI, 6 LPI,

ORIGIN 0.17 INCH, 0.50 INCH;

FMT6 PORTRAIT; GRID UNIT IS 13.6 CPI, 8.1 LPI,

ORIGIN 0.57 INCH, 0.58 INCH;

FMT7 PORTRAIT; GRID UNIT IS 12 CPI, 6 LPI,

ORIGIN 0.50 INCH, 0.50 INCH;

FMT8 PORTRAIT; GRID UNIT IS 10 CPI, 6 LPI,

ORIGIN 0.50 INCH, 0.50 INCH;

FMT9 LANDSCAPE; GRID UNIT IS 20 CPI, 10 LPI,

ORIGIN 0.25 INCH, 0.25 INCH;

FMT10 PORTRAIT; GRID UNIT IS 17.6 CPI, 12.5 LPI,

ORIGIN 0.22 INCH, 0.51 INCH;

FMT11 PORTRAIT; GRID UNIT IS 20 CPI, 12.5 LPI,

ORIGIN 0.57 INCH, 0.39 INCH;

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE B-1

SYSTEM DEFAULT SUMMARY

The grid and origin substitutions made when printing on 8.5 by
14-inch/216 by 356 mm paper are shown in table B-2.

Table B-2. Grid and origin substitutions for 8.5 by 14

inch/216 by 356 mm paper

Specification Substitution

FMT12 LANDSCAPE; GRID UNIT IS 13.6 CPI, 8.1 LPI,

ORIGIN 0.18 INCH, 0.66 INCH;

FMT13 PORTRAIT; GRID UNIT IS 13.6 CPI, 8.1 LPI,

ORIGIN 0.57 INCH, 0.58 INCH;

The grid and origin substitutions made when printing on 8.27 by

11.69 inch/A4 paper are shown in table B-3.
Table B-3. Grid and origin substitutions for 8.27 by 11.69

inch/A4 paper

Specification Substitution

FMT1A LANDSCAPE; GRID UNIT IS 12.5 CPI, 8.3 LPI,

ORIGIN 0.46, 1.45 CM; (0.18, 0.57 INCH)

FMT2A LANDSCAPE; GRID UNIT IS 14.3 CPI, 8.3 LPI,

ORIGIN 0.46, 1.53 CM; (0.18, 0.60 INCH)

FMT3A LANDSCAPE; GRID UNIT IS 12.5 CPI, 11.1 LPI,

ORIGIN 0.46, 1.45 CM; (0.18, 0.57 INCH)

FMT4A LANDSCAPE; GRID UNIT IS 14.3 CPI, 11.1 LPI,

ORIGIN 0.46, 1.53 CM; (0.18, 0.60 INCH)

FMT5A LANDSCAPE; GRID UNIT IS 10 CPI, 6 LPI,

ORIGIN 0.56, 2.16 CM; (0.22, 0.85 INCH)

FMT6A PORTRAIT; GRID UNIT IS 13.6 CPI, 8.1 LPI,

ORIGIN 2.32, 1.17 CM; (0.91, 0.46 INCH)

FMT7A PORTRAIT; GRID UNIT IS 12 CPI, 6 LPI,

ORIGIN 2.16, 1.00 CM; (0.85, 0.39 INCH)

FMT8A PORTRAIT; GRID UNIT IS 10 CPI, 6 LPI,

ORIGIN 2.16, 1.00 CM; (0.85, 0.39 INCH)

FMT9A LANDSCAPE; GRID UNIT IS 20 CPI, 10 LPI,

ORIGIN 0.36, 2.16 CM; (0.14, 0.85 INCH)

FMT10A PORTRAIT; GRID UNIT IS 17.6 CPI, 12.5 LPI,

ORIGIN 1.45, 1.00 CM; (0.57, 0.39 INCH)

FMT11A PORTRAIT; GRID UNIT IS 20 CPI, 12.5 LPI,

ORIGIN 1.44, 1.00 CM; (0.57, 0.39 INCH)

B-2 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

SYSTEM DEFAULT SUMMARY

Substitutions made for all paper sizes are shown in table B-4.
Table B-4. Grid and origin substitutions for all paper sizes

Specification Substitution

FORM id; FORM id; GRID FMT1;
FORM id; PORTRAIT; FORM id; PORTRAIT; GRID FMT6;
Page orientation not specified Landscape
PAPER SIZE not specified Sysgen-specified paper size is assumed
PAPER SIZE not specified Virtual page size is set to sysgen-specified paper

size

Explicit GRID UNIT measurement is specified,

Form origin is set to virtual page origin

and ORIGIN is not specified
GRID format-id is specified, and ORIGIN is not

specified
No GRID UNIT or format-id is specified, and

ORIGIN is specified

Form origin is set to specified format-id BEGIN
values

Grid unit dimensions are set by FMT1
(landscape) or FMT6 (portrait)

No GRID command is specified Grid unit dimensions and form origin are set by

FMT1 (landscape) or FMT6 (portrait)

No unit specified in the ORIGIN parameter of

Inches
the GRID command or the PAGE SIZE parameter
of the LANDSCAPE or PORTRAIT command

No line direction Horizontal and repeat vertically
No line/box thickness SOLID 1
No direction for box repeat Repeat box horizontally
No text direction Horizontal text
No box text alignment Aligned centered in the box
No font index specified in the TEXT command Current font in use
Unit not specified in the SPACED parameter of

Dots
the TEXT command

No units specified in the LOGO command Grid unit

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE B-3

C. Sample form creation

This appendix reviews the commands discussed earlier in this
guide, and illustrates a sample form along with the entire Forms
Source Library (FSL) that created it.

Practice entering the Forms Description Language (FDL)
commands that instruct the LPS to produce a sample form
accurately. Refer to the command definitions discussed earlier in
this guide as needed. Enter the commands as shown in the
sample FSL to produce the form.

You must be familiar with the LPS Editor utility or the editor at
your host.

The sample form that you create is shown in figure C-1, in
reduced size; your form will be actual size.

Figure C-1. Earnings register

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE C-1

SAMPLE FORM CREATION

Writing the setup commands

Recall that the setup commands precede the form description
commands for lines, boxes, and text. In general, the setup
commands specify the parameters which describe the form.

Invoke the Editor utility and enter the commands shown in figure
C-2.

Figure C-2. Setup commands

FORM 1STFRM;
GRID FMT1;
FONTS UN114A,UN106A,UN104C;

Notice that the PORTRAIT or LANDSCAPE command and the
PAPER command are omitted. These commands are optional,
and, when omitted, the system uses the default values.

Using the COMMENT command

COMMENT *** DRAW HORIZONTAL LINES ***;

Comments enable you to include messages or reminders in your
source statement that help you organize your FDL commands
logically. These comments are not printed on the form but can
be useful if you or someone else modifies the form later.

If the semicolon is omitted, the forms compiler cannot determine
where the comment ends and may treat commands as
comments.

Enter the COMMENT shown in figure C-3. The comment
indicates that horizontal lines are coded next.

Figure C-3. COMMENT command

C-2 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

Drawing lines

Drawing horizontal lines

Drawing vertical lines

SAMPLE FORM CREATION

LINE commands are used to construct horizontal and vertical
lines which, in turn, are used to construct boxes.

Enter the horizontal line commands shown in figure C-4. You
have the option of abbreviating the commands to the first three
characters.

Figure C-4. HORIZONTAL LINE command

COMMENT *** DRAW HORIZONTAL LINES ***;
AT 7 DRAW 18 LINES FROM 0 TO 132 USING HAI AND REPEAT EVE 3;
AT 8 DRAW 18 LINES FROM 0 TO 24 USI HAI AND REPEAT EVE 3;
AT 9 DRAW 18 LINES FROM 0 TO 24 USING HAI AND REPEAT EVE 3;

Insert another COMMENT to indicate that vertical lines are to be
coded next, then enter the vertical line commands shown in
figure C-5.

Figure C-5. VERTICAL LINE command

COMMENT *** DRAW VERTICAL LINES ***;
AT 24 DRAW VER LINE FROM 5 TO 61 USING HAI;
AT 32 DRAW 11 VER LINE FROM 5 TO 61 USING HAI AND REPEAT EVE 10;
AT 29 DRAW VER LINE FROM 10 TO 61 USI BRO HAI;
AT 38 DRAW 10 VER LINE FROM 10 TO 61 USI BRO HAI AND REPEAT EVE 10;
AT 8 DRAW 18 VER LINE FROM 8 TO 9 USI HAI AND REPEAT VER EVE 3;
AT 19 DRAW 18 VER LINE FROM 8 TO 9 USI HAI AND REPEAT VER EVE 3;

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE C-3

SAMPLE FORM CREATION

Drawing boxes

Use the BOX command to construct individual, standalone boxes
or boxes that share common sides. You can also create a
shaded area or construct an invisible box to place “floating” text
such as titles conveniently.

Enter the following COMMENT and BOX command, as shown in
figure C-6.

Figure C-6. BOX command

COMMENT *** DRAW BOXES ***;
AT 2,2 DRAW BOX 35 WIDE BY 2 HIGH USI HAIRLINE;
AT 2,82 DRAW BOX 50 WIDE BY 2 HIGH USI HAI;
AT 5,0 DRAW BOX 132 WIDE BY 56 HIGH USI HAI;
AT 5.1,0 BOX 132 WIDE BY 1.8 HIGH USI SHADING;
AT 10.1,0 DRAW 9 BOXES 132 WIDE BY 2.8 HIGH USI SOL HAI
INK 'BLUE' AND FILL USING INK 'XEROX.PICTORIAL.PALE BLUE'
AND REPEAT VER EVE 6;

Placing text at a location

Use the TEXT AT command to place text at an exact location.
Enter the COMMENT and TEXT AT command, as shown in figure

C-7.
Figure C-7. TEXT AT command

COMMENT *** TEXT AT COMMAND ***;
TEXT USING FONT 2 AT 2,2.5 'COMP.';
TEXT USING FONT 2 AT 2,11 'BR.';
TEXT USING FONT 2 AT 2,14 'DEPT.';
TEXT USING FONT 2 AT 2,22 'DATE';
TEXT USING FONT 2 AT 2,30 'PP';
TEXT USING FONT 2 AT 2,34 'PAGE';
TEXT USING FONT 1 INK 'BLUE' AT 3,47 'EARNINGS REGISTER';
TEXT USING FONT 2 AT 61,0 '7860-143-1';
VER TEXT USING FONT 3 AT 66,-5 'F8662';

C-4 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

Placing text in a box

SAMPLE FORM CREATION

The TEXT IN BOX command allows you to place text at a
particular location within a box that was previously described.
Enter the COMMENT and TEXT IN BOX commands, as shown in
figure C-8.

Figure C-8. TEXT IN BOX command

COMMENT *** TEXT IN BOX COMMANDS ***;
TEXT USI FONT 2 IN BOX 5.1,24 'THIS PAY' BOX 'REGULAR' BOX
'OVERTIME';
TEXT USI FONT 2 IN BOX 7,0 'NAME'
BOX 'GROSS' 'ADJ. NET' 'NET PAY'
BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT'
BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT'
BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT'
BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT'
BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT'
BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT'
BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT'
BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT'
BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT'
BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT';
TEXT USI FONT 2 IN BOX 8,19 'EMP.##';
TEXT USING FONT 2 IN LEFT CENTER BOX 9,0 'SAL/RATE';
TEXT USING FONT 2 IN BOX 9,0 'GROSS YTD';

Using the END command

The END command is the final command. Enter END; and you
are done!

Figure C-9. END command

END;

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE C-5

SAMPLE FORM CREATION

Compiling the form

This exercise gives you practice using most of the FDL
commands discussed throughout this guide.

The next step is to compile the .FSL which produces a sample of
the form, provided there are no syntax errors. The summary
statement also prints any errors.

After you have entered the END command, SAVE, CLEAR, and
END the editing session, as shown in figure C-10.

Figure C-10. SAVE, CLEAR, and END commands

END;
SAVE 1STFRM.FSL
CE
FDL 1STFRM,TRA

CE is an abbreviation for CLEAR and END.
Do not be surprised if you inadvertently omit a semicolon or

misspell a word. The system indicates where the error occurred
and you can easily go back into the form and correct the error.

If there are errors, at the

OS1000 READY FOR COMMANDS message on

the LPS user interface, enter the following:

EDIT 1STFRM.FSL

The .FSL file is displayed. When you identify where the error
occurred, modify that record, then SAVE, CLEAR, and END the
editing session. Since this FSL already exists, use the abbreviated
method to SAVE, CLEAR, and END (SCE), as shown in figure C-

11.
Figure C-11. SAVE, CLEAR, and END (SCE) commands

END;
SCE
FDL 1STFRM,TRA

When the form compiles error-free, your form prints successfully.
Figure C-12 illustrates the complete .FSL.

C-6 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

Figure C-12. Source statement (1STFRM.FSL)

FDL VERSION B03 13:13 30-APR-XX PAGE 1
DISK-ID: ARIEL VX.7 R9.7 REL #5 XX/XX/XX

1 FORM 1STFRM; 000010
2 GRID FMT1; 000020
3 FONTS UN114A,UN106A,UN104C; COMMENT ***DRAW HOR LINES***; 000030
4 AT 7 DRAW 18 LINES FROM 0 TO 132 USING HAI AND REPEAT EVE 3; 000040
5 AT 8 DRAW 18 LINES FROM 0 TO 24 USING HAI AND REPEAT EVE 3; 000050
6 AT 9 DRAW 18 LINES FROM 0 TO 24 USING HAI AND REPEAT EVE 3; 000060
8 COMMENT *** DRAW VERTICAL LINES *** 000080

9 AT 24 DRAW VER LINE FROM 5 TO 61 USING HAI 000090
10 AT 32 DRAW 11 VER LINE FROM 5 TO 61 USING HAI AND REPEAT EVE 10; 000100
11 AT 29 DRAW VER LINE FROM 10 TO 61 USING BRO HAI; 000110
12 AT 38 DRAW 10 VER LINE FROM 10 TO 61 USI BRO HAI AND REPEAT EVE 10; 000120
13 AT 8 DRAW 18 VER LINE FROM 8 TO 9 USI HAI AND REPEAT VER EVE 3; 000130
14 AT 19 DRAW 18 VER LINE FROM 8 TO 9 USI HAI AND REPEAT VER EVE 3; 000140
15 COMMENT ***DRAW BOXES ***; 000150
16 AT 2,2 DRAW BOX 35 WIDE BY 2 HIGH USI HAIRLINE; 000160
17 AT 2,82 DRAW BOX 50 WIDE BY 2 HIGH USI HAI; 000170
18 AT 5,0 DRAW BOX 132 WIDE BY 56 HIGH USI HAI; 000180
19 AT 5.1,0 BOX 132 WIDE BY 1.8 HIGH USI SHADING; 000190
20 AT 10.1,0 DRAW 9 BOXES 132 WIDE BY 2.8 HIGH USI SOL HAI 000200
21 INK 'BLUE' AND FILL USING INK 'XEROX.PICTORIAL.PALE BLUE' 000210
22 AND REPEAT VER EVE 6; 000220
23 COMMENT *** TEXT AT COMMAND ***; 000230
24 TEXT USING FONT 2 AT 2,2.5 'COMP.'; 000240
25 TEXT USING FONT 2 AT 2,11 'BR.'; 000250
26 TEXT USING FONT 2 AT 2,14 'DEPT.'; 000260
27 TEXT USING FONT 2 AT 2,22 'DATE'; 000270
28 TEXT USING FONT 2 AT 2,30 'PP'; 000280
29 TEXT USING FONT 2 AT 2,34 'PAGE'; 000290
30 TEXT USING FONT 1 INK 'BLUE' AT 3,47 'EARNINGS REGISTER'; 000300
31 TEXT USING FONT 2 AT 61,0 '7860-143-1'; 000310
32 VER TEXT USING FONT 3 AT 66,-5 'F8662'; 000320
33 COMMENT *** TEXT IN BOX COMMANDS ***; 000330
34 TEXT USI FONT 2 IN BOX 5.1,24 'THIS PAY' BOX 'REGULAR' BOX 'OVERTIME'; 000340
35 TEXT USI FONT 2 IN BOX 7,0 'NAME' 000350
36 BOX 'GROSS' 'ADJ. NET' 'NET PAY' 000360
37 BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT' 000370
38 BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT' 000380
39 BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT' 000390
40 BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT' 000400
41 BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT' 000410
42 BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT' 000420
43 BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT' 000430
44 BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT' 000440
45 BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT' 000450
46 BOX 'UNITS-UNITS YTD' 'CURRENT AMT.' 'YTD AMOUNT'; 000460
47 TEXT USING FONT 2 IN BOX 8,19 'EMP.##'; 000470
48 TEXT USING FONT 2 IN LEFT CENTER BOX 9,0 'SAL/RATE'; 000480
49 TEXT USING FONT 2 IN BOX 9,0 'GROSS YTD'; 000490
50 END; 000500

SAMPLE FORM CREATION

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE C-7

D. FDL capacity limits

The available memory space imposes the following maximums for
use, as shown in table D-1:

Table D-1. Capacity limits

Item Maximum

Text Buffer capacity: 512 bytes

Lines per TEXT statement: 64

Space allocation TEXT AT command: 16 bytes + S1 + S2 . . . Sn

TEXT IN BOX command: 18 bytes + S1 + S2 . . . Sn (1st box)

6 bytes + S1 + S2 . . . Sn (second and
all succeeding boxes)

. . .where

n bytes is fixed overhead.
S is number of characters > 2 in a text

string, rounded to a multiple of two.

Sections Definitions: 8 per form

Invocations: No limit

Lines Horizontal: 2000

Vertical: 2000

Fonts and logos 84

This number may vary, depending on memory capacity and use;
however, you cannot exceed 84 fonts and logos.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE D-1

E. Standard print formats

Predefined print formats that provide commonly used impact
printer conversion formats for use with specific page sizes and
orientations are provided on the Operating System Software
(OSS).

Table E-1. Standard LPS print formats

Format ID

FMT1 66 132
FMT2 66 150

FMT3 88 132 10.7 13.6 7 11 x 8.5 in. (.14,.66) L0312A
FMT4 88 150 10.7 15 7 11 x 8.5 in. (.14,.50) L0412A
FMT5 49 100 6 10 12 11 x 8.5 in. (.17,.50) L0512A
FMT6 80 100
FMT7 60 90
FMT8 60 75 6 10 12 8.5 x 11 in. (.50,.50) P0812A
FMT9 80 200 10.0 20.0 7 11 x 8.5 in. (.25,.25) L0912A
FMT10 132 132 12.5 17.6 6 8.5 x 11 in. (.22,.51
FMT11 132 150 12.5 20 6 8.5 x 11 in. (.22,.50) P1112A
FMT12 66 172
FMT13 104 100

A4 formats

FMT1A 66 132
FMT2A 66 150
FMT3A 88 132 11.1 12.5 7 297 x 210 mm (.18,.57) R312BL
FMT4A 88 150 11.1 14.3 7 297 x 210 mm (.18,.60) R412BL
FMT5A 48 100
FMT6A 80 100
FMT7A 60 90
FMT8A 60 75
FMT9A 80 200
FMT10A 132 132 12.5 17.6 6 210 x 297 mm (.57,.39) RA12BP
FMT11A 132 150 12.5 20.0 6 210 x 297 mm (.57,.39) RB12BP

No. of
lines

No. of
columns

lpi cpi

Point
size

Page size and

1

orientation

2

BEGIN
values (y,x)

8.1 13.6 9 11 x 8.5 in. (.18,.66) L0112B

8.1 15 9 11 x 8.5 in. (.18,.50) L0212A

8.1 13.6 9 8.5 x 11 in. (.57,.58) P0612A
6 12 12 8.5 x 11 in. (.50,.50) P07TYA

) P1012A

8.1 13.6 9 14 x 8.5 in. (.18,.66) L0112B

8.1 13.6 9 8.5 x 14 in. (.57,.58) P0612A

8.3 12.5 9 297 x 210 mm (.18,.57) R112BL

8.3 14.3 9 297 x 210 mm (.18,.60) R212BL

6 10 12 297 x 210 mm (.22,.85) R512BL

8.1 13.6 9 210 x 297 mm (.91,.46) R612BL
6 12 12 210 x 297 mm (.85,.39) R7TIBP
6 10 12 210 x 297 mm (.85,.39) R812BP

10.0 20.0 7 297 x 210 mm (.14,.85) R912BL

Default
font ID

Point size is approximate.

1

First dimension given is the horizontal dimension. Therefore, 11 by 8.5 inches is landscape orientation,

2

while 8.5 by 11 inches is portrait orientation. For A4 paper, 297 by 210 mm is landscape, and 210 by 297
mm is portrait orientation.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE E-1

Forms design ruler

F. Support tools and measurements

There are two separate functions of form creation: forms design
and forms description. Any form can be converted to an
electronic form stored on the system by describing it in Forms
Description Language (FDL).

Forms design involves laying out and measuring a form and is
only a peripheral concern of this guide. A forms design ruler is
provided for the forms designer.

The forms design ruler is used for the following:

• Measuring character and line spacings

• Converting forms from one type of paper to another.
The ruler has eight scales, four on the front and four on the

back, as shown in table F-1.
Table F-1. Standard formats and spacings

Side 1 Formats/spacing

Scale 1–10/inch Standard computer output character spacing; can also be used

for measuring inches, graduated in tenths.
Scale 2–6/inch Standard computer output line spacing (6 lpi).
Scale 3–8/inch Standard computer output line spacing (8 lpi).
Scale 4–12/inch Can be used for 12 cpi or 12 lpi.

Side 2 Formats/spacing

Scale 5–13.6/inch Default character spacing on Xerox laser printing systems.
Scale 6–8.1/inch Default line spacing on Xerox laser printing systems (66 lines

per landscape page).
Scale 7–10.7/inch Line spacing on Xerox laser printing systems (88 lines per

landscape page).
Scale 8–15/inch Can be used for 15 cpi or 15 lpi.

The scales can be used for either character spacing or line
spacing. For example, scale 1 can be used for either 10
characters per inch (cpi) or 10 lines per inch (lpi).

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE F-1

SUPPORT TOOLS AND MEASUREMENTS

Default spacing The default spacings on the system are 13.6 cpi (scale 5) and 8.1

Reference Refer to the “Standard print formats” appendix for a complete list

Side 1 Side 1 of the ruler is typically used for measuring impact-printed

computer output reports in which the spacing is 10 cpi (scale 1)
and either 6 lpi (scale 2) or 8 lpi (scale 3).

Side 2 Side 2 should be used for measuring laser printing systems

output.

lpi (scale 6); they were chosen for optimal readability for the
standard computer format of 132 columns by 66 lines.

of standard formats and spacings.

F-2 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

GRID examples

aaaaaaaaaaaaaaaaaaa

a

a

a

a

a

aaaaaaaaaaaaaaa
a

a

a

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaa
a

a

a

a

a

a

a

a

G. Command examples

The examples presented in this appendix illustrate the functions
of the FDL commands. Use these examples together with the
command information in the “Forms Description Language”
chapter.

The following examples illustrate how virtual page and form
origins are determined.

Reference Refer to the “Grids” section in the “Basic concepts” chapter and

the “GRID” section in the “Forms Description Language” chapter
for more information.

Example 1 LANDSCAPE;

GRID [UNIT] [IS] FMT3;
In this example, page size is not specified, and the virtual page

defaults to paper size.
FMT3 in the GRID command provides the grid size and form

origin (which is offset from the virtual page origin).
Figure G-1. Form results with grid specified, but no page

aaaaaaaaaaaaaaaaa

Virtual page origin

aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaa

Form origin

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

(set by FMT3)

aaaaaaaaaaaaaaaaaaaaa

Virtual page

aaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaa

(defaults to paper size)

size or origin

a
a
a

a
a
a
a

aaaaaaaaaaaaa

Grid unit

aaaaaaaaaaaaa
aaaaaaaaaaaaa

dimensions

aaaaaaaaaaaaa
aaaaaaaaaaaaa

(set by FMT3)

aaaaaaaaaaaaa

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE G-1

Example 2 LANDSCAPE;

GRID ([UNITS] [IS] FMT1 ORIGIN [IS] 1 INCH 1 INCH;
In this example, the ORIGIN parameter in the GRID command

specifies a form origin that is offset from the virtual page origin
by one inch vertically and one inch horizontally.

Grid unit dimensions are set by FMT1.

COMMAND EXAMPLES

aaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaaaaaaaa
a

a

a

a

a

a

aaaaaaaaaaaaaaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

a

a

a

a

aaa

a

aaaaaaaaaaaaaaaaaaa

a

a

a

a

a

aaa

a

a

a

aaaaaaaaaaaaaaaaaaa

a

a

a

a

a

aaaaaaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaaaaaaaa

a
a
a
a

Figure G-2. Form results with origin offset one inch from

virtual page origin

aaaaaaaaaaaaaaaaa

Virtual page origin

aaaaaaaaaaaaaaaaa

a
a

1"

aaaaaaaaaaaaaaaaaaaaaaaaaaa

Form origin

aaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaa

(offset from virtual page

aaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaa

origin by grid origin)

aaaaaaaaaaaaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaaaaaaaa

Virtual page

aaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaa

(defaults to paper size)

a
a
a
a
a
a

a

a

1"

Example 3 LANDSCAPE PAGE SIZE IS 3 INCH 3 INCH;

In this example, the landscape-oriented virtual page is centered
on the paper in accordance with the parameters in the
LANDSCAPE PAGE SIZE command.

Grid size and form origin default to FMT1.
Figure G-3. Form results with page size specified, but no

origin or grid

a

a

a

a

aaaaaaaaaaa

Grid unit

aaaaaaaaaaa
aaaaaaaaaaa

dimensions

aaaaaaaaaaa
aaaaaaaaaaa
aaaaaaaaaaa

(set by FMT3)

a
a
a
a
a
a

aaaaaaaaaaaaaaaaaaa

Grid Unit size

aaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaa

(set by FMT1)

aaaaaaaaaaaaaaaaa

Virtual page origin

aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaaaaaaaa

Form origin

aaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaa

(defaults to FMT1)

aaaaaaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaa

Virtual page

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

centered on paper

aaaaaaaaaaaaaaa

a
a
a
a

a
a
a

a
a
a
a

a
a
a
a

Example 4 LANDSCAPE PAGE SIZE IS 3 INCH 3 INCH;

GRID [UNIT] [IS] 1 CM;
In this example, explicit grid unit dimensions are set by the GRID

command, and no ORIGIN parameter or predefined format is
specified. This causes the form origin to coincide with the virtual
page origin.

3"

3"

G-2 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

COMMAND EXAMPLES

aaaaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaa
a

a

a

a

a

a

aaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaaaa
a

a

a

a

a

a

a

a

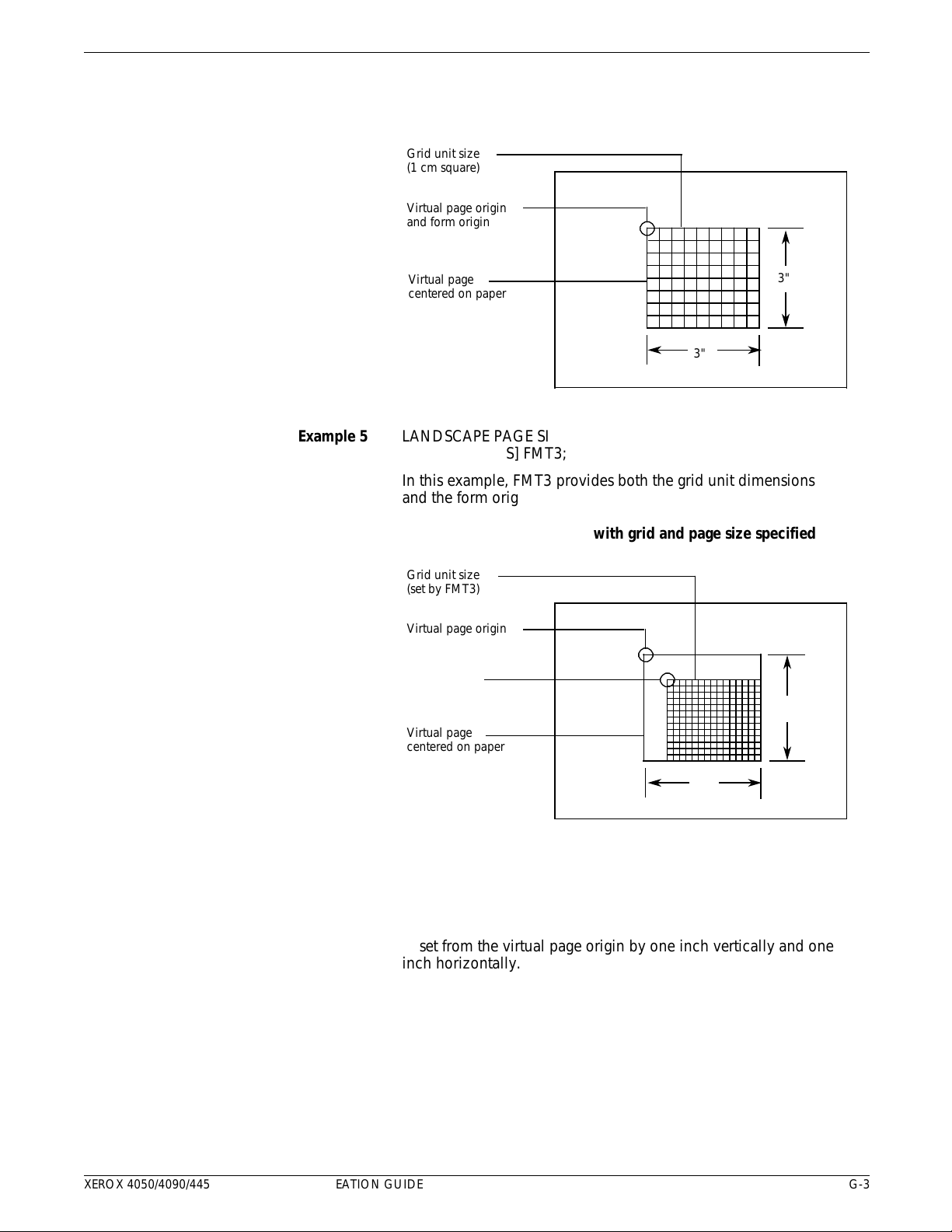

Figure G-4. Form results with grid specified, but no origin

or format

aaaaaaaaaaaaaaa

Grid unit size

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

(1 cm square)

aaaaaaaaaaaaaaaaa

Virtual page origin

aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa

and form origin

aaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaa

Virtual page

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

centered on paper

aaaaaaaaaaaaaaa

a
a
a
a

a
a
a
a

Example 5 LANDSCAPE PAGE SIZE IS 3 INCH 3 INCH;

GRID [UNIT] [IS] FMT3;
In this example, FMT3 provides both the grid unit dimensions

and the form origin.
Figure G-5. Form results with grid and page size specified

aaaaaaaaaaaaaaaaaaa

Grid unit size

aaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaa

(set by FMT3)

aaaaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaaaa

Virtual page origin

aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa

a
a
a
a

a
a
a

3"

3"

aaaaaaaaaaaaaaaaa

Form origin

aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa

(set by FMT3)

aaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaa

Virtual page

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

centered on paper

aaaaaaaaaaaaaaa

a
a
a
a

Example 6 LANDSCAPE PAGE SIZE IS 3 INCH 3 INCH;

GRID [UNIT] [IS] FMT1 ORIGIN IS 1 INCH 1 INCH;
In this example, the location of the virtual page origin is

determined by the PAGE SIZE command. The form origin is
offset from the virtual page origin by one inch vertically and one
inch horizontally.

3"

3"

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE G-3

COMMAND EXAMPLES

aaaaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaa
a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaa

a

a

a

a

a

a

a

a

a

aaaaaaaaaaaaaaaaaaaaaaaaaaa

a
a
a
a
a
a

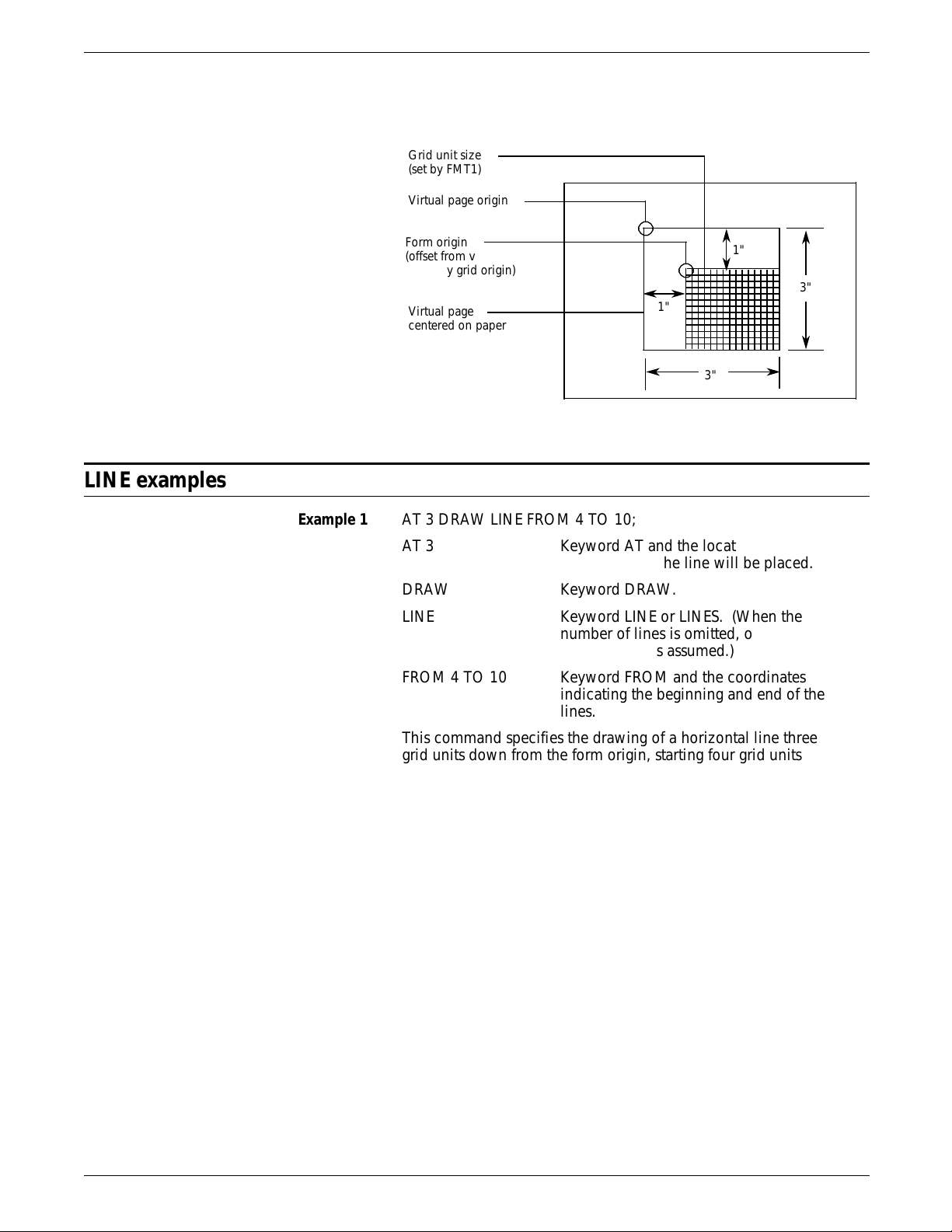

Figure G-6. Form results with grid, origin, and page size

specified

aaaaaaaaaaaaaaa

Grid unit size

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

(set by FMT1)

aaaaaaaaaaaaaaa

aaaaaaaaaaaaaaaaa

Virtual page origin

aaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaa

a
a
a

LINE examples

aaaaaaaaaaaaaaaaaaaaaaaaa

Form origin

aaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaa

(offset from virtual page

aaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaa

origin by grid origin)

aaaaaaaaaaaaaaa

Virtual page

aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa

centered on paper

a
a
a
a

a
a
a
a
a
a

Example 1 AT 3 DRAW LINE FROM 4 TO 10;

AT 3 Keyword AT and the location down the

page at which the line will be placed.
DRAW Keyword DRAW.
LINE Keyword LINE or LINES. (When the

number of lines is omitted, one solid line

at the default is assumed.)
FROM 4 TO 10 Keyword FROM and the coordinates

indicating the beginning and end of the

lines.

1"

3"

1"

3"

G-4 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

This command specifies the drawing of a horizontal line three
grid units down from the form origin, starting four grid units to
the right of the form origin and ending 10 grid units to the right
of the form origin.

Figure G-7. Drawing a horizontal line (rows and columns)

Example 2 AT 3.5 DRAW LINE IN INCHES FROM 4 TO 10;

This command specifies the drawing of a horizontal line 3.5
inches down from the form origin, beginning four inches to the
right of the form origin and ending 10 inches to the right of the
form origin.

Figure G-8. Drawing a horizontal line (inches)

COMMAND EXAMPLES

Example 3 AT 2 DRAW 5 VERTICAL LINES FROM 5 TO 10 AND REPEAT

EVERY 2;
This command specifies the drawing of five vertical lines. The

first line begins two horizontal grid units to the right of the form
origin and five grid units down from the form origin, and ends
ten grid units down from the form origin. This line is repeated
every two horizontal grid unit intervals.

Figure G-9. Drawing parallel vertical lines

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE G-5

COMMAND EXAMPLES

Example 4 AT 4 DRAW 5 LINES FROM 2 TO 4 AND REPEAT HORIZONTALLY

EVERY 4;
This command specifies five short lines to be drawn, each two

grid units long, with each starting point spaced four grid units
apart and separated two grid units from the end of the preceding
line.

Figure G-10. Drawing repeated horizontal lines

BOX examples

Example 1 AT 4, 6 BOX 14 WIDE BY 4 HIGH;

This command specifies a box 14 grid units wide and four grid
units high, with the upper left corner four grid units down from
the form origin and six grid units to the right of the form origin.

Figure G-11. Drawing a box

G-6 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

COMMAND EXAMPLES

Example 2 AT .5,0 DRAW 4 BOXES IN INCHES 5 WIDE BY .5 HIGH USING

SHADING AND REPEAT VERTICALLY EVERY 2;
This command specifies four 5-inch wide, .5-inch high bars

placed with the top edges at .5 inches, 2.5 inches, 4.5 inches,
and 6.5 inches.

Figure G-12. Drawing boxes

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE G-7

COMMAND EXAMPLES

TEXT AT examples

Figure G-13 gives the command syntax for and demonstrates
aligned text.

Figure G-13. Aligned text

Left-aligned

1

TEXT ALIGNED LEFT AT 5,1
'FIRST' 'NATIONAL' 'TRUST'
'CO';

FIRST
NATIONAL
TRUST
CO

Vertical-aligned

3

VERTICAL TEXT AT 5,1
'FIRST' 'NATIONAL'
'TRUST' 'CO';

Proportional Fixed
font font

Right-aligned Center-aligned

TEXT ALIGNED RIGHT AT
5,1 'FIRST' 'NATIONAL'

TEXT AT 5,1 'FIRST'
'NATIONAL' 'TRUST' 'CO';

'TRUST' 'CO';

FIRST

NATIONAL

TRUST

CO

Top-aligned

VERTICAL TEXT ALIGNED
TOP AT 5,1 'FIRST'
'NATIONAL' 'TRUST' 'CO';

FNTC
IARO
RTU
SI S
TOT

N
A
L

Bottom-aligned

VERTICAL TEXT ALIGNED
BOTTOM AT 5,1 'FIRST'
'NATIONAL' 'TRUST' 'CO';

FIRST

NATIONAL

TRUST

CO

N
A

T
FI T
IOR
RNU
SASC
TLTO

2

This command produces stacked, left-aligned output beginning five grid units down from the form origin

1

and one grid unit to the right of the form origin, as follows.

To center the stacked words (the default option), an alignment need not be specified. Horizontal printing is

2

the default. If vertical printing is desired, it must be specified.

Centering is automatic. Notice how the fixed font gives a more uniform appearance.

3

G-8 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

COMMAND EXAMPLES

Figure G-14. Character block orientations for portrait and

landscape pages

This character indicates the positioning origin of the text

block.
If the font and page have the same orientation, letters appear

upright. They appear sideways or upside down if orientations
differ. Text is aligned horizontally or vertically relative to page
orientation, not relative to the font.

Portrait and inverse portrait fonts may be used with landscape
page orientation (for example, to insert labels or captions).
Likewise, landscape and inverse landscape fonts may be used
with portrait page orientation. Portrait, landscape, inverse
portrait, and inverse landscape fonts are listed in the Xerox
Laser Printing Systems Standard Font Library Font User Guide.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE G-9

COMMAND EXAMPLES

TEXT IN BOX examples

The following examples give the command syntax and
demonstrate the nine positions in a box where text can be
placed.

Figure G-15. Text positions

Top positions

TEXT ALIGNED CENTER
TEXT ALIGNED LEFT FONT
1 IN TOP LEFT BOX 10,20
'PART NUMBER';

TOP LEFT TOP CENTER TOP RIGHT

FONT 2 IN TOP CENTER

BOX 10,10 'PART

NUMBER’;

TEXT ALIGNED RIGHT
FONT 3 IN TOP RIGHT
BOX 5,5 'PART NUMBER';

TEXT ALIGNED LEFT FONT
3 IN LEFT CENTER BOX
35,5 'PART NUMBER';

LEFT CENTER

TEXT ALIGNED LEFT FONT
1 IN BOTTOM LEFT BOX
20,10 'PART NUMBER';

Center positions

TEXT FONT 1 IN CENTER

CENTER BOX 12,5 'PART

NUMBER';

Bottom positions

TEXT ALIGNED CENTER

FONT 3 IN BOTTOM

CENTER BOX 40,10 'PART

NUMBER';

BOTTOM CENTER BOTTOM RIGHTBOTTOM LEFT

TEXT ALIGNED RIGHT
FONT 1 IN RIGHT CENTER
BOX 32,3 'PART NUMBER';

RIGHT CENTERCENTER CENTER

TEXT ALIGNED RIGHT
FONT 1 IN BOTTOM
RIGHT BOX 10,40 'PART
NUMBER';

G-10 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

Glossary

A3 International paper size measuring 297 by 420 mm or 11.69 by

16.54 inches.

A4 International paper size measuring 210 by 297 mm or 8.27 by

11.69 inches.

B4 International paper size measuring 250 by 353 mm or 9.84 by

13.9 inches.

batch processing Process that allows for repetitive operations to be performed

sequentially on batched data without much involvement from the
computer operator.

BCD Binary coded decimal.

bitmap Visual representation of graphic images in which a bit defines a

picture element (pixel) and a matrix of bits defines an image. For
example, if a bit is 1, the corresponding pixel is printed.

blocking Process of combining two or more records into a single block of

data which can moved, operated upon, stored, and so on, as a
single unit by the computer.

block length Number of characters or bytes contained in a block of data (the

block is treated as a unit within the computer). Block length is
usually invariable within a system and may be specified in units
such as records, words, computer words, or characters.

BOF Bottom of form.

BOT Beginning of tape.

bpi Bits per inch.

CCID Character Code Identifier. Code associated with the universal

identifier “Xerox” to indicate the version of the Xerox character
code standard used to code Interpress strings.

character set Set of all characters defined in a font, including alphabet,

numeric, and special characters such as symbols.

cluster Group of related feeder trays, usually containing the same size

and type of paper (stock). Each cluster has a name, consisting of
one to six alphanumeric characters.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE GLOSSARY-1

GLOSSARY

CME Entry modifying the output printing characteristics of a report on

a copy-to-copy basis.

compiler Software that translates instructions written in high-level language

into machine language for execution by a system.

Copy Modification Entry See CME.

copy-sensitive Job in which multiple copies of a report contain different data,

such as paychecks and banking statements.

cpi Characters per inch.

default Value assigned to a field by the system if no input is received

from the operator. You can change the default value of a field.

DJDE Dynamic Job Descriptor Entry. Command within an input data

stream used to modify the printing environment dynamically.

dot Picture element (pixel) imaged by a printer. The number of dots

imaged per inch measures printer resolution, for example, 300
dots per mich (dpi). See also spot.

dpi Dots per inch. Indicates the number of dots per inch displayed

on a terminal screen or printed to form a character or graphic.

dry ink Minute particles of resin and carbon black that can accept an

electrical charge and create images. Resin and carbon black or
color pigment toner are combined with developer to form the
dry ink.

duplex 1. Ability of a data communications system to send and receive

information simultaneously. 2. In printing, duplex means
printing on both sides of the paper.

Dynamic Job Descriptor Entry See DJDE.

edgemarking Use of graphic objects (usually lines or boxes) that bleed off the

edge of the physical page. See also physical page.

embedded blanks Blank spaces within a command line.

ENET Ethernet network.

EOT End of tape.

Ethernet Xerox local area network (LAN) that allows transmission of data

by cable from one device to another.

GLOSSARY-2 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE

FCB Forms Control Buffer. Controls the vertical format of printed

output.

FCP File Control Parameter.

FCU File Conversion Utility.

FDL Forms Description language. LPS-resident source language used

to design electronic forms. See also FSL and form.

FDR File directory.

FIS Font Interchange Standard. Defines the digital representation of

fonts and character metrics for the generation of an entire series
of Interpress fonts.

floating accent Nonspacing accent characters that can be combined with

characters and printed as a composite.

GLOSSARY

font Complete set of characters of a particular font family having the

same point size, weight, stress, and orientation.

Font Interchange Standard See FIS.

form 1. Compiled .FSL file. 2. Specific arrangement of lines, text,

and graphics stored in an electronic version. Forms can be
printed without variable data or merged with variable data during
the printing process. See also FDL and FSL.

Forms Control Buffer See FCB.

Forms Description Language See FDL.

Forms Source Library See FSL.

FSL Forms Source Library. Uncompiled collection of user-created

files containing FDL commands. See also FDL and form.

hexadecimal Numbering system with a base of 16. The numbers 10 through

15 are represented by A through F.

highlight color Printing with black plus another color. A range of colors, tints,

and shades is printed by varying the percentage of black dots,
colored dots, and the white space between the dots.

HIP Host Interface Processor.

image area Area on a physical page that may contain text or graphics.

XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE GLOSSARY-3

GLOSSARY

initialize 1. To prepare a blank diskette so it can accept data. This is

usually accomplished when a program is booted. 2. To set all
information in a computer system to its starting values.

Interpress Industry-standard page description language developed by Xerox.

Interpress documents can be printed on any sufficiently powerful
printer equipped with Interpress print software.

JCB Job Control Block.

JCL Job Control Language.

JDE Job Descriptor Entry. Collection of job descriptions.

JDL Job Description Library. Collection of compiled job descriptions.

See also JSL.

JID Job Identifier.

job Synonymous with a START command, a job is a group of print

data sets called reports. A job may contain one or multiple
reports.

job control Program called into storage to prepare each job or job step to

be run.

Job Descriptor Entry See JDE.

Job Descriptor Library See JDL.

job management Collective functions of job scheduling and command processing.

Job Source Library See JSL.

JSL Job Source Library. Collection of uncompiled job descriptions.

See also JDE and JDL.

keyword Required part of a command.

label Reference to a file saved on tape or disk, a record indicating the

file name or date created, or other control information.

landscape Orientation in which text and images are positioned parallel to

the long edge of the paper.

legal size Paper size measuring 8.5 by 14 inches or 216 by 356 mm.

letter size Paper size measuring 8.5 by 11 inches or 216 by 279 mm.

GLOSSARY-4 XEROX 4050/4090/4450/4650 LPS FORMS CREATION GUIDE
