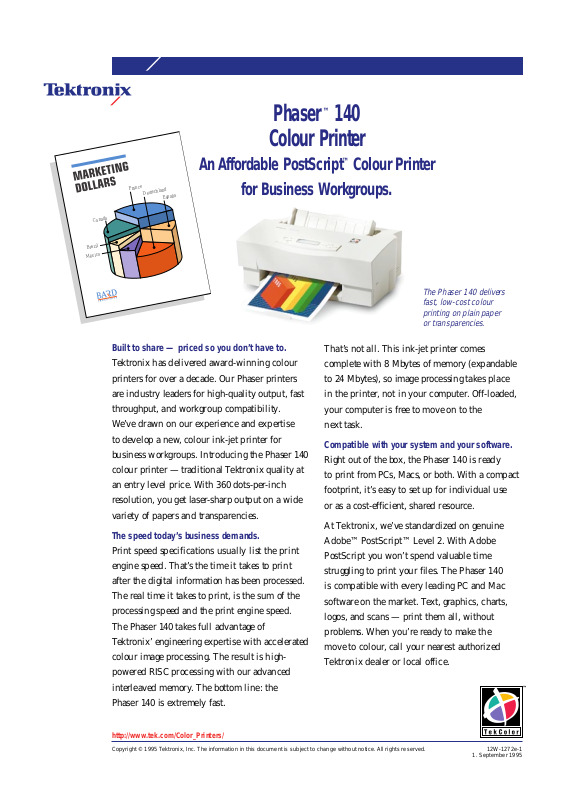

Phaser™ 140

Colour Printer

An Affordable PostScript™ Colour Printer

for Business Workgroups.

The Phaser 140 delivers fast, low-cost colour printing on plain paper or transparencies.

Built to share — priced so you don’t have to.

Tektronix has delivered award-winning colour printers for over a decade. Our Phaser printers are industry leaders for high-quality output, fast throughput, and workgroup compatibility. We’ve drawn on our experience and expertise to develop a new, colour ink-jet printer for business workgroups. Introducing the Phaser 140 colour printer — traditional Tektronix quality at an entry level price. With 360 dots-per-inch resolution, you get laser-sharp output on a wide variety of papers and transparencies.

The speed today’s business demands.

Print speed specifications usually list the print engine speed. That’s the time it takes to print after the digital information has been processed. The real time it takes to print, is the sum of the processing speed and the print engine speed. The Phaser 140 takes full advantage of Tektronix’ engineering expertise with accelerated colour image processing. The result is highpowered RISC processing with our advanced interleaved memory. The bottom line: the Phaser 140 is extremely fast.

That’s not all. This ink-jet printer comes complete with 8 Mbytes of memory (expandable to 24 Mbytes), so image processing takes place in the printer, not in your computer. Off-loaded, your computer is free to move on to the next task.

Compatible with your system and your software.

Right out of the box, the Phaser 140 is ready to print from PCs, Macs, or both. With a compact footprint, it’s easy to set up for individual use or as a cost-efficient, shared resource.

At Tektronix, we’ve standardized on genuine Adobe™ PostScript™ Level 2. With Adobe PostScript you won’t spend valuable time struggling to print your files. The Phaser 140 is compatible with every leading PC and Mac software on the market. Text, graphics, charts, logos, and scans — print them all, without problems. When you’re ready to make the move to colour, call your nearest authorized Tektronix dealer or local office.

http://www.tek.com/Color_Printers/

1. September 1995

Phaser™ 140

Colour Printer

Specifications

ICROSOFT

INDOWS

OMPATIBLE

Colour Technology Low cost-per-copy colour ink-jet printer. Sharp, 360 x 360 dpi print definition with TekColor Finepoint image rendering technology for printing photographs and



scanned images. EPA Energy Star-certified* for low cost energy consumption.

Colour Control TekColor Dynamic Correction simulates the

colours on your computer monitor, adjusts colours for the

brightest transparencies, or simulates the output of Commercial printing presses. PANTONE®**-approved solid colour simulations, CIE international colour standards, and support for PANTONE Open Color Environment (POCE) and

Apple ColorSync colour management systems. Workgroup Connectivity Windows/DOS PCs, IBM OS/2,

Macintosh and workstations. Network Interfaces

Optional:

Internal Ethernet interface with support for

Standard:

Parallel and AppleTalk ;

EtherTalk, Novell NetWare, and TCP/IP protocols; all ports are simultaneously active with automatic print queue management.

Memory 8 Mbytes standard, (expandable to 12 or 24 Mbytes). Controller 16-MHz AMD 29005 RISC processor with

interleaved memory for fast image processing. Language Genuine Adobe PostScript Level 2 to ensure

compatibility with leading PC and Mac software programs, file formats of embedded graphics, and scanned images.

Fonts 17 resident fonts; additional fonts may be downloaded in memory; built-in support for PostScript Type 1, Type 3, and TrueType™ fonts.

Ink Supply Quick-drying, easy to replace, individual Cyan (Blue), Magenta (Red), Yellow, and Black ink cartridges. Print up to 460 pages in black or 300 in colour with 5% coverage per page.

Media Types Plain paper, coated paper, glossy paper, transparency film, back-print film and envelopes.

Media Size and Image Area

Media Size Image Area

Print Speeds Colour: Up to 1 page per minute; Black and

White: Up to 2 pages per minute Warranty/Support TekColor Care, our comprehensive support

system, provides telephone technical support, an on-demand fax reference library, and a one-year warranty (return-to-depot in country of original purchase). For additional care, Tektronix offers extended service plans.

*Energy Star Compliant standard configuration, less than 30 watts in idle mode. May consume more than 30 watts with additional RAM, optional interfaces, or while printing. **Pantone Inc.’s check-standard trademark for colour reproduction and colour reproduction materials.

ORDERING INFORMATION PHASER 140

Phaser 140 Includes built-in, adjustable input tray; power cord; media startup kit with sample paper and four ink cartridges; user manual; utilities and drivers for PCs and Macs on diskette with an instruction manual. Product order number 4686 (110 V); 4686A (220 V)

OPTIONS

Add 4 Mbytes of RAM (For a total of 12 Mbytes) Required to print on Legal-size paper. Order 4690F4M

Add 16 Mbytes of RAM

(For a total of 24 Mbytes) Required to print 210 x 550 mm paper. Accelerates image processing, provides a larger input buffer, and enhances downloading of multiple fonts. Order 4685F16

Novell, EtherTalk Ethernet

Internal Ethernet interface with support for Novell NetWare and EtherTalk protocols. Order 4686FP1

TCP/IP Ethernet

Adds TCP/IP protocol support to the Ethernet interface (requires 4686FP1). Order 4686FP2

Express Exchange™

Express Exchange™ Service provides a 48hr replacement of malfunctioning product over a period of three years. This can be purchased with the printer option E3.

A4-size: 210 x 297 mm 200 x 282 mm Letter-size: 8.5 x 11 in. 8.1 x 10.4 in. Legal-size: 215 x 356 mm 205 x 341 mm

(8.5 x 14.0 in.) (8.1 x 13.4 in.)

Custom-size (min.): 152 x 102 mm 142 x 86 mm

(6 x 4 in.) (5.6 x 3.4 in.)

(maximum): 215 x 550 mm 205 x 544 mm

(8.5 x 22 in.) (8.1 x 21.4in.)

DL Env.: 220 x 110 mm 205 x 86 mm

(8.7 x 4.3 in.) (8.1 x 3.4 in.)

#10 Bus. Env.: 241 x 105 mm 205 x 86 mm

(9.5 x 4.1 in.) (8.1 x 3.4 in.)

Input Tray Capacity 100 sheets.
