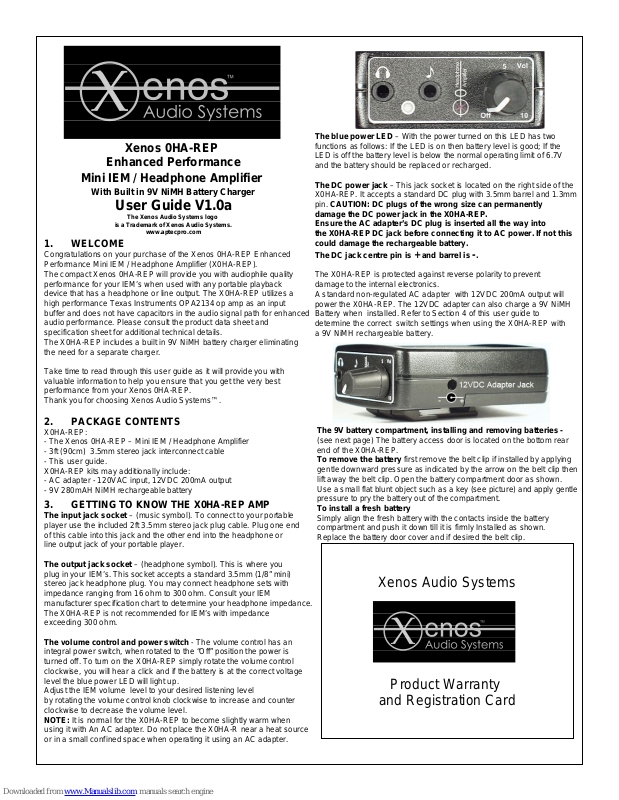

Xenos 0HA-REP User Manual

3.

GETTING TO KNOW THE X0HA-REP AMP

The input jack socket–(music symbol). To connect to your portable

player use the included 2ft 3.5mm stereo jack plug cable. Plug o

ne end

of this cable into this jack and the other end into the headphon

e or

line output jack of your portable player.

The output jack socket–(headphone symbol). This is where you

plug in your

IEM’s. This socket accepts a standard 3.5mm (1/8”mini)
stereo jack headphone plug. You may connect headphone sets with
impedance ranging from 16 ohm to 300 ohm. Consult your IEM
manufacturer specification chart to determine your headphone imp

edance.

The X0HA-REP is not recommended for

IEM’swith impedance

exceeding 300 ohm.

The volume control and power switch-The volume control has an

integral power switch, when rotated to the “Off”position the power is
turned off. To turn on the X0HA-REP simply rotate the volume control
clockwise, you will hear a click and if the battery is at the co

rrect voltage
level the blue power LED will light up.
Adjust the IEM volume level to your desired listening level
by rotating the volume control knob clockwise to increase and counter
clockwise to decrease the volume level.

NOTE:

It is normal for the X0HA-REP to become slightly warm when
using it with An AC adapter. Do not place the X0HA-R near a heat source
or in a small confined space when operating it using an AC adapt

er.

1.

WELCOME

Congratulations on your purchase of the Xenos 0HA-REP Enhanced
Performance Mini IEM / Headphone Amplifier (X0HA-REP).
The compact Xenos 0HA-REP will provide you with audiophile quality
performance for your

IEM’swhen used with any portable playback
device that has a headphone or line output. The X0HA-REP utilizes a
high performance Texas Instruments OPA2134 op amp as an input
buffer and does not have capacitors in the audio signal path for

enhanced
audio performance. Please consult the product data sheet and
specification sheet for additional technical details.
The X0HA-REP includes a built in 9V NiMH battery charger eliminating
the need for a separate charger.

Take time to read through this user guide as it will provide you

with

valuable information to help you ensure that you get the very be

st
performance from your Xenos 0HA-REP.
Thank you for choosing Xenos Audio Systems

™.

2.

PACKAGE CONTENTS

X0HA-REP:

-

The Xenos 0HA-REP –Mini IEM / Headphone Amplifier

-

3ft (90cm) 3.5mm stereo jack interconnect cable

-

This user guide.

X0HA-REP kits may additionally include:

-

AC adapter -120VAC input, 12VDC 200mA output

-

9V 280mAH NiMH rechargeable battery

The blue power LED–With the power turned on this LED has two

functions as follows: If the LED is on then battery level is goo

d; If the

LED is off the battery level is below the normal operating limit

of 6.7V

and the battery should be replaced or recharged.

The DC power jack–This jack socket is located on the right side of the

X0HA-REP. It accepts a standard DC plug with 3.5mm barrel and 1.3mm
pin.

CAUTION: DC plugs of the wrong size can permanently
damage the DC power jack in the X0HA-REP.
Ensure the AC adapter’s DC plug is inserted all the way into
the X0HA-REP DC jack before connecting it to AC power. If not this
could damage the rechargeable battery.

The DC jack centre pin is +and barrel is -.

The X0HA-REP is protected against reverse polarity to prevent
damage to the internal electronics.
A standard non-regulated AC adapter with 12VDC 200mA output will
power the X0HA-REP. The 12VDC adapter can also charge a 9V NiMH
Battery when installed. Refer to Section 4 of this user guide t

o
determine the correct switch settings when using the X0HA-REP with
a 9V NiMH rechargeable battery.

The 9V battery compartment, installing and removing batteries

-

(see next page) The battery access door is located on the bottom

rear

end of the X0HA-REP.

To remove the battery

first remove the belt clip if installed by applying

gentle downward pressure as indicated by the arrow on the belt c

lip then

lift away the belt clip. Open the battery compartment door as sh

own.

Use a small flat blunt object such as a key (see picture) and ap

ply gentle

pressure to pry the battery out of the compartment.

To install a fresh battery

Simply align the fresh battery with the contacts inside the batt

ery

compartment and push it down till it is firmly Installed as show

n.

Replace the battery door cover and if desired the belt clip.

Xenos Audio Systems

Product Warranty

and Registration Card

Xenos 0HA-REP

Enhanced Performance

Mini IEM / Headphone Amplifier

With Built in 9V NiMH Battery Charger

User Guide V1.0a

The Xenos Audio Systems logo

is a Trademark of Xenos Audio Systems.

www.aptecpro.com

4.

USING WITH 9V BATTERIES

The X0HA-REP will work with any standard 9V battery.

Typical battery life based on continuous use:

NiMH 9V 280mAH rechargeable = 13 hours; Alkaline 9V = 26 hours;
Lithium Long-Life 9V = 44 hours; Standard high power 9V = 12 hours.

Battery Select Switch–WARNING: Before installing batteries,

select

correct battery type. Refer to the diagram below and battery sel

ect
switch label in battery compartment for correct setting.
Batteries other than NiMH can overheat and leak if the battery s

elect
switch is set incorrectly.

Charging 9V NiMH batteries:

The 12VDC adapter can be used to charge

a 9V NiMH battery while installed in the amplifier.

A 9V 280mAH NiMH

battery will be fully charged in approximately 10 hours.

There is no danger of overcharging and the battery will charge w

hile the

amplifier is operating or turned off.

5.

ADJUSTING SOUND LEVELS

Adjusting the volume level.

The volume control on the X0HA-REP adjusts the signal level to the
output amplifier stage that drives the

IEM’s. Before powering
up the X0HA-REP, set the volume level on your playback device to
about 50% and start playing a music track. Turn on the X0HA-REP,
insert your

IEM’s, now adjust the X0HA-REP volume setting to a
desired level. If need be increase the volume setting on your play­back device and adjust the volume setting on the X0HA-REP
accordingly to reach your desired listening level.

WARNING: Extended exposure to high sound levels can cause
permanent hearing damage. Reduce volume level or discontinue
use if discomfort or pain is felt in your ears.

Adjusting equalisation (tone).

The X0HA-REP has a flat frequency response, it does not have
any internal circuitry that adjusts or modifies the equalisation

levels.
However, most portable playback devices do include multiple
pre-set equalisation levels with some higher end devices also

incorpor

-

ating

custom equalisation controls. You may use the equalisation

controls included with your playback device to adjust the playba

ck

tone to suit your listening pleasure.

6.

TECHNICAL SPECIFICATIONS

Audio

Total Harmonic Distortion and Noise

….…….

………..…..………

0.009%

Signal to Noise Ratio

……………………….…………………………

.95dB

Frequency Response

…………………

...

….…

DC –350kHz (-3dB/+0dB)

Channel-to-Channel Crosstalk (separation)…...........

…………….-79dB

Maximum Input Level

………………………..…

.....7.0VRMS (+16.9dBV)

Maximum Output Level

………………………

.....4.05VRMS(+12.15dBV)

Maximum Gain @ 300 ohm load 1kHz

…………

..................…+28.5dB

Output Power –per channel –RMS (Peak):

On Battery

On AC adapter

16 ohm load 1kHz……

150mW (300mW)

……………

.160mW (320mW)

24 ohm load 1kHz……

180mW (360mW)

……………

.195mW (390mW)

32 ohm load 1kHz…....185mW (370mW)

……………

.205mW (410mW)

64 ohm load 1kHz…....125mW (250mW)………….…165mW (330mW)

120 ohm load 1kHz……

75mW (120mW)

……………

.115mW (230mW)

300 ohm load 1kHz……

35mW (70mW)

………………

..55mW (110mW)

IEM / Headphone Impedance Range….……

...…...16 ohm to 300 ohm

Input Impedance

………………………………

.……

..20000 ohm nominal

Power and Operating

Battery

………….…9V NiMH rechargeable, Alkaline, Lithium, Standard
AC adapter...Output: 12VDC 0.2A DC plug: 3.5mm barrel, 1.3mm pin
Power Consumption

……………

..Battery: 16mA…..AC adapter: 20mA

Dimensions…….……

.3.5L x 2.5W x 1H(inch), 86L x 64W x 25H(mm)

Weight Without Battery

………………………………

..…….…2.7oz, 76g

7.

Warranty for Xenos Audio Systems™Products

This warranty on your new Xenos Audio Systems™product remains in effect for the period of
five (5) years from the date of consumer purchase either direct

from Xenos Audio Systems or
through an appointed authorized dealer.
Except as specified below, this warranty covers all defects in m

aterial and workmanship of this
product. The following are not covered by this warranty: Recharg

eable batteries of any type,

Any product where the serial number sticker has been removed or

modified in any way, Damage,

wear and tear or malfunction resulting from: a) Accident, act of

nature, abuse, misuse, neglect,
unauthorized repair or modification, failure to follow instructi

ons supplied with the product. b)

Repair or attempted repair by anyone not authorized by Xenos Aud

io Systems. c) Shipping of

the product (claims are to be made with the carrier). Where ship

ment is arranged by Xenos

Audio Systems with it’s preferred carrier, contact Xenos Audio Systems support for add

itional

information regarding making a claim in this regard. d) Normal u

se, for example wear and tear,

imperfections, scratches, blemishes or other damage to the equip

ment.

If during the applicable warranty period from date of consumer p

urchase your Xenos Audio

Systems™product is found to be defective, Xenos Audio Systems will repa

ir, or at it’s option,

replace, such defective product without charge for parts or

labour

.
If your Xenos Audio Systems™product requires service, it may be taken or shipped to any
authorized service centre or Xenos Audio Systems. Please contact

Xenos Audio Systems for

a list of authorized service

centres

.

THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ALL OTHER WARRANTIES,

EXPRESSED OR IMPLIED, IN

-

CLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FI

TNESS FOR A PARTICULAR

PURPOSE. XENOS AUDIO SYSTEMS LIABILITY IS EXPRESSLY LIMITED TO T

HE REPAIR OR REPLACEMENT,

AT OUR OPTION, OF ANY DEFECTIVE PRODUCT MANUFACTURED BY XENOS AU

DIO SYSTEMS AND

SHALL IN NO EVENT INCLUDE INCIDENTAL OR CONSEQUENTIAL COMMERCIAL

, PERSONAL INJURY

OR PROPERTY DAMAGES OF ANY KIND.

Xenos Audio Systems, 86 Durham St., Oshawa, Ontario, L1J 5P7, Ca

nada

Tel: (Int)[phone] Fax:(Int)[phone] On the: web:

www.aptecpro.com

Xenos Audio Systems X0HA-REP Warranty Registration Card

You can register your product on line at:

www.aptecpro.com

or, fill in the information requested below and mail to the addr

ess shown.
First name:___________________ Last name:___________________
Address

street:_________________________________Apt

no:______

City:_______________________State/Prov

:_____________________

Postal/Zip

code:______________Country

:_______________________

Tel:____________________email

:_____________________________
Product details: Serial no:____________________
Date

purchased:___________________Invoice

no:_______________

Dealer

name:______________________City

:____________________

Cut out this card, place in an envelope and mail to:
Xenos Audio Systems, 86 Durham St, Oshawa,
Ontario L1J5P7 CANADA

1 2

3 4

NOTE:

Please refer to
the diagram at
left for correct
setting of
battery select
switch.
