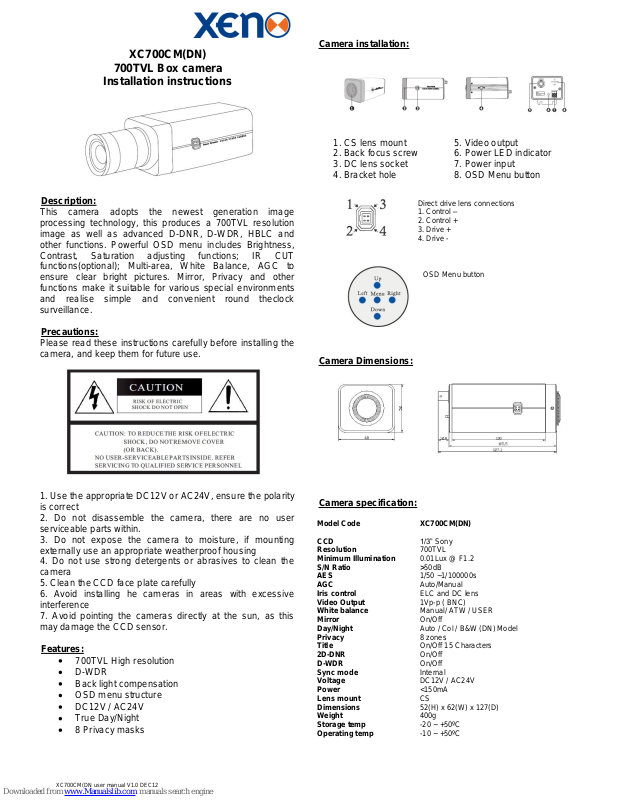

XENO XC700CM(DN) Installation Instructions

XC700CM(DN user manual V1.0 DEC12

XC700CM(DN)

700TVL Box camera

Installation instructions

Description:

This camera adopts the newest generation image
processing technology, this produces a 700TVL resolution
image as well as advanced D-DNR, D-WDR, HBLC and
other functions. Powerful OSD menu includes Brightness,
Contrast, Saturation adjusting functions; IR CUT
functions(optional); Multi-area, White Balance, AGC to
ensure clear bright pictures. Mirror, Privacy and other
functions make it suitable for various special environments
and realise simple and convenient round theclock
surveillance.

Precautions:

Please read these instructions carefully before installing the
camera, and keep them for future use.

1. Use the appropriate DC12V or AC24V, ensure the polarity
is correct

2. Do not disassemble the camera, there are no user
serviceable parts within.

3. Do not expose the camera to moisture, if mounting
externally use an appropriate weatherproof housing

4. Do not use strong detergents or abrasives to clean the
camera

5. Clean the CCD face plate carefully

6. Avoid installing he cameras in areas with excessive
interference

7. Avoid pointing the cameras directly at the sun, as this
may damage the CCD sensor.

Features:

700TVL High resolution
D-WDR
Back light compensation
OSD menu structure
DC12V / AC24V
True Day/Night
8 Privacy masks

Camera installation:

1. CS lens mount 5. Video output

2. Back focus screw 6. Power LED indicator

3. DC lens socket 7. Power input

4. Bracket hole 8. OSD Menu button

Camera Dimensions:

Camera specification:

Model Code XC700CM(DN)
CCD 1/3” Sony

Resolution 700TVL
Minimum Illumination 0.01Lux @ F1.2
S/N Ratio >50dB
AES 1/50 ~1/100000s
AGC Auto/Manual
Iris control ELC and DC lens
Video Output 1Vp-p ( BNC)
White balance Manual/ ATW / USER
Mirror On/Off
Day/Night Auto / Col / B&W (DN) Model
Privacy 8 zones
Title On/Off 15 Characters
2D-DNR On/Off
D-WDR On/Off
Sync mode Internal
Voltage DC12V / AC24V
Power <150mA
Lens mount CS
Dimensions 52(H) x 62(W) x 127(D)
Weight 400g
Storage temp -20 ~ +50ºC
Operating temp -10 ~ +50ºC

Direct drive lens connections

1. Control –

2. Control +

3. Drive +

OSD Menu button

XC700CM(DN user manual V1.0 DEC12

OSD Menu set up

EXPOSURE

1. Press MENU button to display SETUP. Move the cursor to EXPOSURE. And move
the cursor to LENS by UP and DOWN buttons and set lens by left and right buttons:
ELC ( manual iris lens); DC drive iris lens. E.SHUTTER and BRIGHT can be set.

2. Move the cursor to HBLC/D-WDR and set HBLC/D-WDR by left and right buttons:
BLC; set BLC by left and right buttons: MANUAL; AUTO. Set AGC: OFF; LOW;
MIDDLE; HIGH. Set HBLC by left and right buttons: ALL DAY; ON. When HBLC is
ON, you can set SET LEVEL, GRAY MODE and MASK SEL. Set D-WDR by left and
right buttons.

3. Move the cursor to AGC, and set AGC by left and right buttons: OFF; LOW;
MIDDLE; HIGH.

4. Set 2D-DNR by left and right buttons: OFF; LOW; MIDDLE; HIGH.
WHITE BALANCE

1. Move the cursor to COLOR, and set WB MODE by left and right buttons: MANUAL;
ATW; AWB; ATW LOCK. When MANUAL is selected, you can set colour temperature.

DAY/NIGHT

1. Move the cursor to DAY&NIGHT, and set DAY&NIGHT by left and right buttons:
AUTO; COLOR; WHITE; EXT.

FUNCTION

1. Move the cursor to FUNCTION. Move the cursor to MIRROR by up and down
buttons, and set MIRROR by left and right buttons: ON; OFF. Move the cursor to
SHARPNESS, and set SHARPNESS range. Move the cursor to MONITOR, and set
MODE type. Move to cursor GAMMA, and set GAMMA range. Move the cursor to
LSC, and set it: ON; OFF.

MOTION

1. Move the cursor to MOTION, and set MOTION by left and right buttons: ON; OFF.
When MOTION is on, you can set 1~4 AREA; SENSITI.; DISPLAY ICON; ALARM.

PRIVACY

1. Move the cursor to PRIVACY, and set MASK1~8 by left and right buttons: OFF; ON.
When MASK 1~8 is on, you can set the privacy masks and colour.

SET UP

1. Move the cursor to SETUP. Move the cursor to TITLE by up and down buttons, and
set TITLE by left and right buttons: ON; OFF. When TITLE is on, select different user
titles.

2.Move the cursor to MANUAL DPC, and set MANUAL DPC by left and right buttons:
ON; OFF.

3. Move the cursor to AUTO DPC, and set AUTO DPC by left and right buttons: ON;
OFF.

4.Move the cursor to OLPF, and set OLPF by left and right buttons: 650; 850.

5.Move the cursor to MONITOR, and set MONITOR by left and right buttons: CRT;
LCD.
6 Move the cursor to GAMMA and set GAMMA by left and right buttons
0 45 0 6 1 other

SYSTEM

1. Move the cursor to SYSTEM. Move the cursor to CAMERA ID by up and down
buttons and set CAMERA ID by left and right buttons. Move the cursor to COMMUNI.,
And set COMMUNI.: ON; OFF. When COMMUNI is on, you can select PROTOCOL
and BAUDRATE. Move the cursor to LANGUAGE, and set it: ENGLISH.

EXIT

1.Move the cursor to EXIT. Move the cursor to FACTORY SET by up and down
buttons and set it: YES; NO. Moving the cursor SAVE&EXIT is to save the changes
you have made and exit. Move the cursor to EXIT and exit the menu directly.
