Xeltek SUPERPRO 2000 Operation Instructions

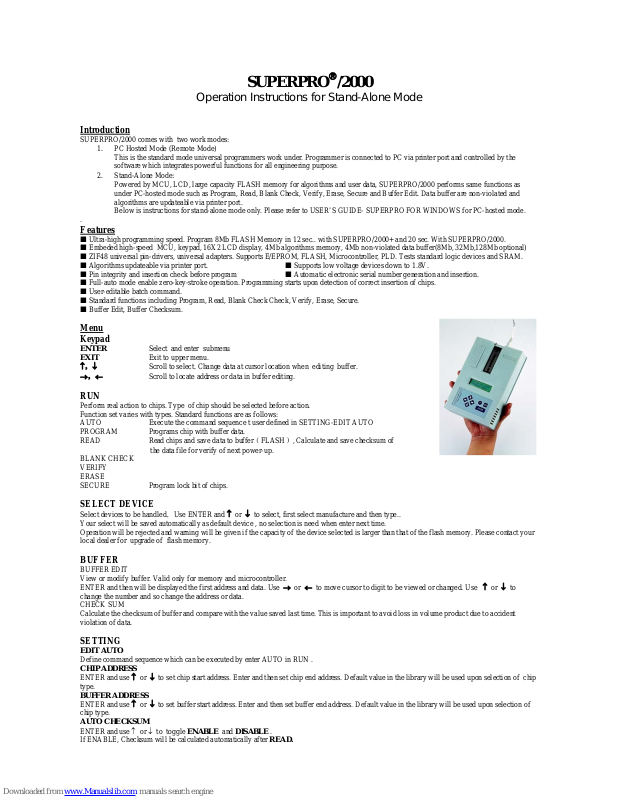

SUPERPRO

®

/2000

Operation Instructions for Stand-Alone Mode

Introduction

SUPERPRO/2000 comes with two work modes:

1． PC Hosted Mode (Remote Mode)

This is the standard mode universal programmers work under. Programmer is connected to PC via printer port and controlled by the
software which integrates powerful functions for all engineering purpose.

2． Stand-Alone Mode：

Powered by MCU, LCD, large capacity FLASH memory for algorithms and user data, SUPERPRO/2000 performs same functions as
under PC-hosted mode such as Program, Read, Blank Check, Verify, Erase, Secure and Buffer Edit. Data buffer are non-violated and
algorithms are updateable via printer port.
Below is instructions for stand-alone mode only. Please refer to USER’S GUIDE- SUPERPRO FOR WINDOWS for PC-hosted mode.

.

Features

 Ultra-high programming speed. Program 8Mb FLASH Memory in 12 sec.. with SUPERPRO/2000+ and 20 sec. With SUPERPRO/2000.
 Embeded high-speed MCU, keypad, 16X2 LCD display, 4Mb algorithms memory, 4Mb non-violated data buffer(8Mb, 32Mb,128Mb optional)
 ZIF48 universal pin-drivers, universal adapters. Supports E/EPROM, FLASH, Microcontroller, PLD. Tests standard logic devices and SRAM.
 Algorithms updateable via printer port.  Supports low voltage devices down to 1.8V.
 Pin integrity and insertion check before program  Automatic electronic serial number generation and insertion.
 Full-auto mode enable zero-key-stroke operation. Programming starts upon detection of correct insertion of chips.
 User-editable batch command.
 Standard functions including Program, Read, Blank Check Check, Verify, Erase, Secure.
 Buffer Edit, Buffer Checksum.

Menu
Keypad

ENTER Select and enter submenu
EXIT Exit to upper menu.

↑，↓ Scroll to select. Change data at cursor location when editing buffer.
→，← Scroll to locate address or data in buffer editing.

RUN

Perform real action to chips. Type of chip should be selected before action.
Function set varies with types. Standard functions are as follows:
AUTO Execute the command sequence t user defined in SETTING-EDIT AUTO
PROGRAM Programs chip with buffer data.
READ Read chips and save data to buffer（FLASH）, Calculate and save checksum of

the data file for verify of next power-up.
BLANK CHECK
VERIFY
ERASE
SECURE Program lock bit of chips.

SELECT DEVICE

Select devices to be handled。Use ENTER and ↑ or ↓ to select, first select manufacture and then type..
Your select will be saved automatically as default device , no selection is need when enter next time.
Operation will be rejected and warning will be given if the capacity of the device selected is larger than that of the flash memory. Please contact your
local dealer for upgrade of flash memory.

BUFFER

BUFFER EDIT
View or modify buffer. Valid only for memory and microcontroller.
ENTER and then will be displayed the first address and data. Use → or ← to move cursor to digit to be viewed or changed. Use ↑ or ↓ to
change the number and so change the address or data.
CHECK SUM
Calculate the checksum of buffer and compare with the value saved last time. This is important to avoid loss in volume product due to accident
violation of data.

SETTING

EDIT AUTO

Define command sequence which can be executed by enter AUTO in RUN .

CHIP ADDRESS

ENTER and use ↑ or ↓ to set chip start address. Enter and then set chip end address. Default value in the library will be used upon selection of chip
type.

BUFFER ADDRESS

ENTER and use ↑ or ↓ to set buffer start address. Enter and then set buffer end address. Default value in the library will be used upon selection of
chip type.

AUTO CHECKSUM

ENTER and use ↑ or ↓ to toggle ENABLE and DISABLE .
If ENABLE, Checksum will be calculated automatically after READ.

INSERTION CHECK

ENTER and use ↑ or ↓ to toggle ENABLE and DISABLE.
If ENABLE, programmer will automatically check if the chip is inserted properly before program. You can select IGNORE or EXIT.

BEEPER
ENABLE or DISABLE the beeper.
AUTO COUNTER

ENTER and then use ↑ or ↓ to toggle ENABLE and DISABLE .
As soon as ENABLE is selected, programmer will ask you to enter in the address to save the counter value and the initial value. The counter will step
up by one and write the current value to the address specified in the chip automatically after each successful program.
secure the chip after program.

AUTO RUN

ENTER and then use ↑ or ↓ to toggle ENABLE and DISABLE .
If ENABLE, programmer will monitor socket continually and start programming automatically upon detection of chip insertion.

ENCRYPTION
ENTER and then use ↑ or ↓ to edit encryption table (exist in only some microcontrollers).

Update of embedded algorithms library

1． Connect programmer to PC printer port. Turn on power and run SUPERPRO For Windows.
2． Enter LIBRARY. LIBRARY-READ read in current library in programmer algorithm memory and modify. LIBRARY-MODIFY load

library saved on harddisk to modify.

3． REMOVE unwanted devices. Use SEARCH or MANUFACTURER/DEVICE NAME to select wanted devices and then ADD .
4． Go to step1through step3 until finished. Press OK to generate new library.
5． Press TRANSFER to upload the library to algorithms memory in the programmer.
6． Finished. Turn on the programmer once again to work in stand-alone mode.
