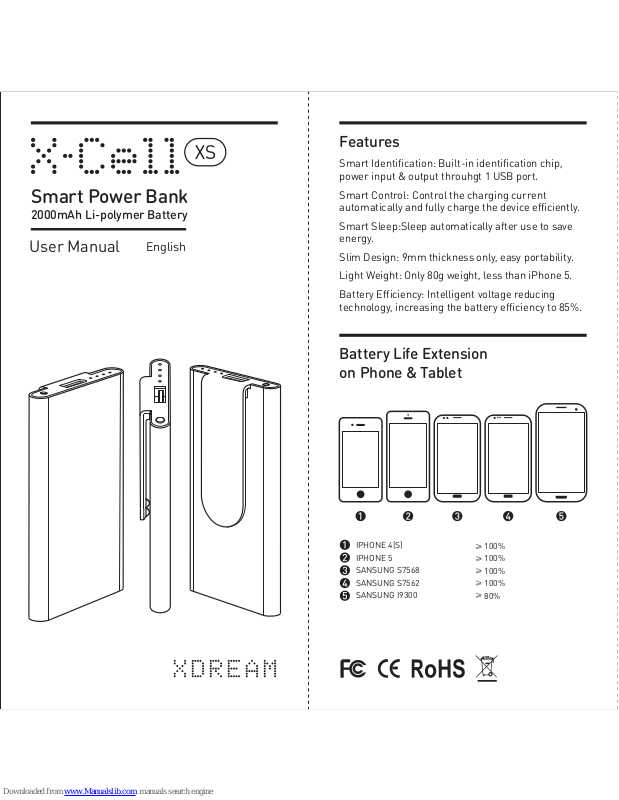

Page 1
English
User Manual
Smart Power Bank
2000mAh Li-polymer Battery
Features
Smart Identification: Built-in identification chip,
power input & output throuhgt 1 USB port.
Smart Control: Control the charging current
automatically and fully charge the device efficiently.
Smart Sleep:Sleep automatically after use to save
energy.
Slim Design: 9mm thickness only, easy portability.
Light Weight: Only 80g weight, less than iPhone 5.
Battery Efficiency: Intelligent voltage reducing
technology, increasing the battery efficiency to 85%.
IPHONE 4(S)
IPHONE 5
SANSUNG S7568
SANSUNG S7562
SANSUNG I9300
100%
100%
100%
100%
80%
Battery Life Extension
on Phone & Tablet
Page 2
x1
Battery Capacity:
Battery Voltage:
USB Input Voltage:
USB Input Current:
USB Output Voltage:
USB Output Current:
2000mAh
3.7V
5V
700mAh
5V
1000mAh
USB Cable
Accessories
Components
Capacity
Indicator
Battery
Status Button
USB
Power Port
Clip
Capacity Indicator
25% capacity 50% capacity
75% capacity 100% capacity
Running down of battery
( All LED lights off)
Charging complete
( All LED lights on)
To Charge Other Devices
To Charge X-Cell XS through the USB
Socket of Computer or Cell Phone Adaptor.
Technical Data
Adapter AC
110V~220V
USB Connector
X-Cell XS does not have a dedicated adaptor and
you can use any cell phone adaptor or 5V USB adaptor.
X-Cell XS does not have a power cable of different brands'
electronic equipment, you can use its original power cable.
Connect the dedicated power cable to the USB port
of X-Cell XS for charging the battery of your device.
Page 3
When charging X-Cell XS, the indicator
will flicker one by one in the direction
of the arrow.
When charging other devices, the
indicator will flicker one by one in the
direction of the arrow.
Please read the instructions carefully before using X-Cell XS.
The company is not responsible for any loss of product
damages caused by misuse.
Do not place X-Cell XS in high-temperature environments,
including strong sunlight and fire.
Do not drop or hit X-Cell XS heavily or disassemble it.
Do not store X-Cell XS in a damp area.
Do not use the USB charger cable which is not supplied by our
company to charge your X-Cell XS.
It is recommended to fully charge the battery before your first use
in order to extend its standby time.
Children or the elderly should use the product under guidance.
There will be a rise in temperature of X-Cell XS in use and please
expose the product in air.
Do not cover X-Cell XS with any item while it is operating.
If X-Cell XS is overheating, swelling or moisturizing in use or there
is any abnormal conditions, please stop using it immediately.
When out of service for a long period, it is recommended to
retain 30% above of power and charge the battery for every two
months.
When the battery first use after long time unused, be sure to use
up the electric residue then fully charge your battery. Circulates
three times to activate and reach the maximum capacity.
Warnings
Product Maintenance
Power Indicator
