Xdream X-cell Plus User Manual

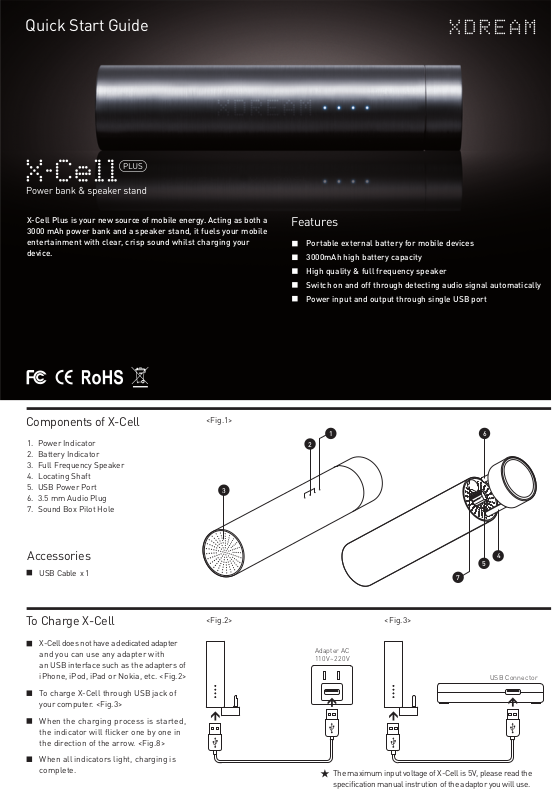

Quick Start Guide

X-Cell Plus is your new source of mobile energy. Acting as both a
3000 mAh power bank and a speaker stand, it fuels your mobile
entertainment with clear, crisp sound whilst charging your
device.

Components of X-Cell

1. Power Indicator

2. Battery Indicator

3. Full Frequency Speaker

4. Locating Shaft

5. USB Power Port

6. 3.5 mm Audio Plug

7. Sound Box Pilot Hole

<Fig.1>

3

Accessories

USB Cable x 1

Features

Portable external battery for mobile devices

3000mAh high battery capacity

High quality & full frequency speaker

Switch on and off through detecting audio signal automatically

Power input and output through single USB port

1

2

6

4

5

7

To Charge X-Cell

X-Cell does not have a dedicated adapter
and you can use any adapter with
an USB interface such as the adapters of
iPhone, iPod, iPad or Nokia, etc. <Fig.2>

To charge X-Cell through USB jack of
your computer. <Fig.3>

When the charging process is started,
the indicator will flicker one by one in
the direction of the arrow. <Fig.8>

When all indicators light, charging is
complete.

<Fig.2>

<Fig.3>

Adapter AC
110V~220V

The maximum input voltage of X-Cell is 5V, please read the
specification manual instrution of the adaptor you will use.

USB Connector

To Charge Other Devices

Pull out and rotate the locating shaft to
a predetermined position. <Fig.4>

Connect the dedicated power cable to
the USB port of X-Cell for charging the
battery of your devices. <Fig.5>

When the charging process is started,
the indicator will flicker one by one in
the direction of the arrow. <Fig.8>

Note

X-Cell does not provide any power cables
for charging devices of any brands and
you can use dedicated power cables provided
by relevant brands.

<Fig.4> <Fig.5>

When it’s low battery. X-Cell will automatically
turan off to protect its battery life.

To Play Music

Pull out and rotate the locating shaft to
a predetermined position. <Fig.6>

Insert your 3.5mm plug into your mobile
device. <Fig.7>

Turn up the volume no less than 75%.

Press the Play button on your mobile
device to activate X-Cell and music
will be played in 10 seconds.

X-Cell will shutdown automatically in 60
seconds when you stop the music.

Power & Capacity Indicator

33% capacity of battery charged

66% capacity of battery charged

100% fully charged

<Fig.8>

Charging other device with X-Cell

Charging X-Cell

Note

Not available for any devices without 3.5mm
earphone jack.

It's possible to cause a slight noise due to
electromagnetic distortion while charging
X-Cell and playing music at the same time.

The boot times will be a little difference when
you play different music. Long time Failed to
turn on maybe caused by below three conditions:
1 Run out of battery;
2 Product is damaged;
3 Volume is too low.

Technical Data

Battery Specification

Battery capacity:

Battery voltage:

USB input voltage:

USB input current:

USB output voltage:

USB output current:

Note

Please select the adapter whose input
Voltage match X-Cell’s to charge.

3000 mAh

3.7 V

5 V

700 mA

5 V

1000 mA

<Fig.6>

<Fig.7>

Speaker Specification

Power output:

Frequency range:

Sensitivity:

Impedance:

1.5 W

200 - 20000 Hz

79 db ± 3

4 Ohm

X-Cell does not charge the product whose
output voltage is higher than it.

Warnings

Please read the instructions carefully before using
X-Cell. The company is not responsible for any
loss of product damages caused by misuse.

Do not place X-Cell in high-temperature
environments, including strong sunlight and fire.

Do not drop or hit X-Cell heavily or
disassemble it.

Do not store X-Cell in a damp area.

Do not use the USB charger cable which is
not supplied by our company to charge your
X-Cell.

It is recommended to fully charge the battery
before your first use in order to extend its
standby time.

Children or the elderly should use the product
under guidance.

There will be a rise in temperature of X-Cell in
use and please expose the product in air.

Do not cover X-Cell with any item while it is
operating.

If X-Cell is overheating, swelling or
moisturizing in use or there is any abnormal
conditions, please stop using it immediately.

Product Maintenance

When out of service for a long period, it is
recommended to retain 30% of power and
charge the battery for every two months.

While there’s a noise when you rotate the
locating shaft, please add a little lube at
both ends of the shaft.
