User Manual
Intro
Dear Customer,
Thanks for choosing XDOM® PRO. This user manual includes important information regarding security and proper installation of XDOM® PRO devices.
The package includes:
- n.1 module (also called “device”) XDOM® PRO
- n.2 supporting screws
XDOM® PRO is a smart wifi switch, implementing remote
monitoring and control features in simple and ecient manner. XDOM® PRO are designed to continuously operate at
the best performances. The devices are the input/output
elements of the smart network, interacting with a Cloud
system and available to the user operations via an app for
smartphone/tablet.
The XDOM® PRO Cloud system is available from wherever in the world, 24 hours per day, 365 days per year. After
the XDOM® PRO installation, the user can monitor the
ON/OFF status of the connected equipment and change
their status, after login operation on the app by using
proper credentials. The app is available for both Android
and iOS operating systems.
Available
24/7 from
wherever
you are
Additional information and updates to the present user manual are available on www.xdomsolutions.com. Quality and
simplicity of the XDOM® PRO use experience represent the
main advantage of the product, compared with more traditional “domotic” solutions.
Prerequirements
The XDOM® PRO have been design to remotely operate via
Wi-fi connection. In case of connectivity loss, the modules
are still available through local and manual commands.
Therefore, before XDOM® PRO installation it is highly recommended to verify the availability of a stable Wi-fi network.
No particular settings are required to the Wi-fi router (e.g.
ports, firewalls, etc). Indeed, the adopted Cloud system is
structured in order to simplify the installation operations.
Moreover, the XDOM® PRO are not particularly demanding
in terms of connection speed, due to limited size of communication messages exchanged between the module and the
Cloud system. However, it is strongly suggested to install
the modules in Wi-fi visibility conditions, in order to increase the availability of the system.
Remarks
Before installing the XDOM® PRO modules, it is necessary to carefully read the present manual, for full
application of the product warranty.
This is no longer valid in case of negligence, erroneous
operations, and improper usage. Moreover, the warranty is no longer valid in case of incorrect installation, i.e.
any mounting operation dierent from the one described
in this manual. XDOM® PRO can be installed even in presence of lighting phenomena, due to adequate design able to
prevent damages to the module.
It is reccomended to follow CEI norms for adequate XDOM®
PRO installation, in addition to the normative prescribed for
the destination use.
It is explicitly forbidden to install XDOM® PRO for the
following direct or indirect operations:
- ON/OFF of machines able to damage things or persons. As
mere example, it is explicitly forbidden to install XDOM®
PRO to operate robot, devices or generic equipment where
an operator is required for safety reasons;
- ON/OFF of plants used to control biomedical or life-essential devices;
- ON/OFF of elevators, and similar systems not equipped
with emergency opening;
- ON/OFF of systems that can put in danger persons or
animals. As mere example, it is explicitly forbidden to
install XDOM® PRO to control plants in close proximity
of fuel deposit, ammos, gas refinement plants.
In any case, the XDOM® PRO installation shall be not able to
by-pass the emergency control mechanism of the destination
plant.
Being XDOM® PRO a remote control system, if the module
is installed in other danger situations, even if not explicitly above reported, the manufacturer cannot be liable of
any consequent damage.
Description of
XDOM® PRO
XDOM® PRO is available in a plastic package, with tempered glass front panel, suitable to be installed within an
Italian electrical box 503E, but also within generic electrical boxes of suitable dimensions. XDOM® PRO does not
contains other parts available to direct usage from the customer. Therefore, opening and manomission of the module
can cause the warranty void.
Each XDOM® PRO has the following features:
- Line (to 230VAC) and Null connections;
- From one to three line outputs, controllable as ON/OFF
both remotely and locally;
- From zero to three touch buttons, used to implement the
local control of the module;
Dierent XDOM® PRO products are
available, referring to the number of
control inputs (i.e. touch buttons).
XDOM® PRO ZERO
no touch inputs. The single output channel is controlled
in ON/OFF only through the XDOM® PRO app. It is suitable for installations where the touch control is not required (e.g. within the electrical motors boxes)
TYPICAL USE SCENARIO
XDOM® PRO ZERO can be used to generate the pulse control signal for an electrical gate, therefore replicating a normal remote. An external relay is typically required, to be
installed within the electrical motor box, where also the
XDOM® PRO shall be positioned.
XDOM® PRO ONE
one touch button. The single output channel is controlled
in ON/OFF via this button and the XDOM® PRO app. It is
suitable for the remote control of a single electrical equipment, even if power demanding (e.g. industrial machines)
via an additional external relay.
TYPICAL USE SCENARIO
XDOM® PRO ONE can be used to ON/OFF a domestic or
industrial boiler.
The module shall be connected in close proximity of the
boiler, and external relay is typically required.
XDOM® PRO TWO
two touch buttons. The two output channels are independently ON/OFF controlled, via the control buttons or
the XDOM® PRO app. Suitable for the remote control of
shutters, or to control two dierent equipment but located in the same zone (e.g. opening/close of an access gate
and ON/OFF of illumination of the same environment).
TYPICAL USE SCENARIO
XDOM® PRO TWO can be fruitfully used to control shutters.
Each XDOM® PRO output line can control one of the two rotating senses, up to the full opening/closure of the shutter.
XDOM® PRO THREE
three touch buttons. The three output channels are independently ON/OFF controlled, via the control buttons
or the XDOM® PRO app. Suitable for illumination control
of large spaces, or to control two dierent equipment but located in the same zone (e.g. opening/close of an access gate
and ON/OFF of illumination of the same environment).via an
additional external relay.
TYPICAL USE SCENARIO
XDOM® PRO THREE can control three ceiling or wall lights.
XDOM® PRO is tailored for the installation within Italian 503E box, or in any suitable box.
Ground (N) wire is required.
General view
XDOM® PRO is provided with an electrical connection
breakout, located on the module rear side, available for
the Line (L), Ground (N), and Output (L1, optionally L2,
optionally L3) connections.
N L
Electrical supply 230 VAC - 50 Hz
Power absorption Up to 2A for single line
Front glass colours White - Black
Operating temperature range -20°C -- +70 °C
Radio Protocol Wi-fi + Bluetooth Low
Maximum range Up to 60 m (open spaces)
Dimensions 118mm x 72mm x 38mm
Device power consumotion < 300 mW
Actuation element Triac
Certification CE, RoHS
L3 L2 L1
Energy (for specific
operations)
Up to 30 m (close spaces)
Input power supply electronics is suitable to operate in
AC voltage, even with severe fluctuations (100V -260V),
therefore also in case of particularly demanding equipment.
Input power stage is protected with a non-replaceable fuse.
In case of fuse intervention, the XDOM® PRO device shall
be replaced.
Output lines not galvanically isolated, therefore the electrical connection shall be strictly performed referring to
the schematics outlined in this document.
Output lines have a maximum commutation of 2A, when
considering nominal 230V voltage. To operate with power demanding loads, it is necessary to place on the output stage also power relays, tailored for the equipment.
Installation
XDOM® PRO devices have been designed to be installed
within 503E boxes, as well as within larger electrical boxes. Communication between XDOM® PRO and the external
environment occurs via Wi-Fi protocol, therefore XDOM®
PRO cannot be installed within metallic boxes or behind
large metallic objects that can compromise the communication capabilities. XDOM® PRO devices are self-powered
through the 230 VAC electrical network.
CAUTION: XDOM® PRO shall be installed
by qualified electrical technicians, taking
into account the current electrical installations normative.
DANGER: XDOM® PRO shall be connected to the 230 VAC electrical network: before installation, turn OFF the main electrical switch of the electrical section.
CAUTION: Do not connect output loads
exceeding the maximum value allowed
for XDOM® PRO output lines..
N.b. to provide Cloud communication, XDOM® PRO
shall be installed in areas with sufficient preferred
Wi-Fi network (e.g. home or office) availability. Differently, XDOM® PRO features are not guaranteed. To
increase the service reliability, Wi-Fi repeaters use is
suggested, while mobile hotspots (i.e. equipped with
SIM cards) is suggested in case of complete not availability of Wi-Fi signal for extreme conditions.

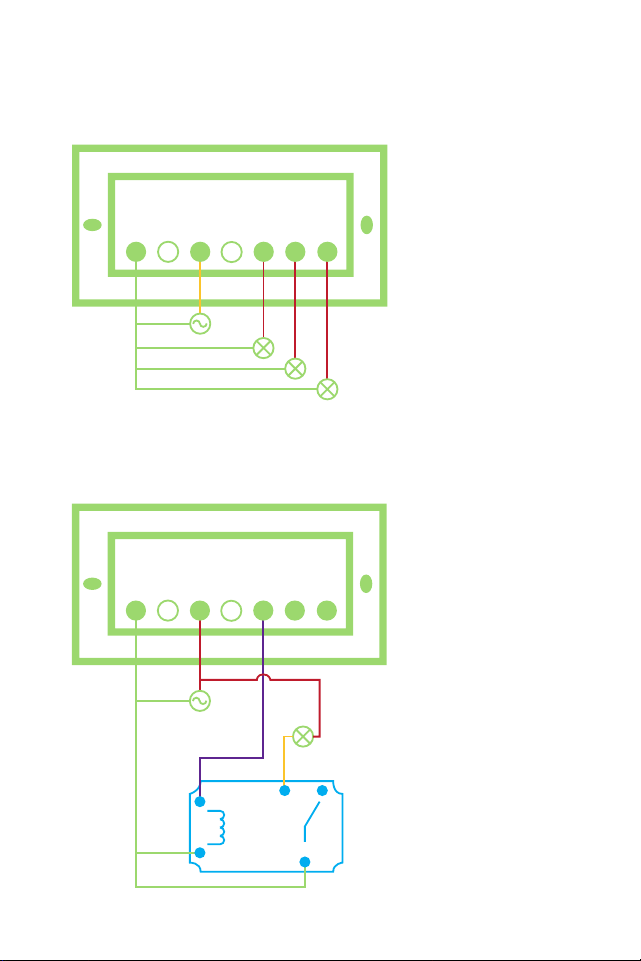

NORMAL INSTALLATION
(< 2A of absorbed current for output line)
NL L3 L2 L1
RELAY INSTALLATION
(> 2A of absorbed current for output line)
NL
L3 L2 L1
COIL
NO
NC
COM
