Xcortech XTS105 User Manual

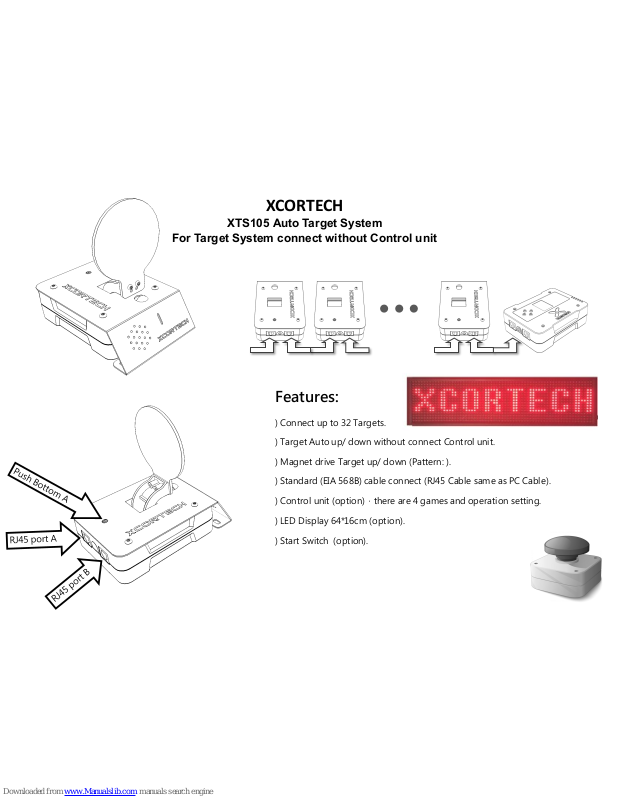

Features:

) Connect up to 32 Targets.

) Target Auto up/ down without connect Control unit.

) Magnet drive Target up/ down (Pattern: ).

) Standard (EIA 568B) cable connect (RJ45 Cable same as PC Cable).

) Control unit (option)，there are 4 games and operation setting.

) LED Display 64*16cm (option).

) Start Switch (option).

XCORTECH

XTS105 Auto Target System

For Target System connect without Control unit

** One of PDU can supply over 12 Targets. EX: 32 Targets need 3 PDU.

Note:

) Connect up to 32 Targets for Each Target System.
) Only one Control unit can be connected for Each Target System.
) Max 2 M cable length between targets or need to add PDU.
) Max 20 M for total cable length or need to add PDU.

) Power Input for Target system : DC 9~24V

(Suggestion DC 24V 5A for 12 targets)

** If end of Targets not go up at the same time that maybe low power
supply need to add PDU and Power.

PDU: Power Distribution Unit

XCORTECH

XTS105 Auto Target System

12 Target System connection

Power On:
Push or

Power Off:

Push and both

key

1. Power On and Off

TARGET SYSTEM

XTS105

TARGET = 12

SCORE = PASS

COMM = PASS

2. Target information Screen #1

Total Targets No.

SCORE: LED Display Communication Status

PASS=LED Board Communication Pass

ERR1=No Response
Ex: LED board Disconnect
ERR2= Unknown Device

COMM: Targets Communication status

PASS= Total Targets communication Pass
ERR1= one or more targets communication error
Ex: Disconnect target cable ...
ERR2= Unknown Device

Ex: Add new Target(s)

Error3= No Any Targets
Solve: To do “Auto Address” again

XCORTECH

XTS105 Auto Target System

For Target System connect with Control unit

TARGET SYSTEM

XTS105

TARGET = 12

SCORE = PASS
COMM = PASS

TIME=

HIT=
SCORE=

WHACK A MOLE
LV=1 RN=3

SHOT TIMER

RN=1
TIME=

HIT=
MISS=

BAD=

SCORE=

RESCUE

LV=1 RN=2 H=4

TIME=

HIT=
MISS=

COMPETE
LV=1 RN=1

DEMO DANCE

Game Running Screen #2.1

Other Game

#2.2

#2.3

#2.4

#2.5

Push Start the Game

Push Cancel the Game

TIME : Total Time

HIT : (How many hits)
SCORE : (Total: 1000)

EX: If 12 Targets in the system.

RN(round)=3, Total raise targets is 36 (3*12)
If hit 9 Tragets，Score is 1000x(9/36)=250

HIT : Hit green targets
MISS : Miss total green target
BAD : Hit red targets
SCORE : (Total: 1000)
EX: If 12 Targets in the system.
RN(Round)=2，H(Hostage )=4。
Total raise targets is 36 (3*12)，Green target raise 24-4=20

Hit: Hit a green target 1000/20=50 score
Miss: Miss a green target -1000/20=-50 score
Bad : Hit a red target -50*2=-100 score
EX: Hit 9 green targets, Hit a red target (Miss), Miss=11 (20-9)
Total score: 50x9 - 100x1 - 50x11 = -200 分

LV =LEVEL RN=ROUND

TIME : Total time

HIT : (How many hits)
MISS : (How many miss)

TARGET SYSTEM

XTS105

TARGET = 12

SCORE = PASS

COMM = PASS

Target information Screen #1

XCORTECH

XTS105 Auto Target System

For Target System connect with Control unit

AU TO AD DR
WH O IS
CFG TAR GET
SOU ND / LED

GAME

WH ACK A MO LE
RES CU E
COMPET E

DEM O D ANC E

>SH OT TIMER

“>”

Selected

Push selected the game

Push again for setting he game

SHO T T IMER

ROUND =

2

SHOT TIMER:

ROUND :

Ex: If the system have 12 targets.

Set ROUND=2。

That will raise 12x2=24 targets

LEVEL :

Lower level is easy mode.

Bigger level is difficult mode.

WH ACK A MO LE

LEVE L 1

ROUND 3

WHACK A MOLE:

RES CU E

LEVE L 1
ROUND 3

HOSTA GE 2

RESCUE:
Shoot green target
Don’t shoot the red target.

COMPET E

LEVE L 1

ROUND 3

COMPETE:
Only raise a target for each time.

XCORTECH

XTS105 Auto Target System

For Target System connect with Control unit

XCORTECH

XTS105 Auto Target System

For Target System connect with Control unit

Auto Target system install instrucon

** Controller need to connect to last unit from power

** PDU need to connect to Target and LED Display

XCORTECH

XTS105 Auto Target System

For Target System connect with Control unit

Auto Target system Operaon instrucon

Quick Strat YouTube Search: XTS105

Xcortech XTS105 Auto target install 1

hps://youtu.be/hamUhHuvyRs

Xcortech XTS105 Auto target setup 2

hps://youtu.be/s3Ha9wz_rQI

Xcortech XTS105 Auto Target Game Operation 3

hps://youtu.be/anScjxY2FXg

Manual Download: hp://www.xcortech.com.tw/
