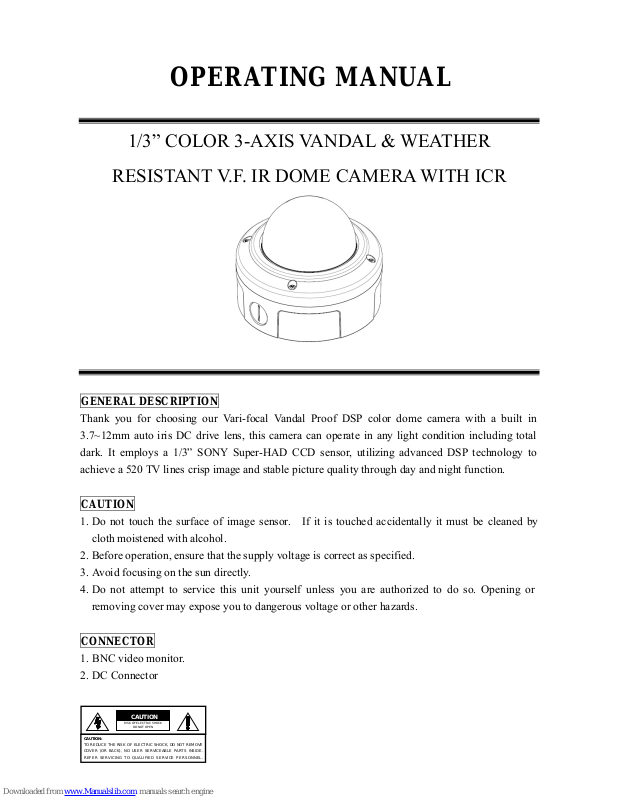

OPERATING MANUAL
1/3” COLOR 3-AXIS VANDAL & WEATHER
RESISTANT V.F. IR DOME CAMERA WITH ICR
GENERAL DESCRIPTION
Thank you for choosing our Vari-focal Vandal Proof DSP color dome camera with a built in
3.7~12mm auto iris DC drive lens, this camera can operate in any light condition including total
dark. It employs a 1/3” SONY Super-HAD CCD sensor, utilizing advanced DSP technology to
achieve a 520 TV lines crisp image and stable picture quality through day and night function.
CAUTION
1. Do not touch the surface of image sensor. If it is touched accidentally it must be cleaned by
cloth moistened with alcohol.
2. Before operation, ensure that the supply voltage is correct as specified.
3. Avoid focusing on the sun directly.
4. Do not attempt to service this unit yourself unless you are authorized to do so. Opening or
removing cover may expose you to dangerous voltage or other hazards.
CONNECTOR
1. BNC video monitor.
2. DC Connector
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Page 2
FEATURES
z Color dome camera with SONY 1/3” CCD sensor.
z Employs Digital Signal Processor (DSP) chip-set for image control.
z Pixel number: NTSC=380K / PAL=440K (High Resolution).
z High sensitivity, low smear, high anti-blooming and high S/N ratio.
z Built-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto Tracing White Balance (ATW).
z Built-in Vari-Focal DC-Drive auto iris lens.
z OLPF auto switching (IR-Cut Removable).
z Built-in 11 units of high efficiency IR LED.
z CCD color image automatically changed into B/W image in low light environments.
z Furnished with DC power cable and video cable.
z Max. 10 pounds sledgehammer impact durability.
z Water resistant IP66 protection.
z 3-axis
for wall or ceiling mounting with flexible lens rotation.
z
Easy installation with attached cap.
NAME OF PARTS AND FUNCTIONS
E. Lens
F. IR-LED
G. Side conduit entry
H. Back conduit entry
Dimensions Front View Bottom View
Top View
Bottom View
D
E
F
G
A
C
B
A. Inner plate mounting holes
B. BNC Connector
C. DC Connector
Page 3
INSTALLATION INSTRUCTIONS
(1) Connect the camera to a monitor with 75ohm type coaxial cable.
(2) Connect the power cord to DC 12V power supply.
(3) Fix camera to the ceiling or wall by mounting device.

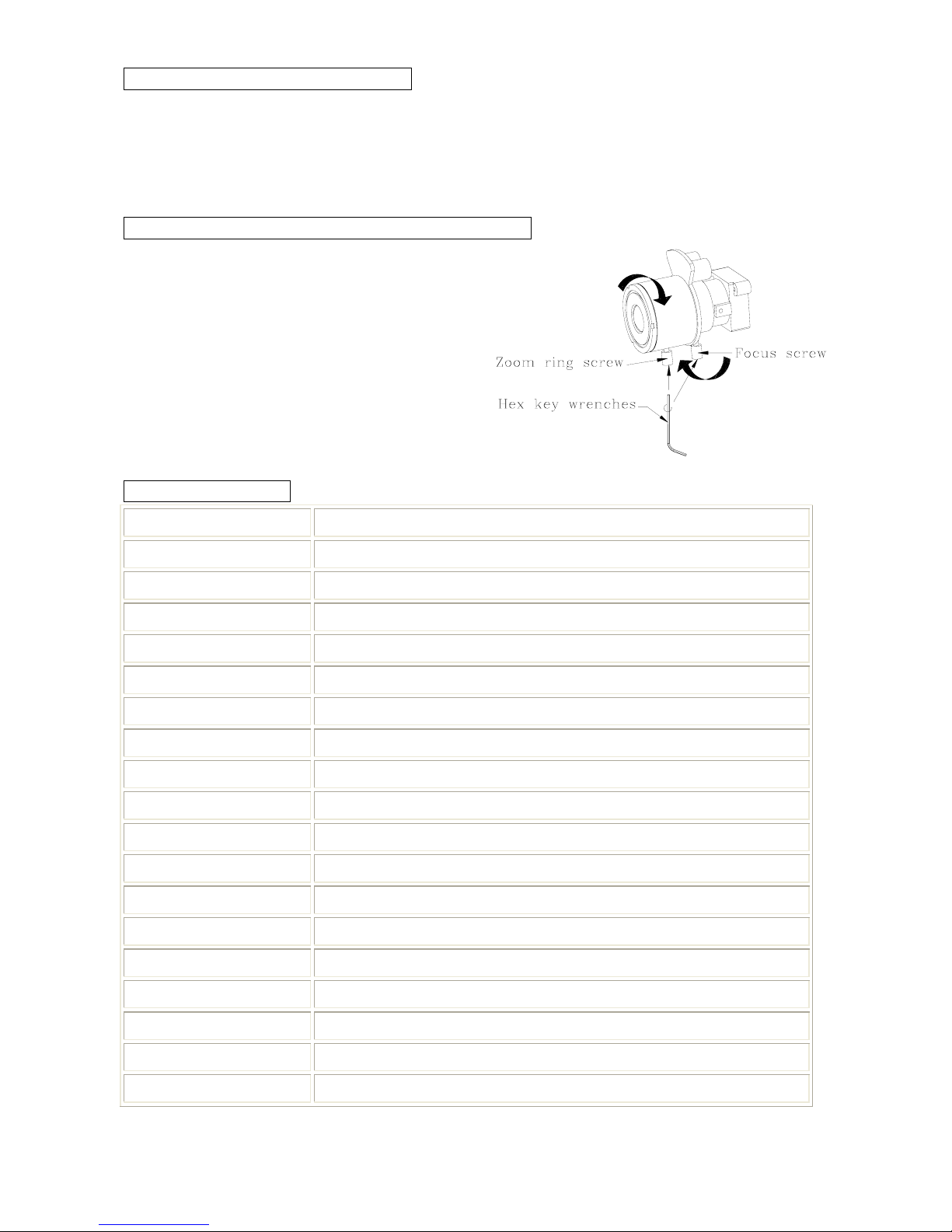

ADJUSTING THE CAMERA ZOOM AND FOCUS
1. Loose the zoom ring screw.
2. Turn the zoom ring to the desired zoom condition.
3. Tight the zoom ring screw.
4. Loose the focus ring screw.
5. Turn the focus ring to focus.
6. Tight the focus ring screw.
7. Check the result with tools.
SPECIFICATIONS
Model T ype
XD445MR
Image Pick-up Device
SONY 1/3” CCD High Resolution
Effective Picture Elements
NTSC: 768*494, PAL: 752*582 (H*V)
Horizontal Resolution
520 TV lines
Minimum Illumination
0 LUX @ IR
S/N Ratio
More than 48 dB
Gamma Characteristic
0.45
Gain Control
Automatically
White Balance
ATW (2500°K ~ 9,500°K)
Lens Furnished
3.7-12mm / F1.4
Auto Iris Control
DC-Drive Auto Iris lens
Auto Electronic Shutter
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/110,000s
Video Output
1 Vp-p Composite Video / 75 ohm BNC connector
Power Supply
DC 12V / 280 mA
Operating Temp.
-10°C to 50°C (14°F to 122°F)
Water Resistance
IP66
IR-LED
11 units of high efficiency 850nm IR-LED
IR Project Distance
25 Meters
Dimensions
142mm (Φ) * 115.5mm (H)
