Flybarless 3D 200
User Manual
16 pgs6.26 Mb0

XciteRC Flybarless 3D 200 User Manual

Download
Manual
#14000000 XciteRC Flybarless 3D 200
14000000 XciteRC Flybarless 3D 200
EN
Summary
Summary
Imprint
This manual is a publication of
XciteRC Modellbau GmbH & Co. KG
Autenbachstrasse 12 D-73035 Göppingen Phone: +49 7161 40 799 0 Fax: +49 7161 40 799 99 E-mail: info@xciterc.de Web: www.XciteRC.de
All rights including translation. Reproductions of any kind, such as photocopying, microfilming or storage in electronic data processing equipment, without the written permission of the publisher. Reproduction in whole or part, is prohibited.
This manual corresponds to the technical status of the product at time of printing, changes in technology and equipment reserved. Text and illustrations of this manual, no claims can be derived.
NO LIABILITY FOR PRINTING ERROR! SUBJECT TO CHANGE! The latest version of this manual can be found on the Internet at www.XciteRC.de
© Copyright 2013 by XciteRC-Modellbau GmbH & Co. KG
12
14000000 XciteRC Flybarless 3D 200
14000000 XciteRC Flybarless 3D 200
Intended Usage
Thank you for purchasing the XciteRC Flybarless 3D 200. This manual contains important instructions for operating your new model. Therefore, please read all instructions in this manual thoroughly before
using the model, so that you can operate your model safely.
All company and product names mentioned are trademarks of their respective owners. All rights reserved.
Intended Usage
The XciteRC Flybarless 3D 200 is an electrically driven ready to fly RC helicopter including motor and speed controller. The control is wireless with an optional available 2.4 GHz transmitter. The model may only be oper­ated on a suitable and sufficiently indoor room without obstacles. An operation outdoor is not recommended. The product is not a toy and not suitable for children under 14 years of age, by children under 14 years the maintenance and operation of the model must be supervised by an adult.
Read and observe all warnings and safety instructions in this manual and on the packaging before operating!
This manual is part of this product. It contains important information for handling this product. Keep the manual for future reference and also it must be strictly kept and passed on the subsequent sale of the model to the buyer. Failure to follow the operating instructions and the safety instructions may invalidate the warranty.
EN
Scope of delivery
Flybarless 3D 200 Helicopter USB- und charger conversion cable Charger LiPo-battery 180 mAh Cross screwdriver and hex wrench Screw 2 x Pull rod 2 x Connecting rod Spare main blades Spare tail rotor blades Manual with list of spareparts
Required accessories
Transmitter
Explanation of Symbols
WARNING: These instructions must be strictly observed by the operator! Failure to follow these instructions may interfere with the safe function. These notes are also for your own safety and that of other people!
ATTENTION: this information must be observed by the operator! Failure to follow these in- structions can damage whatsoever, warranties power loss, etc. have resulted.
Information or advice, by which a smooth operation is ensured.
Instructions for care and maintenance to ensure a long shelf life of the product.
Warnings and safety notes
14000000 XciteRC Flybarless 3D 200
13
14000000 XciteRC Flybarless 3D 200
EN
Warnings and safety notes
The following safety instructions must be strictly observed. For property damage, personal injury or conse­quential damage caused by improper use or non-observance of the safety instructions the XciteRC Modell­bau GmbH & Co. KG accepts no liability. In these cases, the warranty becomes void. Move your model always with the maximum caution and responsibility, otherwise it may cause damage to other property or even physical injury. We therefore recommend to secure the operation with a third party liability insurance. If you already have a liability insurance policy, check before start-up the model, whether radio-controlled models are covered by a corresponding amount.
•
The product contains small parts that can cause injury if swallowed, and must therefore be kept
away from children under 3 years.
• The product is not a toy and not suitable for children under 14 years.
• The operation of radio-controlled models requires practice. In the beginning operate your new model therefore with extra caution and familiarize yourself with the response to your commands.
•
WARNING: The safe operation requires concentration and quick reaction. Do not operate your
model if you are tired or under the influence of drugs or alcohol – risk of accident and injury!
•
WARNING: The control of this model is done via radio signals, which can be influenced by the
environment. This may cause a suddenly loss of control of your model. The model may only be operated
on a suitable and sufficiently large room without obstacles.
• Operate your model therefore only with sufficient light within line of sight, away from cars, traffic and peo­ple – risk of accident and injury!
•
ATTENTION: due to the small size and weight, the model should not be exposed to drafts or a
strong winds. Avoid flights near open windows or air-outlets of an air-conditioning system - crash haz­ard!
• Do not operate your model during a thunder storm or near radio towers or power lines.
• Radio remote controlled models may not be operated at any public space by implication (streets, roads, squares or lakes). Before operation please ask where the operation is allowed. This also applies to private property, here the consent of the owner is required.
•
WARNING: Keep your fingers or loose clothing or hair away from the rotating parts or the propeller
/ rotor unit - risk of injury!
• Always switch on the transmitter first, then the model. NOTE: during the operation of the transmitter must remain switched on!
• Never operate your model with low transmitter batteries, because this reduces the range of your model dramatically.
• If the drive battery is empty, the model first slow down until it no longer reacts properly to your commands. Stop the operation and change the drive battery or charge it again.
• Pay attention to the instructions and warnings for this and any other equipment used by you (chargers, rechargeable battery packs, etc.).
•
WARNING: Keep packaging material, small parts, chemicals and electrical components away from
children – risk of accident and injury!
•
The model and the transmitter may be neither get humid nor wet, especially the electronic compo-
nents (receiver, speed controller, servo) and, if used, lithium batteries, are not waterproof! The model may not be used in the rain (or heavy fog), do not drive in wet grass or through puddles or snow. WARNING:
Fire or explosion due to moisture in lithium batteries!
• Plastic parts (eg. fuselage or main blades) is less flexible and can break more easily at cold temperatures (below 10 ° C).
• The modification of the model is not permitted for safety and CE approval regulations, which applies in particular to the transmitter, receiver and speed controller. Maintenance or repairs using original replace­ment parts are excluded.
• After use, first turn off the model and then the transmitter.
14
14000000 XciteRC Flybarless 3D 200
14000000 XciteRC Flybarless 3D 200
Warnings and safety · notes
• WARNING: remove the drive battery from the model and transmitter after use. Store the model never with built-in battery. Fire hazard!
• Store batteries separately on a non-combustible surface.
• The drive components (motor and speed controller) or the car battery may become hot during operation.
EN
•
WARNING: Risk of burns! Let these components cool down completely after the operation (and
also before each battery change)!
Operation of the model is performed solely at the risk of the operator. Only a careful and deliberate operation protects against physical injury and damage to property.
Handling precautions for batteries or rechargeable batteries
• Keep batteries away from children! Never let batteries unattended, as they can be swallowed by children or pets!
• Use only the recommended or equivalent type of batteries / rechargeable batteries.
•
•
• If possible, always replace all batteries at the same time, never use new and used batteries and batteries
•
•
• Remove the rechargeable batteries from the device before charging.
WARNING: Do not expose batteries / rechargeable batteries to heat or throw into fire – fire or
explosion hazard!
WARNING: Insert batteries / rechargeable batteries with the correct polarity, no short-circuiting –
fire or explosion hazard!
with different charge levels simultaneously.
WARNING: Do not use defective or damaged batteries or rechargeable batteries – fire hazard!
Risk of chemical burns on contact with skin, use protective gloves!
WARNING: Do not attempt to recharge non-rechargeable batteries in a charger – fire or explo-
sion hazard!
•
WARNING: Charging may take place only with a suitable charger for the type of battery on a fire-
proof surface and under constant adult supervision – fire hazard!
• Immediately remove used batteries from the devices.
•
NOTE: NiMH batteries must be checked at least every 3 months and, if necessary, recharged, oth-
erwise because of the typic self-discharge they may get deep discharged and damaged! Therefore, better use so-called RTU batteries with a very low self-discharge.
•
NOTE: note the specified storage voltage for lithium batteries. Is a completely full or empty lithium
battery time stored for a longer time, it can be damaged.
The XciteRC Modellbau GmbH & Co. KG cannot monitor the proper use of the battery or batteries you use, therefore, the warranty is excluded due to incorrect charging or discharging.
14000000 XciteRC Flybarless 3D 200
15
14000000 XciteRC Flybarless 3D 200
EN
Getting started
Introduction
As you are about to see, the Xcite Flybarless 3D 200 truly is an ultra micro heli experience unlike any other. Its advanced flybarless design reduces drag on the rotor head and more importantly, under the precision in the three-axis gyroscope complement of self-control, it greatly increases stability of the body. This, combined with its exceptionally lightweight airframe, delivers a level of power and responsiveness that eclipses that of any ultra micro heli you have flown before. Inverted flight, loops, lips, rolls,funnels, wash pot- the Flybarless 3D 200 can do it all, indoors or out, with power to spare. If you‘re transitionjng from a basic CCPM or fixed pitched heli, you‘ll find the Flybarless 3D 200 is a great way to get used to flying mora agile CCPM helis without having to invest a lot in expensive equipment or repairs. Before you take the first flight, please take time to read through this manual. lt contains important pre-flight information as well as useful tips on binding your transmitter that will help ensure your first flight is a great one.
Helicopter Parameters Length 200 mm High 80 mm Weight 37 g Rotating propeller diameter 204 mm TailRotor blade Diameter 36 mm Battery Specification 3.7 V 180 mAh 15C Flight time 4 to 5 min
Battery charging
• Connect charger to the USB port of computer by using USB Line.
• Connect the Li-po battery to the Charger by using Charger conversion wire, at this time. the charging indicator light shows red. When the battery is full, the light turns green.
• The Charger can charge two batteries at the same time, and if no battery connect, the green light bright.
Notice: Only use the charger delivered with the helicopter.
WARNING: Never attempt to power the charger from an AC outlet without the use of a proper ACto DC
adapter/power supply. - fire hazard!
First Flight preparation
• Make sure the battery power Is full both for TX and helicopter
• Before open the power of TX, please make sure the TH. Stick at the bottom and the switch of TH.HOLD and 3D mode in back position (back cover direction).
• Make sure the TX is binding with helicopter, or please rebind them.
• Please open TX first, then connect the battery with the RX board on helicopter to bind with TX. When close, please cut the power of helicopter first, and then turn off the TX.
• Flying in a suitable area, away from people, cars, electric pylon, pool and so on.
16
14000000 XciteRC Flybarless 3D 200
14000000 XciteRC Flybarless 3D 200
Getting started
First Flight instruction
If you are not familiar with the controls of your Xcite RC Flybarless Trainer 75, take a few minutes to familiarize yourself with them before attempting your first light.
Throttle
Throttle up Climb Throttle down Decend
Rudder
EN
Rudder left Nose yaws left Rudder right Nose yaws right
Elevator
Elevator up Forward Elevator down Backward
Aileron
Aileron left Left Aileron right Right
14000000 XciteRC Flybarless 3D 200
17
14000000 XciteRC Flybarless 3D 200
EN
Getting started

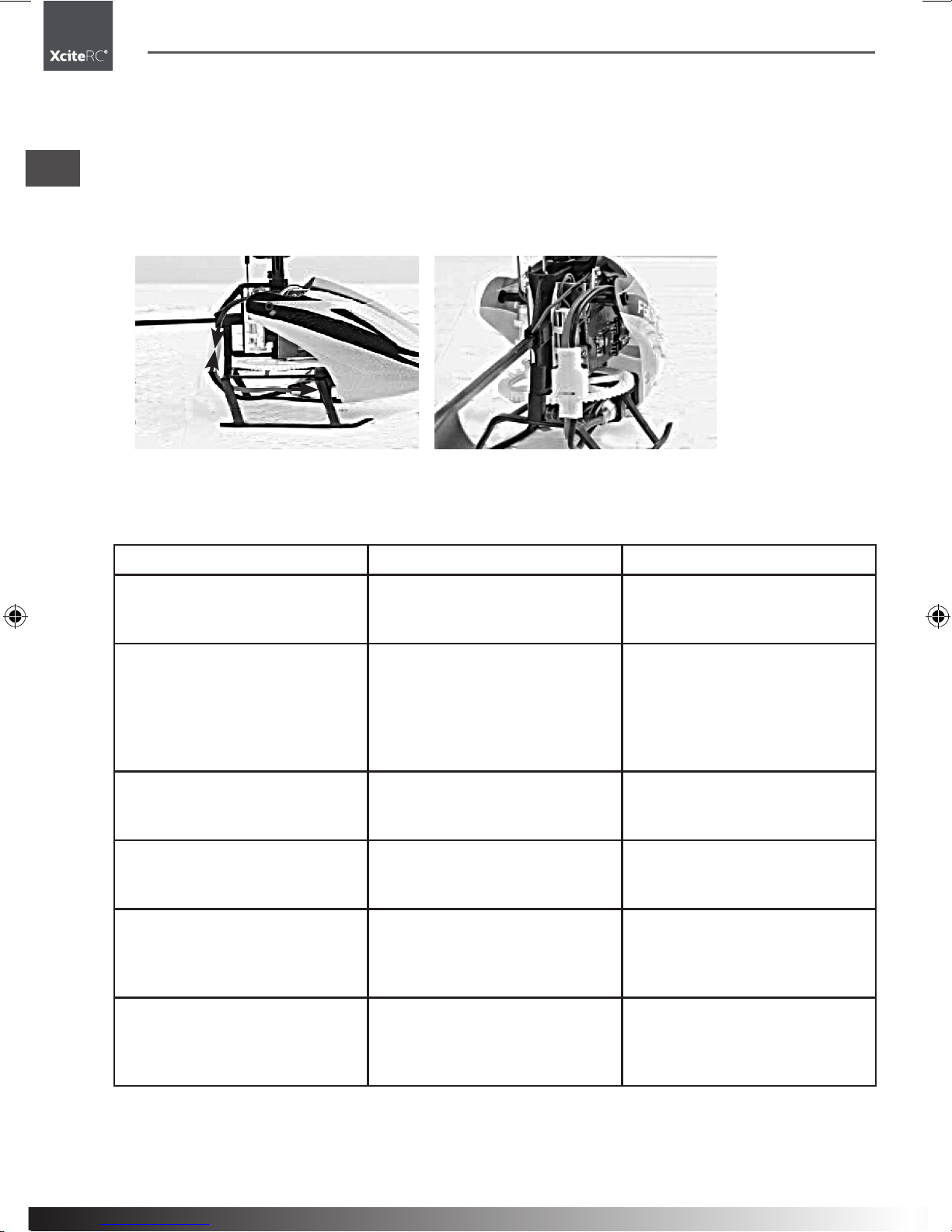

Installing the flight battery
• Put the throttle stick to the lowest position.
• Turn on the transmitter.
• Install the flight battery in the battery holder, connect the battery with 4-in-1 main board, place the heli­copter static level next to the transmitter.
• Waiting several seconds, the main rotor flap up and down twice, it means the heli successfully bind to the transmitter. Please move the heli after the binding finished.
Troubleshooting guide
Problem Possible cause Solution
LED on 3-in-1 board flashes con­stantly and operating no function after connecting battery to heli
The helicopter do not response after connecting batteries to receiver
When push the throttle pole,the rotor do not rotate and the LED on Receiver flashes constantly.
Helicopter takes off immediately once the batteries and helicopter connected.
Turn on the helicopter after bind­ing succasafully,the propeller ro­tate constantly but the hellcoptar can not take off.
Transmitter is not bound to re­ceiver
Check whether the transmit­ter and helicopter connecting to power; check the voltage of transmitter and helicopter´s bat­tery; battery pole flake contact is not good.
Low battery voltage; batteries connection is not good.
Didn´t put the throttle to the low­est.
Low charge in aircraft batteries or main gear loose.
Bind transmitter to receiver.
Open the transmitter, make sure the batteries connecting is good; replace and charge transmitter batteries, make sure the battery pole flake contact is good.
Replace and charge the batteries,reconnect the batteries to the receiver board.
Put the throttle pole at thel owest position before open the trans­mitter.
Replace and charge the batter­ies ;press the spindle with gear tightly.
Helicopter vibrates os shakes in flight.
18
Damaged rotor blades and lateral axis blade grips too tight causing the movement of the main rotor isn´t smooth.
Change the main rotor blades, and lateral axis.; loosen the bllade grips properly.
14000000 XciteRC Flybarless 3D 200
14000000 XciteRC Flybarless 3D 200
Troubleshooting
Problem Possible cause Solution
Main rotor blades are shaking in flying.
Helicopter is out of control when it takes off.
The sound of the main rotor be­comes smaller.
Helicopter has no reaction or can not fly smoothly.
Lateral axis is bent; lateral axis screw is not tight. There are some debris in the servo, caus­ing shakes, The loose between the swash plates. Deformed or damaged tail rotor blades.
The helicopter isn´t maintained static level when it is binding.
Low battery voltage of helicopter. Charge the battery or change a
Failure to binding. Rebind the helicopter and trans-
Replace the lateral axis. Tighten the lateral axis screw. Change the bearing. Remove he servo and clear debris. Compress the swash plates. Change tail rotor blades.
Rebind the TX and RX correctly.
fully charged battery.
mitter, make sure you place the helicopter static level next to the transmitter.
Receive board Interface Diagram
Main motor Pitch
EN
Elevator Tail motor
Aileron
14000000 XciteRC Flybarless 3D 200
19
14000000 XciteRC Flybarless 3D 200
EN

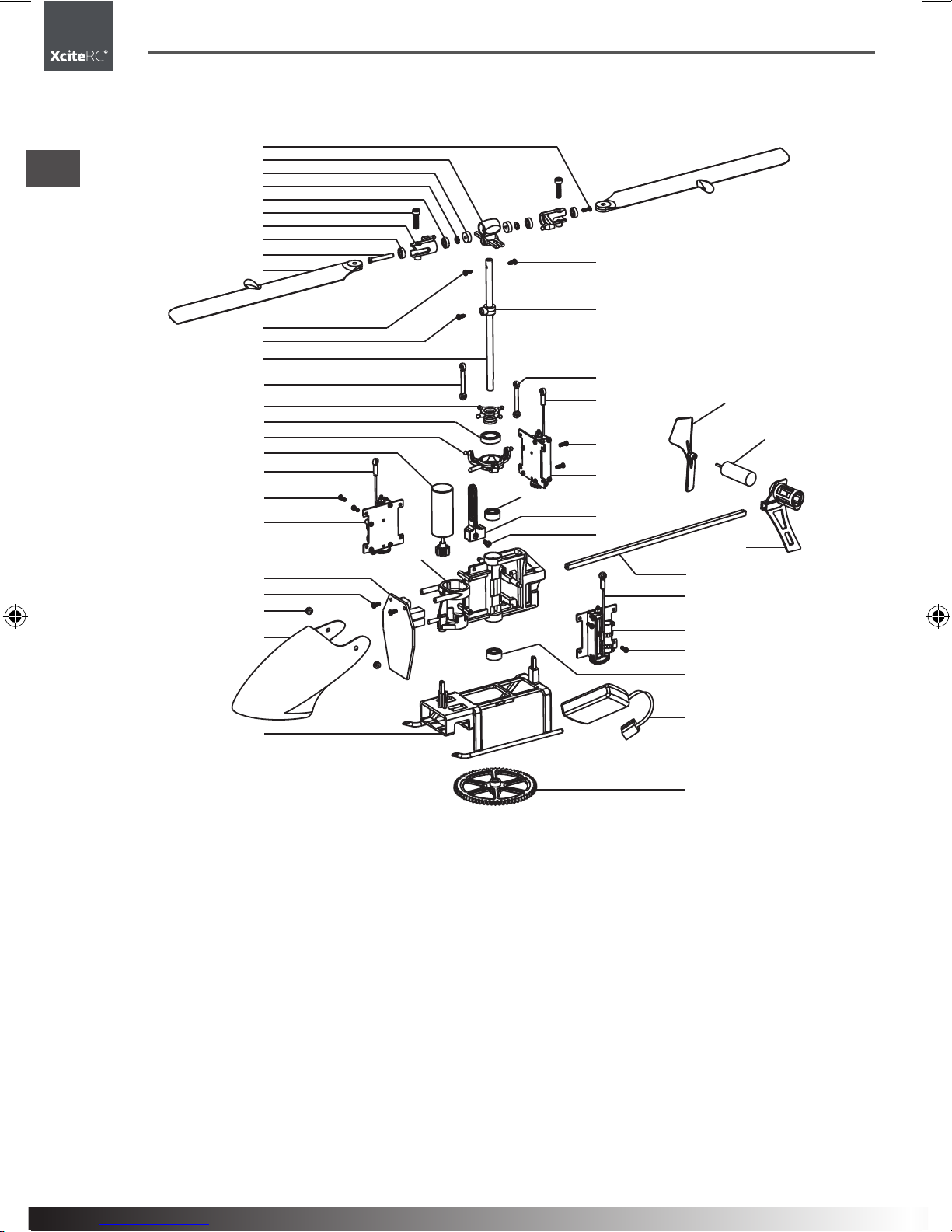

Explodes view
14000009 14000005 13000024 14000009 82600009 13000017 14000004 82600009
14000009
14000002
13000017
13000017
13000016
13000008
14000003
82600232 14000003 13000018
13000009
13000017
14000010
14000001
14000011
13000017 14000007
14000007 14000008
13000017
14000001
13000008
13000009
13000017
14000010
82600030
14000001
13000017
Repairs
EN
13000024
13000019
13000011
13000015
13000009
14000010
13000017
82600030
56600001
13000004
13000010
Repairs
Normal wear and defective parts that result from an accident, are excluded from the guarantee. These in­clude in particular: For car models: bald tires, worn parts and drive gears, or bent / broken suspension, chassis or bodywork With ship models: damaged or broken propellers, torn superstructure With airplanes: damage due to improper transportation or crash
I If you find a part that is defective in material or workmanship right after opening the package, return - before you used it – to your dealer or directly to us and we will send you a replacement. Some parts are available as spares. If a part is defective or worn, you can identify it with the help of the exploded view. In case of problems or questions, please contact your dealer or:
XciteRC Modellbau GmbH & Co. KG - Service, Autenbachstrasse 12, D-73035 Göppingen, Phone +49 7161 40 799 50 Email: service@xciterc.de
Spare parts you may order in your local hobby shop or online at http://www.XciteRC.de/
20
14000000 XciteRC Flybarless 3D 200
14000000 XciteRC Flybarless 3D 200
Environmental protection
Cd Hg Pb
Environmental Protection Notes
The symbol of the crossed out dust bin on the product or packaging indicates that this product must be disposed of separately from normal household waste. In order to avoid harmful effects on the environment and human health in the disposal of electrical and electronic equipment and
the re-use or recycling are possible. You have the opportunity to submit electrical and electronic equipment free of charge at an appropriate collecting point in your area. Please check with your city or town across the available depot. You also have the option to return old electrical and electronic equipment which has been purchased from us. We will then perform a proper recycling or reuse. Possibly contained batteries must be removed from the product and disposed of at the appropriate collect­ing point.
Notes on battery law
According to the German Battery Act (BattG) the one who sells batteries (and accumulators etc.) or devices containing batteries, we are obliged to draw your attention to the following: Batteries and rechargeable batteries should not be disposed of with household waste but you are legally obliged to return used batteries. Batteries can contain contaminants that could harm the environment or your health if improperly stored or disposed of. Batteries also contain important raw materials such as iron, zinc, manganese or nickel and can be recycled. You can send us back the batteries after use either sufficient postage:
EN
XciteRC Modellbau GmbH & Co.KG Autenbachstr. 12 D-73035 Göppingen
returned free of charge or in close proximity (eg in trade or municipal collection). The levy is limited to points of sale to end-users for the disposal of such waste batteries and customary amounts, which the distributor as new batteries in his range or has done. Batteries containing pollutants are marked with a sign, a crossed-out rubbish bin, and the chemical symbol of the pollutant-heavy metal. This crossed-out bin means that you must not dispose of batteries with household waste. Among these characters, see also the following symbols have the following meanings:
• Cd = cadmium
• Pb = plumbium
• Hg = mercury
• Li = lithium
Li-Po
14000000 XciteRC Flybarless 3D 200
21
32
14000000 XciteRC Flybarless 3D 200
DE

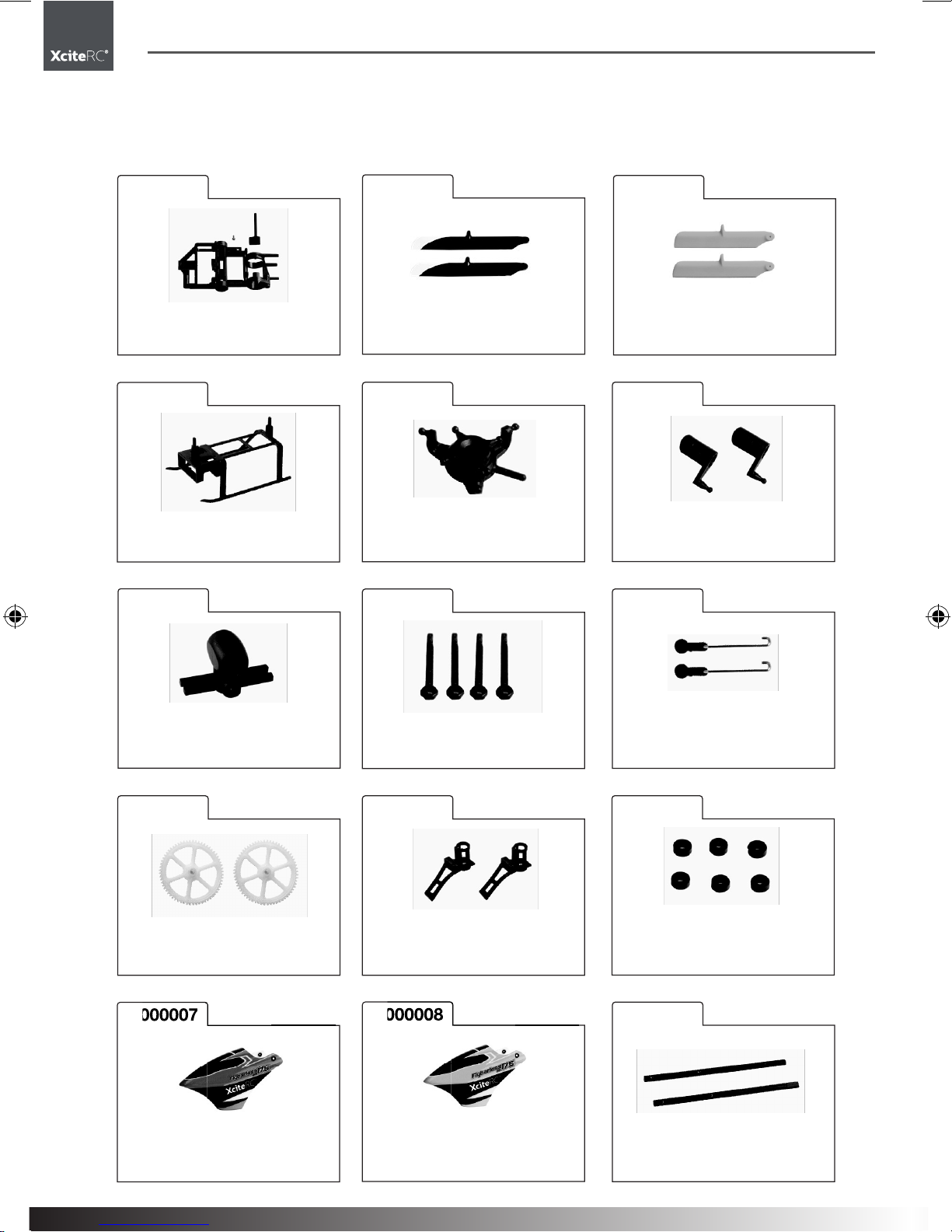

Ersatzteile
Ersatzteile
Ersatzteile Spare Parts
Spare Parts
Spare Parts Pièces de recharge
Pièces de recharge
Pièces de recharge
14000001
14000002
Ersatzteile · Spare Parts · Pièces de recharge
13000003
Hauptrahmen mit Hardware
Main Frame with hardware
Châssis avec hardware
13000004
Landegestell
Landing Skid
Patin
14000005
Rotornabe
Main Rotor Hub
Moyeu rotor
Hauptrotorblätter A
Main Rotor Blades A
Pales de rotor A
14000003
Taumelscheibe
Swashplate combination
Plateau cyclique
13000008
Verbindungsstangen (4)
Connecting Rod (4)
Tiges de raccordement (4)
Hauptrotorblätter B grün
Main Rotor Blades B green
Pales de rotor B vert
14000004
Blatthalter
Main Blade Grips
Support pales de rotor
13000009
Taumelscheibenanlenkung (2)
Pull Rods (2)
Tringlerie pour le plateau cyclique (2)
13000010
Hauptzahnrad (2)
Main Gear (2)
Roue dentée (2)
14000007
Kabinenhaube Flybarless 3D 175 blau
Canopy Flybarless 3D 175 blue
Fuselage Flybarless 3D 175 bleu
32
13000011
Heckmotorhalterung
Tail Motor Pedestal
Mount de moteur arrière
14000008
Kabinenhaube Flybarless 3D 175 grün
Canopy Flybarless 3D 175 green
Fuselage Flybarless 3D 175 vert
13000012
Gummischeiben für Blatthalter (6)
Rotor Hub Rubber Washers (6)
Entretoise élastique pour support des pales de rotor (6)
13000015
Heckrohr CFK (2)
Tail Connect Pipes CFK (2)
Cadre se queue CFK (2)
14000000 XciteRC Flybarless 3D 200
33
14000000 XciteRC Flybarless 3D 200
Ersatzteile · Spare Parts · Pièces de recharge
13000016
Rotorwelle CFK (2)
Main Shaft CFK (2)
Arbre principal CFK (2)
82600030
Kugellager 3x6x2.5 mm
Ball Bearing 3x6x2.5 mm
Roulement à billes 3x6x2.5 mm
13000019
82600232
Kugellager 6x10x2.5 m
Ball Bearing 6x10x2.5 mm
Roulement à billes 6x10x2.5 mm
13000017
Schraubenset
Screw Set
Lot de visserie
56600001
82600009
Kugellager 2x5x2 mm
Ball Bearing 2x5x2 mm
Roulement à billes 2x5x2 mm
13000018
Motor
Main Motor
Moteur
13000020
Heckmotor
Tail Motor
Moteur arrière
14000010
Linear Servo LS081
Linear Servo LS081
Servo linéaire LS081
13000024
Heckrotor A
Tail Rotor A
Pale de rotor arrière A
LiPo-Akku 3.7 V/180 mAh LiPo battery 3.7 V/180 mAh LiPo accu 3.7 V/180 mAh
14000011
Empfängerplatine
Receiver Board
Récepteur
13000025
Heckrotor B grün
Tail Rotor B green
Pale de rotor arrière B vert
Kabel
Wire
Câble
14000009
Zubehör Blatthalter
Cross Axle Accessories
Accessoires support pales de rotor
13000026
Adapter Ladekabel
Charger Conversion Wire
Adapteur câble de charge
14000000 XciteRC Flybarless 3D 200
3332
14000000 XciteRC Flybarless 3D 200
13000027
LiPo-Ladegerät
LiPo-Charger
Chargeur LiPo
Ersatzteile · Spare Parts · Pièces de recharge
34
14000000 XciteRC Flybarless 3D 200
Conformité
Geschäftsführer/Managing Director
Konformitätserklärung – Declaration of conformity
H
ersteller/Manufacturer: XciteRC Modellbau GmbH & Co. KG
dresse/adress: Autenbachstr. 12
A D- 73035 Göppingen Tel: +49 7161 40 799 0 info@xciterc.de www.XciteRC.de
E
rklärt, dass das Produkt /
eclares that the product: XciteRC Flybarless Trainer 200/245
D
XciteRC Flybarless 3D 200/245
B
est.-Nr. / Order No. 13000000, 13001000, 13002000, 13003000,
14000000, 14001000, 14002000, 14003000
konform ist mit den folgenden Bestimmungen und Standards / is in conformity with the following directives and standards:
EN 60950-1+A12 EN 301 489-1 V1.9.2 EN 301 489-17 V2.1.1 EN 300 328 V1.7.1
Göppingen, den 13.08.2013
Werner Bergbauer
14000000 XciteRC Flybarless 3D 20014000000 XciteRC Flybarless 3D 200
35
XciteRC Modellbau GmbH & Co. KG
Autenbachstraße 12 D-73035 Göppingen Phone: +49 7161 40 799 0 Fax: +49 7161 40 799 99 E-Mail: info@xciterc.de Web: www.XciteRC.de
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
