XciteRC Flybar 180S Coax
Introduction
Thank you for purchasing the helicopter Flybar 180S from XciteRC. This manual contains important instructions for operating your new model. Therefore, please read all instructions in this manual thoroughly
before using the model, so that you can operate your model safely.
All company and product names mentioned are trademarks of their respective owners. All rights reserved.
Intended Usage
The Flybar 180S is an electrically driven ready to run helicopter including motor and speed controller. The
control is wireless with the included infrared remote control. The model may only be operated on a suitable
and sufficiently large room without direct sunlight and obstacles. An outdoor use is not recommended.
The product is not a toy and not suitable for children under 14 years of age, by children under 14 years the
maintenance and operation of the model must be supervised by an adult.
Read and observe all warnings and safety instructions in this manual and on the packaging before
operating!
This manual is part of this product. It contains important information for handling this product. Keep the
manual for future reference and also it must be strictly kept and passed on the subsequent sale
of the model to the buyer. Failure to follow the operating instructions and the safety instructions
may invalidate the warranty.
Scope of delivery
RTF helicopter assembled
Transmitter
LiPo battery included
USB charging adapter
Spare blades
Manual with spare parts list
EN
Required accessories
4 AA batteries or rechargeable batteries for the transmitter
Explanation of Symbols
WARNING: These instructions must be strictly observed by the operator! Failure to follow
these instructions may interfere with the safe function. These notes are also for your own safety
and that of other people!
ATTENTION: this information must be observed by the operator! Failure to follow these inst-
ructions can damage whatsoever, warranties power loss, etc. have resulted.
Information or advice, by which a smooth operation is ensured.
Instructions for care and maintenance to ensure a long shelf life of the product.
Warnings and safety notes
The following safety instructions must be strictly observed. For property damage, personal injury or consequential damage caused by improper use or non-observance of the safety instructions the XciteRC Modellbau GmbH & Co. KG accepts no liability. In these cases, the warranty becomes void.
Move your model always with the maximum caution and responsibility, otherwise it may cause damage to
other property or even physical injury. We therefore recommend to secure the operation with a third party
XciteRC Flybar 180S Coax
13
EN
Safety notes
liability insurance. If you already have a liability insurance policy, check before start-up the model, whether
radio-controlled models are covered by a corresponding amount.
•
• The product is not a toy and not suitable for children under 14 years.
• The operation of radio-controlled models requires practice. In the beginning operate your new model
•
•
• Operate your model therefore only with sufficient light within line of sight, away from cars, traffic and peo-
•
• Do not operate your model during a thunder storm or near radio towers or power lines.
• Radio remote controlled models may not be operated at any public space by implication (streets, roads,
•
• Always switch on the transmitter first, then the model. NOTE: during the operation of the transmitter must
• Never operate your model with low transmitter batteries, because this reduces the range of your model
• If the drive battery is empty, the model first slow down until it no longer reacts properly to your commands.
• Pay attention to the instructions and warnings for this and any other equipment used by you (chargers,
•
• The model and the transmitter may be neither get humid nor wet, especially the electronic components
• Plastic parts (eg. fuselage or main blades) is less flexible and can break more easily at cold temperatures
• The modification of the model is not permitted for safety and CE approval regulations, which applies in
• After use, first turn off the model and then the transmitter.
•
• Store batteries separately on a non-combustible surface.
• The drive components (motor and speed controller) or the car battery may become hot during operation.
The product contains small parts that can cause injury if swallowed, and must therefore be kept
away from children under 3 years.
therefore with extra caution and familiarize yourself with the response to your commands.
WARNING: The safe operation requires concentration and quick reaction. Do not operate your
model if you are tired or under the influence of drugs or alcohol – risk of accident and injury!
WARNING: The control of this model is done via infrared signals, which can be influenced by the
environment. This may cause a suddenly loss of control of your model. The model may only be operated
on a suitable and sufficiently large room without obstacles. An outdoor use is not recommended.
ple – risk of accident and injury!
ATTENTION: due to the small size and weight, the model should not be exposed to drafts or a
strong winds. Avoid flights near open windows or air-outlets of an air-conditioning system - crash hazard!
squares or lakes). Before operation please ask where the operation is allowed. This also applies to private
property, here the consent of the owner is required.
WARNING: Keep your fingers or loose clothing or hair away from the rotating parts or the propeller
/ rotor unit - risk of injury!
remain switched on!
dramatically.
Stop the operation and change the drive battery or charge it again.
rechargeable battery packs, etc.).
WARNING: Keep packaging material, small parts, chemicals and electrical components away from
children – risk of accident and injury!
(receiver, speed controller, servo) and, if used, lithium batteries, are not waterproof! The model may not
be used in the rain (or heavy fog), do not drive in wet grass or through puddles or snow.
WARNING:
Fire or explosion due to moisture in lithium batteries!
(below 10 ° C).
particular to the transmitter, receiver and speed controller. Maintenance or repairs using original replacement parts are excluded.
WARNING: remove the drive battery from the model and transmitter after use. Store the model
never with built-in battery. Fire hazard!
14
XciteRC Flybar 180S Coax
Safety notes
WARNING: Risk of burns! Let these components cool down completely after the operation (and
also before each battery change)!
Operation of the model is performed solely at the risk of the operator. Only a careful and deliberate operation
protects against physical injury and damage to property.
Handling precautions for batteries or rechargeable batteries:
• Keep batteries away from children! Never let batteries unattended, as they can be swallowed by children
or pets!
• Use only the recommended or equivalent type of batteries / rechargeable batteries.
•
WARNING: Do not expose batteries / rechargeable batteries to heat or throw into fire – fire or
explosion hazard!
•
WARNING: Insert batteries / rechargeable batteries with the correct polarity, no short-circuiting –
fire or explosion hazard!
• If possible, always replace all batteries at the same time, never use new and used batteries and batteries
with different charge levels simultaneously.
•
WARNING: Do not use defective or damaged batteries or rechargeable batteries – fire hazard!
Risk of chemical burns on contact with skin, use protective gloves!
• WARNING: Do not attempt to recharge non-rechargeable batteries in a charger – fire or explosion
hazard!
• Remove the rechargeable batteries from the device before charging.
•
WARNING: Charging may take place only with a suitable charger for the type of battery on a fire-
proof surface and under constant adult supervision – fire hazard!
• Immediately remove used batteries from the devices.
NOTE: NiMH batteries must be checked at least every 3 months and, if necessary, recharged, other-
•
wise because of the typic self-discharge they may get deep discharged and damaged! Therefore, better
use so-called RTU batteries with a very low self-discharge.
NOTE: note the specified storage voltage for lithium batteries. Is a completely full or empty lithium
•
battery time stored for a longer time, it can be damaged.
The XciteRC Modellbau GmbH & Co. KG cannot monitor the proper use of the battery or batteries you use,
therefore, the warranty is excluded due to incorrect charging or discharging.
EN
XciteRC Flybar 180S Coax
15
EN
The remote control system
The remote control system
Here you get an overview of the remote control system of your XciteRC Flybar 180S and its various features
and settings. Before the fi rst fl ight, you should absolutely have read and understood all these functions and
settings.
• Do make sure that the transmitter is turned off - POWER-LED off.
• Now open the battery compartment cover on the backside of the transmitter. Remove the srew and
slide the cover down (1). Insert four AA batteries into the battery compartment of the transmitter (2). Pay
attention to the correct polarity!

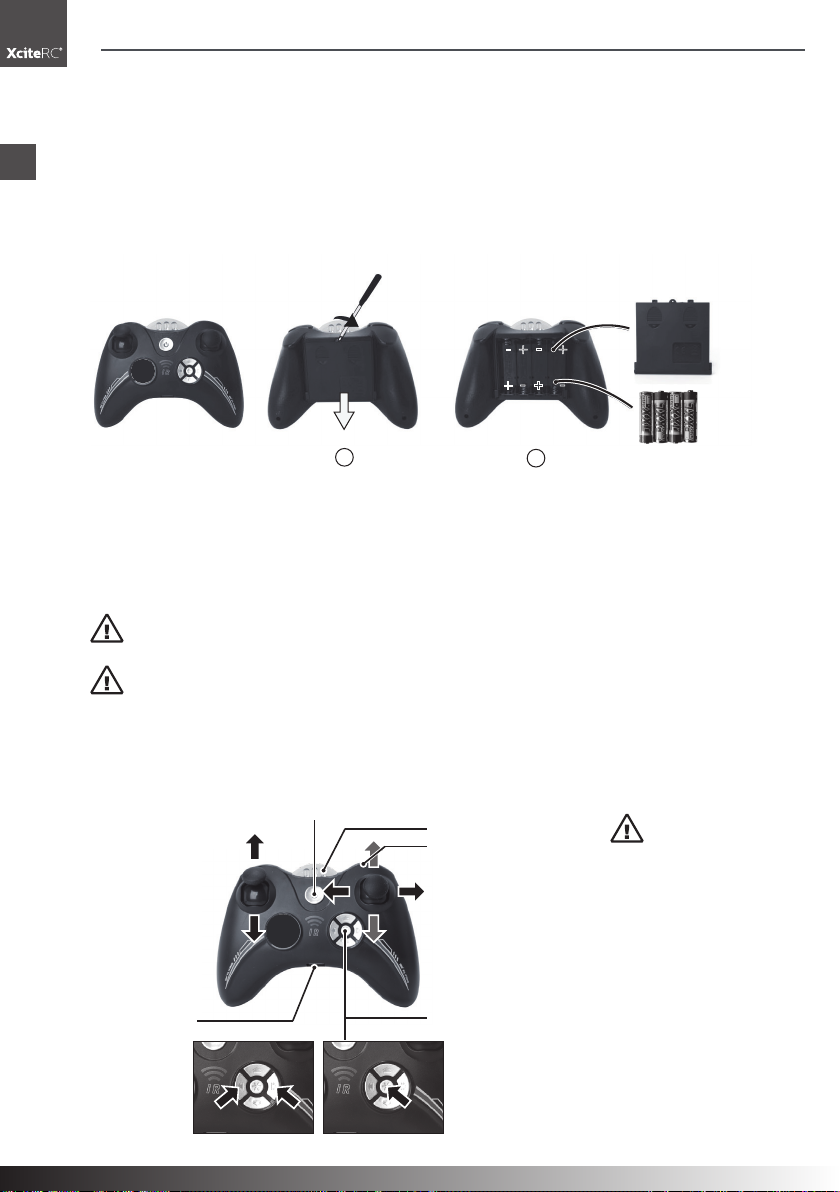

Battery cover
+-+
-
-
-
+
+
1 2
4x 1.5 V AA
batteries
• Close the battery compartment cover, then turn on transmitter – push ON / OFF switch.
• When the POWER LED is fl ashing, move the left throttle lever to the top position, then back to the bottom.
The POWER LED will light constantly. This safety circuit prevents the rotor may start after turning on the
helicopter.
• The POWER LED must lit. Attention: if the POWER LED fl ashes or does not light at all, the model may
not started – crash hazard! Change transmitter batteries immediately.
•
WARNING: check the POWER LED also during operation. If the POWER LED starts to blink, stop
operation, switch the model off and replace the transmitter batteries – crash hazard!
•
ATTENTION: The maximum range of the remote control system is about 10 meters, do not fl y
farther away under any circumstances! If the XciteRC Flybar 180S gets out of range, the fail-safe function
is activated and turns off the motor.
Transmitter
ON/OFF-Switch
Throttle
USB socket
Reset:
Press both trim buttons
for approx. 3 seconds,
when the POWER-LED
flashes 3 times all
calibrations return to zero.
POWER-LED
lever
IR-Transmitter
Bubble button
Direction
lever
Speed
Frequency select:
Press the button for
approx. 2 seconds to
choose frequency A or B.
The POWER-LED flashes
1 time for frequency A,
press the button again for
frequency B, the LED
flashes 2 times.
ATTENTION: The
IR-Transmitter must always
point toward the helicopter -
crash hazard!
The helicopter can be operated with two different
channels (A-B) - important
when two pilots wants to fl y
together. Select the channel
on the transmitter, switch on
the heli, when the LED on
the helicopters PCB start to
lit you can start.
16
XciteRC Flybar 180S Coax
Battery charging · Getting started
Battery charging
WARNING: Be sure to read all safety instructions regarding the use of rechargeable batteries. Charging
may take place only with the supplied charger on a fi reproof surface and under constant adult supervision -
fi re or explosion hazard!
Charging via transmitter
• Turn on the transmitter.
• Now plug the charging adapter into the USB port on the bottom side of the transmitter. Connect the
helicopter to the adapter. The helicopter must be switched off!
• The red LED starts to light solid and displays the charging process. Charging time is about 50-60 minutes.
If the battery is fully charged, the red LED turns off.
• If the red POWER LED fl ashes, the transmitter batteries need to be changed.
Charging via USB port
• Insert the USB plug into a suitable socket on your PC or notebook (or power adapter with USB socket).
Connect the helicopter to the adapter. The helicopter must be switched off!
• The red LED starts to light solid and displays the charging process. Charging time is about 50-60 minutes.
If the battery is fully charged, the red LED turns off.
PC
OFF
EN
A
The fl ight time of the helicopter is about 6-8 minutes.
B
USB
Getting started
Before you begin please check:
•
• Check all parts for damage and dirt. Replace any damaged parts and clean the model, because dirt
• Switch on the transmitter. The POWER LED fl ashes.
• Then switch on the model. The red LED on the receiver board starts to fl ash.
• The transmitter LED and the red helicopter LED will now light.
• Check the motor and servo functions.
• If the fl ight battery runs low, the motor speed is reduced and the helicopter sinks automatically. Find a
WARNING: Only start with a suffi ciently full transmitter batteries (rechargeable batteries) and fully
charged drive battery – crash hazard!
increases the weight and therefore can degrade the fl ying qualities.
Place the helicopter in the start position and move the left throttle lever all the
way up and then back in the lowest position. This safety circuit prevents the rotor
may start after turning ON the helicopter
suitable place to land safely. Charge the fl ight battery again.
ON OFF
XciteRC Flybar 180S Coax
17
RC functions · Landing
EN
RC functions
Up - down
Move the throttle lever forward, the motor revs up and the helicopter rises. Move the throttle lever backwards to sink again.
Left - Right
Move the direction lever to the left, the helicopter turns to the left.
Move it to the right to turn the helicopter to the right.
Forward - reverse
Move the direction lever towards you, the helicopter will move
forward. Move the throttle stick back to reverse.
Speed: press the button during the fl ight and the helicopter becomes faster. Press again to return to slower speed.
Trim
Yaw: Watch the helicopter at the start. If the nose turns - just
before take-off - to the left or right, this can be corrected with the
trim for yaw (see Fig.) If it turns to the left, press the trim lever to
the right until the nose stops moving. If it turns to the right, press
the trim lever to the left.
Landing:
• Carefully push the left throttle lever rearward. Try to land „smooth“ without damaging the helicopter.
•
• Switch of the helicopter and then the transmitter.
18
NOTE: if the fl ight battery runs empty, the helicopter does not respond accurately to your com-
mands, the fl ight is unstable. In this case land immediately.
XciteRC Flybar 180S Coax
Bubbles · Maintenance
WARNING: the motor of the XciteRC FLYBAR 180S may get very hot during operation. Allow to cool
down minimum 20 minutes before the next start to avoid damage. Fire hazard!
Bubbles
Fill the enclosed pipette with bubble fl uid. Place the thin tip into the fi lling hole of the tank (see fi gure) and fi ll
the tank to the upper edge.
Press the „bubble“ button on the transmitter during the fl ight. As long as you keep the button pressed, bubbles are now being produced.
EN
Maintenance
To have fun with your model over a long period, occasional service work is required to get your model in good
condition and to minimize wear.
• Remove dirt or dust depending with compressed air or a soft brush after each use. For stubborn dirt, a
harder brush or a toothbrush can be used.
• To clean the body/fuselage no chemical cleaners such as thinners may used, as this damage the plastic
of the body/fuselage. Normally a piece of soft cloth is ok, stubborn dirt can be removed with washing-up
liquid.
• Check the tightness of all screws and tighten if necessary.
• Also check all connections, cables and power battery / rechargeable battery for damage.
•
• Check the model for worn, broken or jammed parts and gears and repair if necessary.
•
XciteRC Flybar 180S Coax
WARNING: Damaged batteries or rechargeable batteries must not be used again and must be
disposed of immediately – fi re hazard! Please note the disposal notes at the end of this manual.
WARNING: remove the batteries / rechargeable batteries of the transmitter and model when not in
use – fi re hazard!
19
EN
Troubleshooting · Repairs · Environmental Protection
Troubleshooting
Problem Possible Cause Corrective Action
Rotor don‘t move ON/OFF switch is OFF
Rotor stops suddenly, helicopter
chrashes
The helicopter
does not react to
the remote control.
Loss of control.
Weak helicopter battery
Weak helicopter battery Re-charge battery
Channel selection of the transmitter
wrong
Another infrared controlled device
using the same channel
Affected by sunlight or other strong
light
Repairs, Spare Parts
Normal wear and defective parts that result from an accident, are excluded from the guarantee. These include in particular:
For car models: bald tires, worn parts and drive gears, or bent / broken suspension, chassis or bodywork
For ship models: damaged or broken propellers, torn superstructure
For airplanes: damage due to improper transportation or crash
I If you find a part that is defective in material or workmanship right after opening the package, return - before
you used it – to your dealer or directly to us and we will send you a replacement.
For the Flybar 180S some parts are available as spares. If a part is defective or worn, you can identify it with
the help of the exploded view.
In case of problems or questions, please contact your dealer or:
Switch ON helicopter
Re-charge battery
Re-set the correct channel
Switch off another/own infrared device
or move to another spot
Avoid direct sunlight or other strong
light
XciteRC Modellbau GmbH & Co. KG - Service, Autenbachstrasse 12, D-73035 Göppingen, Phone +49 7161
40 799 50
Email: service@xciterc.de
Spare parts for the XciteRC FLYBAR 180S you may order in your local hobby shop or online at http://www.
XciteRC.de/
Environmental Protection Notes
The symbol of the crossed out dust bin on the product or packaging indicates that this product
must be disposed of separately from normal household waste. In order to avoid harmful effects
on the environment and human health in the disposal of electrical and electronic equipment and
equipment free of charge at an appropriate collecting point in your area. Please check with your city or town
across the available depot. You also have the option to return old electrical and electronic equipment which
has been purchased from us. We will then perform a proper recycling or reuse.
Possibly contained batteries must be removed from the product and disposed of at the appropriate collecting
point.
the re-use or recycling are possible. You have the opportunity to submit electrical and electronic
Notes on battery law:
According to the German Battery Act (BattG) the one who sells batteries (and accumulators etc.) or devices
containing batteries, we are obliged to draw your attention to the following:
20
XciteRC Flybar 180S Coax
Environmental Protection
Cd Hg Pb
Batteries and rechargeable batteries should not be disposed of with household waste but you are legally
obliged to return used batteries. Batteries can contain contaminants that could harm the environment or your
health if improperly stored or disposed of. Batteries also contain important raw materials such as iron, zinc,
manganese or nickel and can be recycled.
You can send us back the batteries after use either sufficient postage:
XciteRC Modellbau GmbH & Co.KG
Autenbachstr. 12
D-73035 Göppingen
returned free of charge or in close proximity (eg in trade or municipal collection). The levy is limited to points
of sale to end-users for the disposal of such waste batteries and customary amounts, which the distributor
as new batteries in his range or has done.
Batteries containing pollutants are marked with a sign, a crossed-out rubbish bin, and the chemical symbol
of the pollutant-heavy metal.
This crossed-out bin means that you must not dispose of batteries with household waste.
Among these characters, see also the following symbols have the following meanings:
Li-Po
• Cd = cadmium
• Pb = plumbium
• Hg = mercury
• Li = lithium
EN
XciteRC Flybar 180S Coax
21
Ersatzteile - Spare Parts - Pièces de rechange
12012001
Landegestell
Landing Gear
Train d'atterissage
12012004
Reparaturset Rotorkopf
Rotor Head Repair Set
Set de pièces de réchange pour
tête de rotor
12012002
Seifenblasenflüssigkeit
Bubble fluid
Liquide de bulles de savon
12006005
USB-Ladekabel runder Stecker
USB Charging Wire round plug
Cordon de charge USB fiche ronde
12012003
Rotorblätter Flybar 180SB Coax Bubble
Blades Flybar 180SB Coax Bubble
Pales de rotor Flybar SB Coax Bubble
12012005
Sender IR Flybar 180SB Coax
Transmitter IR Flybar 180SB Coax
Emetteur IR Flybar 180SB Coax
32
XciteRC Flybar 180S Coax
Konformität · Conformity · Conformité
XciteRC Flybar 180S Coax
33
34
XciteRC Flybar 180S Coax
XciteRC Flybar 180S Coax
35
XciteRC Modellbau GmbH & Co. KG
Autenbachstraße 12
D-73035 Göppingen
Phone: +49 7161 40 799 0
Fax: +49 7161 40 799 99
E-Mail: info@xciterc.de
Web: www.XciteRC.de
Loading...
