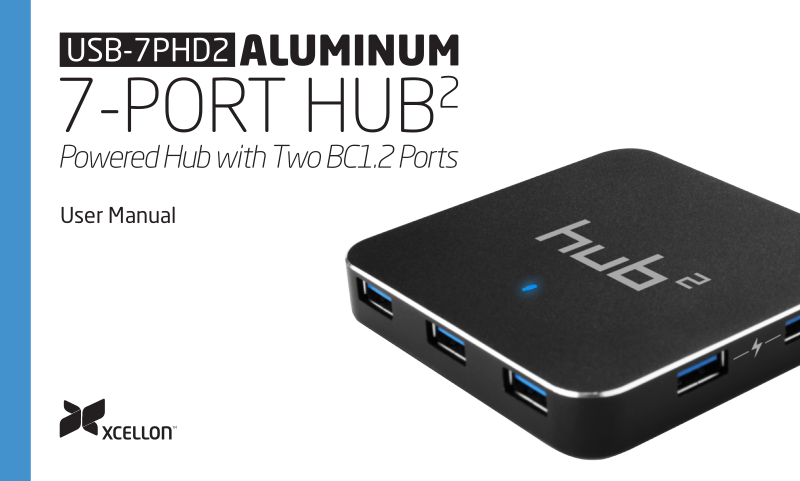

Xcellon USB-7PHD2 User Manual

Page 1
User Manual
Page 2
Thank you for choosing Xcellon.
Xcellon’s Hub2 is a powered 7-port USB hub that expands your computer’s USB 3.0 port into multiple powered ports. Each USB port is capable of delivering SuperSpeed USB transfer rates up to 5 Gbps. An independent power supply provides stable power for critical USB devices like external hard drives without overtaxing your computer’s power supply.
The Hub2 is designed with two 2.4-amp intelligent charging ports that can charge devices such as smartphones and tablets while maintaining connectivity with your computer. For portability, it can also operate via bus power for extra non-charging USB ports when you’re on the go.
Page 3
Precautions
» Please read and follow these instructions, and keep this manual in a safe place.
» Back up your data before using this product in order to prevent loss of important data. Xcellon will not be
responsible for any data loss.
» Keep this product away from water and any flammable gases or liquids.
» Make sure this product is powered o before plugging it into a power source.
» Handle this product with care.
» Use only the correct, recommended voltage.
» Do not attempt to disassemble or repair this product.
» Clean this product with only a soft, dry cloth.
» Keep this product away from children.
» All images are for illustrative purposes only.
3
Page 4
Overview
1 USB 3.0 upstream port 2 DC power port 3 USB 3.0 data ports 4 LED indicator 5 USB 3.0 data/2.4 A charging ports
Contents Include
» USB hub » Power adapter » AC power cable » USB 3.0 cable » Mounting sticker » User manual
4
1 2
DC IN
3
4
3
5
Page 5
System Requirements
» Available USB port on the computer
» Mac / Windows / Linux operating systems
Mounting Instructions
The Hub2 includes a mounting sticker that allows for secure placement of the hub on a wall, the back of a monitor, or a desk or tabletop.
The mounting sticker can be used only once. Carefully consider where you want to place the Hub2 before using the sticker.
5
Page 6

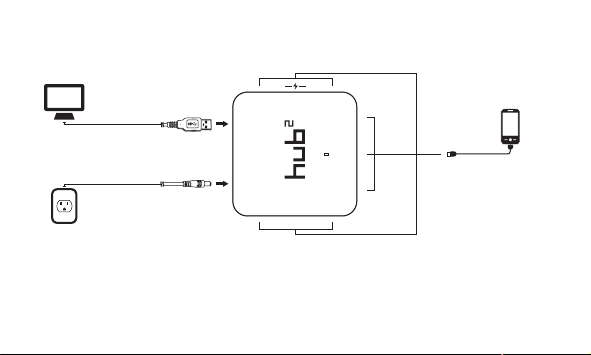

AC Power Mode
Connecting the hub to an AC outlet provides stable power for running critical USB devices like external hard drives or printers. In this mode, the BC1.2 ports can charge phones, tablets, or other USB devices.
6
Page 7

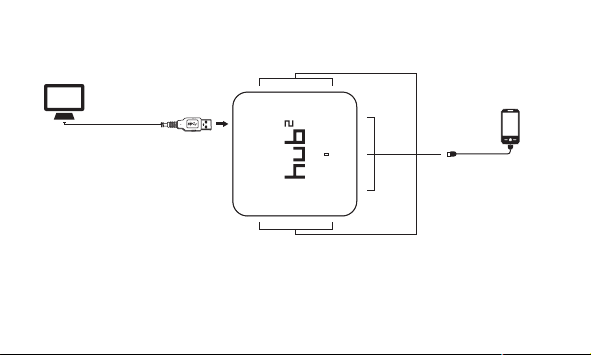

Bus-Powered Mode
In bus-powered mode, the Hub2 receives its power from the computer and allows you to sync data at home or while traveling.
7
Page 8

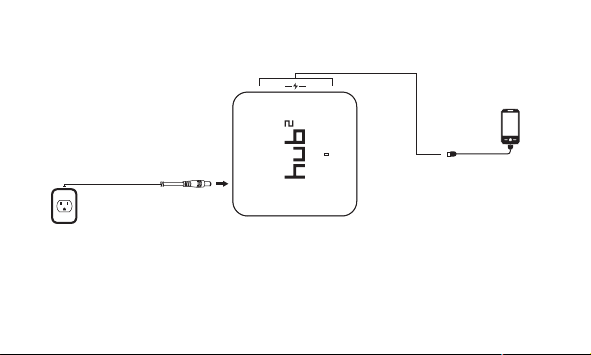

Charging Mode
In charging mode, the two BC1.2 ports can be used to charge devices without connecting the hub to a computer.
8
Page 9
Specifications
Ports Seven USB 3.0 Standard-A ports
two with 2.4 A charging)
USB 3.0 Standard-A for PC connection
USB Compatibility 3.1 Gen 1, 3.0, 2.0, 1.1
System requirements Mac / Windows / Linux operating systems
Adapter output 12 V / 4 A
Chipset VL813
Construction Aluminum
USB Cable length 2.95 ft. (0.9 m)
Dimensions (W × H × D) 3.3 × 0.5 × 3.3 in. (8.5 × 1.4 × 8.5 cm)
Weight 3.5 oz. (99 g)
9
Page 10
One-Year Limited Warranty
This XCELLON product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
10
Page 11
FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.
To obtain warranty coverage, contact the Xcellon Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Xcellon along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.xcellongear.com or call Customer Service at 212-594-2353. Product warranty provided by the Gradus Group. www.gradusgroup.com
11
Page 12
Xcellon is a registered trademark of the Gradus Group. © 2016 Gradus Group LLC. All Rights Reserved.
GG1
