Xcellon DRD-401 User manual
DRD-401
FOUR-BAY RAID SYSTEM
FOR 3.5” SATA HARD-DISK DRIVES
USER MANUAL
Thank you for choosing Xcellon.
The Xcellon DRD-401 Four-Bay RAID System is a convenient solution for large-data storage
needs, housing up to four internal-type SATA hard-disk drives. Instead of dismantling your
computer and installing the disk drives, you simply insert the drives into the enclosure and
attach it to your computer via one of the included high-speed connection cables.
The DRD-401 is compatible with 3.5" I/II/III hard-disk drives, and oers seven RAID modes for a
variety of options when it comes to read/write functions, data storage, and backup.
The DRD-401 features a USB 3.0 port, an eSATA port, two FireWire 800 ports, and a FireWire
400 port for optimal compatibility. The enclosure can attain maximum transfer rates of up
to 5.0 Gbps via the USB 3.0 port, which supports plug-and-play. The DRD-401 also supports
hot-swapping of disk drives. A large internal fan for ecient cooling prevents the drives from
overheating.
The DRD-401 includes all necessary interface cables and is compatible with both Windows
and Mac operating systems.
2
Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
RAID Mode Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Removing Your Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Formatting Your Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Rebuilding a RAID System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3
Overview
Front:
1. HDD doors
2. HDD status LEDs
3. Safety locks
4. Power button
3
1
2
HDD
1
HDD
2
HDD
3
HDD
4
4
4
Overview
Rear:
5. Fan
6. FireWire 400 (1394a) port
7. FireWire 800 (1394b) ports
8. USB 3.0 port
9. eSATA port
10. DC power port
11. RAID mode switches
12. Set button
Also included:
FireWire 400 (1394a)
cable
FireWire 800 (1394b)
cable
eSATA cable
USB 3.0 cable
AC power cable
DC power supply
Hex key
User manual
6
5
7 8 9
USB 3.01394b1394b1394a eSATA DC 12V RAID
10 11
mode
12
Set
5
Precautions
Please read and follow these instructions, and keep this manual in a safe place.
Back up your data before using this product in order to prevent loss of important
data. Xcellon will not be responsible for any data loss.
Keep this product away from liquids.
Use only the correct, recommended voltage.
Handle this product with care.
Clean this product with only a soft, dry cloth.
Keep this product away from children.
Do not store this product in direct sunlight or in extreme high or low
temperatures.
All photos are for illustrative purposes only.
Specifications
Internal Interface
SATA: 4
External interface
eSATA: 1
USB 3.0 Type B: 1
FireWire 800 (1394b): 2
FireWire 400 (1394a): 1
RAID modes: 0, 1, 3, 5, 10, Normal (JBOD), Span (Big)
System requirements
Available eSATA, USB, or FireWire port on the computer
Windows 98/ME/2000/XP/Vista/7/8, Mac OS X 10.4 or above
Drive types supported: 3.5” SATA I/II/III type hard-disk drive (HDD)
Dimensions: 5.7” × 9.0” × 8.3” (14.6 × 22.9 × 21.1 cm)
Weight: 6.1 lb. (2.8 kg)
6
Getting Started
1. If necessary, use the included hex key to unlock and open one of the HDD doors.
2. Align the SATA contacts on your disk drive with those in the enclosure, and fully insert
the drive into the enclosure.
3. Close the HDD door all the way so it latches into place, and use the included hex key to
lock the door.
4. Repeat steps 1 through 3 for your second, third, and fourth hard disks.
5. Configure the desired RAID mode (see RAID Mode Configuration on page 8).
6. Select the cable you want to use from among the included interface cables and use it
to connect the DRD-401 to the corresponding port on your computer.
7. Align the pins in the DC power supply’s cable with the pins in the DRD-401’s DC power
port, and plug the DC power supply into the DRD-401.
8. Use the included AC power cable to plug the DC power supply into an AC power source.
9. Press the power button to turn on the DRD-401. As the DRD-401 turns on, it will emit
a beep and the HDD status LEDs will glow blue.
If your disk drives have been formatted, your computer will notify you that new hardware has
been detected, and the drive will appear on the Desktop, in My Computer, or in the Finder.
If the drives have not been formatted, or if your computer cannot read or recognize them, you
may need to format the drives (see Formatting Your Disk Drive for Windows OS on page 11
and for Mac OS on page 21).
When the disk drives are connected, the HDD status LEDs will glow blue. During disk read/
write operations, the HDD status LEDs will blink red and blue. After approximately five minutes
of inactivity, the disks will enter sleep mode, and the HDD status LEDs and the fan will turn
o.
7

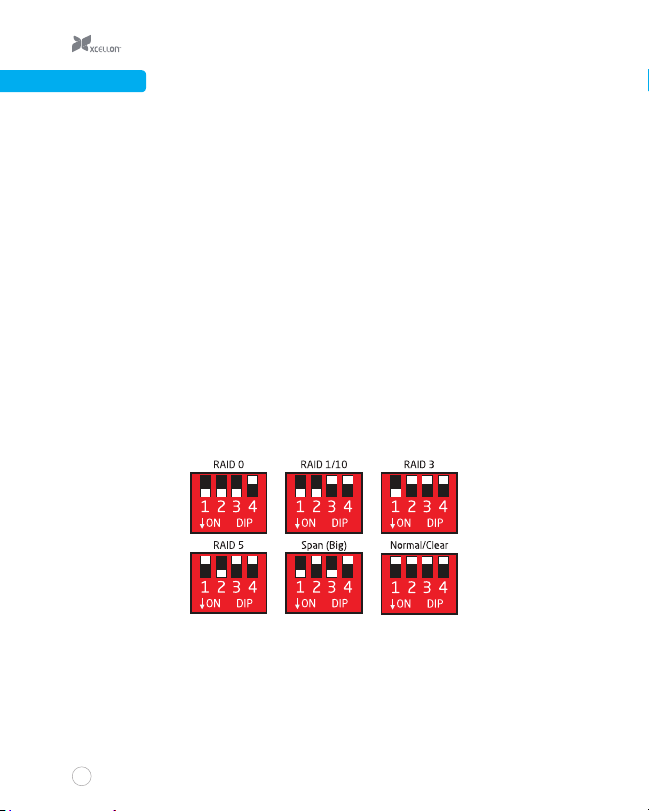

RAID Mode Configuration
The DRD-401 oers several RAID modes that read/write and handle data dierently. We
encourage you to familiarize yourself with the advantages of each RAID mode before making
a selection.
Before configuring the RAID mode, make sure to back up
your data. All data on the installed disk drives will be deleted
!
during the configuration process.
Make sure that all drives have the same rotational speed (RPM).
It is recommended that all hard drives have the same capacity. If possible, use identical drives.
RAID 0
RAID 0 mode stripes data in blocks across the disk drives installed in the enclosure. This
mode links all the drives installed in the enclosure, so they can function as a single drive with
combined storage space. For example, if you are using four 100 GB drives, they will combine to
function as a single 400 GB drive.
RAID 1
RAID 1 mirrors the data in blocks on two disk drives installed in the enclosure, so the exact
same data is stored on both drives. Data integrity is more reliable in this mode than in RAID 0
mode, although there is less accessible disk space and the transfer speed is slower. Mirroring
makes it easier to recover lost data if one of the RAID drives is damaged. Only one of the two
drives is accessible in RAID 1 mode.
When two disks are inserted and the RAID mode switches are set to RAID 1/10 configuration,
the enclosure will be set to RAID 1 mode.
When using RAID 0 and RAID 1 modes, you can use disk drives of varying capacities, although
the capacity will be limited to the smallest of the disk drives. For example, if you are using a
100 GB and a 250 GB drive, then the 250 GB will be limited to the smaller 100 GB capacity,
and the total combined capacity will be 200 GB.
8
