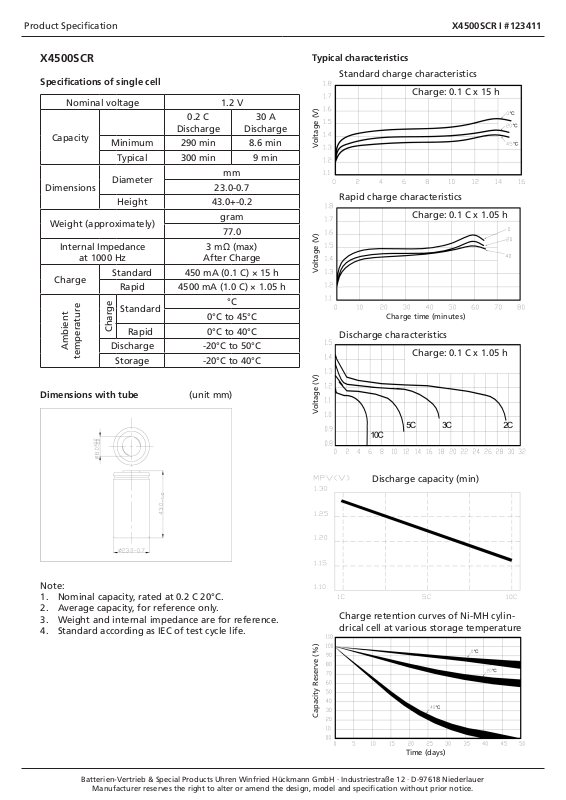

Page 1
Product Specification X4500SCR I #123411
X4500SCR
Specifications of single cell
Nominal voltage 1.2 V
Capacity
Minimum 290 min 8.6 min
Typical 300 min 9 min
Dimensions
Diameter
Height 43.0+-0.2
Weight (approximately)
Internal Impedance
at 1000 Hz
Charge
Standard 450 mA (0.1 C) × 15 h
Rapid 4500 mA (1.0 C) × 1.05 h
Standard
Charge
Rapid 0°C to 40°C
Ambient
temperature
Discharge -20°C to 50°C
Storage -20°C to 40°C
Discharge
0.2 C
23.0-0.7
gram
3 mΩ (max)
After Charge
0°C to 45°C
Typical characteristics
Standard charge characteristics
Charge: 0.1 C x 15 h
30 A
Discharge
Voltage (V)
mm
Rapid charge characteristics
Charge: 0.1 C x 1.05 h
77.0
Voltage (V)
°C
Charge time (minutes)
Discharge characteristics
Charge: 0.1 C x 1.05 h
Dimensions with tube (unit mm)
Note:
Nominal capacity, rated at 0.2 C 20°C.1.
Average capacity, for reference only. 2.
Weight and internal impedance are for reference.3.
Standard according as IEC of test cycle life.4.
Voltage (V)
Discharge capacity (min)
Charge retention curves of Ni-MH cylindrical cell at various storage temperature
Capacity Reserve (%)
Time (days)
Batterien-Vertrieb & Special Products Uhren Winfried Hückmann GmbH · Industriestraße 12 · D-97618 Niederlauer
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Page 2
Product Specification X4500SCR I #123411
1. RATINGS
Description Unit Specification Condition
Nominal Voltage V 1.2 Unit cell
Typical Capacity min 9.0 Discharge at 30 A to 0.8 V/cell
Nominal Capacity mAh 4500 Standard Charge/Discharge
Minimum Capacity min 8.6 Discharge at 30 A to 0.8 V/cell
Standard Charge
Fast Charge mA
Trickle Charge mA 225 (0.05 C)~450 (0.1 C)
Maximum Discharging
Current
Storage Temperature °C
Typical Weight g 77.0 approx. *
mA 450 (0.1 C)
hour 15
900 (0.2 C)~4500 (1.0 C)
with charge termination
control
hour
A
6.0 approx. (0.2 C)
1.05 approx. (1.0 C)
30 (Continuous)
50 (Momentary)
-20~+25 (within 1 year)
-20~+30 (within 3 month)
-20~+40 (within 1 month)
-20~+50 (within 1 week)
Ta = 0~40°C
(see note)
-∆V = 5 mV/cell
Timer cutoff = 105 % input
capacity
Temp. cutoff = 40~45°C
dT/dt = 0.8°C/min (0.5 to 1.0 C);
0.8~1°C/min (1 C)
Ta = 0~40°C
(see note)
Ta = 0~50°C
0.8 V/cell cut off
*
2. PERFORMANCE
Test Unit Specification Condition Remarks
Capacity min ≥ 9.0 Discharge at 30 A to 0.8 V/cell Up to 3 cycles are
allowed
Average Voltage V ≥ 1.21 Discharge at 30 A to 0.8 V/cell Up to 3 cycles are
allowed
Open circuit
Voltage (OCV)
Internal Impedance
(Ri)
Low Temperature
Discharge
Overcharge N/A No conspicuous
Charge reserve min ≥ 180 min Standard charge Storage: 28 days,
IEC Cycle Life Test Cycle ≥ 500 IEC61951-2(2003)7.4.1.1 *
Humidity N/A No leakage Standard charged, stand for 14 days
External Short
Circuit
V ≥ 1.25 Within 1 h after standard charge Unit pack
mΩ ≥ 3 Upon fully charge at 1 kHz *
min ≥ 240 Standard Charge,
Storage: 24 h at 0 ± 2°C
0.2 C discharge at 0 ± 2°C
0.1 C charge for 48 h *
deformation and/
or leakage
Standard discharge (0.2 C)
at 33 ± 3°C and 80 ± 5% of relative
humidity
N/A No fire and no
explosion
After standard charge, short-circuit
the cell at 20°C ± 5°C until the cell
temperature returns to ambient
temperature (cross section of the
wire or connector should be more
than 0.75 mm²).
1.0 V/cell
Cut-off
1.0 V/cell
Cut-off
*
*
Batterien-Vertrieb & Special Products Uhren Winfried Hückmann GmbH · Industriestraße 12 · D-97618 Niederlauer
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Page 3
Product Specification X4500SCR I #123411
Safety Device
Operation
N/A No explosion Forced discharge at 0.2 C to a final
voltage of 0 V, then the current be
increased to 1 C and forced dis-
Leakage of electrolyte and Deformation are acceptable
charge continue for 60 min.
Free falling (drop) N/A ∆V < 0.02 V/cell
∆Ri < 5 %/cell
Charge at 0.1 C for 16 h, and then
leave for 24 h, check battery be-
*
fore/after drop.
Height: 50 cm
Thickness of wooden board: 30 mm
Direction is not specified
Test for 3 times
3. APPEND:
Table 5-Endurance in cycles
Cycle number Charge Stand in Charged condi-
tion
1
2 to 48
49
50
0.1 CtA for 16 h
0.25 CtA for 3 h 10 min
0.25 CtA for 3 h 10 min
0.1 CtA for 16 h
None
None
None
1 h to 4 h
It is permissible to allow sufficient open-circuit rest time after the completion of discharge at cycle 50, •
so as to start cycle 51 at an exact two-week internal. A similar procedure may be adopted at cycles 100,
150, 200, 250, 300, 350, 400 and 450.
If cell discharge voltage drops below 1.0 V/cell, discharge may be discontinued.•
Discharge
0.25 CtA for 2 h 20 min²)
0.25 CtA for 2 h 20 min²)
0.25 CtA to 1.0 V/cell
0.2 C5A to 1.0 V/cell
Batterien-Vertrieb & Special Products Uhren Winfried Hückmann GmbH · Industriestraße 12 · D-97618 Niederlauer
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
