X-CAM A10-3H 3 Axis Gimbal for GOPRO
User Manual
( V2.00 )
The X-CAM A10-3H 3 Axis Gimbal has been setup and calibrated for use
with GOPRO cameras, it is ready to use straight from the box.
Specifications:
Weight: 280g ( without GOPRO )
Stabilization Frequency: 5200Hz
Input Voltage (DC IN): 7.4v ~ 22.2v ( 2S ~ 6S Lipo )
Tilt Travel: +-90 degrees; Rolling Travel: +-45 degrees
Pan Travel: 360 degrees with unlimited rotation
Built-in AV output & Camera Charging
Auto Pilot System support is not required
Built-in 2 X 6 Axis gyroscope sensors & 1 Infrared localizer.
Supports automatic back to HOME function.
Supports GoPro3,GoPro3+,GoPro4(black or silver version)
Package Contents
●
1 x X-CAM A10-3H Gimbal Frame
●
1 x X-CAM A10-3H Controller
●
1 x USB Cable
●
1 x PPM Cable
●
5 x Damping balls
●
4 x Rubber rings
●
4 x Fastener rings.
Connection Instructions
The S-BUS input is required for full functionality. The channels
are:
Channel 1: ROLL
Channel 2: Return to HOME
Channel 3: TILT
Channel 4: PAN
Channel 5: Mode Switch
The recommend operation methods:
1. Single control: Just connect a PPM channel for PAN control
or HEAD FOLLOWING , HEAD LOCK and AUTO BACK TO
HOME mode(Default), S-BUS connection is not required,
One receiver only.
2. Dual control: Only S-BUS input mode provides full
functionality, 2 receivers are required.
Notice: You do not have to provide power to the S-BUS Receiver. The A10-3H Controller provides a 5V supply via the S-BUS input. The TILT
and Pan axis (or Mode Switch) can be controlled under the single control or dual control.
AV output adapter instruction
You can either use a 3.5mm
Stereo audio connector, or you
can connect your own video
transmitter using the wire
circled in red. The YELLOW wire
is the video signal and the PINK
wire is GND.
PC Software
Connect with PC.
Use the USB adapter to connect with your PC, Normally Windows can find the driver automatically; you can find the PORT number in
Device Manager.
You may download the drive on our official website at
http://www.x-camtech.com/html_info/Downloads-10.html
Notice: The driver files are different between Win7 and WinXP . The drivers do not support Win8.

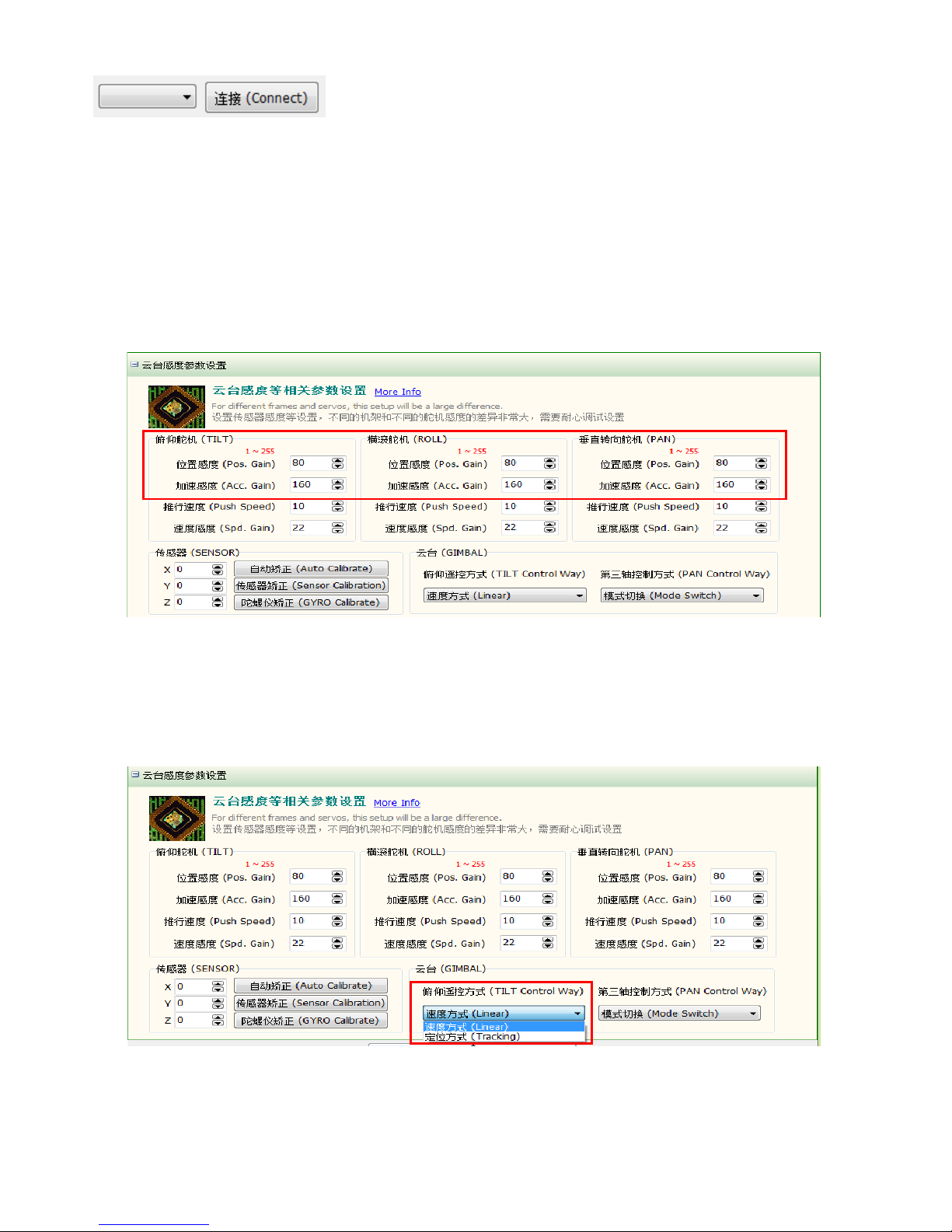

Launch the X-CAM Gimbal Assistant, choose the correct port number and click CONNECT
On a successful connection the A10-3H should beep twice, the parameters will be read automatically.
The parameters as below:
1. Gains
There are 2 gains, Position Gain and Acceleration Gain
Pos. Gain: Inclined the gimbal to one position slowly and watch the video image is horizontal or not, if not please adjust the Pos. Gain
in the software .
Acc. Gain: After adjusting the Pos. Gain, Inclined the gimbal to one position quickly and watch the video image is horizontal in time, if
not please adjust the Acc. Gain in the software .
Notice: the X-CAM A10-3H has been finished the adjusting, does not need to adjust again in normally
2. Gimbal Control
The A10-3H provides 2 ways to control TILT, Linear Mode or Tracking Mode
Linear Mode: TILT changes when the control stick is moved from the center position. TILT holds position while control stick is
centered.
Tracking Mode: TILT follows the position of the control stick. Often used with the throttle control, as it does not self center.
