10019330 REV-A0
XT-SP12-4K18G USER MANUAL
User Manual
XT-SP12-4K18G

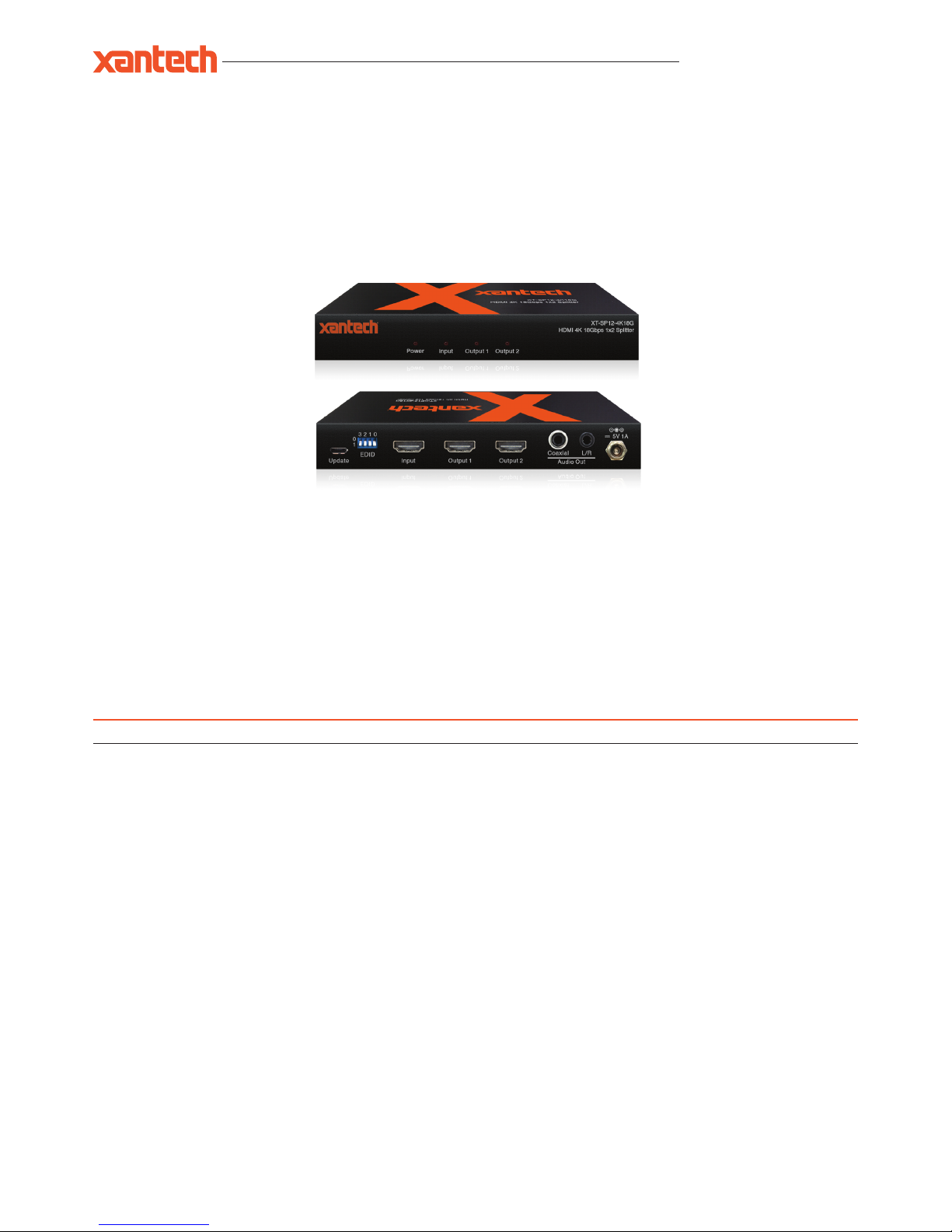

The XT-SP12-4K18G 4K HDMI 2.0 splitter distributes a single HDMI source to two simultaneous outputs. The splitter supports full HDMI 2.0 and
HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4. The 2-way splitter also includes the advanced features of audio breakout
and EDID management.
Introduction
Key Features
• Features 1x HDMI input that is replicated to 2x HDMI outputs
• Supports full HDMI 2.0 specification 4K UHD video (4K @ 60Hz 4:4:4)
• HDCP 2.2 compliant
• Not support CEC
• Supports 3D signal display
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio Transmission
• Advanced EDID management
• HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently
© 2018 XANTECH® is a registered trademark of Nortek Security & Control.
www.xantech.com
®
XT-SP12-4K18G USER MANUAL
Panel Description
Front Panel
Power LED - indicates if XT-SP12-4K18G is on or off
Input LED - indicates if HDMI input is active
Output LED - indicates if HDMI output is active
1
2
3
1 2
Rear Panel
Micro USB connector used for firmware upgrade
EDID DIP switch - used to adjust HDMI input EDID settings
HDMI input - connect to HDMI source
HDMI outputs 1 and 2 - connect to to HDMI displays
Coaxial digital audio output
Analog L/R audio output - 3.5mm stereo audio jack,
Supports 2 channel PCM only
Power port - use included 5V/1A DC power adaptor
4
5
8
9
4 65 8 9
6
7
10
3
7
The EDID configuration can be altered using the dip-switches located on the rear panel.
Please see table below for EDID settings.
Note: You must power-cycle the unit kit after changes have been made in order for the EDID settings to update.
EDID Dip-switches
[DIP]=0000: HDMI 1080p@60Hz, Audio 2ch PCM
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]= 0 010: HDMI 1080p@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP ] =0011: HDMI 1080i@60Hz, Audio 2ch PCM
[DIP]= 0100: HDMI 1080i@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@ 60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP ] =0110 : HDMI 4K@ 60Hz 4:2:0 + 4K@30Hz 4:4:4, Audio 2ch PCM
[DIP ] =0111 : HDMI 4K@ 60Hz 4:2:0 + 4K@30Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1000: HDMI 4K@ 60Hz 4:2:0 + 4K@30Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K@60Hz 4:4:4, Audio 2ch PCM
[DIP]=1010: HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP ] =1011: HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/ DTS/DOLBY/HD
[DIP ] =1100 : DVI 1280x1024@60Hz, Audio None
[DIP ] =1101: DVI 1920x1080@ 60Hz, Audio None
[DIP ] =1110 : DVI 1920x1200@60Hz, Audio None
[DIP ] =1111: Copy EDID from HDMI Output 1
Adjusting The EDID Settings
Powe r
Inpu t
Outp ut 1 Output 2
XT-SP12-4K18G
HDMI 4K 18Gbps 1x2 Splitter
Powe r
Inpu t
Outp ut 1 Outp ut 2
XT-SP12-4K18G
HDMI 4K 18Gbps 1x2 Splitter
Inpu t Upda te
EDID
Outp ut 1 O utp ut 2
Coax ia l L /R
Au di o Ou t
3 2 1 0
0
1
5V 1A
Power
Input
Output 1 O ut pu t 2
XT-SP12-4K18G
HDMI 4K 18Gbps 1x2 Splitter
Input
Update
EDID
Output 1 Output 2
Coaxial L/ R
Au di o Out
3 2 1 0
0
1
5V 1A
