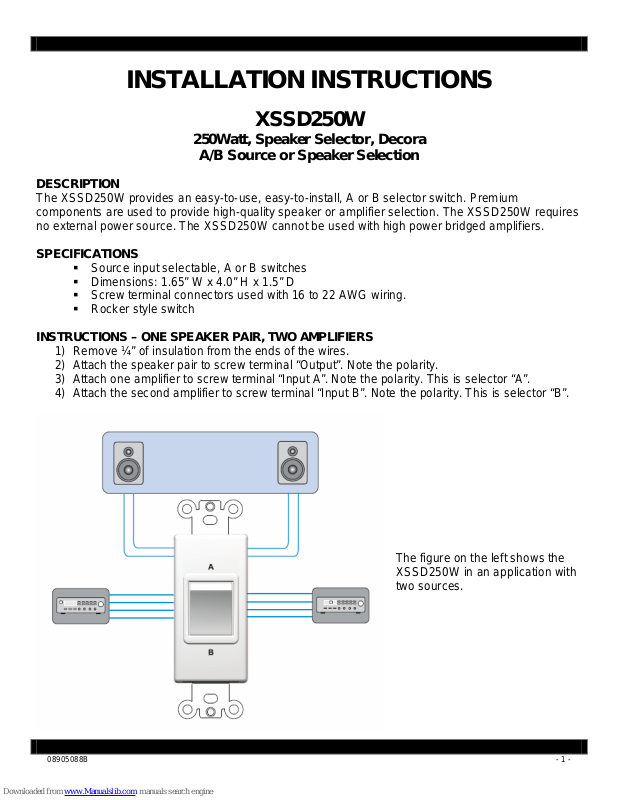

INSTALLATION INSTRUCTIONS
XSSD250W
250Watt, Speaker Selector, Decora
A/B Source or Speaker Selection
DESCRIPTION
The XSSD250W provides an easy-to-use, easy-to-install, A or B selector switch. Premium
components are used to provide high-quality speaker or amplifier selection. The XSSD250W requires
no external power source. The XSSD250W cannot be used with high power bridged amplifiers.
SPECIFICATIONS
Source input selectable, A or B switches
Dimensions: 1.65” W x 4.0” H x 1.5” D
Screw terminal connectors used with 16 to 22 AWG wiring.
Rocker style switch
INSTRUCTIONS – ONE SPEAKER PAIR, TWO AMPLIFIERS
1) Remove ¼” of insulation from the ends of the wires.
2) Attach the speaker pair to screw terminal “Output”. Note the polarity.
3) Attach one amplifier to screw terminal “Input A”. Note the polarity. This is selector “A”.
4) Attach the second amplifier to screw terminal “Input B”. Note the polarity. This is selector “B”.
08905088B - 1 -

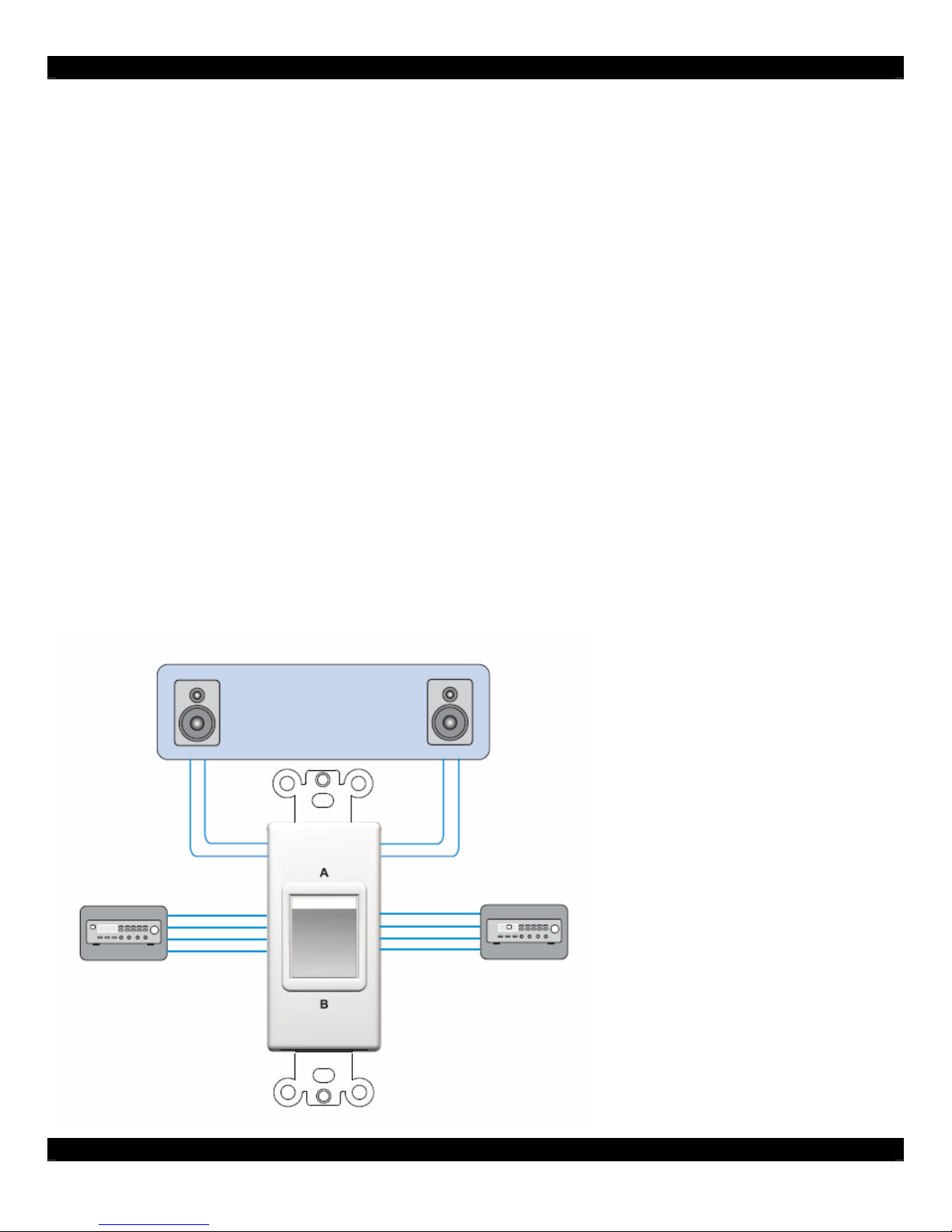

The figure on the left shows the
XSSD250W in an application with
two sources.

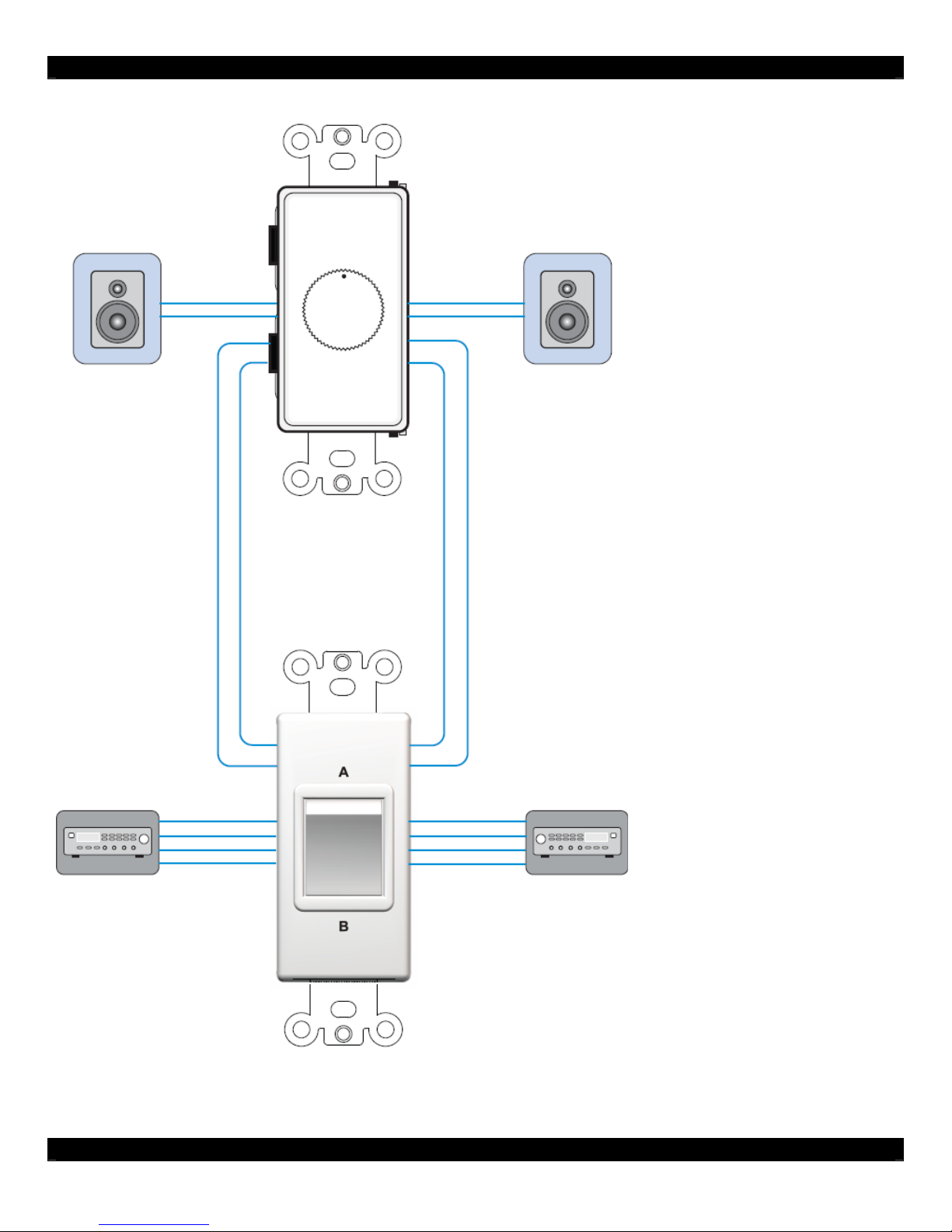

The figure on the left shows
the XSSD250W in an
application with two sources.
A Xantech XVC volume
control is also used to create
an enhanced system.
