INSTRUCTIONS

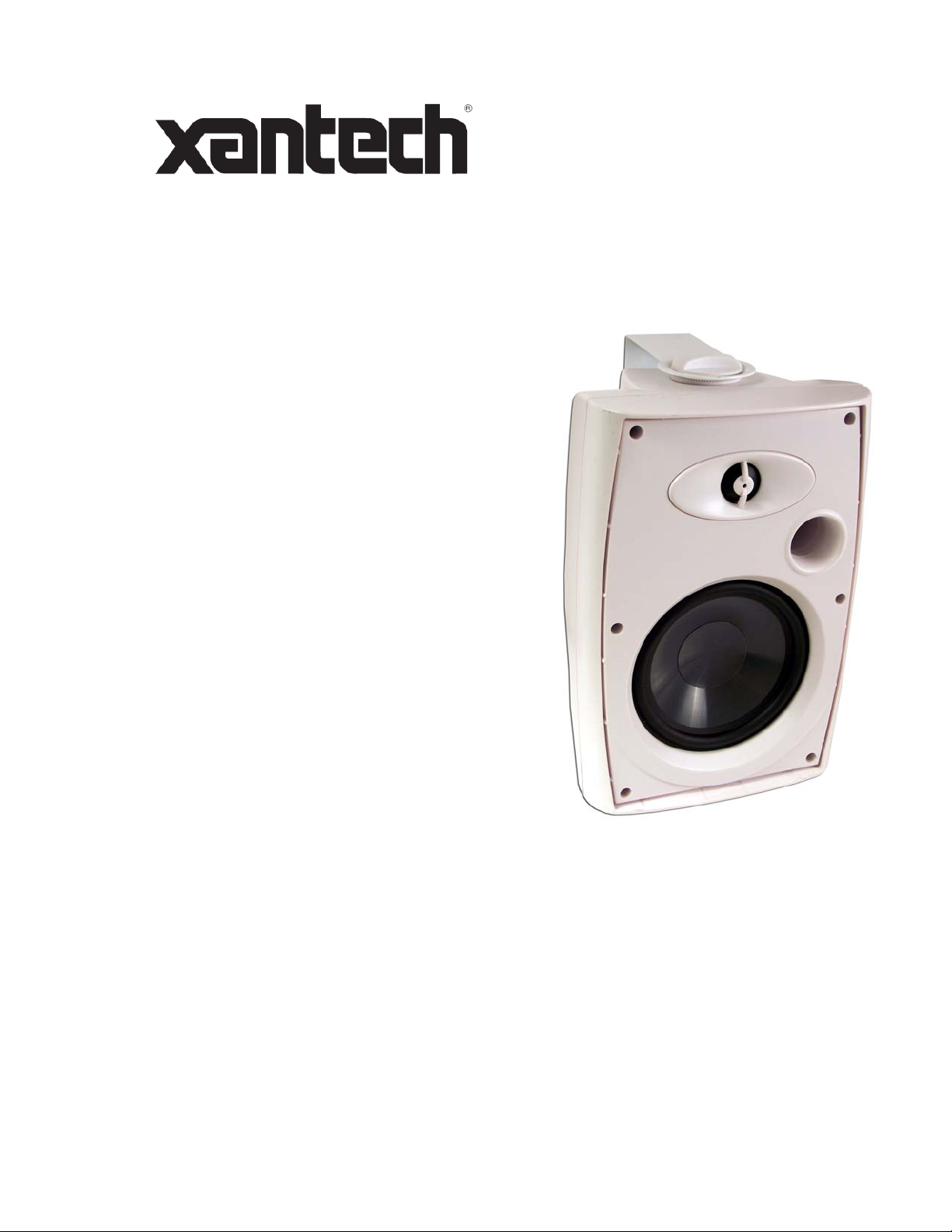

XOD65
DESCRIPTION
The XOD series features a weather resistant construction. The acoustic
suspension speaker housing is further enhanced with UV resistant stabilizers
to prevent yellowing. A rust-proof aluminum
grill is securely attached with commercialgrade adhesives to protect the audio drivers
during the harshest elements.
Audio tones are accurately reproduced using
a 2-way speaker design composed of a
25mm silk-dome tweeter and a 6.5” IMG
cone woofer with rubber surround. The
tweeter is constructed with an advance
neodymium magnet and has rear acoustic
damping to achieve accurate tonal
reproduction. The woofer features a large
voice coil which allows responsive
performance and loud, tight bass when the
user demands it. The crossover features
over-spec’ed components for long lasting
performance and premium sound.
Premium gold-plated wire posts specified to
withstand the outdoor elements. Gold is
corrosion resistant and will maximize a
reliable connection over the years. A pivotal mounting bracket makes
installation fast and simple.
FEATURES
Aluminum mounting bracket.
6.5” Woofer, IMG cone, rubber surround, steel frame.
25mm silk-dome tweeter, acoustic damping.
Rugged speaker enclosure
INSTALLATION
STEP A: The XOD speaker is intended
to be mounted using the included
bracket only. Select a desirable location
to mount the speakers. Then determine
if they are to be installed vertical or
horizontal.
STEP B: Using a bubble level, align the
speaker bracket. Secure the speaker
bracket using screws or fasteners that
are applicable for surface. Concrete or
brick surfaces require different screws
or fasteners than a painted wood
surface.
STEP C: Slide the main speaker
housing onto the mounting bracket.
Then, using the mounting knobs,
attached the main speaker housing to
the mounting bracket. Hand-tighten the
mounting knobs while moving the
speaker to a desired angle. Caution,
excessive tightening can cause damage
to the threads.
STEP D: Attached speaker wire to the XOD speaker’s gold-plated posts.
INSTALLATION COMPLETE!
