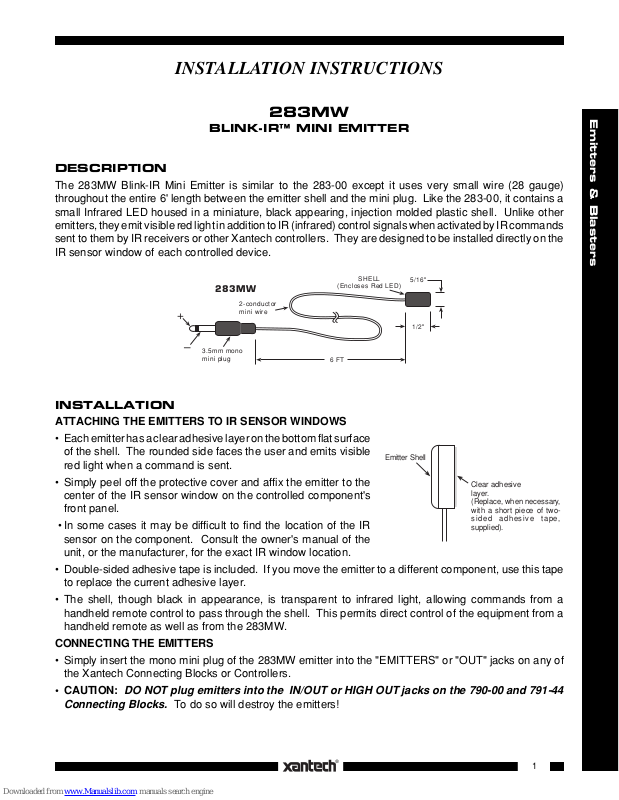

INSTALLATION INSTRUCTIONS
283MW
BLINK-IR™ MINI EMITTER
DESCRIPTION
The 283MW Blink-IR Mini Emitter is similar to the 283-00 except it uses very small wire (28 gauge)
throughout the entire 6' length between the emitter shell and the mini plug. Like the 283-00, it contains a
small Infrared LED housed in a miniature, black appearing, injection molded plastic shell. Unlike other
emitters, they emit visible red light in addition to IR (infrared) control signals when activated by IR commands
sent to them by IR receivers or other Xantech controllers. They are designed to be installed directly on the
IR sensor window of each controlled device.
SHELL
(Encloses Red LED)
6 FT
+
–
283MW
3.5mm mono
mini plug
2-conductor
mini wire
INSTALLATION
ATTACHING THE EMITTERS TO IR SENSOR WINDOWS
• Each emitter has a clear adhesive layer on the bottom flat surface
of the shell. The rounded side faces the user and emits visible
red light when a command is sent.
• Simply peel off the protective cover and affix the emitter to the
center of the IR sensor window on the controlled component's
front panel.
• In some cases it may be difficult to find the location of the IR
sensor on the component. Consult the owner's manual of the
unit, or the manufacturer, for the exact IR window location.
• Double-sided adhesive tape is included. If you move the emitter to a different component, use this tape
to replace the current adhesive layer.
• The shell, though black in appearance, is transparent to infrared light, allowing commands from a
handheld remote control to pass through the shell. This permits direct control of the equipment from a
handheld remote as well as from the 283MW.
CONNECTING THE EMITTERS
• Simply insert the mono mini plug of the 283MW emitter into the "EMITTERS" or "OUT" jacks on any of
the Xantech Connecting Blocks or Controllers.
• CAUTION:
Connecting Blocks.
DO NOT plug emitters into the IN/OUT or HIGH OUT jacks on the 790-00 and 791-44
To do so will destroy the emitters!
5/16"
1/2"
Emitter Shell
Clear adhesive
layer.
(Replace, when necessary,
with a short piece of twosided adhesive tape,
supplied).
Emitters & Blasters
1
• The following diagram illustrates a typical basic system using 283MW emitters.
• The 283MW visible emitter will also indicate the presence of stray IR or RF interference by randomly
blinking when no IR control signal is being sent. Reposition the IR receiver or the interfering source to
eliminate or reduce the random blinking. The more the random blinking is reduced, the better the system
will function.
781RG
Power Supply
To 120 V AC
(unswitched)
Connecting Block
12VDC
+12 VDC
GND
STATUS
IR IN
RCVR
IR
789-44
IR Sensor
Window
CONNECTING BLOCK
789-44
EMITTERS
®
EQUIPMENT CABINET, CLOSET, ETC.
291-00
IR Receiver
Satellite Receiver
283MW
VCR
283MW
AV Receiver
283MW
Hand Held
Remote
2
11/8/00
283MW
