PORTABLE TERMINAL FD-400GT(MC8090)

















INSTALLATION GUIDE





















1. BEFORE STARTING

There are two holes under a plastic cover on the left side of terminal (Figure 1). One is a power
jack; the other is an USB programmable port (Figure 2). Rechargeable battery is on the back side of
terminal (Figure 3).

Figure 1 Figure 2 Figure 3

 Adapter spec:

DELTA_ADP-36JH B
Input: 100-240Vac, 50/60Hz 1A; Output: 12Vdc, 3A

Car Charger:

EDAC POWER ELECRONICS CO., LTD. / ED1025
Input: 11-16Vdc, 5A; Output: 12Vdc, 2.5A

 Operating Temperature: 0oC to 40oC
 Battery pack: CHENG UEI / FD400 7.4V, 2.3Ah
 RTC battery spec: 3V, CR2032

Caution: The cover (Figure 3) shall be provided with a means to keep it closed during normal operation.
Caution: Risk of explosion if the battery is replaced by an incorrect type. Please dispose of used battery
according to the instructions.
Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent

interference to the nearby radio and television reception. It is essential that only the supplied power cord be
used.

2. POWER ON THE TERMINAL

Install the battery, or plug the power cord into the power jack and plug the power adapter into a
120-volt electrical outlet or into a surge suppressor (recommended) after the power cord is
connected to the power adapter . Press the power button at the front of device (Fi gure 4) until t he
system is booted up.

Figure 4

3. LOADING THE PAPER

Gently pop the printer cover’s latch to open the cover (Figure 5); then lift the cover. Load a roll of
thermal paper (Appleton 1012 recommended) into the printer (Figure 6). Load it so that the
print-side of the paper will feed out facing the operator. Close the cover by pressing down evenly
on both side tabs, or by pressi ng o n the center of t he prin ter cove r. Use t he ser rated bar to tear o ff
any excess paper.

  

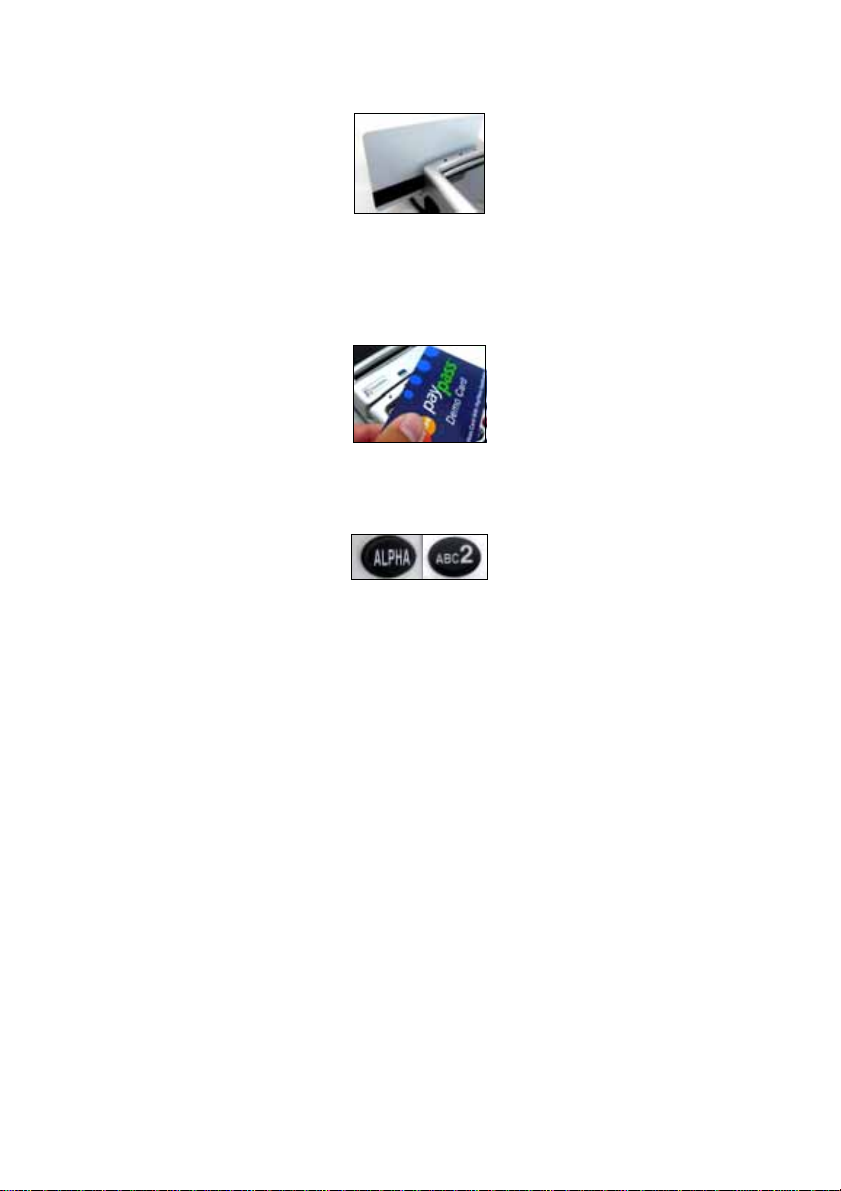

Figure 5 Figure 6
