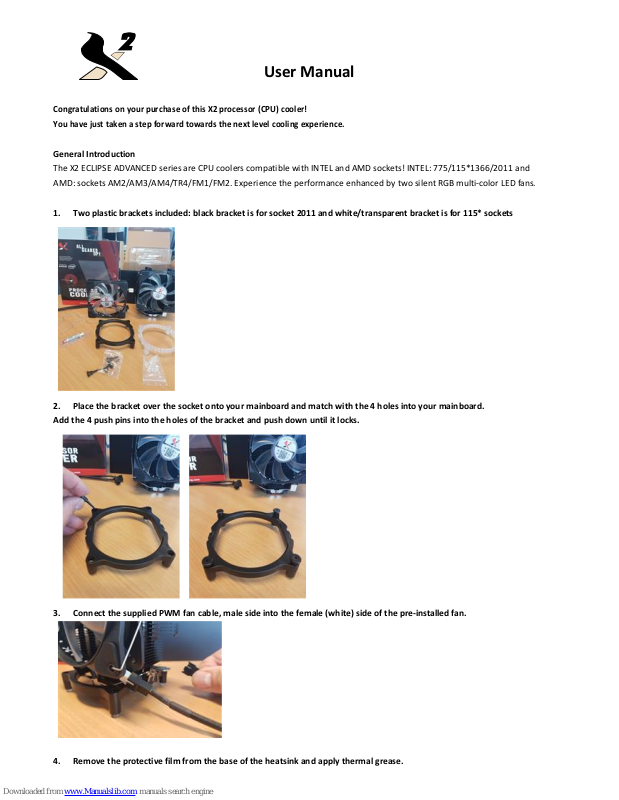

User Manual
Congratulations on your purchase of this X2 processor (CPU) cooler!
You have just taken a step forward towards the next level cooling experience.
General Introduction
The X2 ECLIPSE ADVANCED series are CPU coolers compatible with INTEL and AMD sockets! INTEL: 775/115*1366/2011 and
AMD: sockets AM2/AM3/AM4/TR4/FM1/FM2. Experience the performance enhanced by two silent RGB multi-color LED fans.
1. Two plastic brackets included: black bracket is for socket 2011 and white/transparent bracket is for 115* sockets
2. Place the bracket over the socket onto your mainboard and match with the 4 holes into your mainboard.
Add the 4 push pins into the holes of the bracket and push down until it locks.
3. Connect the supplied PWM fan cable, male side into the female (white) side of the pre-installed fan.
4. Remove the protective film from the base of the heatsink and apply thermal grease.
A small drop size onto the center of the base of the heatsink is sufficient.
5. Place the heatsink / CPU cooler over the plastic bracket and ensure it sits flux.
6. Face the cpu cooler to the side of the pre-mounted fan and hook the left side (without fingertip) of the clip over the protruding
ear on the side of the bracket.
7. Following hook the other, right side (with fingertip) of the clip over the protruding ear on the side of the bracket.
8. Be sure to connect the supplier fan cable into the fan and onto the PWM fan header of your mainboard
X2 proudly warrants their products to be free from defects resulting from faulty workmanship or material for 2 years when given
normal wear and proper usage. To ensure your complete satisfaction please register your newly purchased X2 product to ensure the
maximum warranty period. http://www.x2products.com/support/product-registration/
