X-1 (H2O Audio) iV6-1A3 User Manual

1. Installing and Replacing Case Rails

CAUTION: you must replace the thick black rails that come installed in the housing with thin grey rails which are included in this bag.

*If you are unsure which rails you need or if you need rails please contact H2O Audio*

For the iPod classic 160GB to fit into the case

NOTE: Be very careful, do not damage the T - Seal with the screwdriver.

Use the small Phillips Screwdriver in a counterclockwise direction to remove all three ( 3 ) screws from the black rail.

Once all the screws are removed, gently lift the black rail out of the case. Do not leave any screws in the case as they may interfere when closing the case. Replace the black rail that was removed, with a thin grey rail provided in this bag. Use the screws that were removed in Step 1 to secure the thin grey to the case.

( Additional Screws are provided with rails. )

Repeat steps 1 - 3 to replace the other black rail.

continued on back

iV6 - 52 20071012

2. Rail Information

Note: The iV6 Waterproof Case is made to accommodate both 80GB and 160GB versions of the iPod classic. The rails for the 160GB iPod classic are thinner then the default rails.

Black 80GB Rails come installed in the case

Grey 160GB Rails included in this bag

Rails can be identified by color and by the text that has been molded into the bottom of the rail.

iV6- 80GB

iV6- 160GB

Armor Series

h2oaudio.com

iV6 Waterproof Case for the iPod® classic

Before using this system, please be sure to read, understand, and follow the instruction of this manual.

2. Case Features

SealTight Connector

Display Window

Commander Scroll Wheel Control

IMPORTANT: The iV6 Waterproof Case is configurable for two different size iPod classic’s. Follow the instructions on the rail replacement card to configure it properly. Contact Customer Support with any questions.

LatchTight Locking

System

3. Introduction

The H2O Audio waterproof case lets you to listen to digital audio during active watersports. It houses the Apple iPod classic digital media player.

Case: The case features the LatchTight waterproof during operation. The H2O Audio case allows for functional control of the player while in the water with the Commander

Locking System which keeps the unit

Scroll Wheel.

NOTE: The iPod classic is NOT waterproof without the H2O Audio Case and Waterproof Headphones and is NOT covered under the product warranty. Any attempt to use the case with an audio player other than the Apple iPod classic will void the Warranty.

HEADPHONES: The case is only waterproof when combined with H2O Audio Waterproof Headphones (sold separately). Use of other headphones with a

3.5mm stereo connector will result in a water resistant case, and should not be submerged.

4. Leak Test

Before utilizing the system for the first time, it is highly recommended to perform a 'Leak Test'. Follow the instructions below.

DO NOT INSTALL THE iPod classic

INSIDE THE CASE FOR THE LEAK TEST

1. Open the case (Section 5), and verify the T-Seal is clean and free of debris.

2. Close the case (Section 7) and attach H2O Audio Waterproof Headphones.

3. Immerse the case, (without the iPod classic) in water and soak for 30 min.

4. Manipulate the Control Pad during submersion.

5. Remove from the water, dry the exterior. Visually inspect the case for any sign of leaks before opening.

6. Open the case upside down to prevent water from dropping into the case during opening.

5. Unlock / Locking the Case

Unlocking your case

Slide latch button towards

the unlock icon.

While holding the latch button

towards the unlock icon, push up on the side of the latch.

Lift the top latch over the lid

hooks. Compress the lid to the base if the latch does not clear the lid hooks.

Locking your case

Lift the top latch over the lid

hooks. Compress the lid to the base if the latch can does not clear the lid hooks.

Snap the latch downwards

to lock in place.

Verify the lid and latch are closed

and the button is positioned on the icon prior to entering the water.

6. The T-Seal

This product uses a high grade silicone “T-Seal”.

DO NOT USE SILICONE GREASE as this will damage the seal.

7. Installing the iPod into the Case

Installing the iPod

The black T-Seal between the base and the lid of the case is what keeps your iPod classic safe and dry. It is very important that the seal always be fully seated, and free of sand, dirt, hair, lint or other debris. Visually inspect the

T-Seal and Contact Surface prior to each use. If you see scratches, or other imperfections, do not use the case. Wipe clean as necessary using a soft lint free cloth. If you have questions, contact H2O Audio Customer Support.

Contact Surface

T-Seal

Squeeze both sides of the case together

Align the audio port with the

stereo jack in the case.

Removing the iPod

Slide the player

Gently snap the player into the audio

jack.Verify that the player is completely plugged into the audio jack.

off of the stereo jack. Player will slide up the ramps at the bottom of the

To ensure the T-Seal is fully seated in the base of the case, firmly squeeze both sides (the base and lid) of the case together after each insertion of the player. Always check to make sure the latch is closed and locked prior to use.

case.

NOTE: Do not disturb the T-Seal during removal of the player. If the T-Seal is moved, Please use the case lid to completely seat the T-Seal.

Rotate the case

to drop the player into your hand.

iV6 - 70 20071012

8. Connecting the Headphones

The SealTightTM Connector only featured on H2O Audio Cases, is what keeps your audio connection safe and dry underwater. It is designed specifically to create a seal around the H2O Audio Series Waterproof Headphones (sold separately). Using any other headphones will not have a complete waterproof connection, and reduces the waterproof rating to water-resistant.

To create a waterproof connection, align the 3.5mm stereo plug on the

headphones with the stereo jack of the case.

Insert the headphones into the stereo jack of the case, ensuring

that the plug mates securely into the SealTight

CAUTION: The SV Series Headphones do not fit with the SealTightTM Connector boot featured on the H2O Audio Cases. If your headphones have a connector that looks like the one shown below, you can not use them with this case.

SV Series Headphones Connector

Connector.

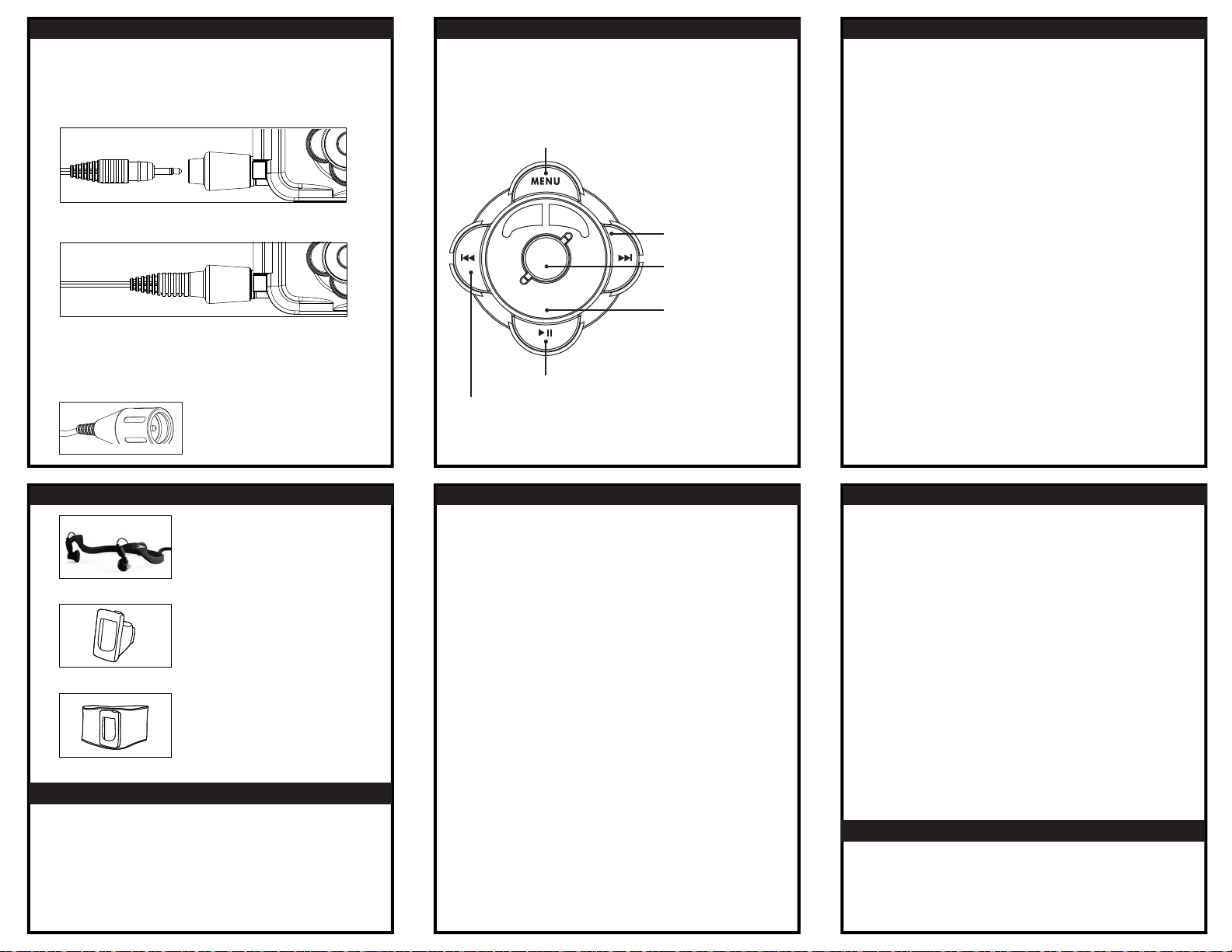

9. CommanderTM Scroll Wheel Control

The CommanderTM Scroll Wheel Control is a waterproof assembly, which allows you to maintain complete control over the iPod’s Click wheel functions. Refer to iPod Instruction Manual for complete details of how to use the player.

Menu Button

Next / FastForward Button

Select Button

Scroll Wheel rotates Clockwise & Counter- Clockwise

Play / Pause Button

Previous / Rewind Button

10. General Storage Procedures

For long-term storage, store in a plastic bag out of direct sunlight.

CAUTION: The life of a T-Seal is typically one (1) year. Contact H2O Audio for spare T-Seals or a maintenance kit. Always remember to reinstall the T-Seal before next use. Do not expose the housing to extreme heat, such as the inside of a hot car, or in hot direct sunlight, such as on a beach, or boat deck. Doing so may cause damage and subsequent flooding.

CAUTION: The case is susceptible to internal condensation with extreme temperature fluctuations. Use above 105°F(40C) can result in internal condensation. When used in temperatures below freezing, frost will appear on the interior of the housing.

CAUTION: Do not store case in the following environments:

* Solvents or other chemical fumes * High humidity * High Ozone * Extreme temperature fluctuations

Storing the case in these conditions may lead to a damaged housing, causing it to leak.

Rinse the EXTERIOR of the system in fresh water after EACH use:

1. Make sure the case is securely closed with headphones attached.

2. Soak in clean fresh water for 30 minutes.

3. Rinse the entire system with freshwater

4. Completely dry the entire exterior of the system using a clean soft cloth.

5. Dry face down so water can properly drain from the Commander Scroll Wheel.

Strong detergents, soaps, and chemicals MUST NEVER be used to clean the system.

11. Available Accessories

H3 Waterproof Headphones (required for use underwater)

Pro Armband for extreme sports

Swimbelt designed by swimmers

12. Contact Us

Customer Support is available Monday to Friday 9AM to 5PM PST.

www.h2oaudio.com P. 800.708.6080 or 858.623.0339 F. 858.225.0815 E. support@h2oaudio.com

Copyright Notice: This owner’s manual is copyrighted, all rights reserved. It may not, in whole or in part, be copied, photocopied, reproduced, translated, or formed into any electronic format without prior consent in writing. H2O Audio is a registered trademark of H2O Audio, Inc. Apple and iPod are registered trademarks of Apple Inc. Patents 6396769, 6614722, 6954405 Others Pending.

13. General Use Notice

READ THIS MANUAL CAREFULLY. IF YOU HAVE ANY QUESTIONS PLEASE CONTACT H2O AUDIO CUSTOMER SUPPORT PRIOR TO USE.

IMPROPER USE OF THIS SYSTEM MAY CAUSE THE USER TO MAKE MISTAKES OR DECISIONS THAT MAY LEAD TO SERIOUS INJURY OR DEATH.

IMPORTANT WARNING AND DISCLOSURE: IT CAN BE POTENTIALLY DANGEROUS TO PLAY YOUR HEADPHONES WHILE ENGAGING IN ACTIVITIES THAT REQUIRE YOUR FULL ATTENTION. YOU SHOULD EXERCISE EXTREME CAUTION OR DISCONTINUE USE IN POTENTIALLY HAZARDOUS SITUATIONS. DO NOT USE THE HEADPHONES WHILE DRIVING, CYCLING, OR OPERATING ANY MOTORIZED VEHICLE. IT MAY CREATE A TRAFFIC HAZARD AND IS ILLEGAL IN SOME AREAS.

AVOID USING HEADPHONES AT HIGH VOLUME. HEARING EXPERTS ADVISE AGAINST CONTINUOUSLY LOUD AND EXTENDED PLAY. IF YOU EXPERIENCE RINGING IN YOUR EARS, REDUCE VOLUME OR DISCONTINUE USE.

THE MANUFACTURER DOES NOT WARRANT AND WILL NOT BE HELD RESPONSIBLE IN ANY WAY FOR DAMAGES TO THE iPod, OR LOSS OF DATA, INCLUDING LOSS OF DATA STORED IN THE iPod, RESULTING FROM AN EXCESSIVE IMPACT, THUNDER, OR AN ELECTRICITY FAILURE, OR WATER DAMAGE. YOU WILL BE RESPONSIBLE FOR SAFE GUARDING ALL DATA STORED ON YOUR DEVICE.

14. Warranty Coverage

H2O Audio guarantees, to the original purchaser only, that the equipment purchased is free of defects in material and/or under normal recreational use for a period of one year (1) from date of consumer purchase from an Authorized Dealer; provided that proper care and maintenance have been performed as prescribed by the owner's guide included with the equipment. Should this product prove to be defective for any reason (other than those listed as limitations below) the product will be serviced or replaced at H2O Audio's sole discretion at no charge (excluding shipping and handling). This warranty shall be void if the registration is not completed and sent to H2O Audio Customer Service within 30 days of purchase. This warranty shall be void if the equipment has been tampered with by anyone not authorized to perform service. The warranty is non-transferable and extends to the original purchaser only and is valid only if the equipment was purchased from an authorized dealer. Warranty does not extend to cover damage from accident, abuse, tampering, lack of maintenance, theft, or loss. Service or modifications by anyone other than an Authorized H2O Audio agent will void the warranty. H2O Audio will not be responsible for recovery or replacement of the product in the event of loss or theft. H2O Audio, its Authorized International Distributors, and Authorized Dealers make no other warranties, either express or implied or orally, or in writing, with respect to any other warranty coverage except those expressly stated within the preceding sentences. H2O Audio will not be held responsible for any agreements orally or in writing with the exception of those expressly included in this warranty statement. The warranty registration card and the terms contained herein supersede all statements contained in any and all owner's guides, instruction cards, or other equipment literature or catalogs. In no event will H2O Audio, its Authorized International Distributors, and Authorized Dealers be held responsible or liable for any personal injuries resulting from the use of the covered equipment, or for any other damages, whether direct, indirect, incidental, or consequential; even if H2O Audio has been advised of such damages.

15. Returns

Prior to any return, a Return Authorization (RA) number must be obtained. To receive an RA number, go online to www.h2oaudio.com/returns.php and follow the simple instructions on how to return a product. Proof of purchase from an Authorized Dealer will be required. A copy of the original sales receipt and a copy of the owner’s portion of the warranty card must accompany all correspondence regarding the equipment covered by this warranty agreement or in direct reference to this warranty.

iV6 - 70 20071012
