Indoor/Outdoor Color Camera
with Built-in 2.4 GHz Wireless
Video Sender, and separate
Video Receiver
OWNER'S MANUAL
MODEL VK48A
(INCLUDES XC10A CAMERA, VR31A VIDEO RECEIVER
AND
PLUG-IN POWER SUPPLIES)
INTRODUCTION
IMPORTANT SAFETY INSTRUCTIONS
Your Wireless Camera Kit consists of a Color Video Camera with
built-in 2..4 GHz Video Sender, and a Video Receiver unit which you
connect to a TV anywhere in your home (up to 100 ft. away from the
Camera). The Camera/Video Sender converts the video and audio
signals from the camera into a radio signals and transmits them (even
through walls) to the Video Receiver. The Video Receiver converts the
signals back to video and audio signals which are fed through a
cable to your TV's A/V input jacks.
There are just a few simple steps to follow to hook up your Camera
and Video Sender kit.
WARNING:
To reduce the risk of fire or electric shock, do not expose this product
to rain or moisture.
1. Read Instructions - All the safety and operating instructions should be read
before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for
future reference.
3. Heed Warnings - All warnings on the product and in the operating instructions
should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments - Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
7. Water and Moisture - Do not use this product near water - for Example, near a
bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool; and the like.
8. Accessories - Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury to a child or
adult, and serious damage to the product. Use only with a cart, stand, tripod,
bracket, or table recommended by the manufacturer, or sold with the product.
Any mounting of the product should follow the manufacturer’s instructions, and
should use a mounting accessory recommended by the manufacturer.
9. A product and cart combination should be moved with care.
Quick stops, excessive force and uneven surfaces may cause the
product and cart combination to overturn.
10. Ventilation - Slots and openings in the cabinet are provided for ventilation and
to ensure reliable operation of the product and to protect if from overheating,
and these openings must not be blocked or covered. The openings should never
be blocked by placing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the manufacturer’s instructions have
been adhered to.
32
11. Power Sources - This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the type or power
supply to your home, consult your product dealer or local power company. For
products intended to operate from battery power, or other sources, refer to the
operating instructions.
12. Grounding or Polarization - This product is equipped with a polarized
alternating current line plug (a plug having one blade wider than the other).
This plug will fit into the power outlet only one way. This is a safety feature. If
you are unable to insert the plug fully into the cutlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the polarized plug.
13. Power-Cord Protection - Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience receptacles, and the
point where they exit from the product.
14. Lightning - For added protection for this product during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it from
the wall outlet and disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line surges.
15. Overloading - Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or electric shock.
16. Object and Liquid Entry - Never push objects of any kind into this product
through openings as they may touch dangerous voltage points or short-out parts
that could result in a fire or electric shock. Never spill liquid of any kind on the
product.
17. Servicing - Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or other hazards. Refer
all servicing to qualified service personnel.
18. Damage Requiring Service - Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as an
improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the product to its
normal operation,
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance - this indicates a
need for service.
19. Heat - The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products including amplifiers) that
produce heat.
FCC CAUTION
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
This equipment generates and uses radio frequency energy, and if not installed and
used properly, that is, in strict accordance with the manufacturers instructions, it may
cause interference to radio and television reception. It has been type tested and
found to comply with the limits for remote control devices in accordance with the
specifications in Sub-Parts B and C of Part 15 of FCC Rules, which are designed to
provide reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio or television reception,
which can be determined by unplugging the equipment, try to correct the interference
by one or more of the following measures.
• Reorient the antenna of the radio/TV experiencing the interference.
• Relocate the equipment with respect to the radio/TV.
• Move the equipment away from the radio/TV.
• Plug the equipment into an outlet on a different electrical circuit from the radio/TV
experiencing the interference.
• If necessary, consult your local Dealer for additional suggestions.
NOTE: Modifications to this product will void the user's authority to operate this
equipment.
54
CONTROLS AND CONNECTIONSCONTENTS
CONTROLS AND CONNECTIONS
AMERA/VIDEO SENDER, AND VIDEO RECEIVER
C
C
AMERA/VIDEO SENDER
V
IDEO RECEIVER
CONNECTING UP
S
ETTING UP THE CAMERA/VIDEO SENDER
S
ETTING UP THE VIDEO RECEIVER
............................................................. 9
...........................................................
.................................................. 8
FINE TUNING YOUR SYSTEM
WARRANTY
................................................................... 15
........................................ 7
......................................
........................................... 14
.................... 7
...........................
10
10
12
C
AMERA
S
ENDER
/V
2.4 GHz
Video
Antenna
IDEO
2.4 GHz
Channel
Switch
TV
Channel
Switch
V
IDEO RECEIVER
(
BOTTOM VIEW
TV
CHAN NEL
43
CHAN NEL
ABCD
)
Power Supply
Socket
2.4 GHz
Channel
Switch
76
C
AMERA
2.4 GHz Video
Antenna

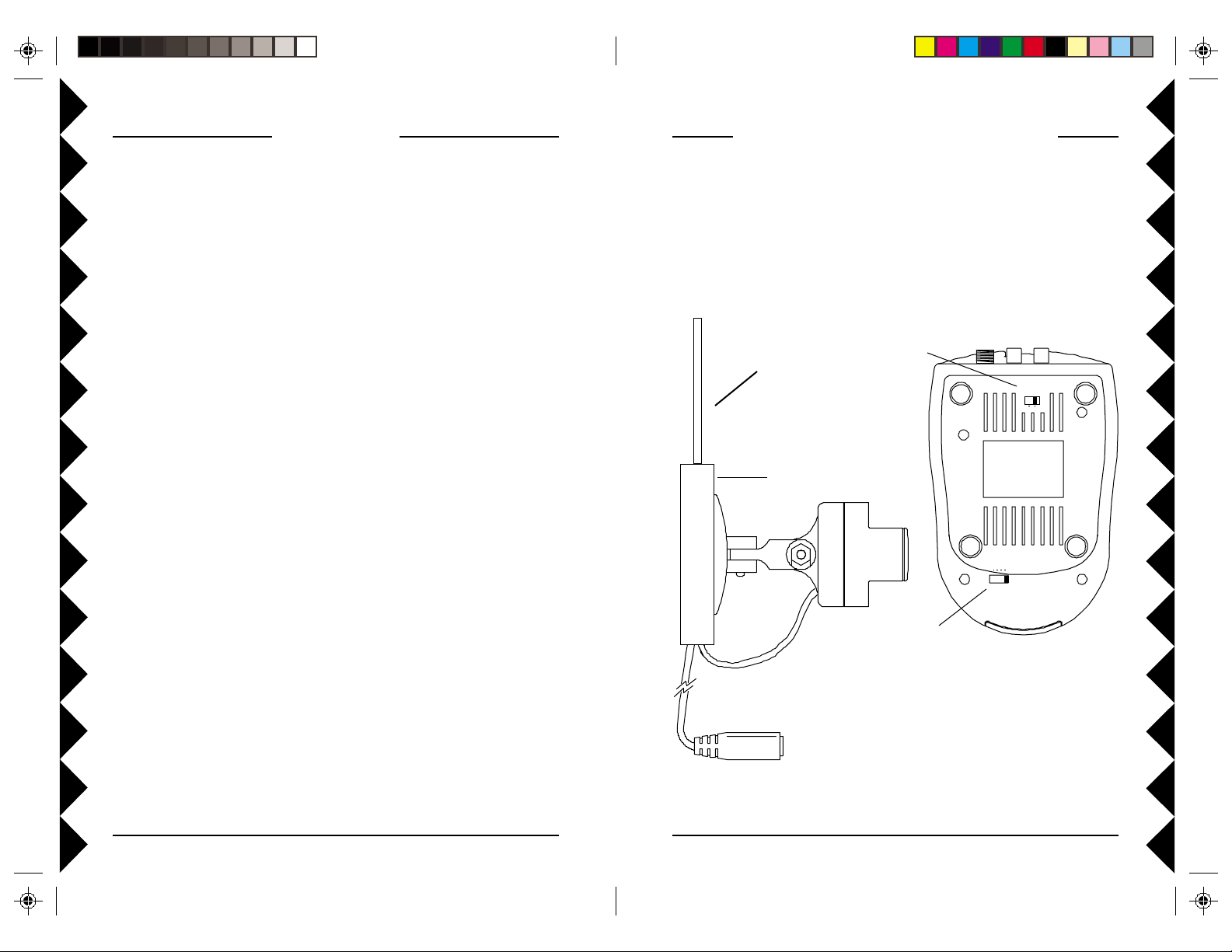

CONTROLS AND CONNECTIONS
/V
IDEO SENDER
Set channel switch to
match setting on
Video Receiver.
Mounting
plate
V
IDEO RECEIVER
TV Output
Connector
TO TV
AUDIO OUTVIDEO OUT
2.4 GHz
Video
Antenna
DC 12V
ON-OFF
Switch
(on side)
Cable adapter.
TV Channel
Switch
(on bottom)
A/V Jacks
Power Supply
Jack
2.4 GHz Channel
Switch
(on bottom)
98
CONNECTING UP
SETTING UP THE CAMERA/VIDEO SENDER

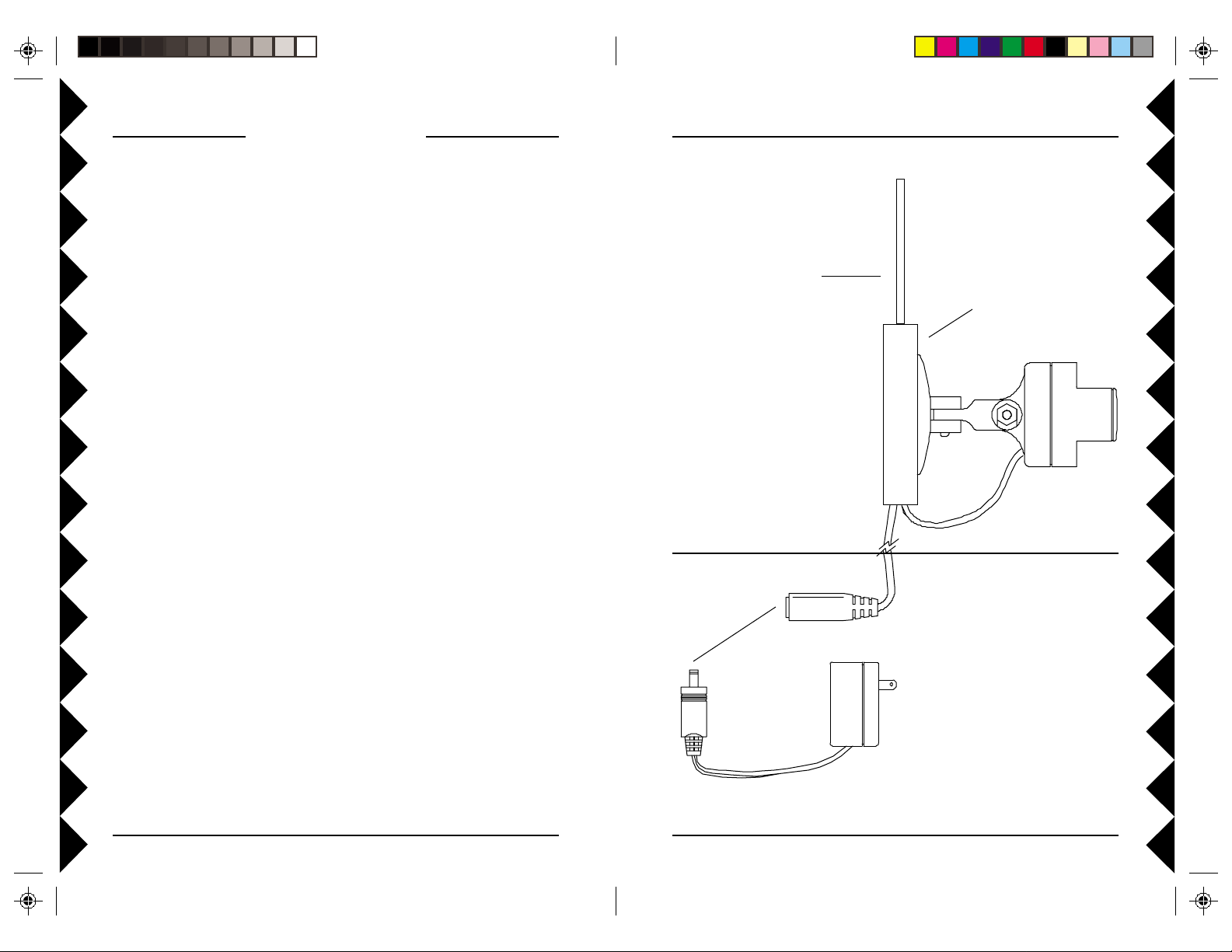

Referring to the diagram on the next page:
1. Attach the camera to a wall using the screws provided.
2. If you install the camera outdoors, make a small hole in your
exterior wall and pass the low voltage power jack through it.
3. Plug the power supply jack into the socket on the adapter cable
from the camera. Use the smaller of the two power supplies.
4. Plug the power supply into any 120V AC outlet.
5. Set the channel switch to any letter A, B, C, or D
6. Adjust the antenna if necessary to aim it in the direction of the TV
or monitor that you will view the camera on.
2.4 GHz Video
Antenna
Attach camera to a
wall, indoors or
outdoors.
Set channel switch to
match setting on
Video Receiver.
Outdoors
Plug power
supply in here.
Indoors
Plug into
any AC
outlet
Important: Unplug
power supply before
unplugging power jack.
1110
H
OOKING UP THE VIDEO RECEIVER

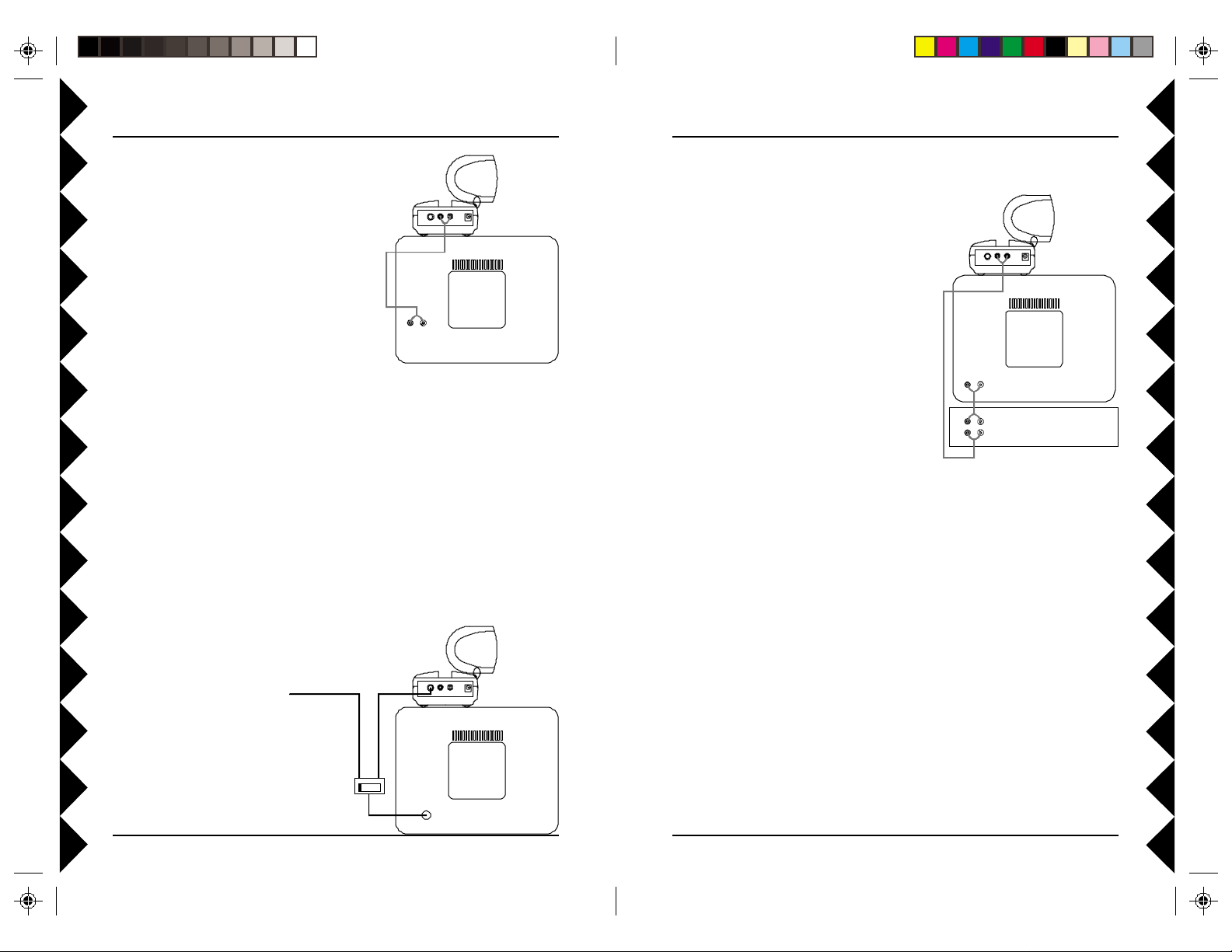

1. Connect a set of Audio/Video
AUDIOVIDEO
TO TV
cables to the A/V OUT jacks on the
Video Receiver. Connect the other
TV
end to your TV (use either L or R
channel for audio).
2. Plug the Video Receiver's Power
AUDIO
Supply (the larger of the two power
VIDEO
supplies) into a 120 volt wall outlet
and plug its jack into the Video
Receiver.
3. Turn the Video Receiver's power switch (on side of unit) on.
4. Set the channel switch to the same letter as you set on the
camera, A, B, C, or D.
5. Position the Video Receiver in a convenient location such as on
top of the TV and orient the antenna so that the flat side points in
the direction of the room where you set up the Video Sender.
IF
YOUR
TV
DOES NOT HAVE
A/V
CONNECTORS
You can use the supplied coaxial cable to connect the TV OUT socket
on the Video Receiver to the Antenna input on your TV. If you already
have an antenna
connected to your TV,
you will need to use a
TV antenna splitter.
Set your TV and the
TV Channel switch on
the Video Receiver
TO TV
ANTENNA
TO TV AUDIOVIDEO
TV
(on bottom) to the
same channel (3 or
4).
12
IF
YOUR
A/V
TV IS
DEVICE
ALREADY HOOKED UP TO A
If a DSS Receiver or other A/V
component is connected to the TV using
A/V cables, you can connect the Video
Receiver to the free LINE IN jacks on
the component. If there are no LINE IN
jacks, you will need to use a TV
antenna splitter as described earlier.
DSS R
AUDIO
VIDEO
VIDEO
AUDIO
ECEIVER OR OTHER
AUDIOVIDEO
TOTV
OUT
IN
TV
DSS
UHF/VHF
ANTENNA
1312
FINE TUNING YOUR SYSTEM
WARRANTY
The Wireless Video Sender usually works best with the flat faces of
the antennas on the Sender and Receiver unit facing each other (i.e.
in “Line of sight” - see diagram below). Sometimes, however,
reflections and other effects in the home may affect the signal so that
some adjustment of either the Sender or Receiver antenna may be
necessary to get the best the signal.
IF
YOU ARE NOT GETTING ANY SIGNAL AT ALL
Check that the CHANNEL slide switch (labeled A, B, C, D) on both
units (on bottom) is set to the same letter.
If you are using coaxial TV connections from the Video Receiver,
check that the TV is tuned to the same channel as the TV Channel
switch on the bottom of the Video Receiver (3 or 4).
IF
THE SIGNAL IS POOR, OR THERE IS INTERFERENCE
Try changing the channel on both units. Do this by adjusting the
CHANNEL slide switch on each unit to any position (A, B, C, or D).
Make sure both units are set to the same letter.
12 MONTH LIMITED WARRANTY
X10 (USA) INC. (X10) WARRANTS ITS PRODUCTS TO BE FREE FROM
DEFECTIVE MATERIAL AND WORKMANSHIP FOR A PERIOD OF ONE (1)
YEAR FROM THE ORIGINAL DATE OF PURCHASE AT RETAIL. X10 AGREES
TO REPAIR OR REPLACE, AT ITS SOLE DISCRETION, A DEFECTIVE X10
PRODUCT IF RETURNED TO X10 WITHIN THE WARRANTY PERIOD AND
WITH PROOF OF PURCHASE.
IF SERVICE IS REQUIRED UNDER THIS WARRANTY:
1. RETURN THE DEFECTIVE UNIT POST AGE PREPAID TO THE ADDRESS
ON BACK COVER.
2. ENCLOSE A CHECK FOR $4.00 TO COVER HANDLING AND RETURN
POSTAGE.
3. ENCLOSE A DA TED PROOF OF PURCHASE.
4. X10 IS NOT RESPONSIBLE FOR SHIPPING DAMAGE. UNITS TO BE
RETURNED SHOULD BE PACKED CAREFULLY.
THIS WARRANTY DOES NOT EXTEND TO ANY X10 PRODUCTS WHICH
HA VE BEEN SUBJECT TO MISUSE, NEGLECT, ACCIDENT , INCORRECT
WIRING OR TO USE IN VIOLATION OF OPERATING INSTRUCTIONS
FURNISHED BY US, NOR EXTEND TO ANY UNITS ALTERED OR REPAIRED
FOR WARRANTY DEFECT BY ANYONE OTHER THAN X10. THIS
WARRANTY DOES NOT COVER ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED AND NO REPRESENTATIVE OR PERSON IS AUTHORIZED TO
ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE
SALE OF OUR PRODUCTS.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, AND/OR THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE
LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO THE ORIGINAL
CUSTOMER. THIS WARRANTY GIVES YOU SPECIFIC RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STA TE TO STATE.
1514
X10 (USA) Inc.
3824 North 5th St.,
Suite C, North Las Vegas, NV 89030
Web Site: www.x10.com
16
VK48A-02/99
Loading...
