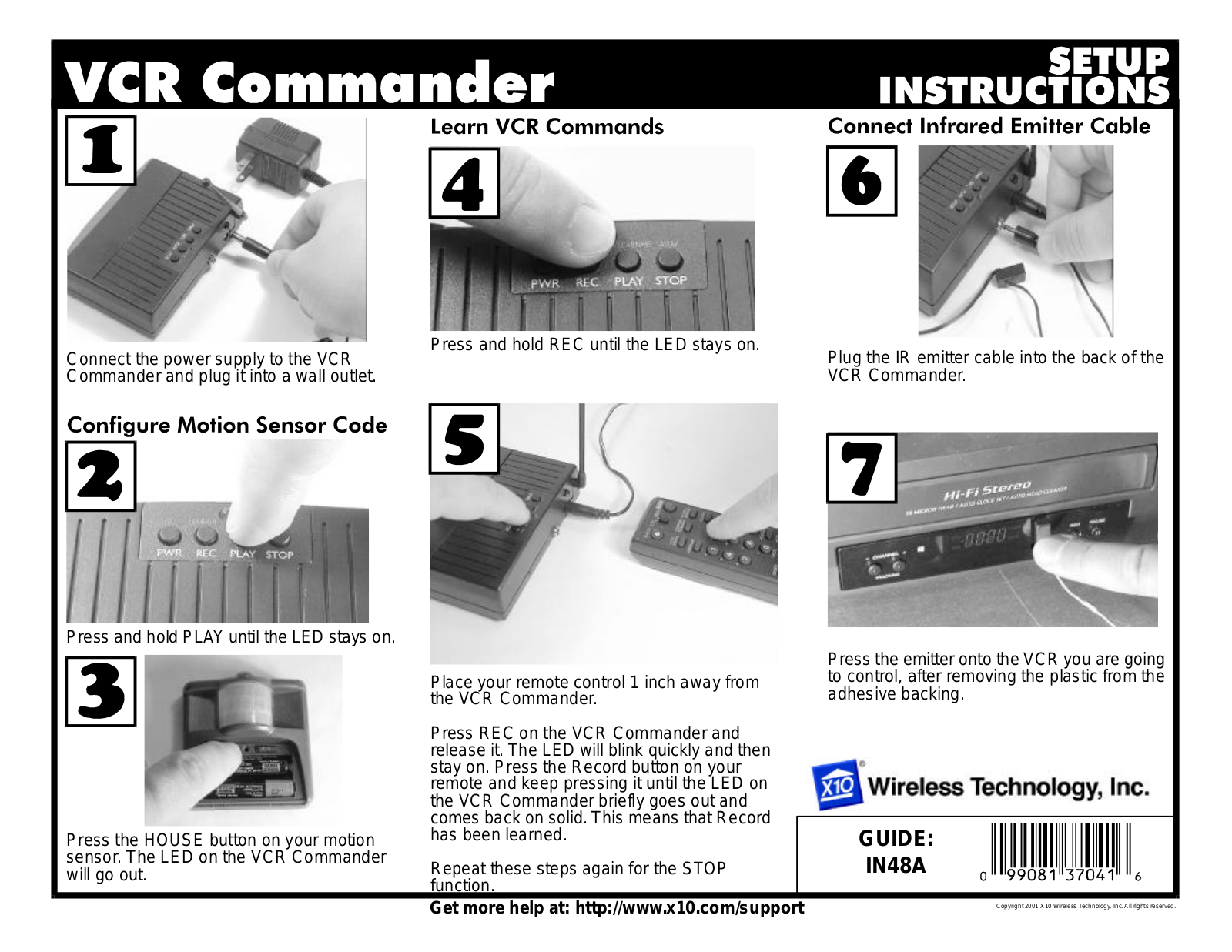

X10 IN48A SETUP

Connect the power supply to the VCR Commander and plug it into a wall outlet.

Press and hold PLAY until the LED stays on.

Press the HOUSE button on your motion sensor . The LED on the VCR Commander will go out.

Press and hold REC until the LED stays on.

Place your remote control 1 inch away from the VCR Commander .

Press REC on the VCR Commander and release it. The LED will blink quickly and then stay on. Press the Record button on your remote and keep pressing it until the LED on the VCR Commander briefly goes out and comes back on solid. This means that Record has been learned.

Repeat these steps again for the STOP function.

Get more help at: http://www.x10.com/support

Plug the IR emitter cable into the back of the VCR Commander.

Press the emitter onto the VCR you are going to control, after removing the plastic from the adhesive backing.

GUIDE:

IN48A
