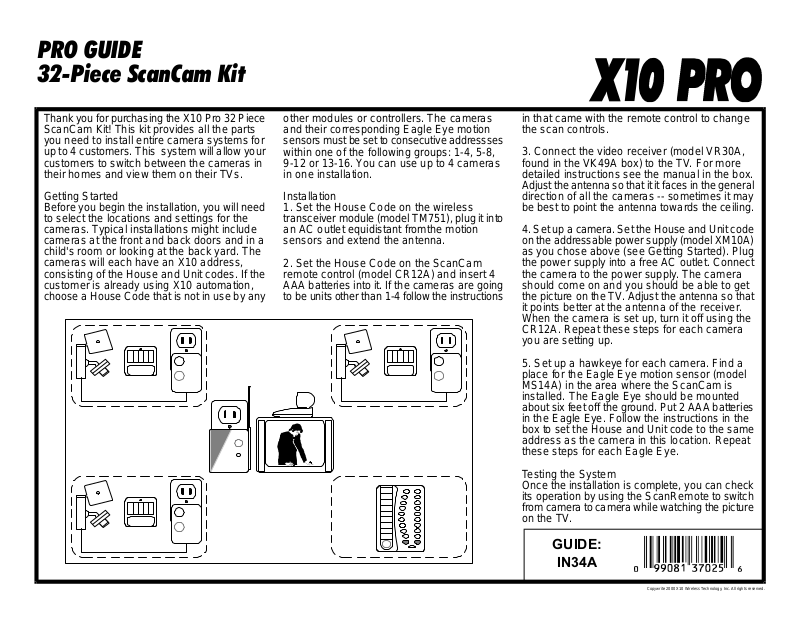

X10 IN34A SETUP
PRO GUIDE
32-Piece ScanCam Kit
Thank you for purchasing the X10 Pro 32 Piece
ScanCam Kit! This kit provides all the parts
you need to install entire camera systems for
up to 4 customers. This system will allow your
customers to switch between the cameras in
their homes and view them on their TVs.
Getting Started
Before you begin the installation, you will need
to select the locations and settings for the
cameras. Typical installations might include
cameras at the front and back doors and in a
child's room or looking at the back yard. The
cameras will each have an X10 address,
consisting of the House and Unit codes. If the
customer is already using X10 automation,
choose a House Code that is not in use by any
other modules or controllers. The cameras
and their corresponding Eagle Eye motion
sensors m ust be set to consecutive addressses
within one of the following groups: 1-4, 5-8,
9-12 or 13-16. You can use up to 4 cameras
in one installation.
Installation
1. Set the House Code on the wireless
transceiver m odule (model TM751), plug it into
an AC outlet equidistant fromthe motion
sensors and extend the antenna.
2. Set the House Code on the ScanCam
remote control (model CR12A) and insert 4
AAA batteries into it. If the cameras are going
to be units other than 1-4 follow the instructions
in that came with the remote control to change
the scan controls.
3. Connect the video receiver (model VR30A,
found in the VK49A box) to the TV. For more
detailed instructions see the manual in the box.
Adjust the antenna so that it it faces in the general
direction of all the cameras -- sometimes it may
be best to point the antenna towards the ceiling.
4. Set up a camera. Set the House and Unit code
on the addressable power supply (model XM 10A)
as you chose above (see Getting Started). Plug
the power supply into a free AC outlet. Connect
the camera to the power supply. The camera
should come on and you should be able to get
the picture on the TV. Adjust the antenna so that
it points better at the antenna of the receiver.
When the camera is set up, turn it off using the
CR12A. Repeat these steps for each camera
you are setting up.
5. Set up a hawkeye for each camera. Find a
place for the Eagle Eye motion sensor (model
MS14A) in the area where the ScanCam is
installed. The Eagle Eye should be mounted
about six feet off the ground. Put 2 AAA batteries
in the Eagle Eye. Follow the instructions in the
box to set the House and Unit code to the same
address as the camera in this location. Repeat
these steps for each Eagle Eye.
Testing the System
Once the installation is complete, you can check
its operation by using the ScanRemote to switch
from camer a to camera while watching the picture
on the TV.
GUIDE:
IN34A
Copywrite 2000 X10 Wireless Technology, Inc. All rights reserved.
