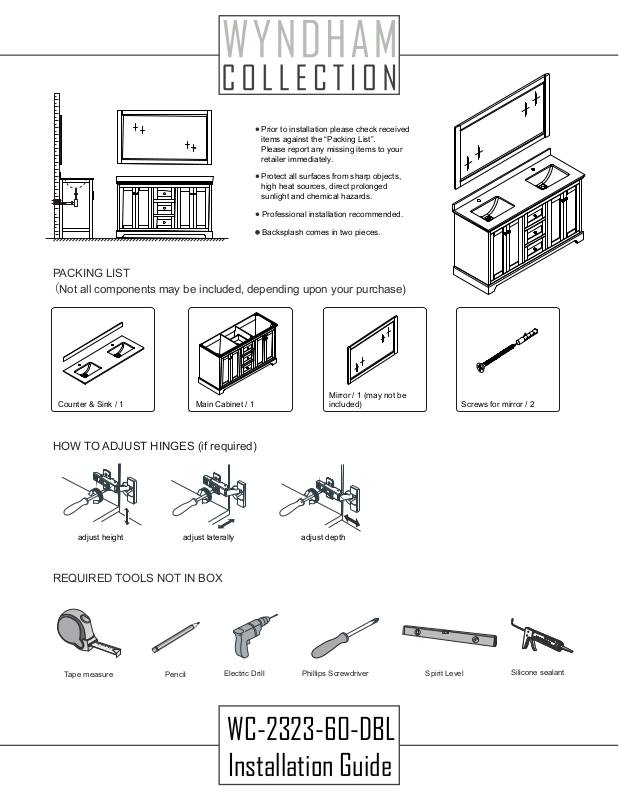

Page 1
●
Prior to installation please check received
items against the “Packing List”.
Please report any missing items to your
retailer immediately.
●
Protect all surfaces from sharp objects,
high heat sources, direct prolonged
sunlight and chemical hazards.
●
Professional installation recommended.
●
Backsplash comes in two pieces.
PACKING LIST
(Not all components may be included, depending upon your purchase)
Counter & Sink / 1
Main Cabinet / 1
HOW TO ADJUST HINGES (if required)
REQUIRED TOOLS NOT IN BOX
4
3
2
1
0
Tape measure
Pencil
Electric Drill
Mirror / 1 (may not be
included)
adjust depthadjust laterallyadjust height
Phillips Screwdriver
Spirit Level
Screws for mirror / 2
Silicone sealant
WC-2323-60-DBL
Installation Guide
Page 2
INSTALLATION INSTRUCTIONS
1
Install the counter. Seal around the top of the
cabinet with clear silicone sealant. Do not over
apply. Allow to dry 24 hours for proper curing.
2
Install the mirror: a)use a pencil to mark the
placement of the screw holes on the wall,
b)drill holes, c)insert the plastic wall anchors.
3
Install the screws into the wall anchors,
leaving enough of the screw exposed to hang
the mirror - approx 1/4” - 1/2”.
WC-2323-60-DBL
4
Remove the handles from inside the cabinet
doors and drawers and reinstall on the
outside. Do not over tighten when reattaching.
Installation Guide
