WYLER Clinotronic S User Manual

Manual Clinotronic S

Manual

Electronic Inclinometer

Clinotronic S

WYLER AG
Im Hölderli 13
8405 Winterthur
Switzerland
[phone]

www.wylerag.com

[e-mail]

Seite 1 / 46

Manual Clinotronic S

Table of content

1. Manual Clinotronic S ................................................................................................................................. 3

Introduction ................................................................................................................................................................. 3

Note♥, Attention !, Warning! ........................................................................................................................................ 3

Manufacturer name and address ............................................................................................................................... 3

Product brand and type designation ........................................................................................................................... 4

Applicable documents ................................................................................................................................................. 4

2. Product description, technical data ........................................................................................................... 5

Measuring device, accessories ................................................................................................................................... 5

3. Safety instructions .................................................................................................................................... 7

Intended use ............................................................................................................................................................... 7

Not intended use! ........................................................................................................................................................ 7

Electromagnetic environment...................................................................................................................................... 7

Additional information for FCC (USA) and IC (Canada) .............................................................................................. 8

Safety Instructions Lithium Ion Batteries ..................................................................................................................... 9

Deadlines for calibration ........................................................................................................................................... 10

4. Prepare product for use .......................................................................................................................... 11

Content of case ......................................................................................................................................................... 11

Controls .................................................................................................................................................................... 12

Replacement of Li-ion batteries .................................................................... Fehler! Textmarke nicht definiert.

Charging with power adapter or laptop ..................................................................................................................... 13

5. Operation ................................................................................................................................................ 14

5.1 Configurations ..................................................................................................................................................... 14

5.2 Measurment bases ............................................................................................................................................. 15

5.3 Screen overview and keyboard ........................................................................................................................... 16

5.4 Switching On/Off, Measuring Range ................................................................................................................... 17

5.5 Menu "Settings", entry and exit ........................................................................................................................... 18

5.6 Settings in "Device" ............................................................................................................................................. 19

5.6.1 Device: "Brightness" ................................................................................................................................... 20

5.6.2 Devices:"Bluetooth" .................................................................................................................................... 21

5.6.3 Zapper teach-in ............................................................................... Fehler! Textmarke nicht definiert.

5.7 Settings in "Units" ............................................................................................................................................. 23

5.7.1 "Units" ........................................................................................................................................................ 24

5.7.2 Self-selected base mm/xxxx mm ................................................... Fehler! Textmarke nicht definiert.

5.8 Type of Measurement ........................................................................................................................................ 26

5.8.1 Absolute measurement .............................................................................................................................. 27

5.8.2 Reversal measurement "Absolute Zero" .................................................................................................... 28

5.8.3 Temporary reference level "Relative Zero" ................................................................................................ 30

5.9 Device Info .......................................................................................................................................................... 32

5.9.1 Device Info ................................................................................................................................................. 33

5.9.2 Advanced Settings ..................................................................................................................................... 34

5.9.2.1 Use Local gravity ............................................................................................................................... 35

5.9.2.2 Disable local gravity .......................................................................................................................... 37

5.9.2.3 wylerMASTER calibration ................................................................................................................. 38

5.9.2.4 Factory Reset .................................................................................................................................... 43

6. Specifications ......................................................................................................................................... 44

7. Maintenance ........................................................................................................................................... 45

For safe operation ..................................................................................................................................................... 45

Cleaning .................................................................................................................................................................... 45

Troubleshooting ........................................................................................................................................................ 45

Repackaging before re-transport ................................................................... Fehler! Textmarke nicht definiert.

Address customer service ......................................................................................................................................... 45

8. Disposal .................................................................................................................................................. 46

Decommissioning, disposal ...................................................................................................................................... 46

Document version and release notes ........................................................................................................................ 46

Seite 2 / 46

Manual Clinotronic S

1. Manual Clinotronic S

Introduction

Before you start

Read this manual carefully before using the Clinotronic S for the first time.

Please also note the safety instructions.

Note♥: Mishandling or unintentional deletion of calibration data
are prevented by Note♥

Note♥, Attention !, Warning!

To make your reading easier, the following references are used in this manual:

• "Note♥:" This highlights useful tips.

• "Achtung !:" This is to avoid mishandling or disadvantages

• This indicates notes that are required by law.

Manufacturer name and address

WYLER AG
Im Hoelderli 13
8405 Winterthur
Switzerland

Phone [phone] www.wylerag.com
Fax [phone] [e-mail]

Representatives: www.wylerag.com

Seite 3 / 46

Manual Clinotronic S

Product brand and type designation

Product brand

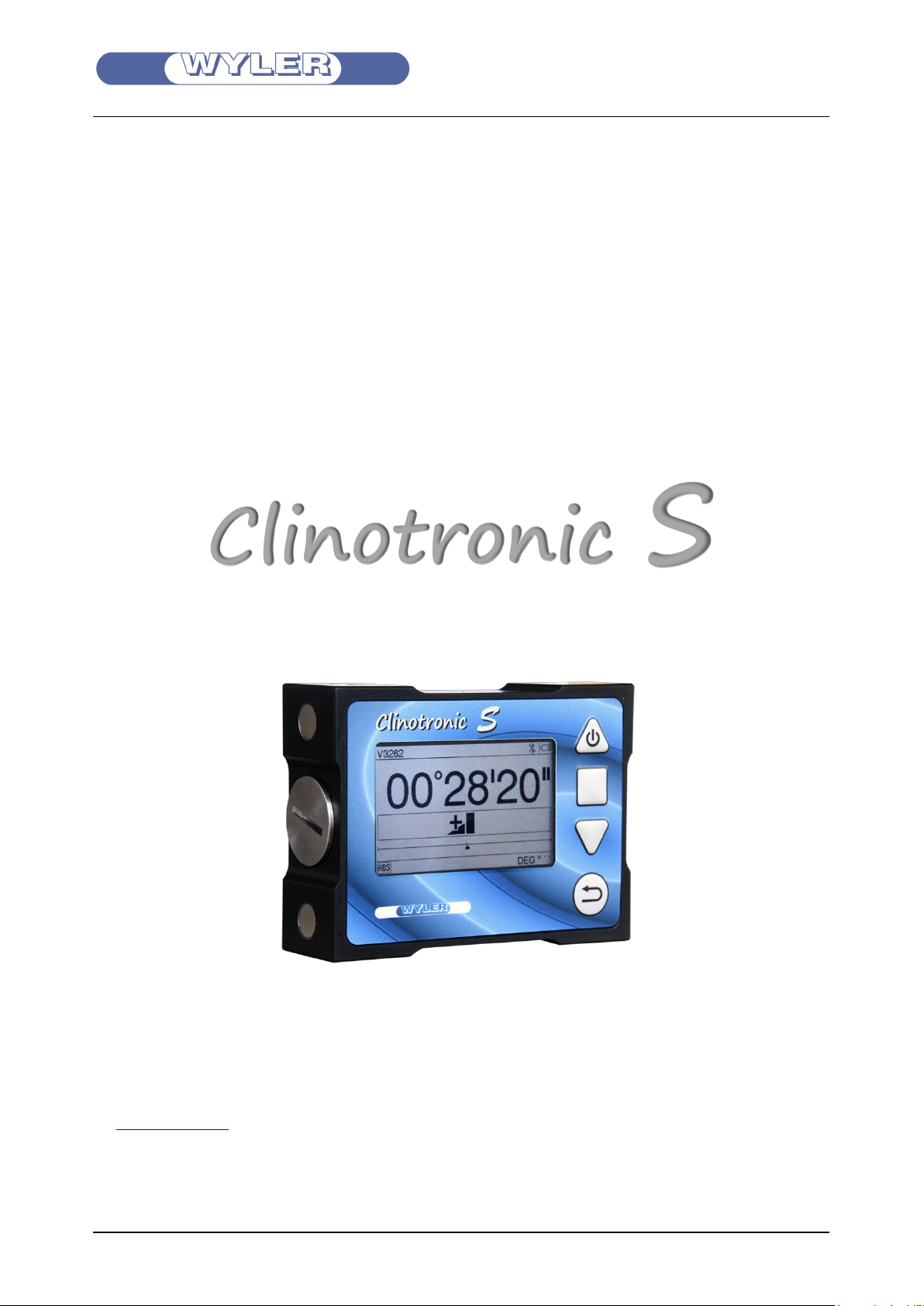

Clinotronic S

type designation:

*Art. No. 015-S-XG45 without inserts

*Art. No. 015-S-HG45 with two magnets on each side

*Art. No. 015-S-PG45 with two M3 threads on all sides

*Subject to change

Applicable documents

The CE Declaration of Conformity can be found on our homepage at: www.wylerag.com
at the product page Clinotronic S "Download".

Seite 4 / 46

Manual Clinotronic S

2. Product description, technical data

Measuring device, accessories

The measuring device

o The housing of the Clinotronic S is made of black anodized aluminum.
o The four measuring bases are located in each of the quadrants (frame).
o The front and back are equipped with a plastic film.

Screen area: The film is equipped with barely visible distance points against streaking when
touched.

o The front consists of the color screen and the operating membrane keyboard
o On the right side is the USB-C port
o As standard, the device is equipped with Bluetooth® BLE and the wylerCONNECT MINI
o An infrared (IR) trigger for data acquisition is also included
o The power supply consists of a replaceable, rechargeable 3.6V lithium-ion battery

The access is on the left.

o The device can be charged via the USB-C port and the included charging power supply (5V) or

on laptop.

Dimension, weight, type of protection, storage

Measuring range: ± 45°
Resolution : 5 arcsec or 0.02mm/m
Dimension L x H x T: 100 x 75 x 30 mm
Weight: 400 g
Protection class: IP64
Storage conditions: -20° bis +60° C
Operating conditions: 0° to 40 ° C

Standard accessories

o wylerCONNECTMINI (Bluetooth BLE)
o USB power adapter and cable USB-A/USB-C
o Infrared(IR) trigger
o Li-ion battery
o Plastic carrying case
o Manual
o Android App in Google Store, iOS App in Apple Store

Seite 5 / 46

Manual Clinotronic S

Optional accessories www.wylerag.com

Mechanically

o Magnets below, above, left, and right. Art. No. 015-S-HG45
o Threads M3 bottom, top, left, and right Art. No. 015-S-PG45

Software

o Interface software
o Geometry measuring software
o Monitoring software
o Software tools

Calibration

o wylerMASTER

Remote display

o Android smartphone with installed App

Power

o Extra Li-ion batteries
o External charger for max two Li-ion batteries

Seite 6 / 46

Manual Clinotronic S

3. Safety instructions

• The device complies with the applicable directives and standards

Consult:

- The current CE Declaration of Conformity Clinotronic S

- This instruction manual and the quick reference

- The type label on the back of the device

Intended use

• The Clinotronic is designed exclusively for measuring inclination angles.

For this purpose, the device is placed on a flat, stable surface or held by hand

The measured value can

- be read directly on the screen



- be read by Bluetooth

- be sent via Bluetooth

Attention !: There are no other uses!

Not intended use!

and app on smartphones as Android or iOS



and wylerCONNECT MINI to a Windows computer

• The device must not be used as a base, e.g. be used in a vise. The precision housing can be deformed

and will be unusable.

• It must not be used under water, as the tightness class is insufficient and the device may suffer a short

circuit inside.

• It must not be used in any way as a hammer as this damages the measuring surfaces, and the device

is therefore no longer able to measure.

• The device must not be thrown. The aluminum housing can cause serious injuries and damage

Electromagnetic environment

Note♥: The electromagnetic environment should be assessed before operating this equipment

Do not use this device near sources of strong electromagnetic radiation (such as unshielded,
intentionally operated high-frequency sources), as these may interfere with proper operation.

Seite 7 / 46

Manual Clinotronic S

Additional information for FCC (USA) and IC (Canada)

FCC part 15 and ICES-0003

Device Class A

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation”.
This Class A digital apparatus complies with Canadian ICES-0003.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense

Seite 8 / 46

Manual Clinotronic S

Safety instructions lithium-ion batteries

The lithium-ion batteries 3.6V are rechargeable
Type of battery: 18650

Only the original type 18650 lithium-ion batteries may be used

Lithium-ion batteries are only allowed to be charged with the supplied chargers.
Lithium-ion batteries are only allowed to be charged under supervision.

Close the lithium-ion battery cover carefully, but not with heavy force!
A rubber gasket is installed to provide a seal.

Note the current airline regulations regarding the
transport of lithium-ion batteries in any baggage!

Do not immerse the device in water!
The lithium-ion batteries are protected against overcharging and short circuiting.
Underwater, the short-circuit protection is not ensured!

Seite 9 / 46

Manual Clinotronic S

Frequency of calibration

• The calibration schedule must be determined by the customer.

• Our non-binding recommendation:

In case of suspected damage: immediately
For weekly use or more: every year
For monthly use: every 2-3 years

• WYLER AG operates a calibration center for the parameters length, planarity

and angles according to EN / ISO / IEC 17025.

• The accreditation is carried out by METAS.

WYLER accreditation number: SCS 044

Seite 10 / 46

Manual Clinotronic S

4. Prepare product for use

Contents of case

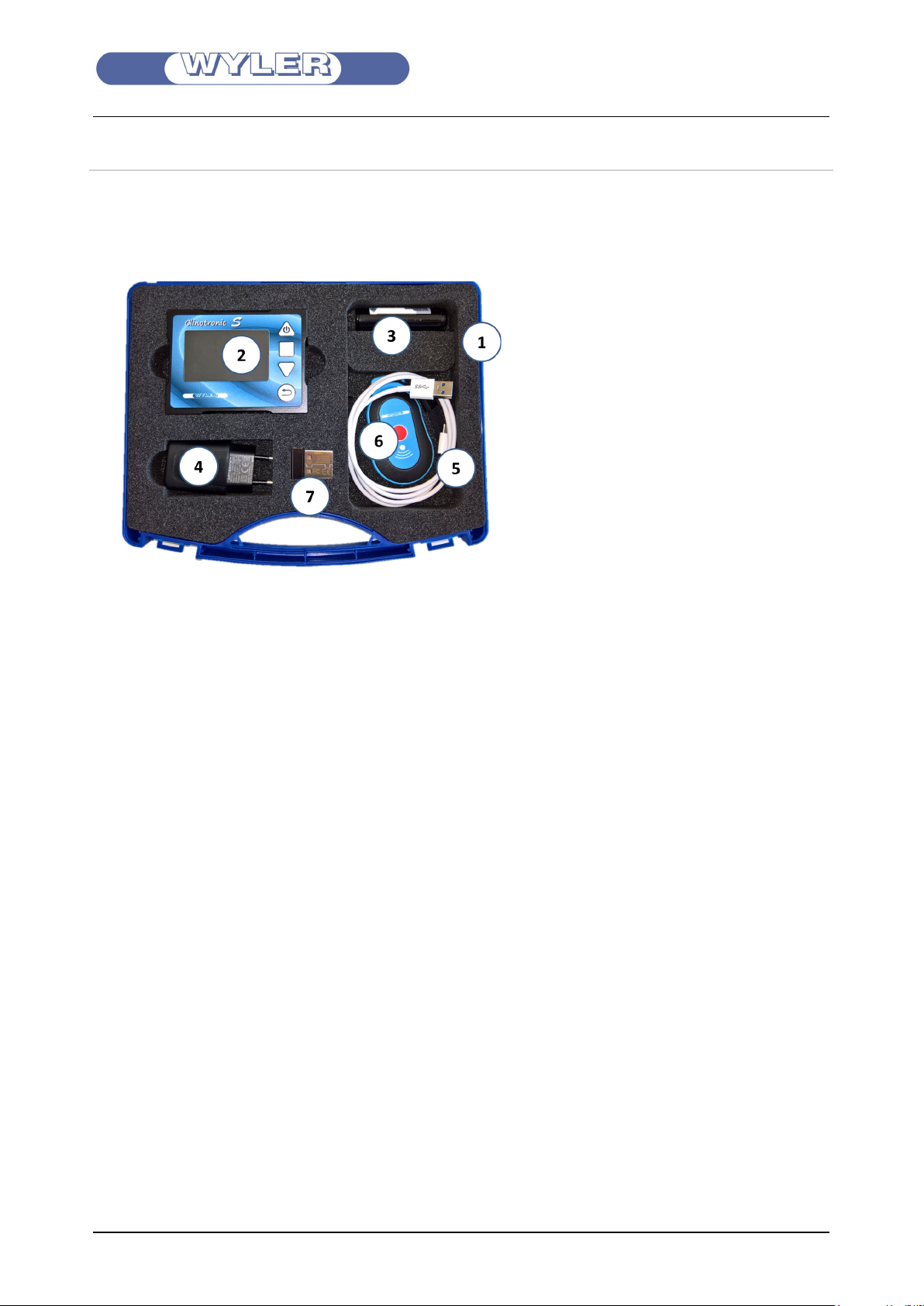

1 Case
2 Clinotronic S
3 Lithium-ion batteries 3.6V, Type 18650
4 USB power adapter
5 Cable USB-A/USB-C
6 Infrared (IR) trigger
7 wylerCONNECT MINI

→ Quick reference
→ Manual download at www.wylerag.com

Seite 11 / 46

Manual Clinotronic S

Controls

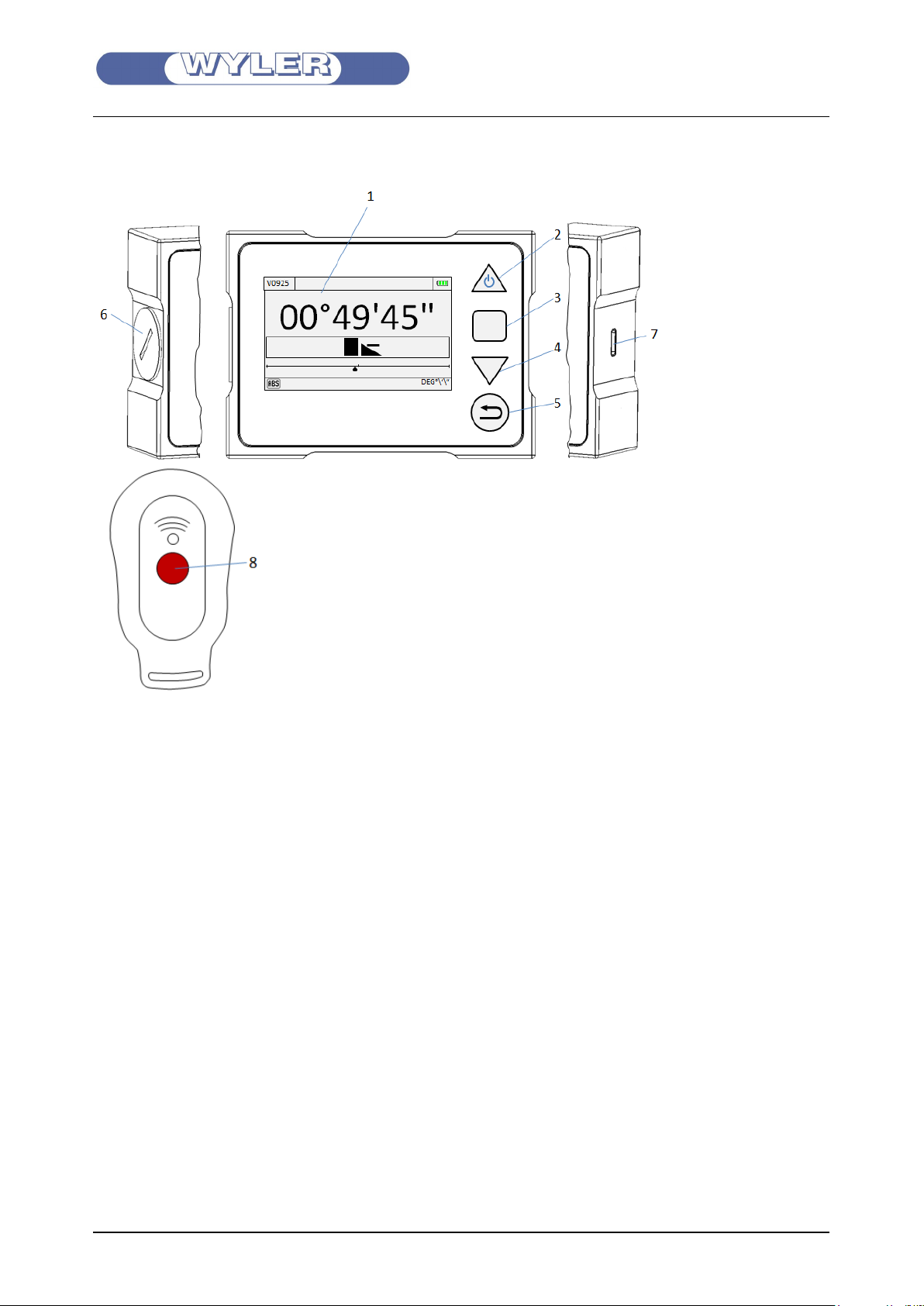

• 1 Screen

• 2 On/Off

• 3 Menu

Enter

• 4 Arrow button down
Shortcut (hold 2 seconds) "Relative Zero"

• 5 Back/cancel

• 6 Lithium-ion battery lid

• 7 USB-C connection

• 8 Infrared (IR) trigger

Seite 12 / 46

Manual Clinotronic S

Replacement of lithium-ion (Li-ion) batteries

1 Remove battery lid, remove depleted Li-ion battery
2 Insert fully charged Li-ion battery (nose forward)
Close the lid. (Don't tighten too much)

Charging with power adapter or laptop

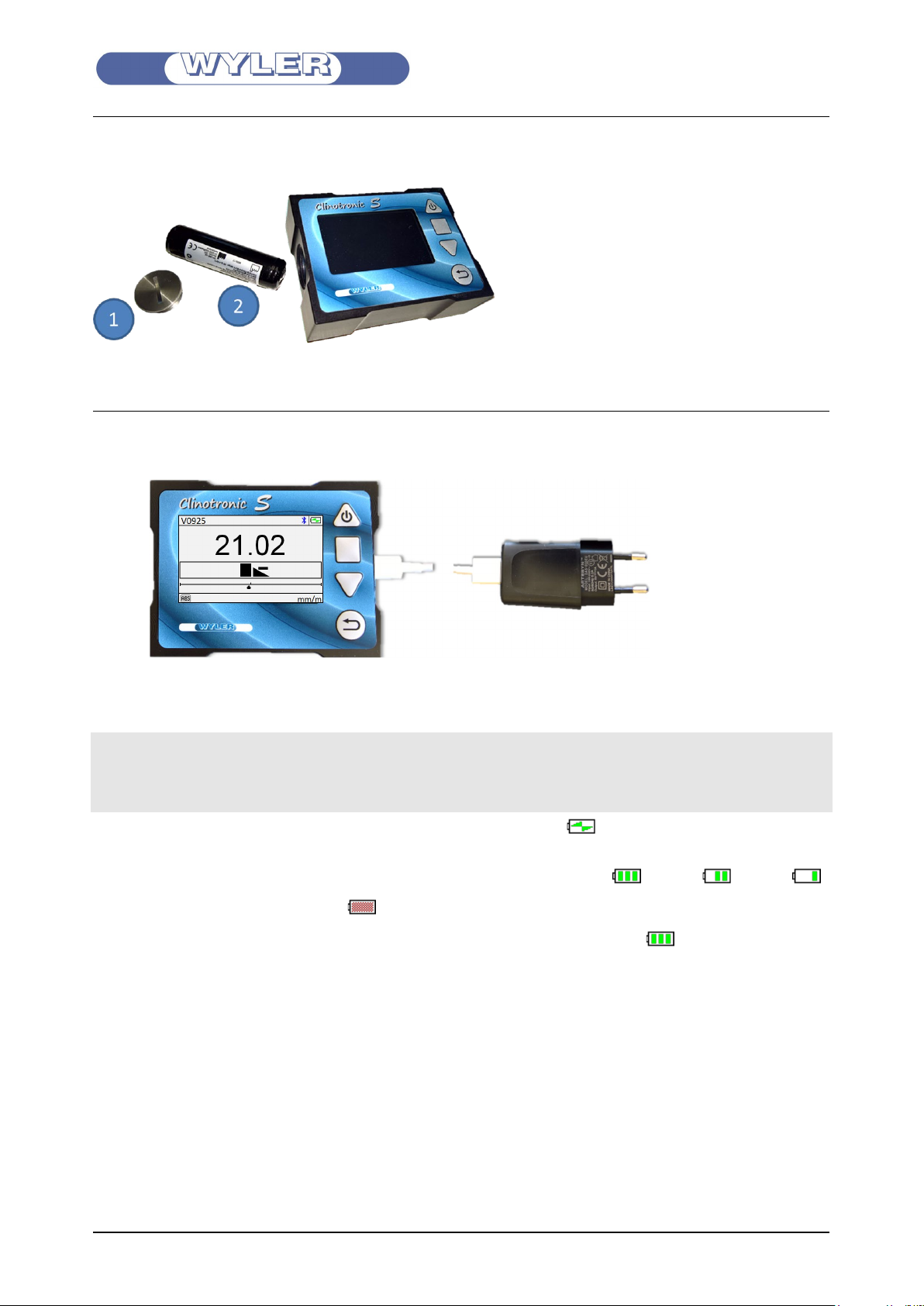

Charging with power adapter

A

o Plug the charger into a power outlet (100-240V AC)
o Connect the Clinotronic S with the cable to the power adapter

Note ♥: While charging, you can use the device in only limited ways.
During the charging process, the specification of the device can not be guaranteed

due to temperature development during charging.
Charge the device before measuring!

o The charging symbol appears in the upper right corner:
o The device will automatically start charging

The following states of charge appear on the screen for 100%: or 75%: or 50%:

Almost empty: 25%

o Charge the Clinotronic S as soon as possible until the symbol 100% appears.

o Loading time full capacity: 8 h
o Typical usage time with radio switched on:

- backlight medium 33 h

B Charge via USB cable to the PC or laptop

o Connect the Clinotronic S with the cable to the PC or laptop
o The Clinotronic S receives only a trickle charge with minimal power.
o This allows you to measure without heating up the Clinotronic S.
o Charge the device before measuring!

Seite 13 / 46

Manual Clinotronic S

5. Operation

5.1 Configurations

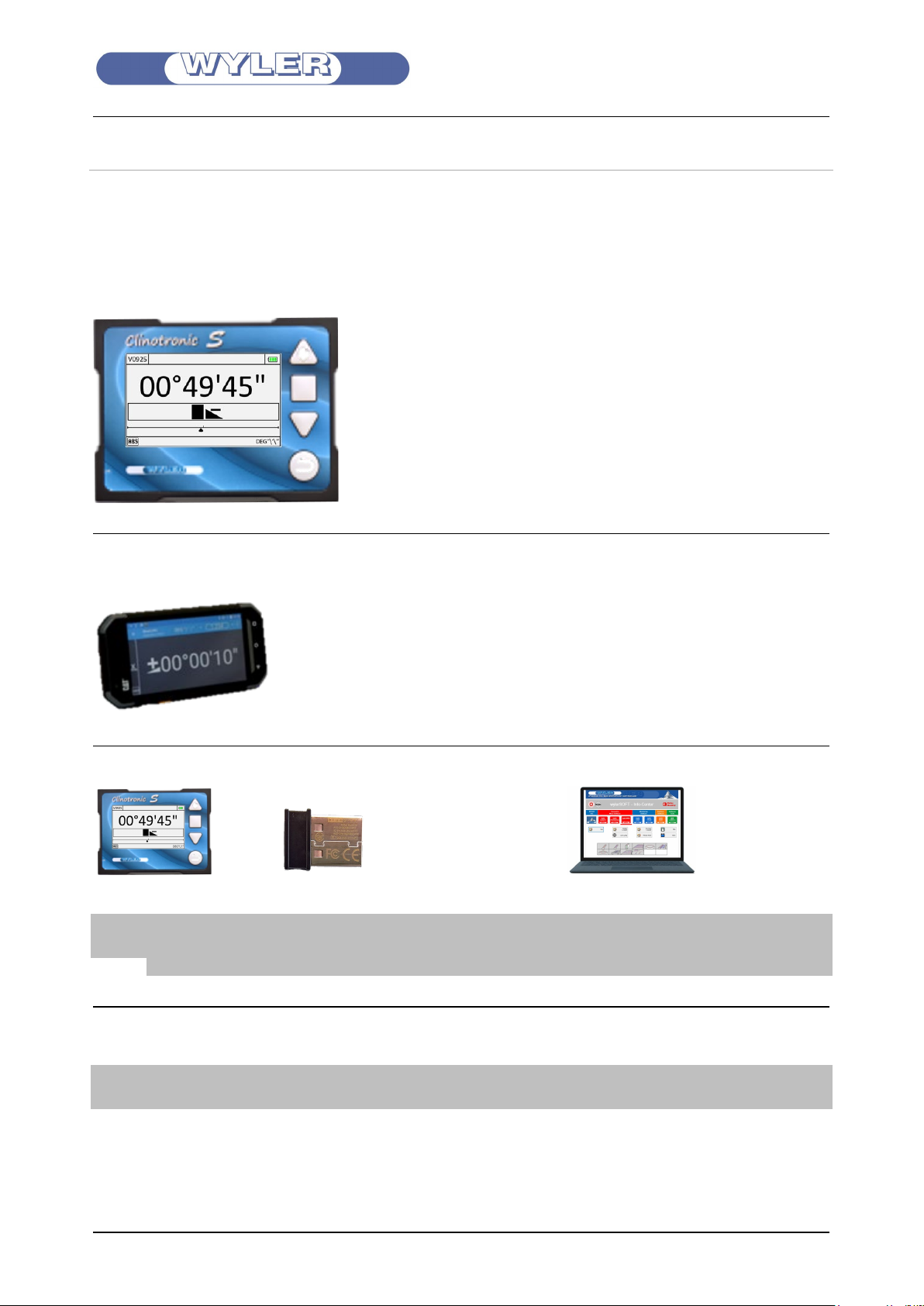

As standalone

for immediate measuring and reading

Wireless with an Android or iOS smartphone and the free app "Clinotronic S"
as a remote display

Minimum requirement for Android: for iOS:

Wireless with the wylerCONNECT MINI for Windows computer

max 7 ⇒ wylerCONNECTMINI ⇒ PC

e.g. with wylerEXPLORER

Note ♥: The wylerCONNECT MINI connects up to seven Clinotronic S units with the Windows
computer.

Use our software products to collect and display data. Visit www.wylerag.com

Connected via cable (USB-C / USB-A) with a Windows computer

Note ♥: With the cable, you can update the firmware of the Clinotronic S via Windows computer.
The corresponding firmware loader can be found at www.wylerag.com

Seite 14 / 46

Manual Clinotronic S

5.2 Measurment bases

The device is equipped with four (4) measuring bases with flat measuring surfaces

Horizontal application
Measurement base above

Measurement base below

Vertical application

Measurement base left side Measurement base right side

Seite 15 / 46

Manual Clinotronic S

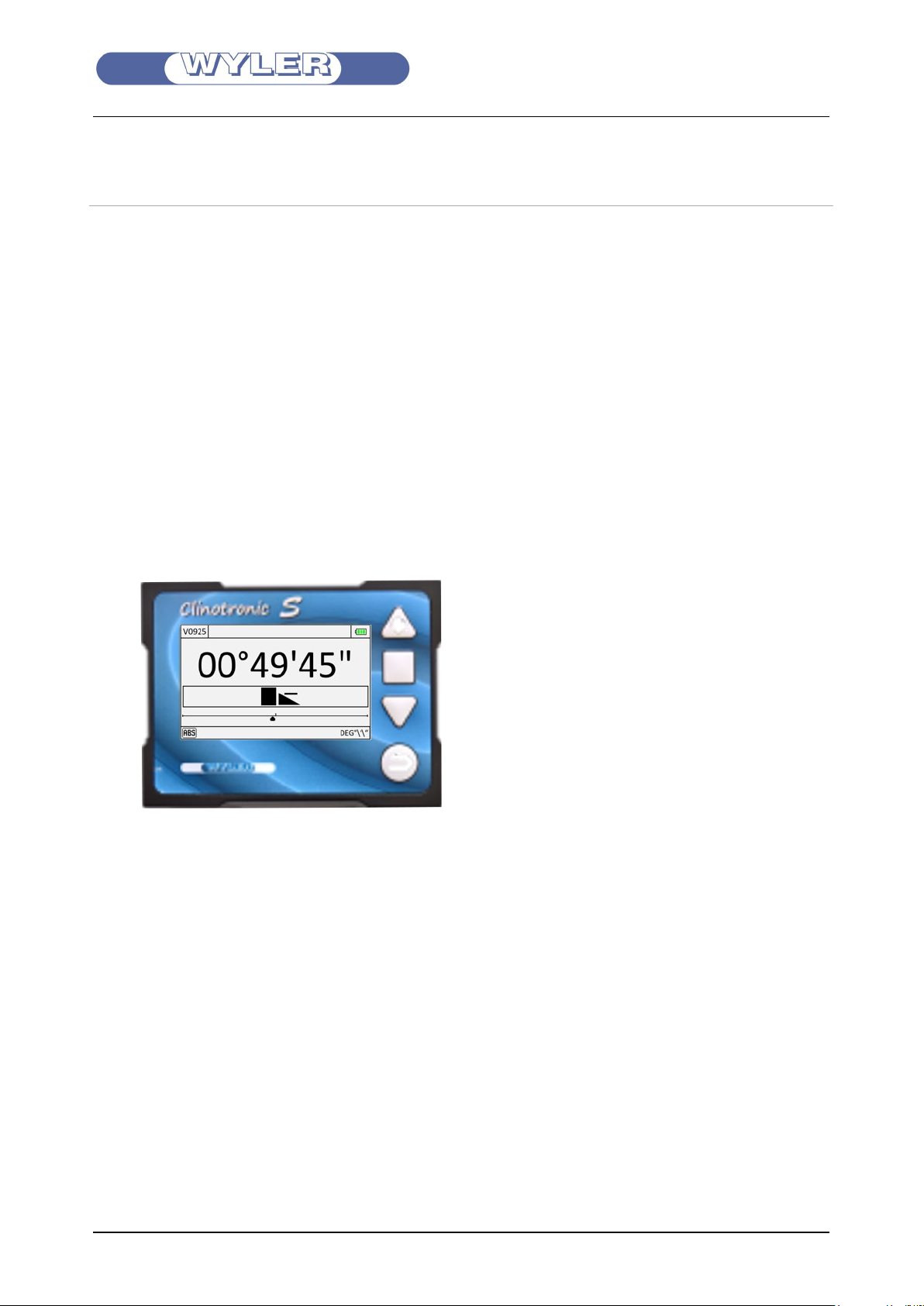

5.3 Screen overview and keyboard

• 1 Screen

• 2 Serial number; 2a IR number + 1 x flash when triggered

• 3 Display of value (depending on the selected unit)

• 4 Radio activated, not activated:

• 5 Charge indicator , empty , charging

• 6 Mode of measurement ABS = Absolute

Mode of measurement REL = Relative Zero (On-site relative zero)

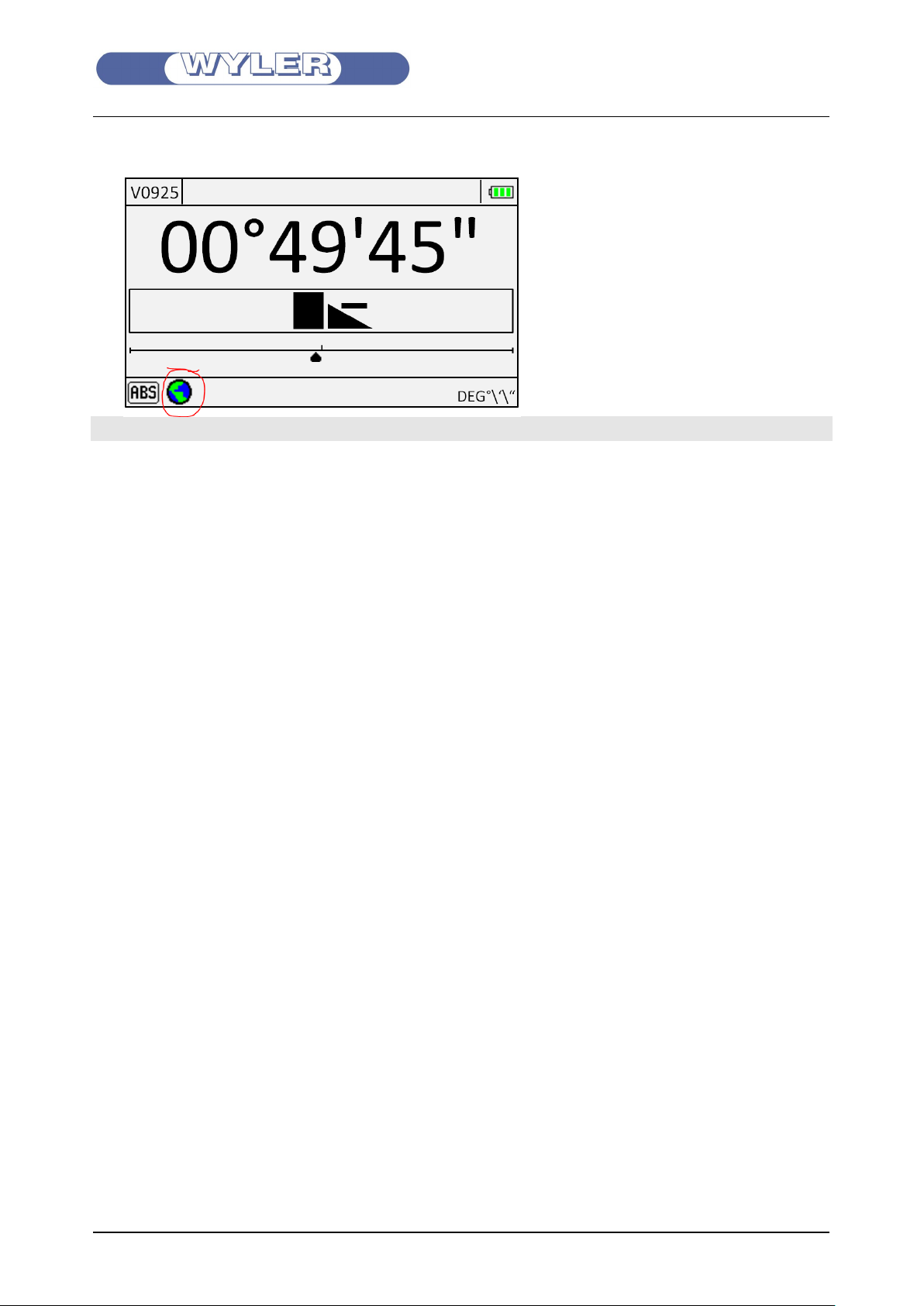

• 7 Local gravity is enabled

2

Standard value (9.8065 m/s

)

• 8 Calibration executed with wylerMASTER

• 9 Graphical display of the entire angle range

• 10 Graphical display of the angle range near zero

• 11 Gradient triangle and symbol plus / minus according to inclination

• 12 Unit (depending on the setting)

• 13 On/Off

within menu: Up arrow

• 14 Menu

within menu: Enter
within submenu: Move cursor to the right

• 15 Arrow down

Shortcut (press 2 seconds and release): "Relative Zero"

• 16 Back / Cancel

within Menu: Move cursor to the left

Seite 16 / 46

Manual Clinotronic S

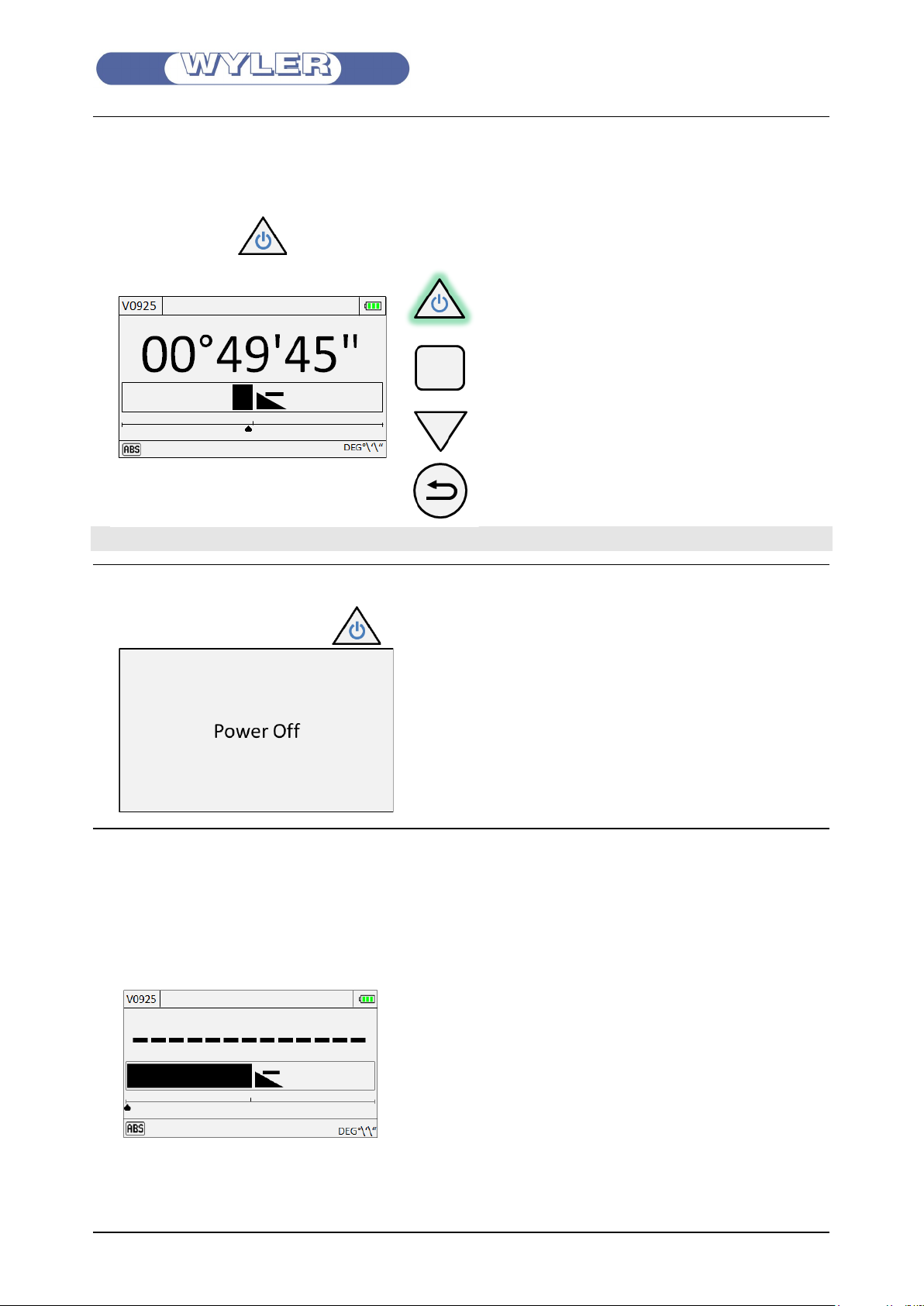

5.4 Switching on/off, measuring range

Switch On

• Press the button The screen starts immediately.

Note ♥:The device starts with the last used settings

Switch Off

• To switch off, press the button until the following message appears:

Release the button. The device is switched off.

Measuring range

• The measuring range at new state or after factory reset: ~ 46.5°

• After wylerMASTER calibration (see chapter 5.9.2.3) : 45°

Over range

The device stands in over range condition

Seite 17 / 46

Manual Clinotronic S

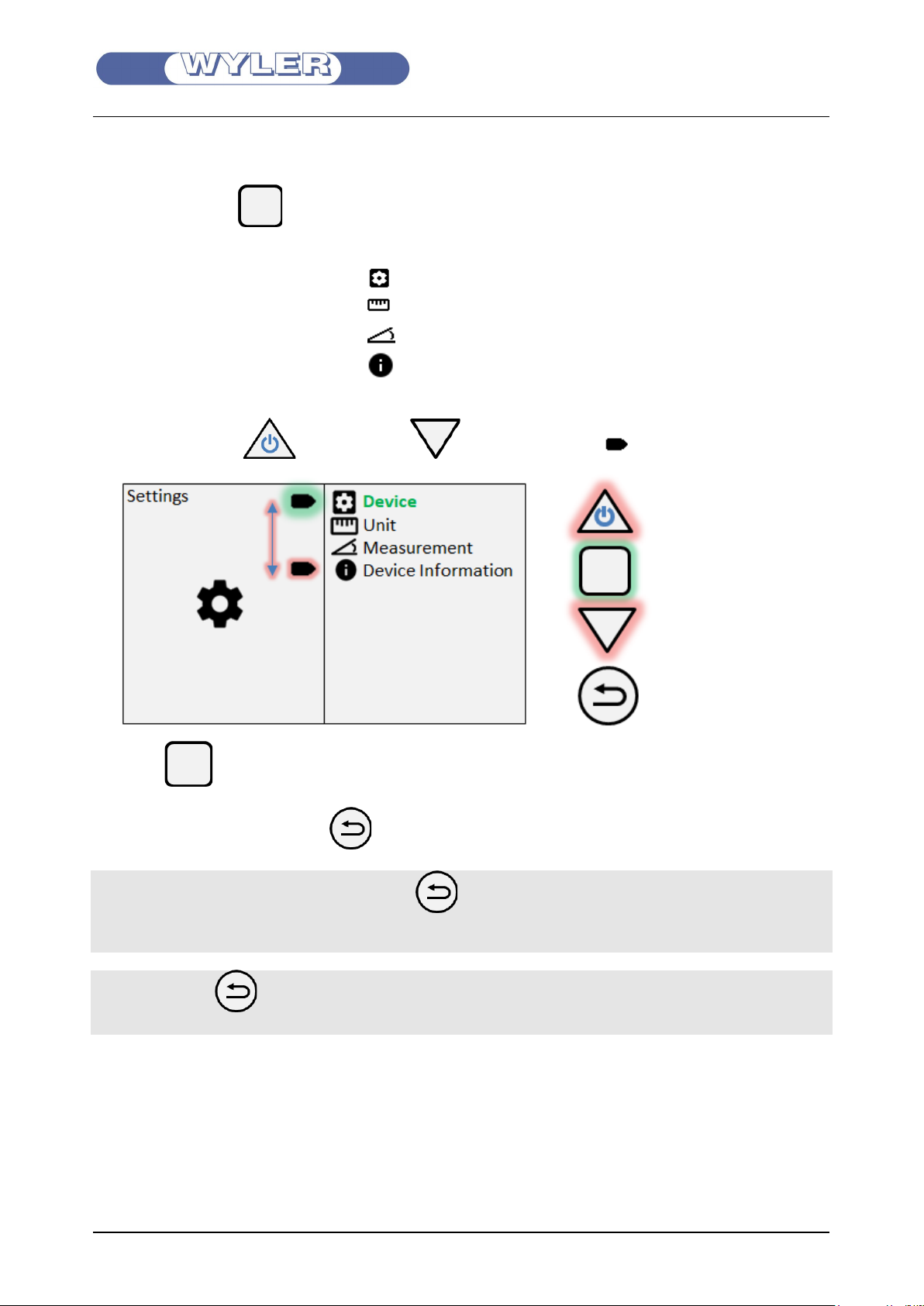

5.5 "Settings" menu, entry and exit

• Press the button to enter the "Settings" menu

In "Settings" contents:

Device .........................

Unit.............................

Measurement...............

Device Information........

• Use the up arrow and down arrow to move the cursor up und down.

• Using select the desired menu item in the menu. .

• With the button Back / Cancel you return to the measuring mode

Note ♥: With one or repeated clicks of you will return to the next highest level in the menu
until the measurement mode appears

Note ♥: With you can also cancel any function (such as Relative Zero, etc.)

Seite 18 / 46

Manual Clinotronic S

5.6 Settings in "Device"

Enter with into the "Settings" menu

• Use to select "Device"

• after that press:

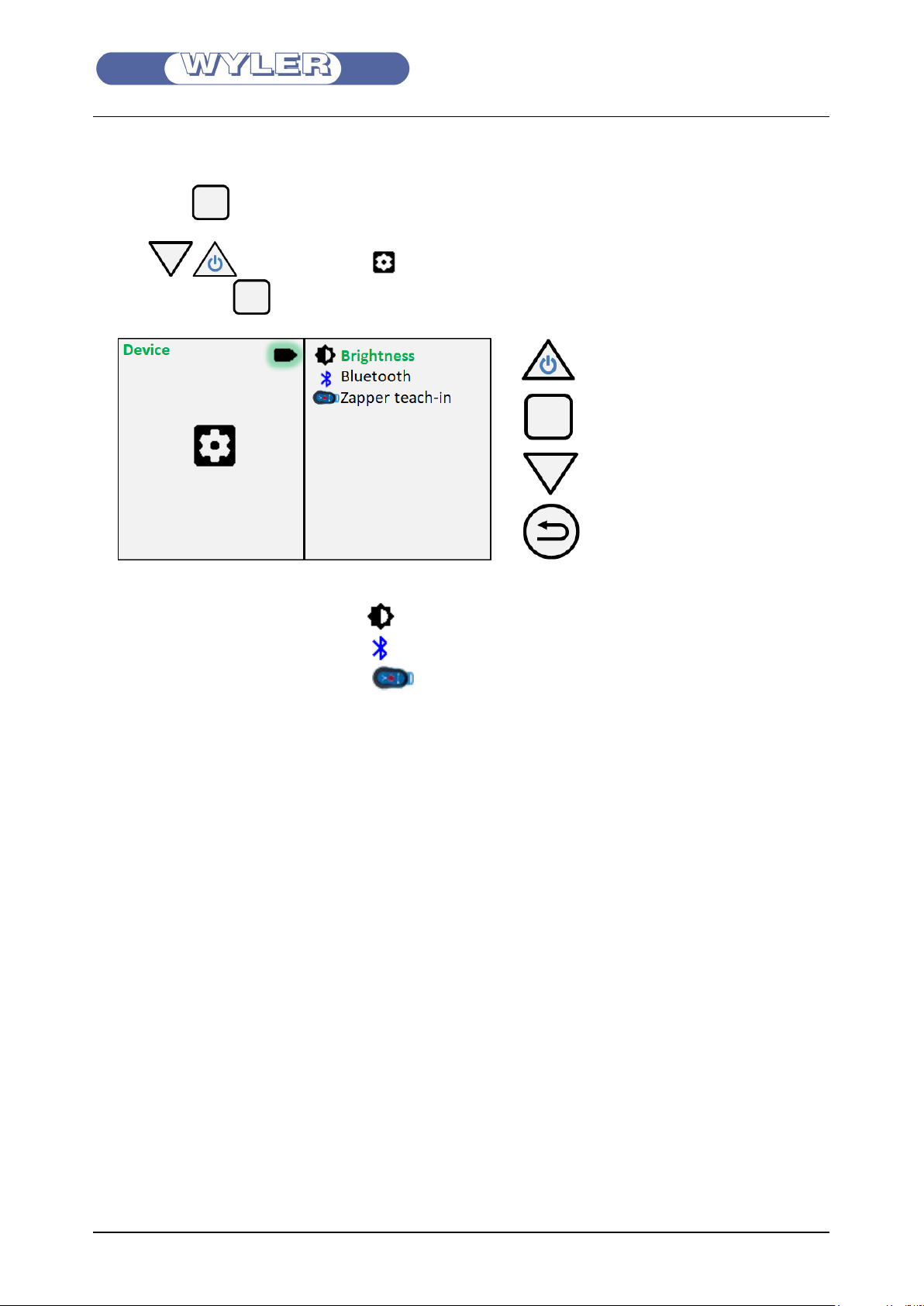

• "Device" contents:

Brightness .........................

Bluetooth.........................

Zapper teach-in...................

Seite 19 / 46

Manual Clinotronic S

5.6.1 Device: "Brightness"

• In the "Devices" menu, use and to select "Brightness"

• Use to select the desired brightness:

Off

Medium

High

• Confirm your choice with

or

• cancel with

Note ♥: In both cases you will jump back to the "Device" menu

Attention !: As the brightness level increases, the unit consumes more power.

Seite 20 / 46

Manual Clinotronic S

.

5.6.2 Devices:"Bluetooth"

• In the "Devices" menu, use and to select "Bluetooth"

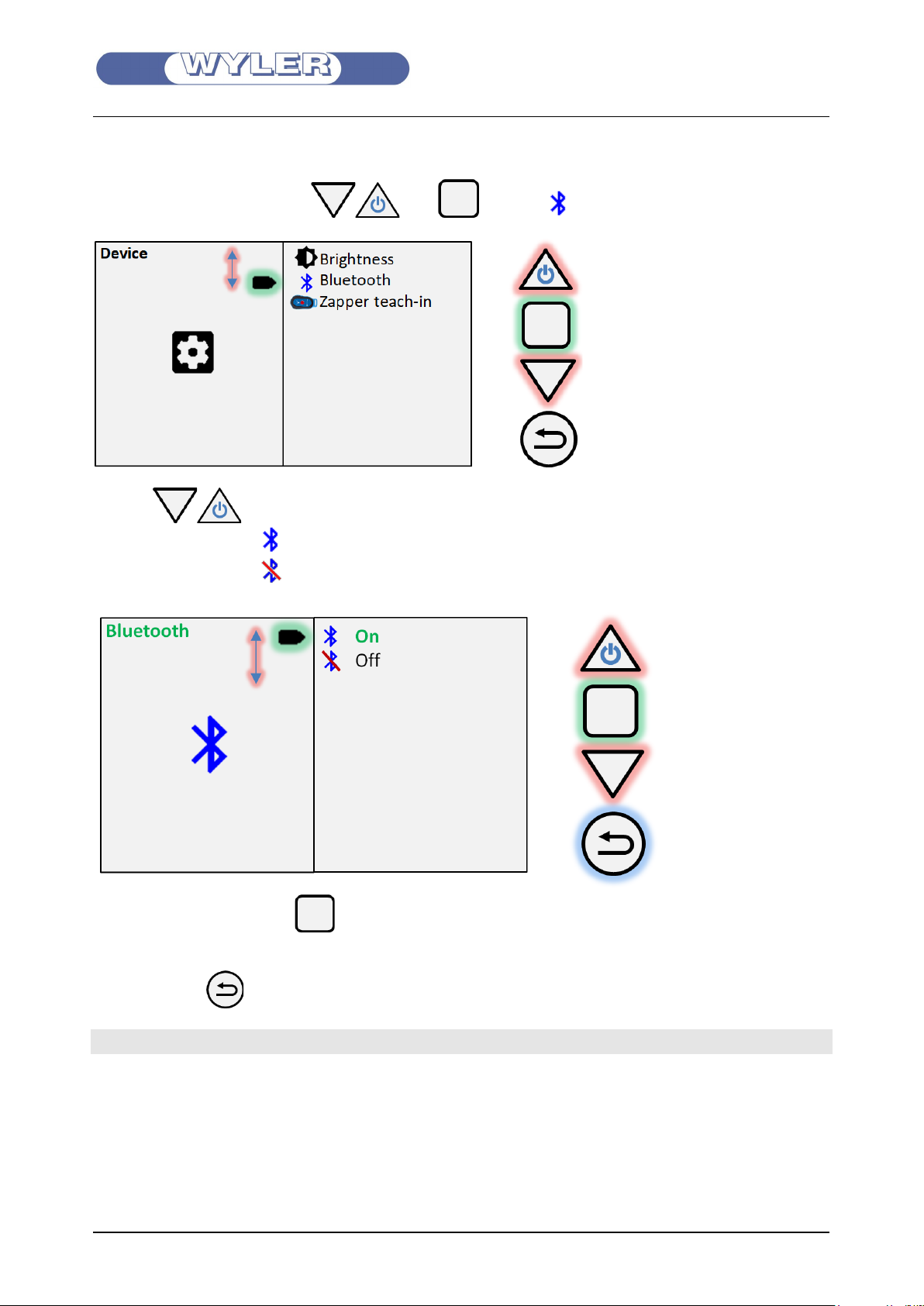

• Use to select the desired setting:

On

Off

• Confirm your choice with

or

• cancel with

Note ♥: In both cases you jump back to the "Device" menu

Seite 21 / 46

Manual Clinotronic S

5.6.3 Zapper teach-in

• In the "Devices" menu use and to select

"Zapper teach-in"

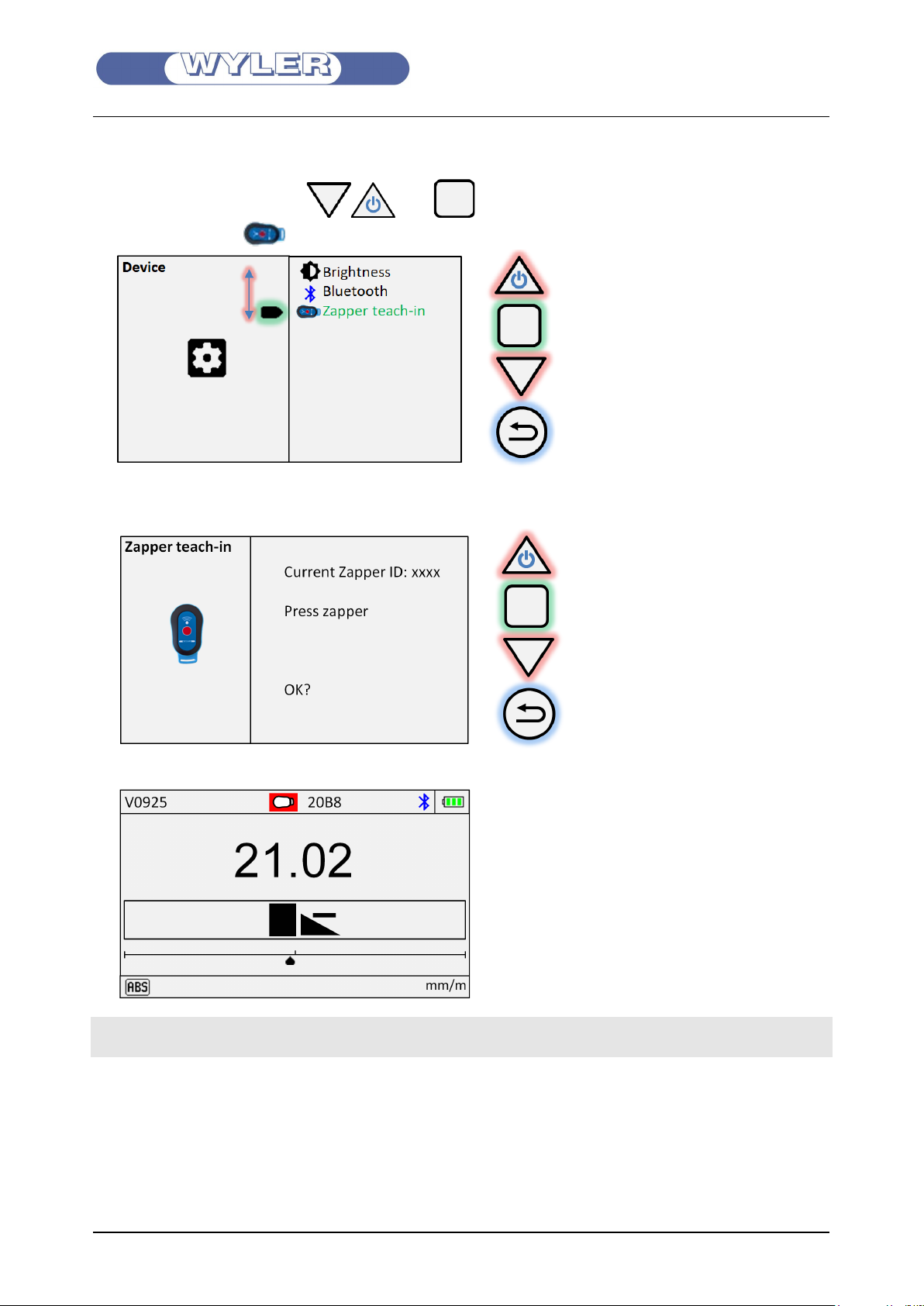

• Press the zapper (Infrared trigger) until "OK" appears.

• The zapper (Infrared trigger) is identified.

• When the zapper is pressed, the IR number appears in the top line for 1 second

Note ♥: You can "Teach-in" several devices with the same Zapper
Application: Alignment with multiple devices simultaneously

Seite 22 / 46

Manual Clinotronic S

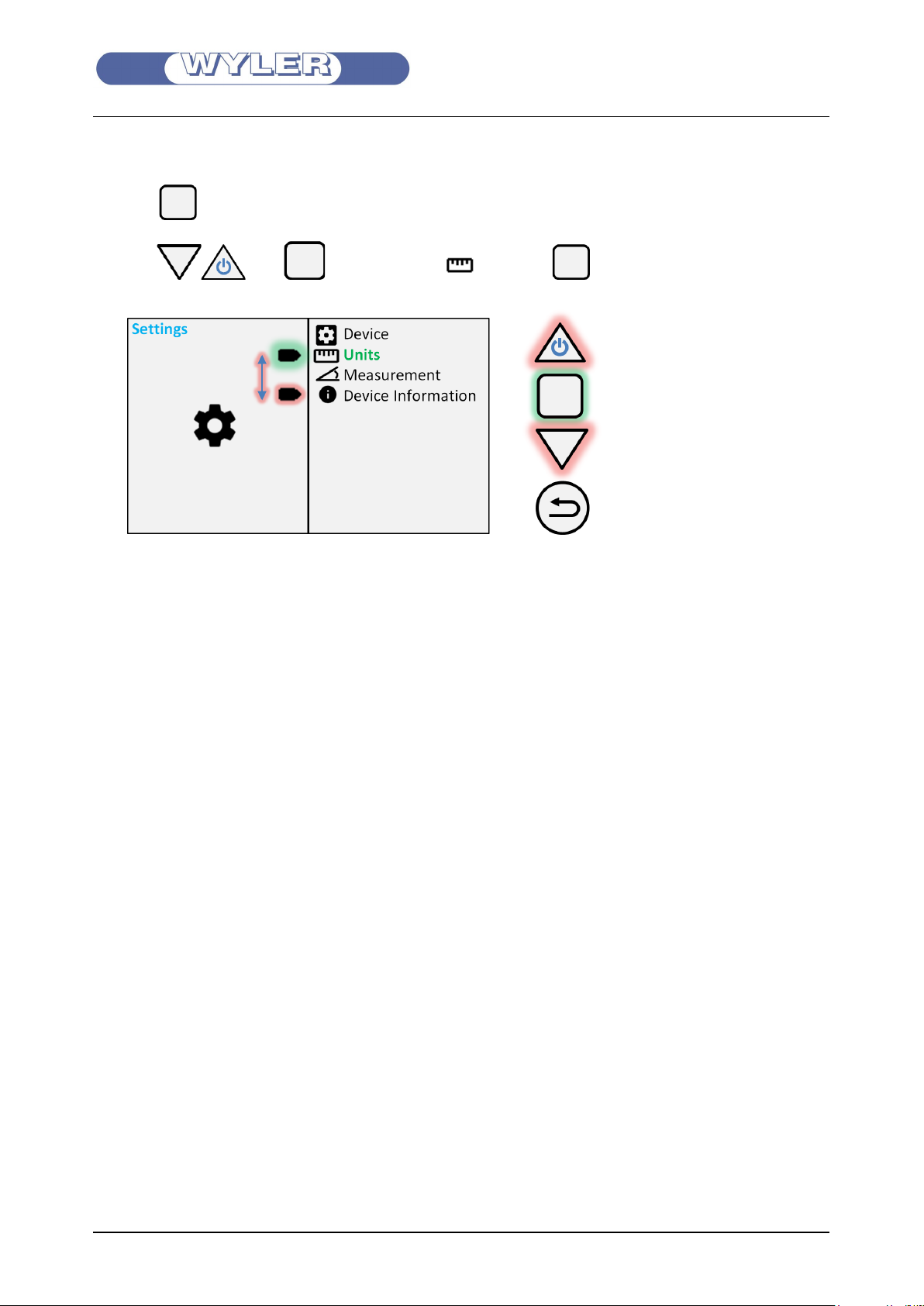

5.7 Settings in "Units"

Use to enter the "Settings" menu

• Use and to select "Units" , after that:

"Units" contents:

Unit digits Explanation

• DEG°\′\″ ## ° ## ' ## " Degree - Minute - Second

• DEG° ## . ### Degree decimal

• mm/m ### . ## Millimeter per Meter

• "\10" ## . #### Inch per 10 Inch

• "\12" ## . #### Inch per 12 Inch

• mRad ### . ## Milliradiant

• Percent % ### . ### Percent %

• per mille

#### . ## Per mille ‰

• Gon ## . ### 400 gon = 360°

• Artillery Promille ### 1 A‰ = 360° / 6400

• mm/1435 mm #### .## Millimeter per self-selected base length in mm

(Preset: mm/1435mm, European standard gauge)

• "/10.00" ### . ### Inch per self-selected base length in inch

• Slope:1/xxx 1/##### bis 1/#.#### Slope / Sink parameter (without unit)

Seite 23 / 46

Manual Clinotronic S

5.7.1 "Units"

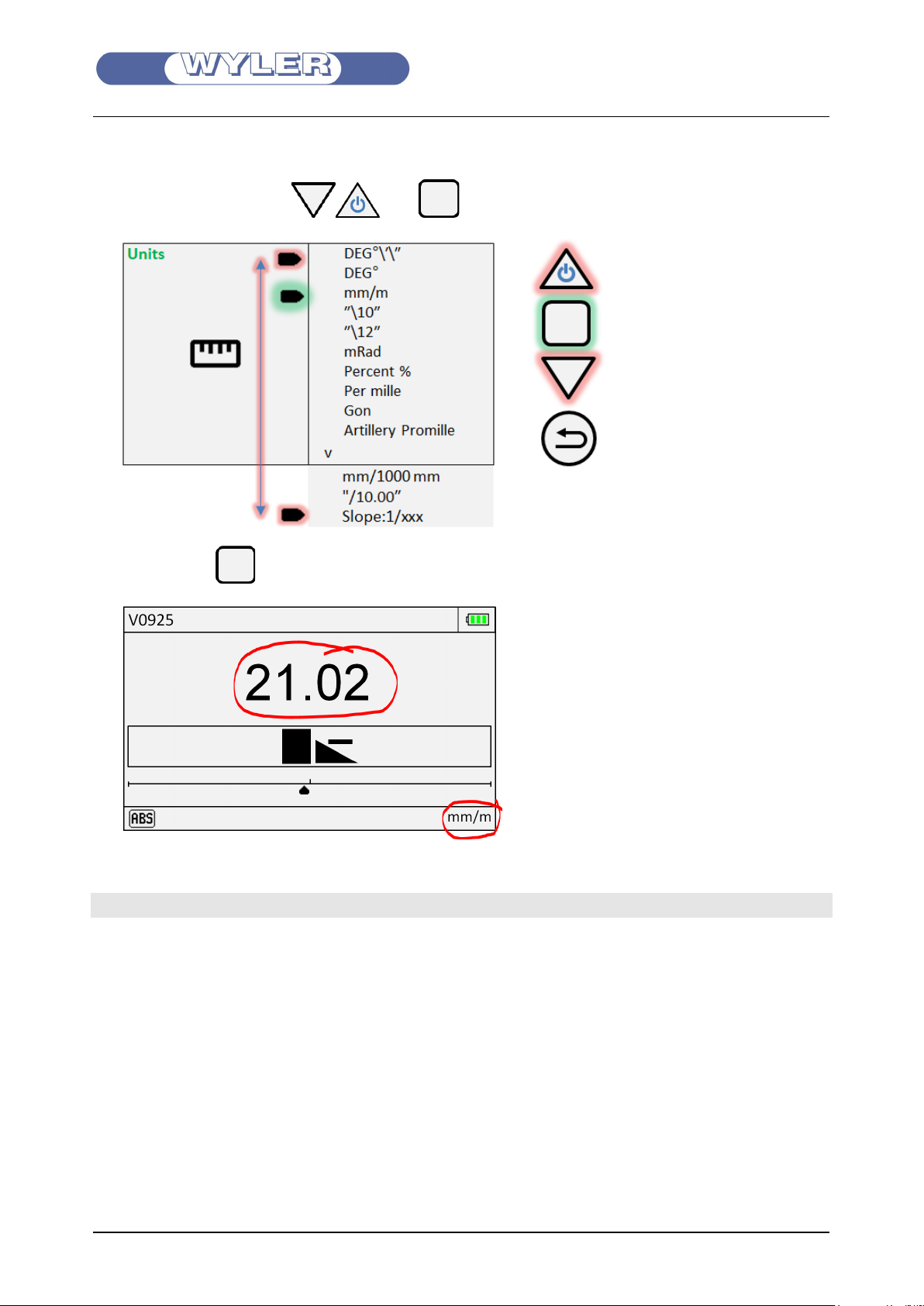

• In the "Units" menu use and to select the desired unit

• Confirm with e.g.: mm/m

The digits and the unit adjusts according to your choice

Note ♥: Always check the unit at the beginning of a measurement!

Seite 24 / 46

Manual Clinotronic S

5.7.2 Self-selected base mm/xxxx mm

Note ♥: The unit mm/xxxxmm allows a freely selectable base length

• In the "Units" menu use and to select mm/1435mm

Note ♥: 1435 is the last selected value, hence it may be different.

Value adjustment menu:

 Navigate with

to the right

to the left

 The value of the numbers change with

in the direction of

in the direction of

+

-

 Finish the input with at the last digit
 In measuring mode, the modified unit appears at the bottom right

Note ♥: The modified base also appears in the "Units" menu
Note ♥: Correspondingly, proceed with the unit "/10.00" (inches per selected base length in inches)

Seite 25 / 46

Manual Clinotronic S

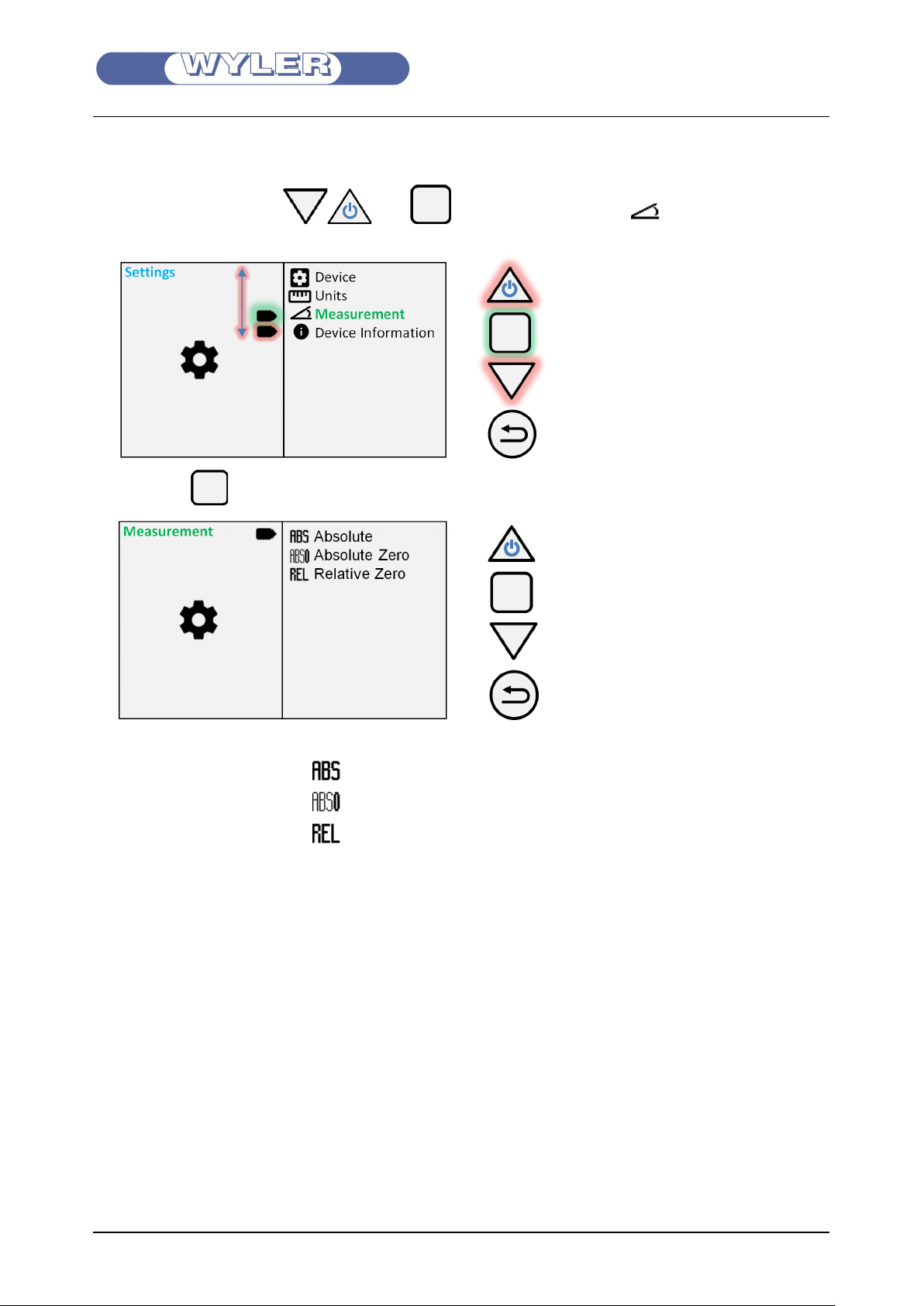

5.8 Type of Measurement

In the "Devices" menu use and to select "Measurements"

• after that:

• The "Measurement" menu contents:

Absolute............... uses last measured zero deviation

Absolute Zero ....... triggers reversal measurement (zero deviation)

Relative Zero.......... current position becomes reference level (relative zero)

Seite 26 / 46

Manual Clinotronic S

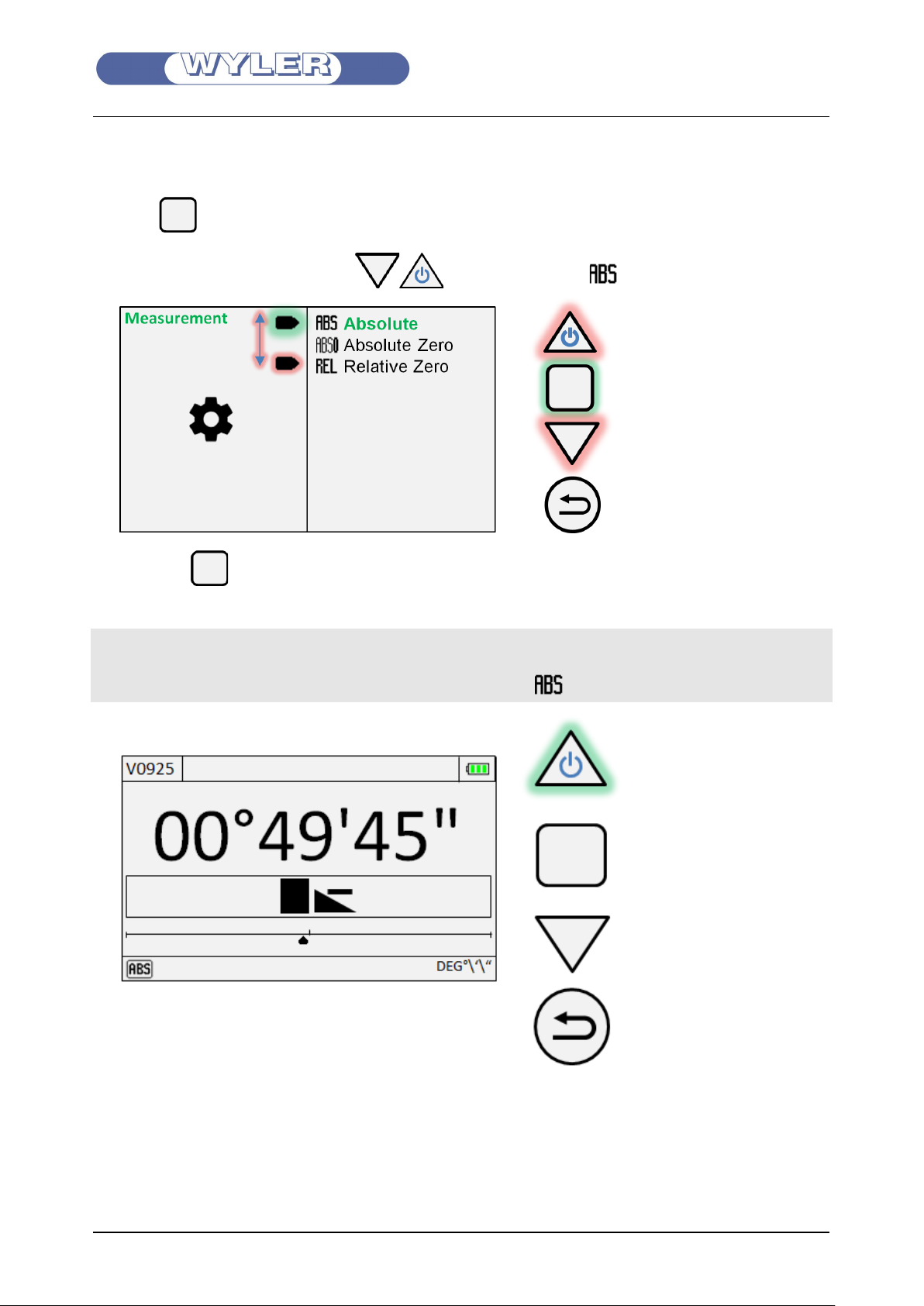

5.8.1 Absolute measurement

Use to enter the "Measurement" menu

• In the "Measurement" menu, use to select "Absolute"

• after that:

• The device returns to the measurement mode

Note ♥: How to use: Device is in Relative Zero mode.
The last zero offset will be used now

The measurement mode returns to "Absolute"

Seite 27 / 46

Manual Clinotronic S

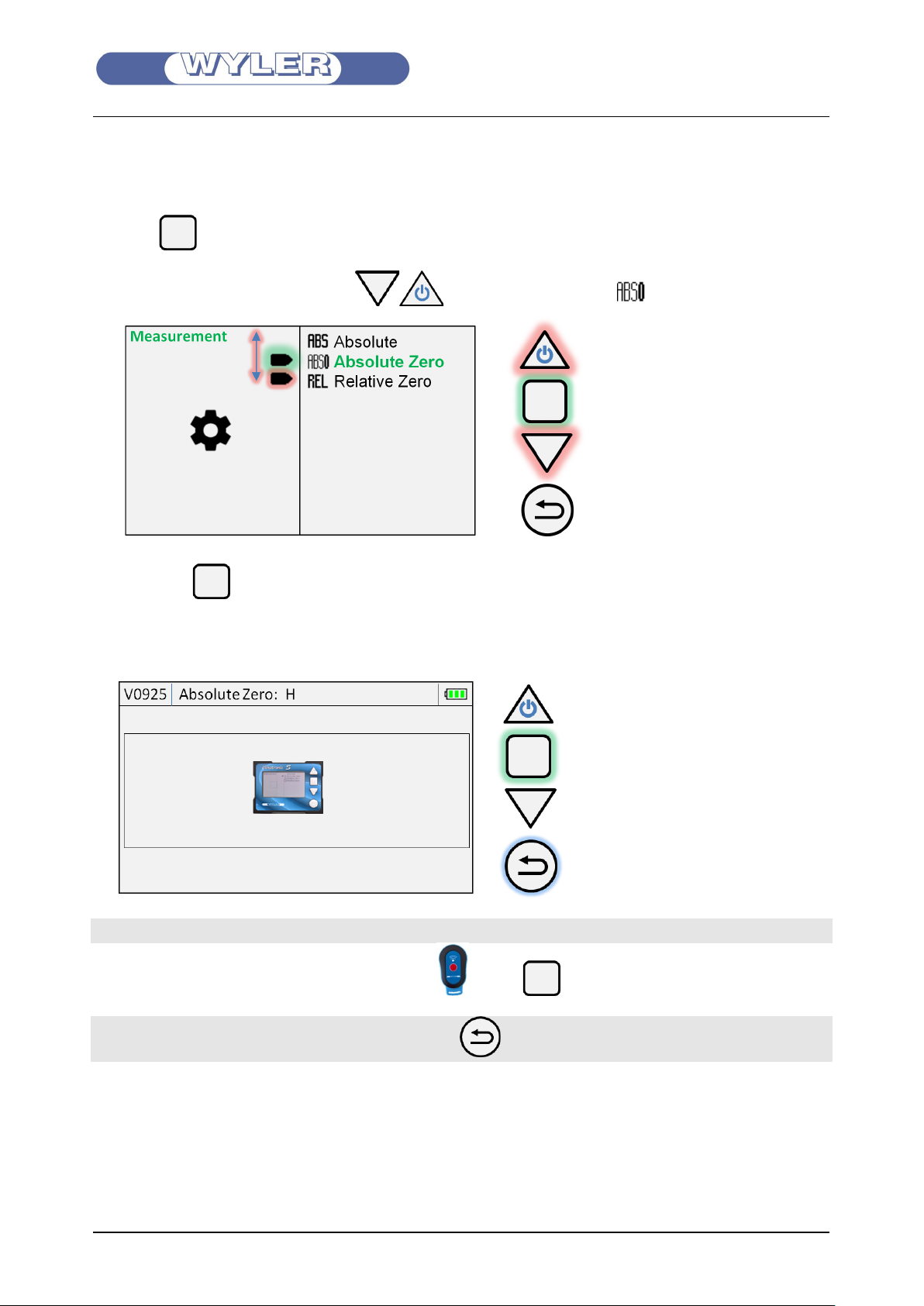

5.8.2 Reversal measurement "Absolute Zero"

Use to enter the "Measurement" menu

• In the "Measurement" menu, use to select "Absolut Zero"

after that:
The menu now guides you through the reversal measurement

• Place the device on a flat and stable surface. → Position H

Note ♥: To get a reliable reversal measurement, the plateau should be aligned within +/- 0.06mm

• Trigger the measurement H with the IR trigger or with

Note ♥: You can cancel this process at any time with and return to the measurement screen

Seite 28 / 46

Manual Clinotronic S

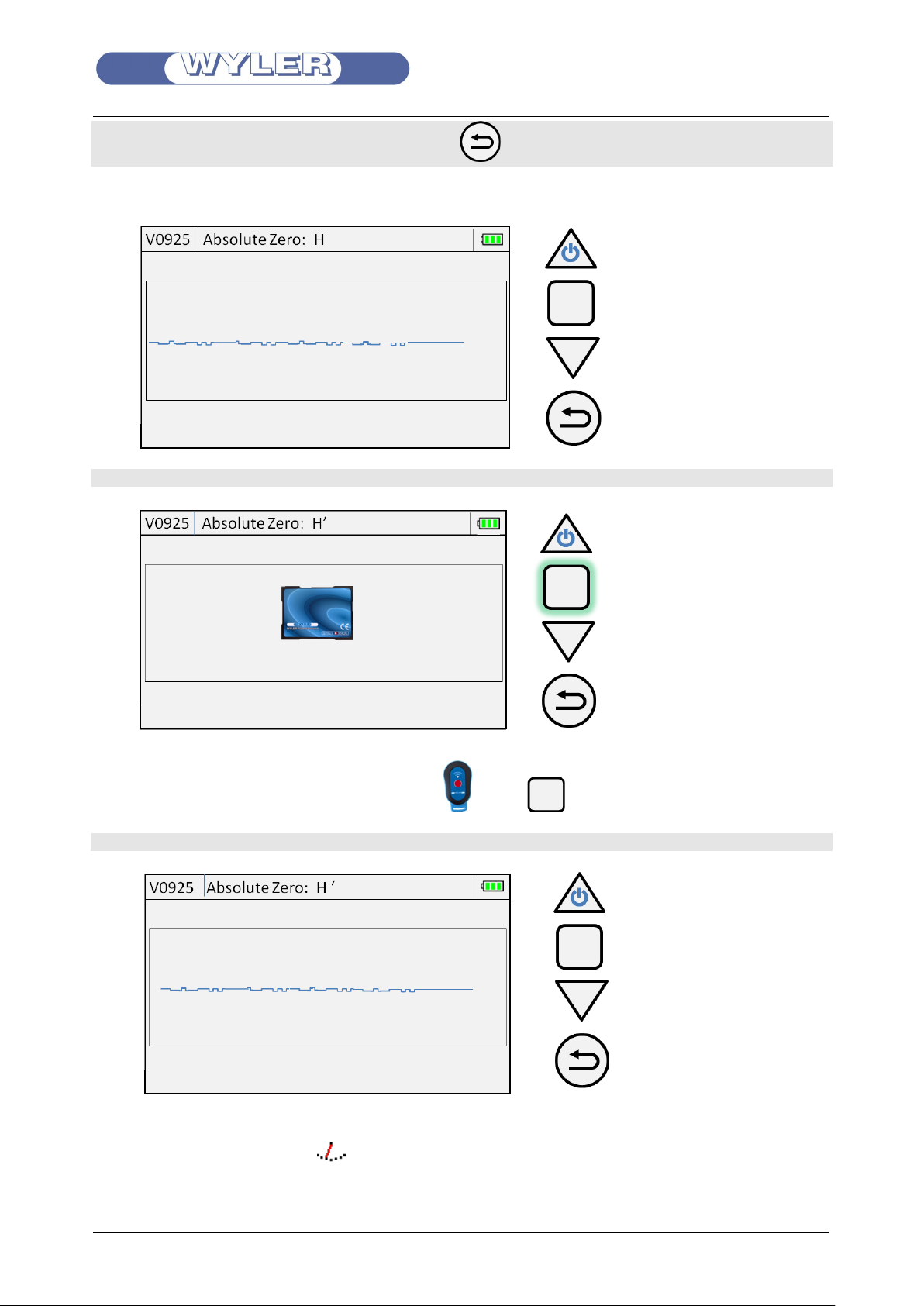

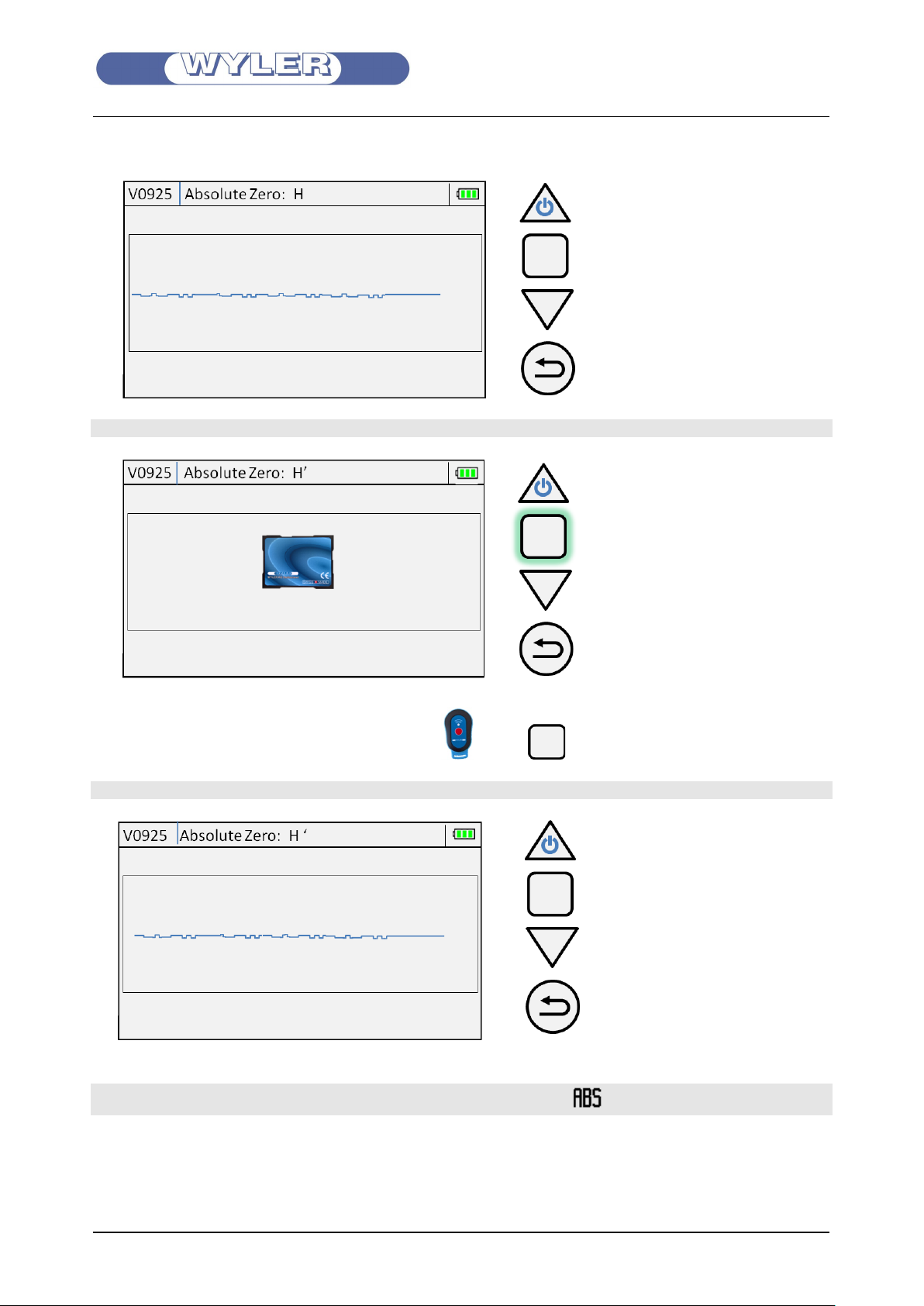

Please wait, the device records a stable value H.

Attention !: Please do not touch the device until the measured value is recorded!

Now turn the device at the same position by 180°. → Position H

'

• Trigger the measurement H' with the IR trigger or with

Attention !: Please do not touch the device until the measured value is recorded!

The device returns to the measuring mode immediately after reading the measured value H

Attention !: The measurement mode "Relative Zero" is displayed with at the bottom left

'

Seite 29 / 46

Manual Clinotronic S

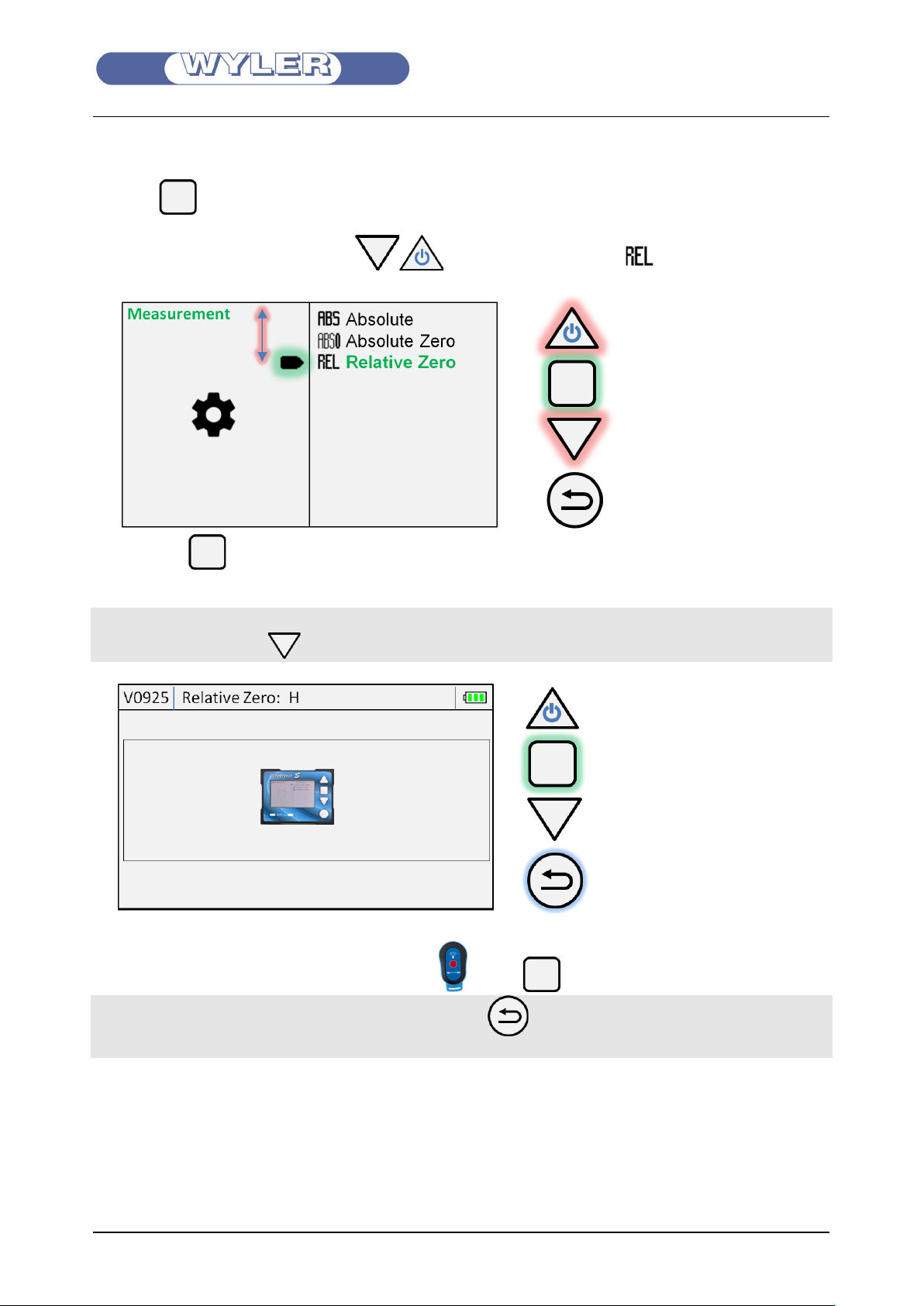

5.8.3 Temporary reference level "Relative Zero"

Use to enter the "Measurement" menu

• In the "Measurement" menu, use to select "Relative Zero"

after that:
The menu now guides you through the reversal measurement "Relative Zero"

• Note ♥: Shortcut! You can choose "Relative Zero" directly from the measurement mode by

pressing the button for 2 seconds and then releasing

• Place the device on a flat and stable surface. → Position H

• Trigger the measurement H with the IR trigger or with

• Note ♥: You can cancel this process at any time with and return to the measurement screen

Seite 30 / 46

Manual Clinotronic S

Please wait, the device records a stable value H.

Attention !: Please do not touch the device until the measured value is recorded!

The instrument will return to measuring mode immediately after reading the measured value

H.

Attention !: The measurement mode "Relative Zero" is displayed with at the bottom left

The device has now set the current level to relative zero

Note ♥: Around the zero position, the inclination triangle including the algebraic sign can alternate between
+ and -.
This is not a malfunction.

Seite 31 / 46

Manual Clinotronic S

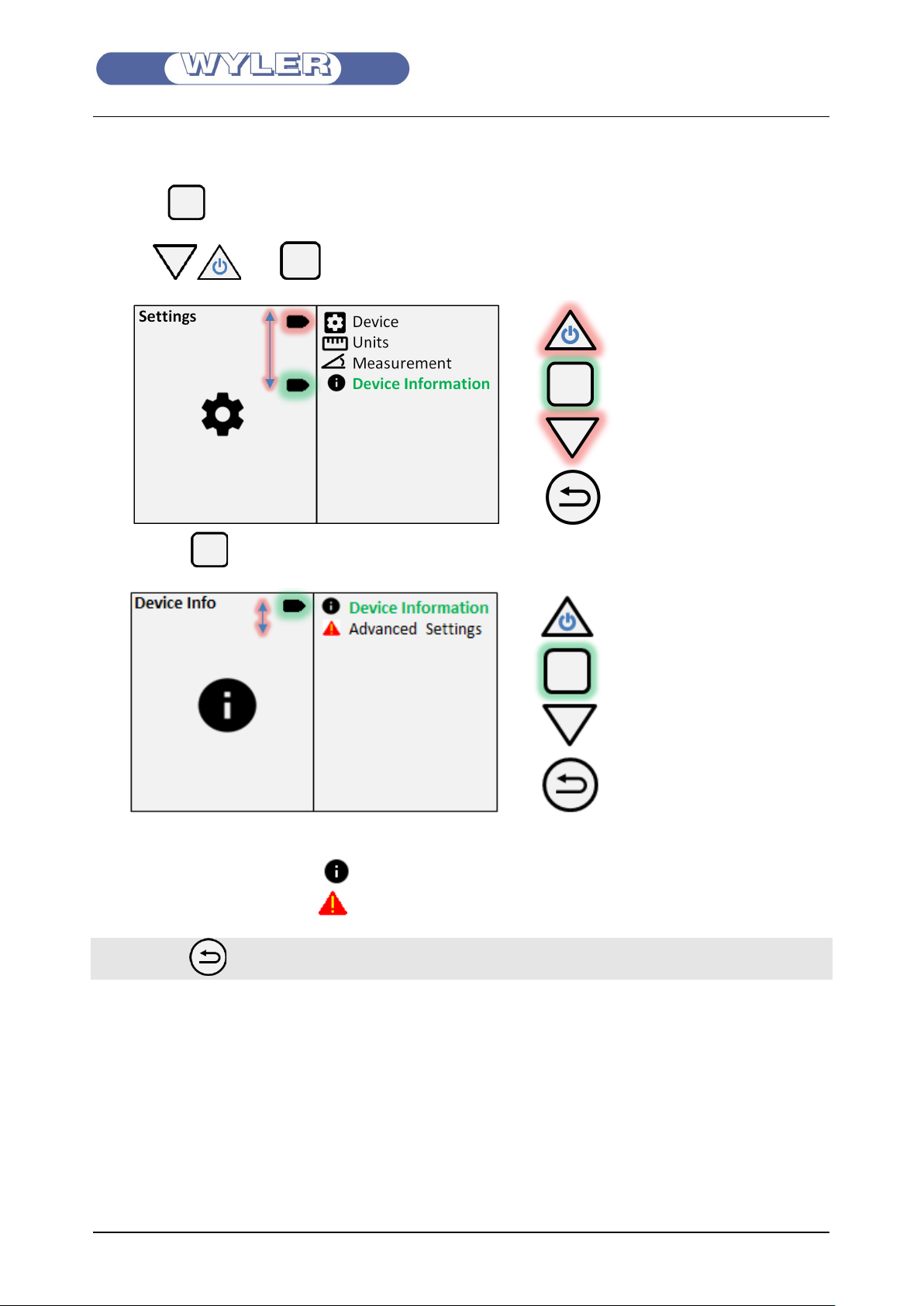

5.9 Device Info

Use to enter the "Settings" menu

• Use and to select "Device Information"

• after that:

• "Device Info" contents:

Device Information Firmware etc.

Advanced Settings

Note ♥: With you return to the "Settings" menu.

Seite 32 / 46

Manual Clinotronic S

5.9.1 Device Info

Use to enter the "Device Information" menu

List of internal data.
The firmware version changes when a firmware update has been made.

• Note ♥: With you return to the measurement mode.

Seite 33 / 46

Manual Clinotronic S

5.9.2 Advanced Settings

Use to enter the "Device Information" menu

• Use to select Advanced Settings, after that press:

Use to select "Yes"
Attention !: This procedure prevents accidental mishandling.

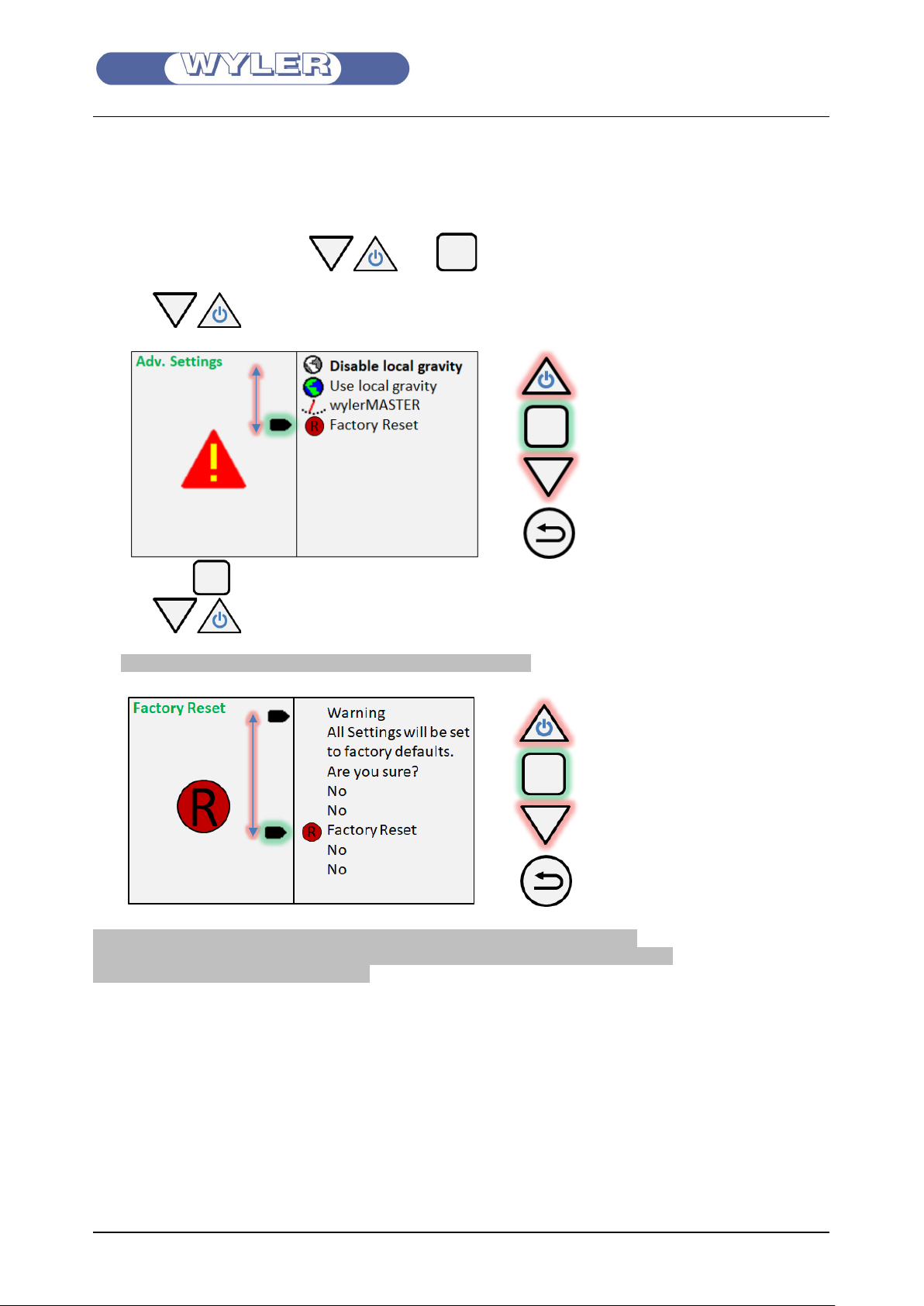

Attention !: In this menu, calibration data is affected!
If you have any questions, please contact our local representative.

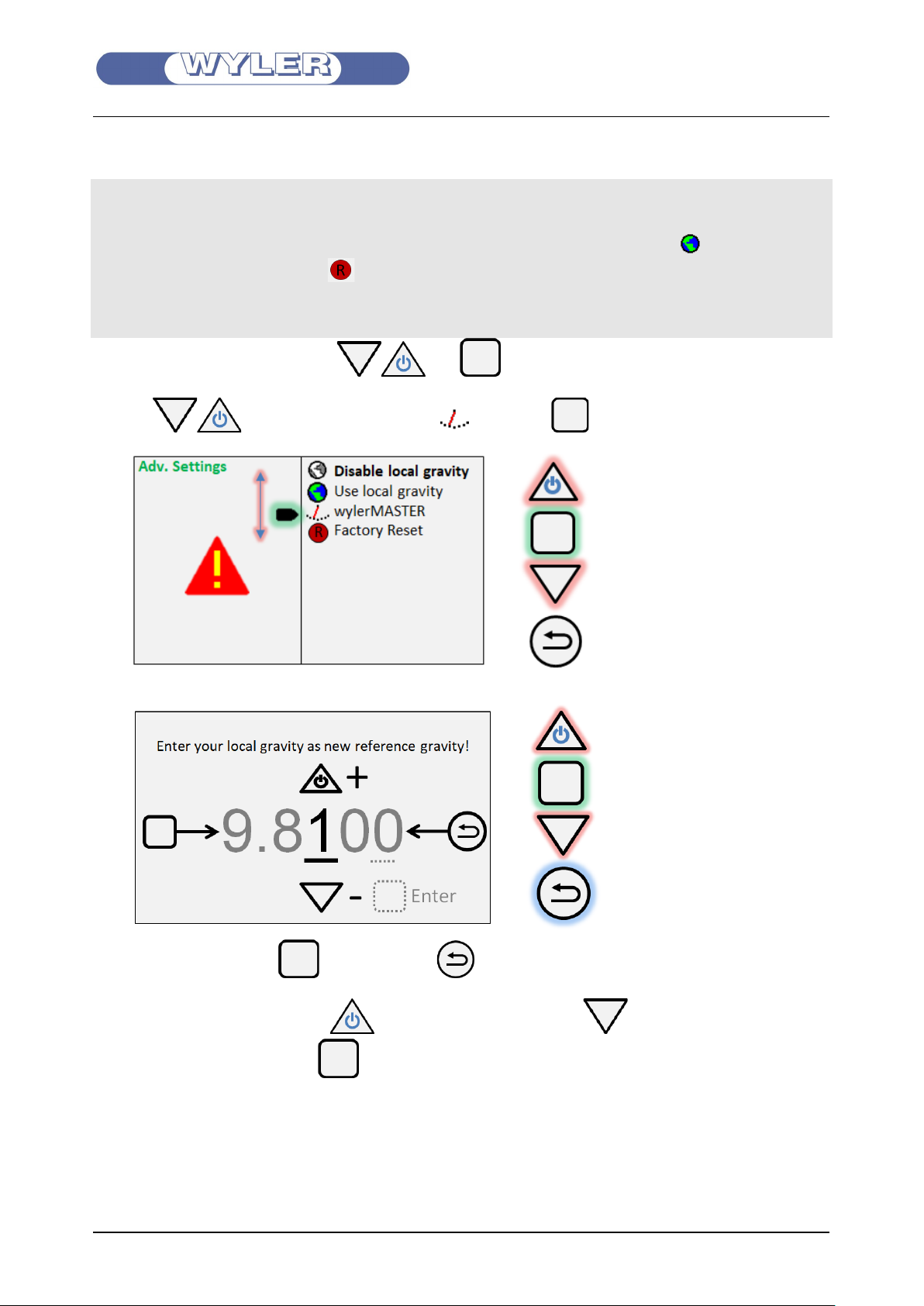

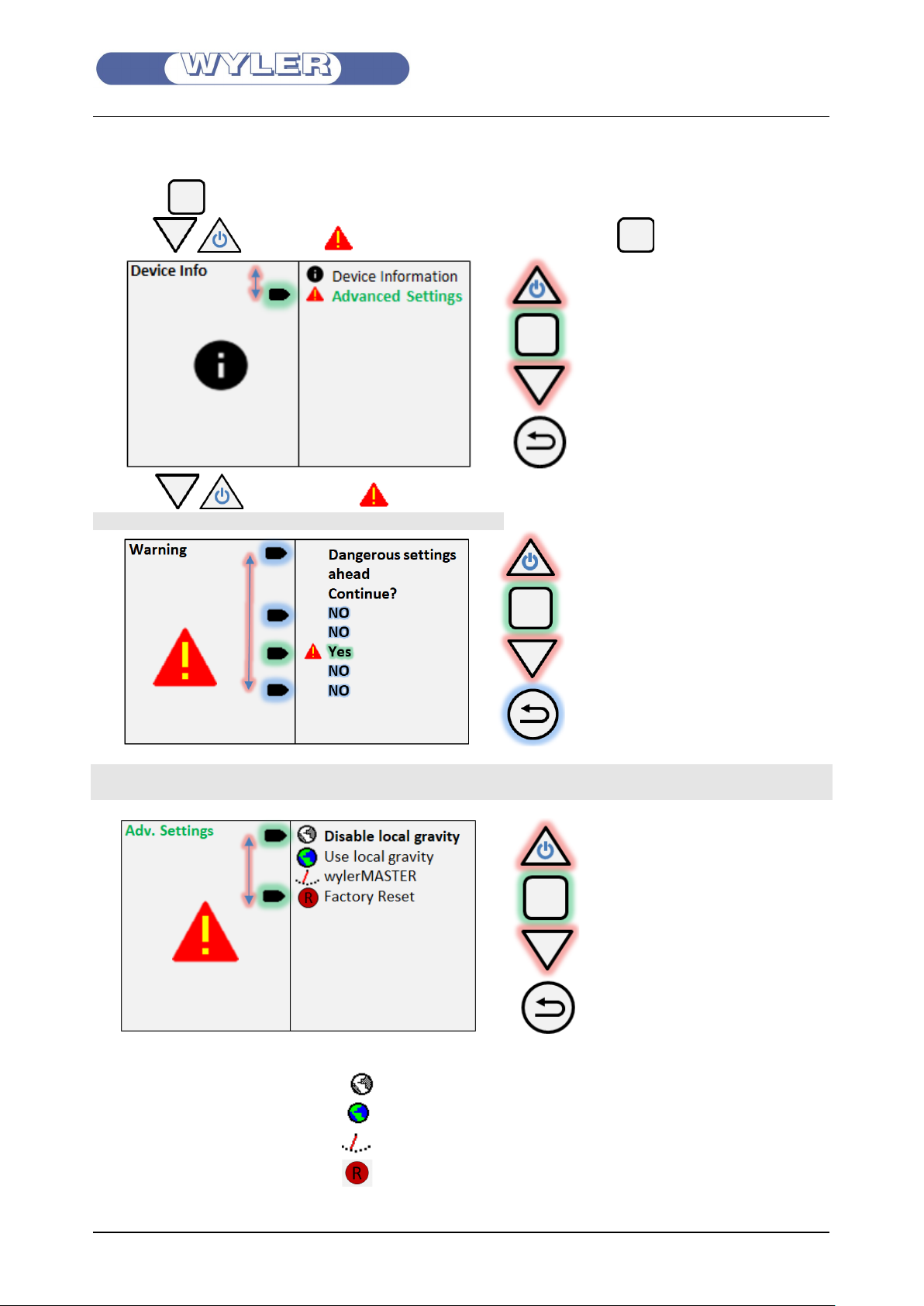

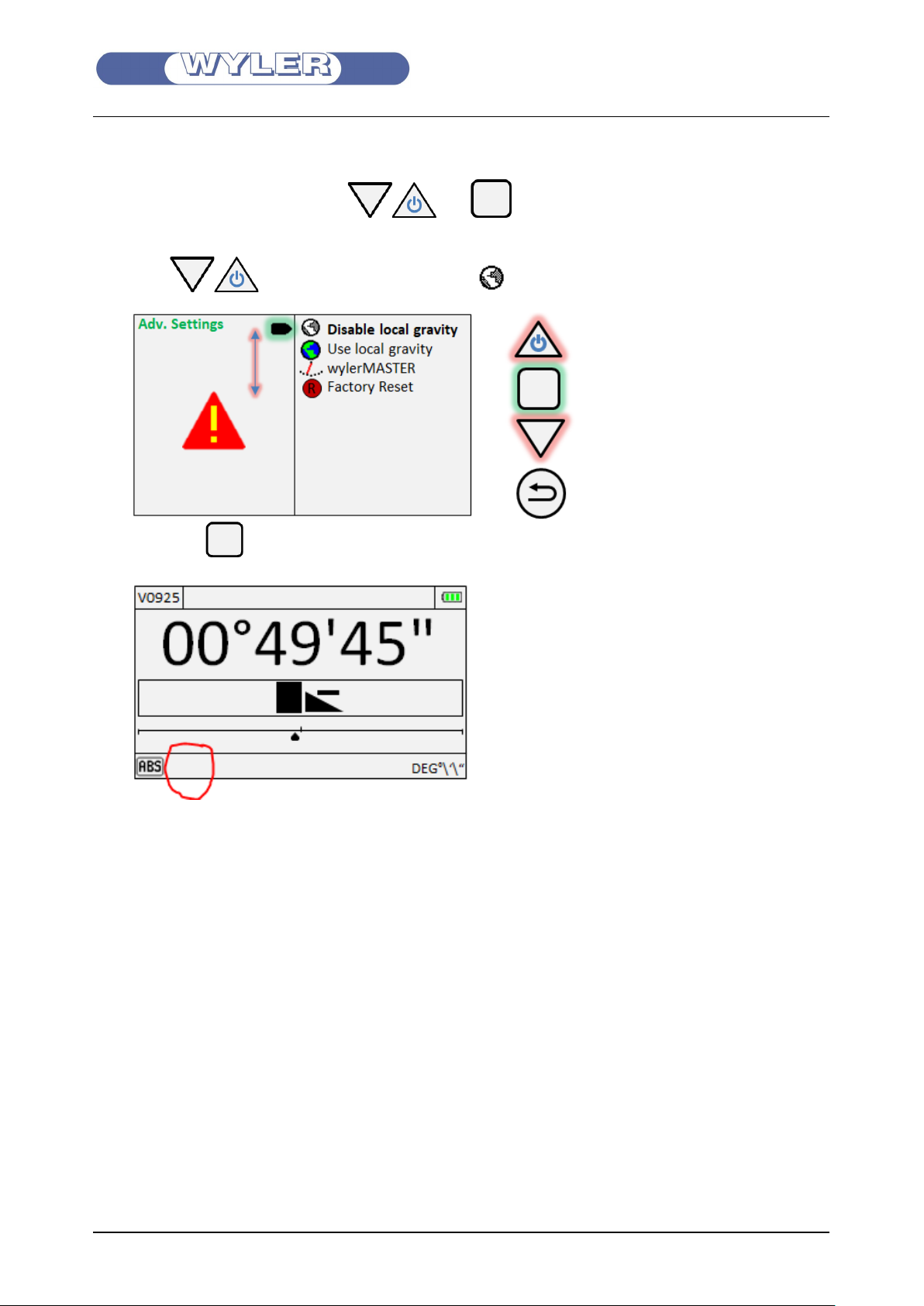

"Adv. Settings" contents:

Disable local gravity........ Reset local gravity to default 9.8065 m/s

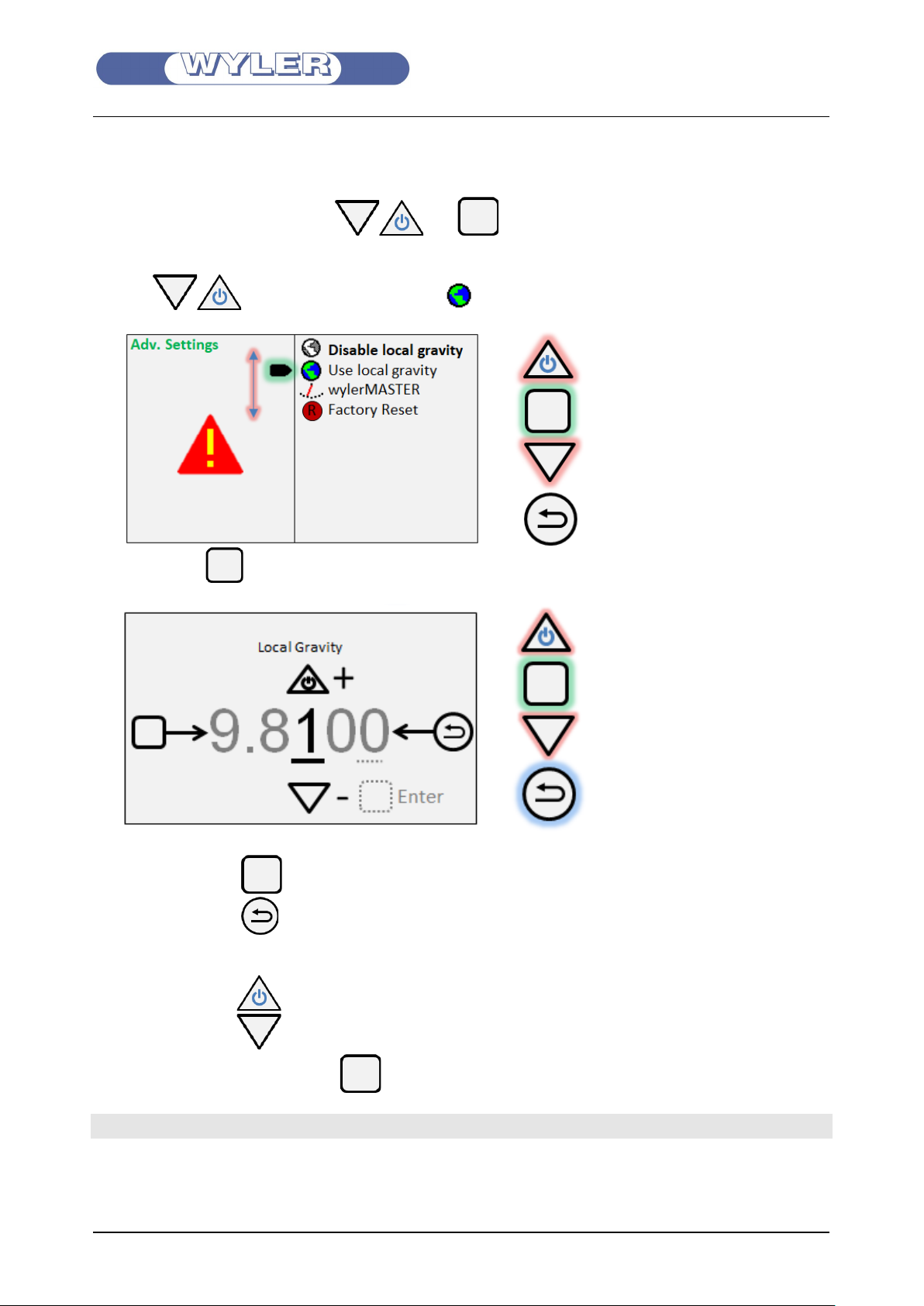

Use local gravity............. Set local gravity

wylerMASTER............... Calibration with wylerMASTER (not included)

Factory Reset................ Back to factory settings

2

Seite 34 / 46

Manual Clinotronic S

5.9.2.1 Use Local gravity

In the "Device info" menu, use and to select "Advanced Settings".

• Use to select "Use local gravity"

after that:

 Navigate with

to the right

to the left

 The value of the numbers change with

in the direction of

+

in the direction of

 Finish by using at the last digit

Note ♥: The values can only fluctuate between 9.7xxx and 9.8xxx

-

Seite 35 / 46

Manual Clinotronic S

The device returns to measuring mode.

Note ♥: The measurement mode shows the globe symbol as a sign of using the local gravity

Seite 36 / 46

Manual Clinotronic S

5.9.2.2 Disable local gravity

In the "Device info" menu, use and to select "Advanced Settings".

• Use to select "Disable local gravity"

after that:

The globe icon disappears, indicating that the value of 9.8065 is restored.

Seite 37 / 46

Manual Clinotronic S

5.9.2.3 wylerMASTER calibration

Attention!: A calibration with the wylerMASTER requires the input of your local gravitation constant.
It becomes the new reference!

This makes it possible to continue to use the item "Use local gravity"!

With factory reset you can return to factory settings.

Attention !: The wylerMASTER itself must stand on a stable and flat surface, aligned within
+/- 0.06mm in x and y direction. T = 20 °C +/- 2 °.

• In the "Device info" menu, use and to select "Advanced Settings".

• Use to select "wylerMASTER" , after that

• Enter your local gravitational constant.

o Navigate with to the right, with to the left

o Change the value with in the direction of +, and with in the direction of -

o Finish the input with at the last digit.

Seite 38 / 46

Manual Clinotronic S

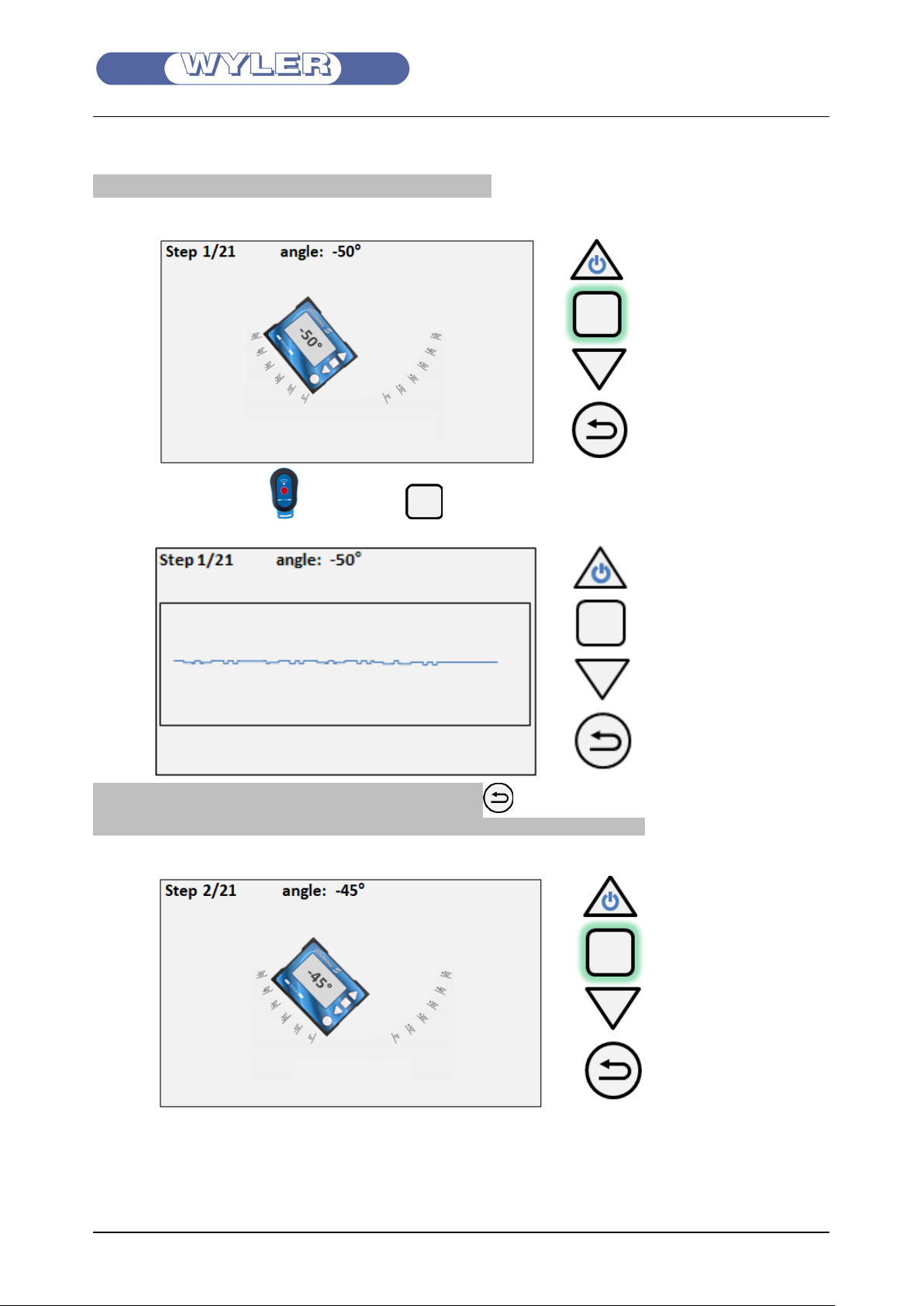

The calibration begins:

Note ♥: The menu will guide you through the process.

• Position the device on the wylerMASTER in position 1/21: - 50 °

With the trigger or by pressing start the measurement.

Note ♥: You can cancel the calibration at any time with
The last calibration is retained. The device returns to measuring mode.

After successful measurement, position 2/21 is displayed at

- 45 °

Seite 39 / 46

Manual Clinotronic S

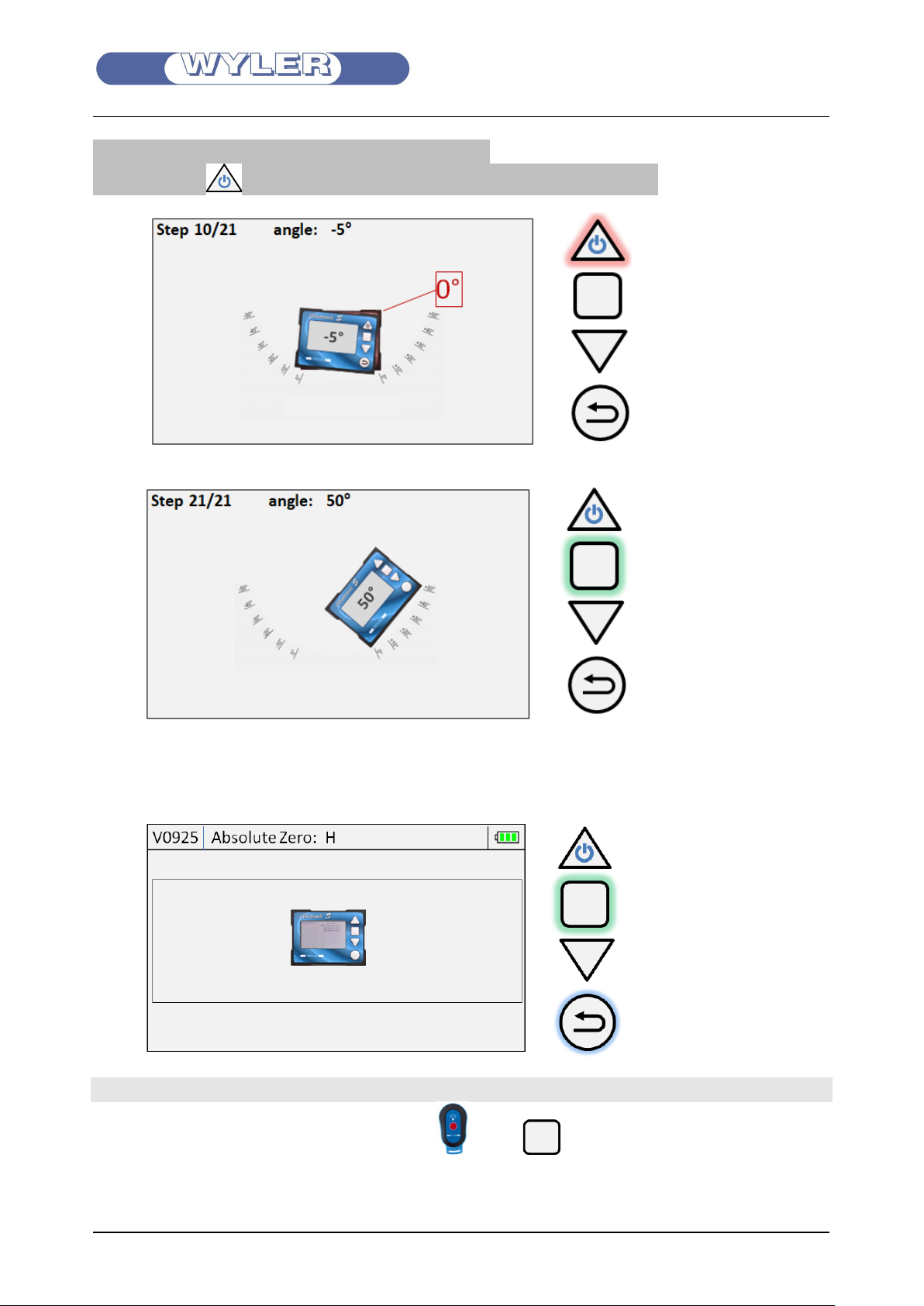

Note♥: You can measure a failed calibration point again.

Press the last measurement is canceled. E.g. from O ° back to -5 °

• Carry out the calibration according to the above steps until the 21st (last) measurement.

• After step 21, the calibration is completed. Now the

reversal measurement (Absolute Zero) automatically follows. Follow the instructions.

• Place the device on a flat and stable surface. → Position H

Note ♥: To get a reliable reversal measurement, the plateau should be aligned within +/- 0.06mm

• Trigger the measurement H with the IR trigger or with

Seite 40 / 46

Manual Clinotronic S

Note ♥: You can cancel this process at any time with and return to the measurement screen

Please wait while the device records a stable value H.

Attention !: Please do not touch the device until the measured value is recorded!

• Now turn the device at the same position by 180°. → Position H'

• Trigger the measurement H' with the IR trigger or with

Attention !: Please do not touch the device until the measured value is recorded!

• The device automatically returns to measuring mode

Attention!: The device indicates to show the wylerMASTER calibration applied.

Seite 41 / 46

Manual Clinotronic S

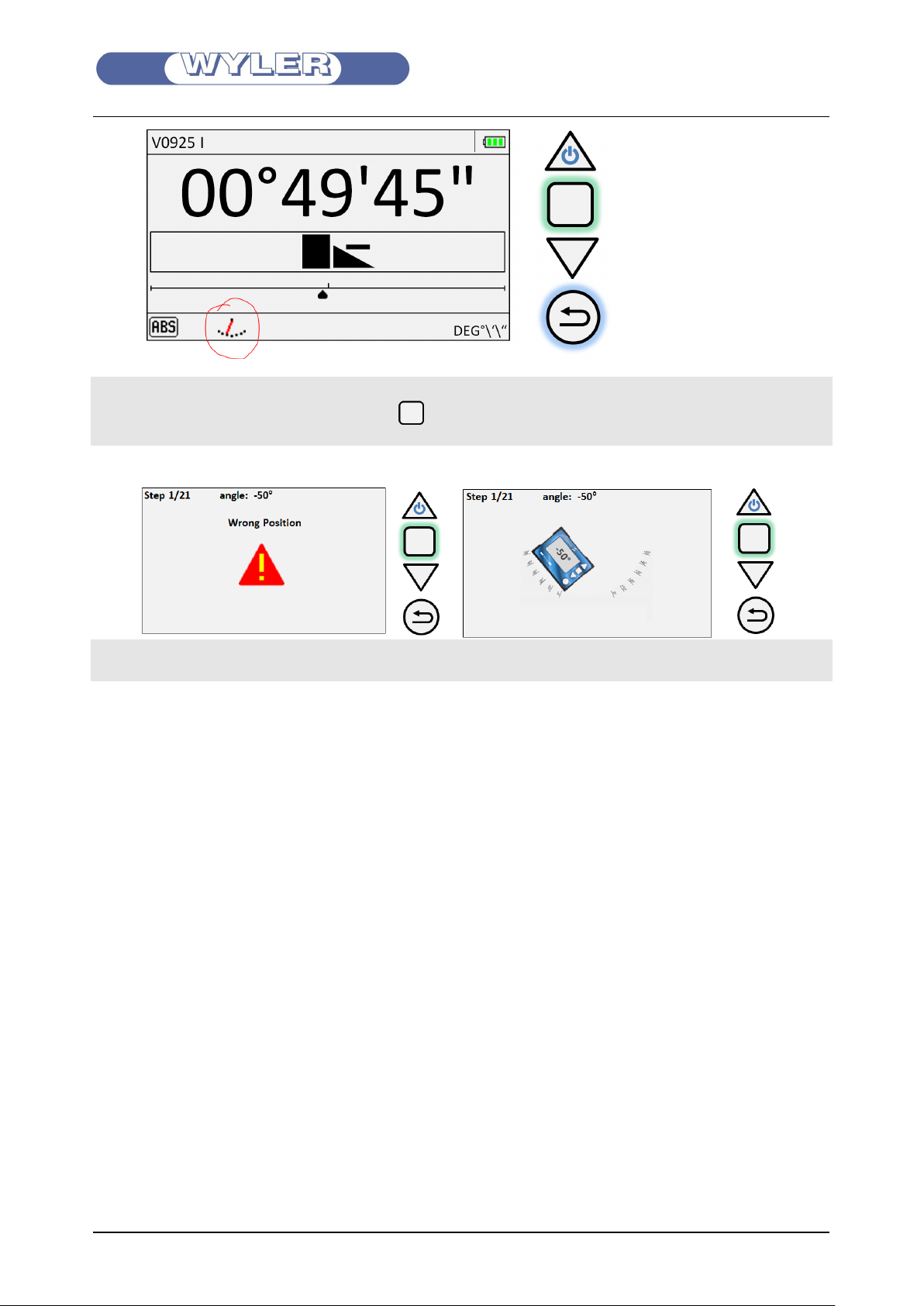

Note ♥: If the device is in the wrong position, an error message "Wrong Position" appears.

1. Acknowledge this message with

2. Position the device as required by the user interface..

Example 1. 2.

Note ♥: The measuring range after a wylerMASTER calibration is 45 °

After a factory reset, the measuring range is slightly increased to about 46.7 °

Seite 42 / 46

Manual Clinotronic S

5.9.2.4 Factory Reset

"Attention !:" The factory reset resets all settings back to factory settings including

the wylerMASTER calibration and the local gravitational constant

I

n the "Device info" menu, use and to select "Advanced Settttings"

• Use to select "FactoryReset"

after that:

• Use to select "Factory Reset"

Attention !: This procedure prevents accidental mishandling

Attention !: The Clinotronic S now has its original data in memory. For a precise

absolute measurement, please carry out a reversal measurement process
as described in chapter 5.8.2.

Seite 43 / 46

Manual Clinotronic S

Flatness of the measuring bases 0.01 mm

Parallelism to the basic base 0.01 mm

6. Specifications

Technical specifications

Measuring range ±45°

Resolution 5 arcsec or 0.02mm/m

Limit of error; MW= rad out; t=constant

0.04% Mw / minimum 5 arcsec

Drift / 24 h max 10 arcsec

Response time

Mechanical accuracy of the housing

Rectangularity to the basic base 0.01 mm

≤ 5 sec

Digital ouput USB-C

Power supply

- Lithium ion battery

- external power supply

Operating time at medium brightness, Bluetooth®

3.6V, 3333 mAh, (12 Wh)
5V (USB-C)

33h

activated

Charging time after complete emptying 8h

Maximum power consumption during the charging
process, incl. max brightness and Bluetooth® on

Dimension (L x W x H) 100 x 75 x 30mm

Weight of device / incl. accessories and case 400g / 850g

Protection class IP64

Storage temperature -20° to +60° C

Operating temperature 0° to 40 ° C

500 mA, 5V

Seite 44 / 46

Manual Clinotronic S

7. Maintenance

For safe operation

Store the device in a dry carrying case
at a minimum of: - 20 ° C
at a maximum of: +60 ° C

Cleaning

• The device can be cleaned with commercially available alcohol-based cleaning agents and

disinfectants.

Troubleshooting

Please contact: WYLER AG

Im Hoelderli 13
8405 Winterthur
Switzerland
Tel. [phone] www.wylerag.com
Fax [phone] [e-mail] or

The country representatives can be found
at: www.wylerag.com

Repackaging before re-transport

Ship the device in a carrying case in an additional cardboard box.
Observe the regulations of your chosen transport company.

Address customer service

If you have any questions, and if you are located in Switzerland:

LER AG

WY

Im Hoelderli 13
8405 Winterthur, Switzerland
Tel. [phone]
Fax [phone]

www.wylerag.com
[e-mail]

For

questions, if you are outside Switzerland in a country with a WYLER representative:

Country representatives: www.wylerag.com

Otherwise, contact us directly

Seite 45 / 46

Manual Clinotronic S

8. Disposal

Decommissioning, disposal

• When decommissioning the Clinotronic S, note the local regulations for the disposal of electronic

waste.

• The Li-ion batteries must be disposed of properly.

Document version and release notes

2.5. 2019 R1.1.1.DE Author: A.Schuhmacher

Seite 46 / 46
