Wybron DPS850 User Manual

DPS850

User Manual

Dimmer / Power Supply

CONTENTS

Declaration of Conformity ……….……………………….3

Safety Information………………….………………………4

Introduction…………………………………………………5
Installation…………………………………………………..6
Setup and Configuration…………………………………..7

Menu tree……………………………………………………8
InfoTrace……………………………………………….……9

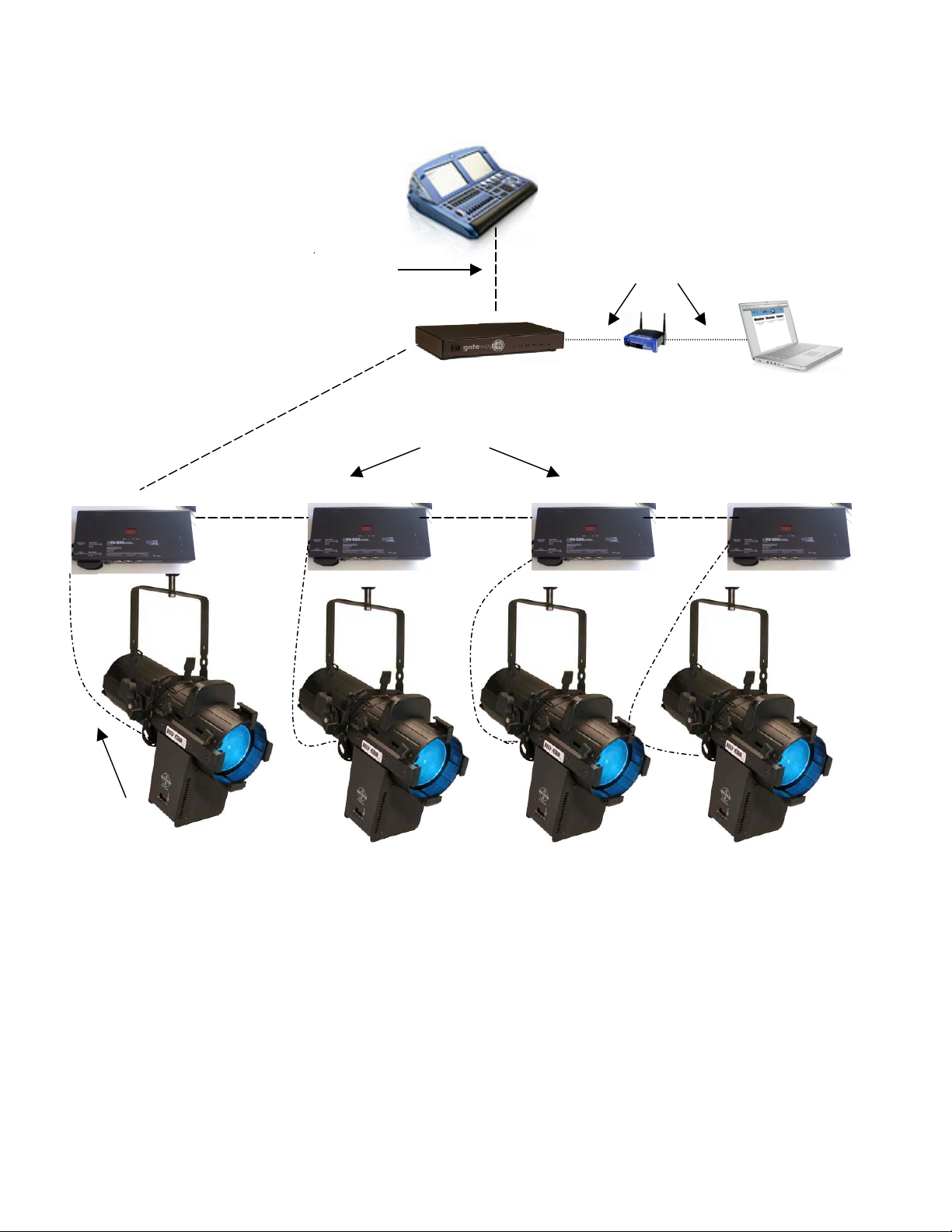

InfoTrace System Connection Diagram…………………11

RDM functionality………………………………………….12

Maintenance……………………………………………….13
Specifications…..………….………………………………14

Warranty Information………..………………………….…15

Declaration of Conformity Page

Safety Information

SAVE THESE INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS

This manual gives step-by-step instructions for the preparation, setup, and
operation of the DPS850 Dimmer / Power Supply.

There is a potential risk of fire, electric shock or injury to persons if the product is
not used as instructed.

WARNING: When using electrical appliances, use basic precautions, including:

 Read this manual before connecting power.
 Use supervision around children.
 Use in a dry location only.

The DPsS850 to be used in an indoor environment only and is not intended for
residential use.

For continued protection against risk of fire, replace only with same type and
rating of fuse.

Protection against electric shock is assured only if the mains connected power
supply cord set is connected to a properly earthed grounding type receptacle.

An all pole disconnect device must be located adjacent to the unit or, if the AC
cord is used as the main disconnect device, ensure that the socket-outlet is
located/installed near the equipment and is easily accessible.

THE MAINS LEADS ARE COLORED IN ACCORDANCE WITH THE
FOLLOWING CODE AND MUST BE CONNECTED IN THE FOLLOWING
SCHEME:

- GREEN AND YELLOW: EARTH

- BLUE: NEUTRAL

- BROWN: LINE

WARNING: THIS EQUIPMENT MUST BE EARTHED.

For questions, contact Wybron at 1-800-624-0146 or visit www.wybron.com.

Product Modification Warning

Wybron, Inc. products are designed and manufactured to meet the requirements
of United States and International safety standards. Modifications to the products
could affect safety and render the product non-compliant to relevant safety
standards.

Introduction

The DPS850 is a combination dimmer / power supply allowing the user to create
a stand alone fixture from a conventional lighting fixture and theatrical accessory.
The DPS850 accepts 115 – 240VAC 50/60Hz input power and DMX and
provides up to 800 watts of dimming for the fixture, as well as DC power and
control signal for theatrical accessories including scrollers, gobo rotators, and

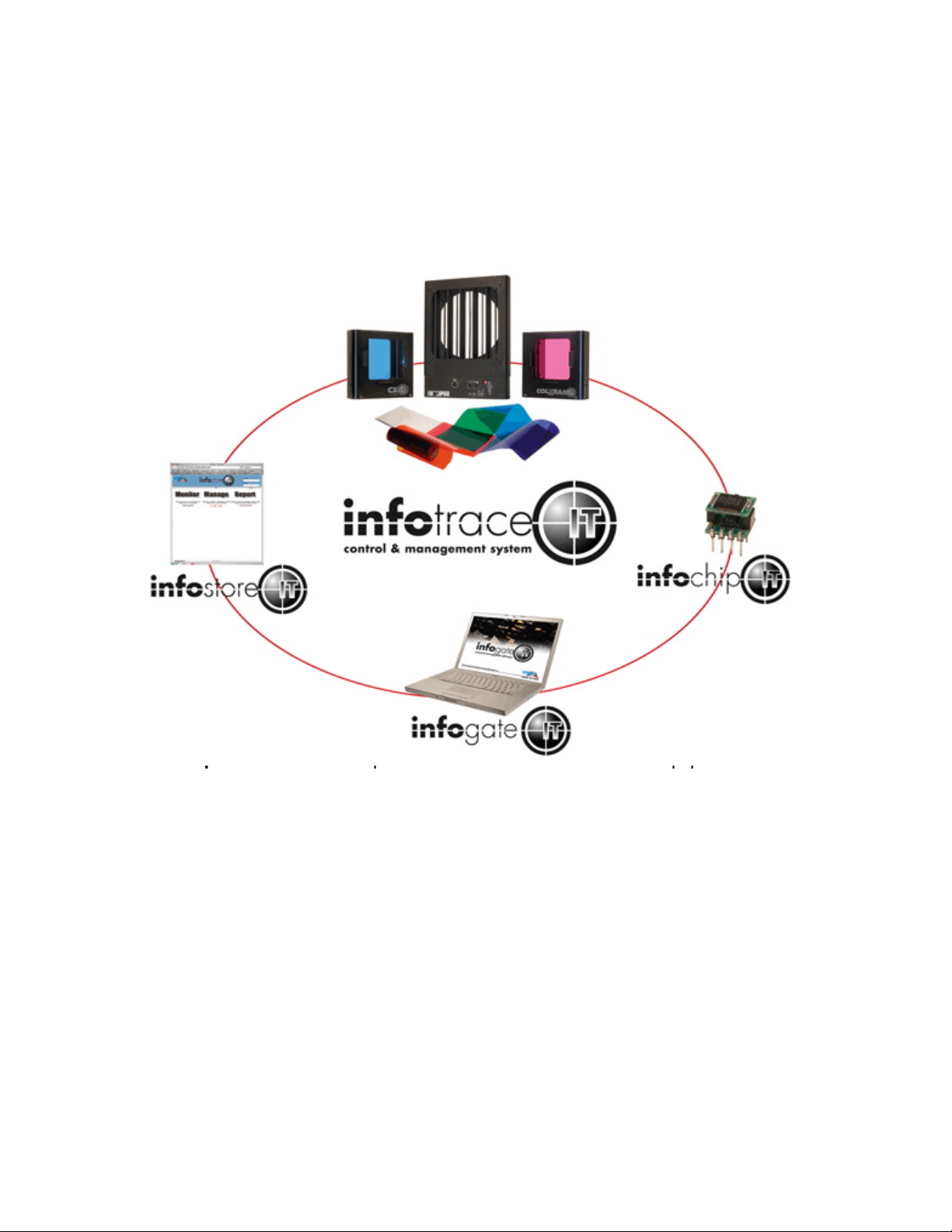

dichroic color mixers. When used with the InfoTrace system the DPS850 also
provides connectivity information allowing the user to abstract the separate
components as a single device.
