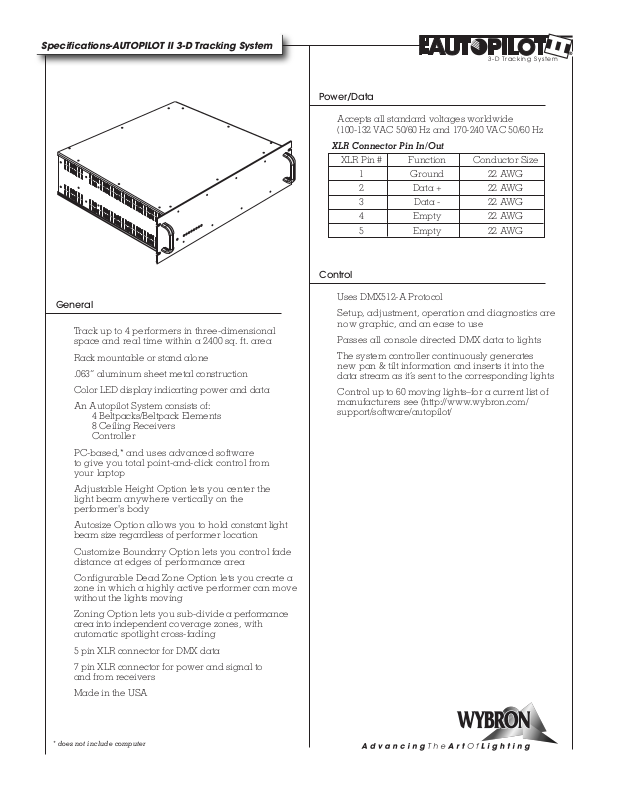

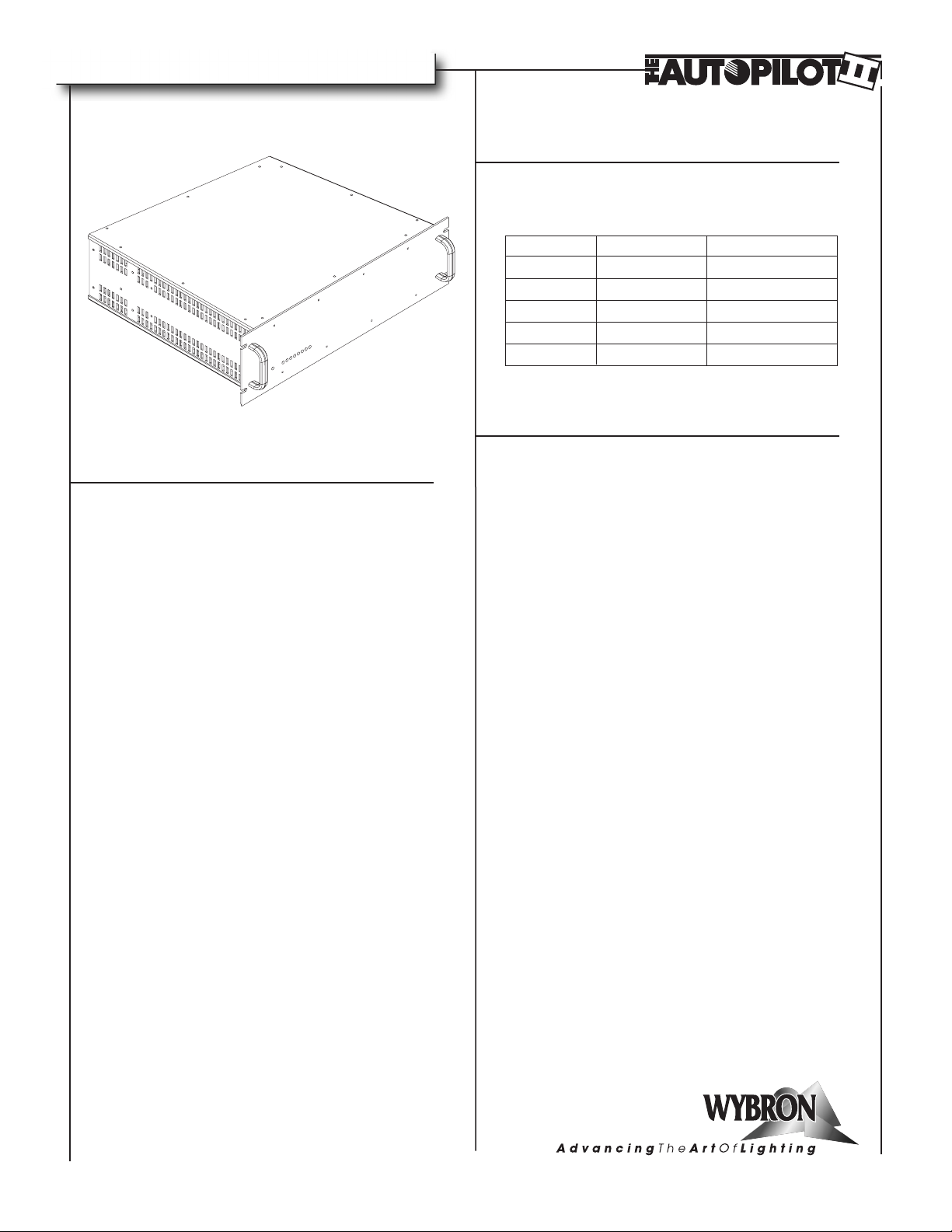

Specifications-AUTOPILOT II 3-D Tracking System
®
3-D Tracking System
Power/Data
Accepts all standard voltages worldwide
(100-132 VAC 50/60 Hz and 170-240 VAC 50/60 Hz
XLR Connector Pin In/Out
XLR Pin # Function Conductor Size
1 Ground 22 AWG
2 Data + 22 AWG
3 Data - 22 AWG
4 Empty 22 AWG
5 Empty 22 AWG
Control
General
Track up to 4 performers in three-dimensional
space and real time within a 2400 sq. ft. area
Rack mountable or stand alone
.063” aluminum sheet metal construction
Color LED display indicating power and data
An Autopilot System consists of:
4 Beltpacks/Beltpack Elements
8 Ceiling Receivers
Controller
PC-based,* and uses advanced software
to give you total point-and-click control from
your laptop
Adjustable Height Option lets you center the
light beam anywhere vertically on the
performer's body
Autosize Option allows you to hold constant light
beam size regardless of performer location
Customize Boundary Option lets you control fade
distance at edges of performance area
Configurable Dead Zone Option lets you create a
zone in which a highly active performer can move
without the lights moving
Zoning Option lets you sub-divide a performance
area into independent coverage zones, with
automatic spotlight cross-fading
5 pin XLR connector for DMX data
7 pin XLR connector for power and signal to
and from receivers
Made in the USA
Uses DMX512-A Protocol
Setup, adjustment, operation and diagnostics are
now graphic, and an ease to use
Passes all console directed DMX data to lights
The system controller continuously generates
new pan & tilt information and inserts it into the
data stream as it’s sent to the corresponding lights
Control up to 60 moving lights–for a current list of
manufacturers see (http://www.wybron.com/
support/software/autopilot/
* does not include computer
Page 2
Specifications-AUTOPILOT II 3-D Tracking System
®
3-D Tracking System

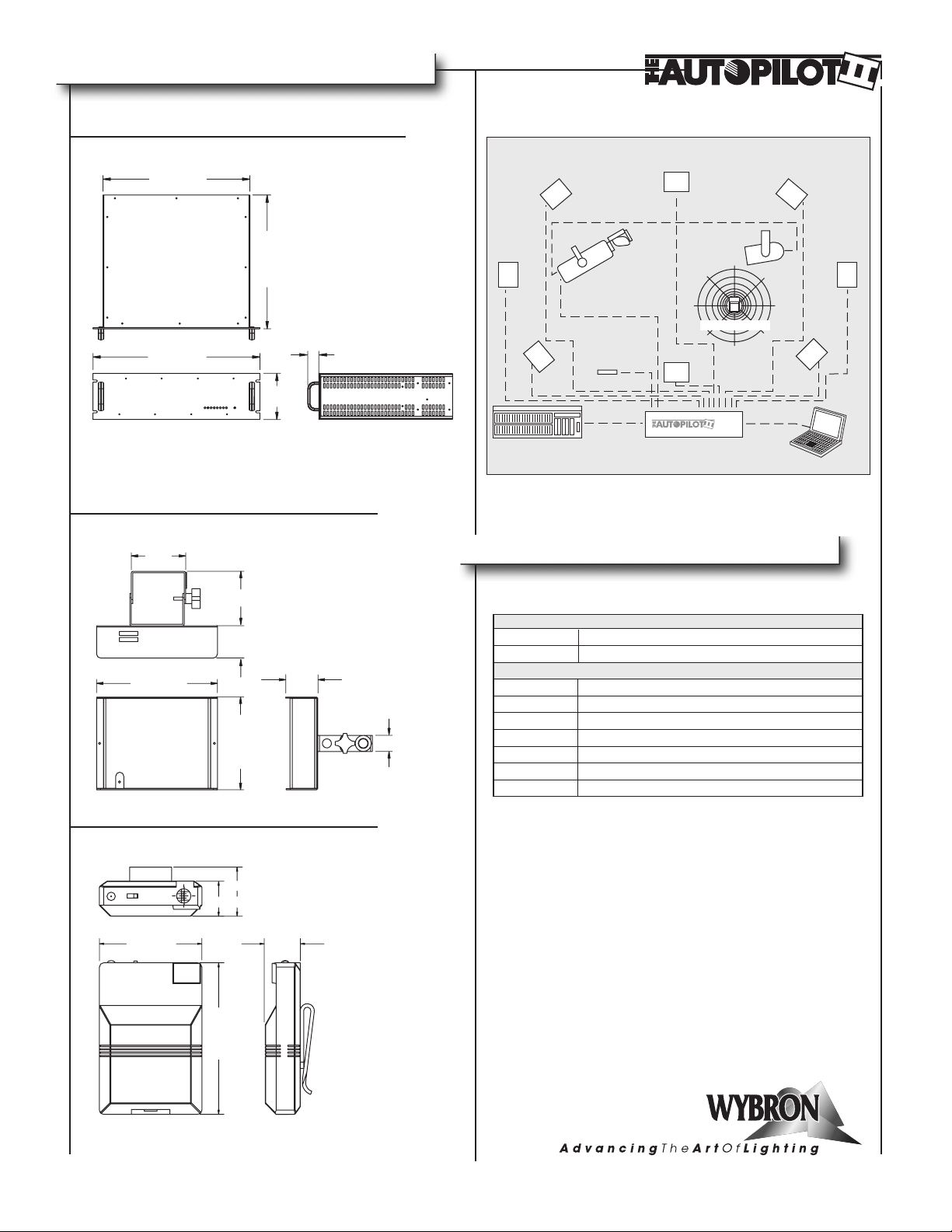

Dimensions & Weights
AUTOPILOT II Controller/System Model 5050*
16.72"/425mm
15.23"/387mm
19.00"/483mm
5.25"/
133mm
1.27"/32mm
Weight: 12.36 lbs./5.61kg
*includes eight receivers, four beltpacks, one controller,
temperature sensor, necessary cable, batteries, target,
tripod and tape measure
AUTOPILOT II Receiver Model 5085
3.38"/86mm
Basic Setup - AUTOPILOT System
Ultrasonic
Signal
Ceiling
Receiver 8
Ceiling
Receiver 4
DMX Signal In
Beltpack & Element
®
PC Laptop
Ceiling
Receiver 3
DMX Signal Out
Ceiling
Receiver 2
DMX Signal In
Ceiling
Receiver 1
Temperature Sensor
Lighting Console System Controller
Manufactured under US Patent 5,504,477 & European Patent EP95902637-8
Ordering Information
Ceiling
Receiver 5
Ceiling
Receiver 6
Ceiling
Receiver 7
3.38"/86mm
2.00"/51mm
7.50"/190mm
5.75"/146mm
Weight: 1.14 lbs./.52kg
AUTOPILOT II Beltpack Model 5080
1.15"/29mm
.82"/21mm
2.40"/61mm
.82"/21mm
2.00"/51mm
1.00"/25mm
AUTOPILOT 3-D Tracking System
Model Description
5050 3-D Tracking System
AUTOPILOT 3-D Tracking System Accessories
5025-XX Receiver cable (XX=25’, 50’, 100)
5080 Beltpack
5085 Receiver
5056 Temperture Sensor
505-03-03
Targets
505-08-10 Tripod
505-08-34 Tape Measure
3.55"/90mm
Weight: .24 lbs./.11kg
