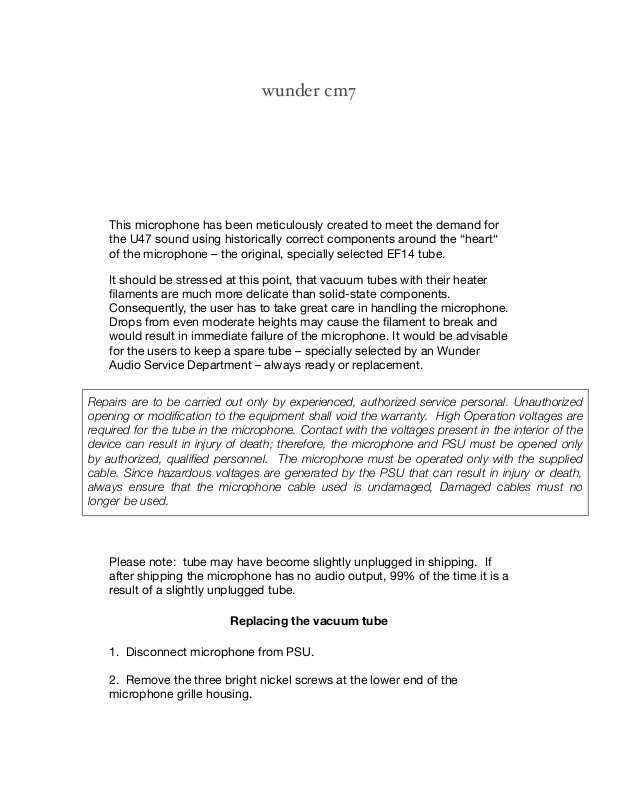

wunder cm7
This microphone has been meticulously created to meet the demand for
the U47 sound using historically correct components around the “heart“
of the microphone – the original, specially selected EF14 tube.
It should be stressed at this point, that vacuum tubes with their heater
filaments are much more delicate than solid-state components.
Consequently, the user has to take great care in handling the microphone.
Drops from even moderate heights may cause the filament to break and
would result in immediate failure of the microphone. It would be advisable
for the users to keep a spare tube – specially selected by an Wunder
Audio Service Department – always ready or replacement.
Repairs are to be carried out only by experienced, authorized service personal. Unauthorized
opening or modification to the equipment shall void the warranty. High Operation voltages are
required for the tube in the microphone. Contact with the voltages present in the interior of the
device can result in injury of death; therefore, the microphone and PSU must be opened only
by authorized, qualified personnel. The microphone must be operated only with the supplied
cable. Since hazardous voltages are generated by the PSU that can result in injury or death,
always ensure that the microphone cable used is undamaged, Damaged cables must no
longer be used.
Please note: tube may have become slightly unplugged in shipping.! If
after shipping the microphone has no audio output, 99% of the time it is a
result of a slightly unplugged tube.
Replacing the vacuum tube
1. Disconnect microphone from PSU.
2. Remove the three bright nickel screws at the lower end of the
microphone grille housing.
3. Pull the grille off in upwards direction.
4. Remove the small screw that is located several inches below the
Wunder Audio diamond badge.
5. Pull the complete body shell off in an upwards direction.
6. Remove the black rubber donut shaped dampener by pulling
downwards off the tube.
7. Remove the vacuum tube by grasping the black rubber shock-mount
in one hand and the tube in the other hand – wiggle the tube to free it
with a forward motion. Holding the tube socket in one hand and the
tube itself in the other hand will help you separate the vacuum tube
from the socket.
8. Installing a new tube is simply the reverse order of these steps.
Operation
The CM7 is equipped with a 6-pin Tuchel connector that plugs into the
base of the microphone and screwed finger tight.
Always make sure that the PSU is switched off when plugging the mic
connector into the mic and PSU.
Changing the Pattern
Locate the white pattern switch window at the bottom of the grille
housing. Place your finger on the very small handle and slide the switch
sideways to change from Cardioid to Omnidirectional pickup pattern and
visa-versa.
The Omnidirectional! pattern is achieved by disabling the polarization
voltage to the rear diaphragm. The U-47 did not maintain equal output
levels across patterns.
2
The U-47’s output was 5dB hotter in Cardioid mode than in Omni,
because the capsule’s rear diaphragm was bypassed in Cardioid mode,
avoiding the capacitance loss of having it in the circuit
Also, the Proximity effect of the Grille (the cardioid pattern will sound
fuller and than the omni pattern) is normal for this type of microphone. In
fact, the Proximity effect works very well and is a much desired effect.
Mounting
A special shock mount/stand adapter is provided and should always be
used to mount the microphone on floor stands or booms. The clamp of
the shock-mount should be guided from the lower end of the microphone
upwards until it is placed near the gravitational centre (slightly below the
badge or centered over the badge). The shock mount is designed for use
with stands or booms using standard thread sizes. It may also be
swiveled against the stand axis to suit the recording angle.
Powering up
The required PSU is included with the microphone. The connector type
and size are clearly marked. using the supplied CM7 microphone cable.
The audio signal is taken from the power supply via a standard XLR-type
mic cable.
After interconnection of the microphone and AC line, the main switch may
be turned on. Operating condition is indicated by the power lamp.
The warm-up time of the CM7 is approximately one minute. When your
CM7 is new, a 24 hour burn-in period is recommended.
The CM7’s tube will “break in” over a period of time enabling the CM7 to
sound subtly better over a period of time.
The CM7 Power Supply
This PSU supplies the microphone with the 5-volt filament and 105V plate
voltage for the vacuum tube,
3
It is advisable to check the AC voltage of the outlet prior to connecting
the CM7 to AC power.
Changing the AC voltage selector (110/240)
Use a flat-blade screwdriver to unscrew the lid to the PSU and remove.
You will see a small chrome toggle switch located inside the unit directly
next to the large AC transformer.
To set the switch to 115V, toggle the switch towards the transformer. To
set the switch to 230V, toggle the switch away from the transformer.
!Warning: Connecting the CM7 to the wrong AC voltage may destroy the
unit and cause fire and/or electric shock.
Replacing the Fuse
The fuse protecting the primary circuit is located outside the PSU.
Unscrew the black fuse cover to open the fuse compartment. Replace the
fuse with a new fuse of the same type (T 500 mA for 115V; 250 mA for
230V)! and close the fuse compartment lid.
!
AC Power Connector
Especially on tour, you may need to connect the unit to a power outlet
that does not match the power connector on the supplied power cable.
Purchase a matching power cable locally that complies with IEC and local
safety standards and has a power connector with a chassis ground pin.
While in the same area, use this “local“ power cable only.
4
Shutdown and Storage
Before switching off the microphone or disconnecting cables, reduce the
volume of the connected equipment – only then should the PSU be
switched off.
Disconnect the cables. When disconnecting a cable, always pull only on
the connector housing and not the cable itself.
When the microphone is not in use it should put away so that dust does
not accumulate.
A microphone which is unused for a prolonged period should be stored in
a cool, dry place.
Cleaning
Under normal conditions the microphone body may become dirty and
covered with fingerprints. One or two drops of Lubriderm unscented hand
lotion can be gently rubbed into the nickel finish with a terry cloth and
then wiped clean.
!
Troubleshooting
Microphone not operating
Possible causes:
a. PSU not switched on
b. Microphone not connected to PSU
c. Tube loose or unplugged
Noisy Signal
!
Possible causes:
5
a. Tube filament has become damaged.
Specifications
Directional Characteristics: Omni-, cardioid-,
Cardioid (25 mV/Pa; 20 - 18,000 Hz)
Omnidirectional (14 mV/Pa; 20 - 18,000 Hz)
Electrical Impedance: 200 ohms
Powering: Via the included powering unit with 115/230 VAC
Maximum Sound Pressure Level: 128 dB
Connector: Large-sized Tuchel, 6 pin
Dimensions: 240 mm (9.45'')!!!!!!!! 63 mm (2.48'')
Shipping Weight: Approx. 12 Ibs.
!
!Included Accessories
CM7, Power Supply
EF14 tube, connection cable
Shock mount
Quarter-sawn oak case
