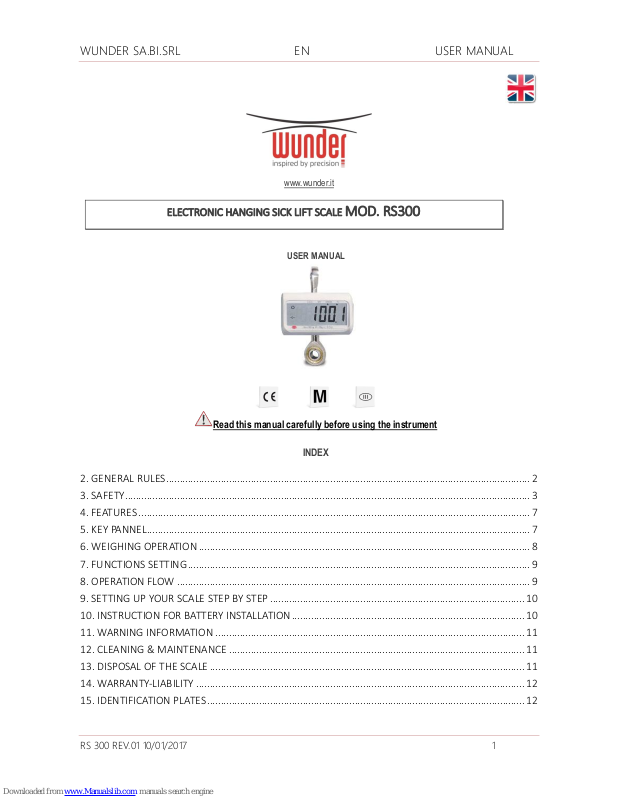

WUNDER RS300 User Manual

WUNDER SA.BI.SRL EN USER MANUAL

RS 300 REV.01 10/01/2017 1

www.wunder.it

ELECTRONIC HANGING SICK LIFT SCALE MOD. RS300

USER MANUAL

Read this manual carefully before using the instrument

INDEX

2. GENERAL RULES ..................................................................................................................................... 2

3. SAFETY .................................................................................................................................................... 3

4. FEATURES ............................................................................................................................................... 7

5. KEY PANNEL............................................................................................................................................ 7

6. WEIGHING OPERATION ......................................................................................................................... 8

7. FUNCTIONS SETTING ............................................................................................................................. 9

8. OPERATION FLOW ................................................................................................................................. 9

9. SETTING UP YOUR SCALE STEP BY STEP ............................................................................................. 10

10. INSTRUCTION FOR BATTERY INSTALLATION ..................................................................................... 10

11. WARNING INFORMATION ................................................................................................................. 11

12. CLEANING & MAINTENANCE ............................................................................................................ 11

13. DISPOSAL OF THE SCALE ................................................................................................................... 11

14. WARRANTY-LIABILITY ........................................................................................................................ 12

15. IDENTIFICATION PLATES .................................................................................................................... 12

WUNDER SA.BI.SRL EN USER MANUAL

RS 300 REV.01 10/01/2017 2

By choosing the WUNDER mod.RS300 professional electronic hanging scale, you have purchased a high
precision instrument.
Since over 40 years Wunder has placed its experience at the service of health.
This instrument is compliant with national standards in hospitals and clinics with medical class I with
measurement function and is calibrated in conformity
with accuracy class III.
The instrument is equipped with large LCD electronic terminal with function Hold weight.

2. GENERAL RULES

Carefully read this manual before using the instrument as it supplies

important indications concerning OPERATING SAFETY AND MAINTENANCE.

The descriptions and illustrations supplied in this manual are not binding.
WUNDER reserves the right to modify its products as deemed convenient in order to approve them without
being committed to update this publication.
Conventions:
The following symbols have been used in this manual:

0476 EC TYPE APROVAL FOR MEDICAL USE

METROLOGICAL CERTIFICATION AND APPROVAL

ACCURACY CLASS

ATTENTION!
PLACED BEFORE DETERMINING PROCEDURES. COMPLIANCE FAILURE CAN HARM THE OPERATOR
OR PATIENT OR DAMAGE THE PRODUCT

WASTE DISPOSAL

TYPE B PARTS SUPPLIED
BATTERY POWER

INDICATION OF WEIGHT FUNCTIONALITY

O

INDICATION OF STABLE WEIGHT

INTERFERENCE COULD OCCUR NEAR THE APPLIANCES

DUAL INSULATION (CLASS II)

WUNDER SA.BI.SRL EN USER MANUAL

RS 300 REV.01 10/01/2017 3

3. SAFETY

ATTENTION!

Before putting the device into use, please read with care the information given in the Operating
Instructions. They contain important instructions for installation, proper use and maintenance of
the device. The manufacturer shall not be liable for damages arising out of failure to heed the
following instructions:

WARNING!

IMPORTANT DIRECTIONS

The assembling of RS300 dynamometer must be effected by skilled operators only and
before the use be sure that all hanging sick lift elements, dynamometer and sling are
properly assembled, to weight the patient on safety conditions. A faulty assembling of
these elements could cause the risk of falling with serious consequences for the patient.

After assembling phase and before weighing operations, the operator must be sure that:

• RS300 dynamometer and the sling are on VERTICAL POSITION

• During weighing operation the hanging sick lift scale is not moving.

• The operator must ALWAYS follow and hold the sling of the patient during lifting

phase, to avoid torsion and sudden movement of both dynamometer and sling that
could cause breakages and irreparable damages, with the risk of serious
consequences for the patient.

• DO NOT MOVE the hanging sick lift scale when the patient is leaned.

During weighing phase by means of RS300 dynamometer, the operator must be sure that
the patient remains still, to avoid any instruments torsion and the following uncorrect
weighing.

After weighing phase the operator must ALWAYS follow and hold the sling of the patient,
to avoid torsion and sudden movement of both dynamometer and sling that could cause
breakages and irreparable damages, with the risk of serious consequences for the patient.

WUNDER SA.BI.SRL EN USER MANUAL

RS 300 REV.01 10/01/2017 4

-When using electrical components under increased safety requirements, always comply with the
appropriate regulations.

- Improper installation will render the warranty null and void.

- Ensure the voltage marked on the power supply unit matches your mains power supply.

- This device is designed for use indoors.

- Observe the permissible ambient temperatures for use

- The device meets the requirements for electromagnetic compatibility. Do not exceed the maximum values
specified in the applicable standards.

- Ensure that the patient does not lean against the device risk of falling! If you have any problem, contact
your local service partner.

-The maximum scale loading must not be exceded. The device beeps when loading exceeds its maximum
capacity.

3.1 Manufacturer's guide and declaration – electromagnetic immunity

Guide and Statement of manufacturer – Electromagnetic emissions

The electronic scales RS300 model is scheduled for operation in the electromagnetic environment specified
below.
the customer and the user should ensure that it is used in that environment

Emission test

Conformity

Guide to electromagnetic environment

RF Emission CISPR11

Group 1 Class B

The scales RS300 cable model uses RF energy only for its
internal function. The refore its RF emissions are very low and
probably not cause no interference in electrical equipment.

RF Emission CISPR11

Group 1, Class B

The scales RS300 is suitable for use in all sanitary and hospital
buildings, connected to the low voltage public power supply
network.

Harmonic emission

Class A

Voltage fluctuations/
flicker emission

Compliant
Guide and Statement of manufacturer-Electromagnetic Immunity

The electronic scales RS300 model is scheduled for operation in the electromagnetic environment
specified below.
the customer and the user should ensure that it is used in that environment.

Immunity test

Compliance

Guide to electromagnetic environment

Electrostatic
discharges (ESD)
IEC/EN61000 - 4 -2

6kV in contact
8kV in air

The floors should be made of wood, concrete or ceramic. If
the floors are covered in synthetic material, the relative
humidity should be maximum 30%.

Rapid
transients/burst

2kV power supply

The power supply should be of the type used typically in
commercial or hospital environments.
