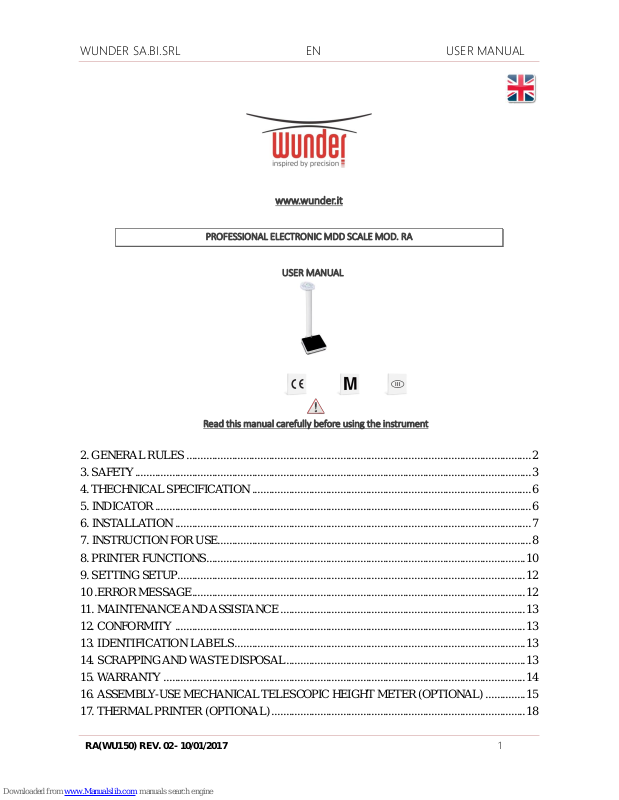

WUNDER RA User Manual
WUNDER SA.BI.SRL EN USER MANUAL
RA(WU150) REV. 02- 10/01/2017 1
www.wunder.it
PROFESSIONAL ELECTRONIC MDD SCALE MOD. RA
USER MANUAL
Read this manual carefully before using the instrument
2. GENERAL RULES ......................................................................................................................... 2
3. SAFETY........................................................................................................................................... 3
4. THECHNICAL SPECIFICATION .................................................................................................. 6
5. INDICATOR .................................................................................................................................... 6
6. INSTALLATION ............................................................................................................................. 7
7. INSTRUCTION FOR USE .............................................................................................................. 8
8. PRINTER FUNCTIONS................................................................................................................ 10
9. SETTING SETUP .......................................................................................................................... 12

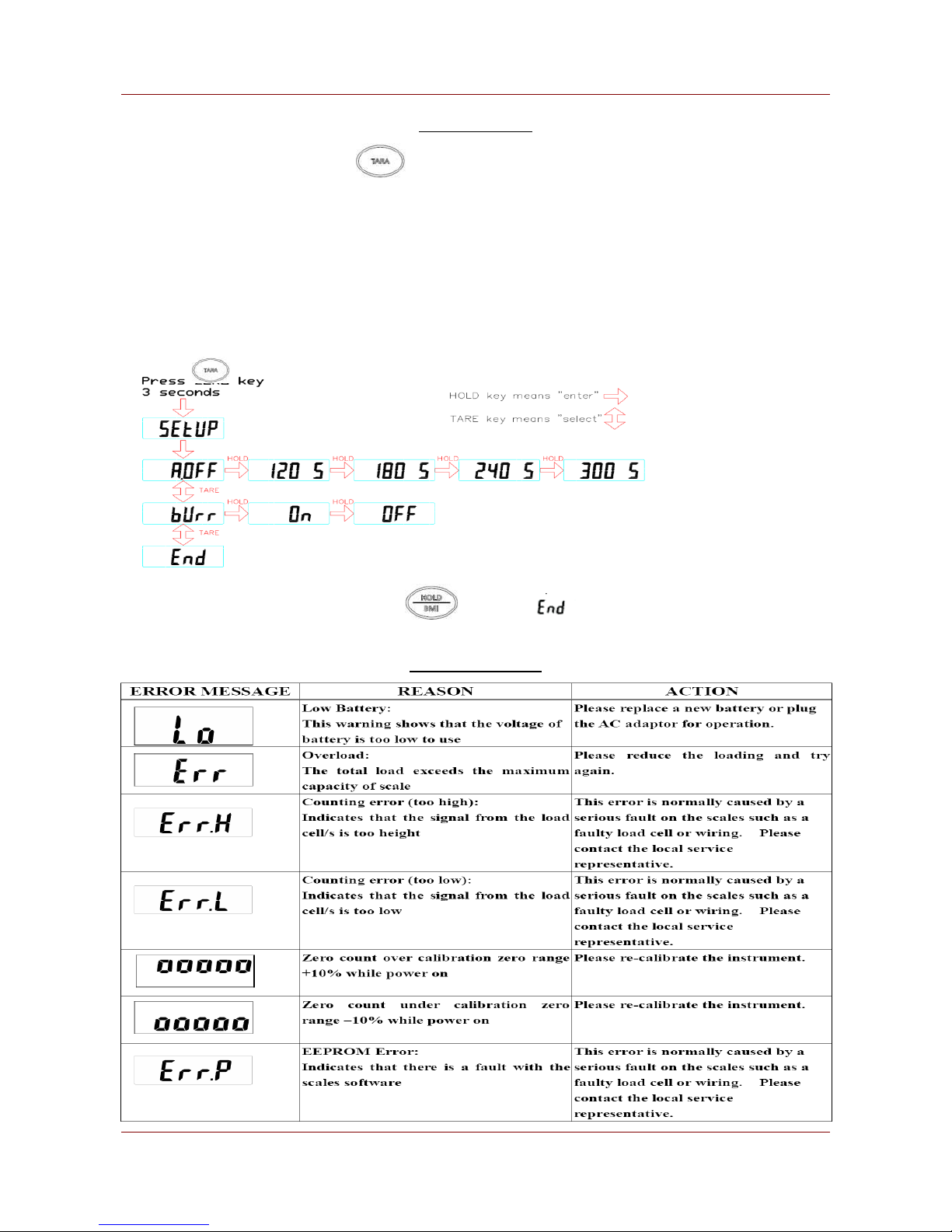

10 .ERROR MESSAGE ..................................................................................................................... 12
11. MAINTENANCE AND ASSISTANCE ...................................................................................... 13
12. CONFORMITY ........................................................................................................................... 13
13. IDENTIFICATION LABELS ...................................................................................................... 13
14. SCRAPPING AND WASTE DISPOSAL .................................................................................... 13
15. WARRANTY ............................................................................................................................... 14
16. ASSEMBLY-USE MECHANICAL TELESCOPIC HEIGHT METER (OPTIONAL) .............. 15
17. THERMAL PRINTER (OPTIONAL) ......................................................................................... 18
WUNDER SA.BI.SRL EN USER MANUAL
RA(WU150) REV. 02- 10/01/2017 2
By choosing the WUNDER model RA professional electronic scale, you have purchased a high precision
instrument.
Since over 40 years WUNDER has placed its experience at the service of health. This instrument is
compliant with national standards in hospitals and clinics with medical class I with measurement function
and Is calibrated in conformity with accuracy class III.
The instrument is characterised by the possibility of fixing the electronic terminal to the weighing platform by
means of a column or else installing the terminal autonomously.
The instrument is equipped with a dual LCD electronic terminal with triple reading to simultaneously view
Weight, Height. and BMI
2. GENERAL RULES
Carefully read this manual before using the instrument as it supplies
important indications concerning OPERATING SAFETY AND MAINTENANCE.
The descriptions and illustrations supplied in this manual are not binding.
WUNDER reserves the right to modify its products as deemed convenient in order to approve them without
being committed to update this publication.
Conventions: The following symbols have been used in this manual:
0476 EC TYPE APROVAL FOR MEDICAL USE
METROLOGICAL CERTIFICATION AND APPROVAL
ACCURACY CLASS
ATTENTION!
PLACED BEFORE DETERMINING PROCEDURES. COMPLIANCE FAILURE CAN HARM THE
OPERATOR OR PATIENT OR DAMAGE THE PRODUCT
WASTE DISPOSAL
TYPE B PARTS SUPPLIED
BATTERY POWER
INDICATION OF WEIGHT FUNCTIONALITY
O
INDICATION OF STABLE WEIGHT
INTERFERENCE COULD OCCUR NEAR THE APPLIANCES
DUAL INSULATION (CLASS II)
WUNDER SA.BI.SRL EN USER MANUAL
RA(WU150) REV. 02- 10/01/2017 3
3. SAFETY
ATTENTION!
Operators must read this manual carefully, comply with the instructions it contains and become familiar with
the correct use and maintenance procedures of the instrument.
• Retain this manual for consultation and as a help in staff training.
• Do not overload the instrument beyond its maximum capacity.
• Do not apply loads abruptly.
• Do not press the keys with sharp or pointed objects.
• Do not try to open the instrument.
• Do not remove seals from the instrument.
• Do not short-circuit the battery terminals.
• Use only the power supply provided by Wunder. Before using it, make sure that the local mains voltage
is compatible with the voltage of the adapter shown on the identification plate.
• Regularly check the integrity of the instrument's power cord and make sure it does not come in contact
with hot appliances.
• Make sure that the power cord does not create obstruction hazards.
• Unplug the instrument before cleaning it.
• Do not place the instrument in water or other liquids.
• Perform maintenance and subsequent metric verifications regularly.
3.1 Manufacturer's guide and declaration – electromagnetic immunity
Guide and Statement of manufacturer – Electromagnetic emissions
The electronic scales RA model is scheduled for operation in the electromagnetic environment specified
below.
the customer and the user should ensure that it is used in that environment
Emission test
Conformity
Guide to electromagnetic environment
RF Emission CISPR11
Group 1 Class B
The scales RA model uses RF energy only for its internal
function. Therefore its RF emissions are very low and probably
not cause no interference in electrical equipment.
RF Emission CISPR11
Group 1, Class B
The scales RA is suitable for use in all sanitary and hospital
buildings, connected to the low voltage public power supply
network.
Harmonic emission
Class A
Voltage fluctuations/
flicker emission
Compliant
WUNDER SA.BI.SRL EN USER MANUAL
RA(WU150) REV. 02- 10/01/2017 4
Guide and Statement of manufacturer-Electromagnetic Immunity
The electronic scales RA model is scheduled for operation in the electromagnetic environment specified
below.
the customer and the user should ensure that it is used in that environment.
Immunity test
Compliance
Guide to electromagnetic environment
Electrostatic
discharges (ESD)
IEC/EN61000 - 4 -2
6kV in contact
8kV in air
The floors should be made of wood, concrete or ceramic. If
the floors are covered in synthetic material, the relative
humidity should be maximum 30%.
Rapid
transients/burst
IEC/EN61000 - 4 - 4
2kV power supply
The power supply should be of the type used typically in
commercial or hospital environments.
Surge
IEC/EN61000 - 4 - 5
1kV differential
mode
The power supply should be of the type used typically in
commercial or hospital environments.
Voltage dips, short
interruption and
voltage variation
IEC/EN61000 - 4 - 11
<5%UT for 0.5 cycle
40%UT for 05 cycle
70%UT for 25 cycle
<5%UT for 5 sec
The power supply should be of the type used typically in
commercial or hospital environments. Note=UT is the value
of the voltage of the feed.
Power frequency
Magnetic field
IEC/EN61000 - 4 - 8
3A/m
NOTE: UT is the value of the power supply voltage.
CAUTION
The medical device requires particular electromagnetic compatibility precautions and must be installed and
used according to the information provided in the accompanying documents.
Manufacturer's guide and declaration - Electromagnetic emissions
The electronic scales RA model can be used in the electromagnetic environment specified below. The
customer or the user of the seat must ensure that it is used in compliance with the specifications below.
Emissions test
Compliance
Guide to electromagnetic environment
Radiated/
conducted /
emissions
IEC/EN61000-4-6
3Vrms 150kHz to
80MHz(for
appliances that are
not life supporting)
Equipment in RF communications and mobile laptops should ot
be used near any part of the tooth, including cables, except
when they meet the recommended separation distance
calculated by the frequency applied to the transmitter.
WUNDER SA.BI.SRL EN USER MANUAL
RA(WU150) REV. 02- 10/01/2017 5
Radiated/
conducted
/emissions
IEC/EN61000-4-3
3Vrms 150kHz to
80MHz(for
appliances that are
not life equipment)
Recommended separation distance d = 1.2 √ P d = 1.2 √ P from
80 MHz to 800 MHz d = 2.3 √ P from 800 MHz to 2.5 GHz where
the P and maximum rated power output of the transmitter in
Watts (W) according to the manufacturer of the transmitter and
the recommended separation distance in meters (m).
The intensity of the field of a fixed RF transmitters, as
determined by an electromagnetic site, it could be lower than
the level of compliance of each range of frequency b. You can
check interference in proximity of equipment marked with the
following symbol:
With 80 MHz and 800 MHz is applied the higher frequency range. These guidelines may not apply in all
situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and
people.
a) The intensity of the field for fixed transmitters such as base stations for radiotelephone mobile and
cordless phones) and land radio mobile, amateur radio equipment, radio transmitters in the AM and FM and
TV transmitters cannot be made theoretically and with precision. To establish an electromagnetic
environment due to fixed RF transmitters, it should consider the electromagnetic survey of the site. If the
field strength measured at the place where you use the instrument exceeds the applicable level of
compliance of the above, it should be placed under observation normal operation of the tooth divice. If you
notice abnormal performance, it may take additional measures as a different orientation or position of
instrument.
of frequencies from 150 kHz to 80 MHz should be less than 3 V / m.
Recommended separation distances between portable radio equipment unity.
The scales RA model is expected to operate in an electromagnetic environment in which they control the
noise radiated RF. The customer or the tooth may be of help to prevent electromagnetic interference by
ensuring a minimum distance between mobile communication devices and portable RF (transmitters) and
unity, as recommended below, with respect to the maximum power output of equipment radio.
Output power rating
of the transmitter W
Distance separating the frequency of the transmitter m
150 kHz a 80 MHz d = 1,2
√P
80 MHz a 800 MHz d = 1,2
√P
800 MHz a 2,5 GHz d = 2,3
√P
0,01
0,12
0,12
0,23
0,1
0,38
0,38
0,73
1
1,2
1,2
2,3
10
3,8
3,8
7,3
100
12
12
23
WUNDER SA.BI.SRL EN USER MANUAL
RA(WU150) REV. 02- 10/01/2017 6
For transmitters with maximum rated power output not reported above, the recommended separation
distance d in meters (m) can be calculated using the equation applicable to the frequency of the transmitter,
where P and the maximum rated power output of the transmitter in Watt (W) according to the manufacturer
of the transmitter.
Note: With 80 MHz and 800 MHz is applied the higher frequency range.
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects and people.
4. THECHNICAL SPECIFICATION
Model
RA200- 300
Capacity
200- 300 kg
Division
50- 100 g
MDD OIML
Class III
Unit weight
kg
Display
Double LCD: 1 LCD 20mm weight with 5 active digits; 2 LCD height and
BMI 12mm
Function Key
ON / ZERO / OFF, HOLD / BMI, TARA, PRINT
Power
Adapter 12 V - 2 A Rechargeable Batteries Pack- (OPTIONAL)
Operation temperature
da 5°C a 35°C

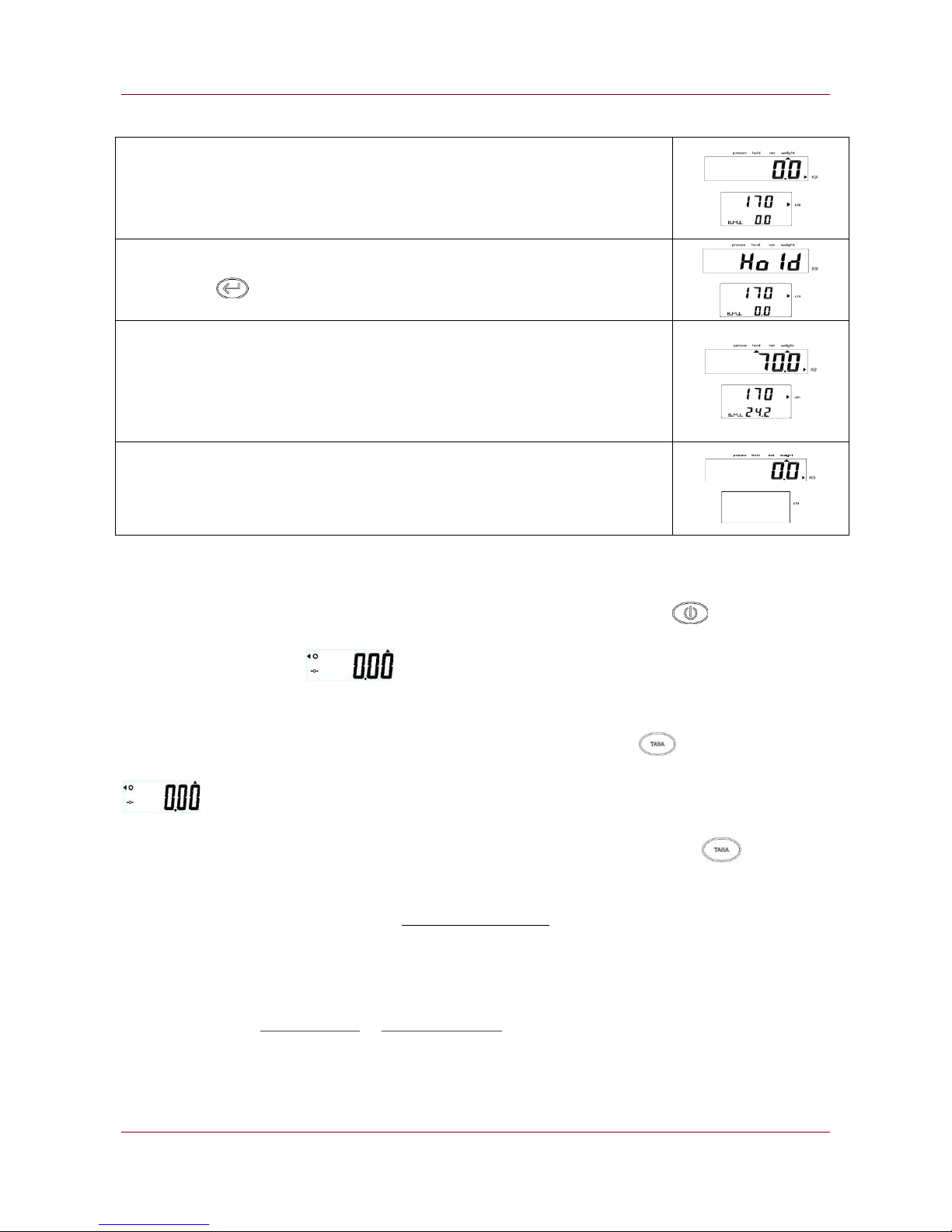

5. INDICATOR
1. Key function
2. Weighing capacity and division
3. Second LCD automatically calculates BMI
4. Main LCD: Weight
5.Power display
1
4
5
2
3
