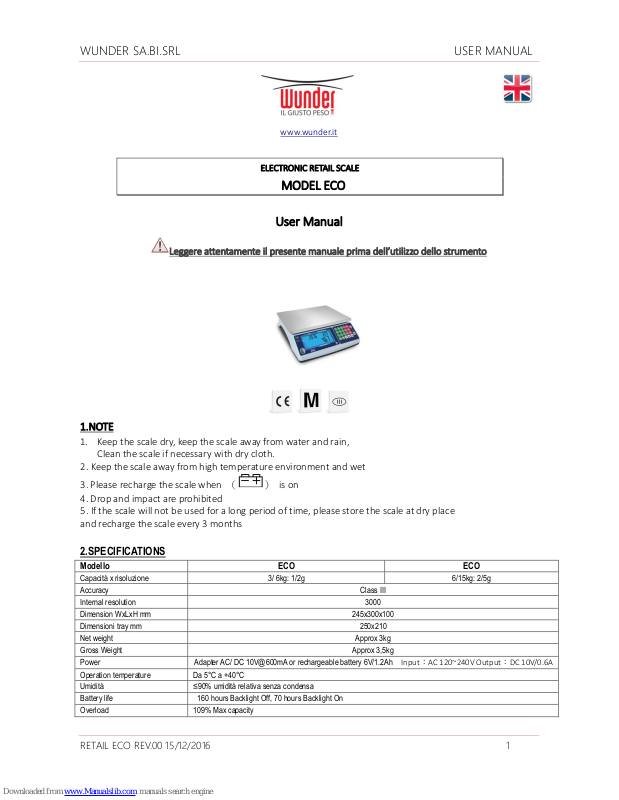

WUNDER SA.BI.SRL USER MANUAL
RETAIL ECO REV.00 15/12/2016 1
www.wunder.it
ELECTRONIC RETAIL SCALE
MODEL ECO
User Manual
Leggere attentamente il presente manuale prima dell’utilizzo dello strumento
1.NOTE
1. Keep the scale dry, keep the scale away from water and rain,
Clean the scale if necessary with dry cloth.
2. Keep the scale away from high temperature environment and wet
3. Please recharge the scale when （ ） is on
4. Drop and impact are prohibited
5. If the scale will not be used for a long period of time, please store the scale at dry place
and recharge the scale every 3 months
2.SPECIFICATIONS
Modello
ECO
ECO
Capacità x risoluzione
3/ 6kg: 1/2g
6/15kg: 2/5g
Accuracy
Class III
Internal resolution
3000
Dimension WxLxH mm
245x300x100
Dimensioni tray mm
250x210
Net weight
Approx 3kg
Gross Weight
Approx 3,5kg
Power
Adapter AC/ DC 10V@600mA or rechargeable battery 6V/1.2Ah Input：AC 120~240V Output：DC 10V/0.6A
Operation temperature
Da 5°C a +40°C
Umidità
≤90% umidità relativa senza condensa
Battery life
160 hours Backlight Off, 70 hours Backlight On
Overload
109% Max capacity
Page 2
WUNDER SA.BI.SRL USER MANUAL
RETAIL ECO REV.00 15/12/2016 2
3．POWER
1. Approx. 29.3mA
2. Approx. 67.2mA with backlight
3. Approx. 84mA with backlight and RS232 interface
4. Battery hours per charge：approx. 160 hours(backlight off), approx.
90 hours(backlight on)
4．THE CONNECTOR OF LOAD CELL AND INDICATOR
(1)The plug of load cell is 5 pins.
(2)When the indicator in power ,it is forbidden that take off the load cell plug，
if take off the plug ,the indicator maybe be damaged.
(3)It is forbidden that weld the indicator ，when there is thunder storm，please make
solution for avoiding the thunder ,in this way ,It can protect the safe of scales and stuff
5．BEFORE USE
(1)Please send this product is placed in the firm and smooth place, don’t place in vibration or shaking, and
using bench for use on four only adjust foot, make the products to maintain steady and level bubble to
adjust horizontally
(2) Please use independent source, avoid other electrical disturbance
(3) Please put nothing on the plate when switch on the power
(4) Please turn on 2-3minutes before using
(5) Avoid this products placed on temperature change too large and air flow strenuous sites.
when using this product，any object must be place in the center of plate，and do not
exceed plate range，to ensure the accuracy
6．KEY FUNCTION AND OPERATE SPECIFICATION
OFF : Press and hold the OFF key and the weight window will show “OFF” for 2 seconds then the scale will
turn off automatically
ON : Press the ON key to turn on the scale. The scale will startself-adjusting sequence then will stabilize in 0.
00 : Decimal point for cent
PLU :Price Look Up key, to store a unit price into Pn key, simply enter desired unit price and press the PLU
key, then press selected Pn key and the unit price will be stored into designated Pn key.
M1 ~ M5 :When unit price have been stored into M1 ~ M5 keys, press M1 ~
M5 keys to recall stored unit price and it will be displayed at Unit Price window.
TARE: Tare key: To subtract the weight of container (Max. capacity tare)
Zero : Zero key: To reset the residual weight back to zero (only when the display weight is less than ± 2% of
the max. capacity
CE : Clear key: To clear unit price
Page 3
WUNDER SA.BI.SRL USER MANUAL
RETAIL ECO REV.00 15/12/2016 3
0 ~ 9 : Numeric keys from 0~9
7．BASIC FUNCTIONS AND OPERATION
TARE function
Place a container and press the【TARE】key to deduct the weight of the container. After tare you
will be able to weigh any object as its net weight
8．ERROR MESSAGE
Err H Initial zero too high (over 10% of max. cap.)
Err L Initial zero too low (less than 10% of max. cap.)
Err N Unstable internal value
hhhhhh Overload, over the max. capacity + 9d
------ Total price exceeded 999999
9. DAILY CARE AND MAINTENANCE
Clean the indicator with a soft and damp cloth. If necessary, apply a mild detergent.
Do not use any harsh, abrasive material, acetone, volatile solvent, thinner or alcohol for cleaning.
Verify the accuracy of indicator periodically. Re-calibrate the indicator if necessary.
NOTE: In some countries, calibration requires authorized/qualified agent. Contact your dealer for more information.
Store indicator scale in a dry and clean place.
