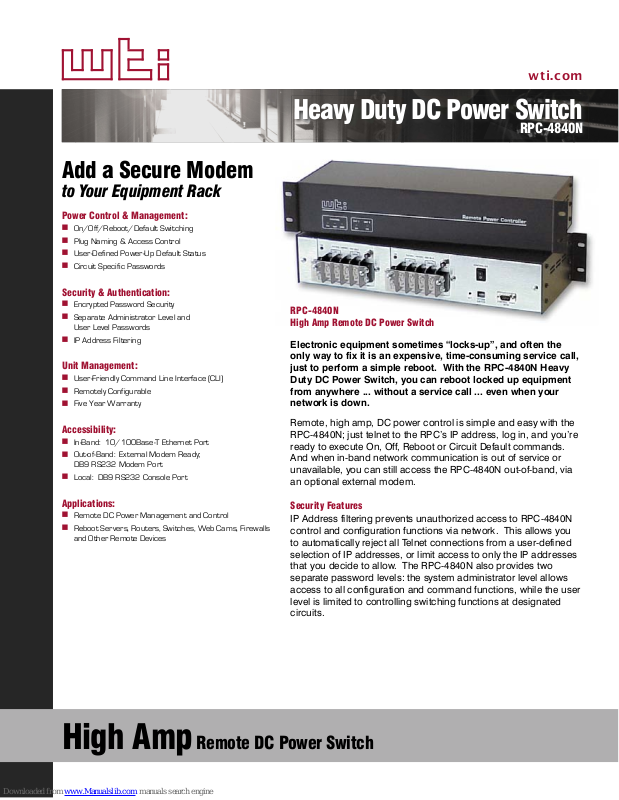

Page 1
Add a Secure Modem
to Your Equipment Rack
wt i. co m
High Amp Remote DC Power Switch
Power Control & Management:
On/Off/Reboot/Default Switching
Plug Naming & Access Control
User-Defined Power-Up Default Status
Circuit Specific Passwords
Security & Authentication:
Encrypted Password Security
Separate Administrator Level and
User Level Passwords
IP Address Filtering
Unit Management:
User-Friendly Command Line Interface (CLI)
Remotely Configurable
Five Year Warranty
Accessibility:
In-Band: 10/100Base-T Ethernet Port
Out-of-Band: External Modem Ready;
DB9 RS232 Modem Port
Local: DB9 RS232 Console Port
Applications:
Remote DC Power Management and Control
Reboot Servers, Routers, Switches, Web Cams, Firewalls
and Other Remote Devices
RPC-4840N
High Amp Remote DC Power Switch
Electronic equipment sometimes “locks-up”, and often the
only way to fix it is an expensive, time-consuming service call,
just to perform a simple reboot. With the RPC-4840N Heavy
Duty DC Power Switch, you can reboot locked up equipment
from anywhere ... without a service call ... even when your
network is down.
Remote, high amp, DC power control is simple and easy with the
RPC-4840N; just telnet to the RPC’s IP address, log in, and you’re
ready to execute On, Off, Reboot or Circuit Default commands.
And when in-band network communication is out of service or
unavailable, you can still access the RPC-4840N out-of-band, via
an optional external modem.
Security Features
IP Address filtering prevents unauthorized access to RPC-4840N
control and configuration functions via network. This allows you
to automatically reject all Telnet connections from a user-defined
selection of IP addresses, or limit access to only the IP addresses
that you decide to allow. The RPC-4840N also provides two
separate password levels: the system administrator level allows
access to all configuration and command functions, while the user
level is limited to controlling switching functions at designated
circuits.
Heavy Duty DC Power Switch
RPC-4840N
Page 2
WTI - Western Telematic, Inc.
5 Sterling • Irvine • California 92618-2517 • Toll Free (800) 854-7226 • Email: [email protected] • Web: www.wti.com
© Copyright 2009 Western Telematic, Incorporated
RPC4840N-090605
wt i. co m
High Amp Remote DC Power Switch
For More Information:
Call: Or Visit:
(800) 854-7226 www.wti.com
5 Year Warranty
Stocked for Same Day Shipments
In-House Design & Manufacturing
Made In USA
Heavy Duty DC Power Switch
RPC-4840N
Intelligent Power Control
The RPC can communicate over any TCP/IP network
using standard Telnet, or out-of-band using an external
modem and basic VT100 type terminal emulation. Each
outlet can be assigned an individual password, device
name, reboot delay time and unique power-up default
state.
Easy to Configure, Easy to Use
The RPC can be configured via network, via modem or
locally via the console port. Simple, user-friendly menus
are used to assign a location and circuit names, set
system parameters and view unit status. Circuits can be
switched On, Off, rebooted or set to user-defined default
status using either plug numbers or names.
Reliability and Support
The RPC-4840N is built in the USA and backed by a
five year factory warranty. WTI products are installed in
thousands of network sites world wide. Our customers
know they can depend on superior quality and reliability
for their most mission-critical operations.
Power Input/Output:
Voltage: -48V DC
DC Inputs: Two (2) Bus A & B
Connector: Block (2) #8 Screws
Load: 40 Amps Each Bus
Circuit Module: 40 amp On/Off, Push/Pull Circuit Breaker
Modem and Console Port Interface:
Connector: DB9M, RS232C, DTE
Coding: Serial ASCII, 8 bits, No Parity
Network Interface:
Connector: 10Base-T, RJ45
Physical / Environmental:
LED Indicators: ON, RDY, RXD, Outlet ON (1- 2)
Size: 3.5” x 19” x 7.5” (H x W x D)
(8.8 cm x 48.3 cm x 19.1 cm)
(2RU)
Weight: 10 Lbs. Shipping Weight
Operating
Temperature:
32°F to 122°F
Humidity: 10 - 90% RH, Non-Condensing
Ordering Information:
RPC-4840N High Amp DC Network Power Switch
