Wsound M8 User Manual

Wsound

Professional Manufacturer

User Manual

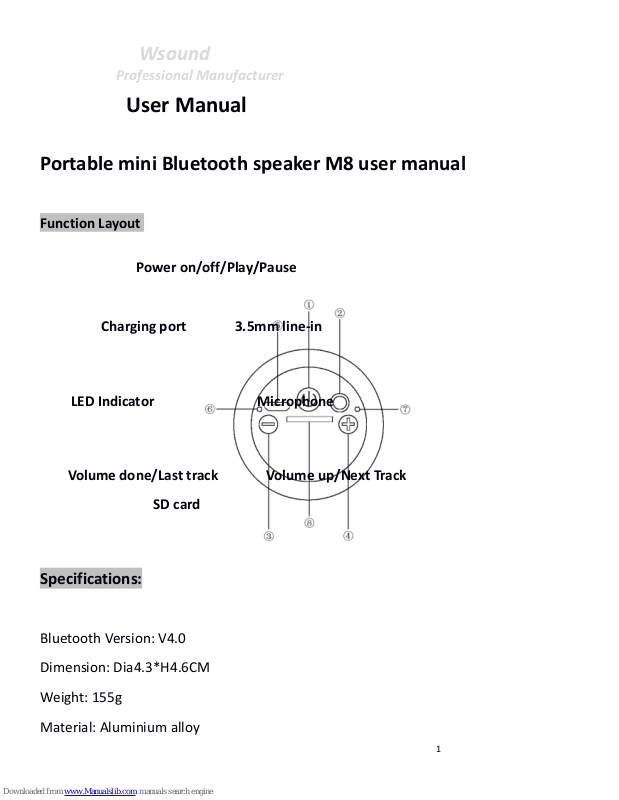

Portable mini Bluetooth speaker M8 user manual

Function Layout

Power on/off/Play/Pause

Charging port 3.5mm line-in

LED Indicator Microphone

Volume done/Last track Volume up/Next Track

SD card

Specifications:

Bluetooth Version: V4.0

Dimension: Dia4.3*H4.6CM

Weight: 155g

Material: Aluminium alloy

1

Wsound

Professional Manufacturer

Music Time:Up to 6 hours

Power: DC 5V+/-5%

Battery: 500mAh Rechargeable lithium batteries

Signal to Noise Ratio: 90dB

Compatibility: Smart phones, mp3 players, or tablet computers

Accessories: USB Charger、Audio Cable、User manual

How to use

① Power on/off

1) Press and holding the multi button for 5 seconds to POWER ON, until led indicator

shows blue.

2) Short press to Play Music or Pause when it’s connected.

3) As soon as you have an incoming call, the speaker will notify you by voice.

To answer it, press the button once, double click the button the call will be rejected.

4)Turn on/off

Press and hold the Multi button for 5 seconds to turn the speaker on or off.

② 3.5mm Audio Cable

To play music without connecting , insert any standard 3.5mm into Auxiliary.

③ Track back button/ Volume +

Press “+” and hold it for 3 seconds to increase the volume.

2
