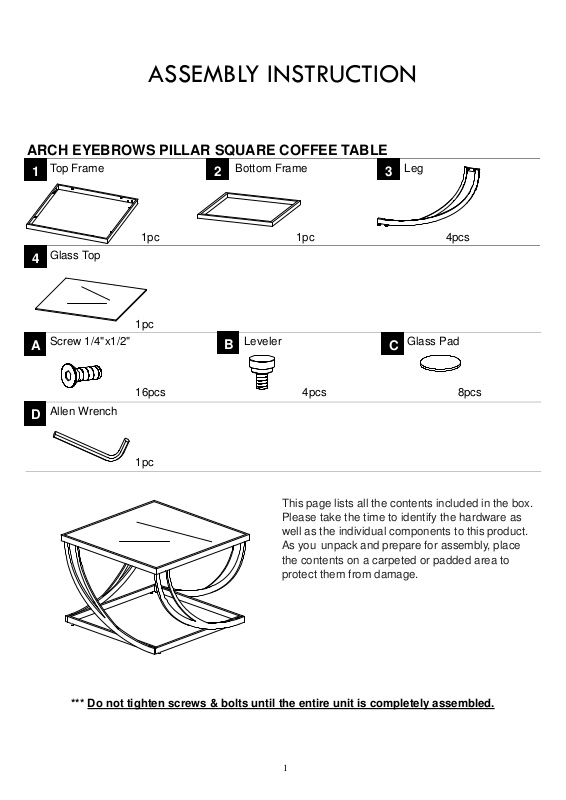

ASSEMBLY INSTRUCTION
ARCH EYEBROWS PILLAR SQUARE COFFEE TABLE
Top Frame Bottom Frame Leg
1pc 1pc 4pcs
Glass Top
1pc
Screw 1/4"x1/2" Leveler Glass Pad
16pcs 4pcs 8pcs
Allen Wrench
1pc
This page lists all the contents included in the box.
Please take the time to identify the hardware as
well as the individual components to this product.
As you unpack and prepare for assembly, place
the contents on a carpeted or padded area to
protect them from damage.
*** Do not tighten screws & bolts until the entire unit is completely assembled.
1
Page 2
Attach leg (3) to top frame (1) by
1
using screw (A) and allen wrench (D)
as shown.
2
Attach bottom frame (2) to leg (3) by
using screw (A) and allen wrench (D)
then tighten all screws firmly.
Following, attach leveler (B) to the bottom
frame (2) as shown.
3
Turn the unit upside down and put glass pad (C) onto the top frame (1) then put on glass top
(4) as below shown.
Cleaning & Care
Treat surface with care. Surface is resistant to scratches but is not scratch resistant. Clean surfaces with a dry or
damp soft cloth. Do not use abrasive cleaners. Hardware may loosen over time. Periodically check that all
connections are tight.
