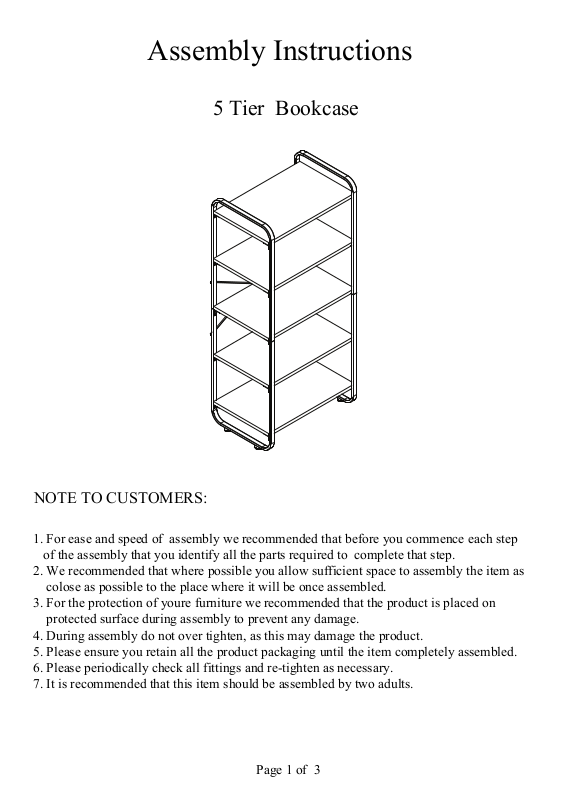

Assembly Instructions

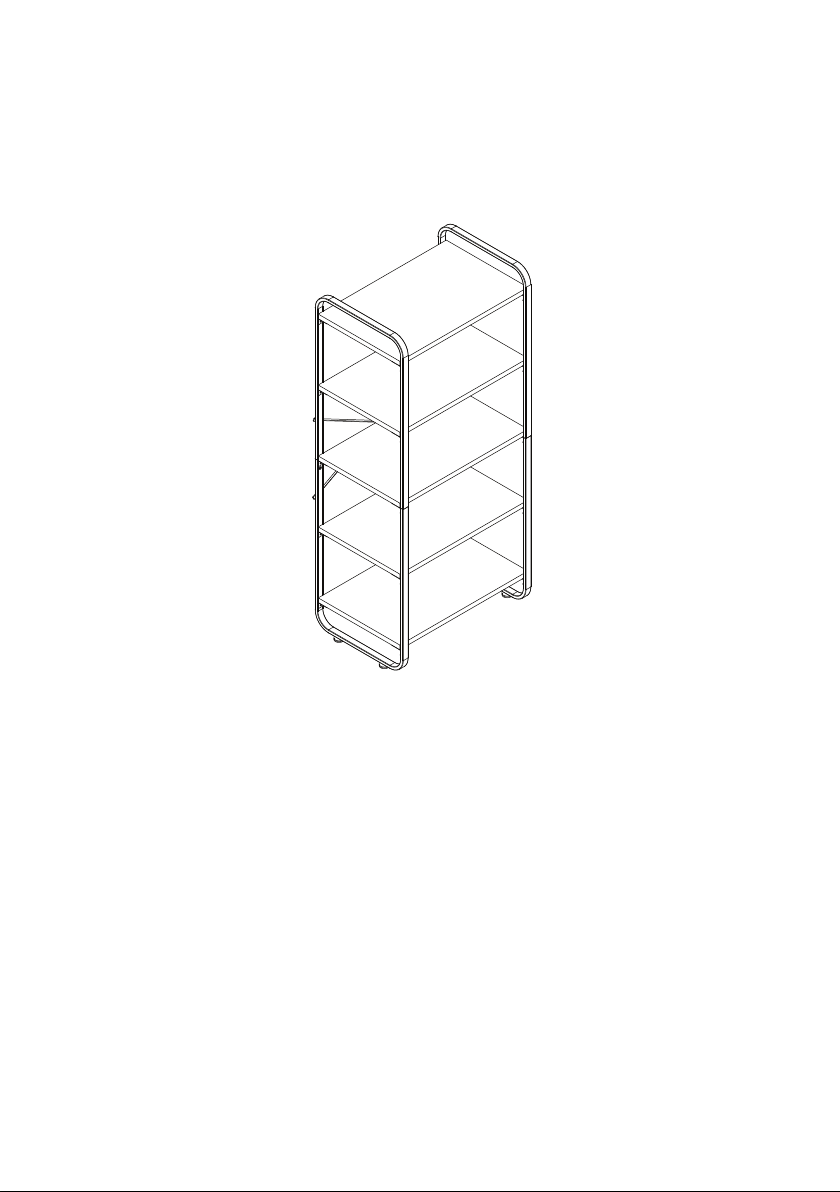

5 Tier Bookcase
NOTE TO CUSTOMERS:
1. For ease and speed of assembly we recommended that before you commence each step
of the assembly that you identify all the parts required to complete that step.
2. We recommended that where possible you allow sufficient space to assembly the item as
colose as possible to the place where it will be once assembled.
3. For the protection of youre furniture we recommended that the product is placed on
protected surface during assembly to prevent any damage.
4. During assembly do not over tighten, as this may damage the product.
5. Please ensure you retain all the product packaging until the item completely assembled.
6. Please periodically check all fittings and re-tighten as necessary.
7. It is recommended that this item should be assembled by two adults.
Page 1 of 3
Page 2

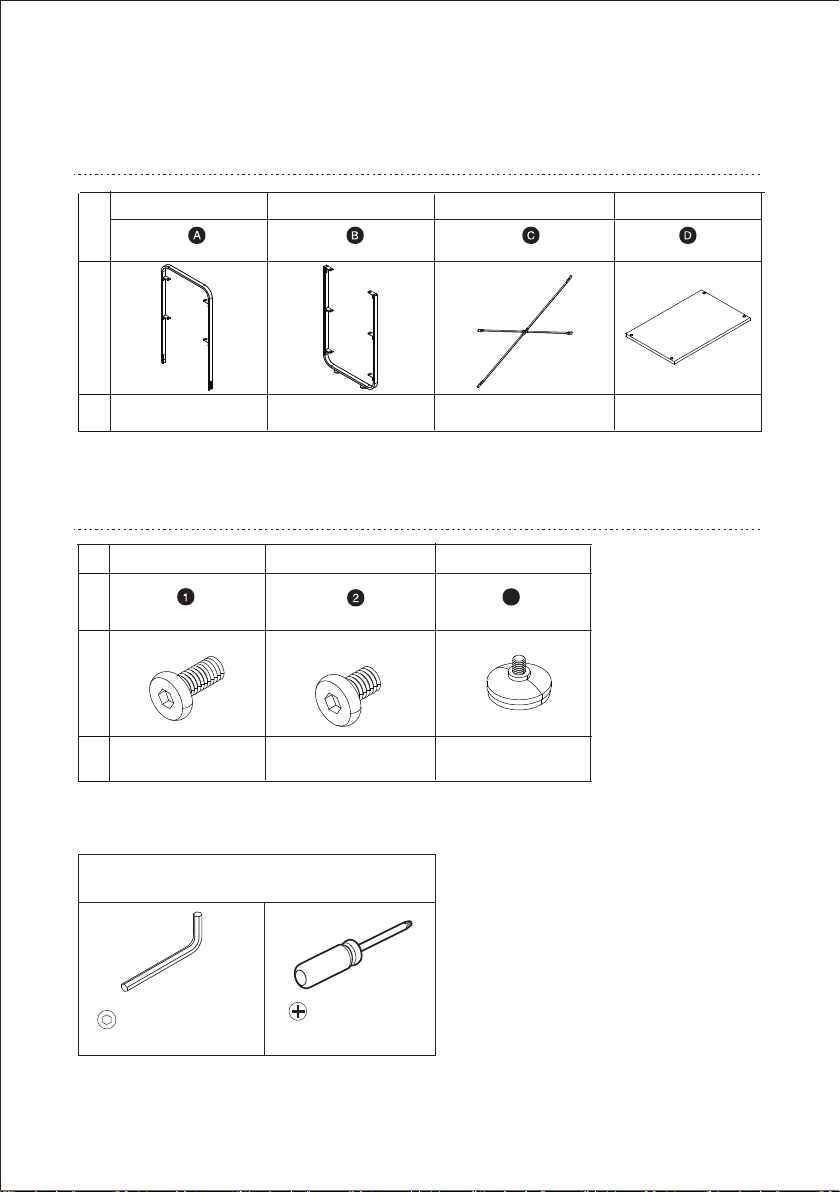

Parts list:
Upper Frame
2PCS
Hardware list:
Bolt
24PCS
Lower Frame
Connecting Bar
2PCS
Bolt
4PCS 4PCS
1PC
Leveler
3
Shelf Panel
5PCS
Tool Required:
Allen Wrench
Screwdriver
(Not included)
Page 2 of 3
Page 3

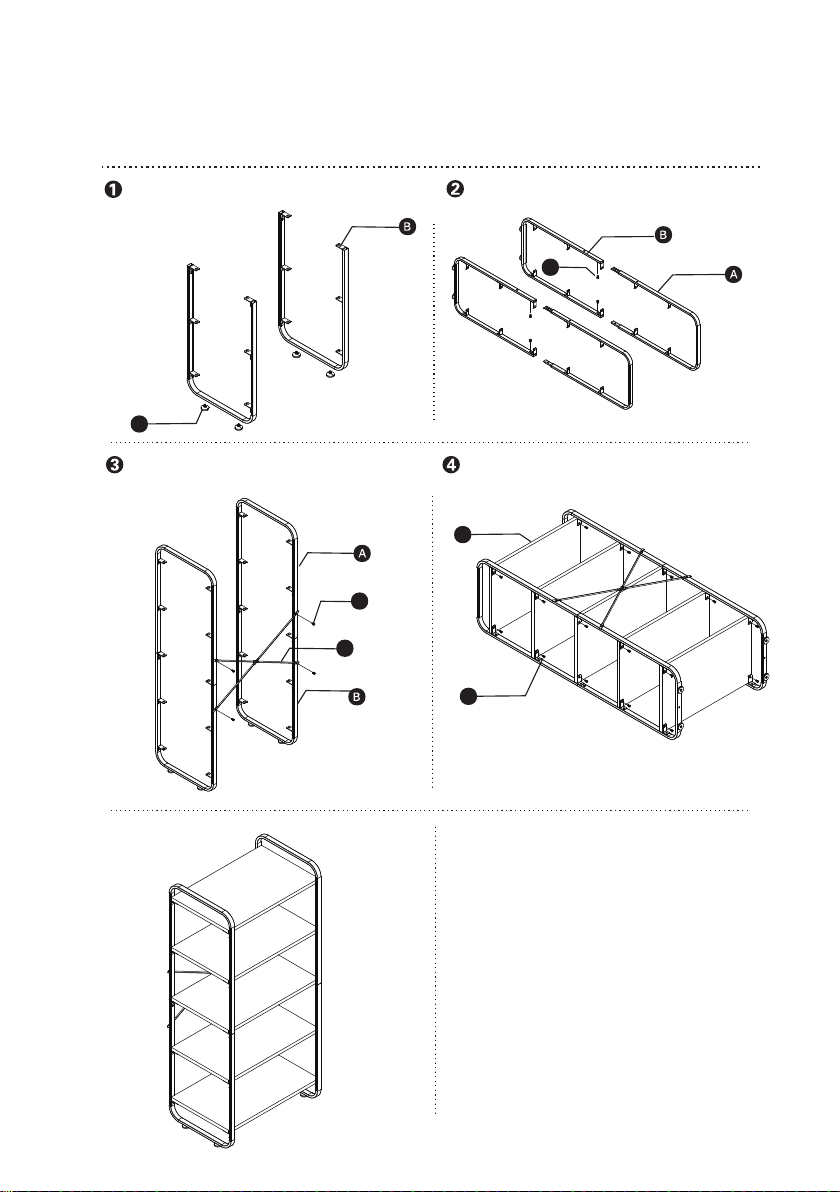

Assembly Instructions
Attach Levelers (3) to the bottom of Lower Frames (B).
3
Attach Connnecting Bars (C) to the back of Lower Frames
(B) and Upper Frames (A) using Bolts(1) as shown below.
Note:Do not tighten Bolts(1) until Step 4.
1
C
Tighten and Insert Upper Frames(A) into Lower
Frames (B) using Bolts(2).
2
Attach Shelf Panels (D) to Lower Frames (B) and Upper
Frames (A) using Bolts(1) as shown below.
Note:Do not tighten Bolts(1) until all panels are attached.
D
1
Page 3 of 3
