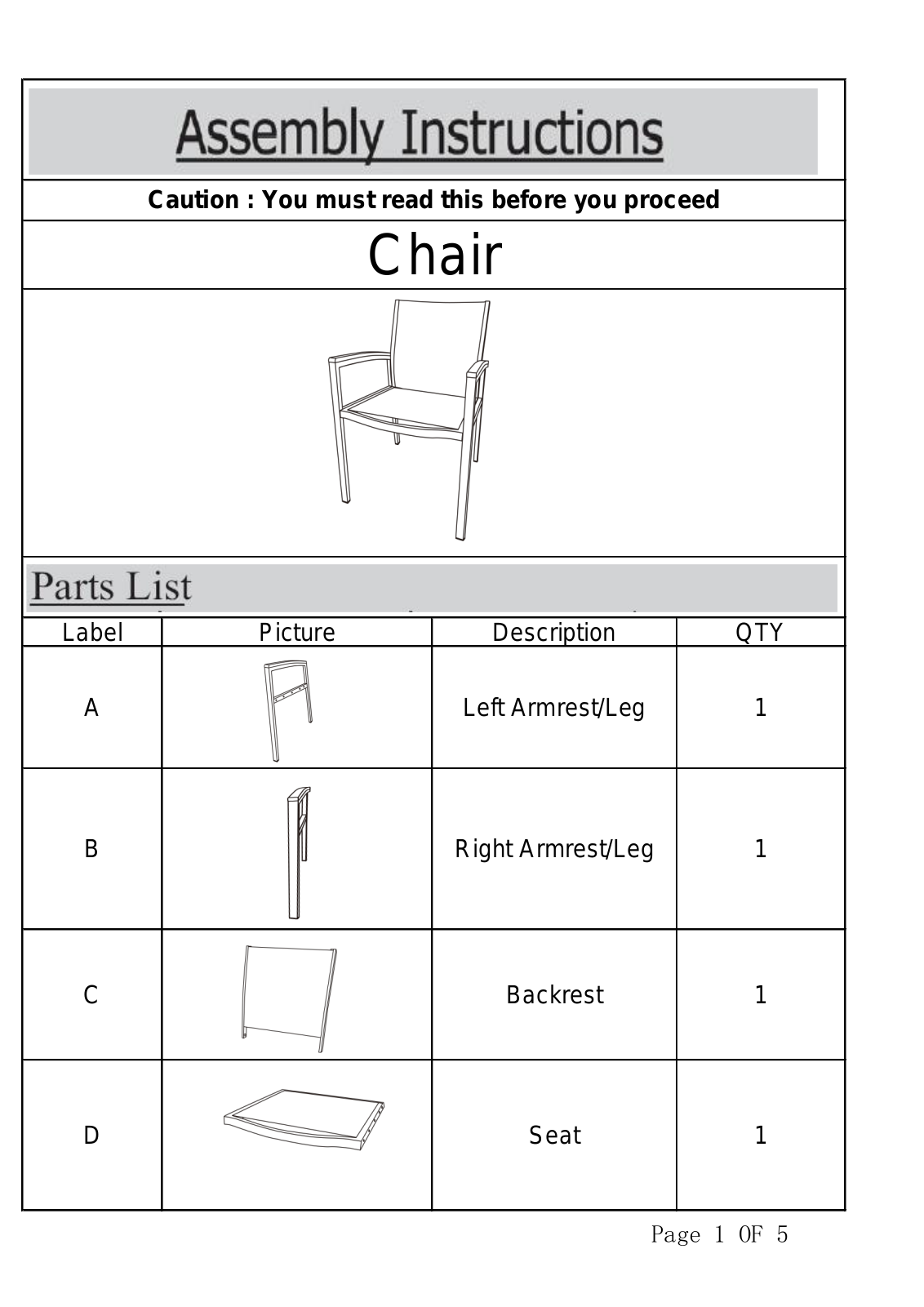

Label Picture Description QTY
A Left Armrest/Leg 1
B Right Armrest/Leg 1
C Backrest 1
D Seat 1
Caution : You must read this before you proceed
Chair
Page 1 OF 5
Label Picture Description QTY
① Bolt (M6*40MM) 13
②
Washer 13
③
Allen Key 1
Overview

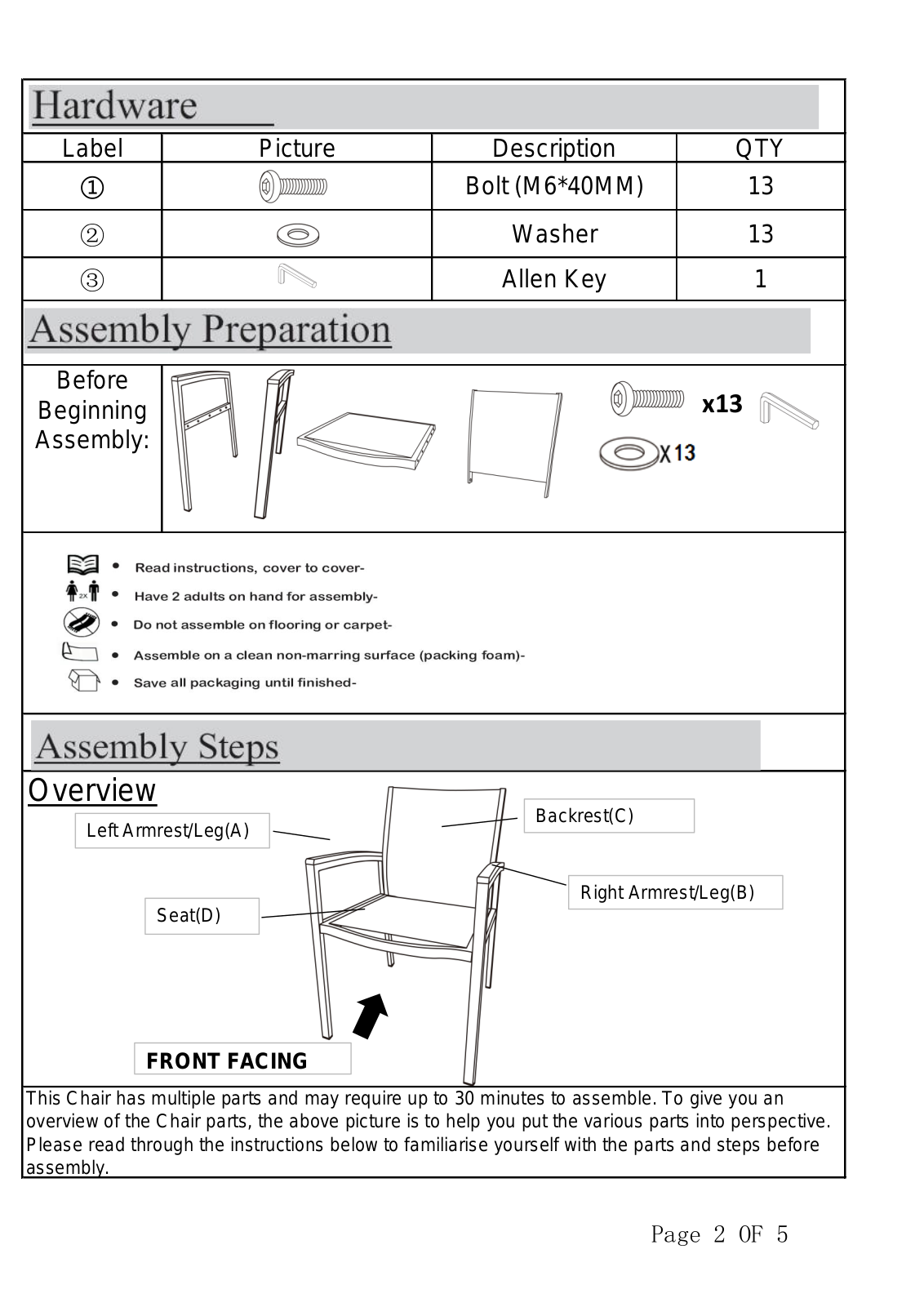

This Chair has multiple parts and may require up to 30 minutes to assemble. To give you an
overview of the Chair parts, the above picture is to help you put the various parts into perspective.
Please read through the instructions below to familiarise yourself with the parts and steps before
assembly.
Before
Beginning
Assembly:
Left Armrest/Leg(A)
Backrest(C)
Seat(D)
Right Armrest/Leg(B)
FRONT FACING
x13
Page 2 OF 5
Step 1
Step 2
Open the carton and place all the parts onto a clean, non-marring surface.

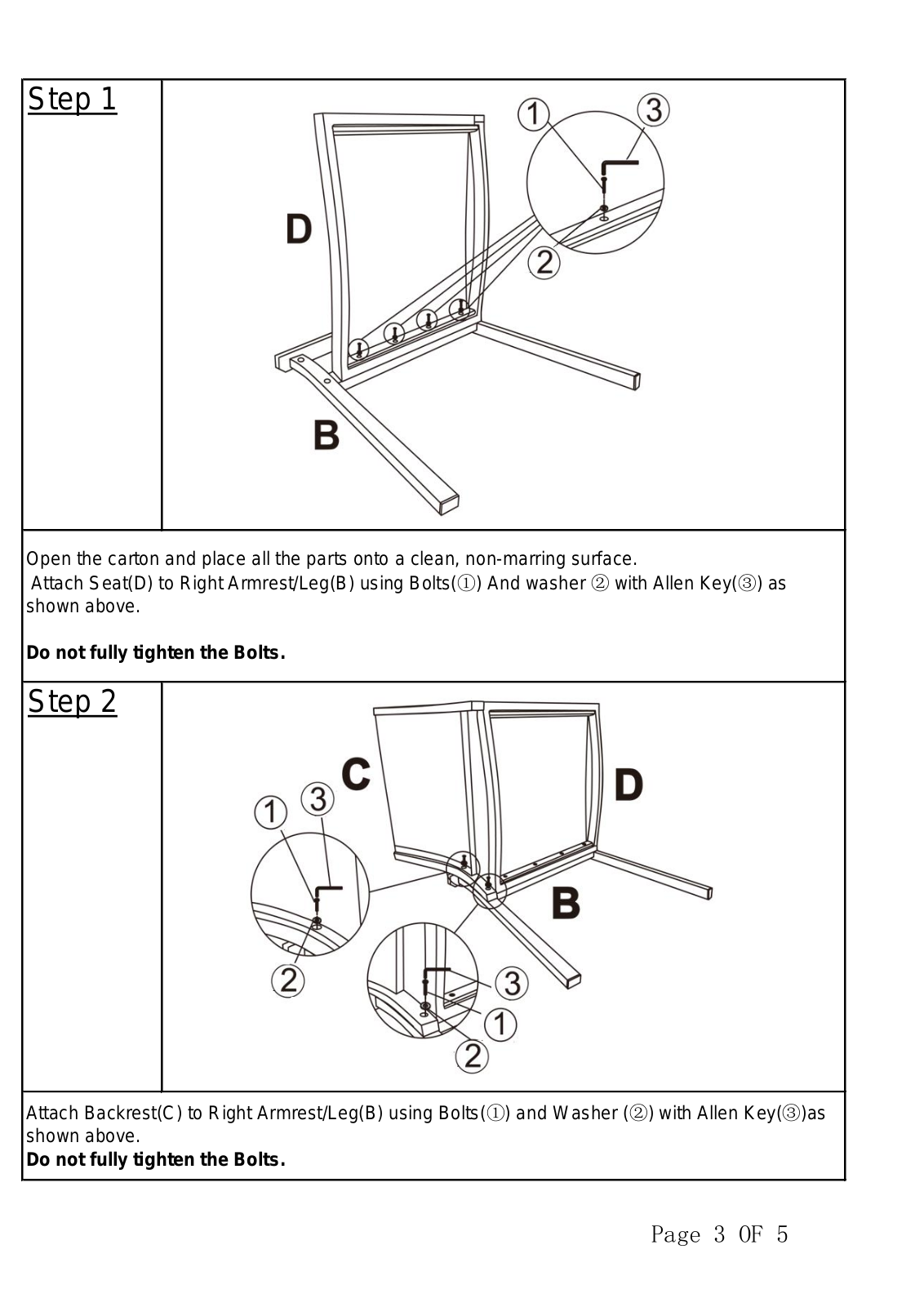

Attach Seat(D) to Right Armrest/Leg(B) using Bolts(①) And washer ② with Allen Key(③) as
shown above.
Do not fully tighten the Bolts.
Attach Backrest(C) to Right Armrest/Leg(B) using Bolts(①) and Washer (②) with Allen Key(③)as
shown above.
Do not fully tighten the Bolts.
Page 3 OF 5
Step 3
Step 4

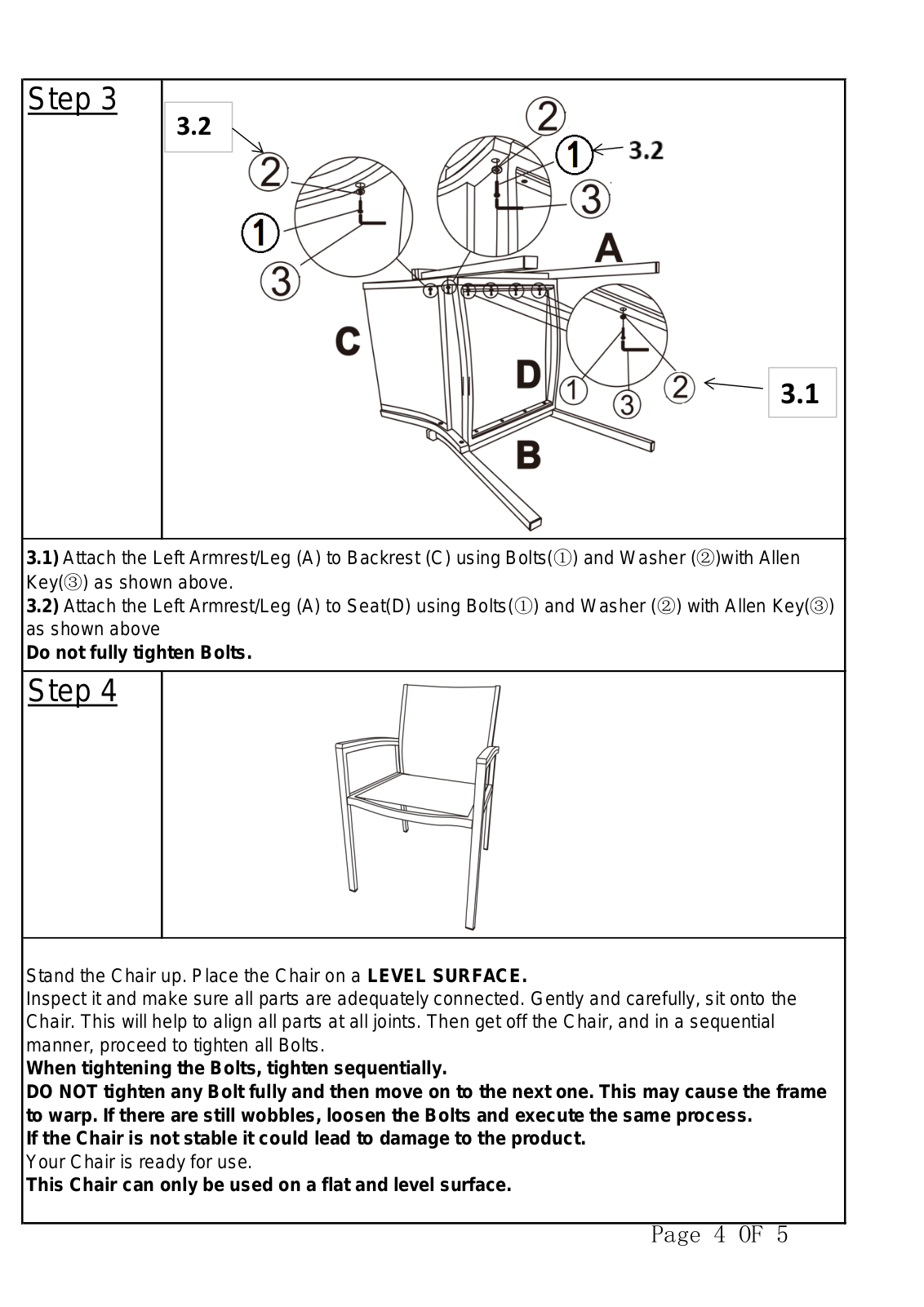

3.1) Attach the Left Armrest/Leg (A) to Backrest (C) using Bolts(①) and Washer (②)with Allen
Key(③) as shown above.
3.2) Attach the Left Armrest/Leg (A) to Seat(D) using Bolts(①) and Washer (②) with Allen Key(③)
as shown above
Do not fully tighten Bolts.
Stand the Chair up. Place the Chair on a LEVEL SURFACE.
Inspect it and make sure all parts are adequately connected. Gently and carefully, sit onto the
Chair. This will help to align all parts at all joints. Then get off the Chair, and in a sequential
manner, proceed to tighten all Bolts.
When tightening the Bolts, tighten sequentially.
DO NOT tighten any Bolt fully and then move on to the next one. This may cause the frame
to warp. If there are still wobbles, loosen the Bolts and execute the same process.
If the Chair is not stable it could lead to damage to the product.
Your Chair is ready for use.
This Chair can only be used on a flat and level surface.
3.2
3.1
Page 4 OF 5
Page 5 OF 5
