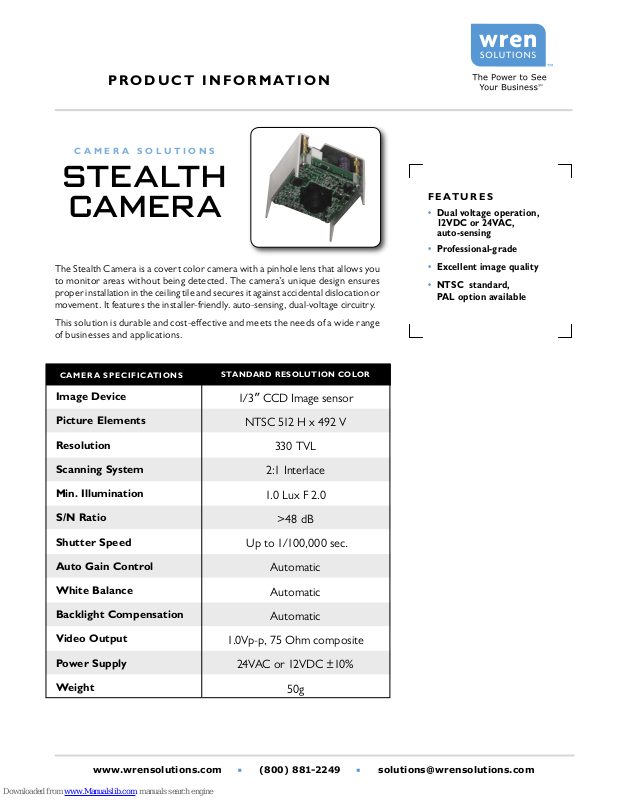

Wren Solution STEALTH CAMERA Product Information

P R O D U C T I N F O R M AT I O N

C A M E R A S O L U T I O N S

STEALTH

CAMERA

F EAT UR E S

• Dual voltage operation,

12VDC or 24VAC,
auto-sensing

• Professional-grade

The Stealth Camera is a covert color camera with a pinhole lens that allows you
to monitor areas without being detected. The camera’s unique design ensures
proper installation in the ceiling tile and secures it against accidental dislocation or
movement. It features the installer-friendly. auto-sensing, dual-voltage circuitry.

This solution is durable and cost-effective and meets the needs of a wide range
of businesses and applications.

CA M E RA S PEC I F I C ATIONS

Image Device

Picture Elements

Resolution

Scanning System

Min. Illumination

S/N Ratio

Shutter Speed

STAN DA RD RES OLUT ION COLO R

1/3” CCD Image sensor

NTSC 512 H x 492 V

330 TVL

2:1 Interlace

1.0 Lux F 2.0

>48 dB

Up to 1/100,000 sec.

• Excellent image quality

• NTSC standard,

PAL option available

Auto Gain Control

White Balance

Backlight Compensation

Video Output

Power Supply

Weight

www.wrensolutions.com [phone] [e-mail]

Automatic

Automatic

Automatic

1.0Vp-p, 75 Ohm composite

24VAC or 12VDC ±10%

50g

1.7 1

1.9 0

0. 0 8

1.6 2

S I D E V I EW

T O P V I E W

C A M E R A S O L U T I O N S

T E C H N I CAL S P E C I F I CAT I O N S

LE N S SPECIFICATI O N S

Format

1/3”

STEALTH

CAMERA

D I M E N S I O N S

( All Dimensions Are in Inches )

Focal Length

Iris

Relative Aperture (F Stops)

Angle of View (horizontal)

Back Focal Length

E NV IR ON M E NT

Indoor

R EC OM M E N D ED P OW ER S U P PL IE S

MPS24A serie s Power supplies for 24VAC cam era s
Multiple camera a pplic ation — 4, 8 , and 16 outputs
(Co ntac t Wren for am perage specif ications.)

MPS12D series Power supplies for 12VDC camera s
Multiple camera a pplic ation — 4, 8 , and 16 outputs
(Co ntac t Wren for am perage specif ications.)

3.7 mm pinhole

fixed

F2.0

66º

7.6 - 11.4 mm

BASIC UNIT WEIGHT = 50 GR AMS

(APPROX. 2 LBS)

Wren, 124 Wren Parkway, Jefferson City, MO 65109 USA
telephone [phone] toll-free [phone] facsimile [phone]
[e-mail] www.wrensolutions.com

Wren®, the Wren log o, The Power to See Your Busi ness, Wren I P Solutions , No Tools Required and S olution Set Series are tra demarks of Wren. The trade marks tha t are
followed by ® are registered trademark s in the U.S. All other trademark s and/or register ed trademarks mentio ned herein are propert ies of their respecti ve owners and are
used for referenc e purposes onl y. The use of these tradem arks does n ot indicate any affil iation with o r sponsorship of or by Wren. ©2008 Wren. All rig hts reserve d.

8L139 R ev- C (06 .09.08 )

MD 7.2. 210.4 0
