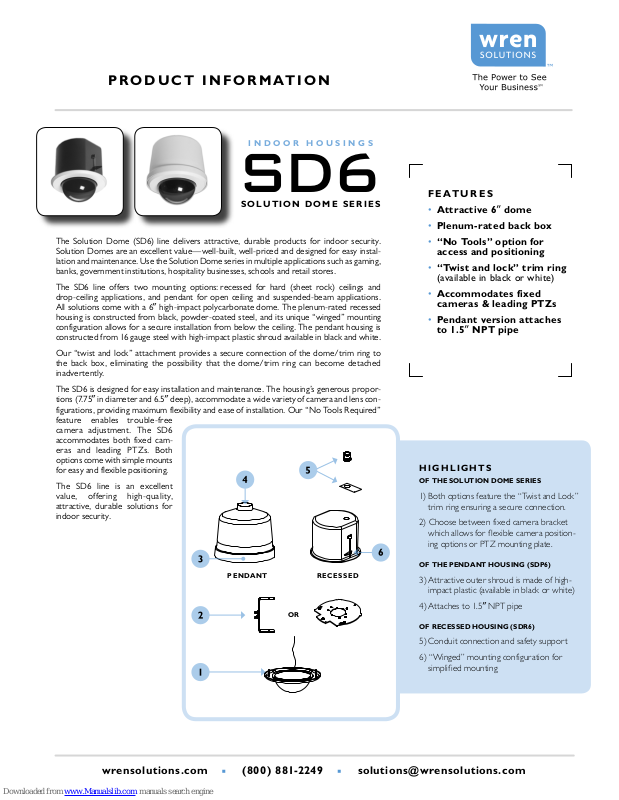

Wren Solution SDP6, SDR6, SD6 Product Information

P R O D U C T I N F O R M AT I O N

RE CE SSE D

OR

PE ND AN T

I N D O O R H O U S I N G S

SD6

S O L U TI O N DO ME S E RI E S

The Solution Dome (SD6) line delivers attractive, durable products for indoor security.
Solution Domes are an excellent value—well-built, well-priced and designed for easy instal
lation and maintenance. Use the Solution Dome series in multiple applications such as gaming,
banks, government institutions, hospitality businesses, schools and retail stores.

The SD6 line offers two mounting options: recessed for hard (sheet rock) ceilings and
drop-ceiling applications, and pendant for open ceiling and suspended-beam applications.
All solutions come with a 6
housing is constructed from black, powder-coated steel, and its unique “winged” mounting
configuration allows for a secure installation from below the ceiling. The pendant housing is
constructed from 16 gauge steel with high-impact plastic shroud available in black and white.

Our “twist and lock” attachment provides a secure connection of the dome/trim ring to
the back box, eliminating the possibility that the dome/trim ring can become detached
inadvertently.

The SD6 is designed for easy installation and maintenance. The housing’s generous propor
tions (7.75
figurations, providing maximum flexibility and ease of installation. Our “No Tools Required”
feature enables trouble-free
camera adjustment. The SD6
accommodates both fixed cam
eras and leading PTZs. Both
options come with simple mounts
for easy and flexible positioning.

The SD6 line is an excellent
value, offering high-quality,
attractive, durable solutions for
indoor security.

” in diameter and 6.5” deep), accommodate a wide variety of camera and lens con-

” high-impact polycarbonate dome. The plenum-rated recessed

-

F E AT U RE S

• Attractive 6” dome

• Plenum-rated back box

• “No Tools” option for

-

access and positioning

• “Twist and lock” trim ring

(available in black or white)

• Accommodates fixed

cameras & leading PTZs

• Pendant version attaches

to 1.5” NPT pipe

-

H I GH L I GH TS

OF THE SOLUTION DOME SERIES

1) Both options feature the “Twist and Lock”
trim ring ensuring a secure connection.

2) Choose between fixed camera bracket
which allows for flexible camera position­ ing options or PTZ mounting plate.

OF THE PENDANT HOUSING (SDP6)

3) Attractive outer shroud is made of high­ impact plastic (available in black or white)

4) Attaches to 1.5

OF RECESSED HOUSING (SDR6)

5) Conduit connection and safety support

6) “Winged” mounting configuration for
simplified mounting

” NPT pipe

wrensolutions.com [phone] solutions @wrensolutions.com

SDR6

SDP6

6.00

9.69

8.79

11.3

2

Attaches to 1.5” NPT

7.00

0.9

4

9.37

6.85

6.44

9.20

6.

0

I N D O O R H O U S I N G S

SD6

S O L U TI O N DO ME S E RI E S

T E C H N I CA L S P E C I F I CAT I O N S

O P T I O NA L A C C E S S O R I E S

C TS6 Ceiling Tile Suppor t for 2’x 2’ or 2’x 4’ su spended ceilings

D I M E N S I O N S

( All Dimensions Are in Inches )

Wren, 124 Wren Parkway, Jefferson City, MO 65109 USA
telephone [phone] toll-free [phone] facsimile [phone]
[e-mail] wrensolutions.com

Wren®, the Wren log o, The Power to See Your Busi ness, Wren IP So lutions, No Tools Requir ed and Solutio n Set Series are t rademarks of Wren. The trademark s that are
followed by ® are registered trademark s in the U.S. All other trademark s and/or registere d trademarks menti oned herein are propertie s of their respective owners and are
used for referenc e purposes only. The use of t hese trademarks does not ind icate any affiliatio n with or sponsor ship of or by Wren. ©2007 Wren. All rights rese rved.

BASIC UNIT SHIPPING WEIGHT = 6 LBS

BASIC UNIT SHIPPING WEIGHT = 8 LBS

7 L30 4 r ev-d (05 .08.07)

Doc MD 7.2. 210.0 9
