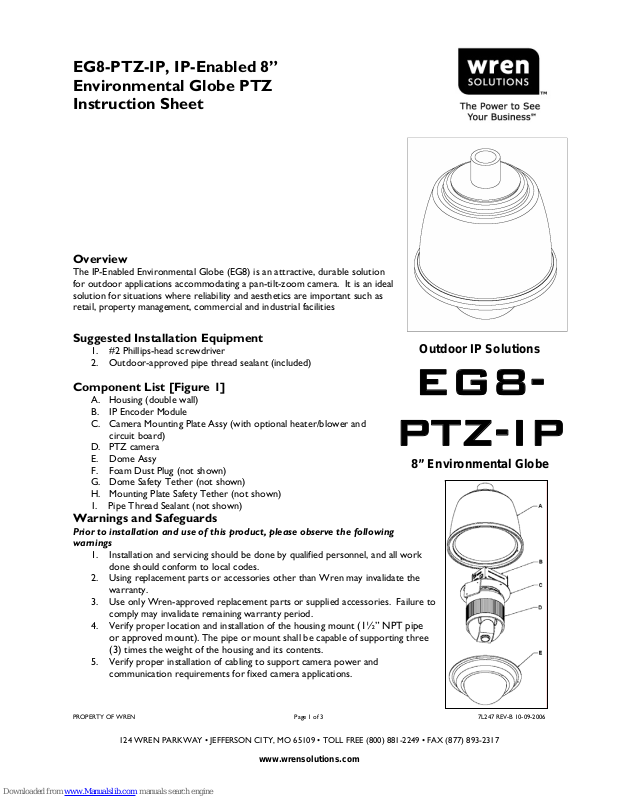

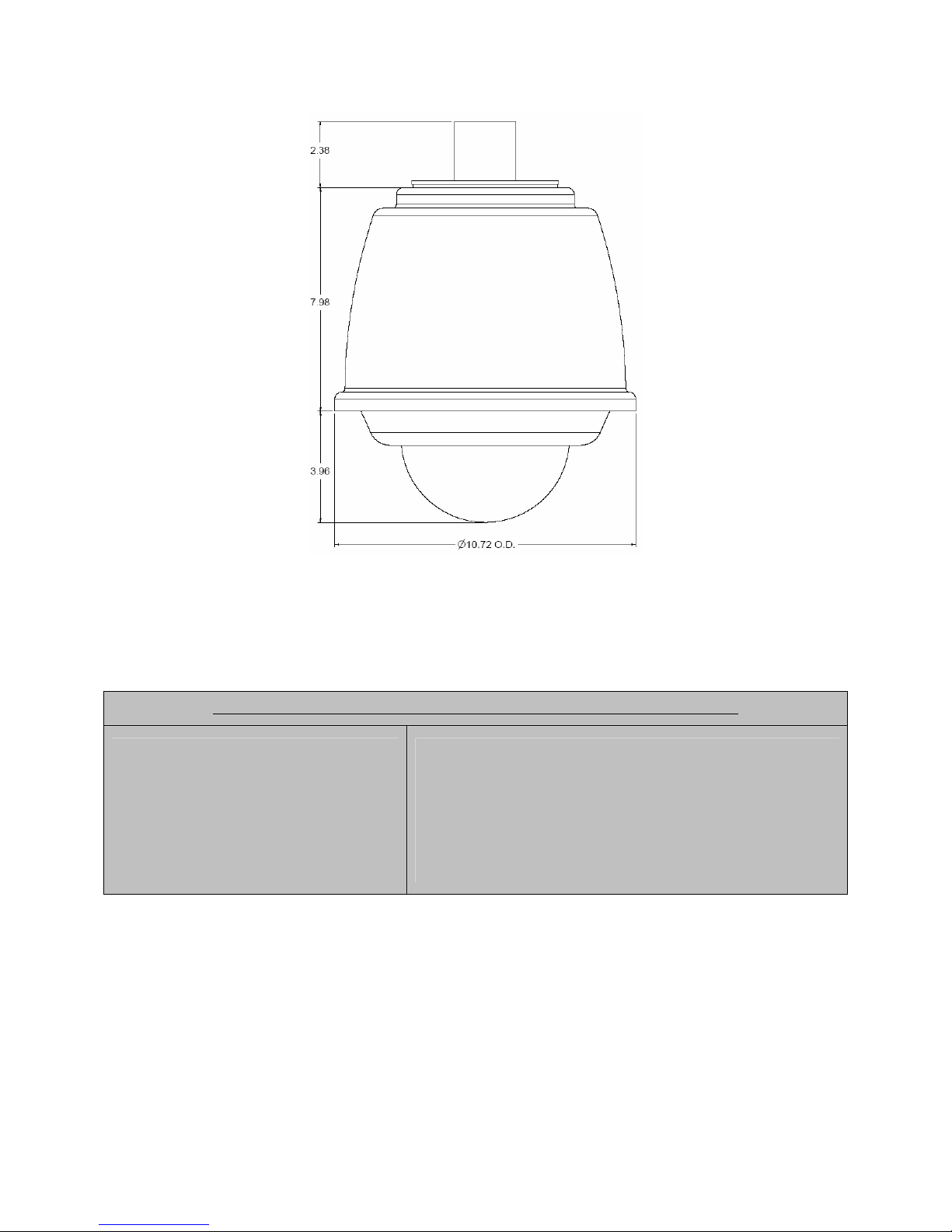

Wren Solution EG8-PTZ-IP Install Manual

EG8-PTZ-IP, IP-Enabled 8”
Environmental Globe PTZ
Instruction Sheet

Overview

The IP-Enabled Environmental Globe (EG8) is an attractive, durable solution
for outdoor applications accommodating a pan-tilt-zoom camera. It is an ideal
solution for situations where reliability and aesthetics are important such as
retail, property management, commercial and industrial facilities

Suggested Installation Equipment

1. #2 Phillips-head screwdriver

2. Outdoor-approved pipe thread sealant (included)

Component List [Figure 1]

A. Housing (double wall)
B. IP Encoder Module
C. Camera Mounting Plate Assy (with optional heater/blower and

circuit board)

D. PTZ camera
E. Dome Assy
F. Foam Dust Plug (not shown)
G. Dome Safety Tether (not shown)
H. Mounting Plate Safety Tether (not shown)

I. Pipe Thread Sealant (not shown)

Warnings and Safeguards

Prior to installation and use of this product, please observe the following
warnings

1. Installation and servicing should be done by qualified personnel, and all work

done should conform to local codes.

2. Using replacement parts or accessories other than Wren may invalidate the

warranty.

3. Use only Wren-approved replacement parts or supplied accessories. Failure to

comply may invalidate remaining warranty period.

4. Verify proper location and installation of the housing mount

or approved mount).
(3) times the weight of the housing and its contents.

5. Verify proper installation of cabling to support camera power and

communication requirements for fixed camera applications.

The pipe or mount shall be capable of supporting three

(1½” NPT pipe

Outdoor IP Solutions

EG8-

PTZ-IP

8” Environmental Globe

PROPERTY OF WREN Page 1 of 3 7L247 REV-B 10-09-2006

124 WREN PARKWAY • JEFFERSON CITY, MO 65109 • TOLL FREE [phone] • FAX [phone]

www.wrensolutions.com

6. The EG8 is designed to be operated by a 24VAC power source

Installation

1. Remove the dome.

2. Disconnect the PTZ camera from its base by pushing in and twisting

counter clockwise. Set aside.

3. Apply thread sealant (included) to the 1½” NPT pipe threads or

approved mount. This procedure will prevent moisture ingress through
the threads. [Figure 2]

Failure to properly seal the 1½” NPT pipe

WARNING

threads will permit water to enter the housing
and may damage the internal equipment.

4. Install EG8 assembly on 1½” NPT pipe or mount by rotating counter-

clockwise until threads are fully engaged.

5. Detach the camera mounting plate from the housing and allow it to be

suspended by tether.

6. Remove foam dust cap and route CAT5 and power cables into the housing.

7. Connect 24VAC to the input terminals on circuit board marked “+IN-.”

[Figure 3]

8. Insert end of CAT5 into the RJ45 jack in the IP encoder module. [Figure

4]

9. Push extra wire length up through housing flange and re-install the foam

dust cap in the cable entrance of the housing.

10. Reinstall and tighten the screws holding the camera mounting plate.

11. Reconnect the PTZ camera to its base on the camera mounting plate by

pressing onto the plate and turning clockwise.

12. Reinstall dome assembly and tighten screws to ensure a proper seal with

the dome gasket.

Electrical Properties

• Input Voltage = 24VAC ± 10%

• Power = 2.5A @ 24VAC (w/ heater on)

• Blower = 4.7 CFM (2.2 watts) (continuous operation)

Heater = 40 watts

•

Optional Mounts (consult factory for color and style options)

• Curved Wall Mount HM11xx

•

Pole Mount HM12xx (requires HM11xx)
Corner Mount HM13xx (requires HM11xx)

•

• Roof (Parapet) Mount HM14xx (requires HM11xx)

FIGURE 1

FIGURE 2

FIGURE 3

PROPERTY OF WREN Page 2 of 3 7L247 REV-B 10-09-2006

124 WREN PARKWAY • JEFFERSON CITY, MO 65109 • TOLL FREE [phone] • FAX [phone]

FIGURE 4

www.wrensolutions.com
