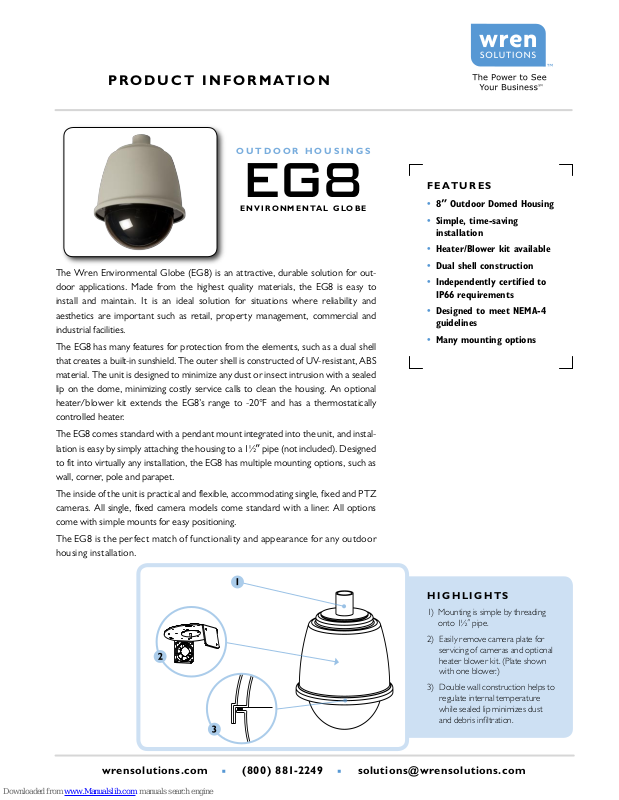

Wren Solution EG8 Product Information

P R O D U C T I N F O R M AT I O N

O U T D O O R H O U S I N G S

EG8

E N V I RO NM EN TAL G L O B E

The Wren Environmental Globe (EG8) is an attractive, durable solution for out-

door applications. Made from the highest quality materials, the EG8 is easy to

install and maintain. It is an ideal solution for situations where reliability and

aesthetics are important such as retail, property management, commercial and

industrial facilities.

The EG8 has many features for protection from the elements, such as a dual shell

that creates a built-in sunshield. The outer shell is constructed of UV-resistant, ABS

material. The unit is designed to minimize any dust or insect intrusion with a sealed

lip on the dome, minimizing costly service calls to clean the housing. An optional

heater/blower kit extends the EG8’s range to -20°F and has a thermostatically

controlled heater.

The EG8 comes standard with a pendant mount integrated into the unit, and instal

lation is easy by simply attaching the housing to a 1½

to fit into virtually any installation, the EG8 has multiple mounting options, such as

wall, corner, pole and parapet.

The inside of the unit is practical and flexible, accommodating single, fixed and PTZ

cameras. All single, fixed camera models come standard with a liner. All options

come with simple mounts for easy positioning.

The EG8 is the perfect match of functionality and appearance for any outdoor

housing installation.

” pipe (not included). Designed

F E AT U R E S

• 8” Outdoor Domed Housing

• Simple, time-saving

installation

• Heater/Blower kit available

• Dual shell construction

-

• Independently certified to

IP66 requirements

• Designed to meet NEMA-4

guidelines

• Many mounting options

wrensolutions.com [phone] solutions @wrensolutions.com

H I GH L I G H T S

1) Mounting is simple by threading
onto 1½

2) Easily remove camera plate for
servicing of cameras and optional
heater blower kit. (Plate shown
with one blower.)

3) Double wall construction helps to
regulate internal temperature
while sealed lip minimizes dust
and debris infiltration.

” pipe.

O U T D O O R H O U S I N G S

10.7

8.

0

8.

2

3.

7

2.

3

EG8

E N V I RO NM EN TAL G L O B E

D I M E N S I O N S

( All Dimensions Are in Inches )

T E C H N I C A L S P E C I F I C AT I O N S

E L E C T R I C AL P R O PE R T IE S

Input Voltage 24 VAC +/- 10%

Power Requirements 1 heater, blower = 1.8 amps (camera not included)

Blower 4.7 CFM @ 2.2 watts

Heater One (1) 40 watt heater

O P T I ON A L A C C ES S OR I E S

HM1102 Curved wall mount

HM1202 Pole mount

HM1302 Corner mount

HM1722 Roof (parapet) mount

(Contact Wren Technical Support for more information about Optional Accessories
compatibility.)

E N VI R O NM E NT

Outdoor

Operating Temperature 30°F to 100°F without heater/blower kit

EG8-HB: -20°F to 120°F
(one 40 watt heater with blower)

BASIC UNIT WEIGHT = 6 LBS

UNIT WITH HEATER/BLOWER

WEIGHT = 6 LBS

Wren, 124 Wren Parkway, Jefferson City, MO 65109 USA
telephone [phone] toll-free [phone] facsimile [phone]
[e-mail] wrensolutions.com

Wren®, the Wren log o, The Power to See Your Busi ness, Wren IP So lutions, No Tools Requir ed and Solutio n Set Series are t rademarks of Wren. The trademark s that are
followed by ® are registered trademark s in the U.S. All other trademarks and /or registered tradema rks mentioned herein are properties of their respe ctive owners and are
used for referenc e purposes only. The use of t hese trademarks does not ind icate any affiliatio n with or sponsor ship of or by Wren. ©2007 Wren. All rights rese rved.

C E RTI F IC AT I O N S

Designed to meet NEMA-4 guidelines and independently certified to IP66 requirements
with proper installation

8L103 R ev-E ( 02/2 2/07)
