Wren Solution C4320, C4520, C4620, L3SV2A, L3SV5A Product Information
.58
2.42
2.00
.7
0
1.98
1.98
2.39

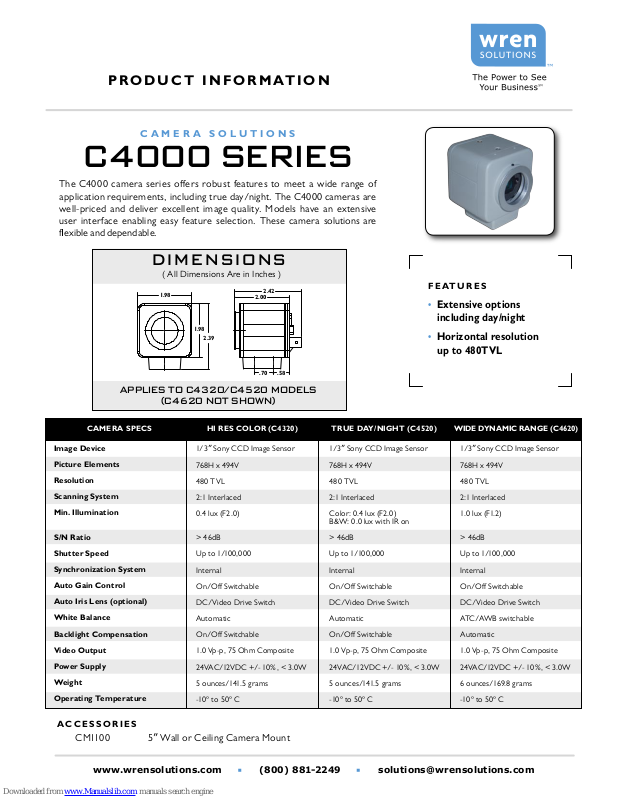

P R O D U C T I N F O R M AT I O N
C A M E R A S O L U T I O N S
C4000 SERIES
The C4000 camera series offers robust features to meet a wide range of
application requirements, including true day/night. The C4000 cameras are
well-priced and deliver excellent image quality. Models have an extensive
user interface enabling easy feature selection. These camera solutions are
flexible and dependable.
D I M E N S I O N S
( All Dimensions Are in Inches )
F E AT U RE S
• Extensive options
including day/night
• Horizontal resolution
up to 480TVL
APPLIES TO C4320/C4520 MODELS
Image Device
Picture Elements
Resolution
Scanning System
Min. Illumination
S/N Ratio
Shutter Speed
Synchronization System
Auto Gain Control
Auto Iris Lens (optional)
White Balance
Backlight Compensation
Video Output
Power Supply
Weight
Operating Temperature
(C4620 NOT SHOWN)
HI RES COLOR (C4320) TRUE DAY/NIGHT (C4520) WIDE DYNAMIC RANGE (C4620)CAMER A SPECS
1/3” Sony CCD Image Sensor
768H x 494V
480 TVL
2:1 Interlaced
0.4 lux (F2.0)
> 46dB
Up to 1/100,000
Internal
On/Off Switchable
DC/Video Drive Switch
Automatic
On/Off Switchable
1.0 Vp-p, 75 Ohm Composite
24VAC/12VDC +/- 10%, < 3.0W
5 ounces/141.5 grams
-10º to 50º C
1/3” Sony CCD Image Sensor
768H x 494V
480 TVL
2:1 Interlaced
Color: 0.4 lux (F2.0)
B&W: 0.0 lux with IR on
> 46dB
Up to 1/100,000
Internal
On/Off Switchable
DC/Video Drive Switch
Automatic
On/Off Switchable
1.0 Vp-p, 75 Ohm Composite
24VAC/12VDC +/- 10%, < 3.0W
5 ounces/141.5 grams
-10º to 50º C
1/3” Sony CCD Image Sensor
768H x 494V
480 TVL
2:1 Interlaced
1.0 lux (F1.2)
> 46dB
Up to 1/100,000
Internal
On/Off Switchable
DC/Video Drive Switch
ATC/AWB switchable
Automatic
1.0 Vp-p, 75 Ohm Composite
24VAC/12VDC +/- 10%, < 3.0W
6 ounces/169.8 grams
-10º to 50º C
A C C E SS O R IE S
CM1100 5” Wall or Ceiling Camera Mount
www.wrensolutions.com (800) 881-2249 solutions@wrensolutions.com
F E AT U RE S
1.7
2.0
2.4
1.81.4
2.3
• Compatible with 1/3”
format cameras
P R O D U C T I N F O R M AT I O N
• Auto iris
• All-glass optics
D I M E N S I O N S
( All Dimensions Are in Inches )
L3SV2A
L3SV5A
L3SV5AL3SV2A
L E N S S O L U T I O N S
L3SV
V A R I F O C A L L E N S E S
The L3SV varifocal lenses deliver excellent quality, durability and value.
Models have all-glass optics and metal threads for camera connection. Compatible with 1/3-inch CS-mount cameras, L3SV lenses are easy to use and
install. They have focal lengths of 2.8-12 mm and 5-50 mm. Lenses utilize the
latest technology for optimized, bright, sharp images even in environments
with changing light.
MODEL L3SV2A MODEL L3SV5ALENS SPECS
Format
Mount Type
Focal Length (mm)
Iris
Focus
Zoom
Zoom Ratio
Relative Aperture (F Stops)
Angle of View (Diagonal)
Angle of View (Horizontal)
Angle of View Vertical
Back Focal Length (mm)
Weight (grams)
1/3”
CS
2.8 - 12
auto: DC drive
manual
manual
4x
1.4 - 360
134.0º - 32.0º
99.8º - 25.0º
72.5º - 18.7º
9.75 - 20.46
79
1/3”
CS
5.0 - 50
auto: DC drive
manual
manual
10x
1.4 - 360
59.6º - 7.4º
49.2º - 5.82º
37.98º - 4.38º
8.4 - 14.2
204
